> Decal Dilemma:, Would love some help from the community!
914_7T3
post Aug 18 2019, 11:18 PM
Post #1


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,846
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California
Will be having the following decals reproduced for my '73 resto project and need some assistance.

If anyone still has these markings on their cars, would be super appreciative if you could reply with the outside dimensions of each. Thanks for your help and if anyone elso would like a set, I'm amenable to setting up a group buy for the '73 community @bbrock @superhawk996

Special thanks to @JeffBowlsby for the reference photos from

http://bowlsby.net/914/Classic/PLM.htm

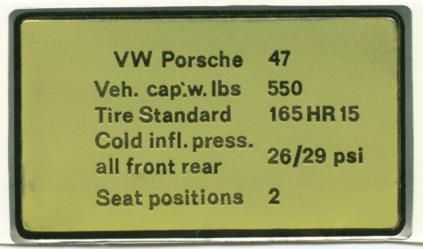

expansion tank tire decal
Attached Image

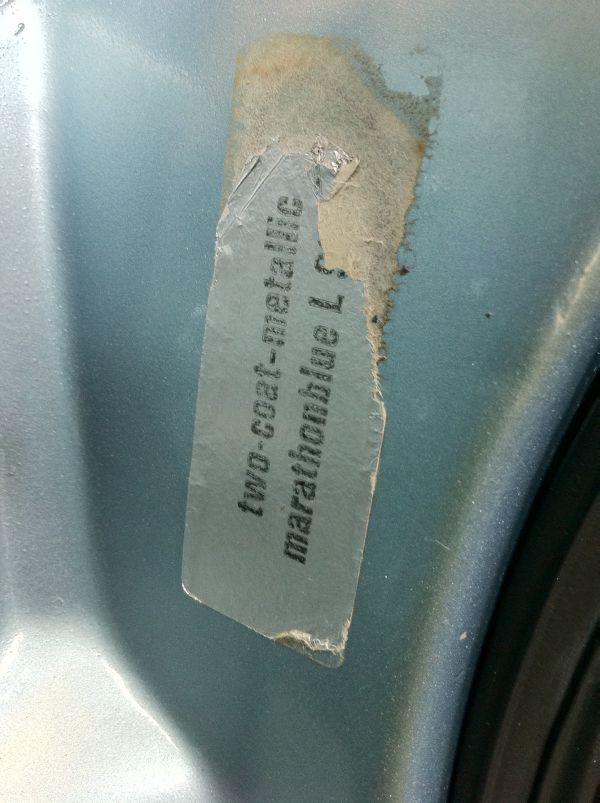

paint code decal-driver's side door jamb
Attached Image

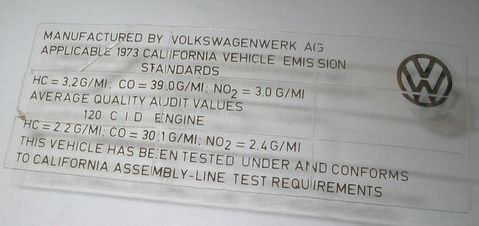

CA windshield emissions decal
Attached Image

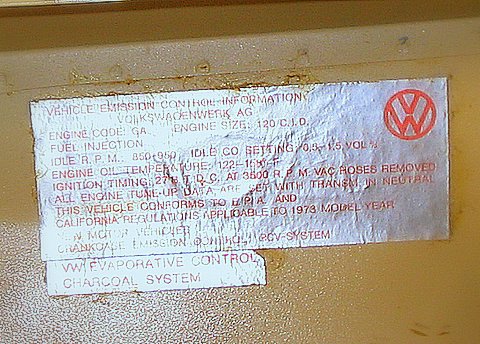

CA engine bay emission decals
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jett
post Aug 19 2019, 08:01 AM
Post #2


Senior Member
***

Group: Members
Posts: 1,630
Joined: 27-July 14
From: Seattle
Member No.: 17,686
Region Association: Pacific Northwest
QUOTE(914_7T3 @ Aug 18 2019, 10:18 PM) *

Will be having the following decals reproduced for my '73 resto project and need some assistance.

If anyone still has these markings on their cars, would be super appreciative if you could reply with the outside dimensions of each. Thanks for your help and if anyone elso would like a set, I'm amenable to setting up a group buy for the '73 community @bbrock @superhawk996

Special thanks to @JeffBowlsby for the reference photos from

http://bowlsby.net/914/Classic/PLM.htm

expansion tank tire decal
Attached Image

paint code decal-driver's side door jamb
Attached Image

CA windshield emissions decal
Attached Image

CA engine bay emission decals
Attached Image


Interested in GB and for a complete enumeration of all of the sticker locations.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Aug 19 2019, 08:10 AM
Post #3


914 Guru
*****

Group: Members
Posts: 7,811
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
we have the tire sticker and most of the timing emissions stickers on the shelf, but not all of them
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_7T3
post Aug 19 2019, 10:08 AM
Post #4


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,846
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California
QUOTE(dr914@autoatlanta.com @ Aug 19 2019, 07:10 AM) *

we have the tire sticker and most of the timing emissions stickers on the shelf, but not all of them


@dr914@autoatlanta.com

Thanks, are you able to assist in providing these dimensions?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Aug 19 2019, 11:18 AM
Post #5


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
What I'm looking for ia a good quality and correct size hood crest decal.
I have to remove the one on the wifes 914 because it will get pried off where she works, but I need to cover the holes.
Most I've seen are the wrong size and/or poor quality.


GT3 decal form the dealer is $130 canadian (IMG:style_emoticons/default/WTF.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_7T3
post Aug 19 2019, 12:15 PM
Post #6


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,846
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California
QUOTE(Mark Henry @ Aug 19 2019, 10:18 AM) *

What I'm looking for ia a good quality and correct size hood crest decal.
I have to remove the one on the wifes 914 because it will get pried off where she works, but I need to cover the holes.
Most I've seen are the wrong size and/or poor quality.


GT3 decal form the dealer is $130 canadian (IMG:style_emoticons/default/WTF.gif)



That's easy!!! Just sent you a PM with a link!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Aug 19 2019, 12:28 PM
Post #7


Advanced Member
****

Group: Members
Posts: 2,153
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
Aase Sales has a nice one.
Put it on my car and I'm picky so it's got to be good. (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Aug 19 2019, 12:42 PM
Post #8


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
Best info I could find on the metallic paint decals is here:
http://www.914world.com/bbs2/index.php?sho...227846&st=0
I had one made by a guy on ebay as they are a VW item. I think the link is in that thread. If not, I will get it for you.

I'll get dims on the expansion tank sticker after work. Just need to go out to the storage shed and measure.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JawjaPorsche
post Aug 19 2019, 12:59 PM
Post #9


Advanced Member
****

Group: Members
Posts: 3,463
Joined: 23-July 11
From: Clayton, Georgia
Member No.: 13,351
Region Association: South East States
QUOTE(914_7T3 @ Aug 19 2019, 12:08 PM) *

QUOTE(dr914@autoatlanta.com @ Aug 19 2019, 07:10 AM) *

we have the tire sticker and most of the timing emissions stickers on the shelf, but not all of them


@dr914@autoatlanta.com

Thanks, are you able to assist in providing these dimensions?



Why don’t you order them from Auto Atlanta instead of reproducing? He says he has them on the shelf.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_7T3
post Aug 19 2019, 02:23 PM
Post #10


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,846
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California
QUOTE(JawjaPorsche @ Aug 19 2019, 11:59 AM) *

QUOTE(914_7T3 @ Aug 19 2019, 12:08 PM) *

QUOTE(dr914@autoatlanta.com @ Aug 19 2019, 07:10 AM) *

we have the tire sticker and most of the timing emissions stickers on the shelf, but not all of them


@dr914@autoatlanta.com

Thanks, are you able to assist in providing these dimensions?



Why don’t you order them from Auto Atlanta instead of reproducing? He says he has them on the shelf.


Because he only has the expansion tank decal and the color of it is not correct IMHO.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Aug 19 2019, 06:49 PM
Post #11


914 Guru
*****

Group: Members
Posts: 5,726
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(Mark Henry @ Aug 19 2019, 01:18 PM) *

What I'm looking for ia a good quality and correct size hood crest decal.
I have to remove the one on the wifes 914 because it will get pried off where she works, but I need to cover the holes.
Most I've seen are the wrong size and/or poor quality.


GT3 decal form the dealer is $130 canadian (IMG:style_emoticons/default/WTF.gif)



(IMG:style_emoticons/default/happy11.gif)

$130 for a sticker from the Stealership sounds about right for a GT3. Pocket change.

Plus, its good for a GT3 weight savings too. Even more important to save weight on a 914 so you should just pony up and call it a day. (IMG:style_emoticons/default/lol-2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_7T3
post Aug 19 2019, 09:26 PM
Post #12


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,846
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California
QUOTE(bbrock @ Aug 19 2019, 11:42 AM) *

Best info I could find on the metallic paint decals is here:
http://www.914world.com/bbs2/index.php?sho...227846&st=0
I had one made by a guy on ebay as they are a VW item. I think the link is in that thread. If not, I will get it for you.

I'll get dims on the expansion tank sticker after work. Just need to go out to the storage shed and measure.


@bbrock

Did you end up using the 28mm x75mm size and can you confirm the font used? That should be enough to go on for my vendor! Eagerly awainting the expansion tank dims and I will be 2 for 4.

Anyone else have an original emission decal on the windshield and/or engine bay whereby the size can be reference?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Aug 19 2019, 10:17 PM
Post #13


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
@914_7T3

Expansion tank sticker dimensions are 80mm x 49mm

Not sure about the font used on my paint sticker. Here is the link to where I got it:

https://www.ebay.com/itm/VW-Vintage-style-P...2.c100227.m3827

The font looks pretty close to what I see in pics. I should have had the guy space the letters a little different though.

Actual dimensions of the paint sticker I got are 28mm x 78mm. I'm not sure why the extra 3mm length.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cal
post Aug 20 2019, 06:06 AM
Post #14


Senior Member
***

Group: Members
Posts: 614
Joined: 19-November 14
From: Philadelphia
Member No.: 18,138
Region Association: North East States
Please keep in mind that there were two different tire decals available for our 914's.....the one shown in the photo is for a 2.0L car. No one currently reproduces the 2.0L version.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_7T3
post Aug 20 2019, 10:44 AM
Post #15


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,846
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California
QUOTE(Cal @ Aug 20 2019, 05:06 AM) *

Please keep in mind that there were two different tire decals available for our 914's.....the one shown in the photo is for a 2.0L car. No one currently reproduces the 2.0L version.


Correct, it is for the 2.0!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Aug 20 2019, 12:21 PM
Post #16


914 Wiring Harnesses
*****

Group: Members
Posts: 8,470
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
QUOTE(Cal @ Aug 20 2019, 05:06 AM) *

Please keep in mind that there were two different tire decals available for our 914's.....the one shown in the photo is for a 2.0L car. No one currently reproduces the 2.0L version.


Actually there were 8.

http://bowlsby.net/914/Classic/PLM.htm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Aug 20 2019, 04:04 PM
Post #17


914 Wiring Harnesses
*****

Group: Members
Posts: 8,470
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
You really going to make this one? its complicated with the 3 x 3 cells which are separate panels only connected at the corners of each panel.

108mm x 42mm.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_7T3
post Aug 20 2019, 04:53 PM
Post #18


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,846
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California
QUOTE(JeffBowlsby @ Aug 20 2019, 03:04 PM) *

You really going to make this one? its complicated with the 3 x 3 cells.


Yup, if I can get someone to forward me the dims of it along with the engine bay emission decal.

Anybody out there have them that can provide outside dimensions?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Aug 21 2019, 01:25 AM
Post #19


914 Wiring Harnesses
*****

Group: Members
Posts: 8,470
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
See revised post 17 above.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_7T3
post Aug 21 2019, 11:13 AM
Post #20


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,846
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California
QUOTE(JeffBowlsby @ Aug 21 2019, 12:25 AM) *

See revised post 17 above.



Jeff, thanks so much for those dimensions. 3 down and 1 to go!

If anyone has the outside dimensions for the engine bay emission decal picutured below, please add it to the thread. Thank you.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


2 Pages V  1 2 >
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 20th April 2024 - 02:08 AM
Invision Power Board v9.1.4 © 2024  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
