> At the Risk of Becoming "That Guy"...I have another question, Clutch cable connection question.
Craigers17
post Oct 12 2020, 04:59 PM
Post #1


Senior Member
***

Group: Members
Posts: 839
Joined: 5-August 17
From: Rome, GA
Member No.: 21,317
Region Association: South East States

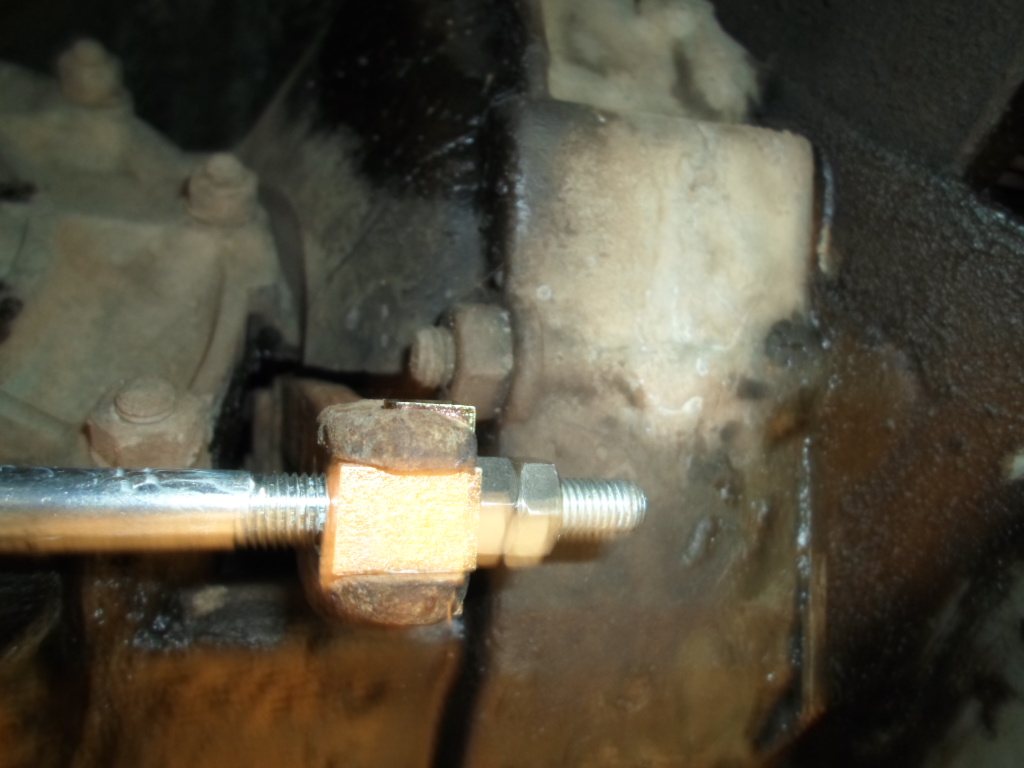

I recently replaced the pedal cluster and mc, so I figured I'd replace the clutch cable while the cluster was out. My question is what is the correct setup where the cable mates up with the clutch fork. I'm not sure my original setup was correct, so now I have the cable attached to the fork with the trunion, and then a nut, followed by a lock nut. No nuts before the fork/trunion as seen in the pic. Just want to make sure this is correct.

If not, can someone please advise on how many nuts, washers, lock nuts, etc. Thanks in advance.

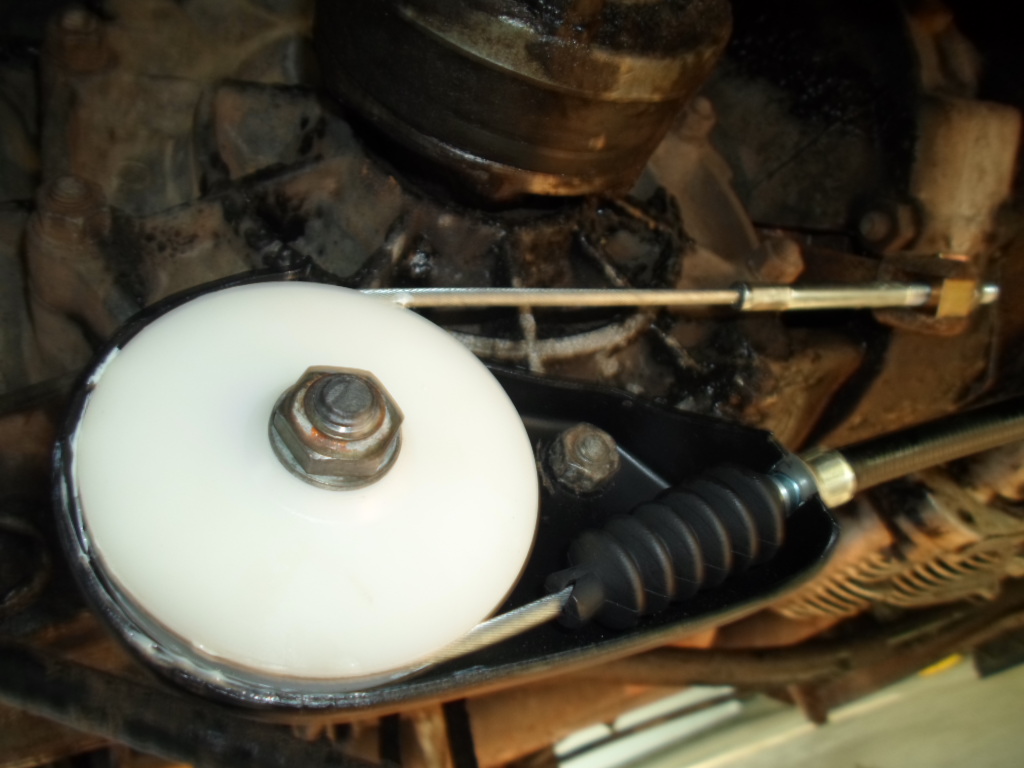

Also, I installed a new roller, which I assume is suppose to roll. While the cable does travel around it and I can shift into all gears, the roller is now stationary....I can't really explain that one....any advice on that one would be appreciated as well.

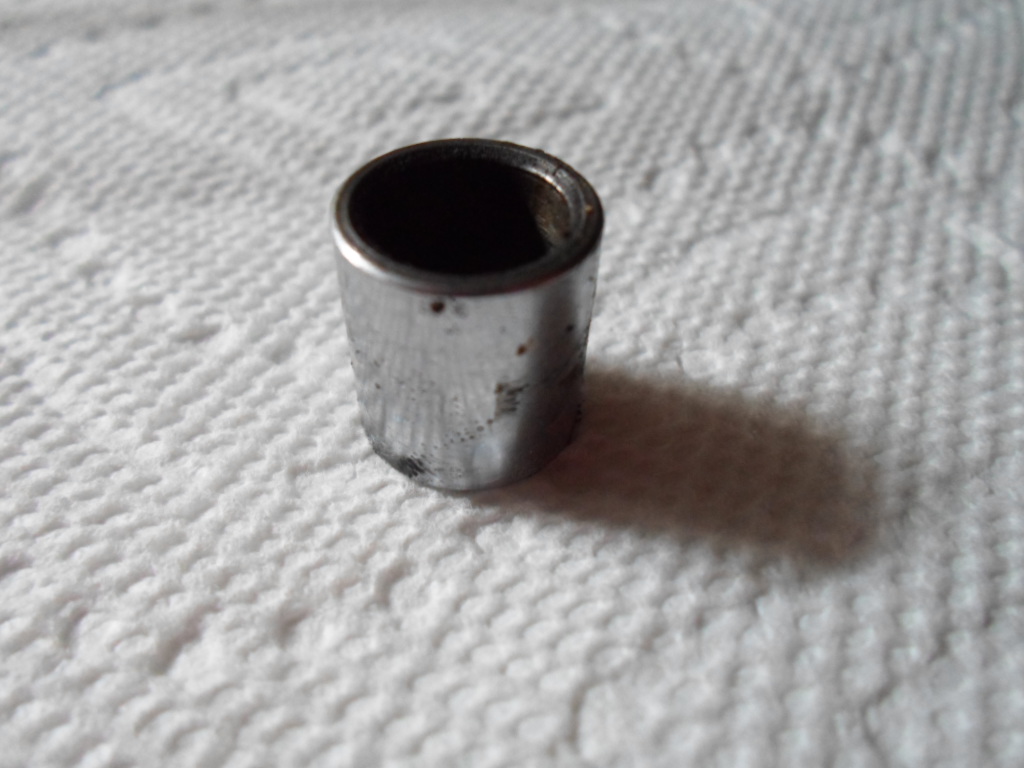

EDIT/UPDATE: I just looked at my old roller and removed the center piece from it. I have a feeling that the roller I just installed didn't have this metal cylinder in it...so that solves the roller problem.(see 3rd pic)





Attached Image Attached Image


Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Oct 12 2020, 05:34 PM
Post #2


I. I. R. C.
*****

Group: Members
Posts: 6,812
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None



That all looks pretty good. You are correct in that the metal bushing/sleeve needs to go in the hub of the pulley roller, otherwise you'll be torquing the nut on the roller instead of the bushing.

Do you have a tab washer bent around the roller bracket and into the hole on the back? That's what keeps the cable from coming off the bracket. Don't know if those are still available from Porsche

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wndsrfr
post Oct 12 2020, 05:35 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,448
Joined: 30-April 09
From: Rescue, Virginia
Member No.: 10,318
Region Association: MidAtlantic Region



You've got it right....no nut on the "roller" side of the trunnion. That looks like an OEM cable, nice work & yes, the "roller" will move freely with the center bushing in there....enjoy!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
maf914
post Oct 12 2020, 05:42 PM
Post #4


Not a Guru!
****

Group: Members
Posts: 3,049
Joined: 30-April 03
From: Central Florida
Member No.: 632
Region Association: None



Per the Porsche 914 PET diagram the bushing or sleeve should be in the cable pulley, followed by the washer and lock nut as your photo shows. Polish the bushing so the pulley rotates freely.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Craigers17
post Oct 12 2020, 05:55 PM
Post #5


Senior Member
***

Group: Members
Posts: 839
Joined: 5-August 17
From: Rome, GA
Member No.: 21,317
Region Association: South East States



Thanks for the replies and the information. I will polish up the bushing...I can't believe my dumb ass didn't look at the old roller as a reference..oh well...easy fix. Also, I did install the beer can pop top looking locking tab, but you just can't see it in the pic(I got mine from 914Rubber). Thanks again for the help!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jett
post Oct 12 2020, 06:30 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,680
Joined: 27-July 14
From: Seattle
Member No.: 17,686
Region Association: Pacific Northwest



QUOTE(Craigers17 @ Oct 12 2020, 04:55 PM) *

Thanks for the replies and the information. I will polish up the bushing...I can't believe my dumb ass didn't look at the old roller as a reference..oh well...easy fix. Also, I did install the beer can pop top looking locking tab, but you just can't see it in the pic(I got mine from 914Rubber). Thanks again for the help!

Take lots of pictures before disassembly, you can always delete them later.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
second wind
post Oct 12 2020, 07:32 PM
Post #7


Senior Member
***

Group: Members
Posts: 862
Joined: 30-December 10
From: Los Angeles, California
Member No.: 12,543
Region Association: Southern California



How funny is this......... I just washed my hands from the same job. Went to clean my lugs nuts with my new bench grinder wire wheel....took a look at the clutch roller wheel...it was wired in...went to 914 Rubber and bought the whole kit and kaboudle.....new roller was tight so I sanded it down a bit and rolls perfect. Terrycable looks to be extremely stout compared to others...like it....wish I could find a 7mm x 1.0 coupler nut/extension nut for adjustment screws but none to be found. Will buy some bicycle wrenches 11mm and grind them thin for ease of adjustment. Nice new cable with grease and proper cable holder part instead of wire....loving it!!
