> Engine build Take 2, The rebirth of my 2270
DNHunt
post Aug 7 2005, 08:11 PM
Post #121


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

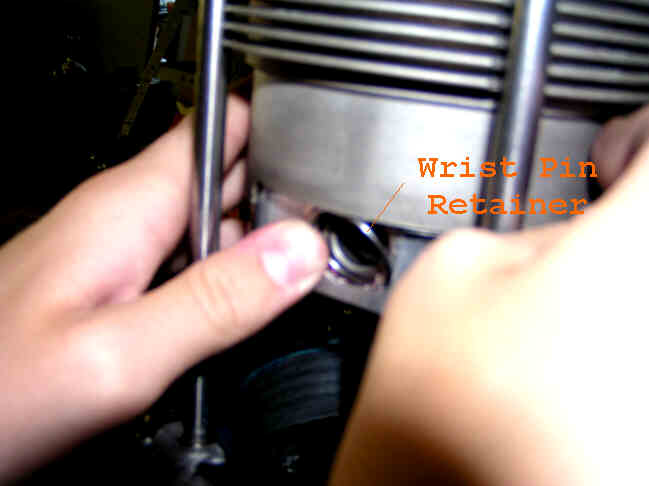

This may be the toughest thing to do. Getting the wire locks in to retain the wrist pins. Nerve racking too, cause it would be easy to drop them.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 7 2005, 08:12 PM
Post #122


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

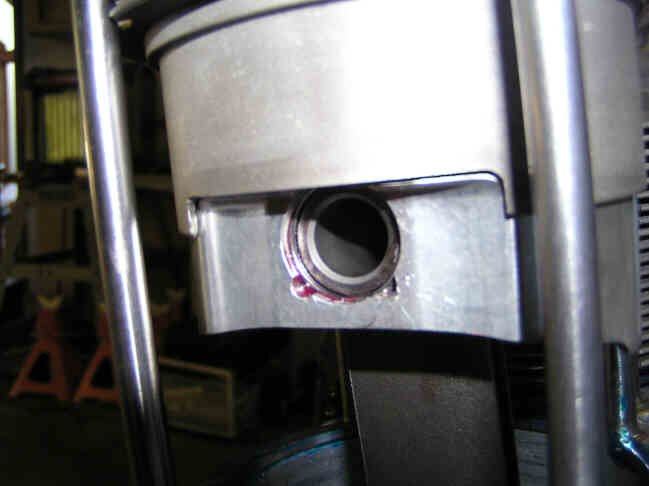

Safely in.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 7 2005, 08:13 PM
Post #123


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

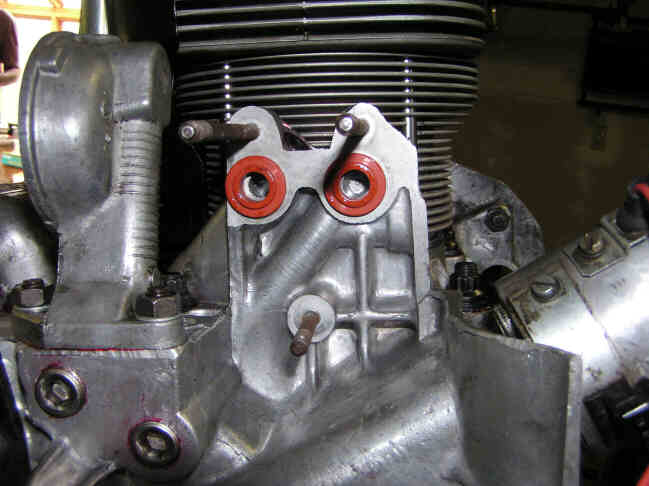

Oil cooler seals


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 7 2005, 08:23 PM
Post #124


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

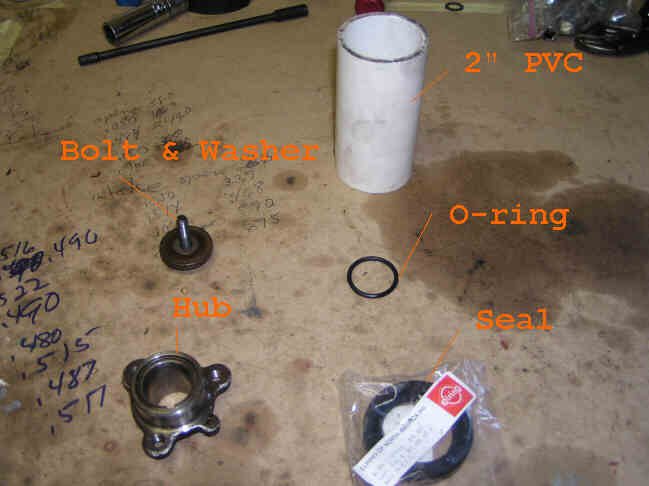

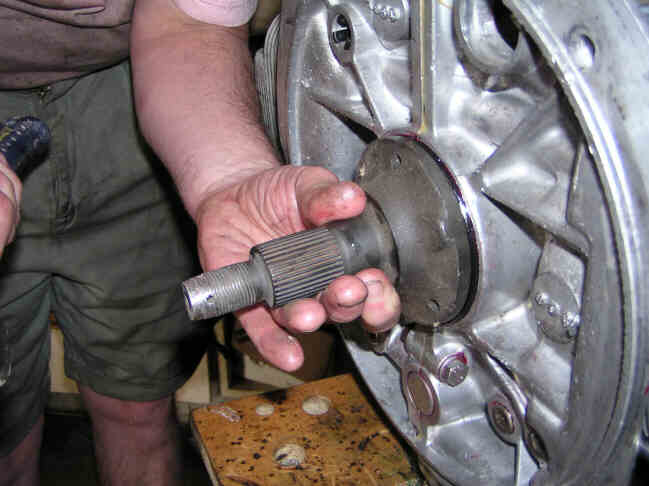

Stuff for the front seal under the hub. I almost forgot the O-ring. 2" PVC works well for driving in the seal.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 7 2005, 08:25 PM
Post #125


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

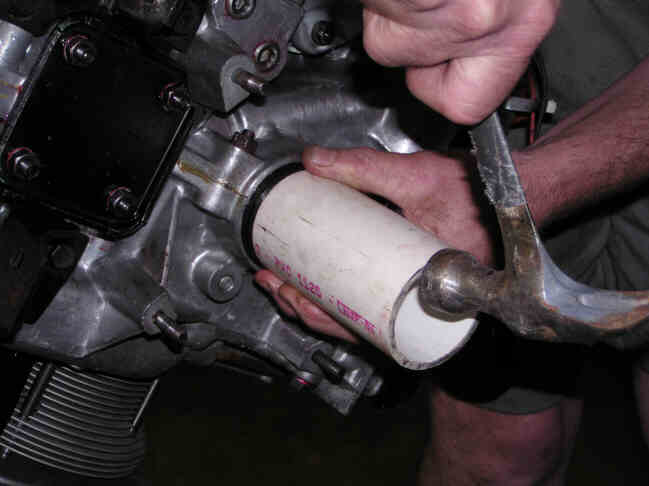

PVC in action


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 7 2005, 08:30 PM
Post #126


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

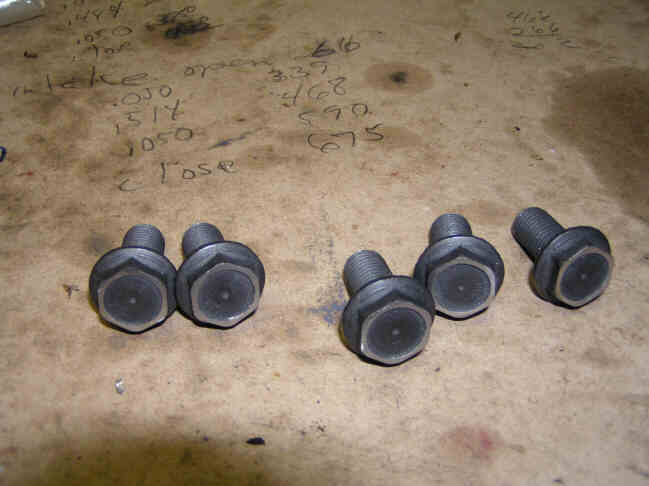

The big job of the day was balancing the new flywheel bolts. The old ones jake had supplied were exactly the same weight. Using a scale and then a balance and removing ever so slight an amount the new ones are all equal in weight. They are also clearance slightly.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 7 2005, 08:33 PM
Post #127


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

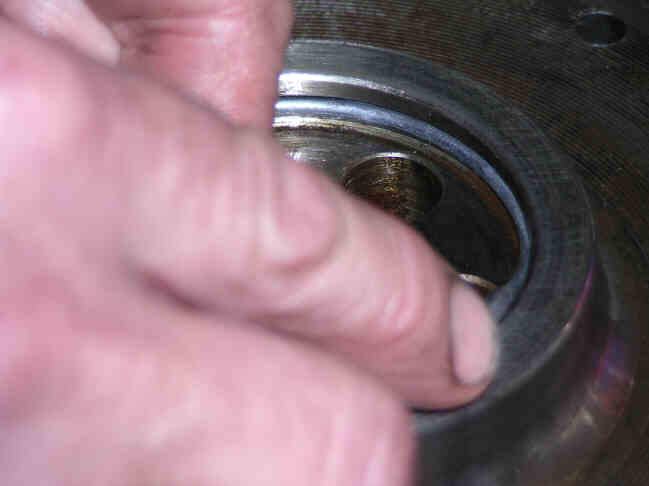

Replacing the graphite coated washer in the flywheel.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lapuwali
post Aug 7 2005, 08:35 PM
Post #128


Not another one!
****

Group: Benefactors
Posts: 4,526
Joined: 1-March 04
From: San Mateo, CA
Member No.: 1,743



QUOTE (DNHunt @ Aug 7 2005, 06:11 PM)
This may be the toughest thing to do. Getting the wire locks in to retain the wrist pins. Nerve racking too, cause it would be easy to drop them.

A shop rag or two stuffed into the cylinder spigot will do a lot to prevent bits from falling into the case. This is generally good practice whenever the case is assembled, and you're putting things onto it (like a certain wavy washer that made a bit for freedom). Just remember to pull them out before you put the cylinders on. (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 7 2005, 08:38 PM
Post #129


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

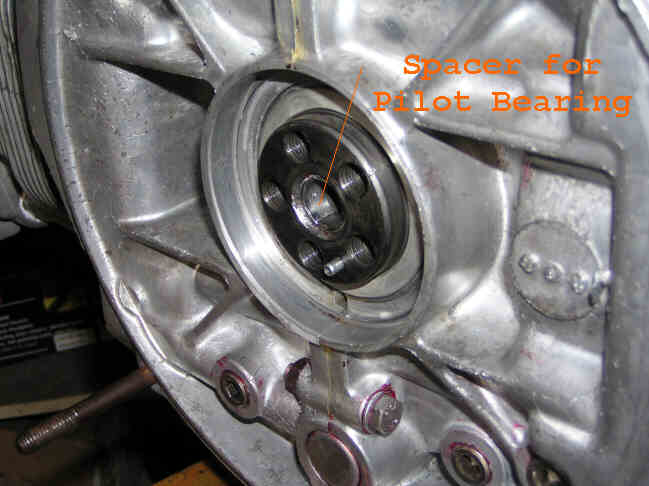

Here is the spacing sleeve in the end of the crankshaft. It keeps the pilot bearing in place.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 7 2005, 08:40 PM
Post #130


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



Damn James that's a good idea. That would have made that set less stressful.

Dave
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 7 2005, 08:42 PM
Post #131


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



An old stub axle is just the right size to seat the rear main seal. The three shims are in already with a little lube.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 7 2005, 08:49 PM
Post #132


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



Flywheel is on with the O-ring, 3 shims, spacing sleeve, pilot bearing, felt washer, seal, 5 hole washer and 5 bolts torqued to 80 lbs. Clutch is in place.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 7 2005, 08:52 PM
Post #133


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



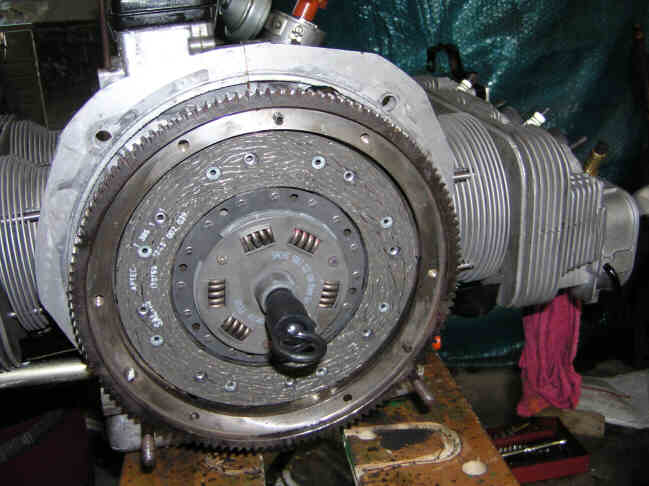

Pressure plate installed. The bolts are numbered with a stamp and the corresponding holes are numbered so I won't throw off the balance.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 7 2005, 08:55 PM
Post #134


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

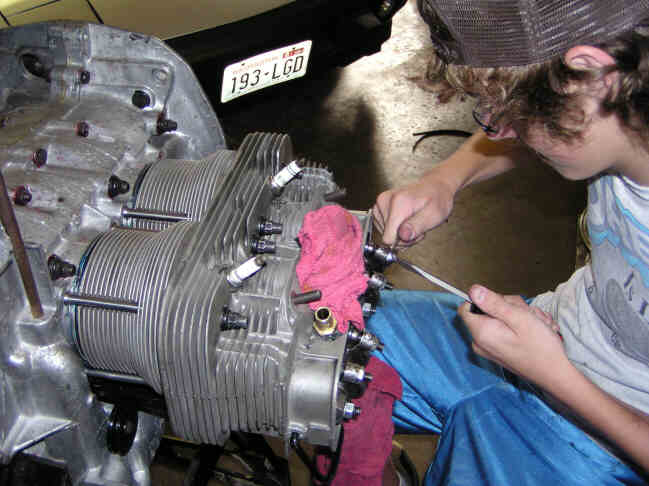

Gerry adjusting the valves


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Aug 7 2005, 08:57 PM
Post #135


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501



still havent figured valves out

i will though when i tear apart a engine.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 7 2005, 08:57 PM
Post #136


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

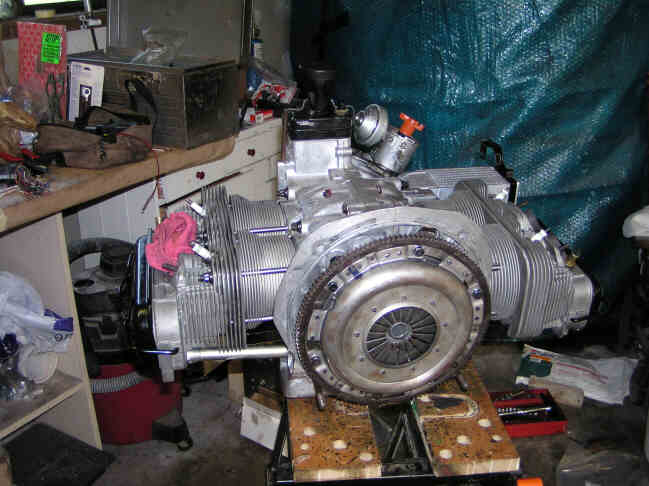

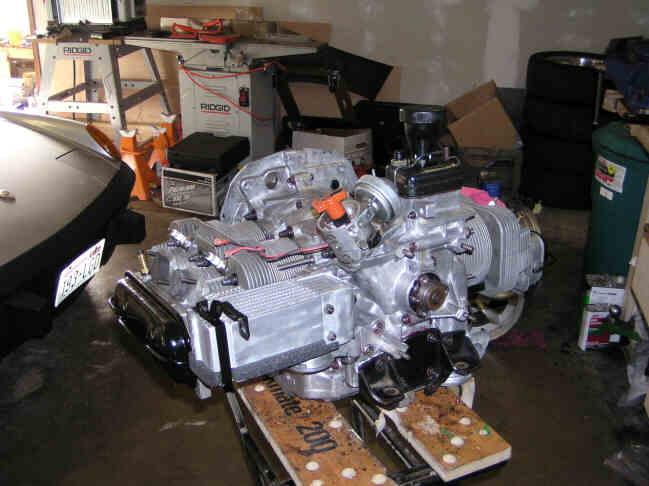

Long Block DONE! (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)

Dave


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric Taylor
post Aug 7 2005, 10:39 PM
Post #137


Senior Member
***

Group: Members
Posts: 909
Joined: 1-June 03
From: Newport, OR/Eugene Oregon- UO
Member No.: 770



Congradulations Dave (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) It must be a wonderful feeling to have it back together. I call a ride at WCC 06 (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)
Eric
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Aug 8 2005, 05:47 AM
Post #138


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None



Great Job, Must feel really good to get this rebuild done again, and let us know the performance of this Raby combo - I am thinking about it for my 4cly car.

(IMG:http://www.914world.com/bbs2/html/emoticons/mueba.gif) Keep up the great work.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Aug 8 2005, 07:35 AM
Post #139


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States



Dave, Hurry up and get that damn thing running!

914forme,
I have tons of folks you could contact about the "Performance" of one of my kits like Dave is putting together here, most of them are not on this board.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Aug 8 2005, 07:51 AM
Post #140


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



It's going in Labor Day weekend. I hate to wait but, I'm headed to Whistler for the PCA thing up there and I just don't have enough time to get it in, running, tuned, retorqued and valves adjusted, oil changed and some miles on it. It's killing me to wait. Sometimes it's damn hard acting like and adult. I'll just run Old Smoky. I'll lay down a smoke screen on the AX course. The tail draggers got to have something to wine about.

I have a real good feeling about this one. When we torqued the case down it spun so nice and easy and now it just feels more precise.

Dave
