> Engine build Take 2, The rebirth of my 2270
rhodyguy
post Jul 18 2005, 08:08 AM
Post #61


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,248
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
surprizing cr. it's been a while since i visited your site. i look forward to the feature when you post it. when? 78mm(?), and i'm doing the fomula backwards to figure the piston size.

k
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Jul 18 2005, 08:30 AM
Post #62


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
90.5 mm bore.. its a 78.4mm crank...

I used a TI 90.5mm piston inside a Nikisil plated, rebored 90mm (1700) TIV cylinder.

CR = Efficiency! It only has .035 deck to boot!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Jul 18 2005, 08:33 AM
Post #63


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,248
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
save those good 1.7 cyl guys!! (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif) would those be oem or the "other" "nickies"? (IMG:http://www.914world.com/bbs2/html/emoticons/dry.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)

k
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cnavarro
post Jul 18 2005, 08:39 AM
Post #64


Cylinder Guru
**

Group: Members
Posts: 472
Joined: 30-December 02
From: Chicagoland!
Member No.: 49
Region Association: None
I plated a set of cast iron cylinders for Jake for that project- trying to improve the wear and oiling properties while getting a little more power from the reduction in friction. :-)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Jul 18 2005, 08:42 AM
Post #65


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
They aren' really Nickies... Just plated stock cylinders..
I am only doing it for friction reduction.

I am doing this for friction reduction as well... And also to control windage.

http://www.aircooledtechnology.com/r_d_superfinish.htm

Thats not chrome plated fellas- Those parts have been RAT Super Finished!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Type 4 Unleashed
post Jul 19 2005, 12:46 PM
Post #66


CREATIVE TYPE lV ENGINEERING
***

Group: Retired Members
Posts: 787
Joined: 20-June 04
From: Aliso Viejo, ca
Member No.: 2,231
Region Association: None
Jake, whats the cam advance here? 4 deg? And is it both in the cam and gear? or more one than the other? Whats it work out to, 2 deg a tooth?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Jul 19 2005, 12:54 PM
Post #67


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
I thought on a type IV that the cam advance/retard was done by a selected cam gear itself, not by adjustment - no?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Type 4 Unleashed
post Jul 19 2005, 01:31 PM
Post #68


CREATIVE TYPE lV ENGINEERING
***

Group: Retired Members
Posts: 787
Joined: 20-June 04
From: Aliso Viejo, ca
Member No.: 2,231
Region Association: None
QUOTE (Travis Neff @ Jul 19 2005, 10:54 AM)
I thought on a type IV that the cam advance/retard was done by a selected cam gear itself, not by adjustment - no?

Yes and No, some cam companies make there cams with a 2 deg advance built in, some 0 deg, some of the type lV cam gears have a 2 deg advanced built in, some one may have there own gears made with a 4 deg advance.

There are the adjustable strait cuts, Magnum gears, makes strait cuts for type 1, and now makes them for type lV, $225 Fat performance has them made by Pauter $325.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Type 4 Unleashed
post Jul 19 2005, 11:50 PM
Post #69


CREATIVE TYPE lV ENGINEERING
***

Group: Retired Members
Posts: 787
Joined: 20-June 04
From: Aliso Viejo, ca
Member No.: 2,231
Region Association: None
QUOTE (V6914 @ Jul 19 2005, 09:46 PM)
QUOTE (V6914 @ Jul 19 2005, 10:46 AM)
Jake, whats the cam advance here?  4 deg?  And is it both in the cam and gear? or more one than the other?  Whats it work out to, 2 deg a tooth?

(IMG:http://www.914world.com/bbs2/html/emoticons/icon_bump.gif)

(IMG:http://www.914world.com/bbs2/html/emoticons/icon_bump.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 20 2005, 07:17 AM
Post #70


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

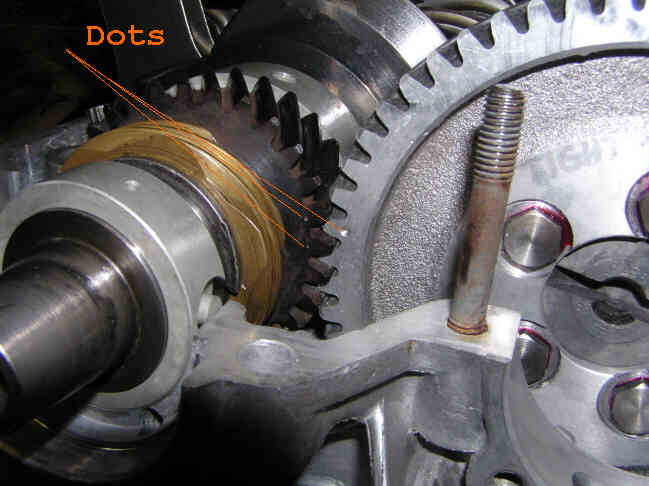

I didn't advance the cam at all. Looking at the picture it's not as clear as I would have liked but, the dot on the cam is between the dots on the crank. If there is any advance built into the cam I'm not aware of it.

I'm back on track. 15 of the 16 head studs are in. I'm waiting for one from Charles to finish that task. The missing one is in a blind bore so I'll assemble the case.

Dave
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 20 2005, 07:24 AM
Post #71


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Oil pressure relief pistons. I test fit them and the pistons are nice and free in the bore. So I laid out the pieces. It was finally time to get into the gasket kit. There is a copper sealing ring for the smaller assembly and an aluminum one for the larger


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 20 2005, 07:56 AM
Post #72


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
The large one goes on the right side front on the bottom


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 20 2005, 07:59 AM
Post #73


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
I found this old square from my dad and I used it with vice grips to tighten it. It fit the slot very well. Then a couple of taps with a mallet and chisel and it was seated real well


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 20 2005, 08:00 AM
Post #74


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
The small one goes between the lifter bores on cylinder # 1.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 20 2005, 08:02 AM
Post #75


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Here's a type 1 oil pump that's ready to go.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 20 2005, 08:04 AM
Post #76


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Nice and clean and packed with a little grease


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
root
post Jul 20 2005, 10:58 AM
Post #77


Two Wheeled Type4 Completed!
***

Group: Members
Posts: 849
Joined: 5-May 04
From: Sterling, VA
Member No.: 2,026
Region Association: None
Allright I was following along O.K. until you got to the type1 oil pump??
Why are you using a type 1 pump? (IMG:http://www.914world.com/bbs2/html/emoticons/wacko.gif)

By the way! This thread 'ROCKS!' (IMG:http://www.914world.com/bbs2/html/emoticons/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
groot
post Jul 20 2005, 12:04 PM
Post #78


Dis member
***

Group: Members
Posts: 897
Joined: 17-December 03
From: Michigan
Member No.: 1,444
Dave,

I think I topped your breaking the stud move.

I tightened the case down while the front cam bearing was not set properly... thinking the case was binding up a dowel or something. Well, I cracked the front cam bearing journal.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Jul 20 2005, 12:18 PM
Post #79


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
He is using a TI pump because it is far superior, it came in my kit and he is using my other oil system mods based on the TI pump.

My 3 liter is running the same pump- they rule. Tons of volume, better pressure and less HP draw from the engine..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 21 2005, 06:00 PM
Post #80


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Still making progress. Here's something that's easy to overlook. Thermostat cable pulley. It goes where the Q-tip is.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
