> Engine build Take 2, The rebirth of my 2270
DNHunt
post Jul 21 2005, 06:03 PM
Post #81


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



Here's the other end of the Q-tip from the inside of the case. Can you say oil leak?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 21 2005, 06:09 PM
Post #82


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



Here's the windage tray and the oil pick up in the left side of the engine. There is an O ring on the oil pickup tube that needed for the oil pump to suction oil from the sump. I use a little bit of Gasket Maker on the ends of the windage tray seals cause they always want to come off the tray. That tacks them down a little.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Jul 21 2005, 06:11 PM
Post #83


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,293
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest



So you not going with a Tuna can or Deep sump?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 21 2005, 06:13 PM
Post #84


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



I'm trying to show that you have to catch a ring on the top of the oil pickup with on of the case bolts. I left the windage tray bolt to the oil pick up slightly loose to make this a little easier.

The part of the case the line goes to is the boss that breaks if you over tighten the stainer.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 21 2005, 06:19 PM
Post #85


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



Rich, No deep sump or tuna can.

Here's the distributor drive with the thrust washer and spring. I think most people put this in before putting the case together. I aligned the notch in the dist body with the rotor and put the drive on the shaft. Then in it goes and I put the nut on the bracket


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 21 2005, 06:24 PM
Post #86


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



Here it is in the case half and nutted down. I have a crankfire ignition so I just run a dummy distributor but, it is nice for finding TDC.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 21 2005, 06:29 PM
Post #87


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



I already posted pics of the crank and cam aligned. I put in the cam plug, put on sealants and dropped the left half on. Put in the oil pump and torqued everything down.

Here's the lower end. The crank turns smooth as can be.

Dave


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dead Air
post Jul 21 2005, 07:29 PM
Post #88


Senior Member
***

Group: Members
Posts: 1,270
Joined: 9-May 04
From: Buffalo, NY
Member No.: 2,042



QUOTE (DNHunt @ Jul 20 2005, 05:59 AM)
I found this old square from my dad and I used it with vice grips to tighten it. It fit the slot very well. Then a couple of taps with a mallet and chisel and it was seated real well

[QUOTE]

Sqare? (IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif)
Why am I sooo confused?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dead Air
post Jul 21 2005, 07:34 PM
Post #89


Senior Member
***

Group: Members
Posts: 1,270
Joined: 9-May 04
From: Buffalo, NY
Member No.: 2,042



"I'm trying to show that you have to catch a ring on the top of the oil pickup with on of the case bolts. "

Huh? (IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif)

Or what?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 22 2005, 06:51 PM
Post #90


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



QUOTE (Dave Eddy @ Jul 21 2005, 05:29 PM)
QUOTE (DNHunt @ Jul 20 2005, 05:59 AM)
I found this old square from my dad and I used it with vice grips to tighten it. It fit the slot very well. Then a couple of taps with a mallet and chisel and it was seated real well

[QUOTE]

Sqare? (IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif)
Why am I sooo confused?

Dave

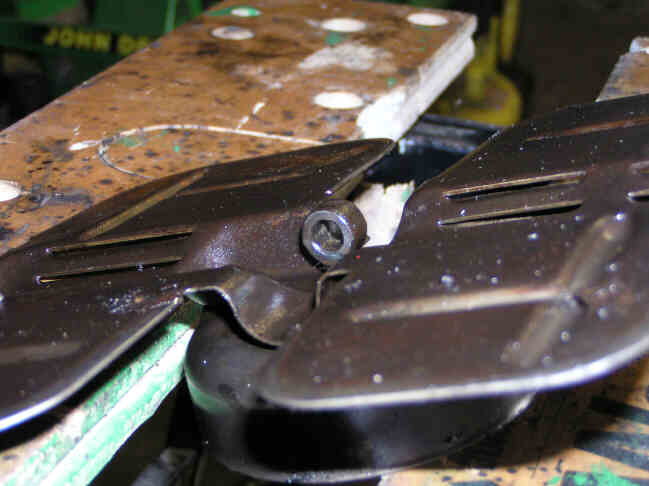

Here's what I was doing. my dad's old tool just fit a difficult place. That's all


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 22 2005, 06:57 PM
Post #91


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



QUOTE (Dave Eddy @ Jul 21 2005, 05:34 PM)
"I'm trying to show that you have to catch a ring on the top of the oil pickup with on of the case bolts. "

Huh? (IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif)

Or what?

The ring I was trying to show is on top of the oil pickup and a bolt goes thru a hole in the right side of the case then thru this ring and into a threaded hole in the left side of the case. The point is if you tighten the stainer more than 9.5 lbs you may break the threaded hole in the case. Type IV syndrome and ruined case


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 22 2005, 07:01 PM
Post #92


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

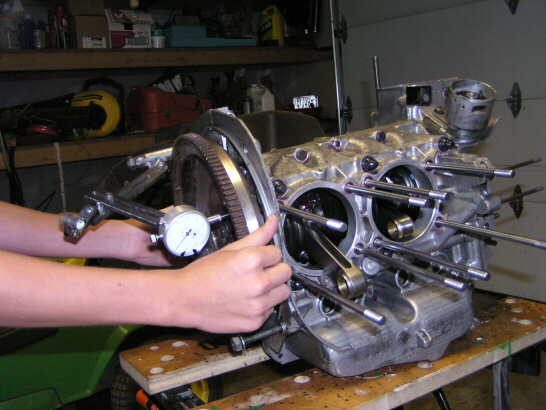

Time for crankshaft end play


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 22 2005, 07:04 PM
Post #93


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

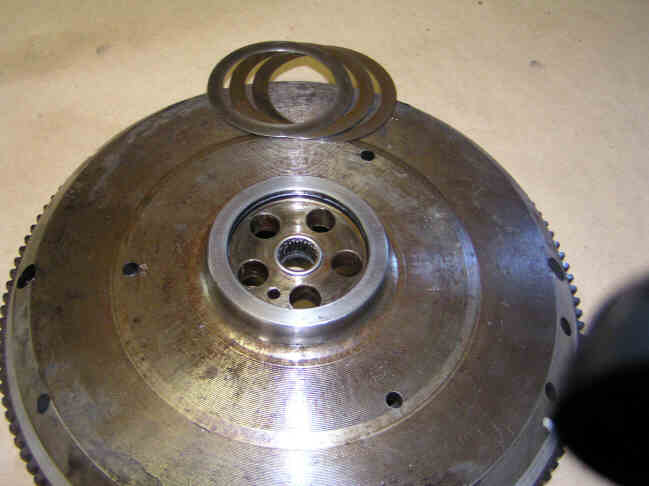

Three shims .0145", .013" and .012" gave me an end play of .0045"


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 22 2005, 07:06 PM
Post #94


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

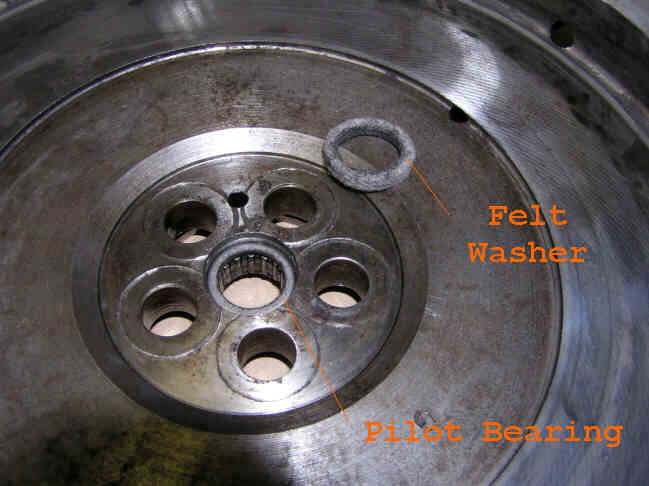

Here are the felt washer and the pilot bearing.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 22 2005, 07:07 PM
Post #95


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



Here is the washer installed.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisReale
post Jul 22 2005, 07:39 PM
Post #96


Sleazy
****

Group: Members
Posts: 2,665
Joined: 20-January 03
From: San Francisco
Member No.: 176



Good stuff Dave. This is a very informative thread as was the last one. (IMG:http://www.914world.com/bbs2/html/emoticons/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 23 2005, 07:49 AM
Post #97


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



I should be doing deck height today but, I'm going to Walker's swap meet instead.

Other than the head stud it sure is going together nice. I haven't needed the persuader yet at all. It's a great feeling when the case halves go right together except for the last mm or so and then the crank turns by hand with a little flick of the wrist. (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)

Dave
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Jul 23 2005, 08:35 AM
Post #98


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None



QUOTE (DNHunt @ Jul 22 2005, 05:07 PM)

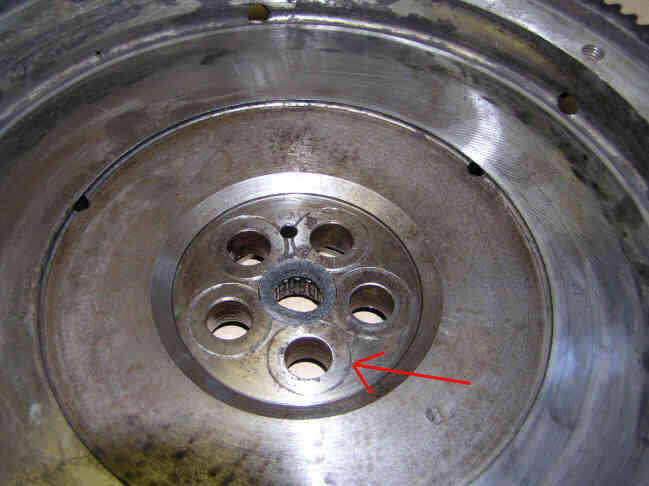

Here is the washer installed.

how does these marks hapen? there should be a big washer between the screws and he flywheel


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Type 4 Unleashed
post Jul 23 2005, 07:37 PM
Post #99


CREATIVE TYPE lV ENGINEERING
***

Group: Retired Members
Posts: 787
Joined: 20-June 04
From: Aliso Viejo, ca
Member No.: 2,231
Region Association: None



(IMG:http://www.914world.com/bbs2/html/emoticons/agree.gif)

You need to use the flywheel bolts lock plate, and you need to use a new one each time you torque the bolts, and you should of used an old one when you set the end play.

The locking teeth on the flywheel bolts, after there torqued on the flywheel a couple of times, they've chewed away a grove, now there is no material left for the bolts to lock into, so use the locking plate, it keeps the bolts from coming loose.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jul 23 2005, 08:00 PM
Post #100


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598



You guys are both right. A new washer and new bolts for the final assembly. I can't answer the question of how those got there except to say that someone didn't use a washer with this flywheel at sometime. While we did endplay we used an old washer and old bolts. When we installed it on the last build we used a new washer and the bolts Jake supplied. I can't remember when we checked endplay on the previous build. So, I can't say if it was us or not. With a new washer and new bolts, I think it will be Ok on final assembly but, I'll listen to all opinions.

Dave
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
