> Basic Trans Refresh, Lost recent thread
bbrock
post Dec 7 2020, 04:40 PM
Post #1


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
There was a recent thread from someone bringing a working transmission our of storage and wanting to give it a quick refresh before installing to prevent leaks and such. I'm getting ready to do the same and thought I had bookmarked it but obviously did not. Despite numerous google and native forum searches, I can't find it but it had great advice I could use. Anyone recall that thread?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Dec 7 2020, 04:45 PM
Post #2


914 Wizard
**********

Group: Members
Posts: 11,941
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
bump

I don't know the thread
but would highly recommend getting the Dr. Evil DVD for this job

its VERY helpful
and makes learning the job a realistic one.
brant
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Dec 7 2020, 05:59 PM
Post #3


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(brant @ Dec 7 2020, 03:45 PM) *

bump

I don't know the thread
but would highly recommend getting the Dr. Evil DVD for this job

its VERY helpful
and makes learning the job a realistic one.
brant


Thanks. I have the DVD, now I just need to find it (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Dec 7 2020, 09:19 PM
Post #4


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
I found my copy of Dr. Evil's DVD and watched the reassembly portion (on the disc labeled "Maybe Porn" (IMG:style_emoticons/default/lol-2.gif) ). What I can't remember from the other thread is whether people thought replacing the output stub axle seals should be replaced just as a precaution. I know the input shaft seal should be done and the O-ring for the speedo drive. Can't remember about the outputs though. Not planning to go any deeper than just make sure it doesn't sling dino blood all over my freshly restored undercarriage.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GGerg1186
post Dec 7 2020, 09:23 PM
Post #5


Newbie
*

Group: Members
Posts: 15
Joined: 28-September 20
From: Dubuque IA
Member No.: 24,724
Region Association: Upper MidWest
Where do I get the Dr Evil DVD?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
altitude411
post Dec 7 2020, 09:32 PM
Post #6


I drove my 6 into a tree
***

Group: Members
Posts: 1,306
Joined: 21-September 14
From: montana
Member No.: 17,932
Region Association: Rocky Mountains
QUOTE(GGerg1186 @ Dec 7 2020, 08:23 PM) *

Where do I get the Dr Evil DVD?



http://www.914world.com/bbs2/index.php?act...=0#entry1402767
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
altitude411
post Dec 7 2020, 09:42 PM
Post #7


I drove my 6 into a tree
***

Group: Members
Posts: 1,306
Joined: 21-September 14
From: montana
Member No.: 17,932
Region Association: Rocky Mountains
QUOTE(bbrock @ Dec 7 2020, 08:19 PM) *
I know the input shaft seal should be done and the O-ring for the speedo drive. Can't remember about the outputs though. Not planning to go any deeper than just make sure it doesn't sling dino blood all over my freshly restored undercarriage.


Replace them...
Maybe some help (IMG:style_emoticons/default/confused24.gif)

http://www.914world.com/bbs2/index.php?showtopic=260951


Torque lbs and part # in this one...

http://www.914world.com/bbs2/index.php?showtopic=322114

Get a hold of McMark for one of these...
http://www.914world.com/bbs2/index.php?showtopic=103985
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Dec 7 2020, 10:24 PM
Post #8


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(altitude411 @ Dec 7 2020, 08:42 PM) *

QUOTE(bbrock @ Dec 7 2020, 08:19 PM) *
I know the input shaft seal should be done and the O-ring for the speedo drive. Can't remember about the outputs though. Not planning to go any deeper than just make sure it doesn't sling dino blood all over my freshly restored undercarriage.


Replace them...
Maybe some help (IMG:style_emoticons/default/confused24.gif)

http://www.914world.com/bbs2/index.php?showtopic=260951


Torque lbs and part # in this one...

http://www.914world.com/bbs2/index.php?showtopic=322114

Get a hold of McMark for one of these...
http://www.914world.com/bbs2/index.php?showtopic=103985


(IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Morph914
post Dec 8 2020, 10:14 AM
Post #9


Member
**

Group: Members
Posts: 435
Joined: 22-August 16
From: St Augustine, FL
Member No.: 20,326
Region Association: South East States
[quote name='bbrock' date='Dec 7 2020, 11:24 PM' post='2873085']
[quote name='altitude411' post='2873078' date='Dec 7 2020, 08:42 PM']
[quote name='bbrock' post='2873070' date='Dec 7 2020, 08:19 PM'] I know the input shaft seal should be done and the O-ring for the speedo drive. Can't remember about the outputs though. Not planning to go any deeper than just make sure it doesn't sling dino blood all over my freshly restored undercarriage.
[/quote]

Replace them...
Maybe some help (IMG:style_emoticons/default/confused24.gif)

http://www.914world.com/bbs2/index.php?showtopic=260951


Torque lbs and part # in this one...

http://www.914world.com/bbs2/index.php?showtopic=322114

Get a hold of McMark for one of these...
http://www.914world.com/bbs2/index.php?showtopic=103985
[/quote]

(IMG:style_emoticons/default/thumb3d.gif)

Brent, I just got my trans cleaned up for install, but I really need to do this as well. Please let me know what you end up with as a parts list, and where you are sourcing. I was looking at getting the reseal kit from the Bird, part # is 914-300-901-00, price $41.00. I’m not sure what all is in it as it does not specify.

Thanks,
John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
AZBanks
post Dec 8 2020, 10:29 AM
Post #10


Senior Member
***

Group: Members
Posts: 1,064
Joined: 7-December 05
From: New River, AZ
Member No.: 5,245
Region Association: Southwest Region
I recently created a thread about overfilling the trans.

In that thread I discussed the refresh I did. I replaced the odo drive seals, input shaft seal, and the stub axle seals.
One thing I didn't do which I might end up doing is the shift input seal in the shift console. I didn't think about it at the time and now I wish I would have. It leaked when I had swepco in the trans but does not seem to be leaking now that I went with good old dino 90 weight.


Buying a seal puller was a HUGE help. I just bought the cheap one from Harbor Freight and it worked perfectly.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Dec 8 2020, 11:43 AM
Post #11


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
@Morph914

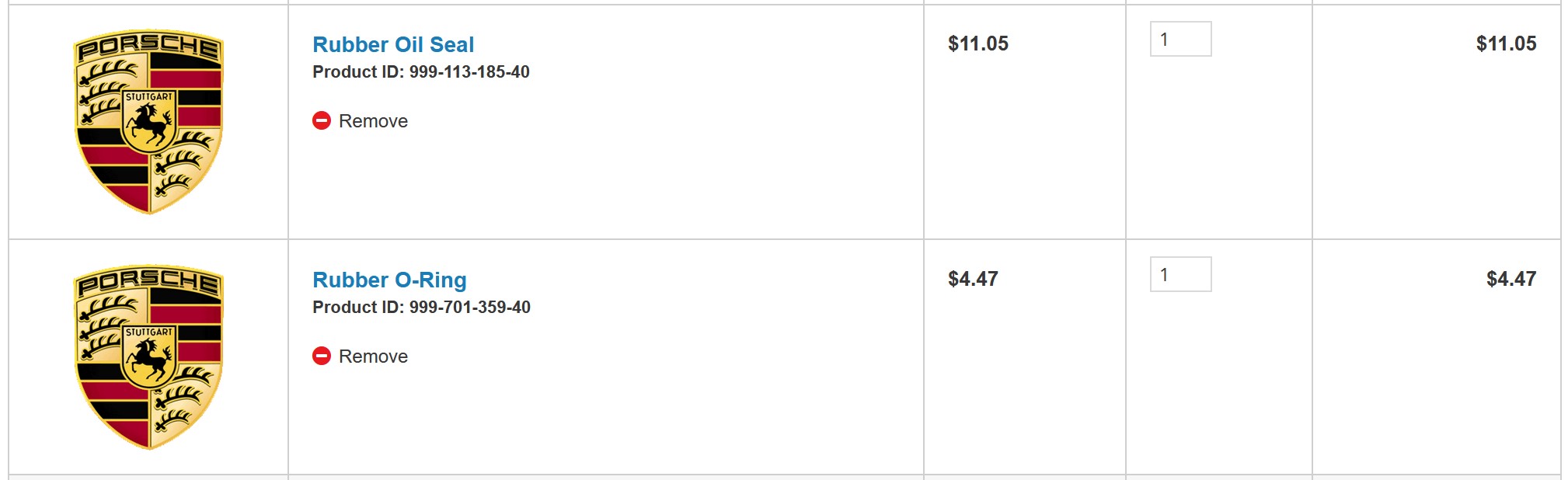

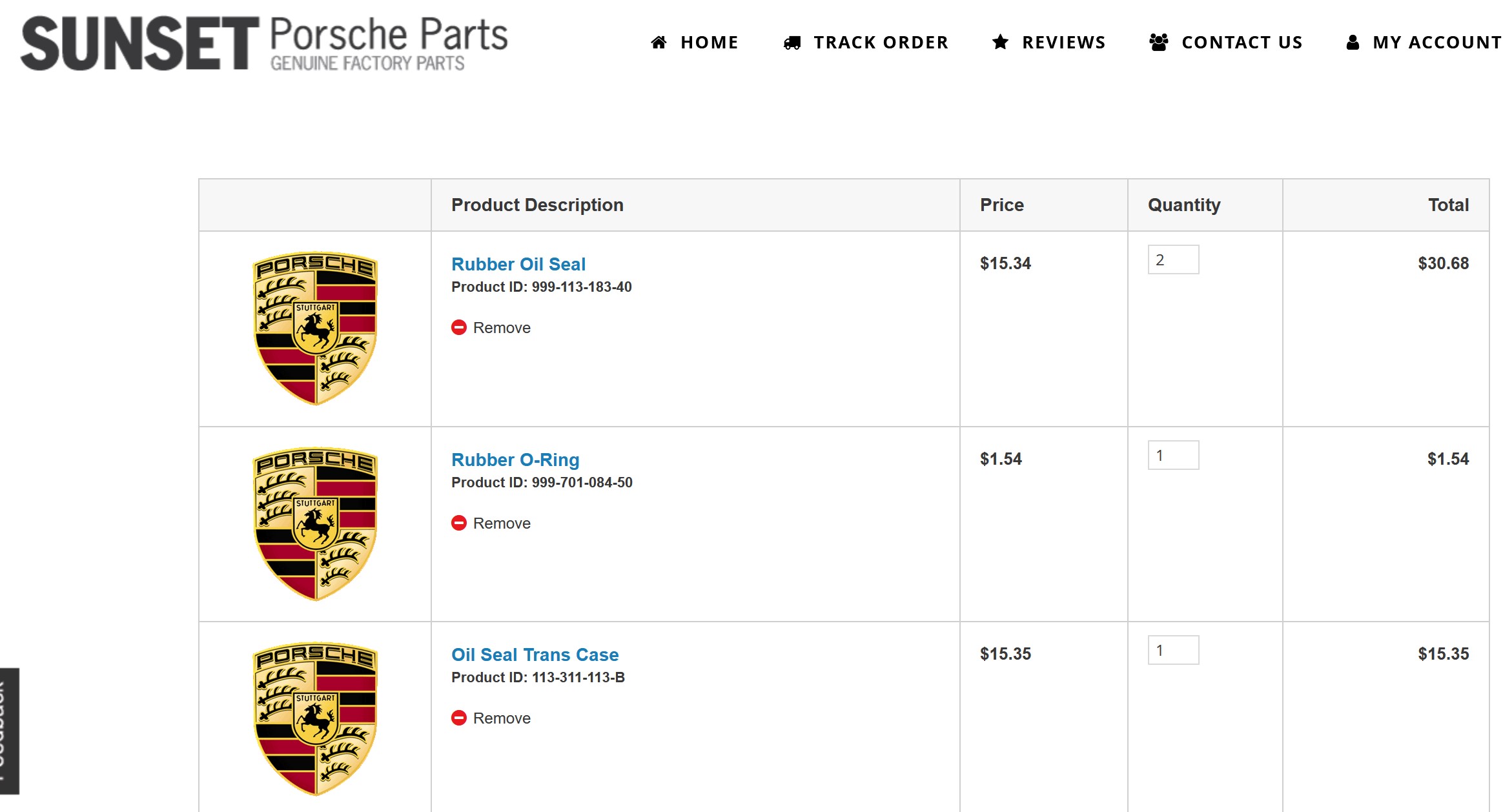

I looked at that Elring kit on the bird. The pic shows a complete gasket set for a complete rebuild. Since I only need the seals, I think I'm going with Genuine Porsche seals from Sunset. It winds up being a couple dollars more than the kit on the bird but doesn't leave me with a bunch of gaskets I'm not likely to use. Don't know if there is much quality difference but about the same $ out of my pocket and no left over parts to store and get ruined before I ever use them. Here's my shopping cart for Sunset with part numbers:

Attached Image
Attached Image

@AZBanks I'm assuming your 71 still has the tail shifter? Mine is side shift so I'm not sure there is a seal to replace, but someone please let me know if that's wrong so I can get that too.

Thanks all!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Morph914
post Dec 8 2020, 12:38 PM
Post #12


Member
**

Group: Members
Posts: 435
Joined: 22-August 16
From: St Augustine, FL
Member No.: 20,326
Region Association: South East States
QUOTE(bbrock @ Dec 8 2020, 12:43 PM) *

@Morph914
I looked at that Elring kit on the bird. The pic shows a complete gasket set for a complete rebuild. Since I only need the seals, I think I'm going with Genuine Porsche seals from Sunset. It winds up being a couple dollars more than the kit on the bird but doesn't leave me with a bunch of gaskets I'm not likely to use. Don't know if there is much quality difference but about the same $ out of my pocket and no left over parts to store and get ruined before I ever use them. Here's my shopping cart for Sunset with part numbers:

Attached Image

@AZBanks I'm assuming your 71 still has the tail shifter? Mine is side shift so I'm not sure there is a seal to replace, but someone please let me know if that's wrong so I can get that too.

Thanks all!

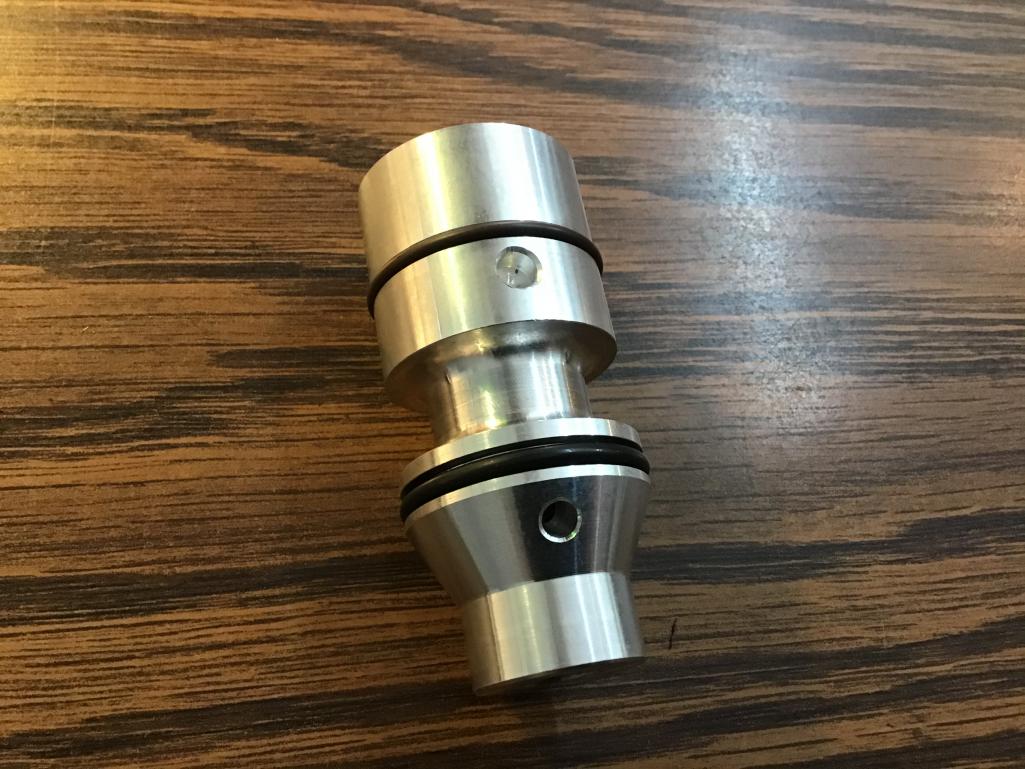

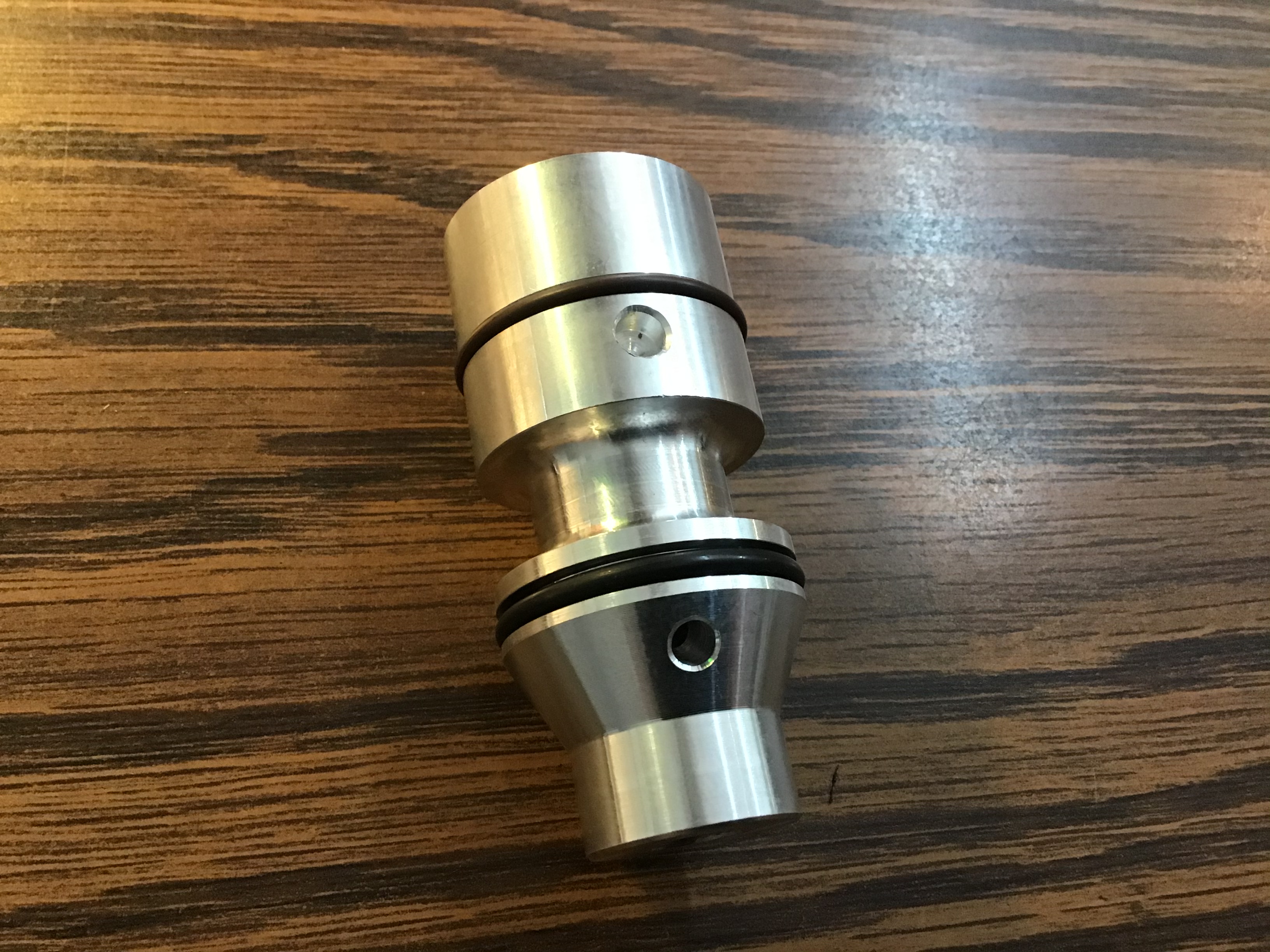

You are the man! I guess I won’t need the o ring since I have the beautiful new speedo drive bushing. (IMG:style_emoticons/default/beerchug.gif)

Cheers,
John

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
AZBanks
post Dec 8 2020, 02:15 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,064
Joined: 7-December 05
From: New River, AZ
Member No.: 5,245
Region Association: Southwest Region
QUOTE(bbrock @ Dec 8 2020, 10:43 AM) *



@AZBanks I'm assuming your 71 still has the tail shifter? Mine is side shift so I'm not sure there is a seal to replace, but someone please let me know if that's wrong so I can get that too.

Thanks all!



I have a side shifter.

This article covers replacing the shift input seal.
https://www.pelicanparts.com/techarticles/9...select_seal.htm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Dec 8 2020, 05:26 PM
Post #14


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(AZBanks @ Dec 8 2020, 01:15 PM) *

QUOTE(bbrock @ Dec 8 2020, 10:43 AM) *



@AZBanks I'm assuming your 71 still has the tail shifter? Mine is side shift so I'm not sure there is a seal to replace, but someone please let me know if that's wrong so I can get that too.

Thanks all!



I have a side shifter.

This article covers replacing the shift input seal.
https://www.pelicanparts.com/techarticles/9...select_seal.htm


Thank you! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Dec 8 2020, 08:49 PM
Post #15


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
Added the side shifter seals to the list of parts above.
