> Another 914-6 GT Tribute Project
Tom1394racing
post Sep 5 2023, 04:04 PM
Post #181


Member
**

Group: Members
Posts: 443
Joined: 25-August 07
From: CT
Member No.: 8,039
Region Association: North East States

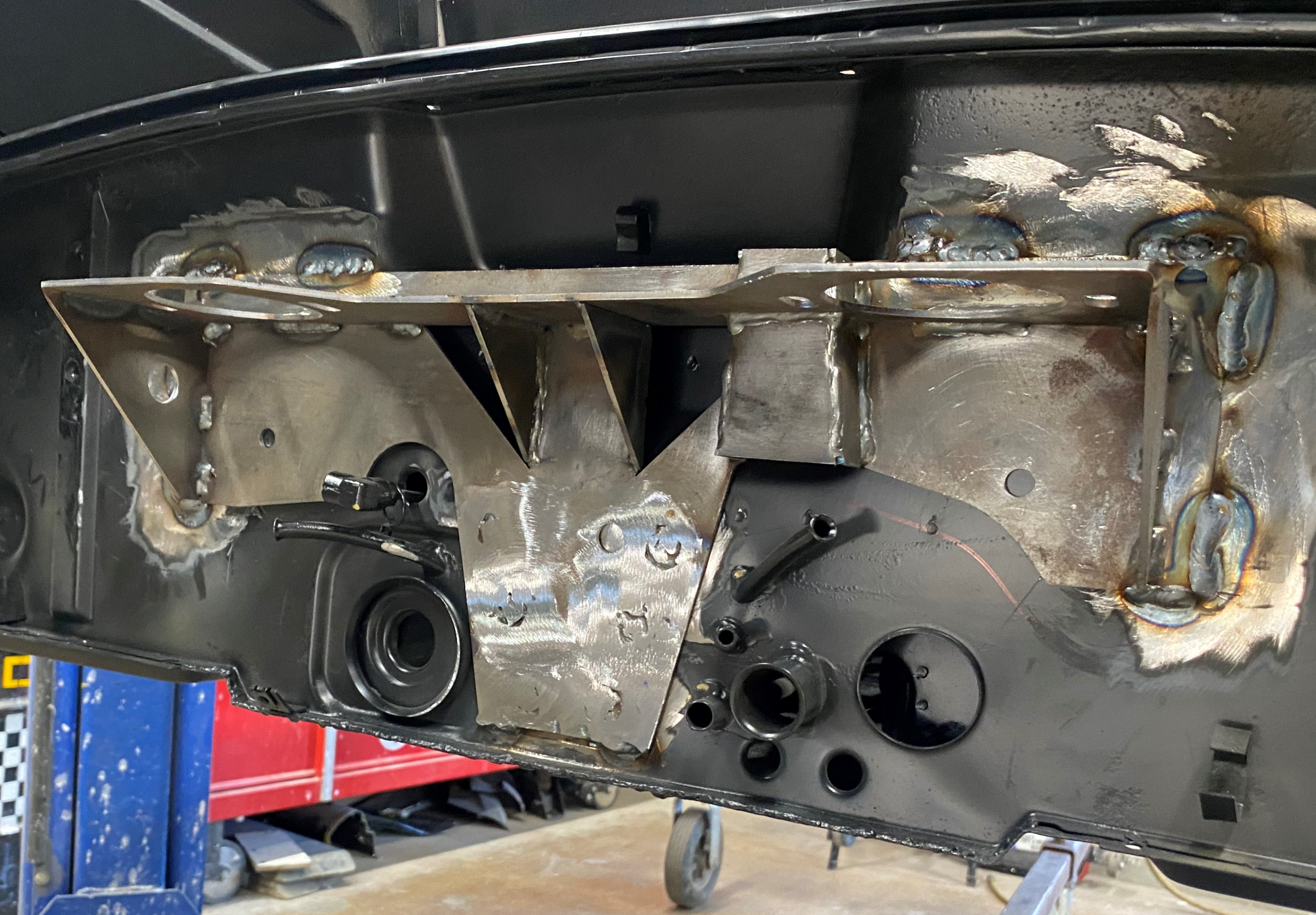

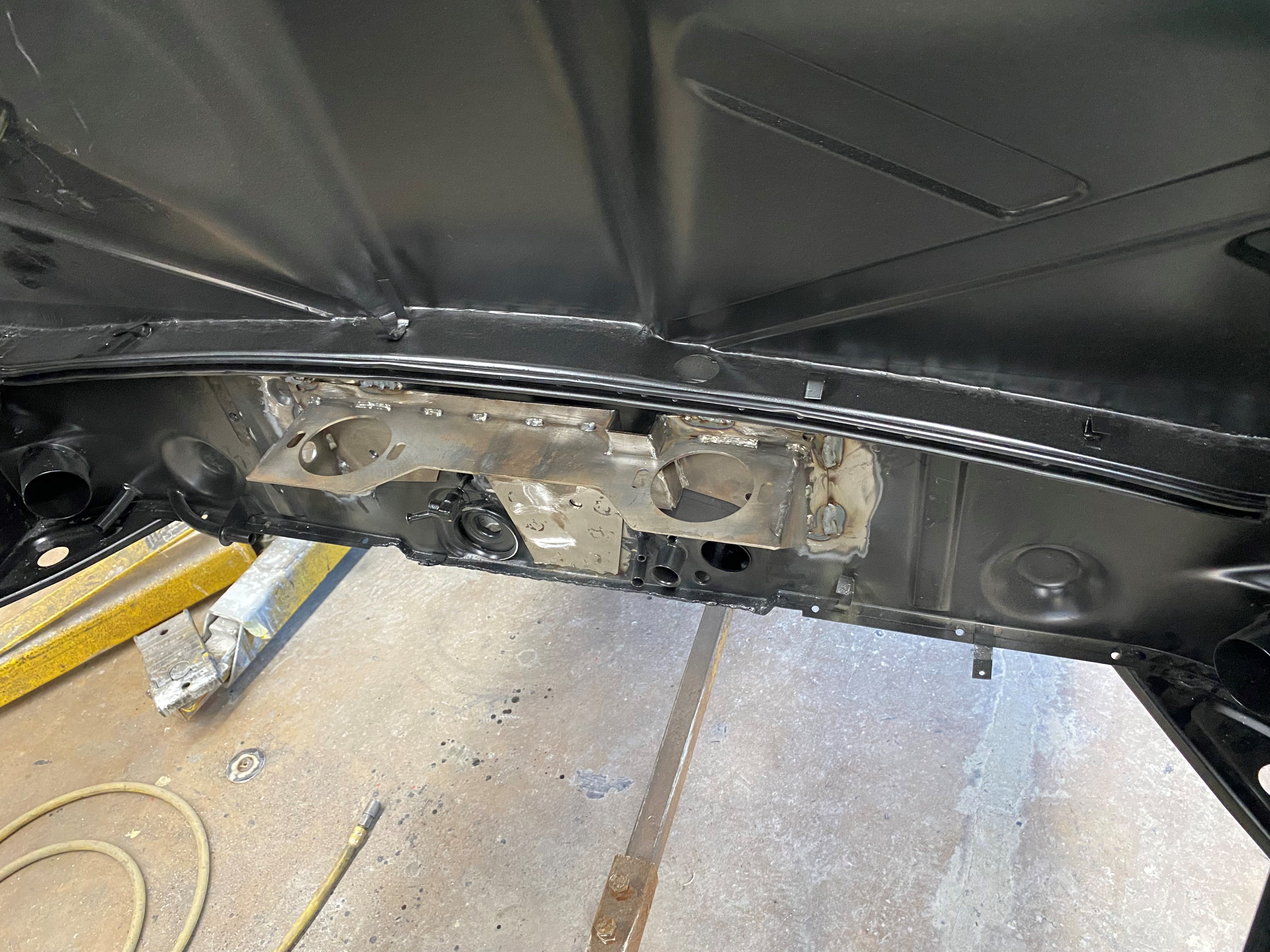

Mad Dog's engine mount installed.

Attached Image

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Tom1394racing
post Sep 5 2023, 04:08 PM
Post #182


Member
**

Group: Members
Posts: 443
Joined: 25-August 07
From: CT
Member No.: 8,039
Region Association: North East States

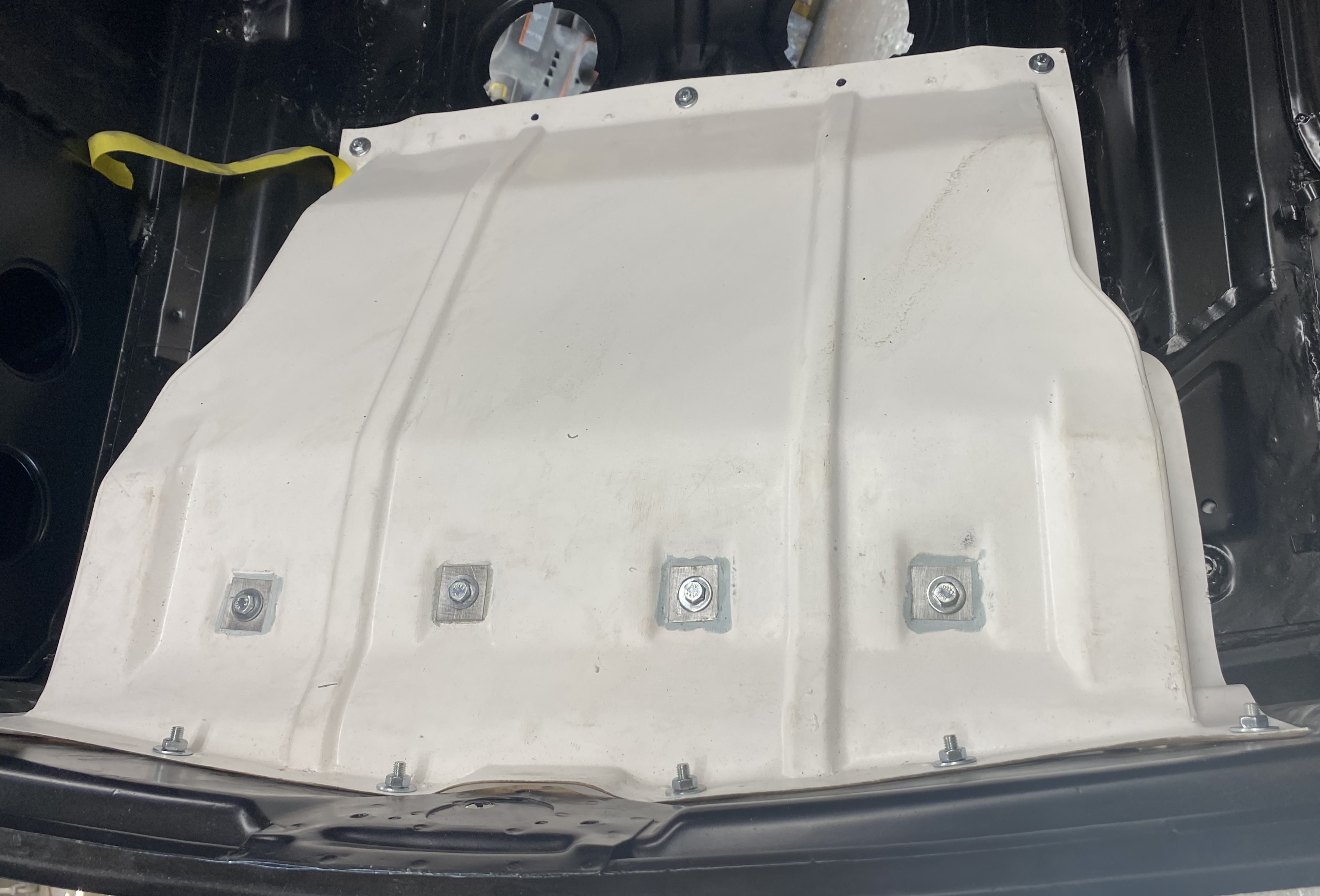

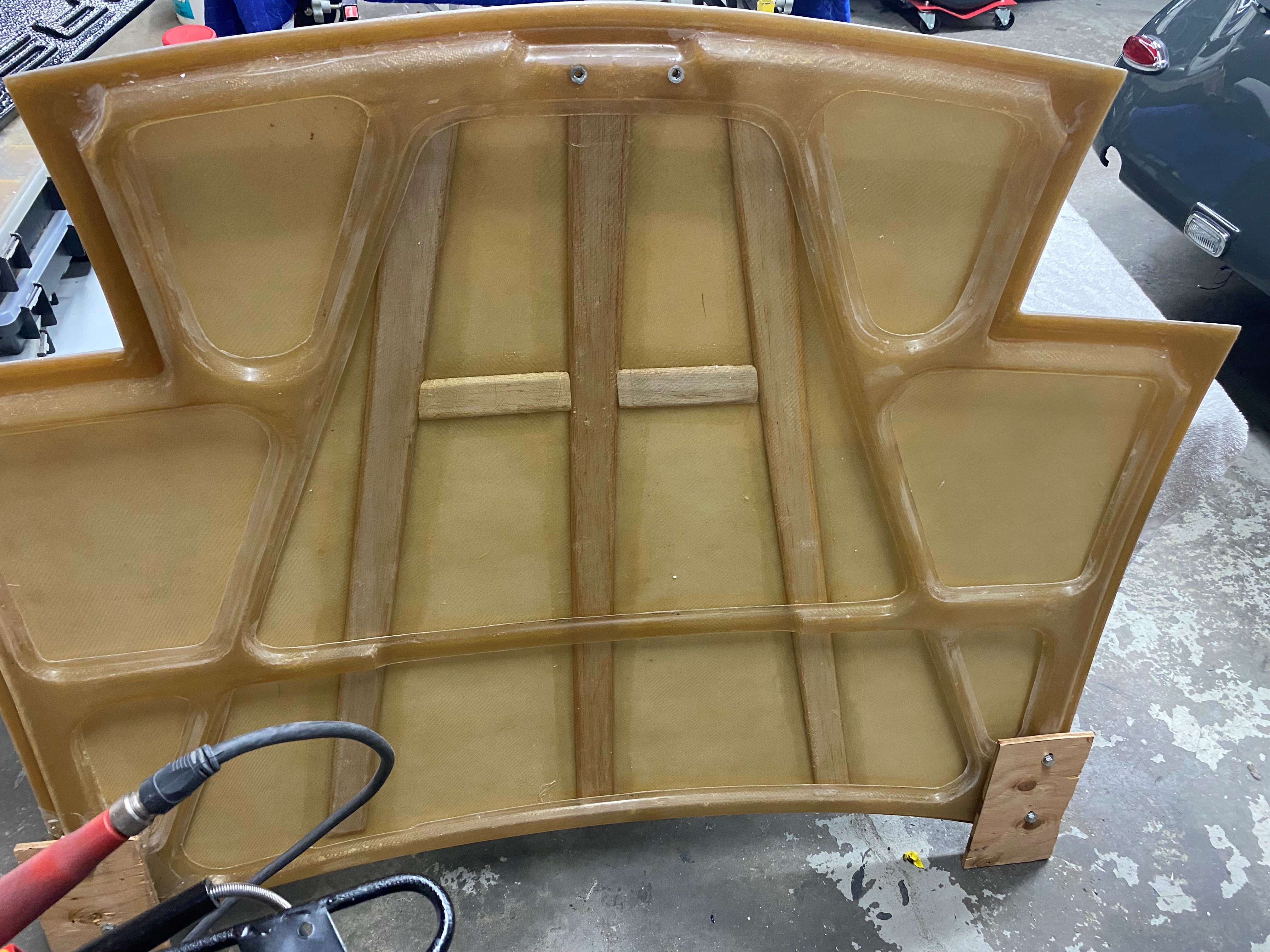

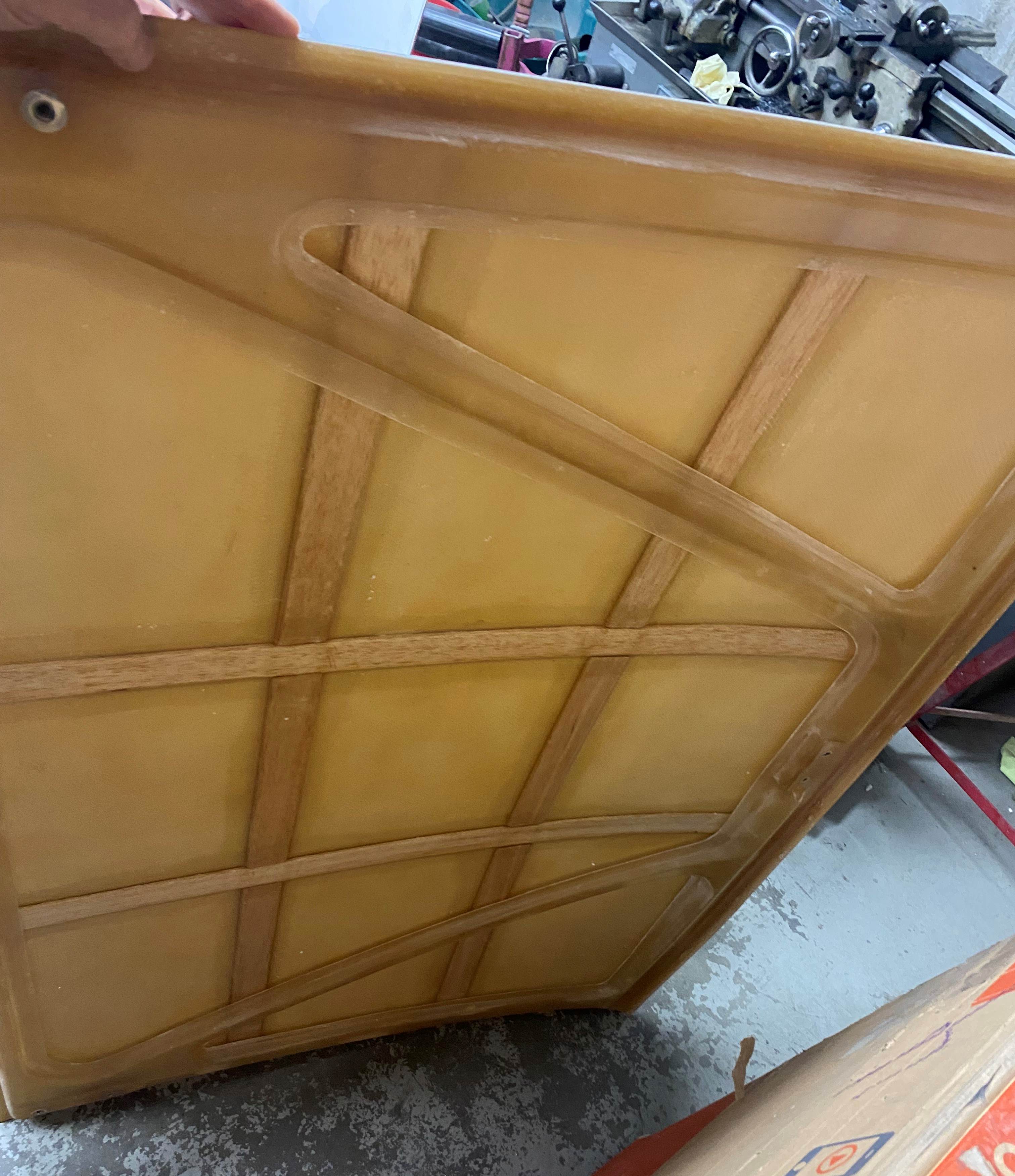

Balsa reinforced front and rear lids from Getty arrived last week.

Attached Image

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Tom1394racing
post Sep 5 2023, 04:13 PM
Post #183


Member
**

Group: Members
Posts: 443
Joined: 25-August 07
From: CT
Member No.: 8,039
Region Association: North East States

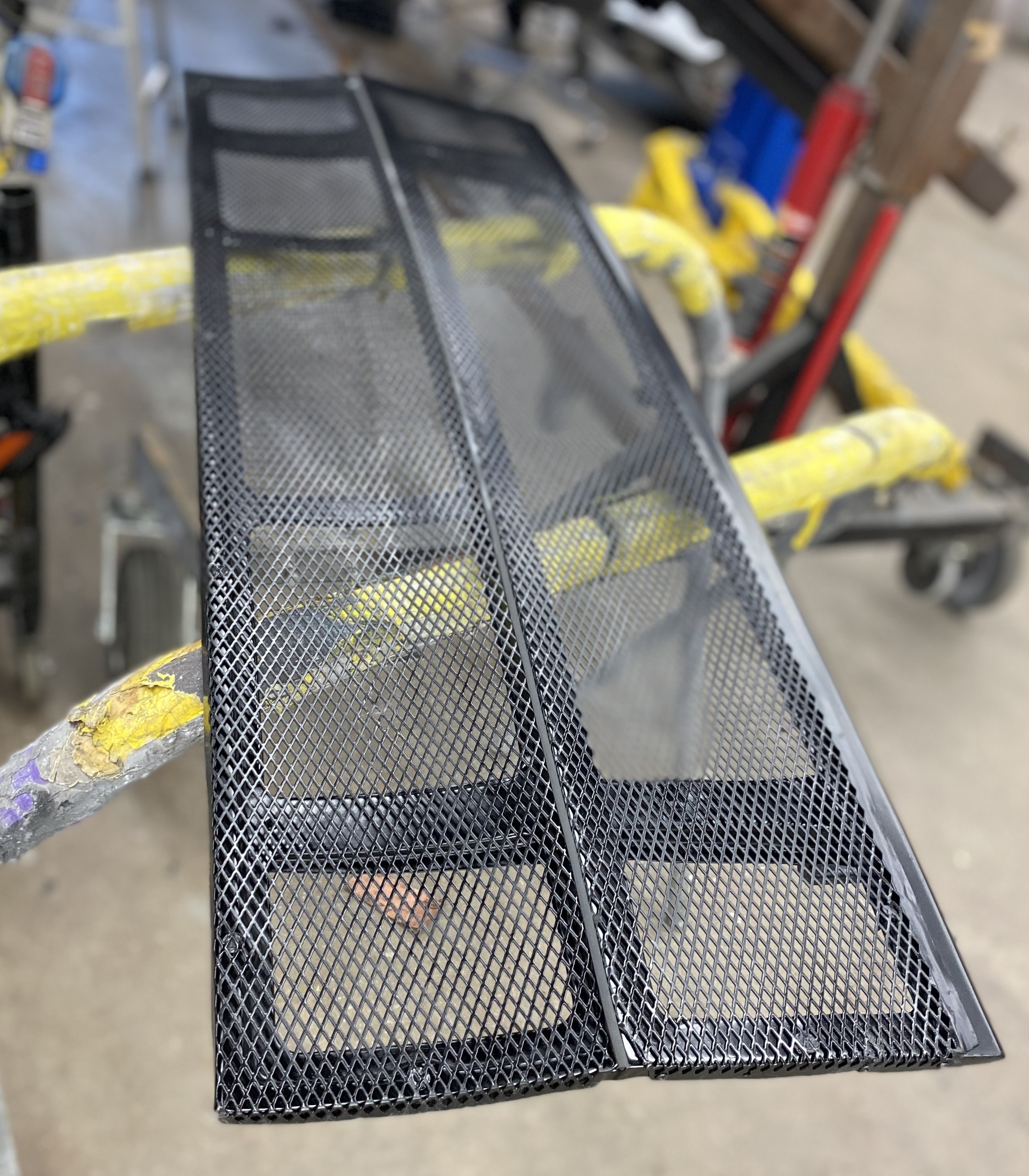

Working on the front cooler and engine access panel.

Attached Image

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Bullethead
post Sep 5 2023, 07:31 PM
Post #184


Oil Cooled heart
***

Group: Members
Posts: 914
Joined: 24-June 10
From: South Florida
Member No.: 11,875
Region Association: South East States
(IMG:style_emoticons/default/clap23.gif) Nice, steady progress Tom... final product will be worth all the effort.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
live free & drive
post Sep 5 2023, 09:22 PM
Post #185


Member
**

Group: Members
Posts: 190
Joined: 29-June 16
From: New Hampshire
Member No.: 20,159
Region Association: None
I went looking for Armando's GT Build he featured on the Pbase site. It seems to have been removed from the site, but after poking around it's still there; here's the link:

https://pbase.com/9146gt/the9146gt

I always liked the oil cooler reinforcement he did here:

https://pbase.com/9146gt/the9146gt_front_oil_cooler_install

He also did the windshield frame reinforcements that you rarely see:

https://pbase.com/9146gt/my9146gt_windshiel..._reinforcements

The Pelican site GT build thread is here:

http://forums.pelicanparts.com/porsche-914...gt-project.html
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Sep 5 2023, 09:30 PM
Post #186


914-6 GT in waiting
***************

Group: Members
Posts: 19,869
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(live free & drive @ Sep 5 2023, 11:22 PM) *

I went looking for Armando's GT Build he featured on the Pbase site. It seems to have been removed from the site, but after poking around it's still there; here's the link:

https://pbase.com/9146gt/the9146gt

I always liked the oil cooler reinforcement he did here:

https://pbase.com/9146gt/the9146gt_front_oil_cooler_install

He also did the windshield frame reinforcements that you rarely see:

https://pbase.com/9146gt/my9146gt_windshiel..._reinforcements

Did he ever finish the build?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
live free & drive
post Sep 6 2023, 06:15 AM
Post #187


Member
**

Group: Members
Posts: 190
Joined: 29-June 16
From: New Hampshire
Member No.: 20,159
Region Association: None
Seems like he ran out of steam on the project around 2014.

I talked with him on the phone several times while buying parts he was offering in the 2018-19 time frame. We did not specifically talk about what was going on with his build.

He had a boatload of Porsche racing parts - a lot of engine stuff for 906's etc. maybe somebody made him an offer he couldn't refuse?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Luke M
post Sep 6 2023, 09:08 AM
Post #188


Senior Member
***

Group: Members
Posts: 1,409
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States
Hi Tom,

Project looks good. I see you went shopping at Rory's place. He has a pretty good stash of nos parts. I sold him the chassis that he turned into the GT clone. How I wish I kept that one.

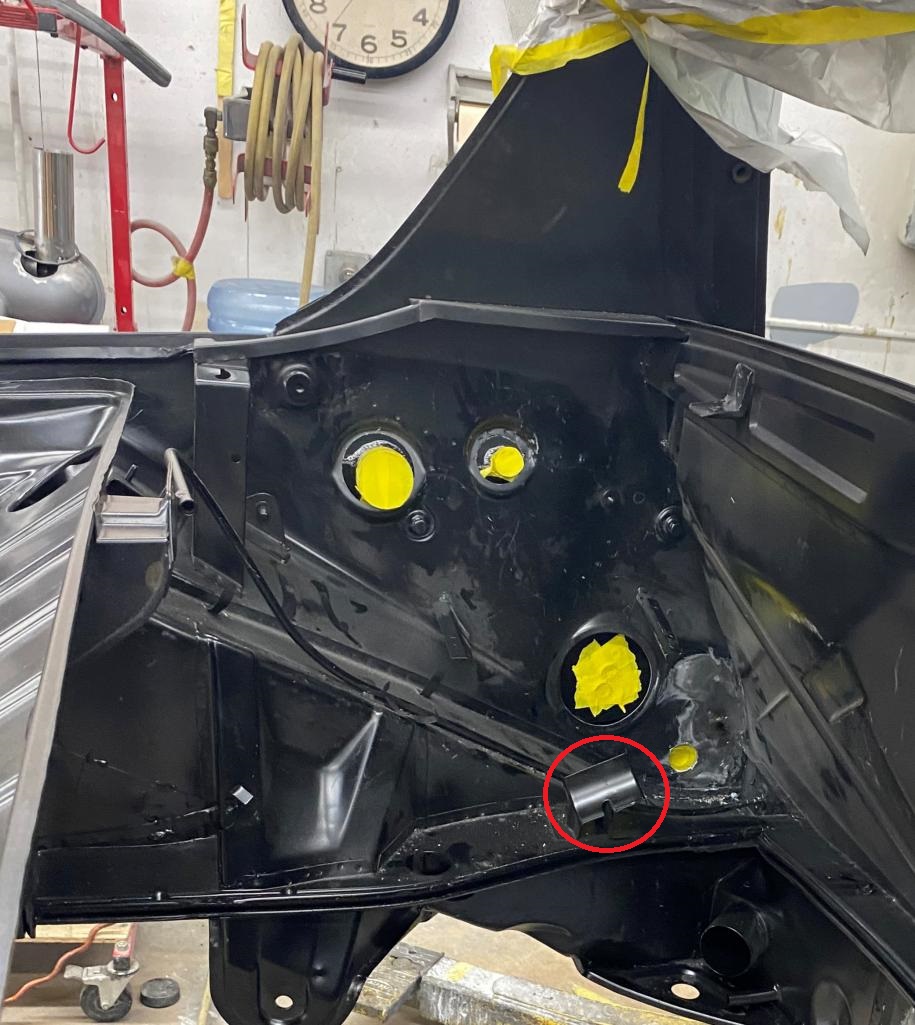

One thing you may want to do is remove that blower fan bracket on left engine shelf. It'll get in the way of installing/removing the oil filter. I ran into that issue on my brothers 6 conv but didn't find out til after the engine bay was painted... (IMG:style_emoticons/default/sad.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tom1394racing
post Sep 6 2023, 10:26 AM
Post #189


Member
**

Group: Members
Posts: 443
Joined: 25-August 07
From: CT
Member No.: 8,039
Region Association: North East States
QUOTE(live free & drive @ Sep 5 2023, 11:22 PM) *

I went looking for Armando's GT Build he featured on the Pbase site. It seems to have been removed from the site, but after poking around it's still there; here's the link:

https://pbase.com/9146gt/the9146gt

I always liked the oil cooler reinforcement he did here:

https://pbase.com/9146gt/the9146gt_front_oil_cooler_install

He also did the windshield frame reinforcements that you rarely see:

https://pbase.com/9146gt/my9146gt_windshiel..._reinforcements

The Pelican site GT build thread is here:

http://forums.pelicanparts.com/porsche-914...gt-project.html


Yes...We have been following Armando's lead and using many of his ideas and detailed descriptions and documentation of factory GT cars. The oil cooler duct reinforcement has been done as well.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Tom1394racing
post Sep 6 2023, 10:28 AM
Post #190


Member
**

Group: Members
Posts: 443
Joined: 25-August 07
From: CT
Member No.: 8,039
Region Association: North East States
QUOTE(Luke M @ Sep 6 2023, 11:08 AM) *

Hi Tom,

Project looks good. I see you went shopping at Rory's place. He has a pretty good stash of nos parts. I sold him the chassis that he turned into the GT clone. How I wish I kept that one.

One thing you may want to do is remove that blower fan bracket on left engine shelf. It'll get in the way of installing/removing the oil filter. I ran into that issue on my brothers 6 conv but didn't find out til after the engine bay was painted... (IMG:style_emoticons/default/sad.gif)


Luke...Thanks for pointing that out. It is on the "to do" list. Any other suggestions, I am all ears!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Tom1394racing
post Sep 6 2023, 01:46 PM
Post #191


Member
**

Group: Members
Posts: 443
Joined: 25-August 07
From: CT
Member No.: 8,039
Region Association: North East States

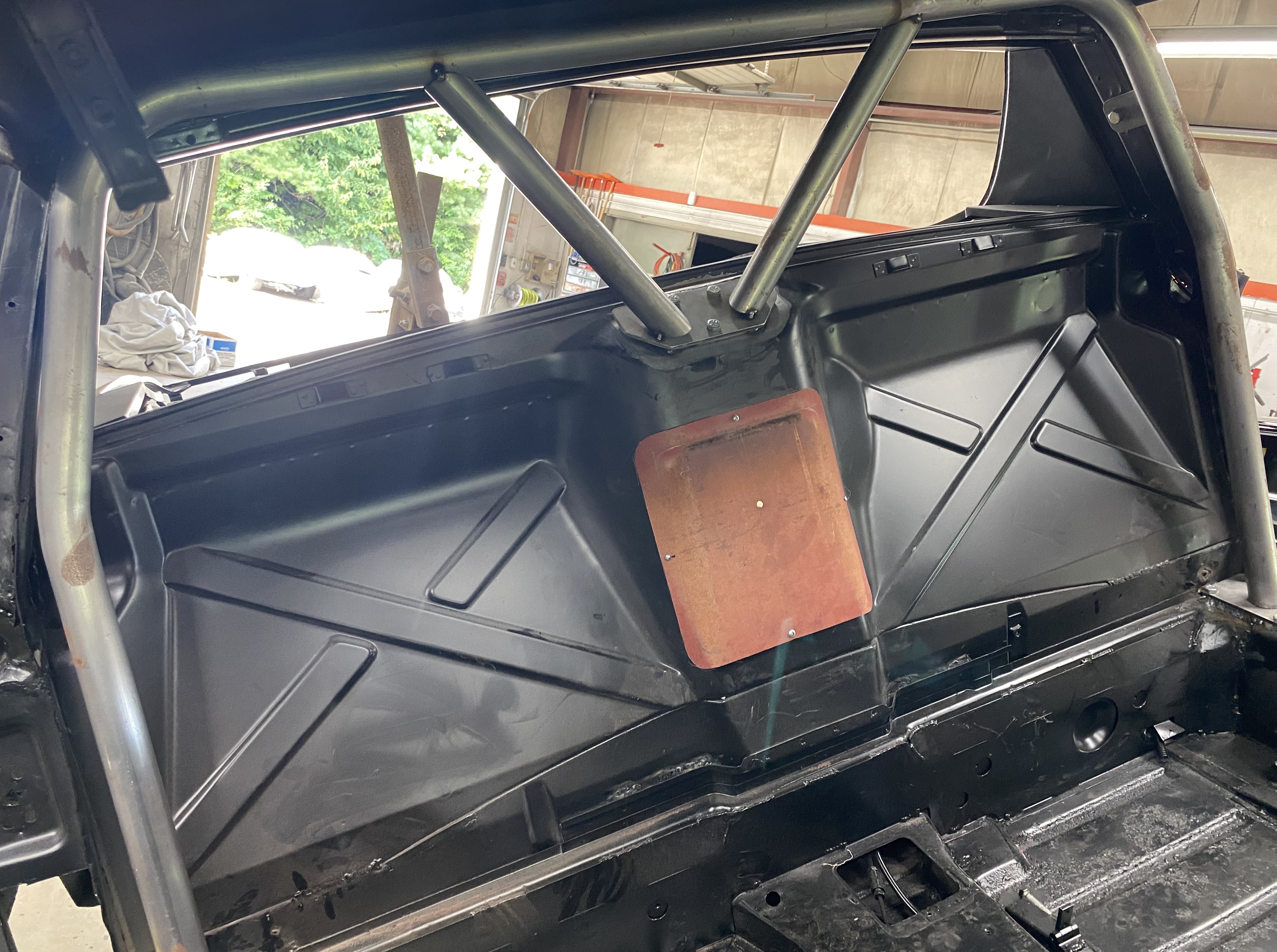

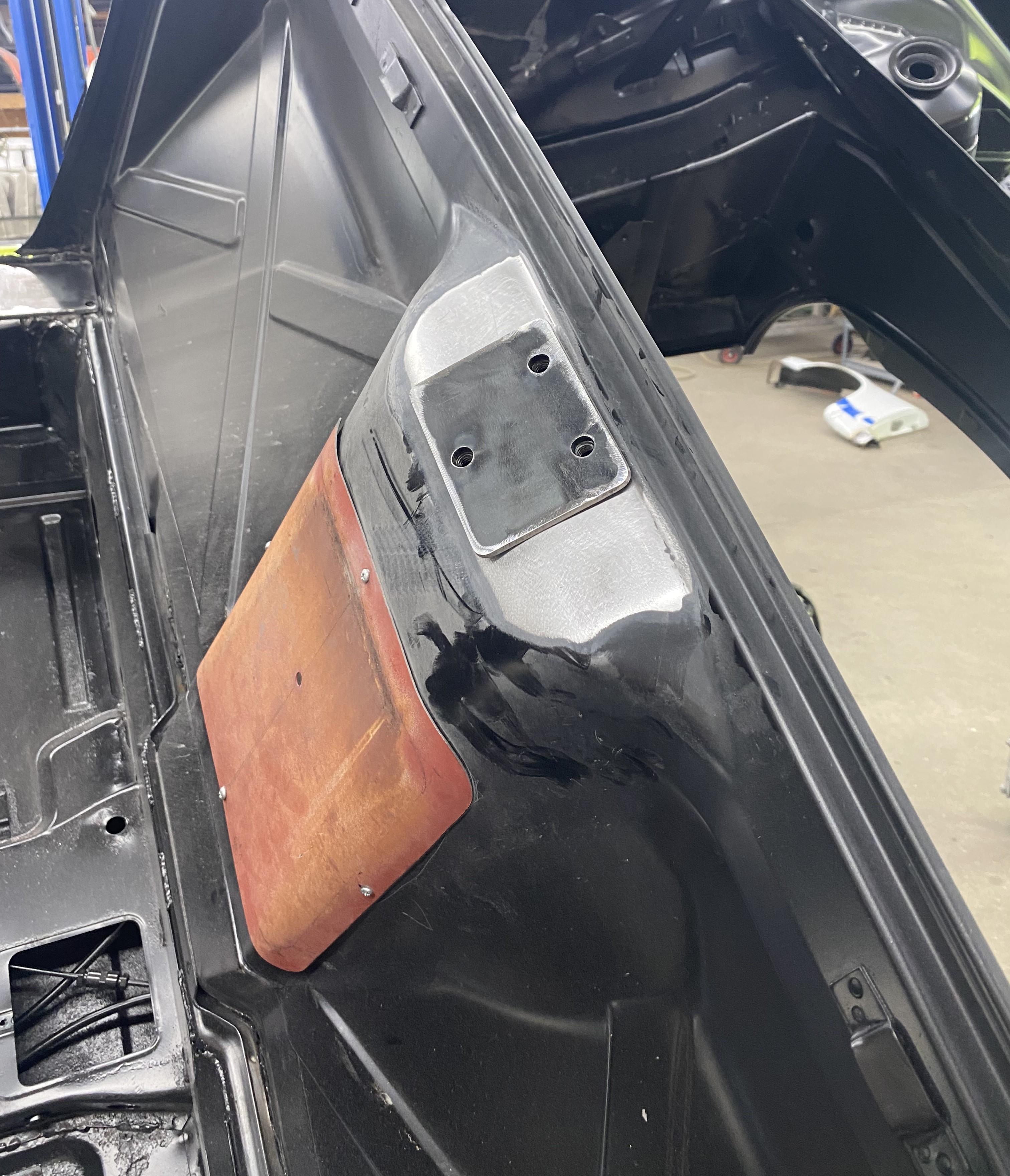

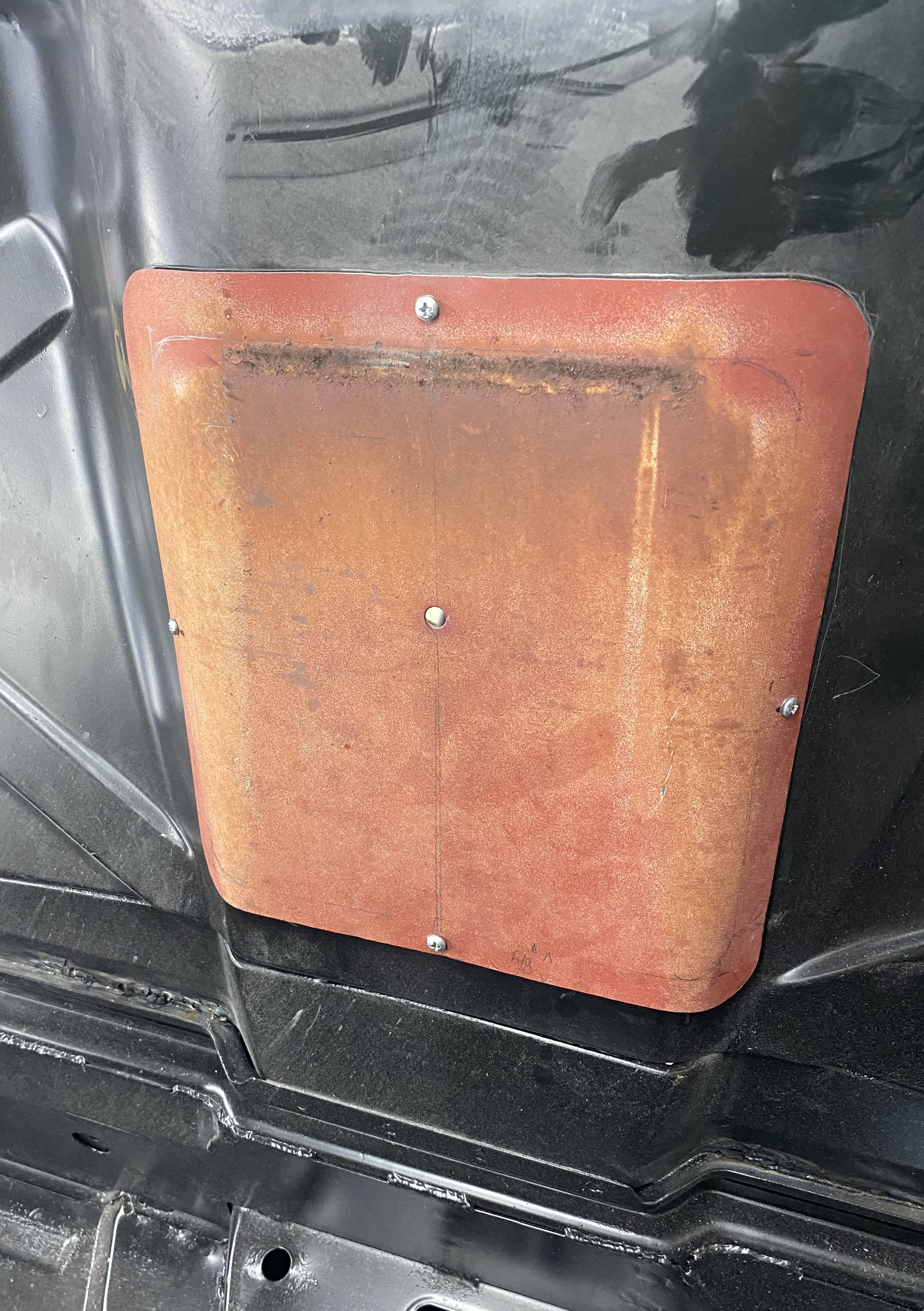

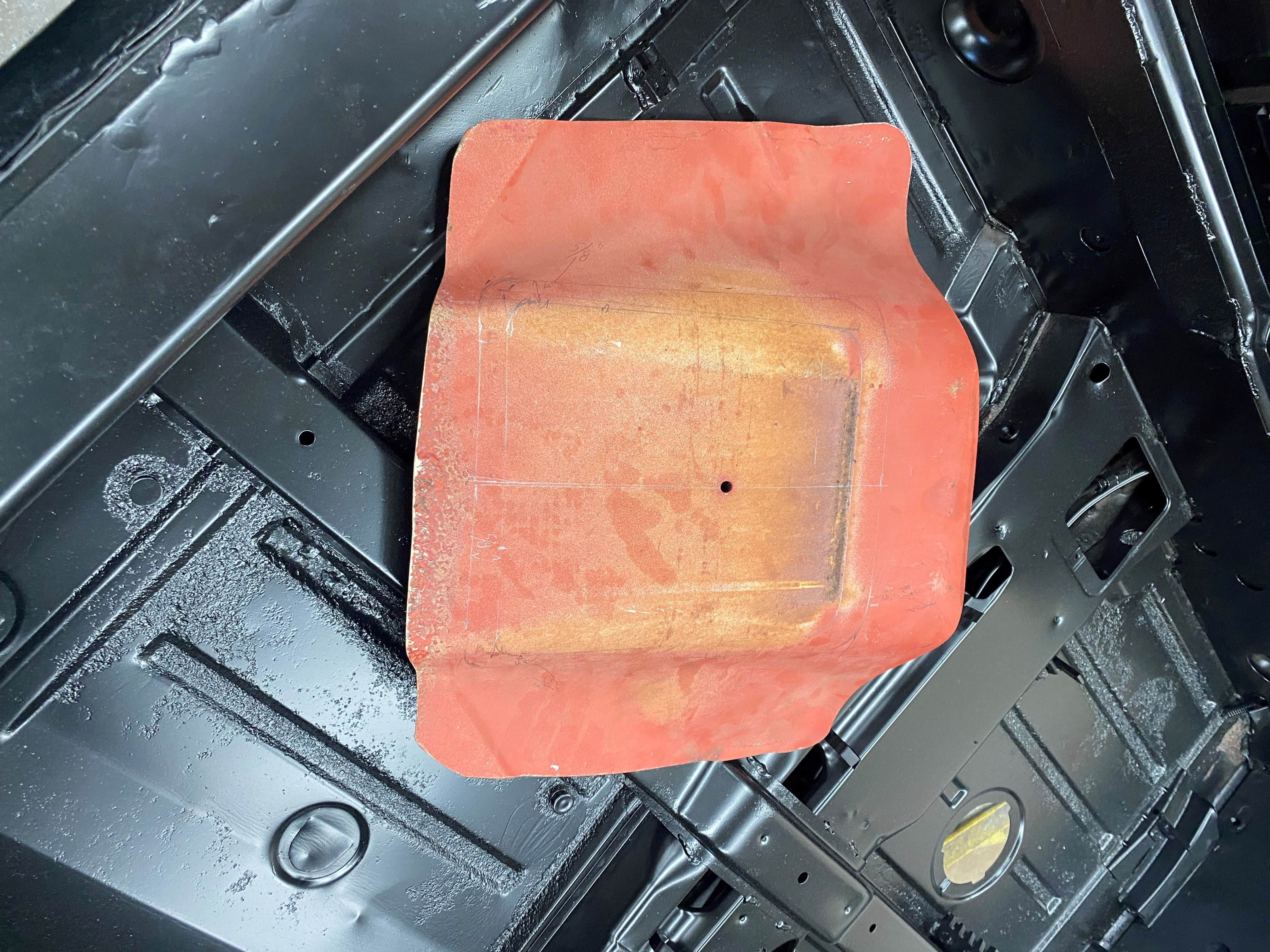

Things are moving forward quickly at Auto Associates. Here is the engine access panel along with the center mount for the GT roll bar.

Attached Image

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Tom1394racing
post Sep 6 2023, 01:48 PM
Post #192


Member
**

Group: Members
Posts: 443
Joined: 25-August 07
From: CT
Member No.: 8,039
Region Association: North East States

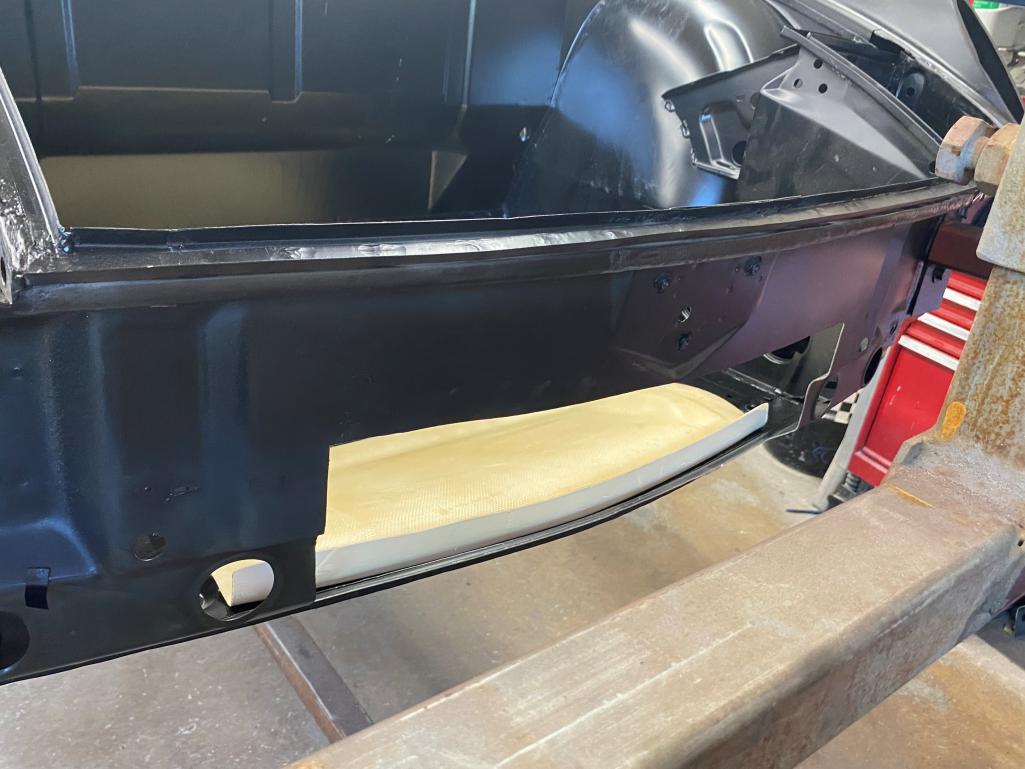

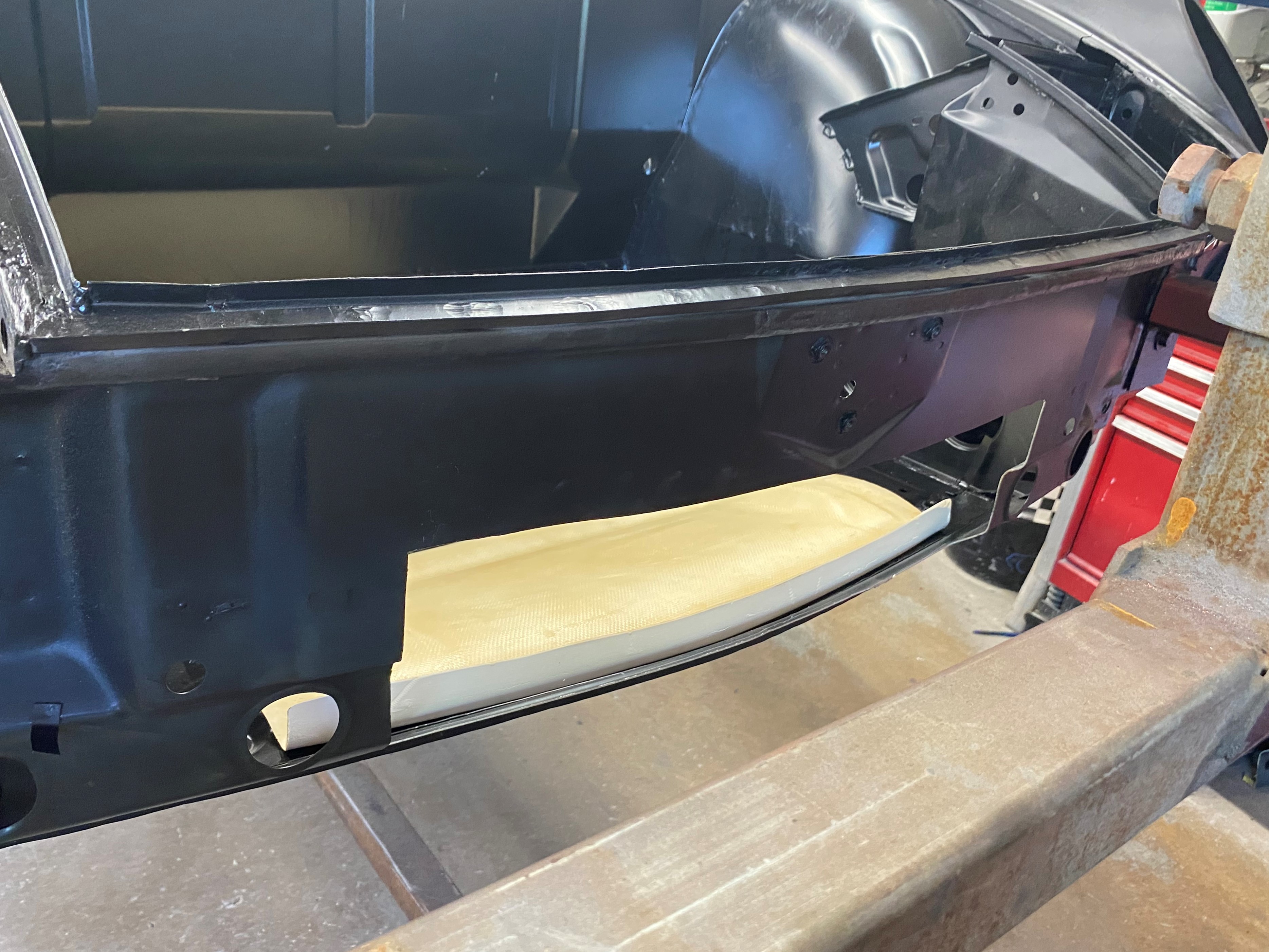

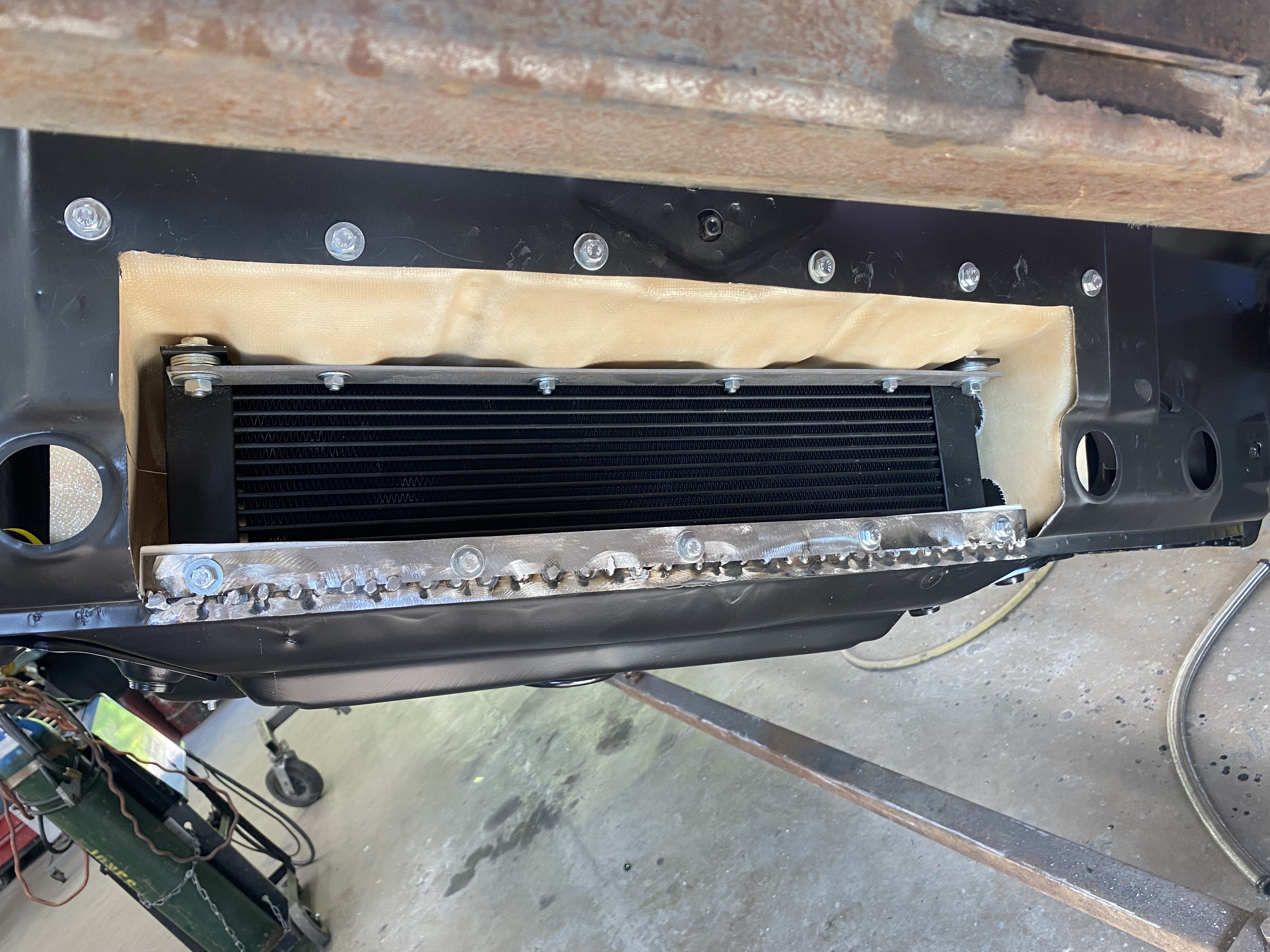

The front cooler reinforcement has been added and the cooler & ducting test fitted.

Attached Image

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Tom1394racing
post Sep 6 2023, 01:50 PM
Post #193


Member
**

Group: Members
Posts: 443
Joined: 25-August 07
From: CT
Member No.: 8,039
Region Association: North East States

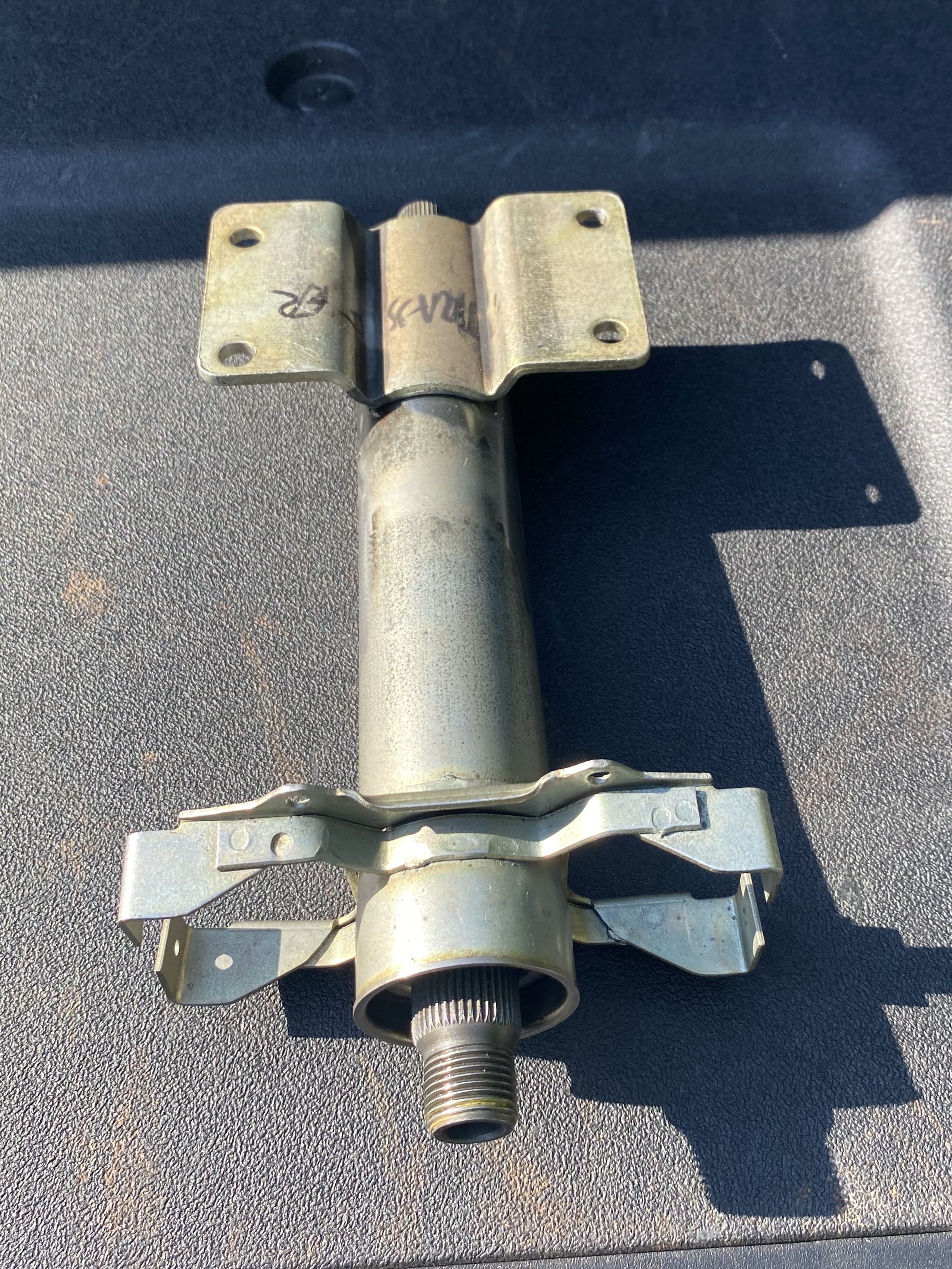

Also, the early 911 steering column has been modified to fit the 914 chassis.

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
sixaddict
post Sep 7 2023, 10:13 AM
Post #194


Senior Member
***

Group: Members
Posts: 923
Joined: 22-January 09
From: Panama City Beach, FL
Member No.: 9,961
Region Association: South East States
Tom
Your work on this gives me indigestion………it is above and beyond great! Process shows a level commitment I’m having trouble finding.
Question……
What was your procedure for restoring plastic parts of ventilation system?
Thanks,
Terry
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tom1394racing
post Sep 7 2023, 05:57 PM
Post #195


Member
**

Group: Members
Posts: 443
Joined: 25-August 07
From: CT
Member No.: 8,039
Region Association: North East States
QUOTE(sixaddict @ Sep 7 2023, 12:13 PM) *

Tom
Your work on this gives me indigestion………it is above and beyond great! Process shows a level commitment I’m having trouble finding.
Question……
What was your procedure for restoring plastic parts of ventilation system?
Thanks,
Terry


First, a thorough cleaning with soap and water. Then removal of any, and all overspray with Goo Gone and a soft Scotch-Brite pad. Then I used Maguires Cericoat wipes to restore luster. I did not remove any of the hardware and haven’t re-plated as I was able to polish to my satisfaction.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Sep 8 2023, 07:17 AM
Post #196


914 Guru
*****

Group: Members
Posts: 5,564
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
QUOTE(Tom1394racing @ Sep 7 2023, 03:57 PM) *

QUOTE(sixaddict @ Sep 7 2023, 12:13 PM) *

Tom
Your work on this gives me indigestion………it is above and beyond great! Process shows a level commitment I’m having trouble finding.
Question……
What was your procedure for restoring plastic parts of ventilation system?
Thanks,
Terry


First, a thorough cleaning with soap and water. Then removal of any, and all overspray with Goo Gone and a soft Scotch-Brite pad. Then I used Maguires Cericoat wipes to restore luster. I did not remove any of the hardware and haven’t re-plated as I was able to polish to my satisfaction.

GREAT info, it gives a normal garage guy hope on similar results.
Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tom1394racing
post Sep 11 2023, 05:19 PM
Post #197


Member
**

Group: Members
Posts: 443
Joined: 25-August 07
From: CT
Member No.: 8,039
Region Association: North East States
Tangerine Racing GT roll bar installation in process. This will be welded in and will get diagonals from the bar to the inner longitudinals.

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Tom1394racing
post Sep 11 2023, 05:21 PM
Post #198


Member
**

Group: Members
Posts: 443
Joined: 25-August 07
From: CT
Member No.: 8,039
Region Association: North East States

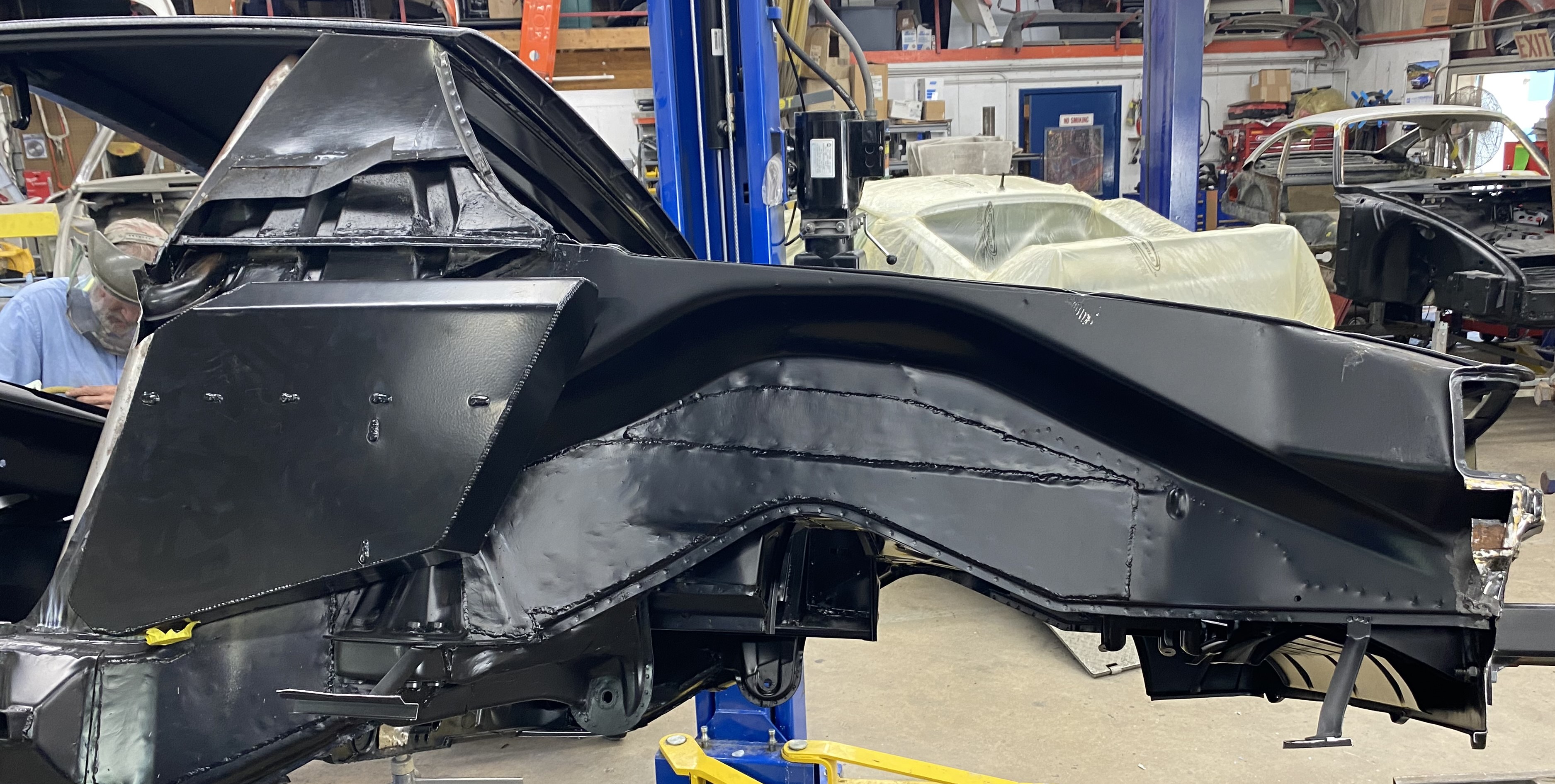

Rear quarter prepped for installation of the NOS quarter panel.

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Tom1394racing
post Sep 11 2023, 05:22 PM
Post #199


Member
**

Group: Members
Posts: 443
Joined: 25-August 07
From: CT
Member No.: 8,039
Region Association: North East States
Sergio's GT engine lid with the diagonal removed for a more authentic GT look.

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
TRS63
post Sep 13 2023, 12:02 PM
Post #200


Member
**

Group: Members
Posts: 326
Joined: 14-September 20
From: Germany - Stuttgart
Member No.: 24,690
Region Association: Europe
Fantastic project and thanks for sharing the details with us!

Antoine
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
