now let's put it all together!


944 turbo CV on the 914 axle shaft:

(IMG:http://www.914world.com/bbs2/uploads/post-11-1123468545.jpg)


both ends:

(IMG:http://www.914world.com/bbs2/uploads/post-11-1123468565.jpg)


915 (911) coarse spline tranny output shaft bolted to the 944 CV:

(IMG:http://www.914world.com/bbs2/uploads/post-11-1123468591.jpg)


944 turbo stub axle bolted to the 944 CV:

(IMG:http://www.914world.com/bbs2/uploads/post-11-1123468613.jpg)


early 911 hub (real 5-lug!) bolted to the 944 stub axle:

(IMG:http://www.914world.com/bbs2/uploads/post-11-1123468634.jpg)


and the complete axle: (IMG:http://www.914world.com/bbs2/html/emoticons/boldblue.gif)

(IMG:http://www.914world.com/bbs2/uploads/post-11-1123468659.jpg)



i like it!
(IMG:http://www.914world.com/bbs2/html/emoticons/smash.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
2 Pages V  1 2 >
 Reply to this topicStart new topic
Replies(1 - 19)
SirAndy
post Aug 7 2005, 08:45 PM
Post #2


Resident German
*************************

Group: Admin
Posts: 42,205
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California

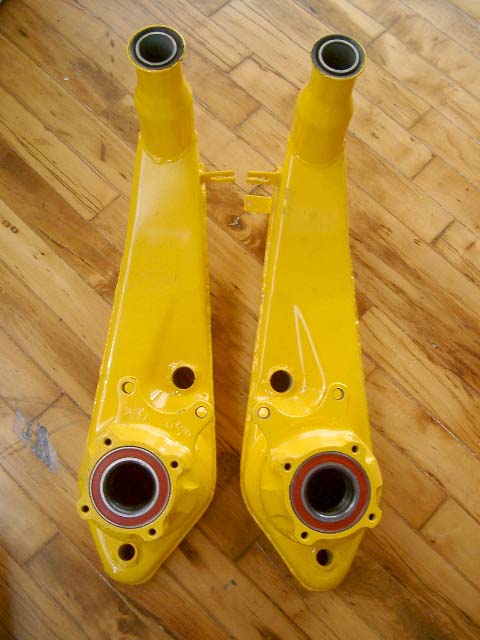

one more ...



Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
redshift
post Aug 7 2005, 08:47 PM
Post #3


Bless the Hell out of you!
**********

Group: Members
Posts: 10,926
Joined: 29-June 03
Member No.: 869
(IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif)

Oh noes Andy!

Aren't you fogetting at least .... something?


M
-hint... WHERE IS THE CAR!?-
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Aug 7 2005, 08:55 PM
Post #4


Resident German
*************************

Group: Admin
Posts: 42,205
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(redshift @ Aug 7 2005, 07:47 PM)
-hint... WHERE IS THE CAR!?-

you know how it is ...
since i powdercoated the suspension yellow, i can't keep up with the car anymore ...
it's simply too fast ...

this was just a test run, making sure all the parts fit together OK. which they do.

look out for my next "how to" on installing the rear mueller roller bearings and the 911 e-brake setup.

once those are done, the new axles will be installed. i promise ...
(IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/smilie_flagge24.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Aug 7 2005, 09:07 PM
Post #5


Send me your transmission!
***************

Group: Members
Posts: 23,038
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Yo dog,
aren't you missing the keeper thing that fits in the groove at the end of the CV and presses against the CV in pic #1? What holds the tranny side CV fast to the axle?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914MF
post Aug 7 2005, 09:11 PM
Post #6


Member
**

Group: Benefactors
Posts: 176
Joined: 4-September 03
From: Denver, CO
Member No.: 1,112
Is there a reason you did not use the 944 axles? Were they too long? Nice pictures (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Aug 7 2005, 09:13 PM
Post #7


Resident German
*************************

Group: Admin
Posts: 42,205
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Dr Evil @ Aug 7 2005, 08:07 PM)
Yo dog

wassup bro ...

as i said in the post above, this is just a test fitting. no need to put all those little clips on there just yet.

also, you might notice that the CVs are still missing the grease ...
(IMG:style_emoticons/default/cool.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Aug 7 2005, 09:14 PM
Post #8


Resident German
*************************

Group: Admin
Posts: 42,205
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(914MF @ Aug 7 2005, 08:11 PM)
Is there a reason you did not use the 944 axles? Were they too long? Nice pictures (IMG:style_emoticons/default/smilie_pokal.gif)

yes, 944 axle is ~1" too long ...

see this thread for more details:
http://www.914world.com/bbs2/index.php?act=...f=2&t=36170

(IMG:style_emoticons/default/cool.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Aug 7 2005, 09:26 PM
Post #9


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,946
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Nice Sir Andy! WTG! (IMG:http://www.914world.com/bbs2/html/emoticons/clap.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Aug 7 2005, 09:29 PM
Post #10


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,946
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Anyone have a part cost breakdown? What do the early flanges go for used? Can you use non-turbo 944 stuff? ie, axle flange, CV's, etc.....?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Aug 7 2005, 09:46 PM
Post #11


Send me your transmission!
***************

Group: Members
Posts: 23,038
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
He he, word player. I noticed Mikey's lathing to fix the prob too. Thanks for putting all of this stuff up for everyone. Someday I wanna do this conversion. I wish that I would not have sold my early 911 hubs (IMG:http://www.914world.com/bbs2/html/emoticons/rolleyes.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Engman
post Aug 7 2005, 10:16 PM
Post #12


Zoisite
***

Group: Benefactors
Posts: 1,349
Joined: 25-March 03
From: New Albany, IN
Member No.: 475
(IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)

At least now we have a solution to the NLA cv joints on the 914.

Nice work guys!

Now pics in the car!

M
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post Aug 7 2005, 11:17 PM
Post #13


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,854
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
what bearing will you use?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Aug 7 2005, 11:26 PM
Post #14


Resident German
*************************

Group: Admin
Posts: 42,205
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(seanery @ Aug 7 2005, 10:17 PM)
what bearing will you use?

i've got the stock (FAG) 914/4 wheel bearings ...

the early 911 hubs have the same dia. as the 914/4 hubs and will slide right into a stock 914/4 bearing ...
(IMG:style_emoticons/default/wink.gif) Andy

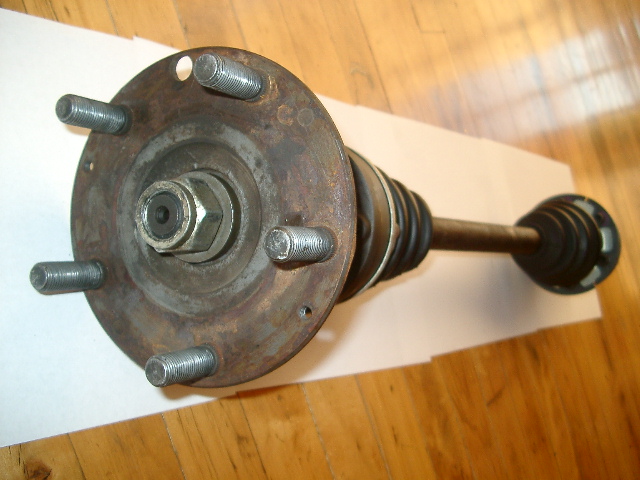

Attached image(s)
