> Maximum amount of alignment shims...., That I have seen in awhile
GaroldShaffer
post Aug 29 2023, 04:57 PM
Post #1


You bought another 914?
*****

Group: Benefactors
Posts: 7,638
Joined: 27-June 03
From: Portage, IN
Member No.: 865
Region Association: None

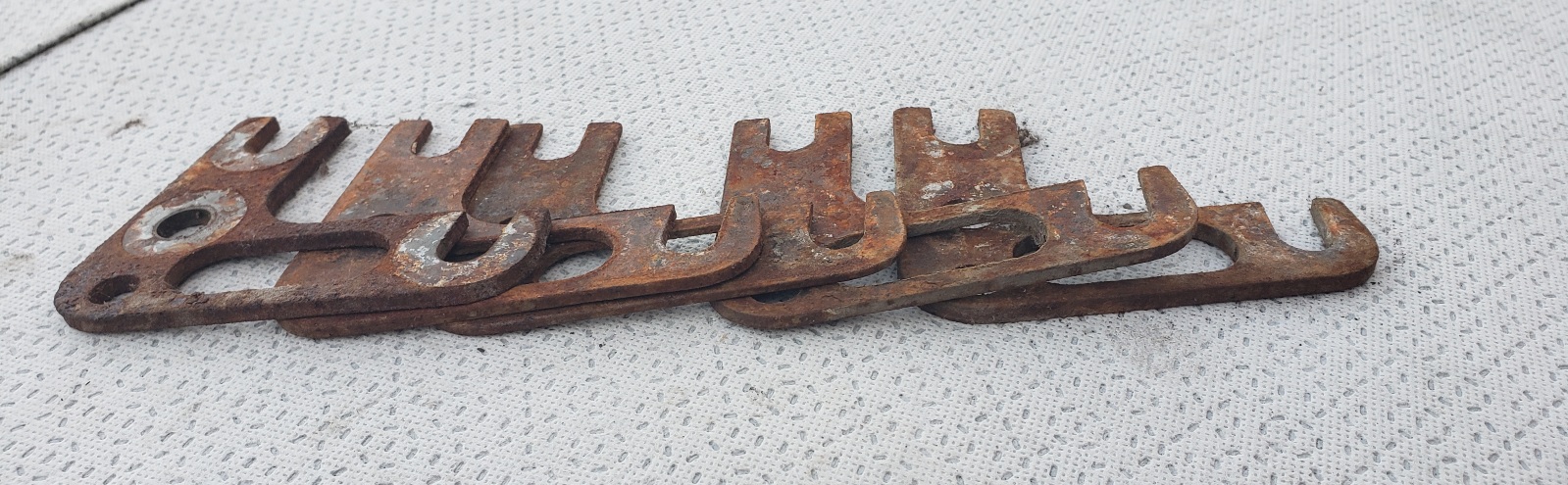

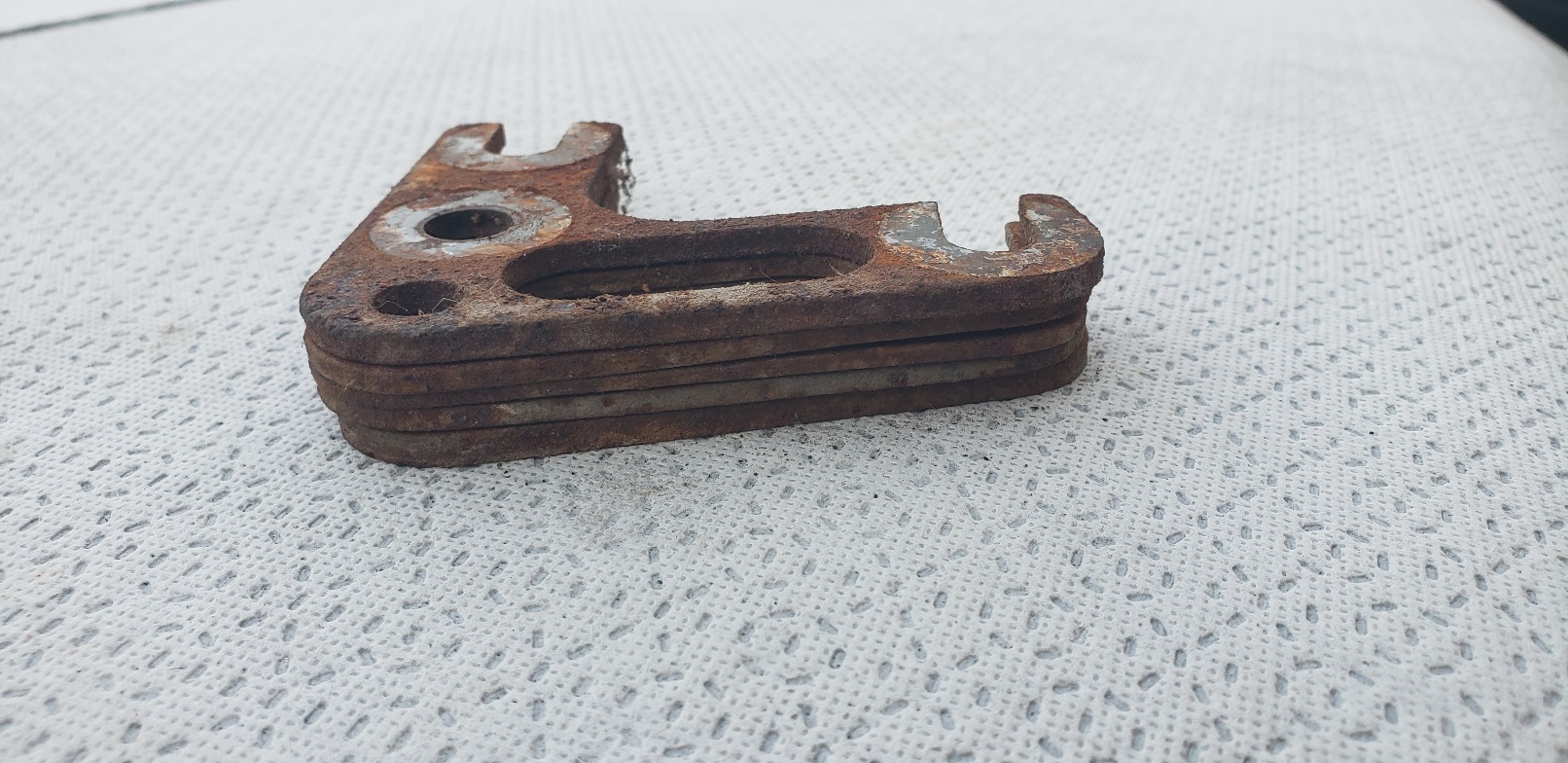

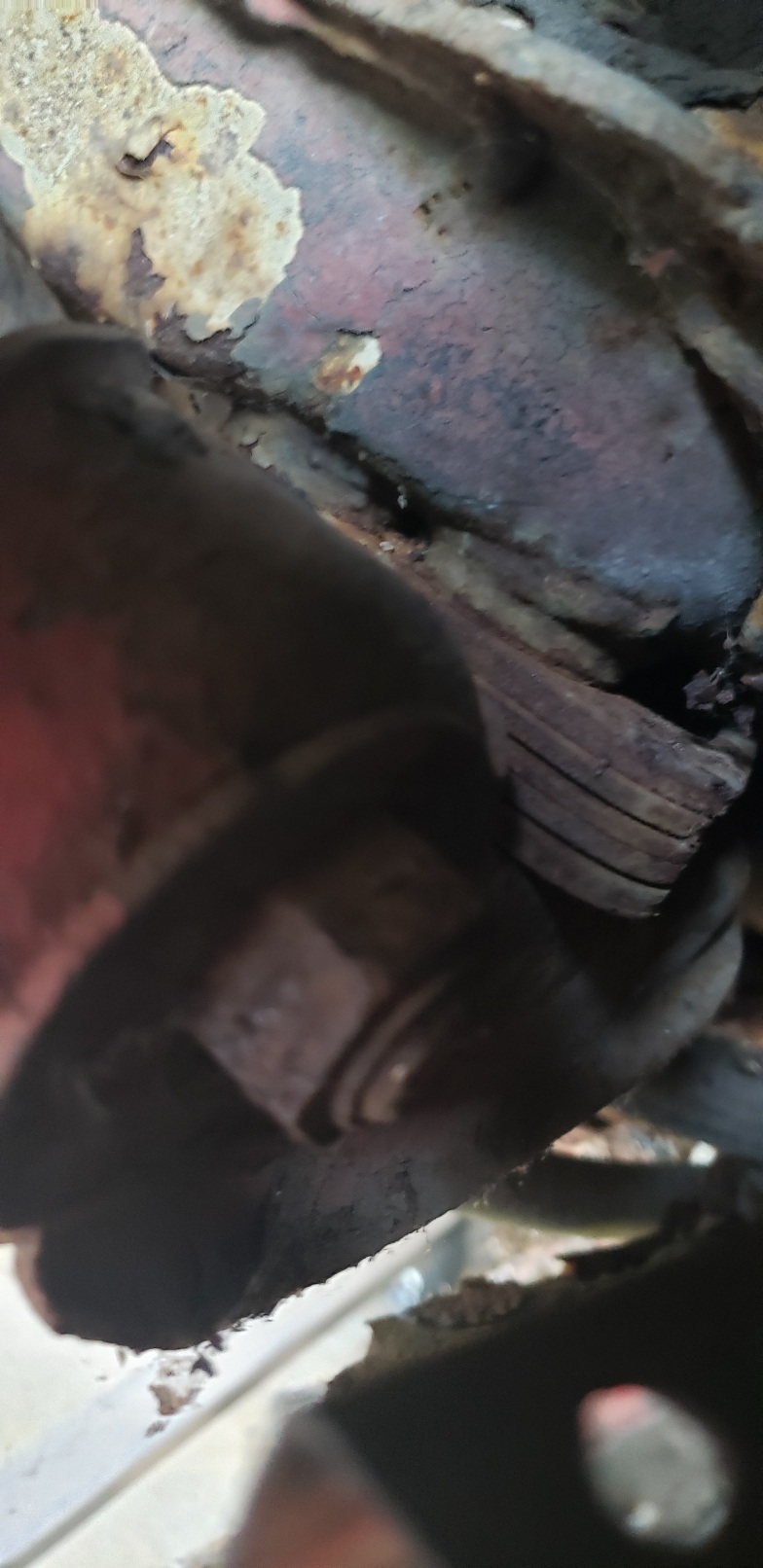

Working on the latest parts car. This was a driving car up to about 12yrs ago. It is very very rusty. I think they just might of had an alignment issue on the right side. (IMG:style_emoticons/default/blink.gif)

Thats 2 4mm, 2 3mm, and 1 2mm shim. Yikes!


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Aug 29 2023, 05:35 PM
Post #2


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,444
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
on just the one side?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 29 2023, 06:41 PM
Post #3


914-6 GT in waiting
***************

Group: Members
Posts: 20,205
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region

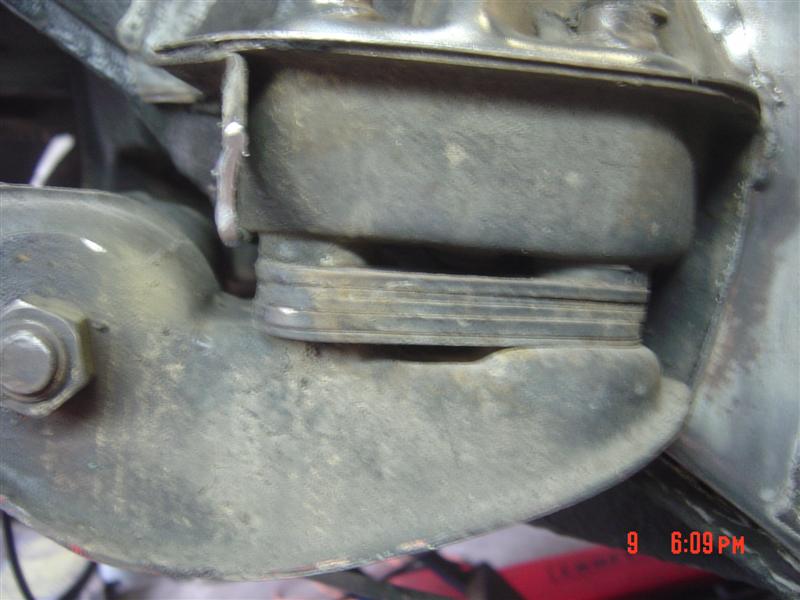

This was on my car before repairs.


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
GaroldShaffer
post Aug 29 2023, 08:09 PM
Post #4


You bought another 914?
*****

Group: Benefactors
Posts: 7,638
Joined: 27-June 03
From: Portage, IN
Member No.: 865
Region Association: None
QUOTE(914werke @ Aug 29 2023, 06:35 PM) *

on just the one side?


Yes. Driver side just had a 2mm shim. (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Aug 29 2023, 08:34 PM
Post #5


Resident German
*************************

Group: Admin
Posts: 42,354
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
Bent trailing arm or, ... worse ...
(IMG:style_emoticons/default/icon8.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Aug 29 2023, 08:40 PM
Post #6


Resident German
*************************

Group: Admin
Posts: 42,354
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
This is what came out of my car.
(IMG:style_emoticons/default/blink.gif)

(IMG:http://www.914world.com/bbs2/uploads/post-8-1148759082.jpg) (IMG:http://www.914world.com/bbs2/uploads/post-8-1148759348.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GaroldShaffer
post Aug 29 2023, 09:07 PM
Post #7


You bought another 914?
*****

Group: Benefactors
Posts: 7,638
Joined: 27-June 03
From: Portage, IN
Member No.: 865
Region Association: None
QUOTE(SirAndy @ Aug 29 2023, 09:40 PM) *

This is what came out of my car.
(IMG:style_emoticons/default/blink.gif)

(IMG:http://www.914world.com/bbs2/uploads/post-8-1148759082.jpg) (IMG:http://www.914world.com/bbs2/uploads/post-8-1148759348.jpg)


YIKES!! This car is just a really rusty POS that someone patched together to keep it on the road.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Aug 30 2023, 05:55 AM
Post #8


914 Guru
*****

Group: Members
Posts: 9,309
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
Twisted body shell
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 30 2023, 06:19 AM
Post #9


914-6 GT in waiting
***************

Group: Members
Posts: 20,205
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(914Sixer @ Aug 30 2023, 07:55 AM) *

Twisted body shell

Mine was an incorrectly mounted replacement suspension console.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
NARP74
post Aug 30 2023, 08:01 AM
Post #10


Senior Member
***

Group: Members
Posts: 1,434
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
"In for a penny, in for a pound" That's going all in on shims. Wow
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Aug 30 2023, 08:14 AM
Post #11


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,815
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
QUOTE(GaroldShaffer @ Aug 29 2023, 08:07 PM) *

QUOTE(SirAndy @ Aug 29 2023, 09:40 PM) *

This is what came out of my car.
(IMG:style_emoticons/default/blink.gif)

(IMG:http://www.914world.com/bbs2/uploads/post-8-1148759082.jpg) (IMG:http://www.914world.com/bbs2/uploads/post-8-1148759348.jpg)


YIKES!! This car is just a really rusty POS that someone patched together to keep it on the road.

So many it looks like a deck of cards. Was that a Cali car???
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Aug 30 2023, 08:35 AM
Post #12


914 Guru
*****

Group: Members
Posts: 7,504
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
That’s a good find on a parts car . . . Just more parts to sell (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NARP74
post Aug 30 2023, 08:39 AM
Post #13


Senior Member
***

Group: Members
Posts: 1,434
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
Old stock, original rust
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Aug 30 2023, 12:02 PM
Post #14


914 Guru
*****

Group: Members
Posts: 8,214
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
start by replacing the springs
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Optimusglen
post Aug 30 2023, 01:06 PM
Post #15


Senior Member
***

Group: Members
Posts: 940
Joined: 26-February 16
From: Minneapolis
Member No.: 19,709
Region Association: Upper MidWest
I mean, what kind of tolerances was the factory holding on the suspension consoles for these? I get it's a lot of shims, but it seems like every time the topic comes up (that I've seen anyway) it's always the passenger side that needs a ton and the driver side is 1 or 2, if at all.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Aug 30 2023, 02:23 PM
Post #16


Resident German
*************************

Group: Admin
Posts: 42,354
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Optimusglen @ Aug 30 2023, 12:06 PM) *

I mean, what kind of tolerances was the factory holding on the suspension consoles for these? I get it's a lot of shims, but it seems like every time the topic comes up (that I've seen anyway) it's always the passenger side that needs a ton and the driver side is 1 or 2, if at all.

You don't get that much variance in a straight tub ...


After pulling the tub back to factory specs, i've been running 1 shim on each side, giving me about -1 degree of rear camber.

Without any shims, it's around -2 degrees.
(IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 30 2023, 04:55 PM
Post #17


914-6 GT in waiting
***************

Group: Members
Posts: 20,205
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(Optimusglen @ Aug 30 2023, 03:06 PM) *

I mean, what kind of tolerances was the factory holding on the suspension consoles for these? I get it's a lot of shims, but it seems like every time the topic comes up (that I've seen anyway) it's always the passenger side that needs a ton and the driver side is 1 or 2, if at all.

My opinion- Because the passenger side suspension consoles gets damaged and weakened from water and battery acid washing over them. The quick fix is shims but they continue to fail until replaced.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
