> 1974 Headlight Switch pinout, 1974 Headlight Switch pinout
mgarrison
post Sep 16 2023, 12:16 PM
Post #1


Member
**

Group: Members
Posts: 351
Joined: 14-February 20
From: Chandler, AZ
Member No.: 23,922
Region Association: Southwest Region



Hello,

I was hoping to reuse the light switch that was in my 74, but I am really struggling with the "current flow diagram" vs a typical "wiring diagram". The wiring diagram for the 71 is much easier for my addled brain to follow. However, the 71 used a different light switch with fewer connections, so not much help!

I no longer have popups, so I wont be using those connections, but hoping to use the connections for parking lights, headlights, and maybe the dimmer (knob twist) for the gauge lights.

Here's what I THINK I have ferreted out from the 74 current flow diagram in the service manuals:
Attached Image

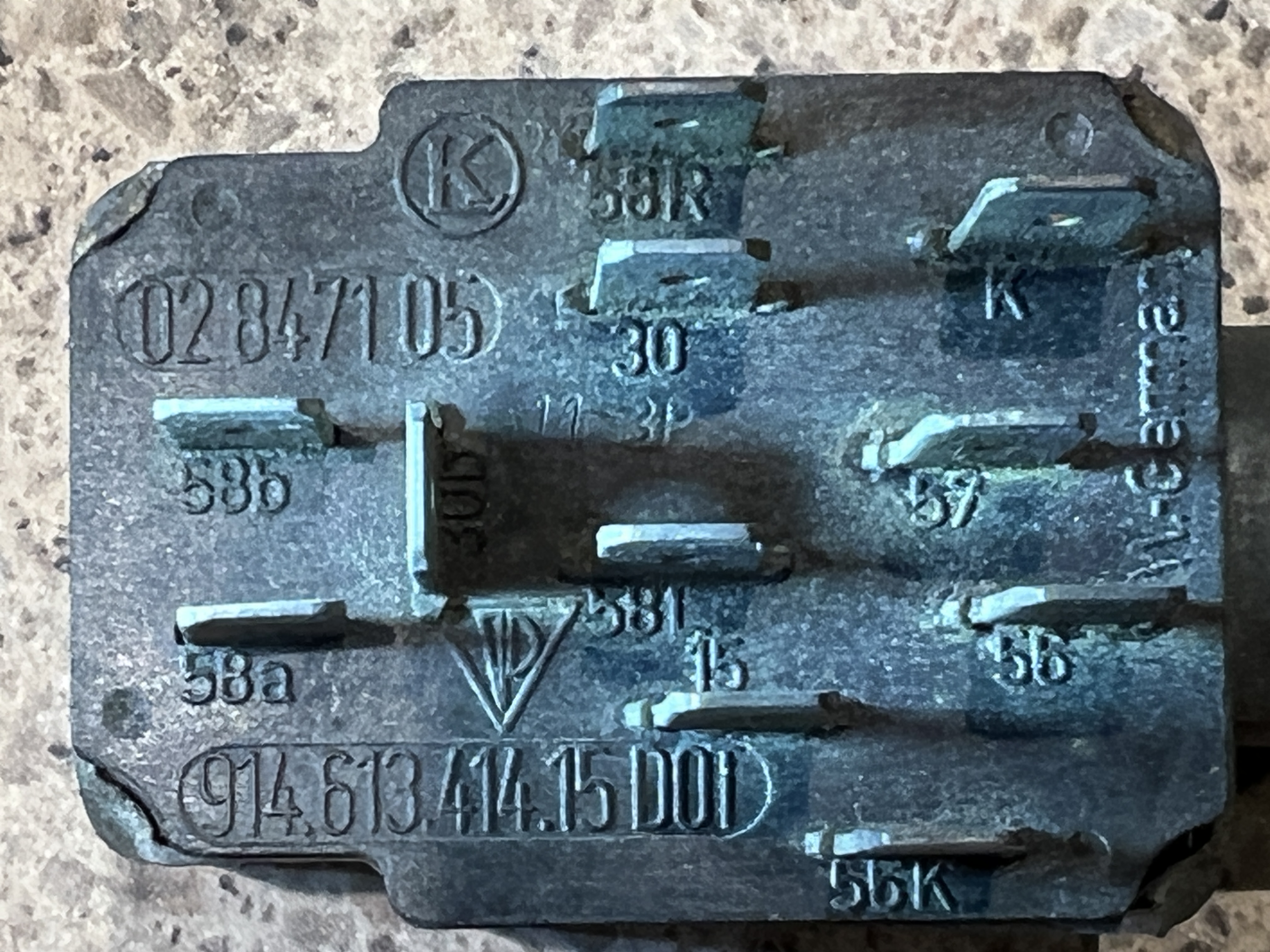

Here's the best pic I could get of my light switch that shows most of the connection numbers (11 total connections):
Attached Image

I hoping someone can maybe confirm what I have so far as accurate, or even better share where each connections goes/it's purpose (IMG:style_emoticons/default/pray.gif)
User is offlineProfile CardPM
