> Turbo Tie Rod Washers, Are they critical?
vesnyder
post Dec 22 2005, 05:04 PM
Post #1


Senior Member
***

Group: Members
Posts: 680
Joined: 14-April 05
From: Cleveland, OH
Member No.: 3,933



I just installed the turbo tie rods and did not install the washer that came with the kit that goes between the tie rod and the steering rack - are these needed?

(IMG:http://www.914world.com/bbs2/html/emoticons/headbang.gif)

That's what I was afraid of!! They were a bitch to tighten and they will be impossible when I install the washer.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bondo
post Dec 22 2005, 05:09 PM
Post #2


Practicing my perpendicular parking
****

Group: Members
Posts: 4,277
Joined: 19-April 03
From: Los Osos, CA
Member No.: 587
Region Association: Central California



Yes! They keep you fromn overextending (and destroying) the steering rack.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TimT
post Dec 22 2005, 05:16 PM
Post #3


retired
****

Group: Members
Posts: 4,033
Joined: 18-February 03
From: Wantagh, NY
Member No.: 313



You need the washers. Without then you will never be able to set the toe
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Marlow
post Dec 22 2005, 07:05 PM
Post #4


Member
**

Group: Members
Posts: 311
Joined: 14-August 03
From: Manassas, VA
Member No.: 1,027



It seems some cars need them and others don't. I could not use them on my 74 because it caused a large toe-in condition. The washers made the tie rod's too long compared to the ones that came off. I asked the same question and was told that the washers are spacers, not rack stops. I don't think they have anything to do with protecting the rack - I've gone lock-to-lock plenty of times without the washers and my steering rack seems just fine.




User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FourBlades
post Feb 1 2010, 03:13 PM
Post #5


From Wreck to Rockin
****

Group: Members
Posts: 2,056
Joined: 3-December 07
From: Brevard, FL
Member No.: 8,414
Region Association: South East States



Maybe someone knows the answer to this, or has the right parts to verify it.

I put Lemforder turbo tie rods on my 914, which has early 911 struts, the kind
with 3" caliper bolt spacing. Using the thick washers that come with the tie rods
I am not able to eliminate about 1" of toe in. Perhaps the steering arms are
different in geometry on the kind of struts I am using from 914 struts.

Maybe the later 911 struts with 3.5" caliper bolt spacing are the same as 914 or
maybe they are different as well.

Anyway, I think I need to ditch the spacers or suffer a serious case of
bowleggedness.

It would be nice to derfinitely figure this out and publish it for future 914ers.

Thanks to Eric Shea for helping me figure this out.

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
type47
post Feb 1 2010, 03:42 PM
Post #6


Viermeister
****

Group: Members
Posts: 4,254
Joined: 7-August 03
From: Vienna, VA
Member No.: 994
Region Association: MidAtlantic Region



I thought the washers had something to do with "bump steer" (which I think is the steering "wobble" you get from irregularities in the raod surface).
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Feb 1 2010, 03:49 PM
Post #7


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None



The washers aren't for bump steer. You need to raise/lower the steering rack in relation to the chassis in order to affect bump steer.

The washers are dual purpose, they act as 'stoppers' which will hit the steering rack and they also add overall length to the tie rod to allow for better toe-in adjustment.

I ran my first car for a long time without washers and didn't have a problem. But after learning more about them and what they're really doing, I wouldn't run a set without them now.

Vance, a special wrench really helps, and I have one that I could mail out to you to borrow. Just PM me your address and phone number.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Feb 1 2010, 04:05 PM
Post #8


PMB Performance
***************

Group: Admin
Posts: 19,301
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains



I believe all spindle arms are not created equal. Some seem to need these and some (as per Joel and John's cars) don't.

I don't think they are meant to be bump stops for the rack. If anything they would prevent wider tires from rubbing, similar to the Elephant washers. A spherical joint screwed into the rack, with or without these will stop when the rack stops. Mark, correct me here if I'm wrong. I just did mine and I'm spacing on it to be honest with you.

It would be nice to know which struts need them and which don't. John has 911T struts with the 3" mounting ears. His don't seem to require them. I can't imagine the racks being different. They seem to be the same car to car.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Feb 1 2010, 04:19 PM
Post #9


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

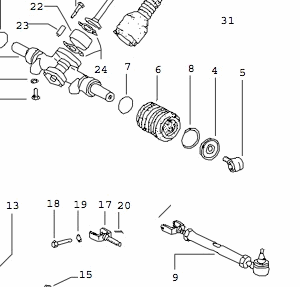

Part #4 is on the stock steering rack and serves the same purpose. (pictured in gold, photo credit Wes V)

It's listed as a steering angle limiter in the PET. It probably isn't to protect the rack, but rather to protect the body from getting rubbed by the wheels. Either way, I think it's smarter to have a washer to stop the rack, rather than potentially having internal steering rack parts colliding.

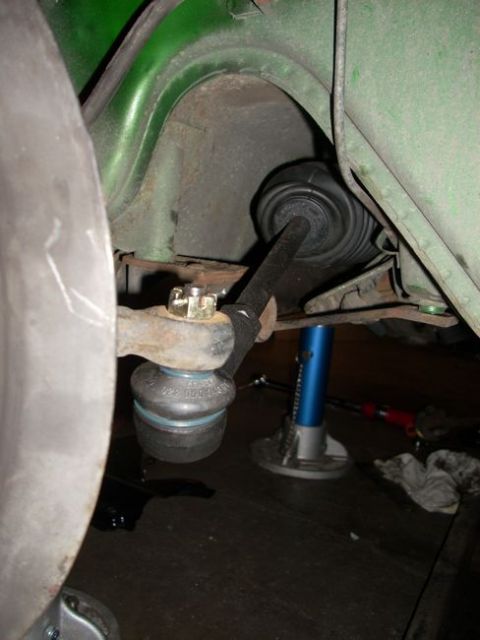

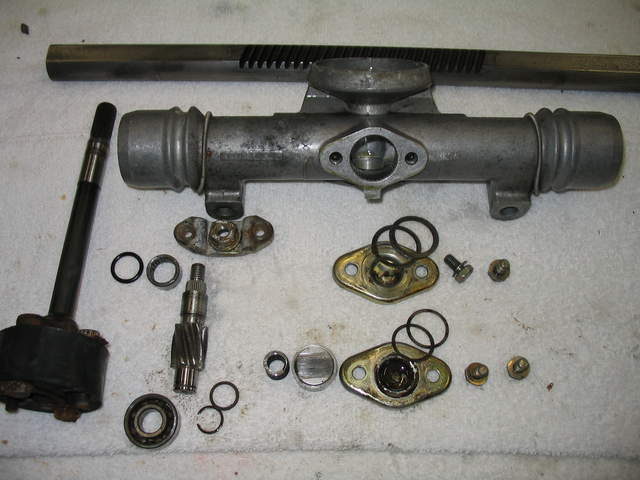

Anyone have disassembled steering rack pictures?


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Feb 1 2010, 04:23 PM
Post #10


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

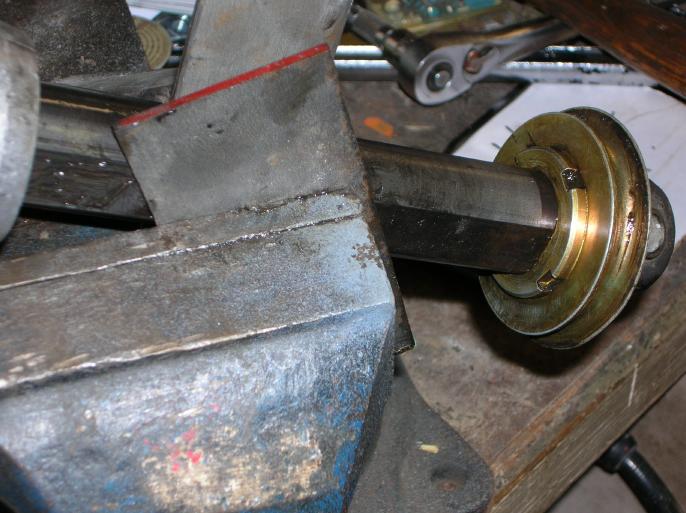

Yup, the steering rack is a bar with teeth machined in a portion of it. Without a stop of some sort your pinion teeth could impact an unmachined portion of the rack and potentially cause damage. You can see the rack at the top of this picture. (photo credit Tim Hancock, Pelican Parts Thread)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Feb 1 2010, 04:33 PM
Post #11


Resident German
*************************

Group: Admin
Posts: 42,197
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



QUOTE(McMark @ Feb 1 2010, 02:23 PM) *

Yup, the steering rack is a bar with teeth machined in a portion of it. Without a stop of some sort your pinion teeth could impact an unmachined portion of the rack and potentially cause damage. You can see the rack at the top of this picture.

Yupp, and if those teeth are rounded (either on the bar or the gear) you'll end up turning the wheel while the car happily goes straight.

You can even feel it in your steering wheel when the teeth are slipping. Happened to me a long time ago in a '74 super beetle.

It's rather scary ...
(IMG:style_emoticons/default/huh.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Feb 1 2010, 06:02 PM
Post #12


PMB Performance
***************

Group: Admin
Posts: 19,301
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains



QUOTE
Part #4 is on the stock steering rack and serves the same purpose.


This is where I'm a tad confused. With a TTR install, that part stays on the rack does it not? This way you have a place for the rubber boot and those funky metal spring bands to attach to on that end (they attach to the rack on the other end). That's what I meant by them not being bump stops... the stops should already be there.

You would simply screw in the TTR spherical end where the #5 piece is going... prior to that you would decide "with or without" washers. No?

Now I'm all confused and I'm going to go cry... (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Feb 1 2010, 06:15 PM
Post #13


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None



Nope, the TTR comes with a rubber block on the rod shaft which acts as a seat for the boot. If you reuse that part you won't be able to install the boot correctly.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Feb 1 2010, 06:56 PM
Post #14


PMB Performance
***************

Group: Admin
Posts: 19,301
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains



Ahhhh... that's the part I forgot.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jaxdream
post Feb 1 2010, 11:36 PM
Post #15


Senior Member
***

Group: Members
Posts: 974
Joined: 8-July 08
From: North Central Tennessee
Member No.: 9,270
Region Association: South East States



I installed a set of the Lenforders ( spelling ) and the boots that came with them was smaller on the outboard ( wheel ) end and the boot disc was on the tierod itself. Installed the spacers on the rack end , have a set of 911 Bilstiens on the arms ,balljoints and body ( temporarily ) , have a slight toe in with this setup without any adjusting. I don't believe I will have problems later whe I switch out my franken struts ( 73 914 strut body , 89 911 spindles mounted , gussed and welded to the 914 strut body ), but will see in future.
Put the spacers on as they will limit the rack travel and keep from burring up the steering shaft gear.
If tierods are too long , trim them down and rethread the inside if you can to shorten them up.
My $.02

Jack / Jaxdream
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
craig downs
post Feb 2 2010, 12:56 AM
Post #16


Senior Member
***

Group: Members
Posts: 769
Joined: 25-November 05
From: mira loma ca.
Member No.: 5,189
Region Association: Southern California



I was told that the spacers are for if your using the 914 struts and if you have 911 struts you don't need them. When I installed mine I used large washers instead of the spacers for the rack stoppers.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kconway
post Feb 2 2010, 09:33 AM
Post #17


Senior Member
***

Group: Members
Posts: 1,347
Joined: 6-December 04
From: Monrovia, CA
Member No.: 3,231
Region Association: Southern California



QUOTE(craig downs @ Feb 1 2010, 10:56 PM) *

I was told that the spacers are for if your using the 914 struts and if you have 911 struts you don't need them. When I installed mine I used large washers instead of the spacers for the rack stoppers.


So, are the spacers that come with the Lemforders too thick so you replaced them with washers of the same diameter, just thinner?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post Feb 2 2010, 10:26 AM
Post #18


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None

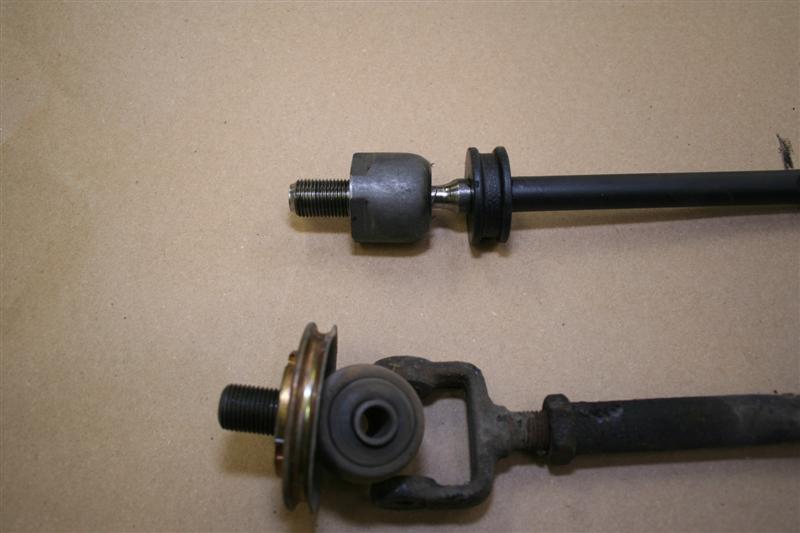

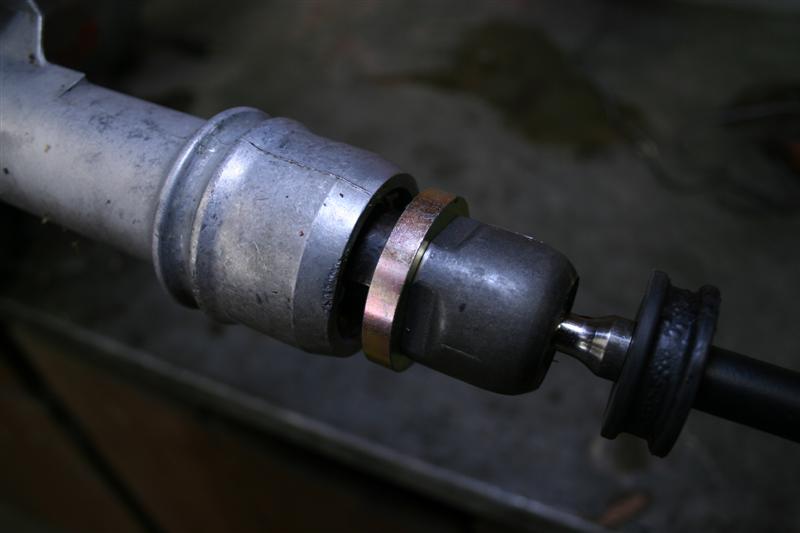

I used 911 struts AND steering rack. The washers do act as a stop. First picture is a comparison of stock and turbo and the second is the turbo installed with a washer. I never measured to see if the 914 rack is a slightly different length than the 911 that might effect if the washers add too much length. I suspect the racks are the same length though.

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Feb 2 2010, 10:36 AM
Post #19


PMB Performance
***************

Group: Admin
Posts: 19,301
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains



At this point it would be nice to do a strut comparison. I suspect the various spindle arms are making a difference here.

I'm using the Koni struts on both cars with the thick washers. No toe issues.

John (who brought this thread back to the top) is using 911T struts and is having problems (like others) with the thickness of the spacers. He's running out of adjustment room for proper toe.

From what I'm seeing, it appears the 911T strut may benefit from a thin washer in place of the thicker ones.

Assumption only at this point. It could also be the length of the tie rods but... they should be fairly standard.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post Feb 2 2010, 11:04 AM
Post #20


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None



I'm using the Koni's as well......no issues. Perhaps we need to do a parts search to see if the tie rods vary in 911 models
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
