> Rebuilding my race car, multi link rear suspension, fg gt flairs
rick 918-S
post Feb 21 2006, 08:19 AM
Post #61


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,478
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Nice work! (IMG:http://www.914world.com/bbs2/html/emoticons/pray.gif) I have one question. Why did you attach the lower control arm (outer hiem joint flat?) It looks like it would bind in full travel and stress the joint. I'm no chassis builder, just an observation.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914Timo
post Feb 21 2006, 08:19 AM
Post #62


*******
***

Group: Members
Posts: 743
Joined: 13-January 03
From: Finland
Member No.: 137
Region Association: Europe
Jeroen, don´t even start !!! (IMG:http://www.914world.com/bbs2/html/emoticons/mad.gif)

Mika already has a lot to do before summer. If he starts to design a new front suspension too, we don´t see him next summer at the track. (IMG:http://www.914world.com/bbs2/html/emoticons/cool.gif)

But, maybe during next winter..... (IMG:http://www.914world.com/bbs2/html/emoticons/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Timo
post Feb 21 2006, 08:25 AM
Post #63


*******
***

Group: Members
Posts: 743
Joined: 13-January 03
From: Finland
Member No.: 137
Region Association: Europe
QUOTE
Why did you attach the lower control arm (outer hiem joint flat?) It looks like it would bind in full travel and stress the joint.


I am not Mika, but.... Yes, it looks like it will bind in full travel, but it wount. I asked the same and Mika showed to me it really works.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
slugmika
post Feb 21 2006, 12:11 PM
Post #64


Member
**

Group: Members
Posts: 208
Joined: 19-February 03
From: Finland
Member No.: 318
Hi guys

Luckily our rules doesn't allow to change front to double A-arm. (IMG:http://www.914world.com/bbs2/html/emoticons/wink.gif)
And as Timo allready told it does work. We will add small shape to final aluminium parts so that there is even more travel. I just need total of 10cm. travel. And one more thing, that joint is taking all the braking and acc forces and it is much stronger that way.

Mika
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Feb 21 2006, 04:32 PM
Post #65


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,478
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE (slugmika @ Feb 21 2006, 10:11 AM)
And one more thing, that joint is taking all the braking and acc forces and it is much stronger that way.

Mika

Oh, I get it. (IMG:http://www.914world.com/bbs2/html/emoticons/idea.gif) Thanks
User is online!Profile CardPM
Go to the top of the page
+Quote Post
slugmika
post Feb 21 2006, 11:00 PM
Post #66


Member
**

Group: Members
Posts: 208
Joined: 19-February 03
From: Finland
Member No.: 318
BTW Rick, i love your car (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
slugmika
post Feb 22 2006, 01:24 PM
Post #67


Member
**

Group: Members
Posts: 208
Joined: 19-February 03
From: Finland
Member No.: 318
Some progress.
Front axle frame allmost ready.(IMG:http://www.914world.com/bbs2/uploads/blog-1140635645.jpg)
detail shot
(IMG:http://www.914world.com/bbs2/uploads/blog-1140635975.jpg)
Friday i will have change to finish the frame. Then i can lift the front to table and start measuring.

Mika
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
slugmika
post Mar 12 2006, 02:16 PM
Post #68


Member
**

Group: Members
Posts: 208
Joined: 19-February 03
From: Finland
Member No.: 318
Some progres.

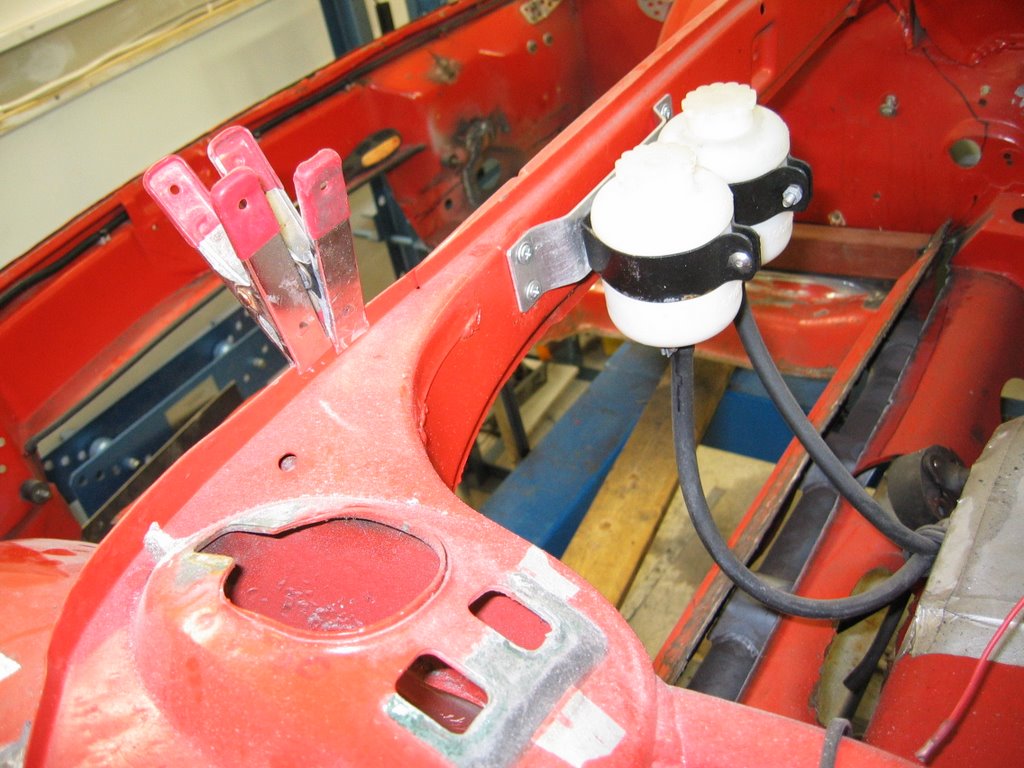

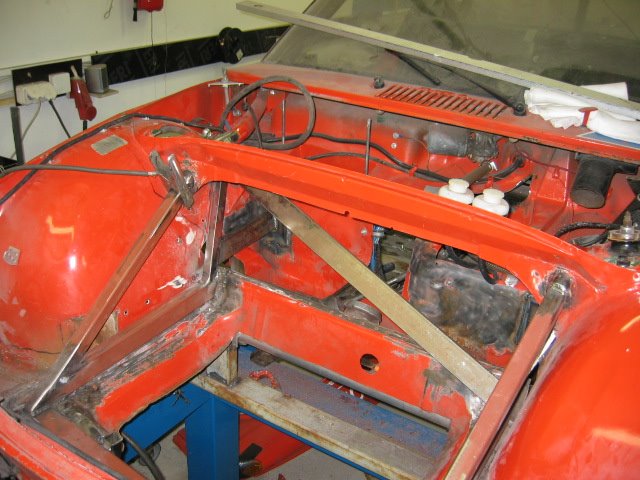

We got the front axle placed in a table and corrected some misalligments. Now the front and rear are in right place and body is about to be welded. We are going to raise the front about 2" and match the rear to that. Here's some pictures. Thanks BadJuha, Topi and Henkka.
(IMG:http://www.914world.com/bbs2/uploads_offsite/photos1.blogger.com-179-1274376626.1.jpg)
(IMG:http://www.914world.com/bbs2/uploads_offsite/photos1.blogger.com-179-1274376627.2.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Mar 12 2006, 02:19 PM
Post #69


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
you guys are nutz!

and i respect that (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smiley_notworthy.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
slugmika
post Mar 12 2006, 02:38 PM
Post #70


Member
**

Group: Members
Posts: 208
Joined: 19-February 03
From: Finland
Member No.: 318
Thanks Aaron, i don't know if i'am nutz or just plain stupid (IMG:http://www.914world.com/bbs2/html/emoticons/wacko.gif)
We also raised the gearbox and engine 28mm. Now there is more room for headers etc. under the car.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeroen
post Mar 12 2006, 03:22 PM
Post #71


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe
cool!
got any pics of the front?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
slugmika
post Mar 13 2006, 01:28 AM
Post #72


Member
**

Group: Members
Posts: 208
Joined: 19-February 03
From: Finland
Member No.: 318

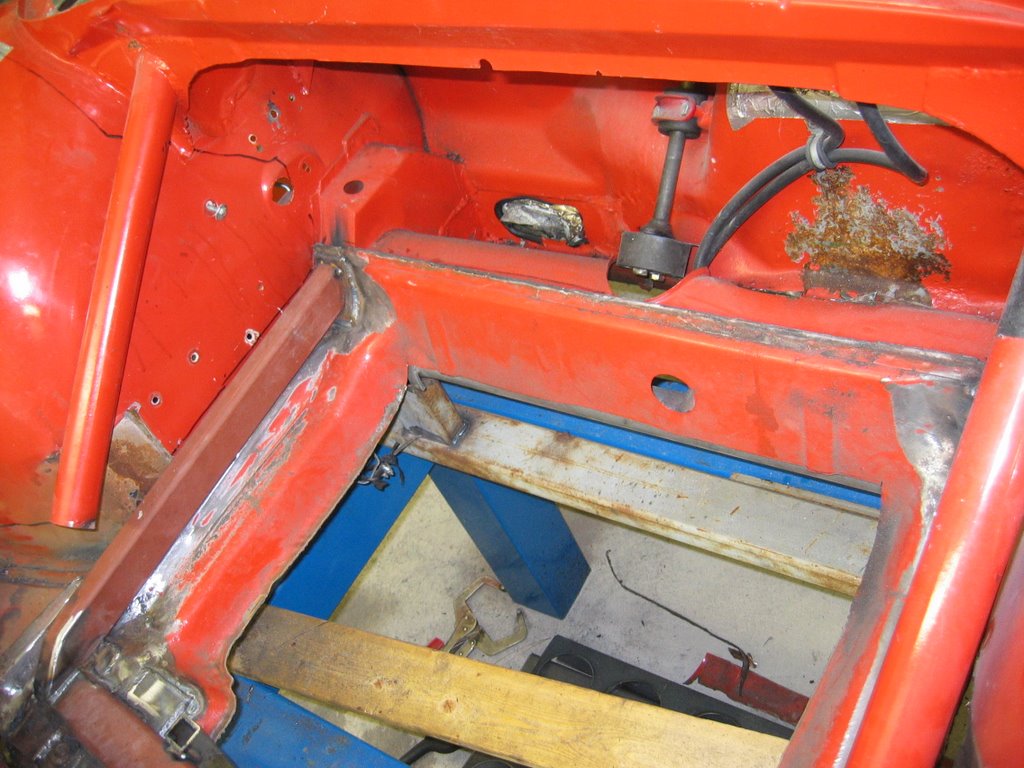

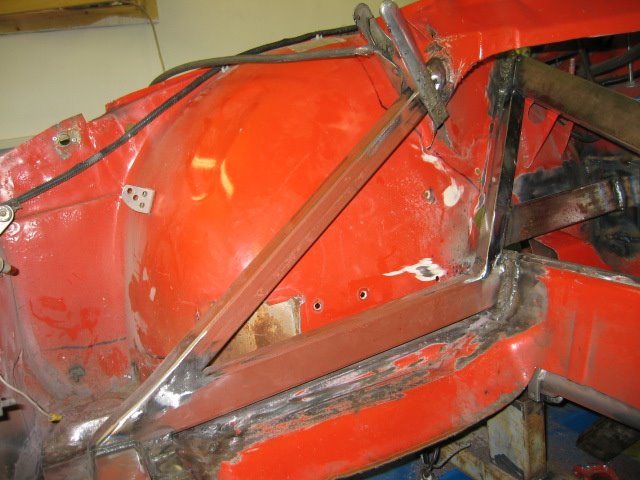

Here is front pictures. Still need to adjust the front with fenders and hood on before welding because it got bended a little while lifting.
I also need to make room for r&p and re route the steering shaft. New pedal box is also under work (if someone needs RSR copy, i have one extra).
Its hard to see from this photo but front was over 30mm angled.
(IMG:http://www.914world.com/bbs2/uploads_offsite/photos1.blogger.com-179-1274377072.1.jpg)
This one shows the angle problem better even though the gap in this one shows mainly the height modification.
(IMG:http://www.914world.com/bbs2/uploads_offsite/photos1.blogger.com-179-1274377073.2.jpg)

Mika
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
byndbad914
post Mar 13 2006, 03:08 PM
Post #73


shoehorn and some butter - it fits
***

Group: Members
Posts: 1,547
Joined: 23-January 06
From: Broomfield, CO
Member No.: 5,463
Region Association: None
Mika,

Hard to tell from the pics but are you running the upper and lower arms parallel at each end?

If not, how are you determining where you are putting your static roll center?
Does it stay above ground through roll front and rear?
How much camber gain are you designing for front and rear? (deg/in or deg/mm is fine as I can convert easily to /in)

I am building a tube chassis car right now and have been beating the crap out of my brain reading Milliken and any other suspension book I can get my hands on to figure out where I want to put roll centers, how much camber gain I want to see on 2" of bump, etc. and was interested in knowing what you are setting yours up at.

Thanks,
Tim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeroen
post Mar 13 2006, 05:05 PM
Post #74


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe
wow! looks pretty complex to get it all to close up again
got any info on the RSR pedal box?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
slugmika
post Mar 13 2006, 11:38 PM
Post #75


Member
**

Group: Members
Posts: 208
Joined: 19-February 03
From: Finland
Member No.: 318
Hi guys
Tim, yes upper and lower are parallel. Now it's easy to adjust roll center just by changing the upper arms angle.
I don't remember how much is the camber gain but i'll check that later from my drawings. Front is stock but just raised 2" so camber gain is as per original.

I don't know if you should follow my way because this is my first multilink suspension. I'am sure we need to test this a lot but that happens after 50cm of snow has melted (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

I'am sick at home so i'll have time to check the camber gain later today.

I'll take some pictures for you Jeroen, later

Mika
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jonwatts
post Mar 14 2006, 12:05 AM
Post #76


no rules, just wrong
****

Group: Benefactors
Posts: 2,321
Joined: 13-January 03
From: San Jose, CA
Member No.: 141
You've been sick a lot lately. Take care of youself, man!

(IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
slugmika
post Mar 14 2006, 01:19 AM
Post #77


Member
**

Group: Members
Posts: 208
Joined: 19-February 03
From: Finland
Member No.: 318
Yes i'we been sick over 4 months now and fever over 2 moths. Finally yesterday i got a call from my doctor and she had "good" news, i have lung fever. That's good news only because finally we have disease named and medicine which should take care of that (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)

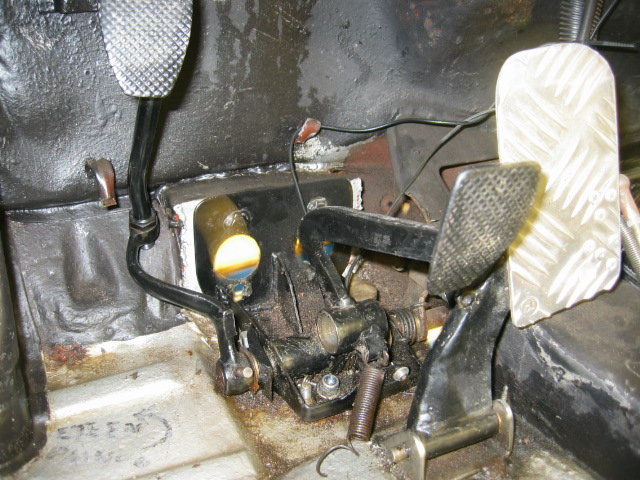

Pedal box pictures are in my blog now.
(IMG:http://www.914world.com/bbs2/uploads/blog-1142320198.jpg)

Progress is slow but i will be there when season opens (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)
Just need my new Koni's so i can make the brackets and make needed modifications to tub (IMG:http://www.914world.com/bbs2/html/emoticons/sawzall-smiley.gif)


Mika
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
slugmika
post Mar 27 2006, 04:36 AM
Post #78


Member
**

Group: Members
Posts: 208
Joined: 19-February 03
From: Finland
Member No.: 318

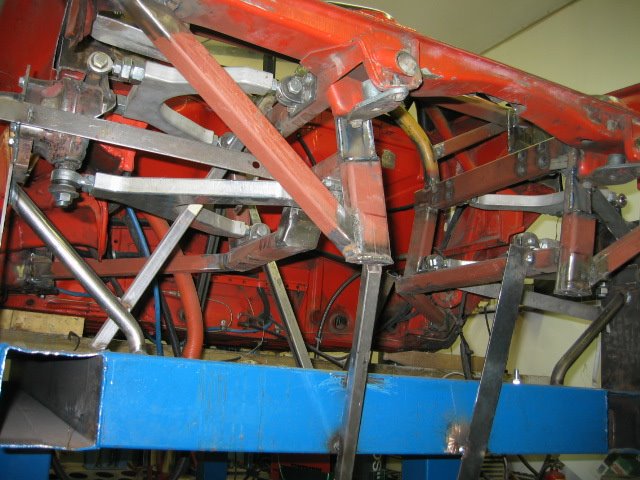

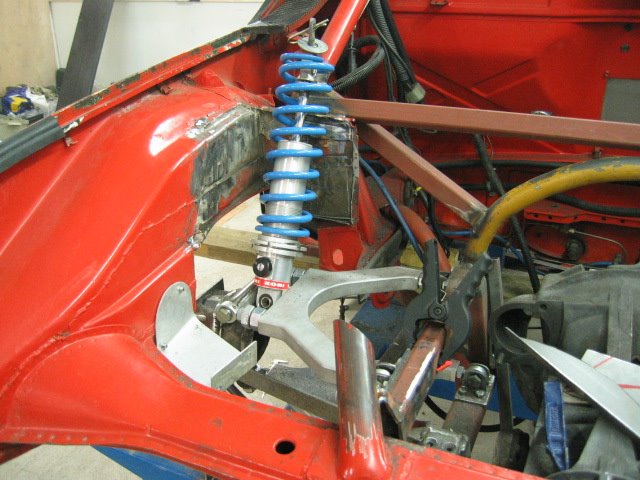

Koni's just arriwed so i started to make brackets for them.

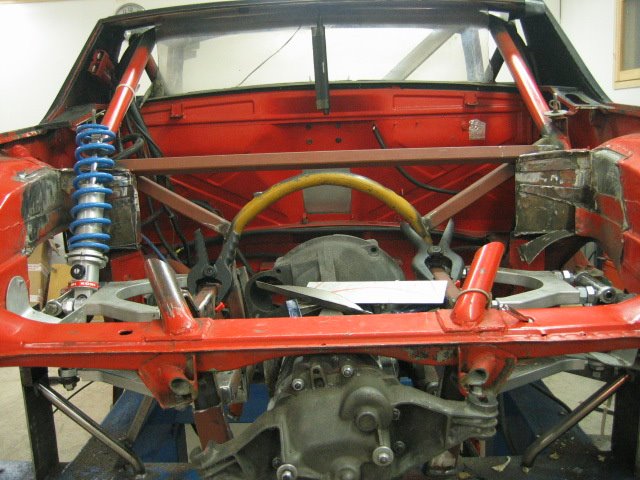

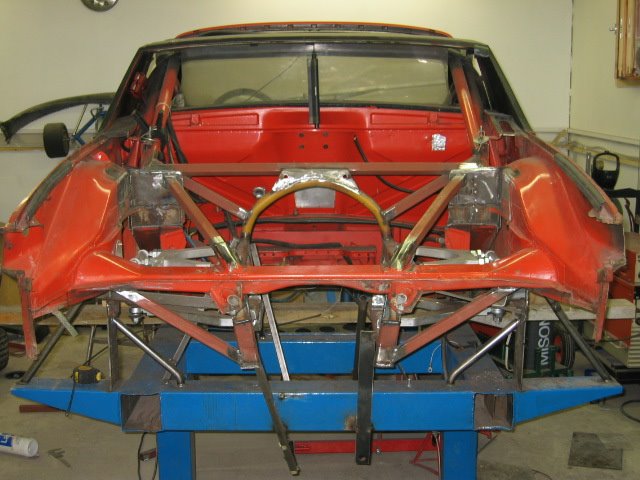

Here is couple of pictures about progress. I <!-- emo&:sawzall: -->(IMG:http://www.914world.com/bbs2/html/emoticons/sawzall-smiley.gif)<!-- endemo --> off the shock towers so i will have
more room to make the brackets.
Suspension is also welded to chassis but it's still attached to table so i can make the new supports for transmission.
(IMG:http://www.914world.com/bbs2/uploads_offsite/photos1.blogger.com-179-1274377112.1.jpg)
(IMG:http://www.914world.com/bbs2/uploads_offsite/photos1.blogger.com-179-1274377113.2.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
slugmika
post Apr 2 2006, 01:02 PM
Post #79


Member
**

Group: Members
Posts: 208
Joined: 19-February 03
From: Finland
Member No.: 318
Rear is allmost ready. Only thing to do is the shock mounts.
(IMG:http://www.914world.com/bbs2/uploads_offsite/photos1.blogger.com-179-1274377161.1.jpg)
(IMG:http://www.914world.com/bbs2/uploads_offsite/photos1.blogger.com-179-1274377161.2.jpg)
Front frame is also quite ready.
(IMG:http://www.914world.com/bbs2/uploads_offsite/photos1.blogger.com-179-1274377162.3.jpg)
(IMG:http://www.914world.com/bbs2/uploads_offsite/photos1.blogger.com-179-1274377203.1.jpg)

When fenders arrive, i can make new bumper mounts and oil cooler surround.

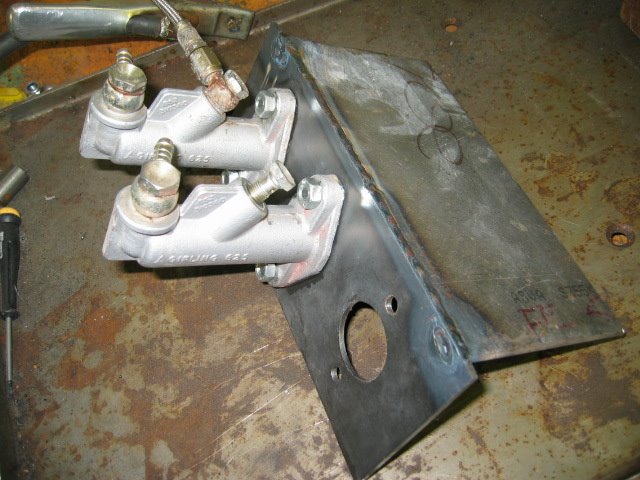

I started to make the new pedal box
(IMG:http://www.914world.com/bbs2/uploads_offsite/photos1.blogger.com-179-1274377163.4.jpg)

Thats all for today

Mika
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Apr 2 2006, 01:08 PM
Post #80


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
mika! you are insane!!! looks totally awesome!!!! cant wait to see this bad boy complete!!!

BTW - was this an original finland car?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
