> Door bracing
r_towle
post Mar 10 2006, 08:58 PM
Post #1


Custom Member
***************

Group: Members
Posts: 24,574
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Please post some good pics of the door bracing bars that you guys have made...

It is finally warm enough, and I need to go out tommorow and build these bars.

Thanx
Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TimT
post Mar 10 2006, 09:01 PM
Post #2


retired
****

Group: Members
Posts: 4,033
Joined: 18-February 03
From: Wantagh, NY
Member No.: 313

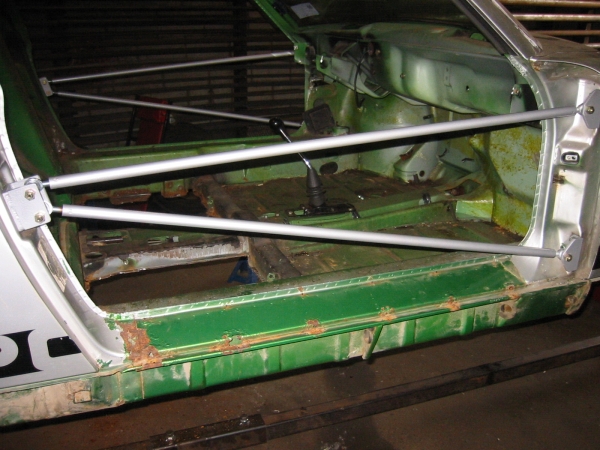

not teener but you get the idea




Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
grasshopper
post Mar 10 2006, 09:33 PM
Post #3


Advanced Member
****

Group: Members
Posts: 2,613
Joined: 10-December 04
From: Valdosta, GA
Member No.: 3,258
Region Association: None
you mean for restoration, or like a cage?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Mar 10 2006, 09:38 PM
Post #4


Custom Member
***************

Group: Members
Posts: 24,574
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
the temporary door bracing that is used while fixing the longitudinal...

I would like to see a few good detailed shots, prefer to see the connections as well...how is it connected and adjusted...

Thanx in advance.

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
grasshopper
post Mar 10 2006, 09:46 PM
Post #5


Advanced Member
****

Group: Members
Posts: 2,613
Joined: 10-December 04
From: Valdosta, GA
Member No.: 3,258
Region Association: None

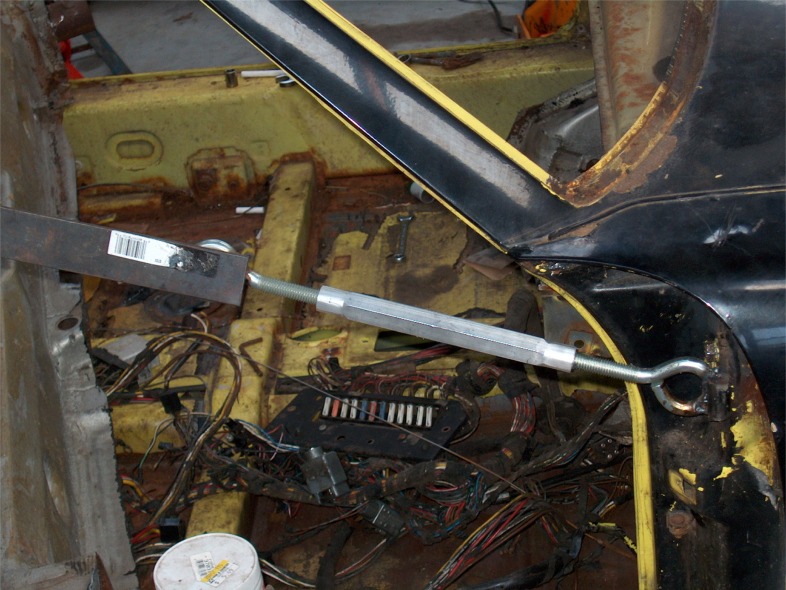

uhhh.. dont really have a good shot of the whole thing.... but pretty much just some steel bars, large turnbuckles that you can get at a farm supply place, and a door hinge.... Weld you turnbuckle to one end of the bar.... you need to drill a hole to mount the other end of the bar into the seatbelt mount. I assume for this restoration you have your rear window out?? if not, you need to cut the bar to size... if you do, it can just stick out the rear... bolt your door hinge to the door jamb. There is an angle that you have to make, so I welded the other end of the turnbuckle to the door hinge while it was in place... sorry for the kind of confusing directions... oh yea, later i welded angle iron to it, because just the straight bar would bend when i tryed to adjust it. When you have everything installed, you just turn the turnbuckle to adjust the width.... heres a pic of the turnbuckle...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TimT
post Mar 10 2006, 09:50 PM
Post #6


retired
****

Group: Members
Posts: 4,033
Joined: 18-February 03
From: Wantagh, NY
Member No.: 313
QUOTE
the temporary door bracing that is used while fixing the longitudinal.


heheh oops

well the NASCAR bars I welded in the 911 would support the longs I suppose...

I misunderstood the original post
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
grasshopper
post Mar 10 2006, 09:50 PM
Post #7


Advanced Member
****

Group: Members
Posts: 2,613
Joined: 10-December 04
From: Valdosta, GA
Member No.: 3,258
Region Association: None

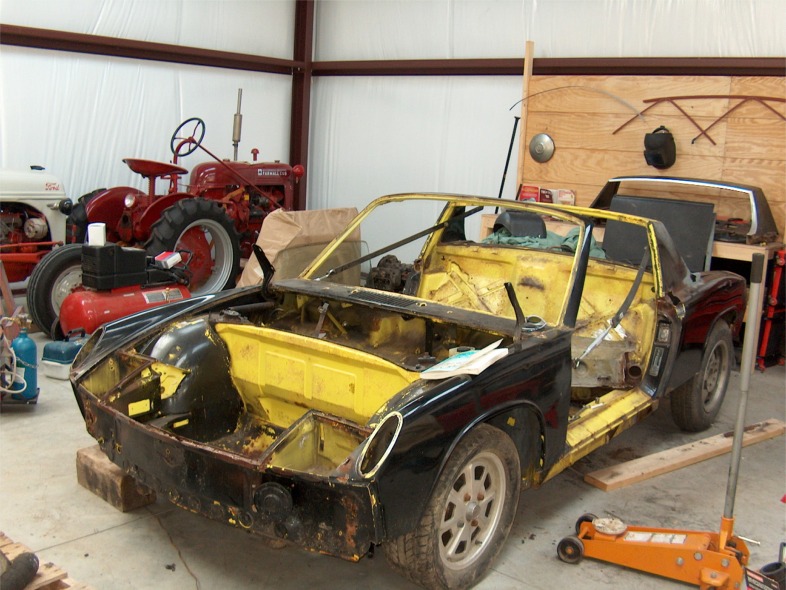

another shot...kinda...you can see how the staight bar was bending, and not working correctly.... angle iron fixed that.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Mar 10 2006, 10:34 PM
Post #8


Custom Member
***************

Group: Members
Posts: 24,574
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
really looking for the ones that dont bend....

Prefer to see a few different types guys...come on...I know you guys have them out there....

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
drewvw
post Mar 10 2006, 11:00 PM
Post #9


new england car guy
***

Group: Members
Posts: 1,631
Joined: 24-February 06
From: Boston, MA
Member No.: 5,630
Region Association: North East States

I think there are some good shots in michelko's restoration thread.

hopefully that helps
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Mar 10 2006, 11:15 PM
Post #10


Custom Member
***************

Group: Members
Posts: 24,574
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States

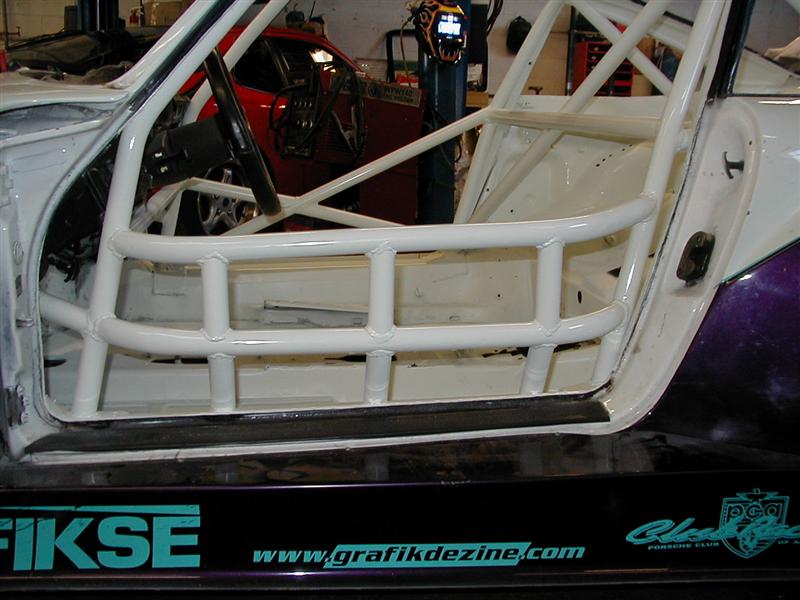

Well I found this one from Racer Chris.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 11 2006, 01:40 AM
Post #11


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None
QUOTE (grasshopper @ Mar 10 2006, 07:50 PM)
another shot...kinda...you can see how the staight bar was bending, and not working correctly.... angle iron fixed that.

Sorry to hijack, but..

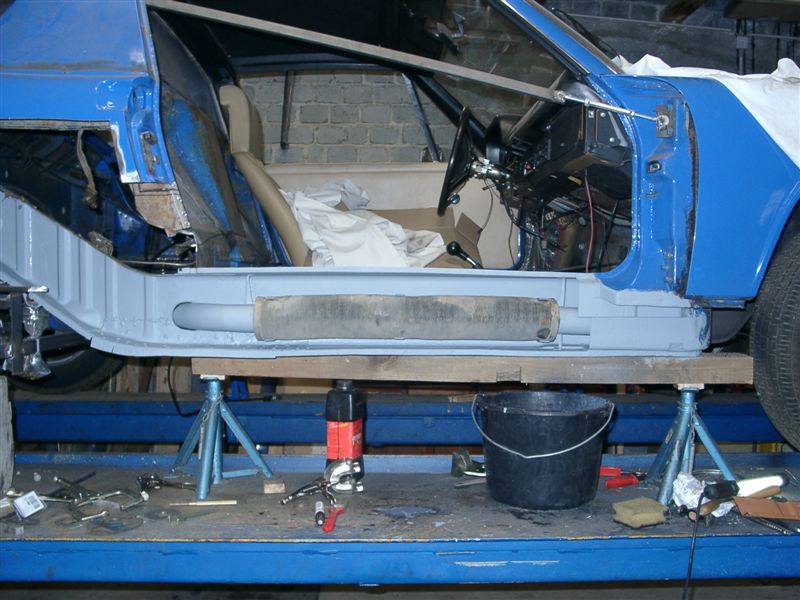

you shoulddn´t do that with the wheels on ground. Put the tub on jackstands (using the donuts). No bending of the brace cause its pulled not pushed. This also takes the stress out of the longs while yoo are grinding and welding.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 11 2006, 01:42 AM
Post #12


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None

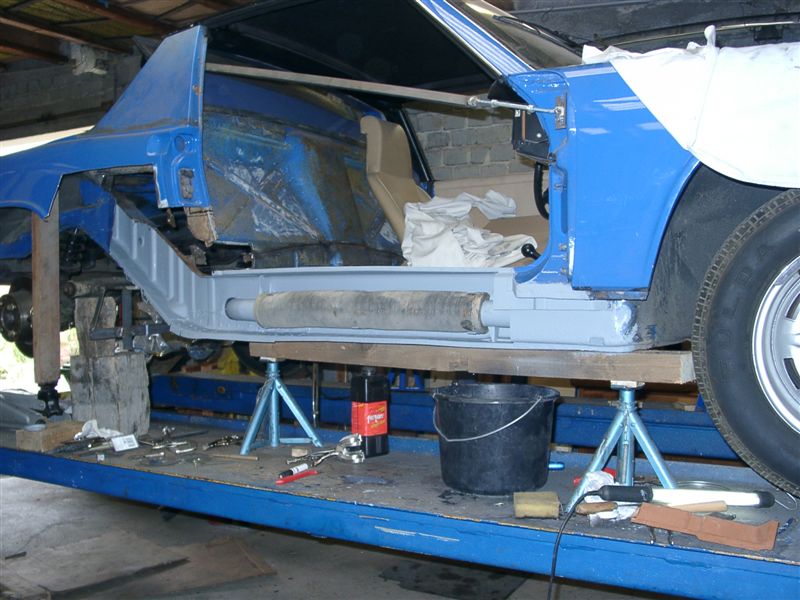

as you can see, no bending!

(IMG:http://www.914world.com/bbs2/html/emoticons/smilie_flagge6.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Pistachio
post Mar 11 2006, 07:04 AM
Post #13


Newbie
*

Group: Members
Posts: 49
Joined: 7-March 06
From: People's Rebuplik of Kalifornia
Member No.: 5,684
Ok, so when you're doing something like this, how do you know you're chassis's square before you start welding in replacement pieces?

You've got the turnbucles on there so you could adjust it, but what do you measure from & to? And what's the "magic" number to be square?

(factory square is what I'm talking about. Obviously you want both sides even, but when you set it down youdon't want a welded in U shaped chassis. Or a ^, ...lol or a ~ for that matter) (IMG:http://www.914world.com/bbs2/html/emoticons/huh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
grasshopper
post Mar 11 2006, 07:11 AM
Post #14


Advanced Member
****

Group: Members
Posts: 2,613
Joined: 10-December 04
From: Valdosta, GA
Member No.: 3,258
Region Association: None
QUOTE (michelko @ Mar 10 2006, 11:40 PM)
QUOTE (grasshopper @ Mar 10 2006, 07:50 PM)
another shot...kinda...you can see how the staight bar was bending, and not working correctly.... angle iron fixed that.

Sorry to hijack, but..
you shoulddn´t do that with the wheels on ground. Put the tub on jackstands (using the donuts). No bending of the brace cause its pulled not pushed. This also takes the stress out of the longs while yoo are grinding and welding.

cool, thanks for the heads up! I am glad you told me that before i started working on the longs... I was going to start this weekend, but i am going away....soooo I'll get it up on jackstands (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Mar 11 2006, 07:13 AM
Post #15


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
grasshopper,

ahem...

(IMG:http://www.914world.com/bbs2/html/emoticons/cool_shades.gif)

b
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
grasshopper
post Mar 11 2006, 07:14 AM
Post #16


Advanced Member
****

Group: Members
Posts: 2,613
Joined: 10-December 04
From: Valdosta, GA
Member No.: 3,258
Region Association: None
QUOTE (bd1308 @ Mar 11 2006, 05:13 AM)
grasshopper,

ahem...

(IMG:http://www.914world.com/bbs2/html/emoticons/cool_shades.gif)

b

hey...im a grasshopper (IMG:http://www.914world.com/bbs2/html/emoticons/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Mar 11 2006, 07:16 AM
Post #17


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
QUOTE (grasshopper @ Mar 11 2006, 07:14 AM)
QUOTE (bd1308 @ Mar 11 2006, 05:13 AM)
grasshopper,

ahem...

(IMG:http://www.914world.com/bbs2/html/emoticons/cool_shades.gif)

b

hey...im a grasshopper (IMG:http://www.914world.com/bbs2/html/emoticons/wink.gif)

sigh....


not much for subliminal messaging are we?

are you still coming to KY?

b
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeroen
post Mar 11 2006, 07:26 AM
Post #18


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe
check my blog, there's several pics of mine in there...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Mar 11 2006, 01:00 PM
Post #19


Custom Member
***************

Group: Members
Posts: 24,574
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
QUOTE (Jeroen @ Mar 11 2006, 08:26 AM)
check my blog, there's several pics of mine in there...

In every picture all I can see is that you have a solid bar in there...

I cannot see the front connection. Is there some adjustability to those, or did you just use jacks to get the car right and then measure and cut the tubing??

I am looking to get the car on stands, and then straighten it up using these bars...

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeroen
post Mar 11 2006, 06:57 PM
Post #20


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe
my bars are non adjustable
I measured the car best I could (check the 914 info link at the top of the page) and it was good to go
I used old catch plates on the rear fender and fabbed a 3mm piece to bolt to where the top door hinge normally sits
Then made the bars (1" square tubing) to fit and welded them in
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
