> Has anybody done a Crane optical AND an MSD 6AL install?
Joe Bob
post Aug 5 2006, 02:10 PM
Post #1


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
Well, Headrage and I have muddled thru the Crane install....the instructions SUCKED!!!!


NOW, the MSD Instructions suck worse....anyone BTDT?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TimT
post Aug 5 2006, 03:38 PM
Post #2


retired
****

Group: Members
Posts: 4,033
Joined: 18-February 03
From: Wantagh, NY
Member No.: 313
Yes BTDT, about 10-12 years ago... I dont remember the details, but I do remember it was pretty straightforward
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Aug 5 2006, 03:46 PM
Post #3


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None

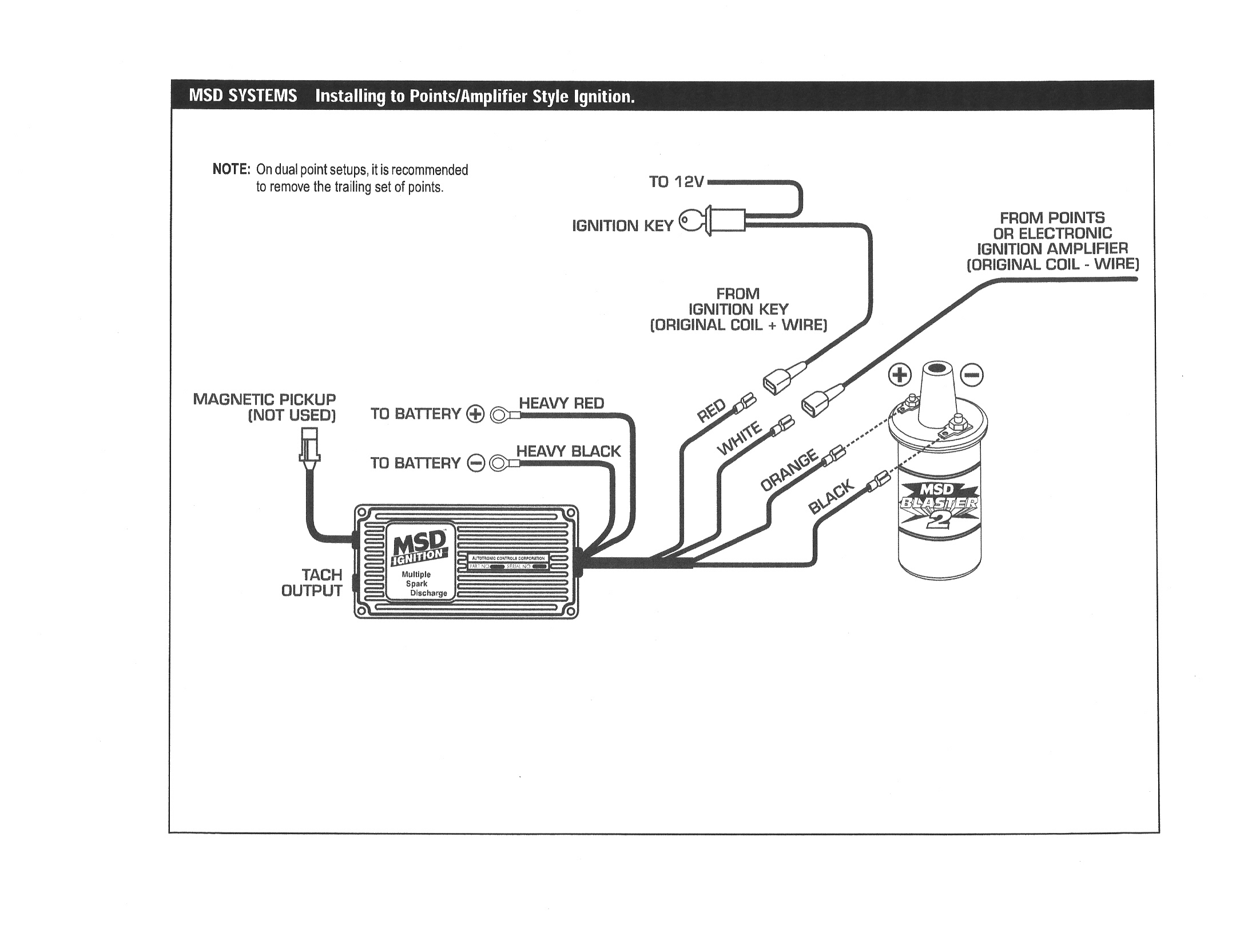

OOpsie....


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Aug 5 2006, 03:48 PM
Post #4


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
We used the white wire and connected to the used to be negative lead from the coil from the Crane Optical unit....

We are also getting less than 12volt at the red wire which is switched power....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Flat VW
post Aug 5 2006, 03:57 PM
Post #5


Illegal Soapbox Derby Racecar
***

Group: Members
Posts: 1,692
Joined: 13-November 04
From: Phoenix, AZ
Member No.: 3,105
Where's SLITS when you need 'um? (IMG:style_emoticons/default/confused24.gif)

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
john rogers
post Aug 5 2006, 04:00 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,525
Joined: 4-March 03
From: Chula Vista CA
Member No.: 391
On the MSD box the small red wire has to have switched 12 volts. The white wire should feed to the yellow wire on the crane box if it is the old XR700 system and the red wire on the crane box should also get 12 volts of switched power. The multi pin plug on the crane box goes to the distributor and the other two wires on the MSD box go to the coil + and -. There will be three wires connected together at the power source.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Aug 5 2006, 04:47 PM
Post #7


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
is there a way to self test the MSD box?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Matt Romanowski
post Aug 5 2006, 04:58 PM
Post #8


Senior Member
***

Group: Members
Posts: 878
Joined: 4-January 04
From: Manchester, NH
Member No.: 1,507
Yes, It's in the instructions.

CHECKING FOR SPARK
If triggering the ignition with the White wire:
1. Make sure the ignition switch is in the “Off” position.
2. Remove the coil wire from the distributor cap and set the
terminal approximately 1/2" from ground.
3. Disconnect the MSD White wire from the distributor’s
points or ignition amplifier.
4. Turn the ignition to the On position. Do not crank the
engine.
5. Tap the White wire to ground several times. Each time
you pull the wire from ground, a spark should jump from
the coil wire to ground. If spark is present, the ignition
is working

You can find them at http://www.msdignition.com/pdf/frm23775_6520.pdf
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Aug 5 2006, 05:15 PM
Post #9


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
Ok...pulled the MSD and hooked it back to the Bosch CDI....we are only getting 6v switched power to the + side of the coil.....it runs...but that seems low.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Aug 5 2006, 09:42 PM
Post #10


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
Okay, just got home.

Thanks Mike for the help today. At least we got the Crane working. Talked to Slits on the way home and he says the optical trigger may need some adjustment to get the timing right.

I'm going to see if I can work on it tomorrow with a fresh head.

Mike, I don't remember if we were feeding 12 volts to the Crane directly with the MSD installed?

BTW, I hate electrical crap!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Aug 5 2006, 09:46 PM
Post #11


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
Check yer email....John called back....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Aug 5 2006, 10:01 PM
Post #12


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
QUOTE(mikez @ Aug 5 2006, 08:46 PM) *

Check yer email....John called back....


Which e mail? Home or office?

Home is agmoore4@sbcglobal.net (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Aug 5 2006, 10:12 PM
Post #13


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
if both the crane and msd need a switched 12v source, you need to split off the original coil + wire...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
turboman808
post Aug 5 2006, 10:50 PM
Post #14


Advanced Member
****

Group: Members
Posts: 2,718
Joined: 31-January 06
From: North Jersey
Member No.: 5,505
Region Association: North East States
Just took an MSD ignition off my car yesterday. Good ridance.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Aug 5 2006, 10:52 PM
Post #15


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
send it my way.

AA
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Aug 5 2006, 10:54 PM
Post #16


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
QUOTE(turboman808 @ Aug 5 2006, 09:50 PM) *

Just took an MSD ignition off my car yesterday. Good ridance.


Why do you say that?

Seems like a solid unit.

I'm just having a Z, er, I mean brain fart trying to hook it up....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Aug 5 2006, 10:57 PM
Post #17


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
sorry turbo....

but they do make a big difference on these cars......
multiple spark dishcarge below 3k and an amplified spark above that....

use it with a monster CDI coil, and you will feel the difference and NEVER foul a plug
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
turboman808
post Aug 5 2006, 11:05 PM
Post #18


Advanced Member
****

Group: Members
Posts: 2,718
Joined: 31-January 06
From: North Jersey
Member No.: 5,505
Region Association: North East States
Took it off my civic. Didn't do anything except burn out coils and eat up the distributor caps really fast.

914 has coil packs. Wish I could get those for the honda as well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Aug 7 2006, 06:18 PM
Post #19


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
I was re-reading the Crane instructions and on the first page is says that the XR700 needs a ballast resistor. On page ten it says that only the XR300 needs it. (IMG:style_emoticons/default/confused24.gif)

I think I may just take Aarons advice and go with a Pertronix...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Aug 7 2006, 06:26 PM
Post #20


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California
QUOTE(Headrage @ Aug 7 2006, 05:18 PM) *

I was re-reading the Crane instructions and on the first page is says that the XR700 needs a ballast resistor. On page ten it says that only the XR300 needs it. (IMG:style_emoticons/default/confused24.gif)

I think I may just take Aarons advice and go with a Pertronix...


Friends don't let friends use Pertronix .......................... The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
