I'm looking for some pictures of L-jet components as they are attached to the motor, for example how is the breather box attached, what type of hose goes between the box and the throttle body. I don't have a car for a reference. I'm installing FI on a carbed car. Any pics would help.
|
   |

|
  |
Replies(1 - 5)
| ClayPerrine |
Mar 7 2007, 07:41 PM
Post
#2
|
|
Life's been good to me so far..... Group: Admin Posts: 16,312 Joined: 11-September 03 From: Hurst, TX. Member No.: 1,143 Region Association: NineFourteenerVille
|
QUOTE(1bad914 @ Mar 7 2007, 07:27 PM)  I'm looking for some pictures of L-jet components as they are attached to the motor, for example how is the breather box attached, what type of hose goes between the box and the throttle body. I don't have a car for a reference. I'm installing FI on a carbed car. Any pics would help. Check out this thread in the originality and history forum... L-Jet Pictures It should help. |
|
|
|
| MrKona |
Mar 7 2007, 09:17 PM
Post
#3
|
|
Senior Member Group: Members Posts: 597 Joined: 25-July 05 From: Santa Rosa, CA Member No.: 4,469 Region Association: None |

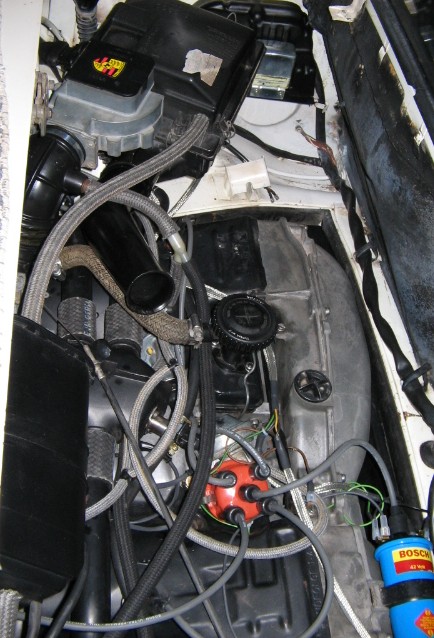

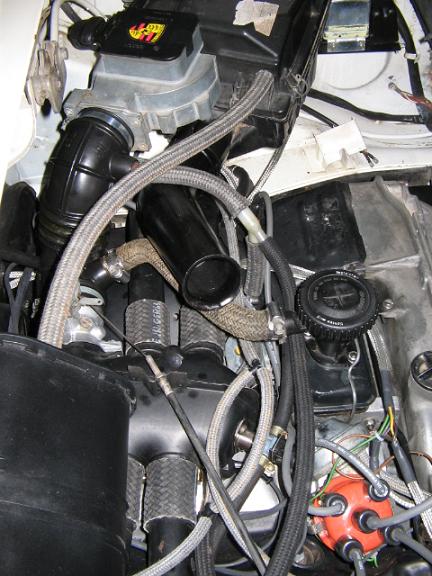

QUOTE(1bad914 @ Mar 7 2007, 05:27 PM) I'm looking for some pictures of L-jet components as they are attached to the motor, for example how is the breather box attached, what type of hose goes between the box and the throttle body. I don't have a car for a reference. I'm installing FI on a carbed car. Any pics would help. Hope this helps. Engine just went back in this past weekend. Now it runs like (IMG:style_emoticons/default/stromberg.gif) , but I'll figure it out... - Bryan Attached image(s)
|
|
|
|
| 1bad914 |
Mar 8 2007, 05:42 AM
Post
#4
|
|
Senior Member Group: Members Posts: 618 Joined: 6-May 04 From: Battle Creek, MI Member No.: 2,028 |
Thanks for the pics, it will help a bunch, the only other question is what does the breather box attach to, it seems to hang out over the left bank, is there a bracket, any pics of one of those. I am putting all this together from a pile of FI parts, there are D-jet and L-jet stuff together, not sure what the bracket for the box looks like.
|
|
|
|
| type47 |
Mar 8 2007, 08:33 AM
Post
#5
|
|
Viermeister Group: Members Posts: 4,254 Joined: 7-August 03 From: Vienna, VA Member No.: 994 Region Association: MidAtlantic Region |
there is a support bracket for the air cleaner housing for L-jet. the bracket attaches to the bodywork behind (going in a front-rear direction) the relay board. in the bottom of the air cleaner (where the filter is/would be), there is a hole for a wing nut to screw into the the mount to secure the cleaner housing.
|
|
|
|
| 1bad914 |
Mar 8 2007, 08:41 PM
Post
#6
|
|
Senior Member Group: Members Posts: 618 Joined: 6-May 04 From: Battle Creek, MI Member No.: 2,028 |
Anyone have a picture of this bracket, I don't have one, if I can't find one I will have to fab it.
|
|
|
|
|
