> Alright, let's talk 914-6 ...
T H O M A S
post Sep 4 2007, 08:29 PM
Post #41


Senior Member
***

Group: Members
Posts: 626
Joined: 1-August 03
From: Donaueschingen, Germany
Member No.: 974
Region Association: None

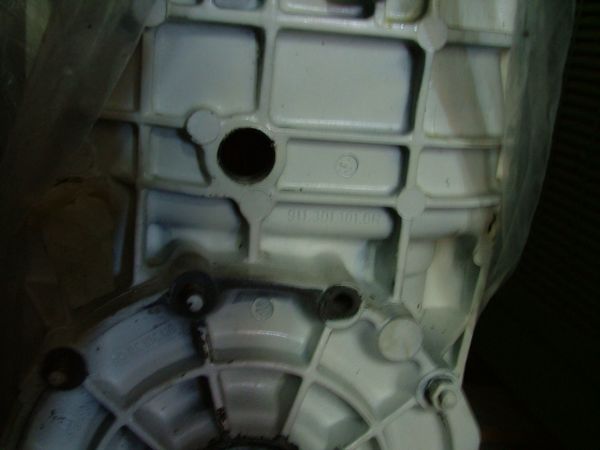

transmission case on the /6 has a 911 #,same case as 911/01 70 and 71 only


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
T H O M A S
post Sep 4 2007, 10:17 PM
Post #42


Senior Member
***

Group: Members
Posts: 626
Joined: 1-August 03
From: Donaueschingen, Germany
Member No.: 974
Region Association: None

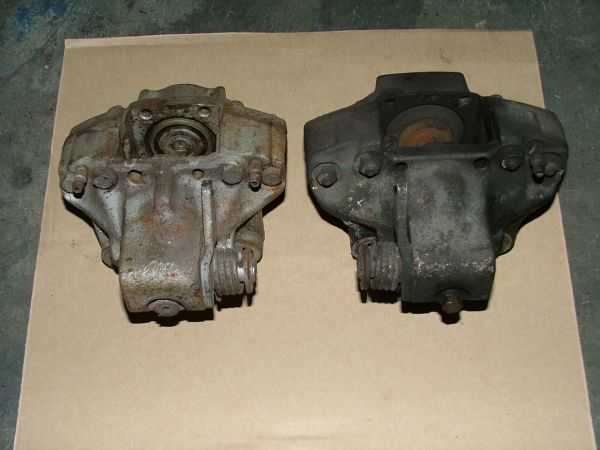

the hump is missing on /6 rear calipers ,left is /4 ,right is /6 in this picture


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MoveQik
post Sep 19 2007, 05:38 PM
Post #43


What size wheels can I fit?
****

Group: Members
Posts: 4,644
Joined: 5-April 05
From: Scottsdale, AZ
Member No.: 3,881
Region Association: Southwest Region



Ignition key location?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixerdon
post Sep 19 2007, 07:28 PM
Post #44


Member
**

Group: Members
Posts: 466
Joined: 23-May 03
From: Dartmouth, MA
Member No.: 731



QUOTE(MoveQik @ Sep 19 2007, 03:38 PM) *

Ignition key location?


Yes, indeed. The ignition switch is on the dash to the left of the steering column for '70 & '71 sixes. Unless you own a rare '72 six with the switch back on the column.

Don
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Pat Garvey
post Sep 19 2007, 08:00 PM
Post #45


Do I or don't I...........?
*****

Group: Members
Posts: 5,899
Joined: 24-March 06
From: SE PA, near Philly
Member No.: 5,765
Region Association: North East States



QUOTE(davep @ Aug 24 2007, 08:44 PM) *

The north american cars have the VIN on a plate in the front windshield. The 914/6 numbers are recessed into the plate while the 914/4 numbers are raised.



This is so interesting! Very logical too.

Never picked that out before!

This thread may be "oh, yeah, I know that" to sixers, but me, a "fourer", it is a very good education!

Thanks guys & keep it coming!

Pat
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mel reckling
post May 12 2008, 08:26 AM
Post #46


Member
**

Group: Members
Posts: 107
Joined: 28-November 07
From: north royalton, ohio
Member No.: 8,385



QUOTE(sixerdon @ Sep 19 2007, 05:28 PM) *

QUOTE(MoveQik @ Sep 19 2007, 03:38 PM) *

Ignition key location?


Yes, indeed. The ignition switch is on the dash to the left of the steering column for '70 & '71 sixes. Unless you own a rare '72 six with the switch back on the column.

Don

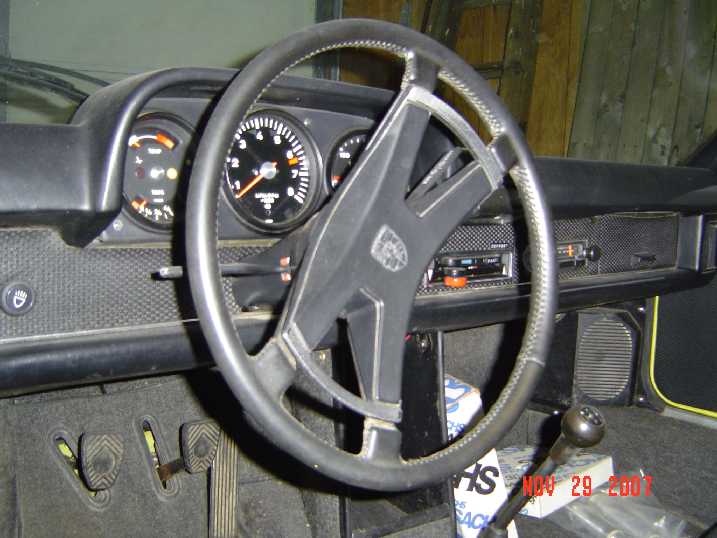

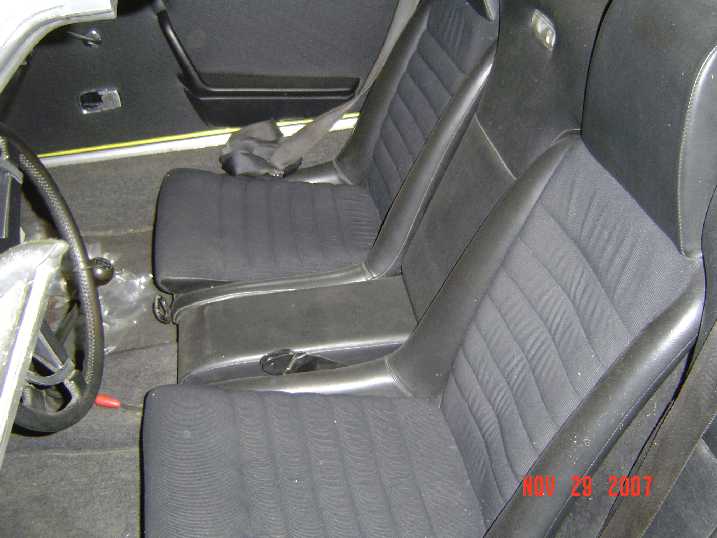

One of them 72s you speak of.



Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
6freak
post May 12 2008, 09:52 AM
Post #47


MR.C
****

Group: Members
Posts: 4,740
Joined: 19-March 08
From: Tacoma WA
Member No.: 8,829
Region Association: Pacific Northwest



QUOTE(1970 Neun vierzehn @ Jul 23 2007, 04:40 PM) *

QUOTE(Johny Blackstain @ Jul 23 2007, 03:27 PM) *

antenna = radio? What kind if I may ask?


It appears that most early 914s, /4 or /6, had a radio/antenna installed by the dealer. I can't remember seing an original early car that didn't have a Hirschman antenna, if one was installed. I'd imagine that the P+A dealer would be more likely to put a Blaupunkt or Becker radio in a /6, as opposed to the dealer installed Motorola that came in my /4.

Paul

My 1970 914-6 as no radio therefor no antenna no holes for it and the dash weave thingy is one solid piece from the colume too the glove box (no seams).One hole for the lighter and a square hole for the heater controls. I heard that was rare??(IMG:style_emoticons/default/flag.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
6freak
post May 12 2008, 09:55 AM
Post #48


MR.C
****

Group: Members
Posts: 4,740
Joined: 19-March 08
From: Tacoma WA
Member No.: 8,829
Region Association: Pacific Northwest



QUOTE(T H O M A S @ Sep 4 2007, 09:17 PM) *

the hump is missing on /6 rear calipers ,left is /4 ,right is /6 in this picture


Double bleeders on the 4 model!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lavanaut
post Jun 10 2008, 02:02 PM
Post #49


Hungry Mind : Thirsty Gullet
***

Group: Members
Posts: 916
Joined: 20-June 06
From: Bend, OR
Member No.: 6,265
Region Association: Pacific Northwest



Didn't see that anyone had yet mentioned the fact the that Fours have the "hub-centric" rotor, with the integrated hub/rotor assembly. Hopefully I've got that terminology correct...

Quick aside ~ I'm looking for a thread similar to this, but one that compares the differences of the Sixes across the '70-'72 model years. Does one exist?

thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
70Sixter
post Jun 10 2008, 02:35 PM
Post #50


Member
**

Group: Members
Posts: 422
Joined: 3-August 04
From: Surf City, NC
Member No.: 2,444
Region Association: South East States



Try RoadGlue. There is a lot of historical info. And a list of known -6s.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
6freak
post Jun 10 2008, 03:11 PM
Post #51


MR.C
****

Group: Members
Posts: 4,740
Joined: 19-March 08
From: Tacoma WA
Member No.: 8,829
Region Association: Pacific Northwest



QUOTE(mel reckling @ May 12 2008, 07:26 AM) *

QUOTE(sixerdon @ Sep 19 2007, 05:28 PM) *

QUOTE(MoveQik @ Sep 19 2007, 03:38 PM) *

Ignition key location?


Yes, indeed. The ignition switch is on the dash to the left of the steering column for '70 & '71 sixes. Unless you own a rare '72 six with the switch back on the column.

Don


One of them 72s you speak of.

.how can you tell thats a 72-6 i sure cant (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
1970 Neun vierzehn
post Jun 10 2008, 03:28 PM
Post #52


Advanced Member
****

Group: Members
Posts: 3,199
Joined: 16-March 06
From: cincinnati, ohio
Member No.: 5,727



QUOTE(6freak @ Jun 10 2008, 01:11 PM) *

How can you tell thats a 72-6 i sure cant (IMG:style_emoticons/default/confused24.gif)


The car that's depicted is Mel's, he owns the '72 /6. Further clues include the higher redline tach and the combo gauge just to the left of the aforementioned rev counter.

Paul
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Jun 11 2008, 10:37 AM
Post #53


914 Historian
*****

Group: Benefactors
Posts: 5,132
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada



QUOTE(Lavanaut @ Jun 10 2008, 12:02 PM) *

Didn't see that anyone had yet mentioned the fact the that Fours have the "hub-centric" rotor, with the integrated hub/rotor assembly.

The front suspension in the 914/6 is substantially different from the 914/4. The 911T donated the front suspension for the 914/6. The 914/4 used a strut design that was somewhat similar, but the brakes were VW411, the A-arms & torsion bars used a different spline count, and the steering rack was very similar. Ball joints and tierod ends were 911.
The 914/4 rotor (VW411) combined the hub and bearings. There were three versions of the rotor: early and mid were not hub-centric, the last one was. Mid and late had a different offset from the early version; this matched the changes to the front strut, ball joint & calipers in very late 1972 MY. Late calipers had two bleed screws and thicker pads. The thicker pads required the rotor to be set out a little farther. The introduction of hub-centric required modifications to many rims as well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
carr914
post Jun 13 2008, 09:15 PM
Post #54


Racer from Birth
****************************************************************************************************

Group: Members
Posts: 117,673
Joined: 2-February 04
From: Tampa,FL
Member No.: 1,623
Region Association: South East States



Engine lid had smaller diameter (lighter) torsion springs since no drip tray. Rare to get Factory installed radio/antenna on 70's (1 of mine has it). Although it has been said that a Heated/Tinted rear window did not exist. Mine has it.

T.C.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jun 13 2008, 10:23 PM
Post #55


PMB Performance
***************

Group: Admin
Posts: 19,272
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains



QUOTE
Double bleeders on the 4 model!!!


Only the later -4's (73-76) had double bleeder.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jun 13 2008, 10:24 PM
Post #56


PMB Performance
***************

Group: Admin
Posts: 19,272
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains



QUOTE
Didn't see that anyone had yet mentioned the fact the that Fours have the "hub-centric" rotor, with the integrated hub/rotor assembly


Only the later -4's (73-76) had "hub-centric" rotor.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
6freak
post Jun 20 2008, 02:52 PM
Post #57


MR.C
****

Group: Members
Posts: 4,740
Joined: 19-March 08
From: Tacoma WA
Member No.: 8,829
Region Association: Pacific Northwest



QUOTE(Eric_Shea @ Jun 13 2008, 09:24 PM) *

QUOTE
Didn't see that anyone had yet mentioned the fact the that Fours have the "hub-centric" rotor, with the integrated hub/rotor assembly


Only the later -4's (73-76) had "hub-centric" rotor.


So i have two ? whats HUB-centric rotor and did all 914have the vinyl sail panels i see so many without the vinyle panel and i was told they all came with the panels covered (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jun 24 2008, 03:37 PM
Post #58


PMB Performance
***************

Group: Admin
Posts: 19,272
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains



QUOTE
whats HUB-centric rotor


A rotor with a circular ridge to center the front wheel. Later model 911 rears have this on the hub as well.

QUOTE
did all 914have the vinyl sail panels


No. I'd be willing to bet 90% or more came with the vinyl but LE's and others came without. Vinyl was considered an option but... again, almost all cars came with it (statistically).
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
6freak
post Jun 24 2008, 03:39 PM
Post #59


MR.C
****

Group: Members
Posts: 4,740
Joined: 19-March 08
From: Tacoma WA
Member No.: 8,829
Region Association: Pacific Northwest



QUOTE(Eric_Shea @ Jun 24 2008, 02:37 PM) *

QUOTE
whats HUB-centric rotor


A rotor with a circular ridge to center the front wheel. Later model 911 rears have this on the hub as well.

QUOTE
did all 914have the vinyl sail panels


No. I'd be willing to bet 90% or more came with the vinyl but LE's and others came without. Vinyl was considered an option but... again, almost all cars came with it (statistically).



still learning every day thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
smontanaro
post Jul 12 2008, 06:29 AM
Post #60


Senior Member
***

Group: Members
Posts: 1,190
Joined: 3-June 05
From: Evanston, IL
Member No.: 4,197
Region Association: Upper MidWest



QUOTE(6freak @ May 12 2008, 10:52 AM) *
My 1970 914-6 as no radio therefor no antenna no holes for it and the dash weave thingy is one solid piece from the colume too the glove box (no seams).One hole for the lighter and a square hole for the heater controls. I heard that was rare??


I don't know how rare it is, but my /6 also apparently never had a radio. It's as you describe and the speaker boxes are empty.

Skip

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
