> The Project Anklebiter Build Thread., 8/29 Lid latches and glamor shots...
plymouth37
post Jul 28 2008, 07:38 PM
Post #141


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

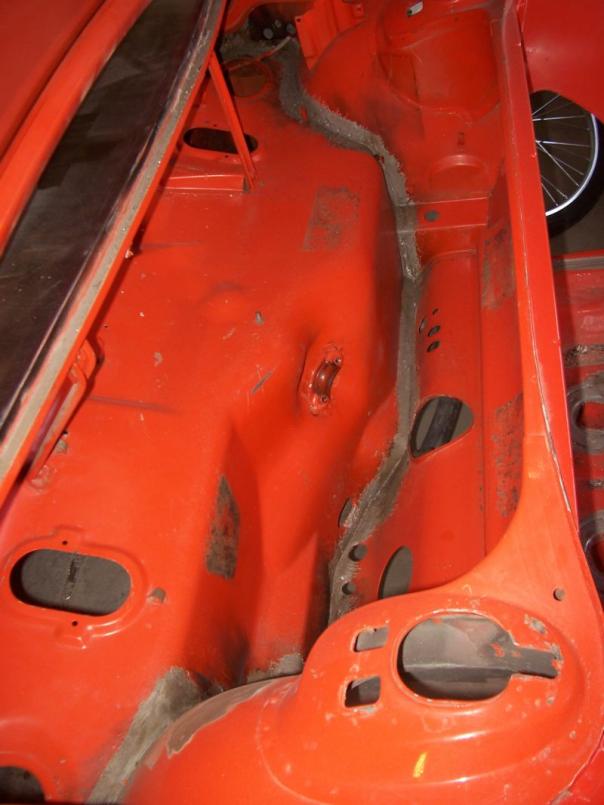

After finishing the windshield frame I went into the front trunk and removed all of the seam sealer. Since the car has no top I figure it won't be spending much time in the rain so seam sealer is unnecessary weight that can be done away with. I heated it with a torch and it came off pretty easily.

Attached Image

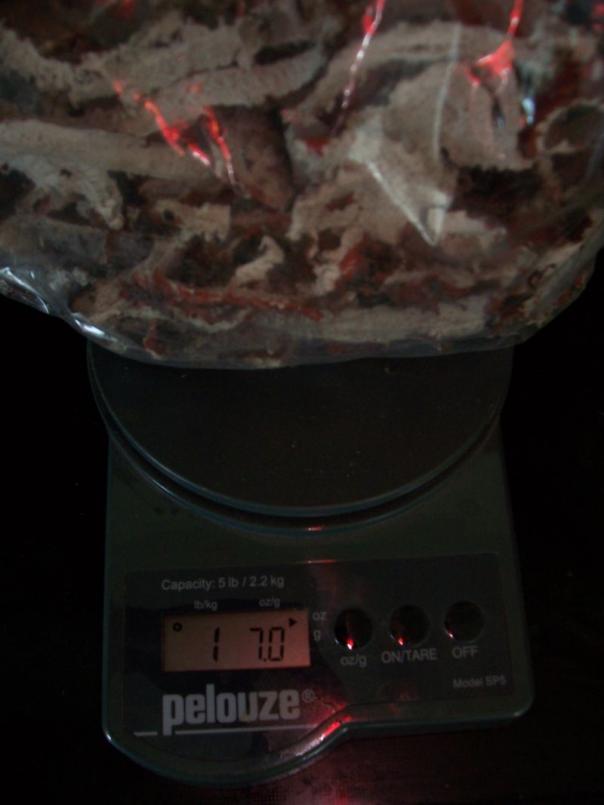

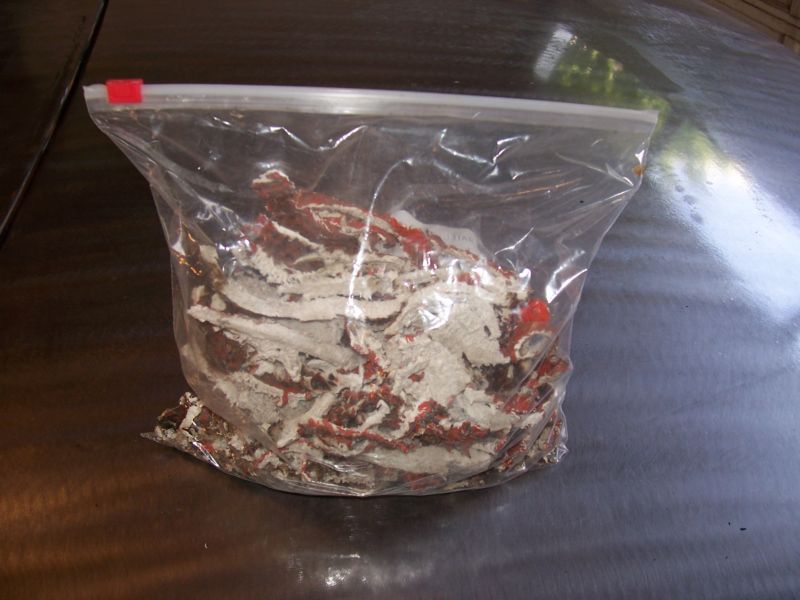

I have been keeping track of the weights of everything I have removed from the car so far and this junk is no exception.

Attached Image

By stripping the seam sealer I dropped 1.43 lbs which is equivalent to gaining 0.242 brake horsepower (IMG:style_emoticons/default/piratenanner.gif)WOOHOO!(IMG:style_emoticons/default/piratenanner.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Jul 28 2008, 07:43 PM
Post #142


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
So um how about some pics of the Plymouth (IMG:style_emoticons/default/stirthepot.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jul 28 2008, 07:45 PM
Post #143


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE
So um how about some pics of the Plymouth (IMG:style_emoticons/default/stirthepot.gif)


What are you bored with this project already? (IMG:style_emoticons/default/biggrin.gif)
I'll try to dig some up, they are around here somewhere...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tdgray
post Aug 8 2008, 09:21 AM
Post #144


Thank God Nemo is not here to see this
*****

Group: Members
Posts: 9,705
Joined: 5-August 03
From: Akron, OH
Member No.: 984
Region Association: None
Ummm... come on 10 days... WTH (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Wes V
post Aug 8 2008, 10:47 AM
Post #145


Member
**

Group: Members
Posts: 482
Joined: 11-October 07
From: Los angeles
Member No.: 8,211
QUOTE(tdgray @ Aug 8 2008, 08:21 AM) *

Ummm... come on 10 days... WTH (IMG:style_emoticons/default/biggrin.gif)



Don't you dare say that you are working on another deck!!

Wes
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Aug 8 2008, 03:45 PM
Post #146


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
QUOTE(tdgray @ Aug 8 2008, 08:21 AM) *

Ummm... come on 10 days... WTH (IMG:style_emoticons/default/biggrin.gif)

(IMG:style_emoticons/default/agree.gif) Or are you thinking that now that you have a big deck you don't need a sports car anymore (IMG:style_emoticons/default/laugh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Aug 8 2008, 04:49 PM
Post #147


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(tdgray @ Aug 8 2008, 08:21 AM) *

Ummm... come on 10 days... WTH (IMG:style_emoticons/default/biggrin.gif)


Just got in from a 10 day 2900 mile drive through the northwest corner of the country and yellowstone park, give me a couple days to recover and I will get back to work (IMG:style_emoticons/default/biggrin.gif) .
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nsr-jamie
post Aug 9 2008, 11:13 AM
Post #148


914 guy in Japan
***

Group: Members
Posts: 1,182
Joined: 7-November 07
From: Nagoya, Japan
Member No.: 8,305
Region Association: None
Wow, just finding out about this project, looking forward for sure to see it done. Nice deck by the way (IMG:style_emoticons/default/beer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Aug 9 2008, 07:30 PM
Post #149


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
QUOTE(plymouth37 @ Jul 28 2008, 05:45 PM) *

QUOTE
So um how about some pics of the Plymouth (IMG:style_emoticons/default/stirthepot.gif)


What are you bored with this project already? (IMG:style_emoticons/default/biggrin.gif)
I'll try to dig some up, they are around here somewhere...



Ahem...... hop to it chuckles (IMG:style_emoticons/default/poke.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Aug 9 2008, 08:16 PM
Post #150


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
Here ya go Scotty.
This is an old picture I had laying around of the Plymouth next to the 914. This picture was taken about a month after I drug the 914 out of the field where it had been sitting since 1982.
I can't seem to find my box of old pics so this one is all I have to post now.
I love that car and will get to work on it once the anklebiter is done (someday (IMG:style_emoticons/default/dry.gif) ).
Sorry for the poor quality picture, its all I got.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Aug 9 2008, 08:18 PM
Post #151


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
(IMG:style_emoticons/default/biggrin.gif) Kewl, Makes the 914 look a little tiny huh ? (IMG:style_emoticons/default/laugh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Aug 11 2008, 08:51 PM
Post #152


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

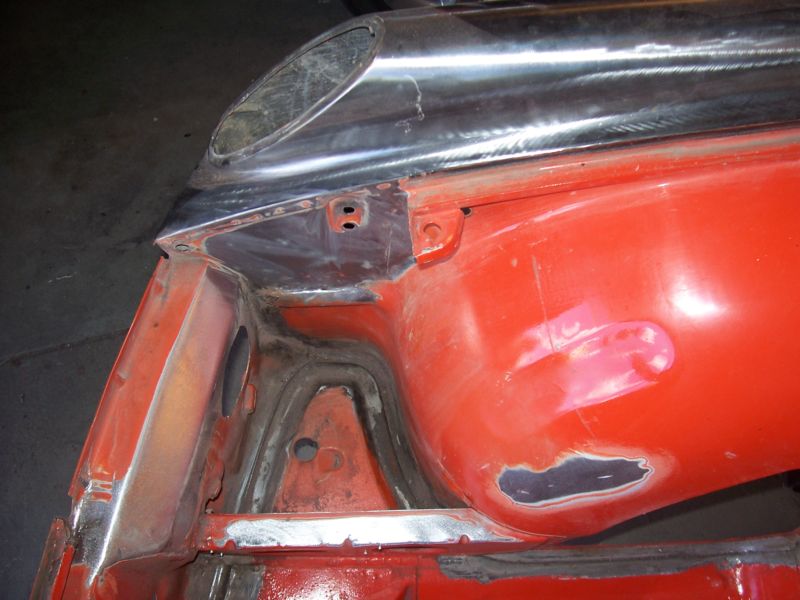

So today I removed the headlight buckets and I've got to tell you it was a lot harder than i thought it would be... (IMG:style_emoticons/default/sawzall-smiley.gif)
Attached Image

Despite putting up a good fight I got them out with out damaging anything (IMG:style_emoticons/default/biggrin.gif)
I also scraped out the black tar from the bottom of the bucket.

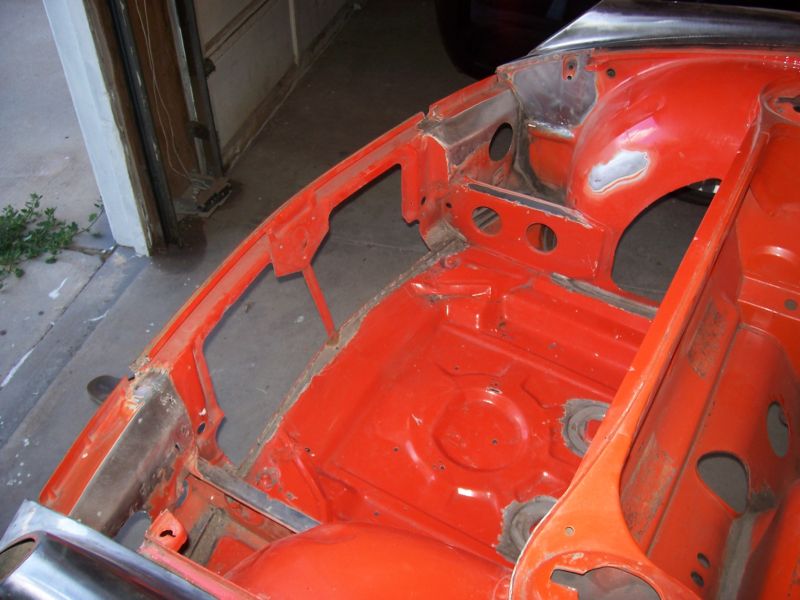

Next I need to make a new hood seal channel for the bucket-less trunk.
Attached Image

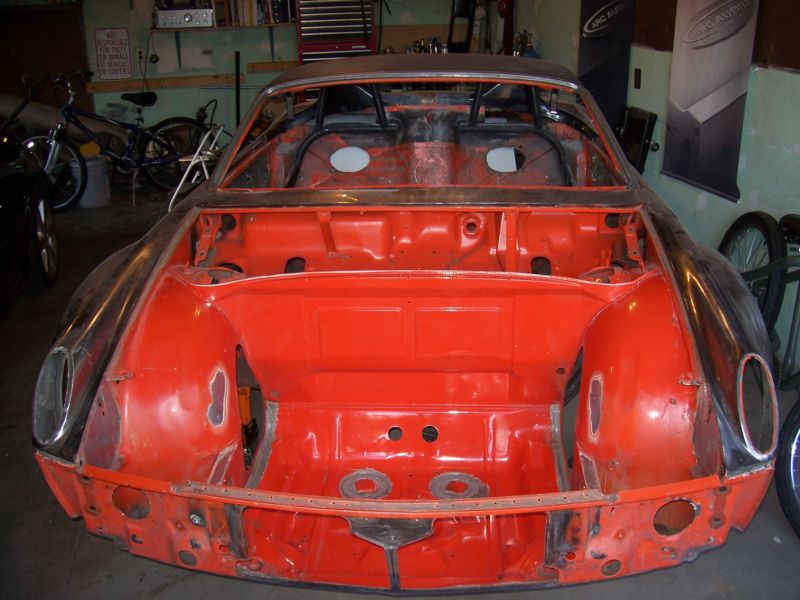

Here you can see I had already removed the sheet metal that used to surround the spare tire when I installed the radiator the first time.
Also you can see the venting holes cut for the radiator air flow.
Attached Image

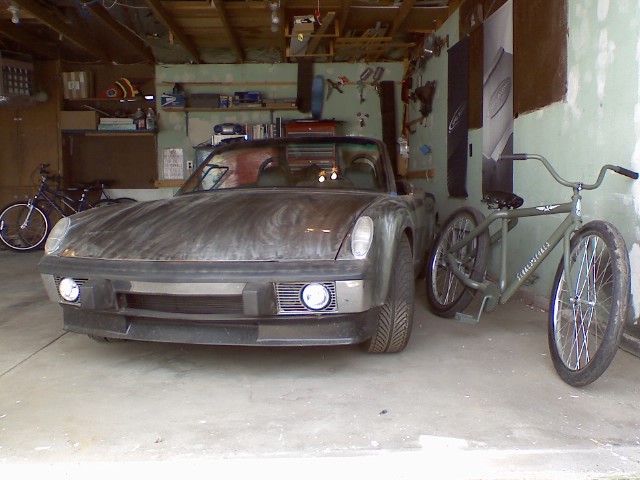

To replace the heavy pop-ups I am running KC hilites in the foglight holes.
They are not street legal by any stretch of the imagination but neither is the rest of the car so I might as well stay consistent.
All I know is they work a lot better than the stockers (and look better too!).
Attached Image

Over all I cut a total of 21.6 pounds which translates to 3.66 BHP (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Aug 11 2008, 08:55 PM
Post #153


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
Nice werk,Nice car, nice bicycle too (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lou W
post Aug 11 2008, 08:58 PM
Post #154


"Here Kitty Kitty" my ass......
****

Group: Members
Posts: 4,109
Joined: 9-May 04
From: Roseburg, OR.
Member No.: 2,039
Region Association: Spain
Wow, you sure do very nice work. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Aug 11 2008, 10:35 PM
Post #155


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
When I talk about the cars weight loss I have mentioned the equivalent BHP a couple of times. Since there have been a couple topics and questions on the subject I thought I would explain how I am coming up with these crazy numbers just to prove that I am not making this crap up (IMG:style_emoticons/default/biggrin.gif) .

The original weight was 2300 pounds and it had 320 BHP.

Since the car now weighs 1875 pounds and still has 320 BHP.

1875/320 = 5.86

So if the car still weighed 2300 pounds it would need 392 BHP to be as fast as it is now.

2300/392 = 5.86

If we divide the weight lost by the theoretical BHP gained:

425/72 = 5.9

This means that for every 5.9 pounds the car drops it gains an equivalent of 1 horsepower.
The beauty of this is that the lighter your car gets the less poundage it takes to gain a HP! Yay!
So there you go, bored yet? (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Aug 11 2008, 11:22 PM
Post #156


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
(IMG:style_emoticons/default/aktion035.gif) That's just cool. I want to get my car that lite.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
effutuo101
post Aug 11 2008, 11:41 PM
Post #157


Advanced Member
****

Group: Members
Posts: 2,734
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California
Umm, last time I checked, Wyoming only had a law that you had to have lights, turn signals, brake lights and running lights. I don't remember the law saying that they had to be in the stock place. I remember the Cheyenne Police asking nicely if I wouldn't mind reving my motor, but ( year 2k) but no noise either. I don't think anybody is going to give you grief unless you get caught out at night in the rain, near Gurnsey.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Aug 11 2008, 11:50 PM
Post #158


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
My brother in law is a Wyoming state trooper and I have spent alot of time with his "laws of the road" book, by my count the car is in violation of 12 major laws, so far...
There are a lot of laws like minimum headlight height and required front plates on the books in Wyoming but fortunately you have to be doing something really stupid to get anyone to care about it. So as long as I don't drive like a total jackass I should be ok (IMG:style_emoticons/default/smile.gif)
The only really obvious legal problem I have is that after I mount the diffuser there will not be any room for a rear plate, and that is one thing I think they may notice, better get on that problem huh?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Aug 12 2008, 12:18 AM
Post #159


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
Rear diffuser? How are you going to do that? I want one (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Aug 12 2008, 12:29 AM
Post #160


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(Phoenix 914-6GT @ Aug 11 2008, 11:18 PM) *

Rear diffuser? How are you going to do that? I want one (IMG:style_emoticons/default/biggrin.gif)

I got mine off of a Ferrari F430, the thing is going to fit really well, more on that later...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
