Everywhere I look (owner's manual, Haynes, etc.) I see different specs on what fuses to use where. Right now I have 8s everywhere except #8 and #12 where I have 25s. Whattaya think? Whattaya have in yours?
|
   |

|
| type47 |
Sep 29 2009, 12:24 PM
Post
#2
|
|
Viermeister Group: Members Posts: 4,254 Joined: 7-August 03 From: Vienna, VA Member No.: 994 Region Association: MidAtlantic Region |
From Lash -74 (Lash says "through 73")
fuses S1-S7, S9-S11 are 8 amp S8 (circuit for windshield wipers) and S12 (circuit for headlight motors) are 25 amp 1974 and later S1-S7, S9 and S11 are 8 amp S8, S10 (additional headlights) and S12 are 16 amp |
|
|
|
| kenshapiro2002 |
Sep 29 2009, 12:28 PM
Post
#3
|
|
Senior Member Group: Members Posts: 1,444 Joined: 23-July 09 From: Bawlmer, MD Member No.: 10,598 Region Association: MidAtlantic Region |
Also, every schematic I see has fuse #11 holding the two black/red wires from the interior light and warning switch. Mine are hooked up to fuse #12 (25 amp fuse), which might explain why one of them is mostly fried? Had it been on #11, and 8 amp fuse, the fuse would have gone rather than the wire? Make sense? Move those guys back to #11?
|
|
|
|
| SirAndy |
Sep 29 2009, 12:33 PM
Post
#4
|
|
Resident German Group: Admin Posts: 42,282 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California |
QUOTE(kenshapiro2002 @ Sep 29 2009, 10:18 AM)  Everywhere I look (owner's manual, Haynes, etc.) I see different specs on what fuses to use where. Right now I have 8s everywhere except #8 and #12 where I have 25s. Whattaya think? Whattaya have in yours? From the '70 owners manual: 1 - 8 amp left headlamp high beam 2 - 8 amp right headlamp high beam 3 - 8 amp left headlamp 4 - 8 amp right headlamp 5 - 8 amp left parking lamps 6 - 8 amp right parking lights 7 - 8 amp license plate lights 8 - 25 amp windshield wipers, ventilator, horn, cigarette lighter 9 - 8 amp flashing turn indicators, stop lights, back up light 10 - 8 amp additional headlamp 11 - 8 amp emergency flashers, inside light 12 - 25 amp pop-up headlamps (IMG:style_emoticons/default/bye1.gif) Andy |
|
|
|
| SirAndy |
Sep 29 2009, 12:34 PM
Post
#5
|
|
Resident German Group: Admin Posts: 42,282 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California |

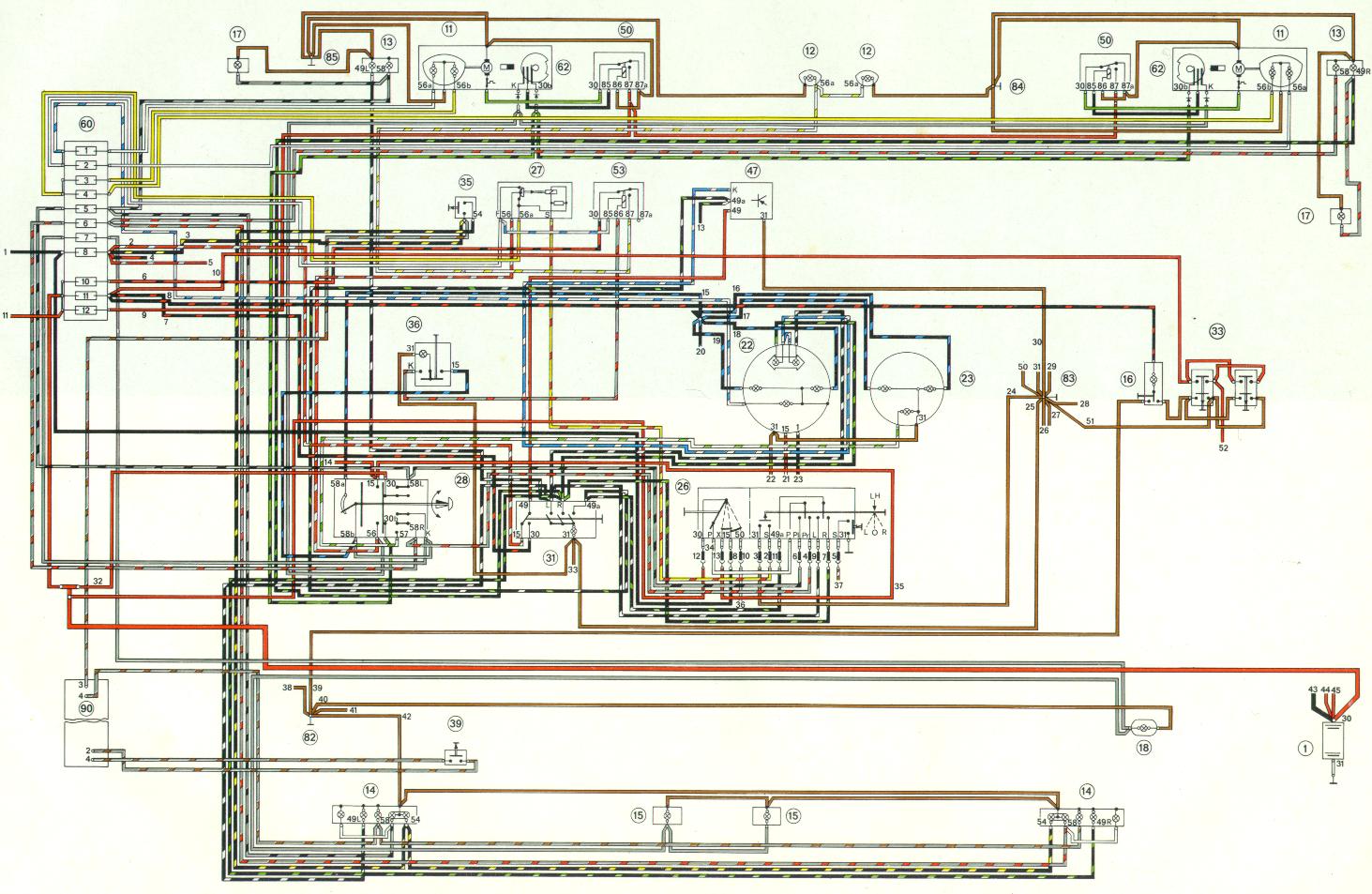

QUOTE(kenshapiro2002 @ Sep 29 2009, 10:28 AM) Also, every schematic I see has fuse #11 holding the two black/red wires from the interior light and warning switch. Mine are hooked up to fuse #12 (25 amp fuse), which might explain why one of them is mostly fried? Had it been on #11, and 8 amp fuse, the fuse would have gone rather than the wire? Make sense? Move those guys back to #11? Attached thumbnail(s)
|
|
|
|
| SirAndy |
Sep 29 2009, 12:39 PM
Post
#6
|
|
Resident German Group: Admin Posts: 42,282 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California |
And lastly, there really is a lot of good info to be found in the "Classics" ...
http://www.914world.com/bbs2/index.php?showtopic=1522 (IMG:style_emoticons/default/shades.gif) Andy |
|
|
|
| type47 |
Sep 29 2009, 12:49 PM
Post
#7
|
|
Viermeister Group: Members Posts: 4,254 Joined: 7-August 03 From: Vienna, VA Member No.: 994 Region Association: MidAtlantic Region |
QUOTE(kenshapiro2002 @ Sep 29 2009, 10:28 AM) Move those guys back to #11? Sir Andy's diagram shows them on 11, so yes, I would move them. |
|
|
|
| kenshapiro2002 |
Sep 29 2009, 01:15 PM
Post
#8
|
|
Senior Member Group: Members Posts: 1,444 Joined: 23-July 09 From: Bawlmer, MD Member No.: 10,598 Region Association: MidAtlantic Region |
Thanks...all's well now. (IMG:style_emoticons/default/biggrin.gif)
|
|
|
|
|
