We're getting ready to move the project off the rotissere to the lift.
We'd rehung the doors . Pretty scary hanging there on the rotissere.
How many 100's should we allow for shrinkage when we reinstall the long?
Full Version: Shrinkage ?
Shrinkage is not required or desired.
Took lots of pictures on my camera that l'll post when I get back from the shop.
So if we have it held solidly in place we shouldn't except some shrinkage when
the welds cool?
It's almost scary how much you can move everything. Should have taken a video
it would scare the sxxx out of most of us.

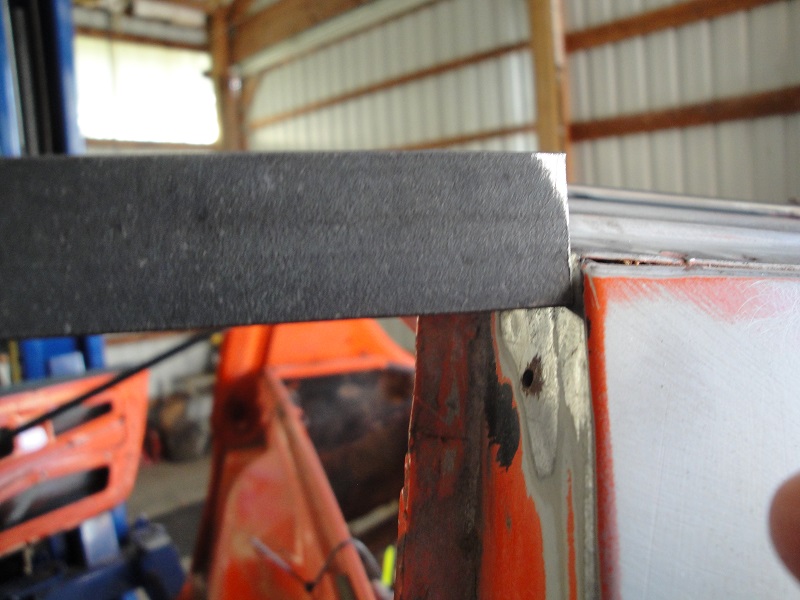

Door gap looks like I'm seeing .19 to .22.
So if we have it held solidly in place we shouldn't except some shrinkage when
the welds cool?
It's almost scary how much you can move everything. Should have taken a video
it would scare the sxxx out of most of us.
Door gap looks like I'm seeing .19 to .22.
Weld slowly, mocve around, not in one direction, allow time for the weld to cool, keep a blow chuck handy and blow it cool before going to the next one. No need for shrinkage. As Todd said in the sandbox...perfection costs, ( whether it be time or money ) and so do f-ups from rushing
Here's the pictures I promised.
Click to view attachment
Put the doors back on to make sure everything is perfect.
Click to view attachment

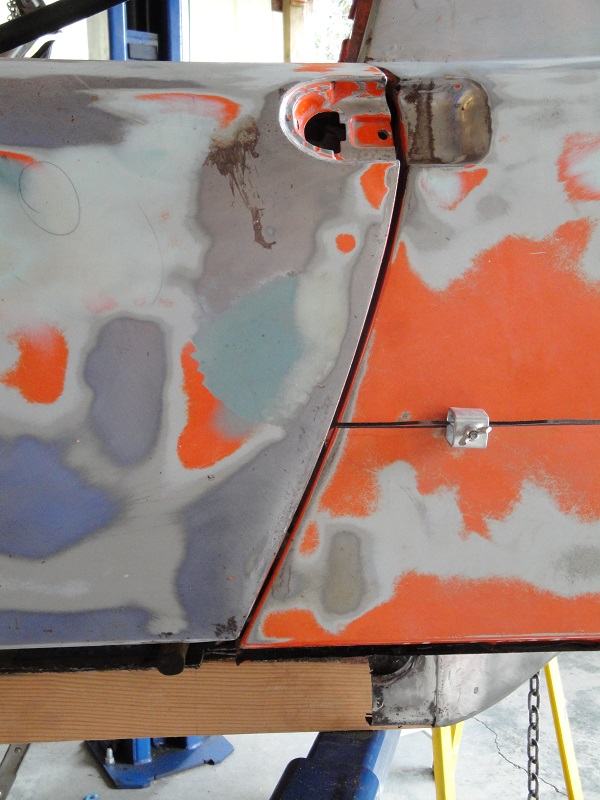

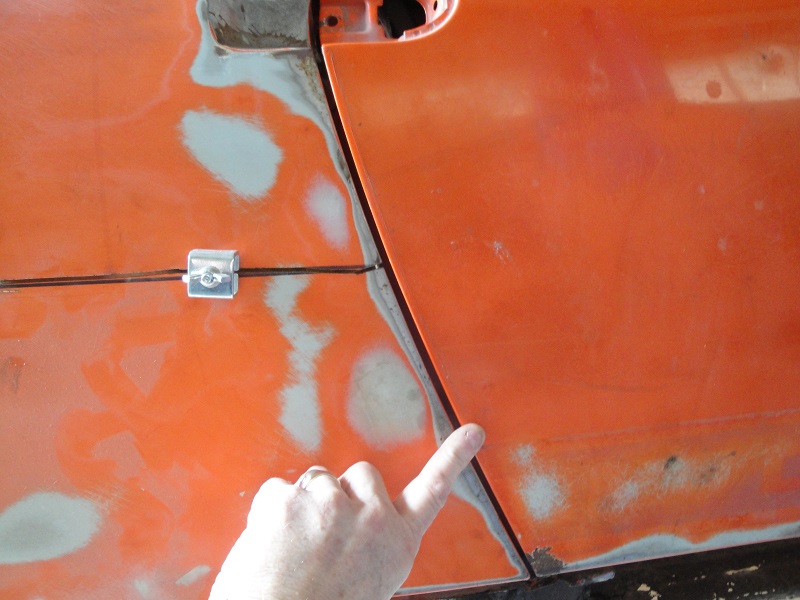

Might need some adjustment. This is where I ended up even with the door brace installed in the beginning.
But this is with the drivers long removed.
Click to view attachment
Passenger side.
Click to view attachment
Put the doors back on to make sure everything is perfect.
Click to view attachment
Might need some adjustment. This is where I ended up even with the door brace installed in the beginning.
But this is with the drivers long removed.
Click to view attachment
Passenger side.
QUOTE(cary @ Mar 12 2013, 08:02 PM)
This is where I ended up even with the door brace installed in the beginning.
But this is with the drivers long removed.
Passenger side.
But this is with the drivers long removed.
Passenger side.
Not even close. It looks like you could use some shrinkage!
I think you need adjustable braces that allow you to pull or push the car until everything lines up.
http://www.914world.com/specs/bodydims.php
http://www.914world.com/specs/underdims.php
Click to view attachment

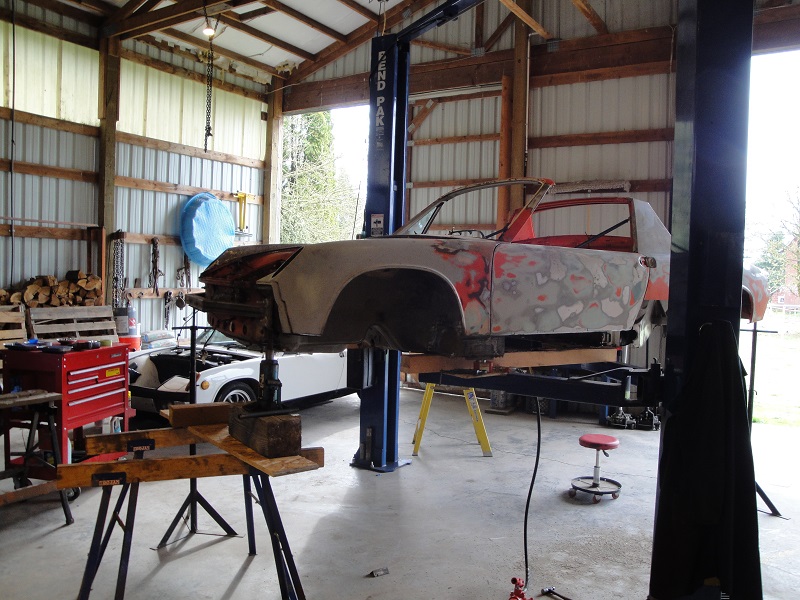

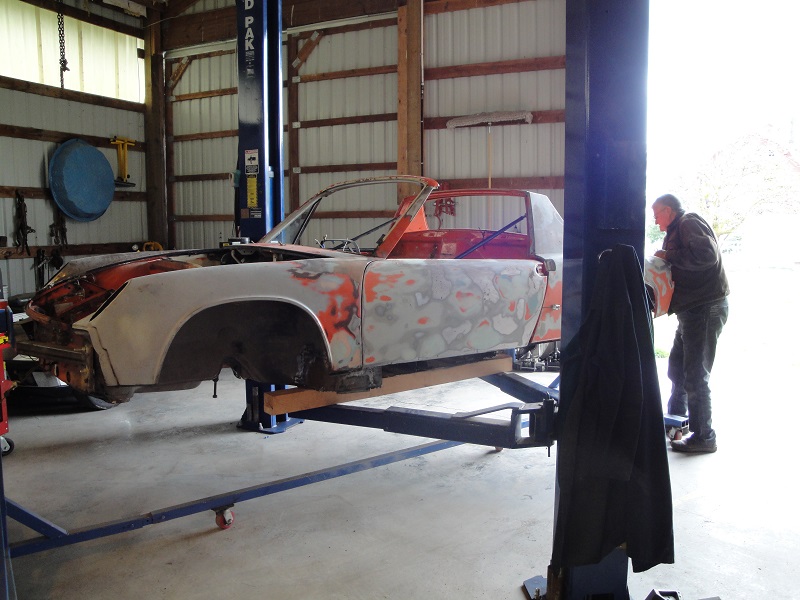

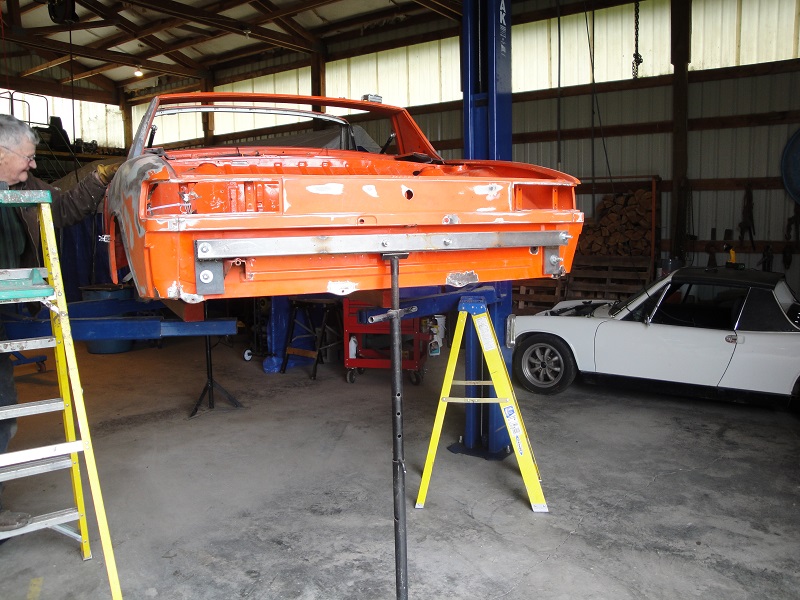

Moving from the rostissere to the lift.
Click to view attachment
The tall jack stands allow you to twist the body into position. Without the long, its kind of like a noodle.
I wish I'd done a movie to show you how flexible the body is without the long attached.
Click to view attachment
After a couple hours of tweaking. Getting closer.
Moving from the rostissere to the lift.
Click to view attachment
The tall jack stands allow you to twist the body into position. Without the long, its kind of like a noodle.
I wish I'd done a movie to show you how flexible the body is without the long attached.
Click to view attachment
After a couple hours of tweaking. Getting closer.
Click to view attachment

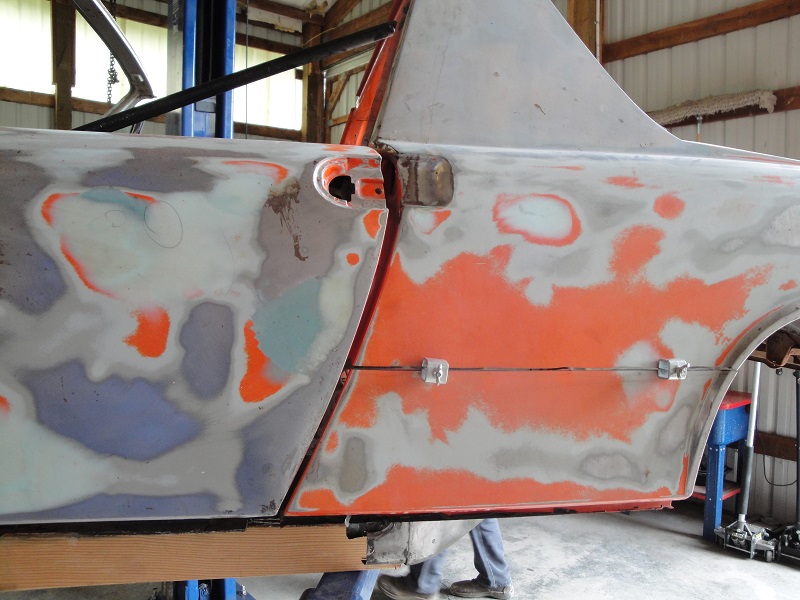

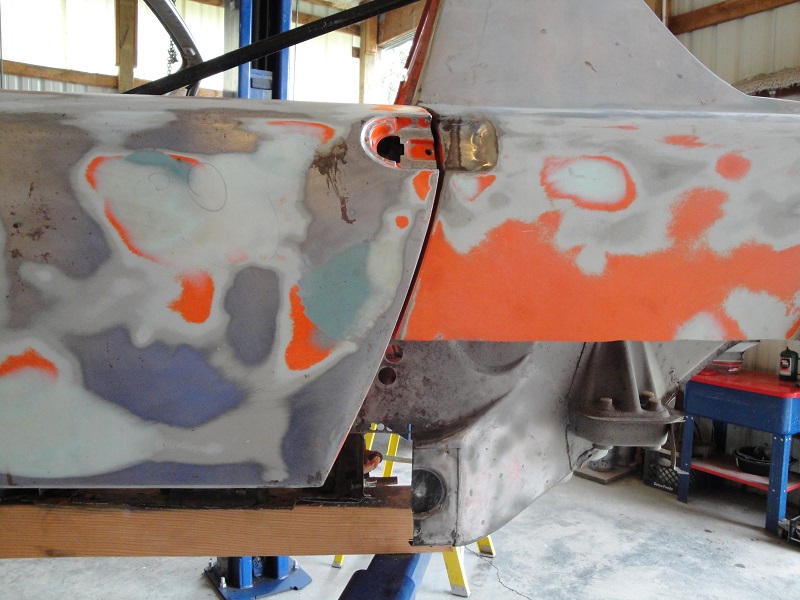

Almost getting there on the passenger side. But I'm working on the drivers side first.
Click to view attachment

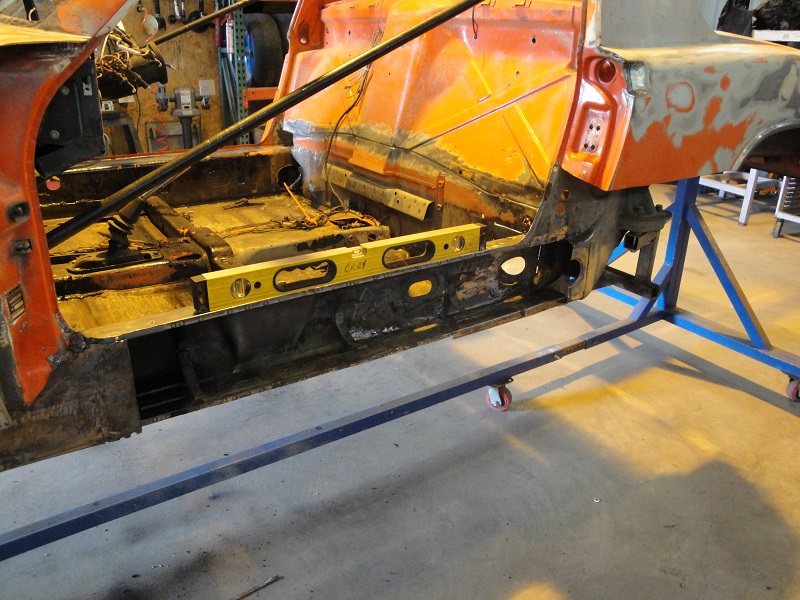

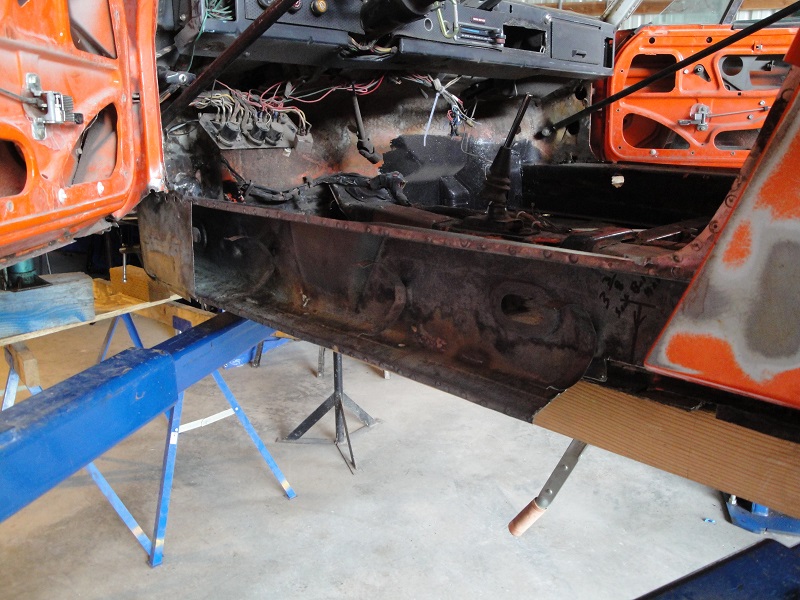

Test fitting the drivers long. Even with this being an Arizona car. I'm putting in a patch under the jack point.
Almost getting there on the passenger side. But I'm working on the drivers side first.
Click to view attachment
Test fitting the drivers long. Even with this being an Arizona car. I'm putting in a patch under the jack point.
I do have adjustable door braces. I can move the door gap all over the place.
Without a long installed you can't believe how much you can move things around.
Just trying to get the top and the bottom of the door to match.
Looking for a gap of .19 to .21. I assume that's the correct measurement.
Being that's what the front gap is.
Without a long installed you can't believe how much you can move things around.
Just trying to get the top and the bottom of the door to match.
Looking for a gap of .19 to .21. I assume that's the correct measurement.
Being that's what the front gap is.
Got up early to finish reading this post.
http://www.914world.com/bbs2/index.php?sho...03941&st=50
I need to add some additional information. This car was a poor at best, front clip repair back in the day. So the poor workmanship and the fact these cars were hand built might be adding to my issues. LOL.
I'm just seeking perfection on a tub that most folks would have crushed.
I don't think I want to tweak the doors the old fashioned way being that the front door gaps are good. I'm only looking for an additional .02 to .03 on the bottom of the drivers door.
I'll probably have to lower the car closer to the ground to get more pressure points to tweak with.
Looks like coffee and tape measure work this am while Super In Law is doing some work on the new inner long.
I do have confidence we'll get it. Super In Law got it road worthy 12 years ago. He over did it welding wise, but it was perfectly square when it went on the alignment rack. And the doors closed.
I wish I'd taken pictures of the door gaps 4 years ago when I took it apart.
Sorry to say I do have two Porta Powers that could be used. But there's something about Porta Powers and an 18 gauge car that don't feel quite right.
http://www.914world.com/bbs2/index.php?sho...03941&st=50
I need to add some additional information. This car was a poor at best, front clip repair back in the day. So the poor workmanship and the fact these cars were hand built might be adding to my issues. LOL.
I'm just seeking perfection on a tub that most folks would have crushed.
I don't think I want to tweak the doors the old fashioned way being that the front door gaps are good. I'm only looking for an additional .02 to .03 on the bottom of the drivers door.
I'll probably have to lower the car closer to the ground to get more pressure points to tweak with.
Looks like coffee and tape measure work this am while Super In Law is doing some work on the new inner long.
I do have confidence we'll get it. Super In Law got it road worthy 12 years ago. He over did it welding wise, but it was perfectly square when it went on the alignment rack. And the doors closed.
I wish I'd taken pictures of the door gaps 4 years ago when I took it apart.
Sorry to say I do have two Porta Powers that could be used. But there's something about Porta Powers and an 18 gauge car that don't feel quite right.
QUOTE(cary @ Mar 13 2013, 06:28 AM)
I'm just seeking perfection on a tub that most folks would have crushed.
While the door gaps are important and visually annoying if off, i would rather concentrate on the suspension points.
With a car that far gone, you really want to put it on a Celette bench while you are welding the pieces back in.
That way you *know* all your suspension points are dead on.
You can always tweak the doors later, especially the height (sagging) of the doors is easily adjusted on a complete car.
I would not use the doors as a guide to building the frame ...
QUOTE(SirAndy @ Mar 13 2013, 01:25 PM)
While the door gaps are important and visually annoying if off, i would rather concentrate on the suspension points.
With a car that far gone, you really want to put it on a Celette bench while you are welding the pieces back in.
That way you *know* all your suspension points are dead on.
You can always tweak the doors later, especially the height (sagging) of the doors is easily adjusted on a complete car.
I would not use the doors as a guide to building the frame ...
That car is a little far gone to be seeking that kind of perfection off the bat with the doors. Suspension points are far less "adjustable" when the car is back together. Looks like a ton of work, and hats off to you for going for it!
Better measure the windshield to targa bar also, Top needs to fit.
looks like your front half is tipped back.
looks like your front half is tipped back.
Time for lunch.
Feel much better now.
Both doors are at 25 1/8" at the targa bar to windshield measurement.
And 139mm at the latch plate measurement.
Put the latch back in the drivers door. Closes perfect without a bind.
Can't really measure the suspension pick up points. Both mounts are removed from the passenger side.
I have a 4 corner jig that was on the car before I tore into the
longs.
Feel much better now.
Both doors are at 25 1/8" at the targa bar to windshield measurement.
And 139mm at the latch plate measurement.
Put the latch back in the drivers door. Closes perfect without a bind.
Can't really measure the suspension pick up points. Both mounts are removed from the passenger side.
I have a 4 corner jig that was on the car before I tore into the
longs.
Here's the pictures from today.
Click to view attachment
Click to view attachment

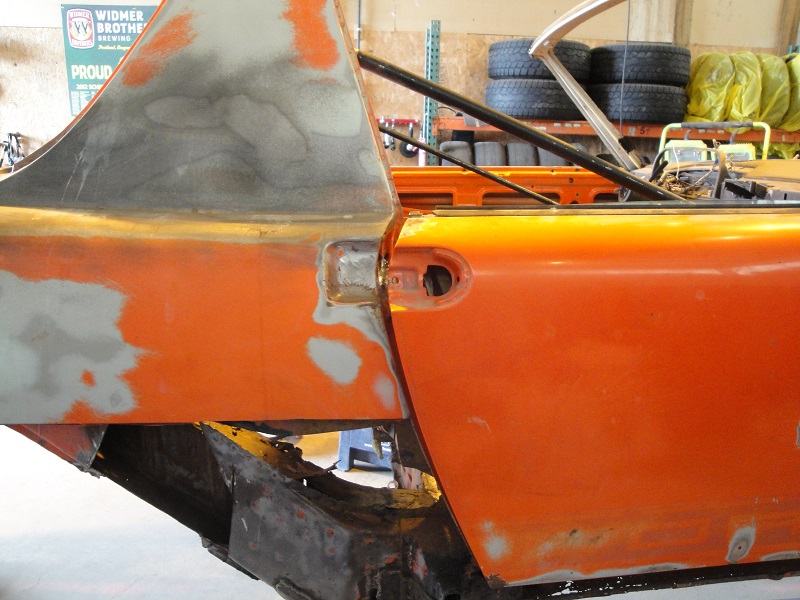

Drivers side..

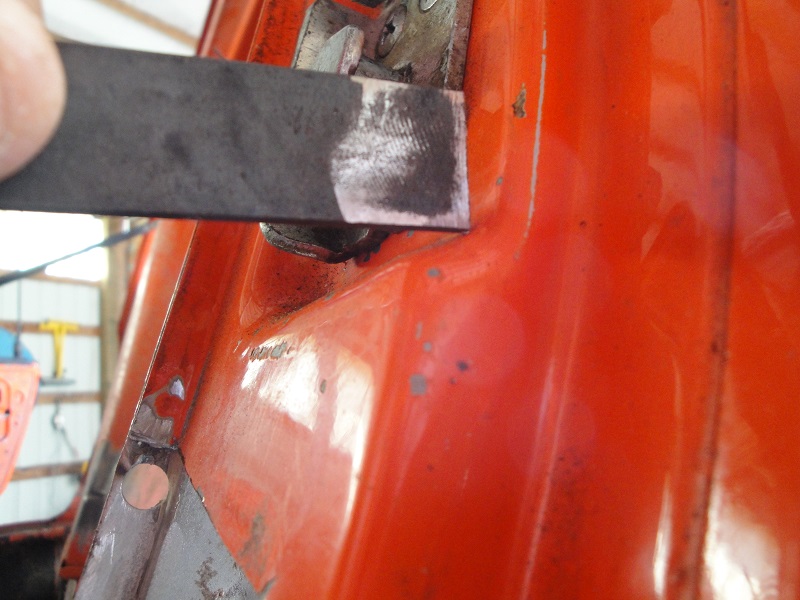

The nut plate on the door jam latch is a bit frozen. So its soaking with PB Blaster.
Pulls the door up just a smidgen. I'll tidy that up tomorrow.
I didn't want to catch the paint on fire with the torch.
Click to view attachment

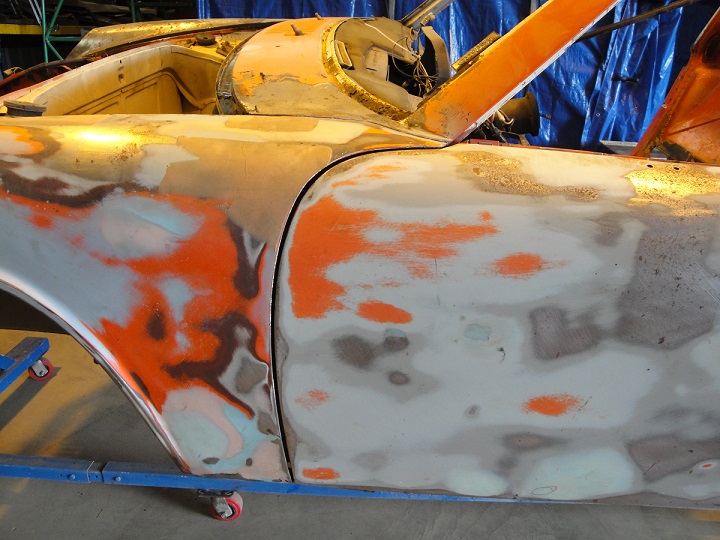

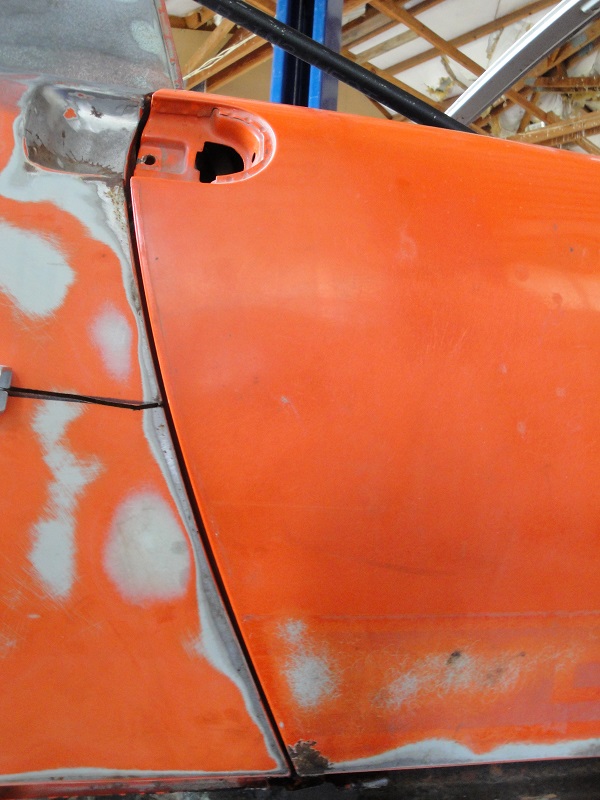

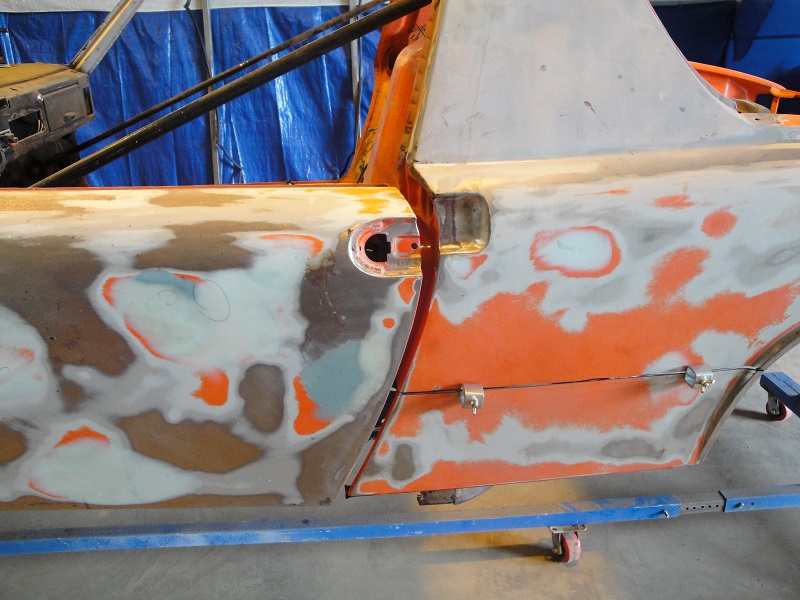

Here's the passenger side.
Real happy with the progress today.
My fabricator (Super In Law) mis-measured the patch on the drivers long.
Missed that it gets about .20 wider as is goes under the firewall.
So we didn't leave the shop till after 6:30.
Click to view attachment
Click to view attachment
Drivers side..
The nut plate on the door jam latch is a bit frozen. So its soaking with PB Blaster.
Pulls the door up just a smidgen. I'll tidy that up tomorrow.
I didn't want to catch the paint on fire with the torch.
Click to view attachment
Here's the passenger side.
Real happy with the progress today.
My fabricator (Super In Law) mis-measured the patch on the drivers long.
Missed that it gets about .20 wider as is goes under the firewall.
So we didn't leave the shop till after 6:30.

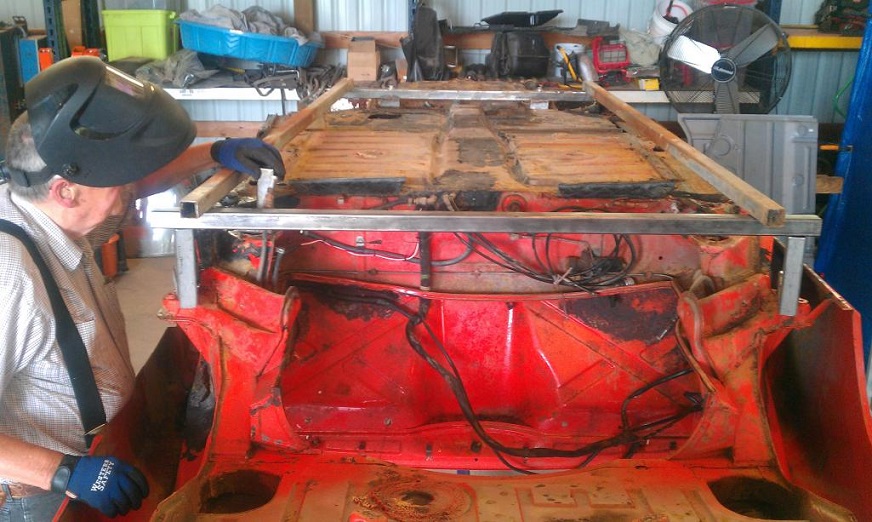

Here's the suspension point jig we built.
Bolts to all four suspension points plus the front motor mounts.
Click to view attachment
Bolts to all four suspension points plus the front motor mounts.
Click to view attachment
Tomorrow we'll install the drivers long after a bit more trimming.
I'll follow my instructions.
Go slow.
Don't weld too long in one spot.
Cool the welds with the air hose.
I'll follow my instructions.
Go slow.
Don't weld too long in one spot.
Cool the welds with the air hose.
get the drivers door gap
closed up around 5mm max. That gap is looks wide but I have been drinking so....
closed up around 5mm max. That gap is looks wide but I have been drinking so....
There is a lot of good feedback and direction here on this thread. As I have read everyone’s replies the seasoned guys here have wisdom to share. That wisdom is learned through experience of trial and error.
Andy is correct "I would not use the doors as a guide to building the frame" ...what you can use them for as an indicator of what is shrinking and shifting as you repair, replace and weld.
The main control points are the most critical parts. Suspension mounting and load bearing areas are primary. Remember when the car is assembled and all four tires sitting on the ground the center section of the tub is not bearing the entire weight of the car, its loaded from the suspension mounting points and then spread to the center section. The center section is critical to being square an level but the entire chassis is a concerted system as a whole.
If you are repairing a tub and only the center section is supported both front and rear overhangs are sagging. If you support the car from the ends such as a rotisserie the center section sags. 8 points are recommended at a minimum (center section 4 points and 2 points on each end of the tub). With a Celette you can add as many fixtures available that are made for the chassis which will provide for consistent support across the datum line through both ends of the tub, torque box’s and center section. Many cars have up to 20+ control points that can be supported. 4 point pinch weld clamps at the rockers is insufficient for major structural repairs on a 914. Think of a Celette as a surface plate with predetermined stand offs.
Many cannot afford or do not have access to a dedicated bench. What do you do? Take your time! Watch panel gaps to see what’s happening during welding, use them as a visual aid. Improvised support jigs, brackets, braces can be made and are effective. Some kind of improvised support like an H beam frame, box tubing, truss under the chassis to keep things flat and level are a start. The datum line under the car will give you a level line to reference. If your support is uniform on both sides of the tub it can indicate twist in the chassis also and height differences. Tape measures are indispensible and so are plumb lines. All of these are old school and can be done on the cheap with minimal fabrication. Might take a little longer than a bench system but if done properly will result in a straight project. X, Y and Z axis did not originate on CNC machines!
Door bars are great for roofless cars. If you use door bars I advise bracing at the windshield frame to targa bar also as door bars alone can actually spread the door openings unevenly when the pressure is cranked up. Cross bracing across the center section long to long is also recommended. It’s a lot harder for the chassis to move around when something is helping it resist or oppose forces.
When you introduce heat you will have shrinkage of some kind in the area its applied. It’s one of those laws of the galaxy called thermodynamics so get used to it. Heat goes to cold with metal. Just visualize your testicles when it’s really cold out!!! The cold sucks the body heat away resulting in turtle syndrome! Same principal applies to metal, how its controlled is key. Do not spray water or use cold wet rags on structural areas –just don’t! I have stuck and air hose with a slow blead nozzle inside of longs to “move air” and it seems to work for minimizing shrinkage.
I have also learned that human nature says add more heat when things start sputtering and popping –stop now, go back and clean your metal better at the weld site and slow down. Speed welding always causes more work in the end. Another thing- if your panel’s gaps are perfect before you start welding they are not going to be perfect when you finish. Sometimes you need to fit and spread a gap (say door opening) wider and account for shrinkage where the end result will be where you want it. Learn to control it.
One thing about metal that’s a fact; material can be added or subtracted. Spot welds can be drilled out a second time if need be. Metal is forgiving, stretchable, shrinkable and submissive. If you learn to read it you can make it do whatever you want. What’s the worst that can happen a do over?
Andy is correct "I would not use the doors as a guide to building the frame" ...what you can use them for as an indicator of what is shrinking and shifting as you repair, replace and weld.
The main control points are the most critical parts. Suspension mounting and load bearing areas are primary. Remember when the car is assembled and all four tires sitting on the ground the center section of the tub is not bearing the entire weight of the car, its loaded from the suspension mounting points and then spread to the center section. The center section is critical to being square an level but the entire chassis is a concerted system as a whole.
If you are repairing a tub and only the center section is supported both front and rear overhangs are sagging. If you support the car from the ends such as a rotisserie the center section sags. 8 points are recommended at a minimum (center section 4 points and 2 points on each end of the tub). With a Celette you can add as many fixtures available that are made for the chassis which will provide for consistent support across the datum line through both ends of the tub, torque box’s and center section. Many cars have up to 20+ control points that can be supported. 4 point pinch weld clamps at the rockers is insufficient for major structural repairs on a 914. Think of a Celette as a surface plate with predetermined stand offs.
Many cannot afford or do not have access to a dedicated bench. What do you do? Take your time! Watch panel gaps to see what’s happening during welding, use them as a visual aid. Improvised support jigs, brackets, braces can be made and are effective. Some kind of improvised support like an H beam frame, box tubing, truss under the chassis to keep things flat and level are a start. The datum line under the car will give you a level line to reference. If your support is uniform on both sides of the tub it can indicate twist in the chassis also and height differences. Tape measures are indispensible and so are plumb lines. All of these are old school and can be done on the cheap with minimal fabrication. Might take a little longer than a bench system but if done properly will result in a straight project. X, Y and Z axis did not originate on CNC machines!
Door bars are great for roofless cars. If you use door bars I advise bracing at the windshield frame to targa bar also as door bars alone can actually spread the door openings unevenly when the pressure is cranked up. Cross bracing across the center section long to long is also recommended. It’s a lot harder for the chassis to move around when something is helping it resist or oppose forces.
When you introduce heat you will have shrinkage of some kind in the area its applied. It’s one of those laws of the galaxy called thermodynamics so get used to it. Heat goes to cold with metal. Just visualize your testicles when it’s really cold out!!! The cold sucks the body heat away resulting in turtle syndrome! Same principal applies to metal, how its controlled is key. Do not spray water or use cold wet rags on structural areas –just don’t! I have stuck and air hose with a slow blead nozzle inside of longs to “move air” and it seems to work for minimizing shrinkage.
I have also learned that human nature says add more heat when things start sputtering and popping –stop now, go back and clean your metal better at the weld site and slow down. Speed welding always causes more work in the end. Another thing- if your panel’s gaps are perfect before you start welding they are not going to be perfect when you finish. Sometimes you need to fit and spread a gap (say door opening) wider and account for shrinkage where the end result will be where you want it. Learn to control it.
One thing about metal that’s a fact; material can be added or subtracted. Spot welds can be drilled out a second time if need be. Metal is forgiving, stretchable, shrinkable and submissive. If you learn to read it you can make it do whatever you want. What’s the worst that can happen a do over?
After seeing how much the front 1/2's can move with the long removed, It does get your attention.

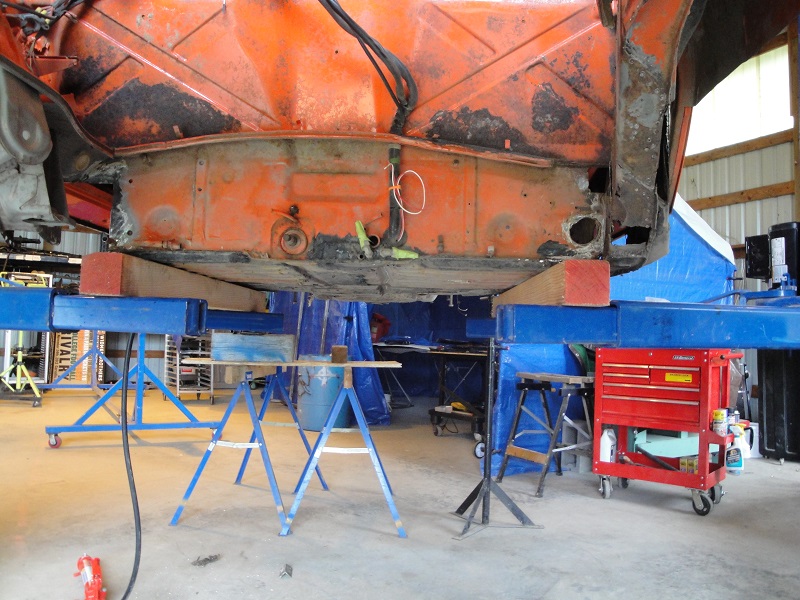

We do have it supported on the lift with a 4 * 4 between the 2 arms on each side. Its supporting the car at both the front and back firewall.
Then we have tall adjustable jack stands on each corner of the tub. So we have it supported at 8 points.
After seeing how much the body flexed when flipping it on the rotisserie. We knew that welding the long on the rotisserie was out of the question. Thats why we moved it to the lift.
I do believe we'll create some sort of brace to go between the windshield and the targa bar before it goes back on the rotisserie.
As I'm finishing this post. I think I'll stop at the hardware store and buy a couple a steel strips. Cut one at 25 1/8" and one at 1039mm for quick measurements as we begin to weld. I probably over simplified things by talking about the door gaps. That is just visual portion. I've been constantly measuring all four door opening measurements.

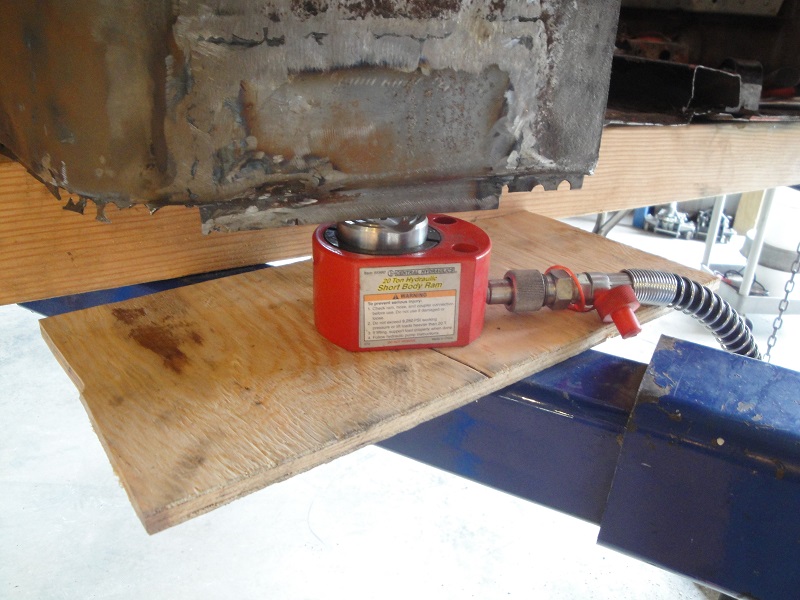

I guess we have it supported in 9 spots. I used the Porta Power mini jack to get a couple mm.
Click to view attachment
More coffee and more measuring. Patience is a virtue, and meaure 4 times, then cut
Wish us luck. Today is the day.
We do have it supported on the lift with a 4 * 4 between the 2 arms on each side. Its supporting the car at both the front and back firewall.
Then we have tall adjustable jack stands on each corner of the tub. So we have it supported at 8 points.
After seeing how much the body flexed when flipping it on the rotisserie. We knew that welding the long on the rotisserie was out of the question. Thats why we moved it to the lift.
I do believe we'll create some sort of brace to go between the windshield and the targa bar before it goes back on the rotisserie.
As I'm finishing this post. I think I'll stop at the hardware store and buy a couple a steel strips. Cut one at 25 1/8" and one at 1039mm for quick measurements as we begin to weld. I probably over simplified things by talking about the door gaps. That is just visual portion. I've been constantly measuring all four door opening measurements.
I guess we have it supported in 9 spots. I used the Porta Power mini jack to get a couple mm.
Click to view attachment
More coffee and more measuring. Patience is a virtue, and meaure 4 times, then cut
Wish us luck. Today is the day.
It didn't happen. We're still tinkering. Super In Law still working on the long. Working on getting all the dis-assembled spots all tidied up.
I started my Millermatic welder training. Replacing some of the tore up spot welding flanges. New metal to new metal its a beautiful thing. New to old..............not so much.
The nut plate on the drivers door came loose so I realigned the door.
Click to view attachment

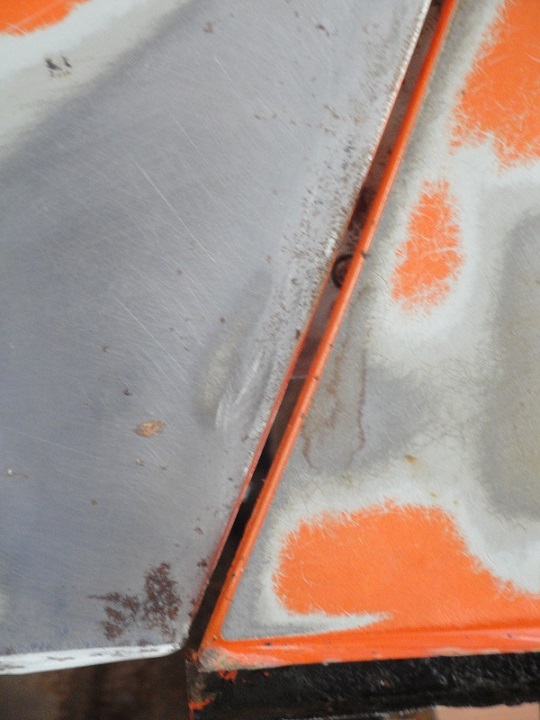

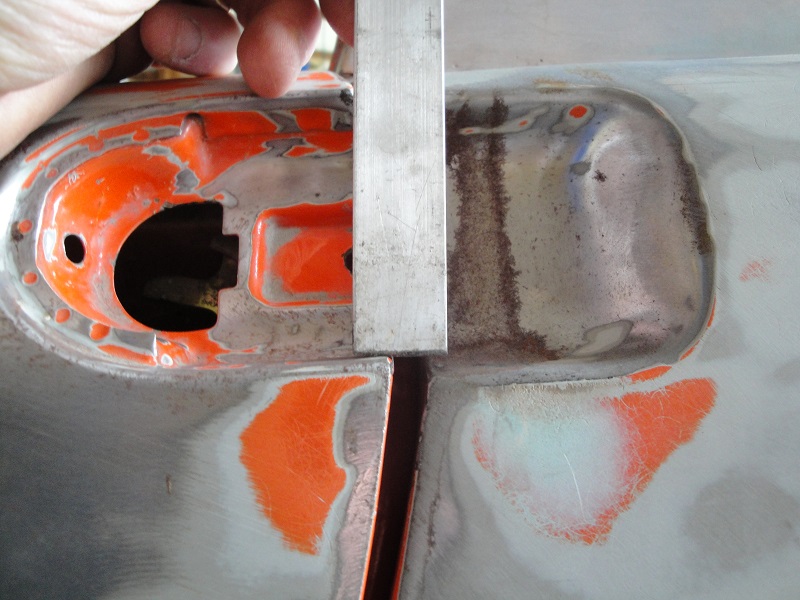

The portion above the handle cut out looks a bit excessive. That's because the body guy (me) shaped it going the wrong way.

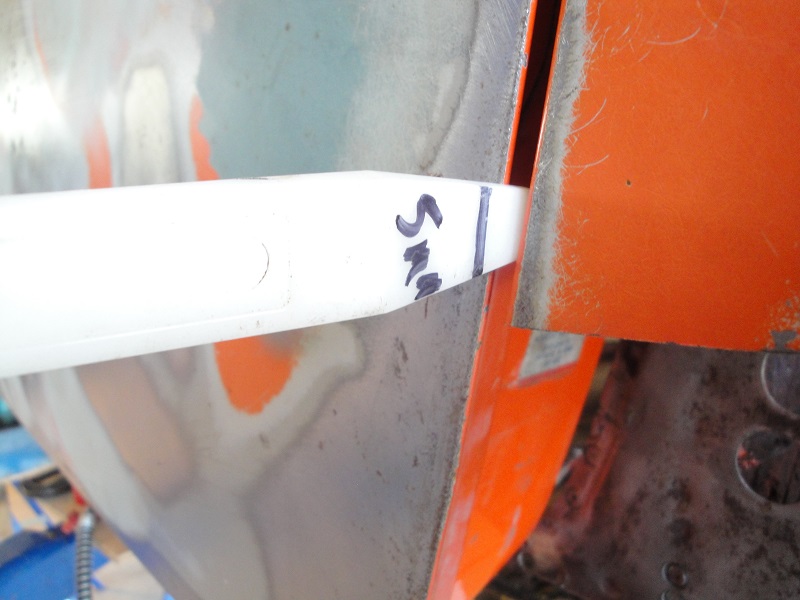

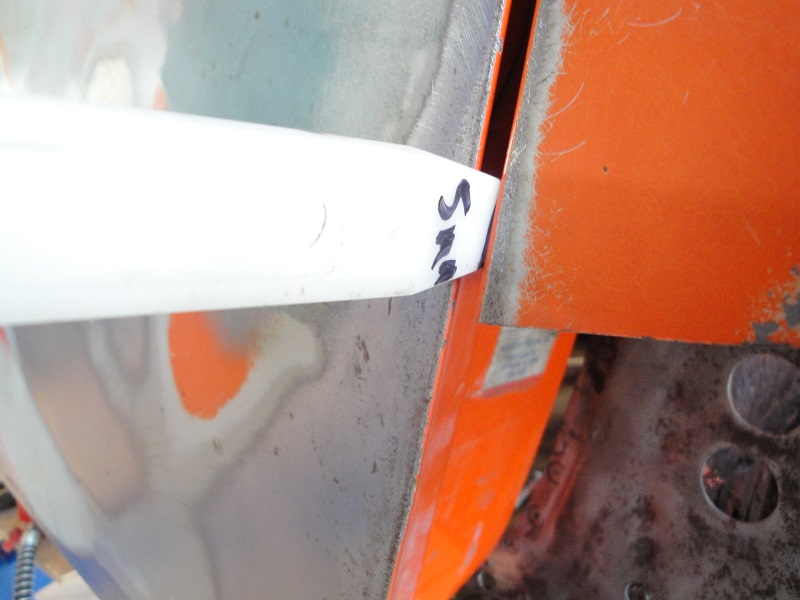

Perfect 5mm all the way to the bottom. Except where the body guy took of too much metal or Metal Ready
I started my Millermatic welder training. Replacing some of the tore up spot welding flanges. New metal to new metal its a beautiful thing. New to old..............not so much.
The nut plate on the drivers door came loose so I realigned the door.
Click to view attachment
The portion above the handle cut out looks a bit excessive. That's because the body guy (me) shaped it going the wrong way.
Perfect 5mm all the way to the bottom. Except where the body guy took of too much metal or Metal Ready
Got tired of nicking the paint (whats left of it) with the micrometer. So I came up with a depth/width gauge.
Click to view attachment
Click to view attachment
Its a glazers tool. Don't know the name of it. I use it for lots of things.
Click to view attachment
Click to view attachment
Its a glazers tool. Don't know the name of it. I use it for lots of things.

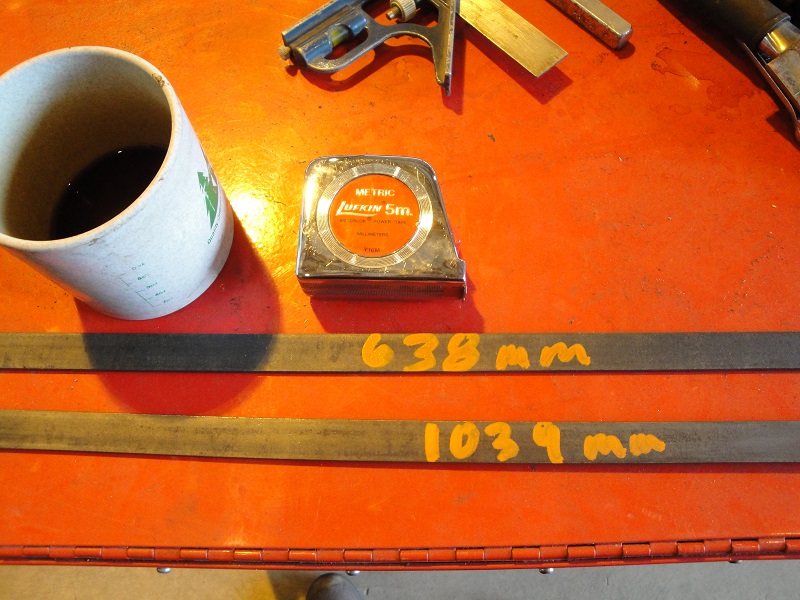

Here's the measurement tools I created for measuring while we weld in the long.
Click to view attachment
Click to view attachment
I think you're doing good. Can't wait to see the finished result!
QUOTE(cary @ Mar 14 2013, 11:30 AM)
...
I do believe we'll create some sort of brace to go between the windshield and the targa bar before it goes back on the rotisserie.
...
I don't know jack about such restorations, but I do know that the windshield
pillars are very weak and easily moved. I would not brace to them.
That's a very challenging restoration. Impressive work so far - keep at it.
QUOTE
I don't know jack about such restorations, but I do know that the windshield
pillars are very weak and easily moved. I would not brace to them.
Its really more about the tub flexing when you flip it upside down.
I'd just like to keep it all in place so that some of the metal doesn't create a memory of the wrong position.
I need to figure out how to post video's. I'd like to show how much the two ends of the car will move without the long attached.
QUOTE(cary @ Mar 15 2013, 12:30 PM)
QUOTE
I don't know jack about such restorations, but I do know that the windshield
pillars are very weak and easily moved. I would not brace to them.
Its really more about the tub flexing when you flip it upside down.
I'd just like to keep it all in place so that some of the metal doesn't create a memory of the wrong position.
I need to figure out how to post video's. I'd like to show how much the two ends of the car will move without the long attached.
Cary, just want to complement you on saving this from the crusher. Also if you want to talk flexible, you could try an MGB with only the driveline tunnel connecting front and rear. The sills in those cars rust even faster than 914s.
I've already crushed one. When they're gone, they're gone forever.
If I wasn't so damn anal it would be a lot easier.
I've got one day of vacation to go.
Trying to make old medal fit like new. Not going to happen.
The long will be welded in in the am. Left with the weld thru primer brushed on.
And Scotty B's Rustoluem sprayed on in the front cavity.
So its ready to go.
Spent the past two days puttering to get it to fit just right.
No twists, no preload on any panel unions.
It would have been alot easier without all the rust patches.
Feel real good. All four door opening measurements are perfect. I have the door gap set at 6mm for the first couple welds on both sides.
I hope to shoot a video in the am showing how easy it is to move the door up and down when the long is removed.
Don't know how to post them, but I'll figure in out.
By the way Worn, I do have your donated suspension ear. Ospo'd, primered and coated with Rustoleum on the back side hole.
If I wasn't so damn anal it would be a lot easier.
I've got one day of vacation to go.
Trying to make old medal fit like new. Not going to happen.
The long will be welded in in the am. Left with the weld thru primer brushed on.
And Scotty B's Rustoluem sprayed on in the front cavity.
So its ready to go.
Spent the past two days puttering to get it to fit just right.
No twists, no preload on any panel unions.
It would have been alot easier without all the rust patches.
Feel real good. All four door opening measurements are perfect. I have the door gap set at 6mm for the first couple welds on both sides.
I hope to shoot a video in the am showing how easy it is to move the door up and down when the long is removed.
Don't know how to post them, but I'll figure in out.
By the way Worn, I do have your donated suspension ear. Ospo'd, primered and coated with Rustoleum on the back side hole.
Here's the door gap measurement rods in use.
Click to view attachment
Top one .............fits perfect.
Click to view attachment
Now we go to measure the 1039mm measurement at the door latch.
One has to be smarter than a 5th grader.
Considering both planes are at an angle where is the correct spot to measure?
With the door gap set a 5mm. Mine measures right in the middle of the radius.
Click to view attachment
Top one .............fits perfect.
Click to view attachment
Now we go to measure the 1039mm measurement at the door latch.
One has to be smarter than a 5th grader.
Considering both planes are at an angle where is the correct spot to measure?
With the door gap set a 5mm. Mine measures right in the middle of the radius.
The long is finally installed.
Click to view attachment
The car is going back on the lift. Need to make some adjustments to the rotisserie.
Front is too high. Lifts the nose and squeezes the door gaps.
Plus we're going to build some sort of targa to windshield fame brace like I mentioned.
Did put the suspension jig back on. Spot on.
Click to view attachment
The car is going back on the lift. Need to make some adjustments to the rotisserie.
Front is too high. Lifts the nose and squeezes the door gaps.
Plus we're going to build some sort of targa to windshield fame brace like I mentioned.
Did put the suspension jig back on. Spot on.
QUOTE(cary @ Mar 20 2013, 09:05 PM)
Here's the door gap measurement rods in use.
Top one .............fits perfect.
Now we go to measure the 1039mm measurement at the door latch.
One has to be smarter than a 5th grader.
Considering both planes are at an angle where is the correct spot to measure?
With the door gap set a 5mm. Mine measures right in the middle of the radius.
Still looking for an answer on the bottom measurement...............
I was just thinking. Has anyone every seen a stash of the factory body repair jigs?
We've all seen the pictures out of the factory manual set. But have we seen the pieces in the flesh(metal)?
This is a "lo-fi" version of our main content. To view the full version with more information, formatting and images, please click here.
