> LED Brake/Taillight Group Buy
chads74
post Apr 21 2014, 08:36 AM
Post #41


Member
**

Group: Members
Posts: 386
Joined: 13-March 12
From: Tampa, FL
Member No.: 14,252
Region Association: South East States
Spoke can you add me for a set of the red turn signals to go with the brake lights?

Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Apr 21 2014, 09:35 AM
Post #42


En Garde!
**********

Group: Admin
Posts: 13,443
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
QUOTE(Spoke @ Apr 20 2014, 09:56 PM) *

QUOTE(Vacca Rabite @ Apr 20 2014, 09:55 PM) *

I just say this thread and WANT IN. Can I still get in?
Zach


Zach, for you, yes we will let you in. Just when is it you will have your car on the road? (IMG:style_emoticons/default/beerchug.gif)

Sweet. Let me know where to send money.
The car will be on the road "one day."
That day is nearer then it was last week. I want to drive it this spring and summer and fall, and then tear it apart again for the next batch of changes...
User is online!Profile CardPM
Go to the top of the page
+Quote Post
wes
post Apr 21 2014, 09:56 AM
Post #43


wes
***

Group: Members
Posts: 1,588
Joined: 8-December 07
From: Ukiah Ca
Member No.: 8,436
Region Association: Northern California
Very nice, I'd like to get in on the compleat package with red turn signals and backup if possible.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post May 7 2014, 08:58 PM
Post #44


Jerry
*****

Group: Members
Posts: 6,978
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None

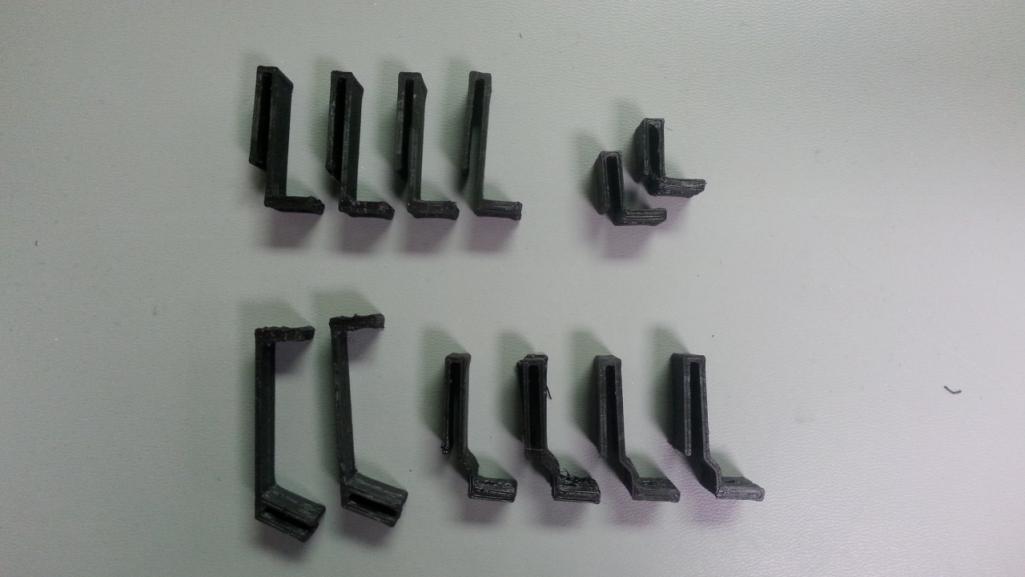

Updated the clips again. The inside turnsignal clips were modified with a slight bend to better fit the contour of the reflector housing. The small clips for the brakes were also changed a bit. The perch of clips were angled an additional 3.5 degrees to better match the board angle.

Also the clips are now in black because black looks cool.

Attached Image

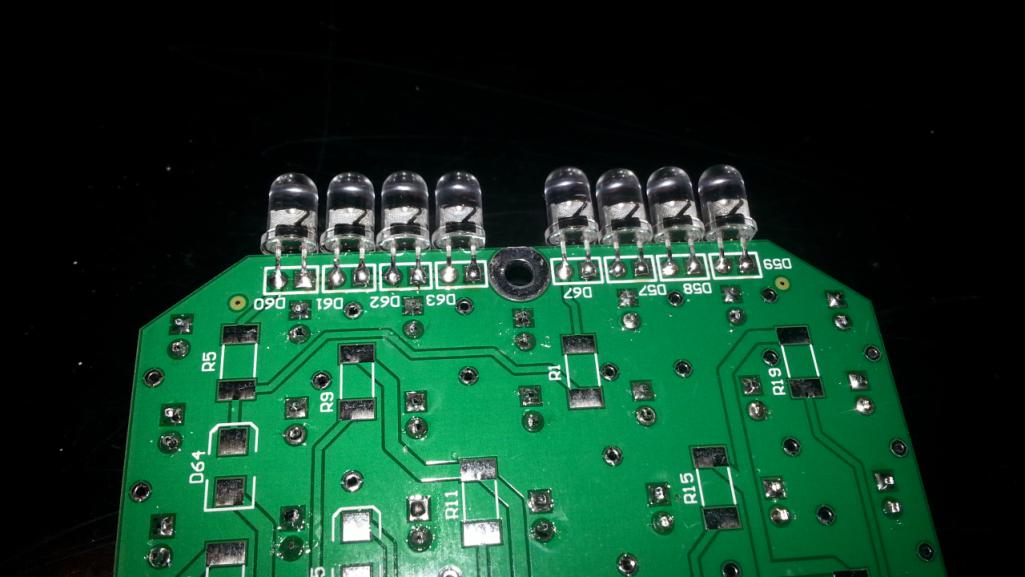

The boards were updated to fix a few issues with the rev 2 boards. First the rev 2 boards were a bit too long given the thickness of the plastic clips. So the rev 3 boards are now 35mil (0.9mm) shorter.

Also the side facing LEDs on rev 2 interfered with the lens posts. On rev 3 the LEDs are pushed side by side to clear the lens posts.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CptTripps
post May 7 2014, 09:05 PM
Post #45


:: Punch and Pie ::
****

Group: Members
Posts: 3,584
Joined: 26-December 04
From: Mentor, OH
Member No.: 3,342
Region Association: Upper MidWest
Can I get a new set of clips? Those look a lot better than my brass ones.

Great work!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post May 7 2014, 09:44 PM
Post #46


Jerry
*****

Group: Members
Posts: 6,978
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(CptTripps @ May 7 2014, 11:05 PM) *

Can I get a new set of clips? Those look a lot better than my brass ones.

Great work!


Sure thing Doug. I'll try to get them out to you next week.

If anyone who has brass clips and wants the latest plastic clips, just give me a shout and I'll send them to you.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dadaDaveed
post May 7 2014, 10:37 PM
Post #47


Member
**

Group: Members
Posts: 111
Joined: 19-February 09
From: San Antonio, TX
Member No.: 10,071
Region Association: Southwest Region
If the group buy is still open, I'm in for a pair of brakes and red turns. Thanks,

-Dave
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rleog
post May 14 2014, 03:46 AM
Post #48


Senior Member
***

Group: Members
Posts: 608
Joined: 12-October 03
From: Middleton, MA
Member No.: 1,239
Region Association: North East States

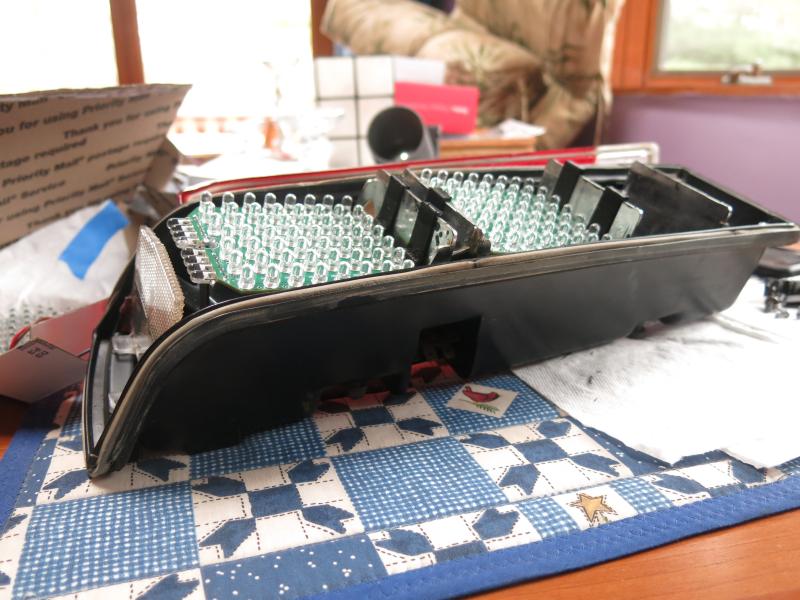

I watched the development of these boards and was impressed with the attention paid to details involved in getting them to work, then in getting them to fit correctly within the taillight assembly. My boards arrived a couple of days ago so I tried a test fit on my boards with plastic clips.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i142.photobucket.com-1239-1400060777.1.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/i142.photobucket.com-1239-1400060777.2.jpg)

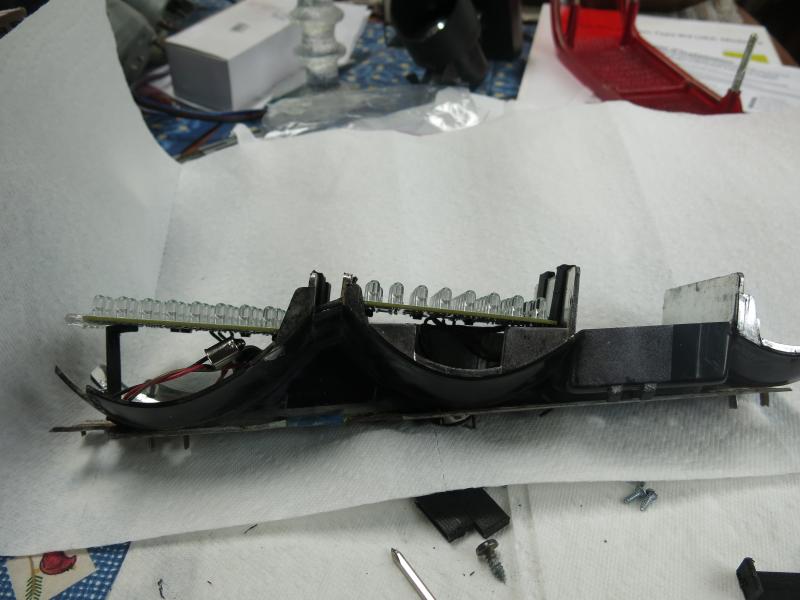

The 3D printed plastic clips allow the boards to settle deeply enough to clear the lens.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i142.photobucket.com-1239-1400060777.3.jpg)

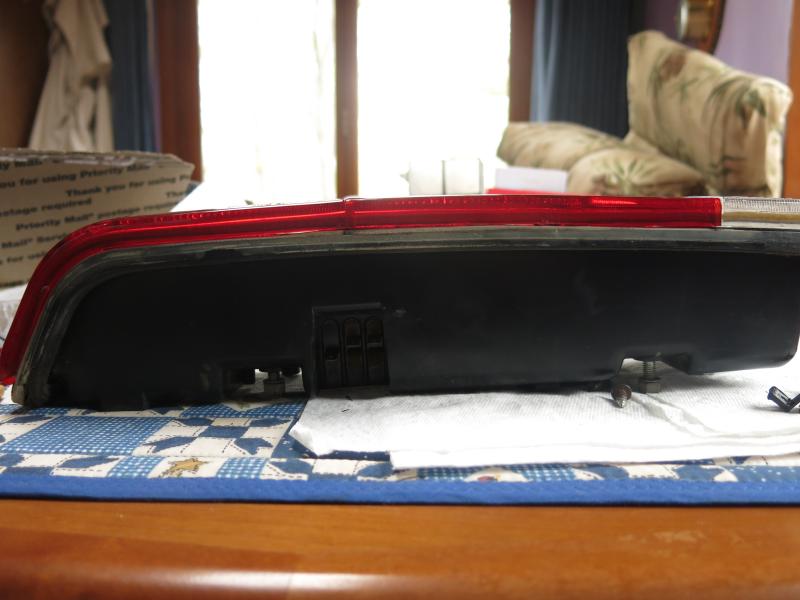

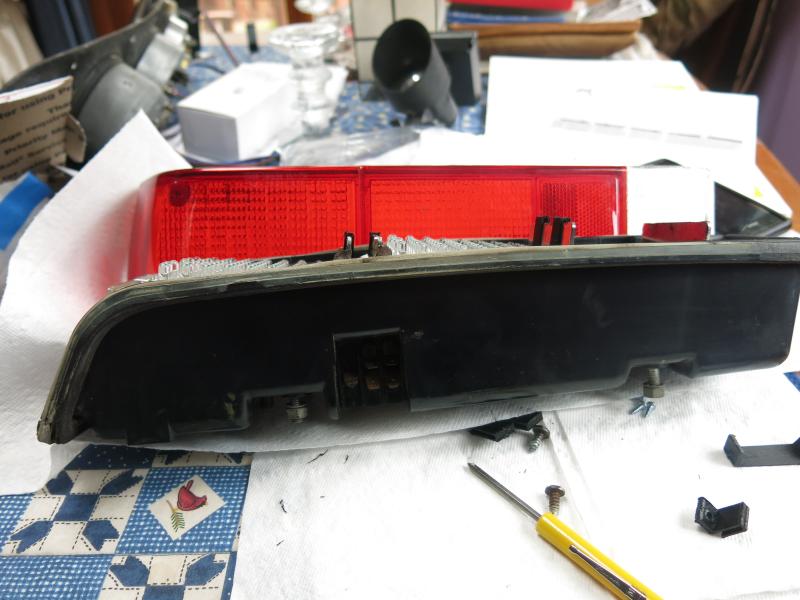

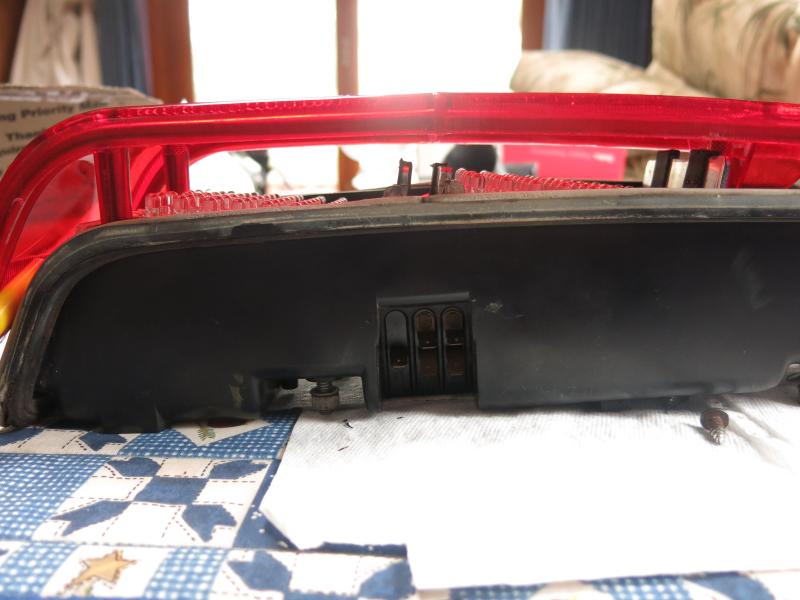

While I did not deal with the metal clips, I can add that I had very little difficulty adjusting the plastic clips to get a correct fit.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i142.photobucket.com-1239-1400060778.4.jpg)


(IMG:http://www.914world.com/bbs2/uploads_offsite/i142.photobucket.com-1239-1400060778.5.jpg)

Nicely done, Spoke! Your time and attention to detail is greatly appreciated.

(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
chads74
post May 14 2014, 06:21 AM
Post #49


Member
**

Group: Members
Posts: 386
Joined: 13-March 12
From: Tampa, FL
Member No.: 14,252
Region Association: South East States

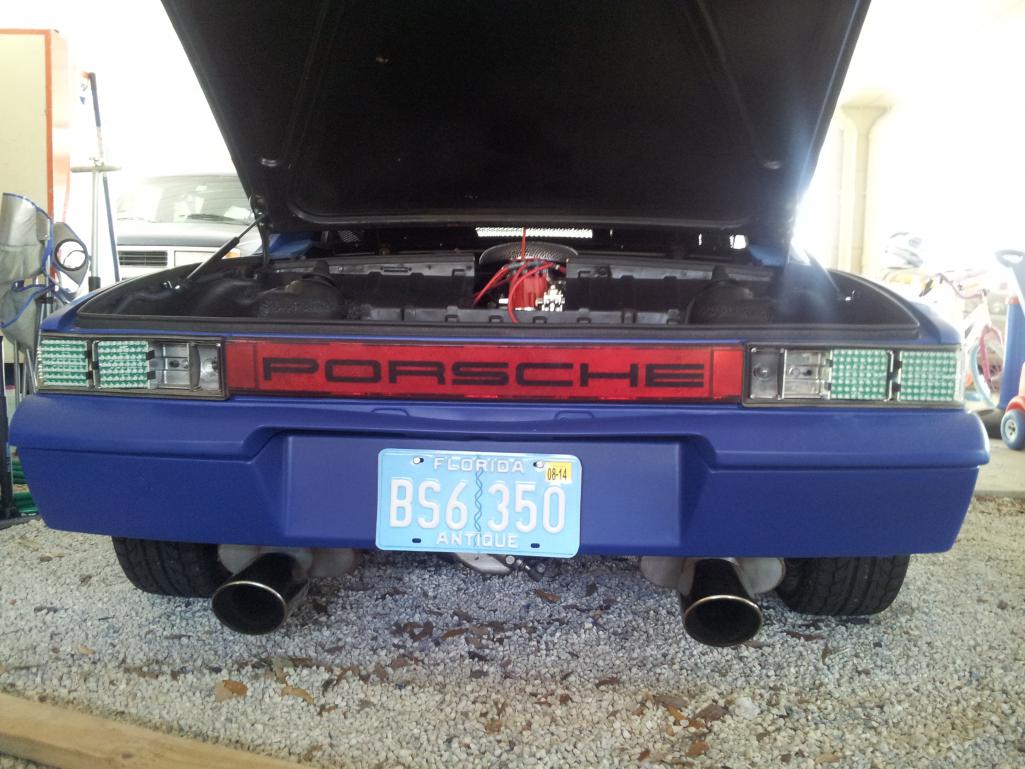

I received mine in the mail yesterday, I was so excited I couldn't wait to get them in the car. Turned out to be one of the easiest things I have fiber on the car for a long time. Thanks for making a great product for us.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tomeric914
post May 19 2014, 09:40 PM
Post #50


One Lap of America in a 914!
***

Group: Members
Posts: 1,259
Joined: 25-May 08
From: Syracuse, NY
Member No.: 9,101
Region Association: North East States
Bumping this back up to the top. Just installed mine tonight and am ecstatic about them. If you haven't already, BUY SOME NOW. These are incredibly well built, install easily, are a perfect fit and work as advertised! AWESOME job Spoke!

(IMG:style_emoticons/default/icon_bump.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
chads74
post May 20 2014, 11:21 AM
Post #51


Member
**

Group: Members
Posts: 386
Joined: 13-March 12
From: Tampa, FL
Member No.: 14,252
Region Association: South East States
Drove at night again and felt very confident that I was actually seen. Again great job!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cupomeat
post May 20 2014, 02:46 PM
Post #52


missing my NY 914 in VA
***

Group: Members
Posts: 1,336
Joined: 26-November 07
From: Oakton VA
Member No.: 8,376
Region Association: MidAtlantic Region
If this group buy is still Open I want a full set for Red Tailights.

I'll PM you.

Tomeric got his and told me i NEED to get them... (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post May 20 2014, 03:27 PM
Post #53


Jerry
*****

Group: Members
Posts: 6,978
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
Glad to hear the good reports. Keep me posted if you run into any difficulties.

The group buy is still open although the name "group buy" is misleading. The only thing bought in groups are PCBs and parts. Each of these boards are made by hand, soldering one LED at a time. (It beats watching DWTS).

I'm working through the list of folks who want the lights. If you've spoke up here I will get to you.

It's been taking about 2 weeks from payment to shipment for a set of boards. I won't ask for payment until I'm ready to build your boards.

Thanks for your support.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tomeric914
post May 20 2014, 08:19 PM
Post #54


One Lap of America in a 914!
***

Group: Members
Posts: 1,259
Joined: 25-May 08
From: Syracuse, NY
Member No.: 9,101
Region Association: North East States
QUOTE(Cupomeat @ May 20 2014, 03:46 PM) *

Tomeric got his and told me i NEED to get them... (IMG:style_emoticons/default/aktion035.gif)

This isn't a want, this is a MUST buy. Otherwise, you will covet my taillights.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jun 1 2014, 08:35 PM
Post #55


Jerry
*****

Group: Members
Posts: 6,978
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
A couple of items about the turnsignal LEDs:

ITEM 1.
Has anyone using the turnsignal LEDs have issues with your blinker? I've heard from one person that the blinker doesn't work if the running lights are on.

This makes some sense as with the running lights on, when the blinker turns off, the LED array basically looks like an open circuit because of the steering diodes used to isolate the running light brightness from the turnsignal brightness.

If this is an issue, you may need to install an LED-ready blinker. I tried to search for a thread here that discussed the part-number for the LED-ready blinker but couldn't find it. If anyone can find the thread or the p/n please let me know.

My blinker doesn't seem to suffer from this issue. Here's my car with running lights on and turnsignals on.

https://www.youtube.com/watch?v=dG8-TevjczE



ITEM 2.
For those of you doing AMBER turnsignals: For running lights I light up the LED array as dimly as possible to simulate the bleed-through of the OEM side marker bulb to the turnsignal lens and to give the car a larger light-footprint at night.

One member doesn't like the amber lens lit up for running lights and disconnected the side marker/LED array from the running lights. Does anyone else want the LED array off for running lights?

For RED turnsignals there should be no issue with the LED array being on for running lights as these are red and not unusual to have red running lights on the rear of the vehicle.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CptTripps
post Jun 2 2014, 05:46 AM
Post #56


:: Punch and Pie ::
****

Group: Members
Posts: 3,584
Joined: 26-December 04
From: Mentor, OH
Member No.: 3,342
Region Association: Upper MidWest
Only issue I have is the lights not blinking. This is likely due to the lower voltage draw, and me needing to use LED relays. The issue I have is that the flasher relays I have int he harness are 2-pole, and the replacement LED relays are 3. Looks like they have a ground on them. I need to work this out with DrEvil before I can expect them to flash. Unless there's a resistor I can use or something.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jun 5 2014, 09:39 PM
Post #57


Resident German
*************************

Group: Admin
Posts: 41,636
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
Finally got around to installing my set. (IMG:style_emoticons/default/smash.gif)


Two things:

- The new bulb sockets are a bitch to get in and turned. I ended up using pliers and completely mangled the thin metal. I hope i never have to take them out again.
In hindsight, i should probably have used some dielectric grease.

- The lights looks great, however, the brightness falls off sharply as soon as you look at them from any kind of angle.
Probably not a problem at night but i can see this being a problem during the day since in most other cars, people sit much higher and if they're close (think commuter traffic) they probably can't see my taillights at all.


I'll have to do some more testing on this ...
(IMG:style_emoticons/default/idea.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bulitt
post Jun 6 2014, 04:06 AM
Post #58


Achtzylinder
****

Group: Members
Posts: 4,188
Joined: 2-October 11
Member No.: 13,632
Region Association: South East States
Apologize for slight hijack-
Looked into replacing the bulbs in my wifes Mercedes E320 with LEDS. Between the need for a resistor, the resultant heat, throwing trouble codes etc. Never did it. I think keeping the bulbs and wiring in a strip of LEDS around the inside of the lens might be something I may try to increase visibility.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Jun 6 2014, 04:54 AM
Post #59


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,849
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
I remember seeing the development thread, but apparently missed this GB thread (IMG:style_emoticons/default/confused24.gif)

I'm seriously thinking about getting these (with amber turn signals) as the original lighting does lack brilliance (IMG:style_emoticons/default/idea.gif)

I'm subscribed now, so I'll pop back in in the near future. It looks like you've got a good backlog right now anyway.

Awesome 'possum (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jun 6 2014, 08:32 PM
Post #60


Jerry
*****

Group: Members
Posts: 6,978
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(SirAndy @ Jun 5 2014, 11:39 PM) *

Finally got around to installing my set. (IMG:style_emoticons/default/smash.gif)


Two things:

- The new bulb sockets are a bitch to get in and turned. I ended up using pliers and completely mangled the thin metal. I hope i never have to take them out again.
In hindsight, i should probably have used some dielectric grease.


They can be a little tricky to install as there is not much material to grab onto. I've found putting a finger in the open end of the socket provides enough grip to install. The brake bulb is the most difficult since it is keyed. I'm glad that you didn't use a hammer or drill or other power tool... (IMG:style_emoticons/default/sawzall-smiley.gif)

QUOTE(SirAndy @ Jun 5 2014, 11:39 PM) *

- The lights looks great, however, the brightness falls off sharply as soon as you look at them from any kind of angle.
Probably not a problem at night but i can see this being a problem during the day since in most other cars, people sit much higher and if they're close (think commuter traffic) they probably can't see my taillights at all.


I'll have to do some more testing on this ...
(IMG:style_emoticons/default/idea.gif)


These do have a tight 1/2 power angle of dispersion of 15 degrees. There exists another LED in the same family with a 23 degree 1/2 power angle but it is available in very limited quantities. The stock lens will disperse the light a bit more.

Did you have any issues with the turnsignals not blinking?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


5 Pages V < 1 2 3 4 5 >
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 14th May 2024 - 01:58 PM
Invision Power Board v9.1.4 © 2024  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
