Van B
Here’s my rain tray. All original, all philips head metric fine pitch, no stand offs, and not even removed when they did the garbage paint job some years back
StarBear
QUOTE(Van B @ Dec 29 2022, 01:10 PM) *

Fellas!

NOS TTS for our cars on ebay:
https://www.ebay.com/itm/255490292323

I bought one so… three left!


Thanks! Thinking about it though at that price maybe hold off as just bought a $100 orbital polisher to do my windshield this winter.
How critical are these TTS, and do they fail often? Mostly for initial, cold starting?

BTW, checked PET page 124; the part numbers are different: 022 906 164 for ECO 037 551- and 043 906 163 for ECO 037 552+. Would this make a difference? 022 vs 043 just supplier part number (VW vs other?).

Also, I've never been quite sure, but is ECO 037... referencing the engine number? If so, what is the difference for a 1.8 at that split (551/552) in the numbering?
Still learning this stuff....
@wonkipop
@L-Jet914
@Van B
wonkipop
QUOTE(StarBear @ Dec 29 2022, 01:28 PM) *

QUOTE(Van B @ Dec 29 2022, 01:10 PM) *

Fellas!

NOS TTS for our cars on ebay:
https://www.ebay.com/itm/255490292323

I bought one so… three left!


Thanks! Thinking about it though at that price maybe hold off as just bought a $100 orbital polisher to do my windshield this winter.
How critical are these TTS, and do they fail often? Mostly for initial, cold starting?

BTW, checked PET page 124; the part numbers are different: 022 906 164 for ECO 037 551- and 043 906 163 for ECO 037 552+. Would this make a difference? 022 vs 043 just supplier part number (VW vs other?).

Also, I've never been quite sure, but is ECO 037... referencing the engine number? If so, what is the difference for a 1.8 at that split (551/552) in the numbering?
Still learning this stuff....
@wonkipop
@L-Jet914
@Van B


yes its the engine number.
up to 551 is 74. from 552 on is 75.

regarding the first three numbers on the part number.
usually in VW parlance the first three numbers refer to the model the part was first used on. in this case however i don't see that for either of part numbers in PET for this thermo time switch. they do have other conventions on those first three numbers. belonging to a parts group etc.

so is the thermo time switch different for 74 to 75?
i'm going to guess its the same because i am pretty sure the cold start injector is the same and the TTS controls that. its only the first three numbers are different.
what would have possibly made it different. only emissions laws, some fine details on cold start warm up emissions? i don't think there was anything that fussy going down in 74/75.

anyway. i can do a bit more poking around on that but i am sure @Van B will have already done his research.




Van B
You both may remember all the learning I did sorting out the FI last year, but I’ll give the sort version.

When the TTS fails, your CSV will only work during cranking. Which means you don’t get the 8 sec extra when cold. The later versions for the 75 and 912E give you 13 sec.

So, in warm weather, TTS is irrelevant, but it’s an important part for cold mornings. It gets your RPMs up long enough to get the flow running through the AAR and open the barn door on the AFM.


Bosch and Porsche say this is the superseded part, which I bought, but it is digital circuits and I’m not sure it works correctly in our cars.
https://www.fcpeuro.com/products/bmw-thermo...sch-13621362599
StarBear
On the AA site it provides a 928 part number availability. Have seen that in a few other instances. Maybe a small difference in the eBay part number, bring Bosch instead of VW or other. I think I have an alternate parts listing, from Bowlsby IIRC.
StarBear
QUOTE(Van B @ Dec 29 2022, 09:54 PM) *

You both may remember all the learning I did sorting out the FI last year, but I’ll give the sort version.

When the TTS fails, your CSV will only work during cranking. Which means you don’t get the 8 sec extra when cold. The later versions for the 75 and 912E give you 13 sec.

So, in warm weather, TTS is irrelevant, but it’s an important part for cold mornings. It gets your RPMs up long enough to get the flow running through the AAR and open the barn door on the AFM.


Bosch and Porsche say this is the superseded part, which I bought, but it is digital circuits and I’m not sure it works correctly in our cars.
https://www.fcpeuro.com/products/bmw-thermo...sch-13621362599

Will keep this in my reference notebook. Thanks!
wonkipop
QUOTE(Van B @ Dec 29 2022, 08:54 PM) *

You both may remember all the learning I did sorting out the FI last year, but I’ll give the sort version.

When the TTS fails, your CSV will only work during cranking. Which means you don’t get the 8 sec extra when cold. The later versions for the 75 and 912E give you 13 sec.

So, in warm weather, TTS is irrelevant, but it’s an important part for cold mornings. It gets your RPMs up long enough to get the flow running through the AAR and open the barn door on the AFM.


Bosch and Porsche say this is the superseded part, which I bought, but it is digital circuits and I’m not sure it works correctly in our cars.
https://www.fcpeuro.com/products/bmw-thermo...sch-13621362599



excellent summary.

i could half remember you had done all that homework @Van B .

i'll look into maybe picking one of these TTS. the aussie dollar is very weak against the USD at the moment so its a pretty expensive bit to pick up but i may just bite the bullet.

thanks for the tip off.
StarBear

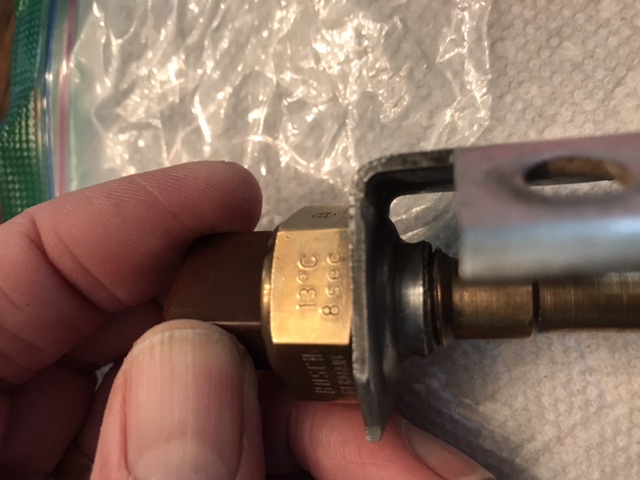

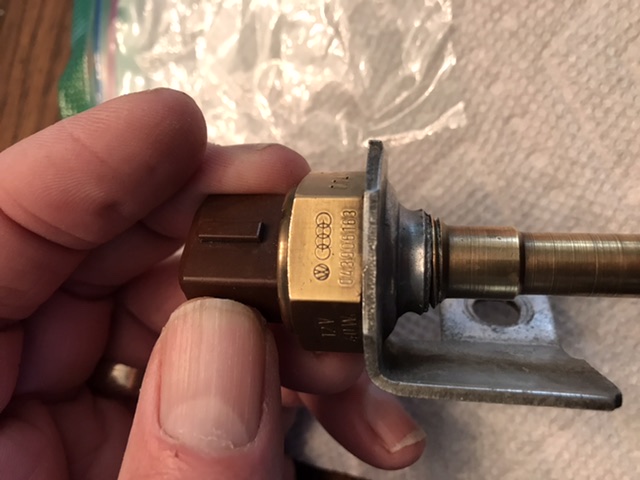

Good thing I checked my stash inventory list - I already have a used/tested unit.

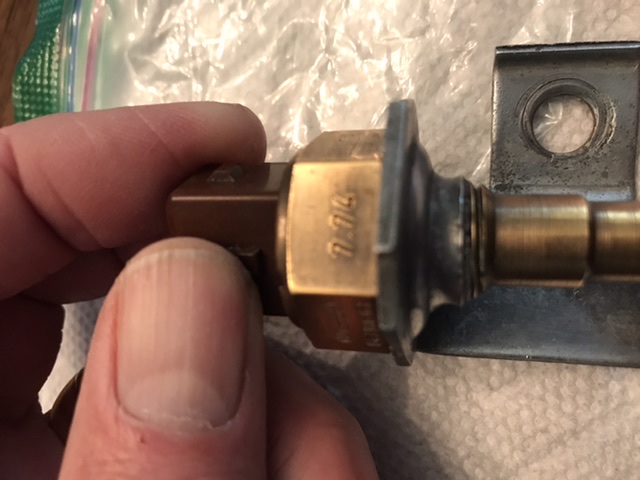

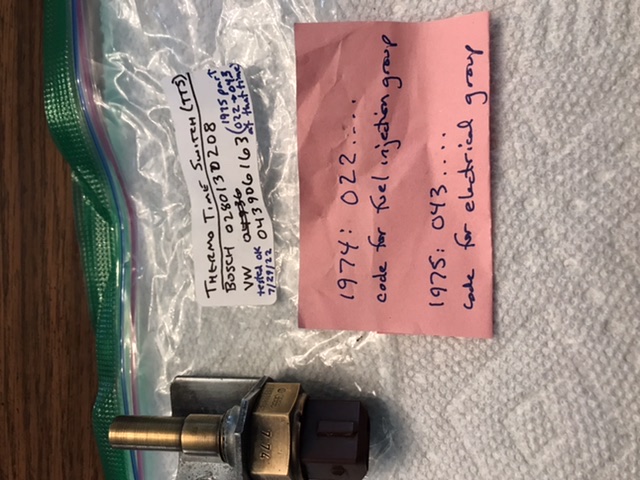

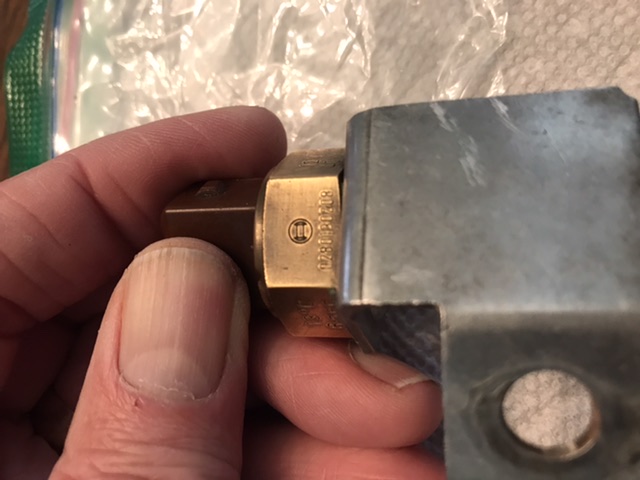

In the process, I seem to have taken good notes (see pics); in 1974 and earlier they used 022 for the fuel injection group, changing this part to the electrical group, 043, by July 74 (see pic with date) hence the change in part number. 13C and 8 secs as shown in pic.
As further pics show the 022/043 part number is VW/Audi; the 028 number is Bosch. Same unit. Should work just fine, @wonkipop .

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment
Van B
Yeah that’ll do nicely. The resistor type are what our cars need. The new style with the long hex body don’t speak the same language.
L-Jet914
QUOTE(StarBear @ Dec 29 2022, 11:28 AM) *

QUOTE(Van B @ Dec 29 2022, 01:10 PM) *

Fellas!

NOS TTS for our cars on ebay:
https://www.ebay.com/itm/255490292323

I bought one so… three left!


Thanks! Thinking about it though at that price maybe hold off as just bought a $100 orbital polisher to do my windshield this winter.
How critical are these TTS, and do they fail often? Mostly for initial, cold starting?

BTW, checked PET page 124; the part numbers are different: 022 906 164 for ECO 037 551- and 043 906 163 for ECO 037 552+. Would this make a difference? 022 vs 043 just supplier part number (VW vs other?).

Also, I've never been quite sure, but is ECO 037... referencing the engine number? If so, what is the difference for a 1.8 at that split (551/552) in the numbering?
Still learning this stuff....
@wonkipop
@L-Jet914
@Van B


The TTS complete with bracket, I acquired from Jeff Bowlsby as part of a L-Jet roadside fix it kit for the TTS shows VW PN: 022906163 Bosch PN: 0280130202 11/73 (build month?) and 15 degrees C 8 seconds.
wonkipop
EPILOGUE to the 74 L Jets with some information gathered along the way concerning the 75 L Jet 1.8s.

In 75 there again was 2 different versions of the 1.8 L Jet.
One for USA (49 states) and one for California.

@JeffBowlsby has a publication on his website which identifies these two different engines with non-clamenture similar but not identical to the 74 models.
The publication is MODEL 75, Service and Training Information.
on page 11 the following is listed.
EC-a (USA)
EC-b (California).
This is the only place this designation is found in literature to date.
note - it is the reverse of the notation for the 74 engines and lower case a and b is used instead of the upper case used in 74. in 74 the B was the USA engine and the A was the california spec engine.

For 1975 the production cars and CARB documents identify the engines instead using a new notation named Engine Family.

Engine Family 15 is the EC-a (USA engine).
Engine Family 16 is the EC-b (California engine).


--------------

Engine Family 15 and 16 engines are most obviously identified by 1) Emission Sticker and characterised by 2) Engine Tune-up Sticker, 3) painted number stamp and 4) the fitment of EGR and CAT in the case of californian spec cars.

---------------

ENGINE FAMILY 15. (49 states).

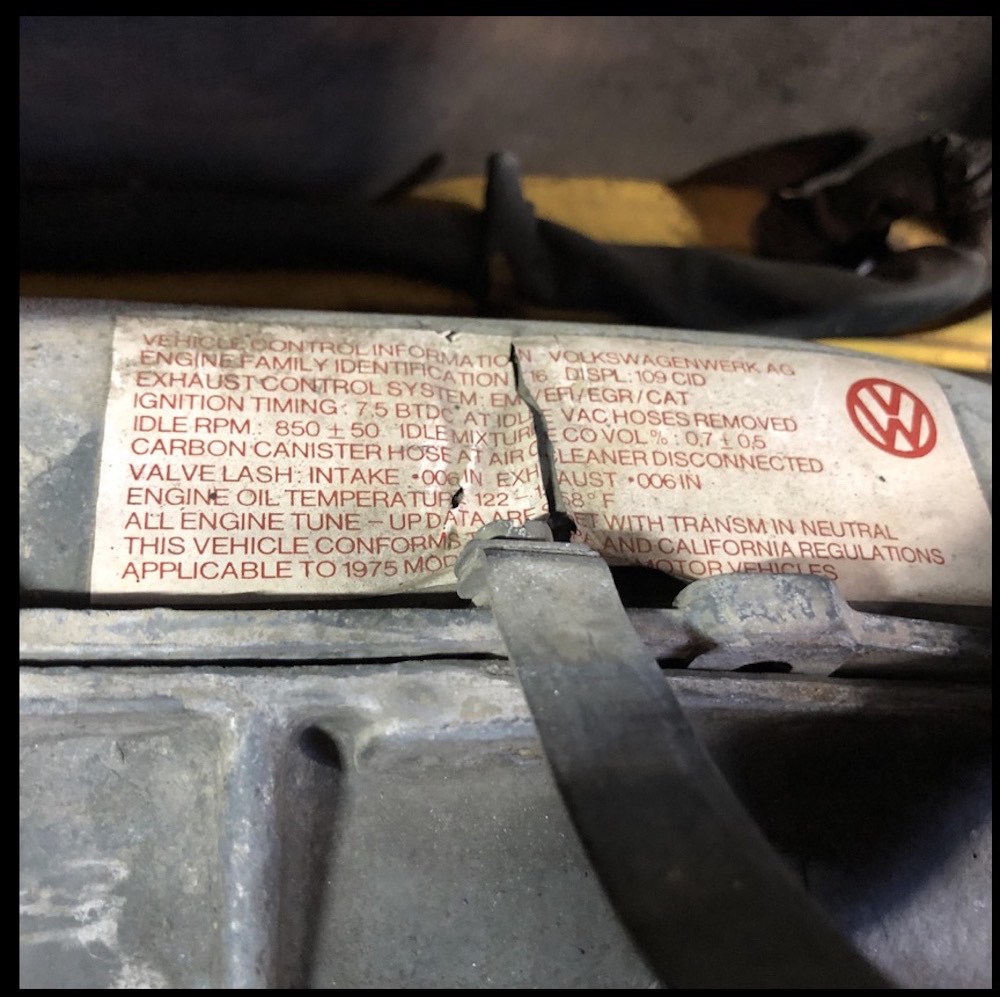

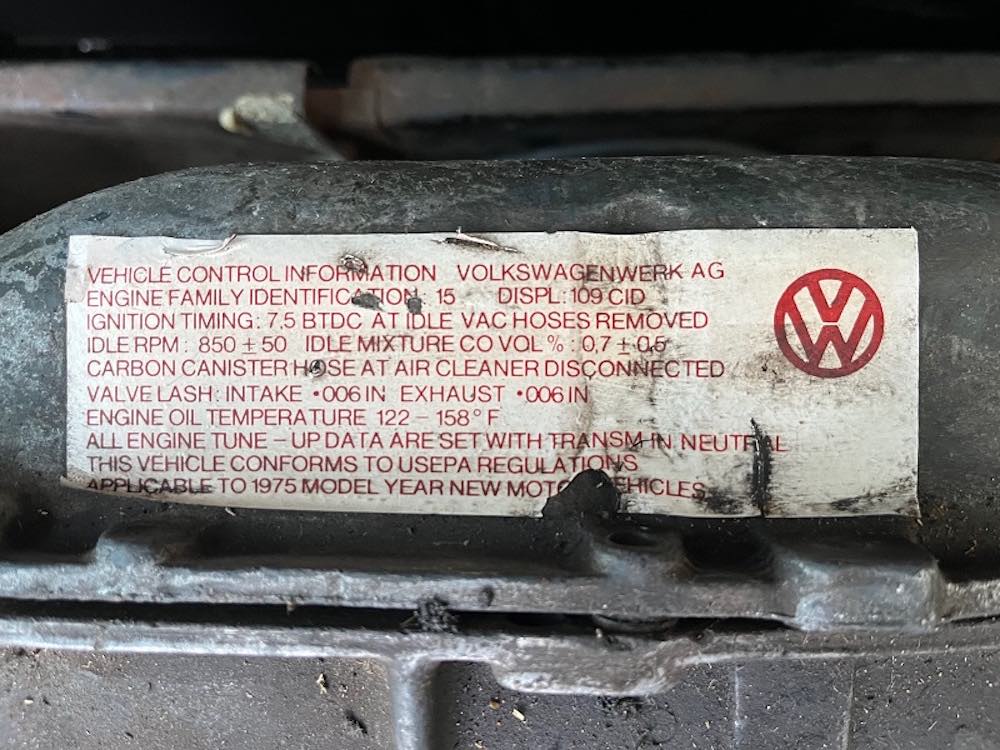

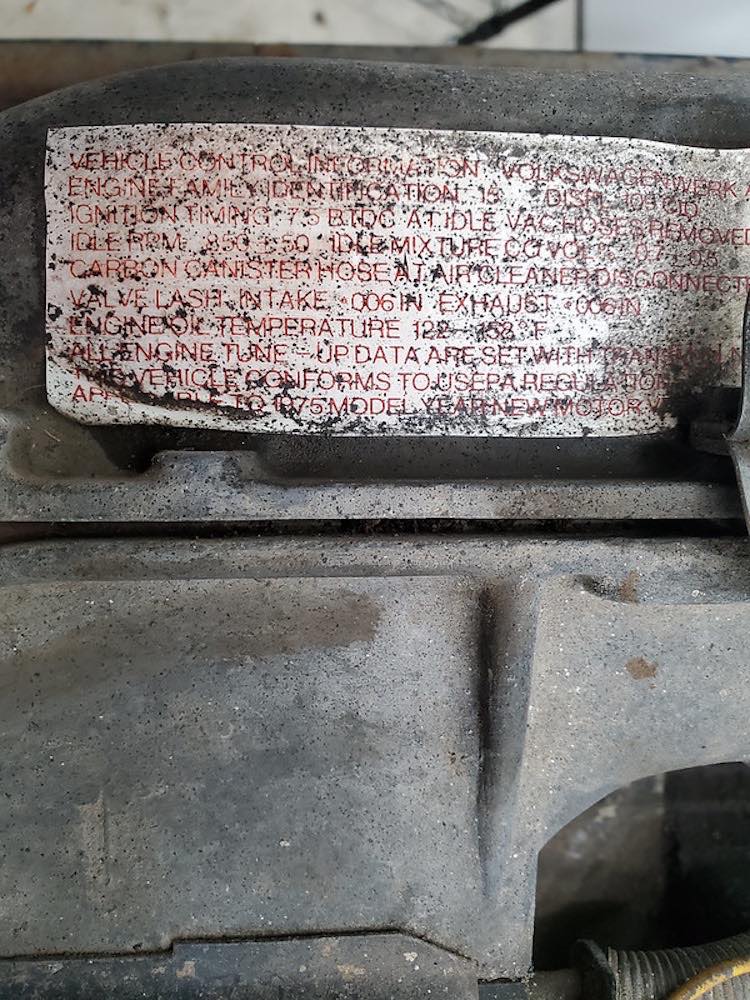

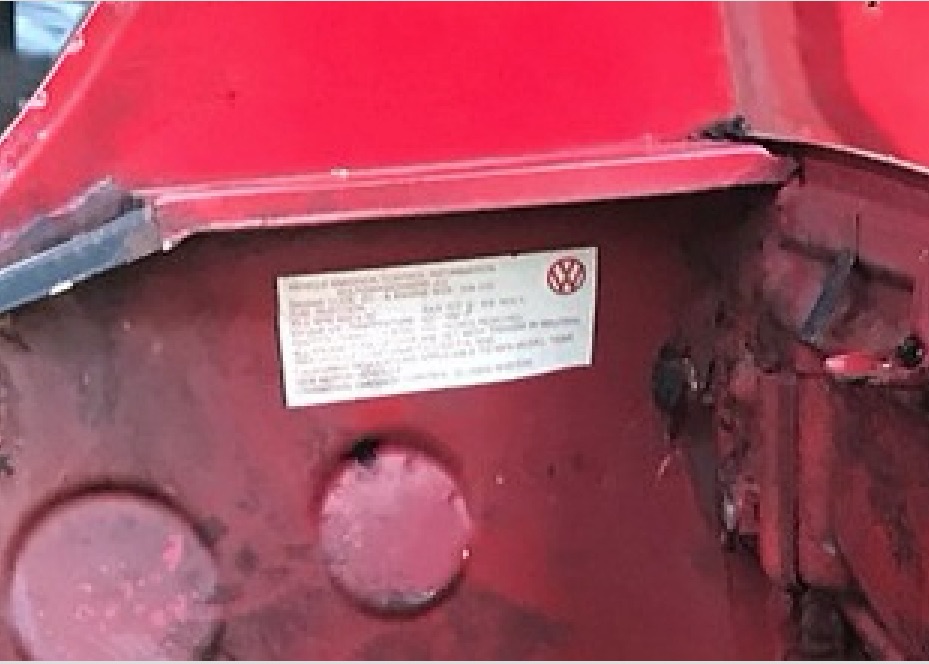

1. Emission Sticker.

Located on the cast fan shrounding, left hand side of engine.
USEPA compliant only.

Click to view attachment
Click to view attachment
Click to view attachment

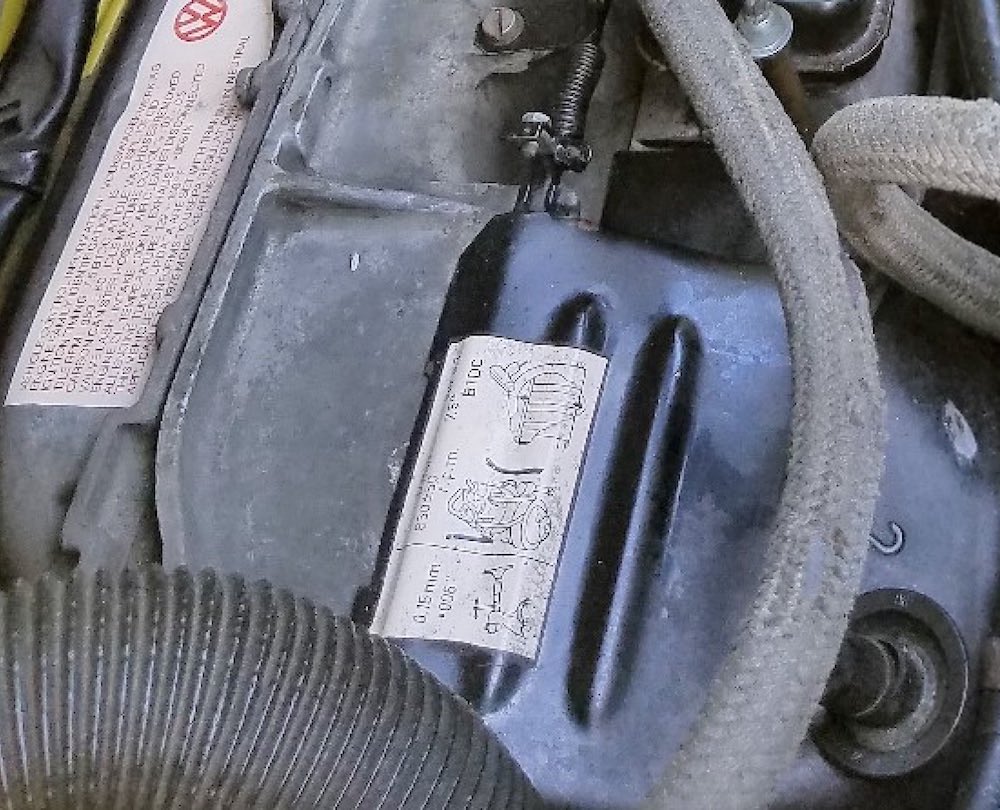

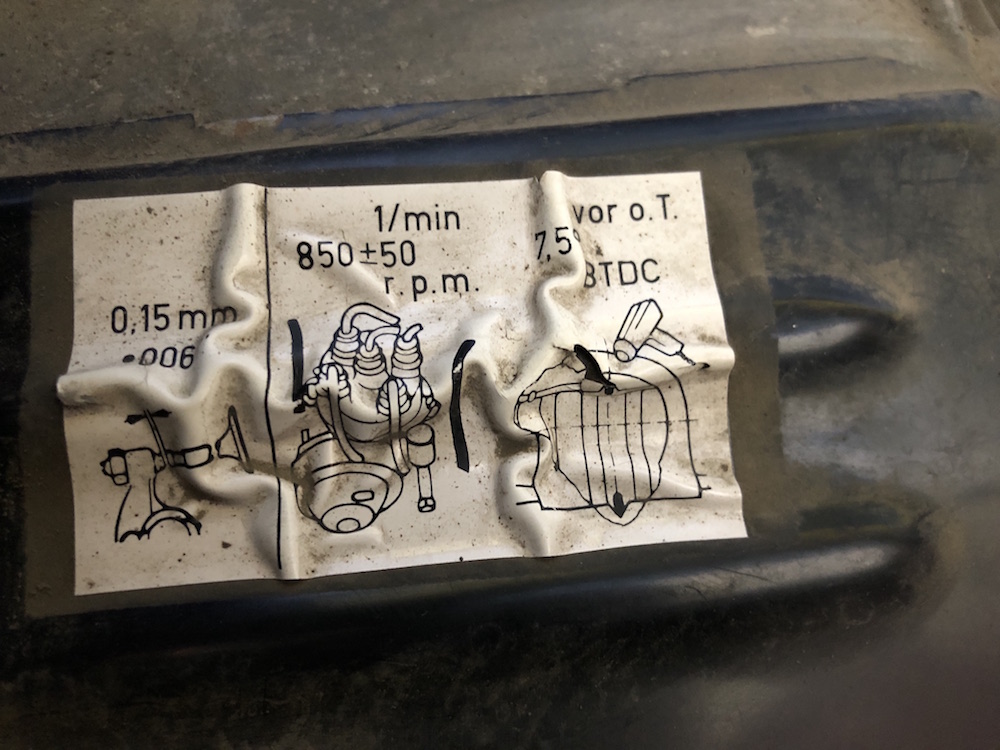

2. Engine Tune-up Sticker.

Located on the upper tin-ware, left hand side of engine.
shows both vacuum hoses to distributor, both to be disconnected for tune-up.
(unlike 74 models both engine families had identical tune up stickers in 75).

Click to view attachment
Click to view attachment

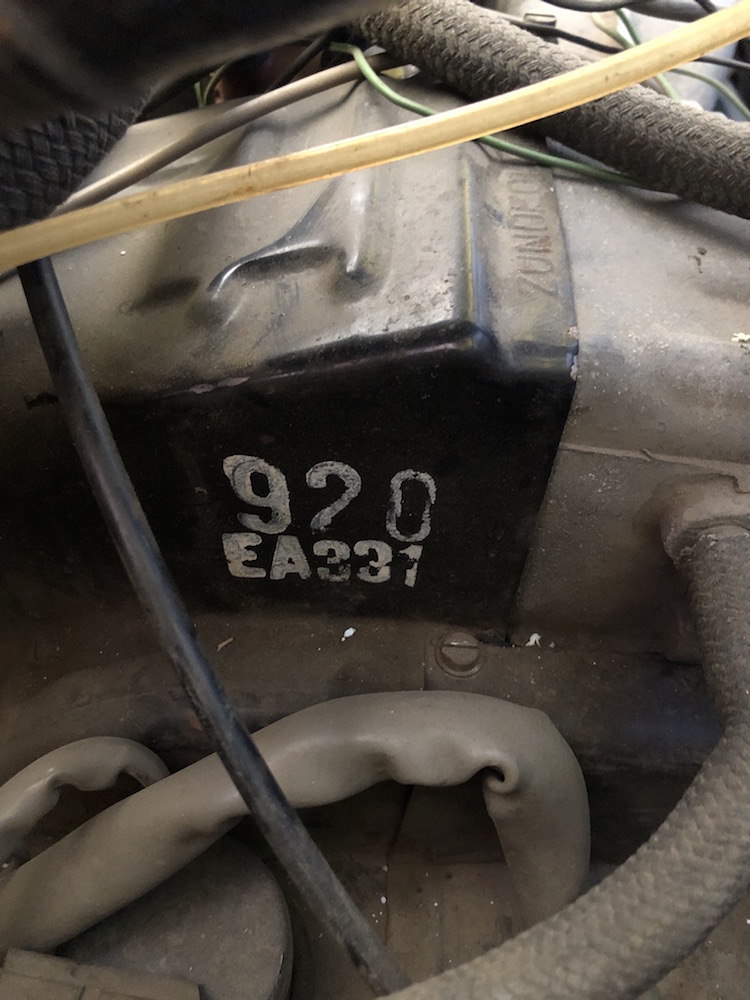

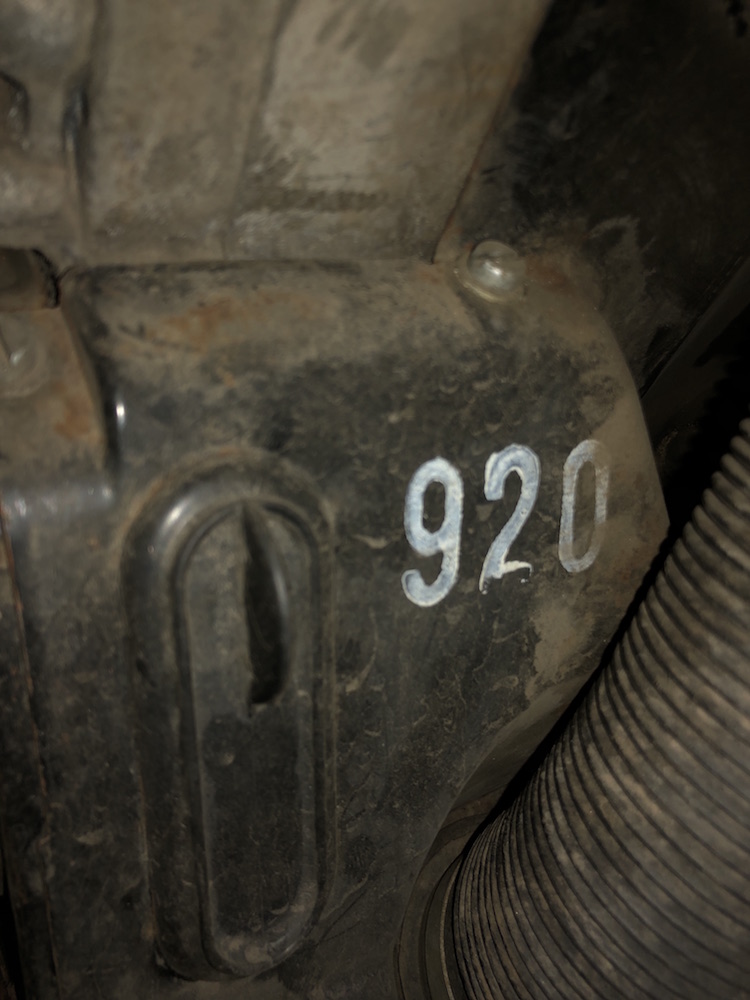

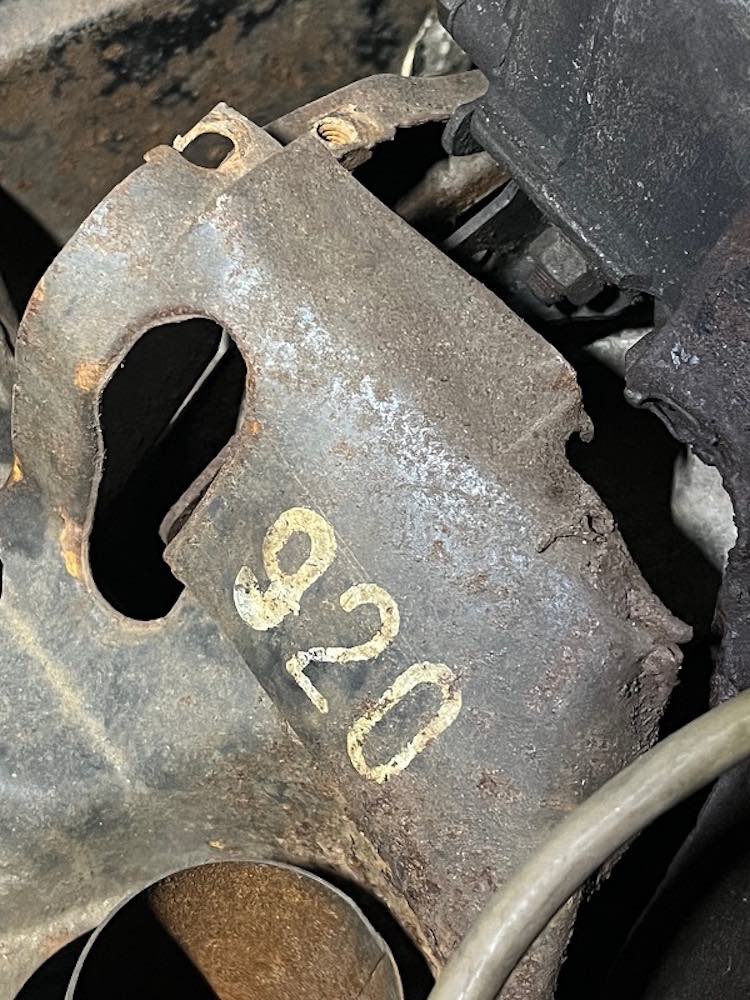

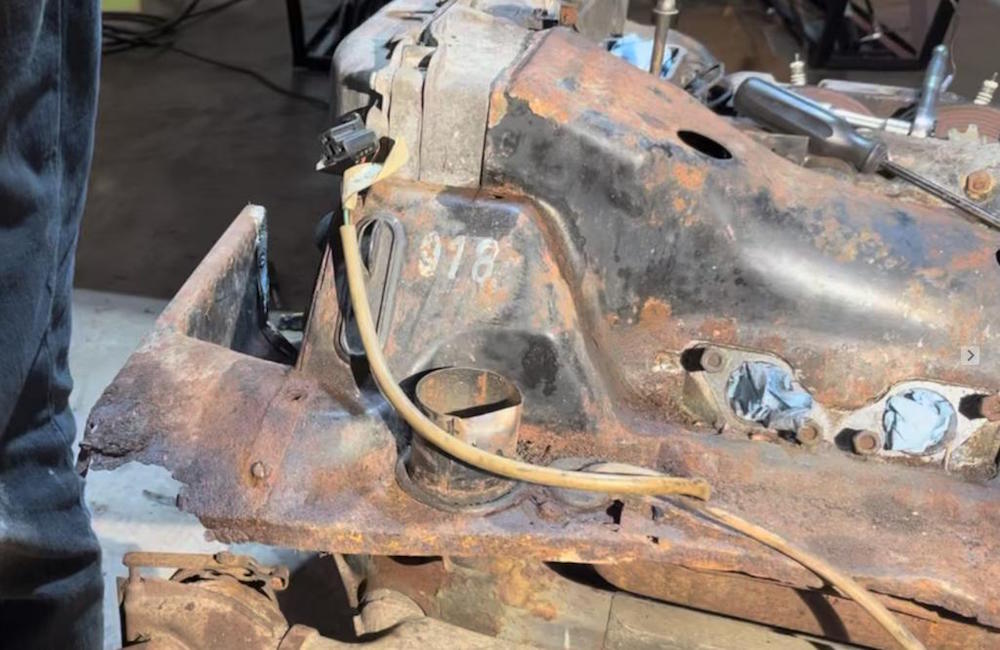

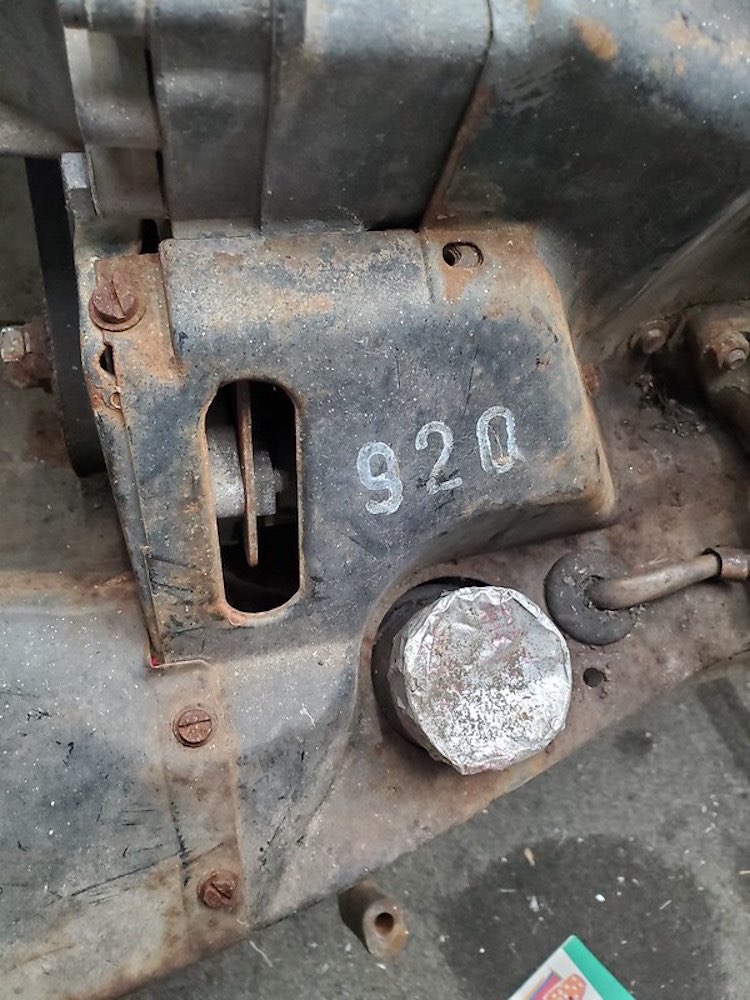

3. Painted Stencil Number on Engine Tin.

located on either left hand side of engine,
or on both sides of engine. the engines are marked with either 918 or 920.
Similar to 74 cars the two different numbers designate whether the engine was fitted with the oil temp sensor sump lid and associated wiring (for console and gauge option) or the standard sump lid.
918 = standard sump lid cars (no temp gauge).
920 = oil temp sensor lid (console + gauge cars from factory).

Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment

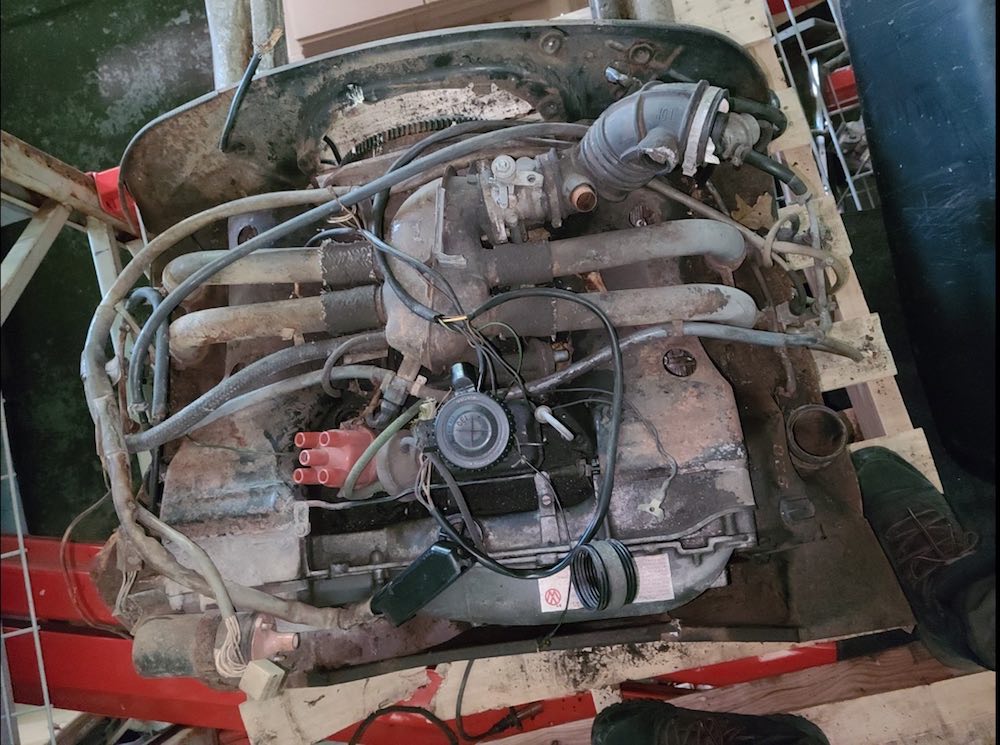

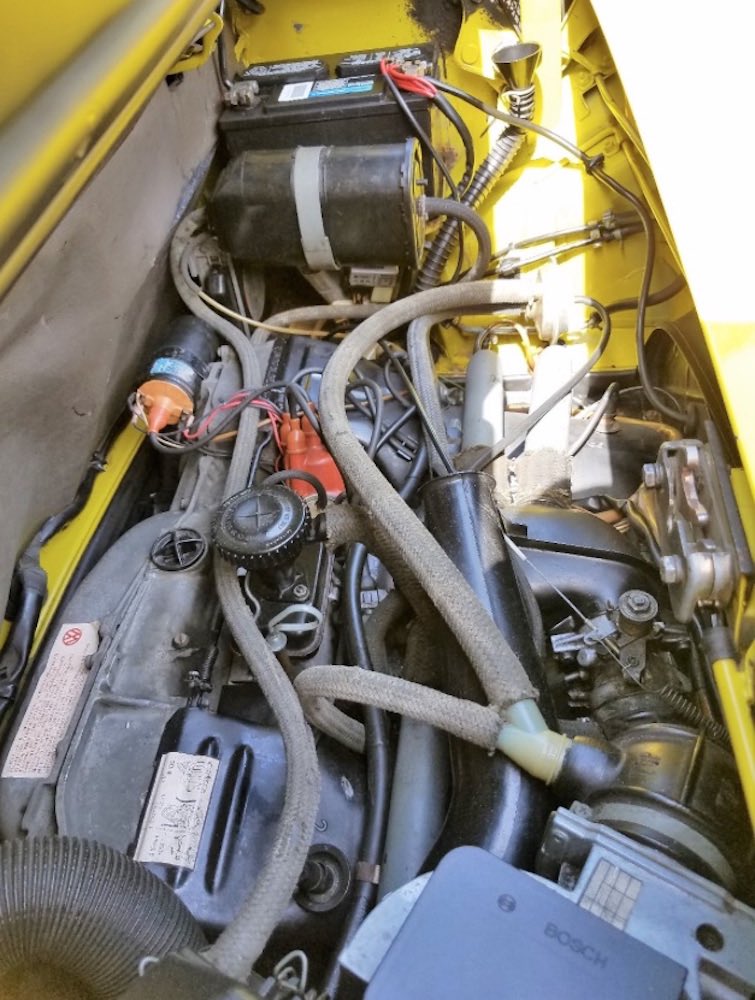

4. Emission Equipment.

the engine family 15 (EC-a/49 states) engines are set up very similar (almost identical) to the 74 EC-A (california) cars. No vacuum advance port on throttle body and vac advance hose from distributor tucked under intake plenum. The decel valve was of a different design to the 74 cars. Charcoal Cannister location was altered to beside the battery. ECU and AFM was updated and was a different part # to 74 (though this may have occured early in the run of 75 models and not at the start of production, some 75s used the earlier AFM and ECU from the 74 until stocks were exhausted).

Click to view attachment
Click to view attachment


-----------

ENGINE FAMILY 16 (California)

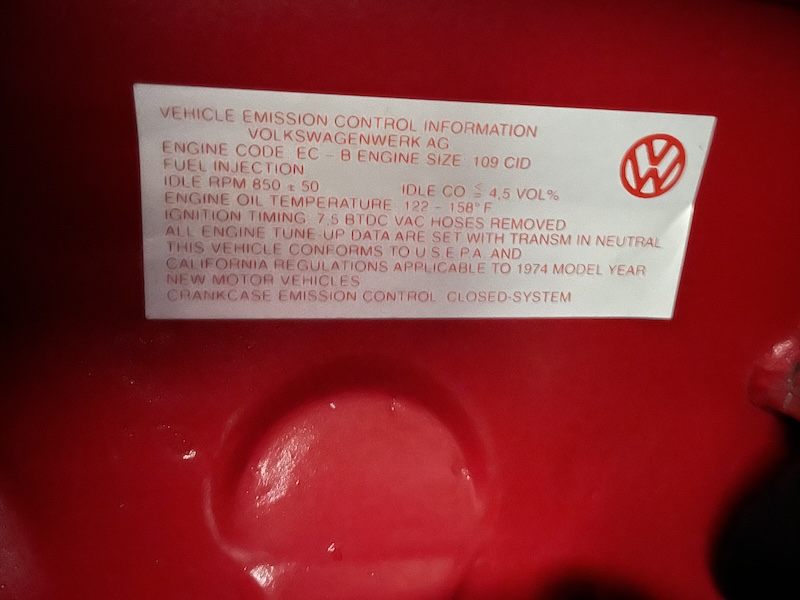

1. Emission Sticker.

Located on fan shroud, Left hand side of engine.
USEPA and California Emissions compliant.

Click to view attachment


2. Tune-up Sticker.

Identical to eng. fam. 15 in same location.

Click to view attachment

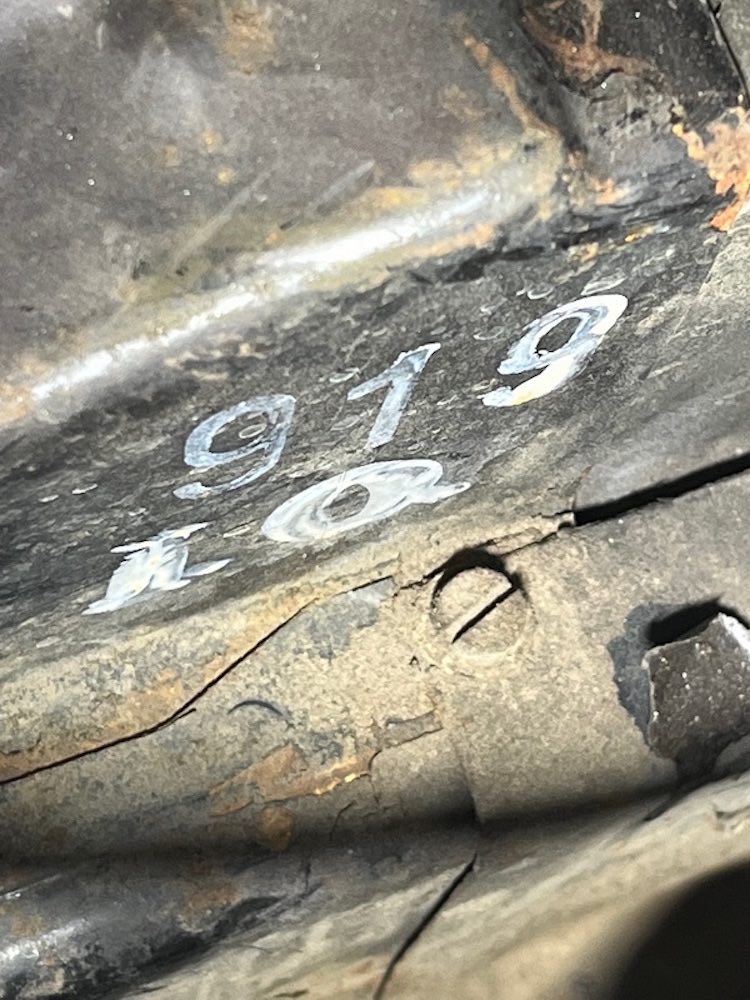

3. Painted Stencil Number on Engine Tin.

Located on either left hand side of engine or on both sides of engine.

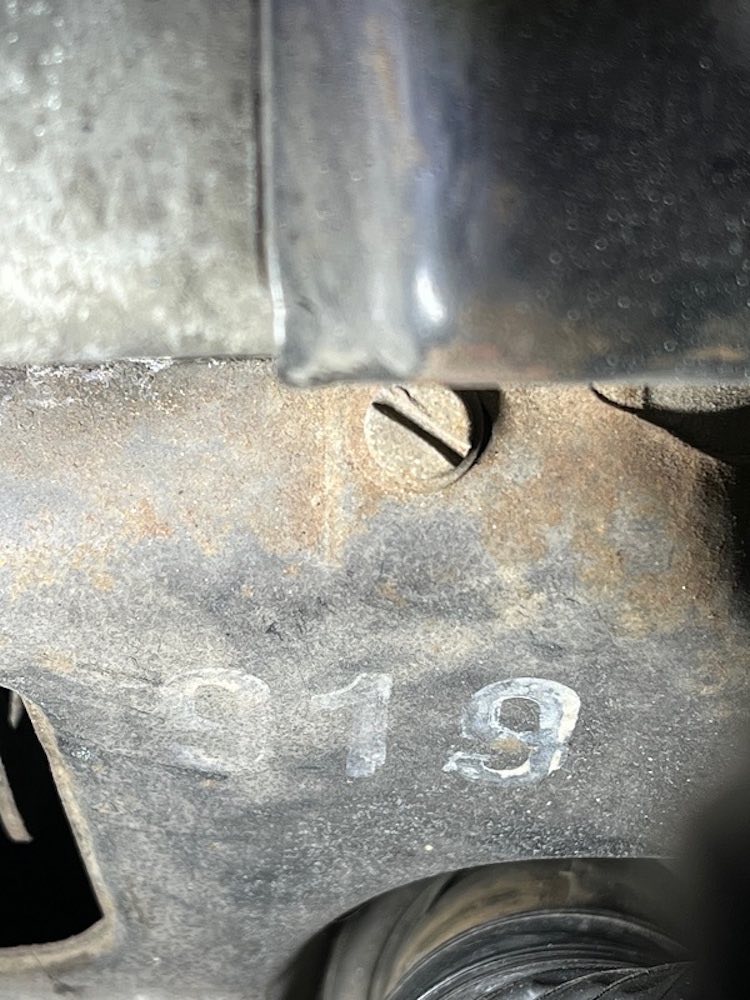

the engines are marked with either 919 or 921.
919 indicates standard sump lid engines (no temp gauge).

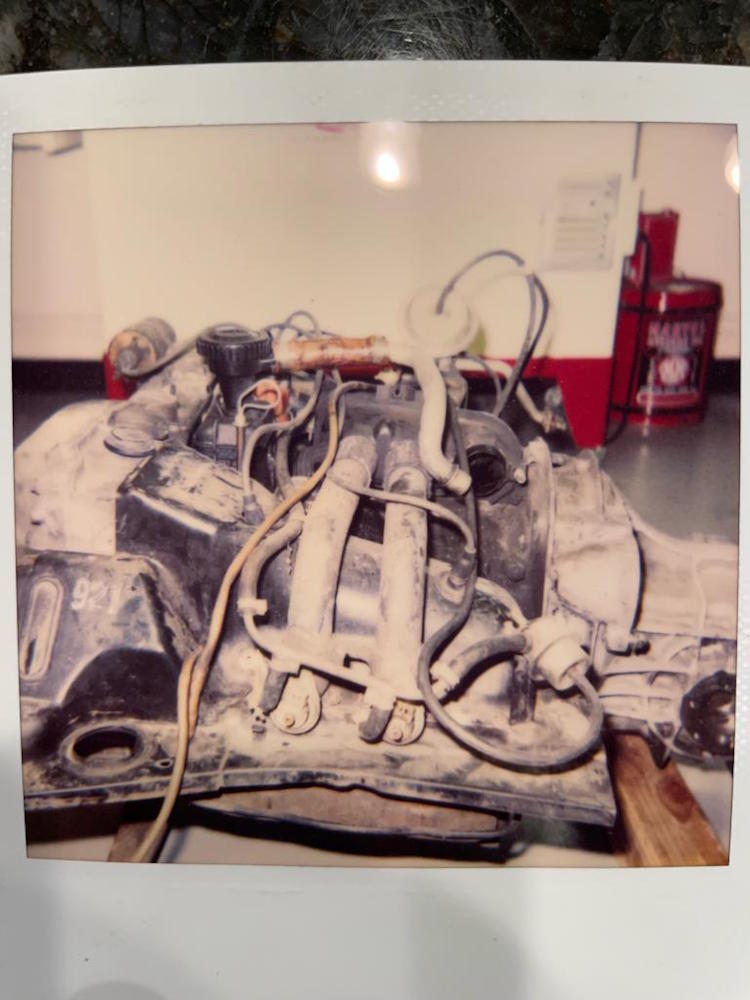

921 indicates oil temp sensor sum lid engines (console/gauges option from factory).

Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment


4. Emissions Equipment

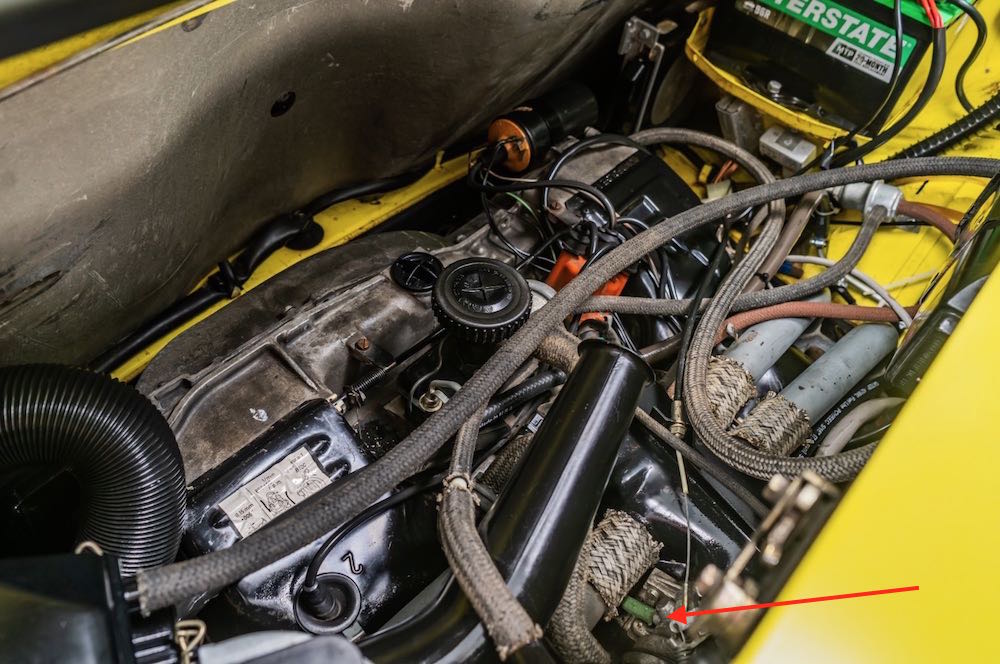

the Engine Family 16 (EC-b/California) are set up with EGR (ex gas recirculation ) and a CAT. the EGR uses a throttle body similar (virtually identical) to the 74 EC-B (49 states engine), the TB has a vacuum port above the throttle body. the EGR is activated by a vacuum hose from that port and operates at times of high engine vacuum when not idling (ie highway cruise). the vacuum advance line from the distributor is not connected and is tucked under the intake plenum as per 74 EC-a engines and 75 E. F. 15 engines.
there are further detailed differences. unique distributor without ignition cut off rotor and a fuel cut off switch incorporated instead.

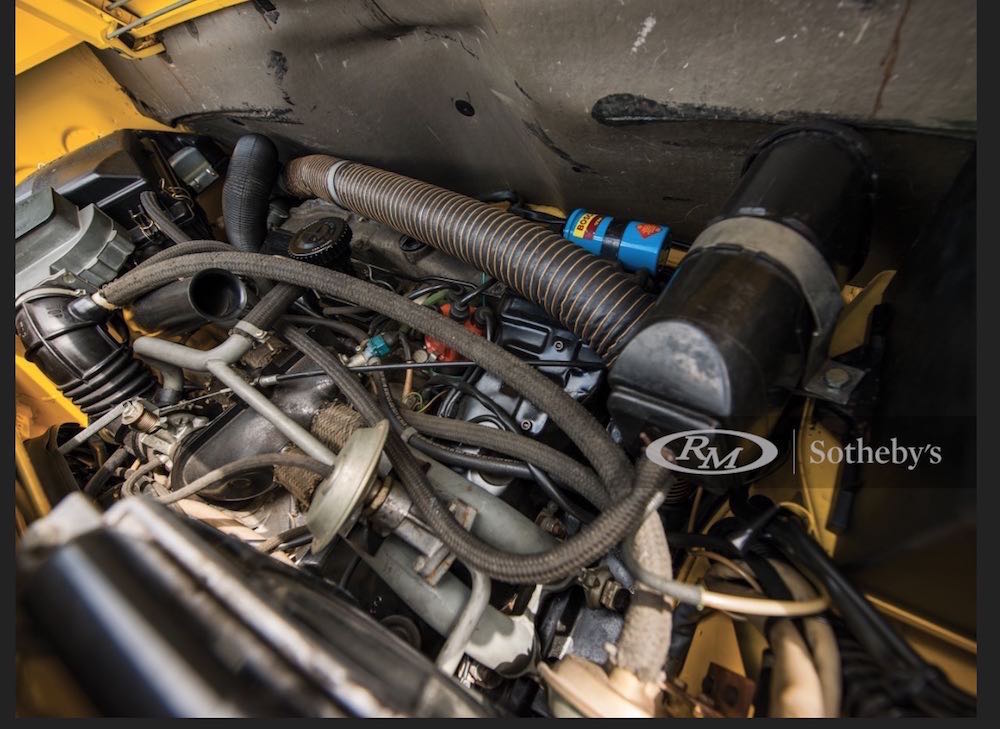

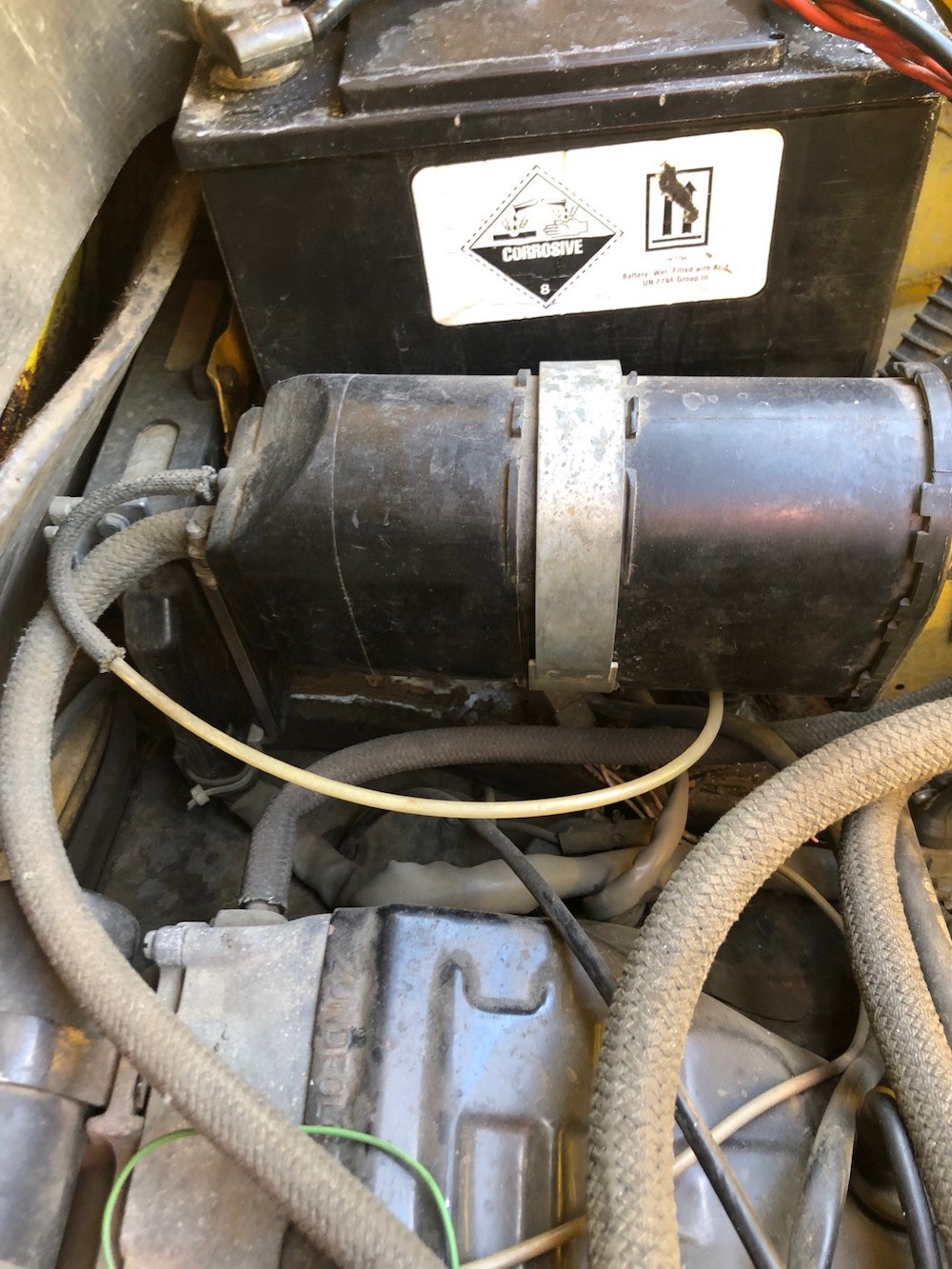

note - the position of this canister has likely been flipped 180 degrees to allow connection of a right hand side heater booster fan hose (non original-later dealer or owner modification) - the original hose connections have been maintained.

Click to view attachment
wonkipop

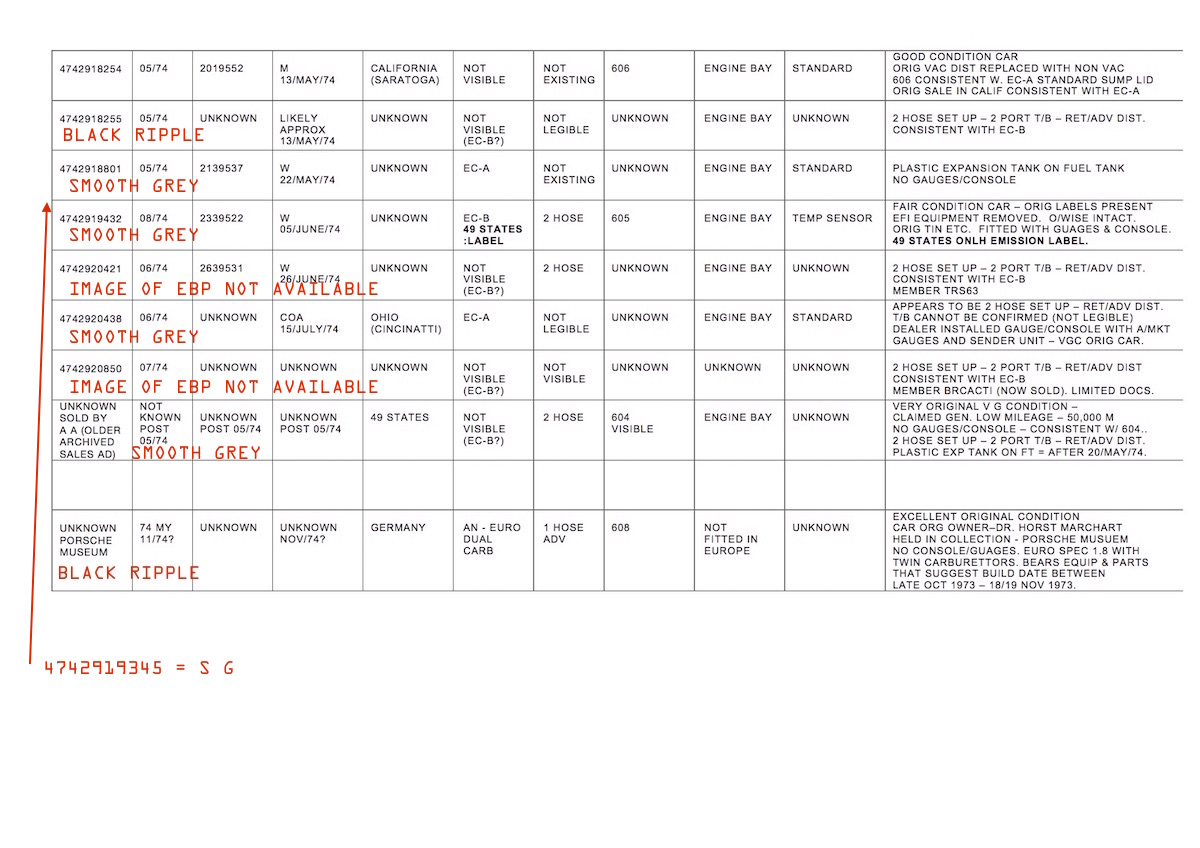

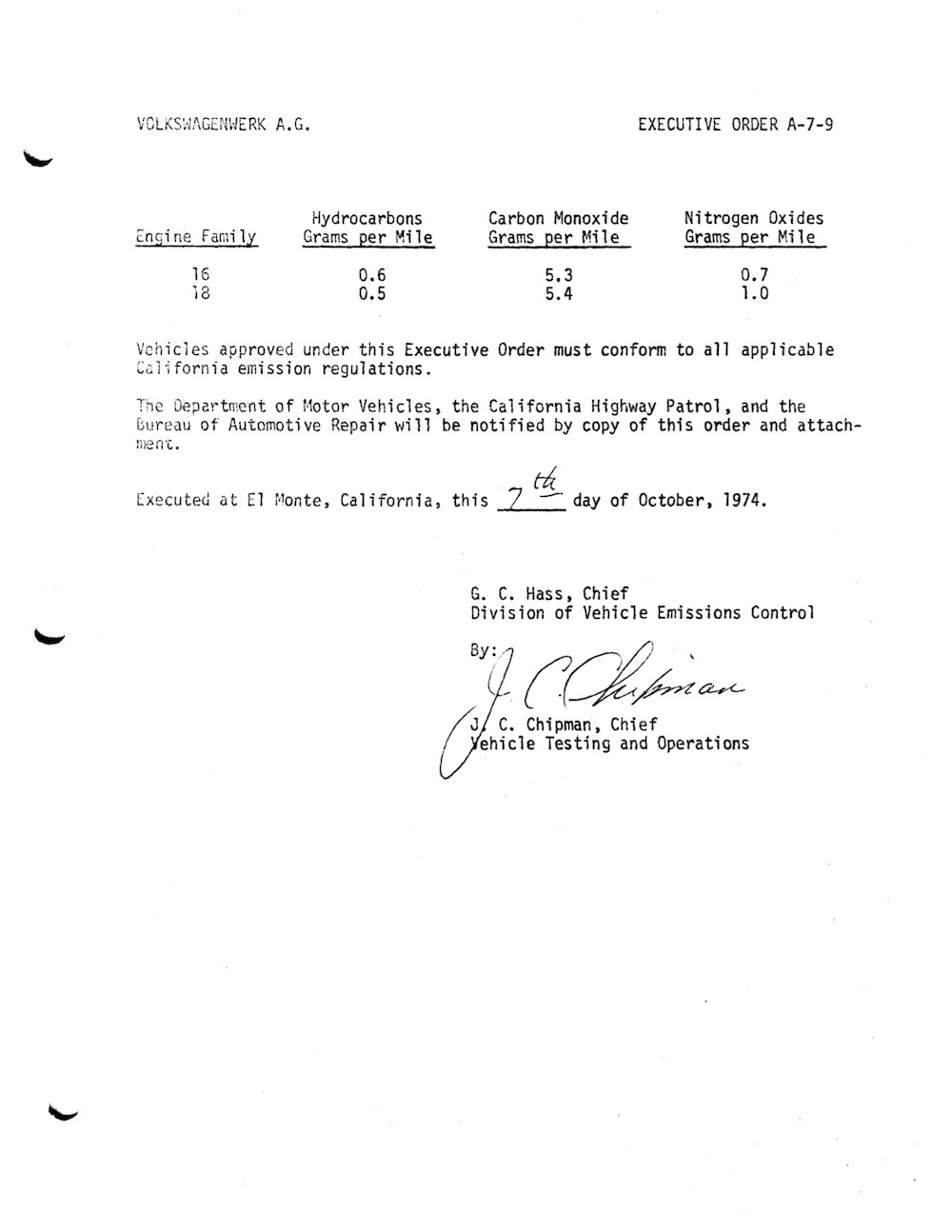

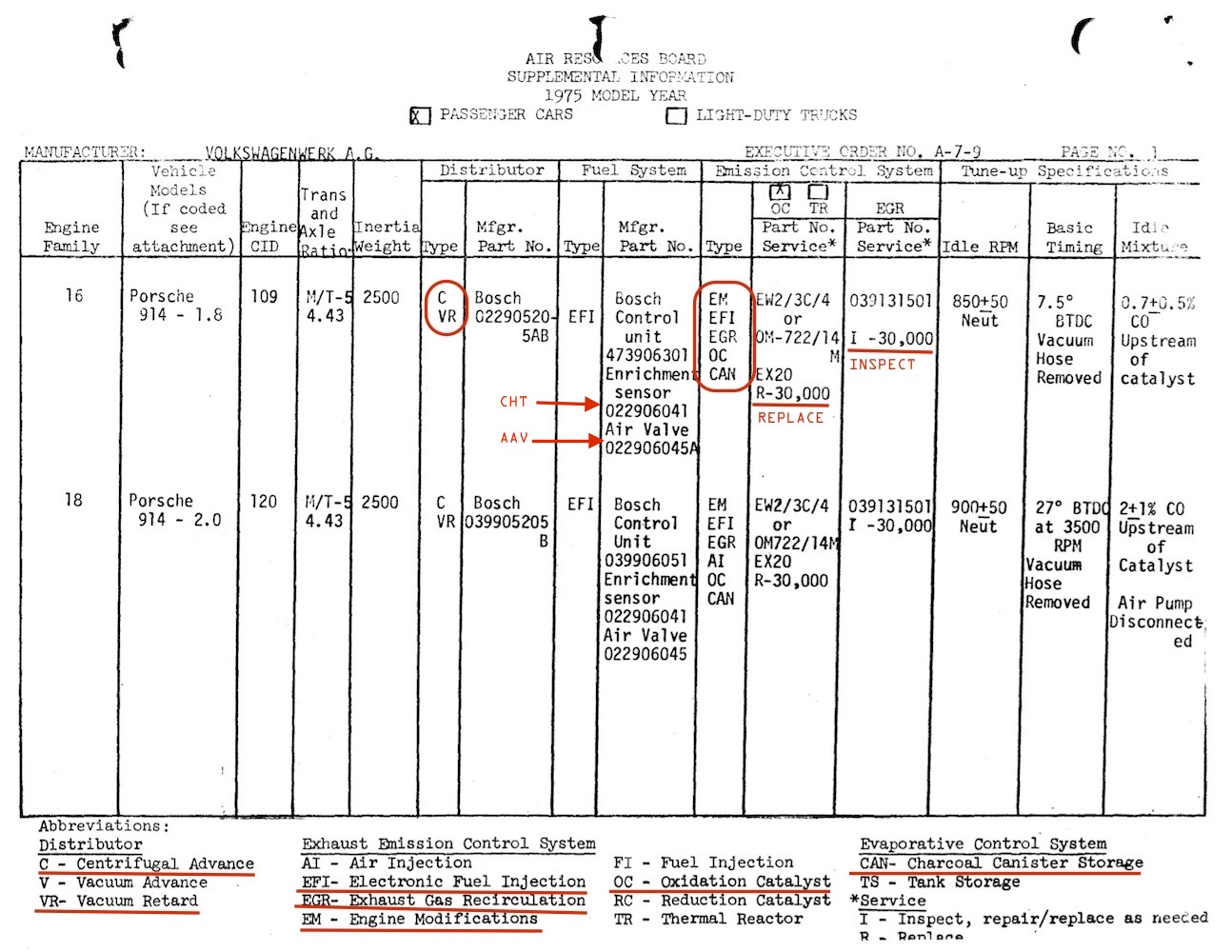

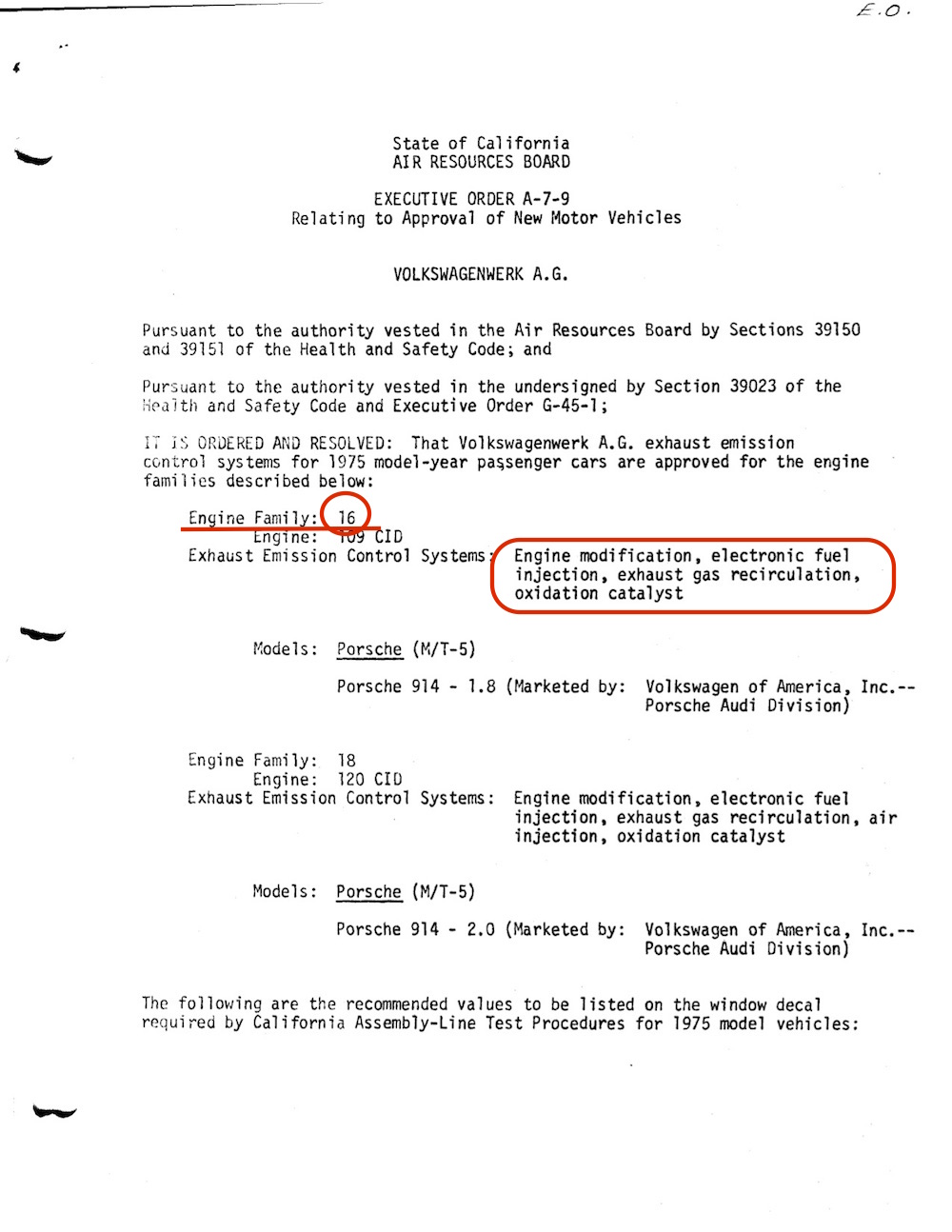

CARB documents covering the 1975 model year outline the differences in spec that cover Engine Family 16 cars for the californian market.

Click to view attachment
Click to view attachment
Click to view attachment
L-Jet914
hey hey hey stay out of my treasure trove carb archives wink.gif
wonkipop
QUOTE(L-Jet914 @ Jun 3 2023, 10:37 PM) *

hey hey hey stay out of my treasure trove carb archives wink.gif


let me into any archive and its all over. biggrin.gif biggrin.gif biggrin.gif beerchug.gif
thanks for the keys to that vault. beerchug.gif

i never thought i would ever end up an emissions nerd.
but i have become fascinated by technology.
and its beginnings.
probably no different than being over interested in apollo moon mission technical artefacts. its a fascinating time in humanity when the 914 is in production.
up against the wall with the EPA really coming at them.
no different than LOR, lunar orbital rendezvous i have decided.
john houlbolt is one of my childhood heroes.
he stood up to werner von braun and the rest of them and told them he was right.
and he was.
basically the architect of the apollo design. at a concept design level.
which is what someone in germany was doing when they came up with L jet.
love to know who thought of L jet.
its the same heresy as LOR for the moon missions?
wonkipop
doing a bit of research.
images from the bundesarchiv (available from wikipedia).

914 on the VW banked test track.
date is interesting - Jan 1973.

they would not have been testing the 2.0 L engine at that time.
already in production. would have been earlier on that model.
all the early testing would have been done in 1968 on the original cars.

my bet (educated guess) is this is the L jet engine being tested.
probably on durability runs.

Click to view attachment
Click to view attachment
wonkipop
@StarBear

more 74 minutiae?

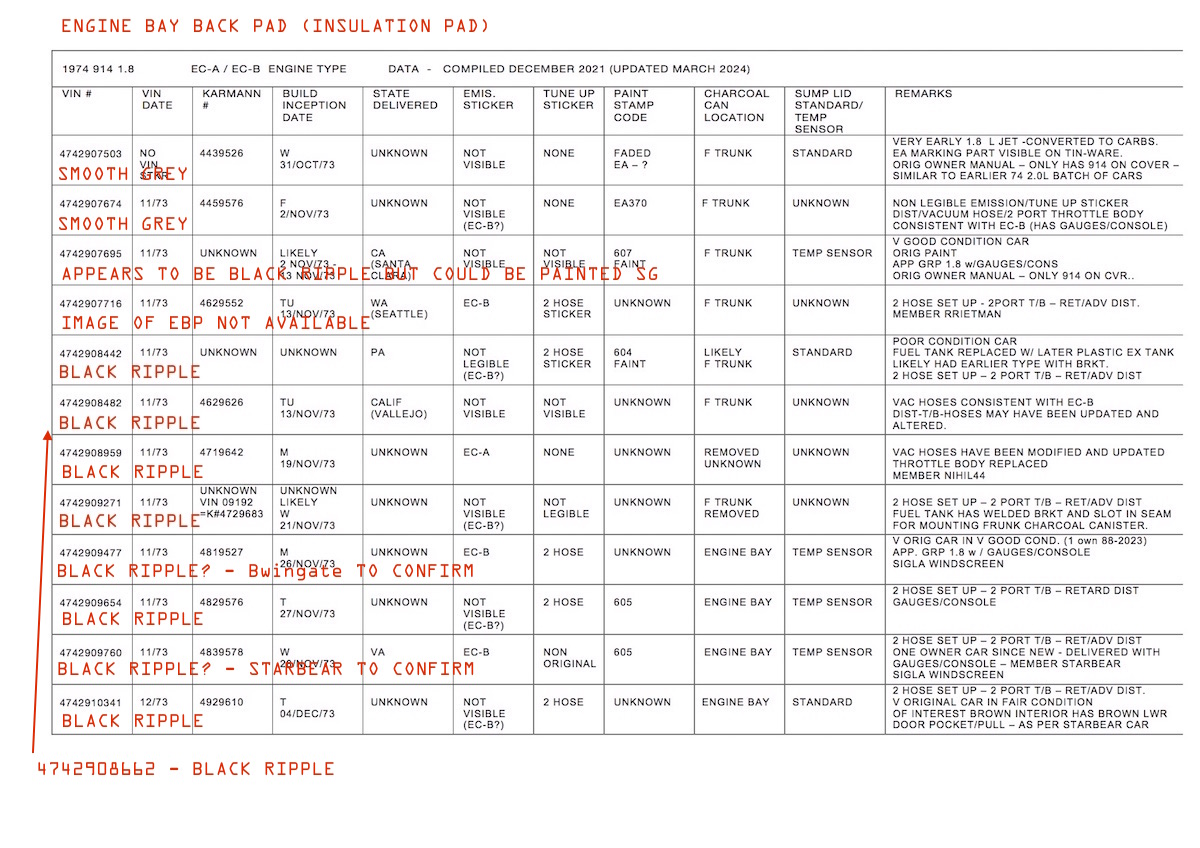

i recently collected some BAT data on 1.8
( a new member @Bwingate now has the car biggrin.gif )
i noticed this. not something you normally pick re details. beer.gif

Click to view attachment

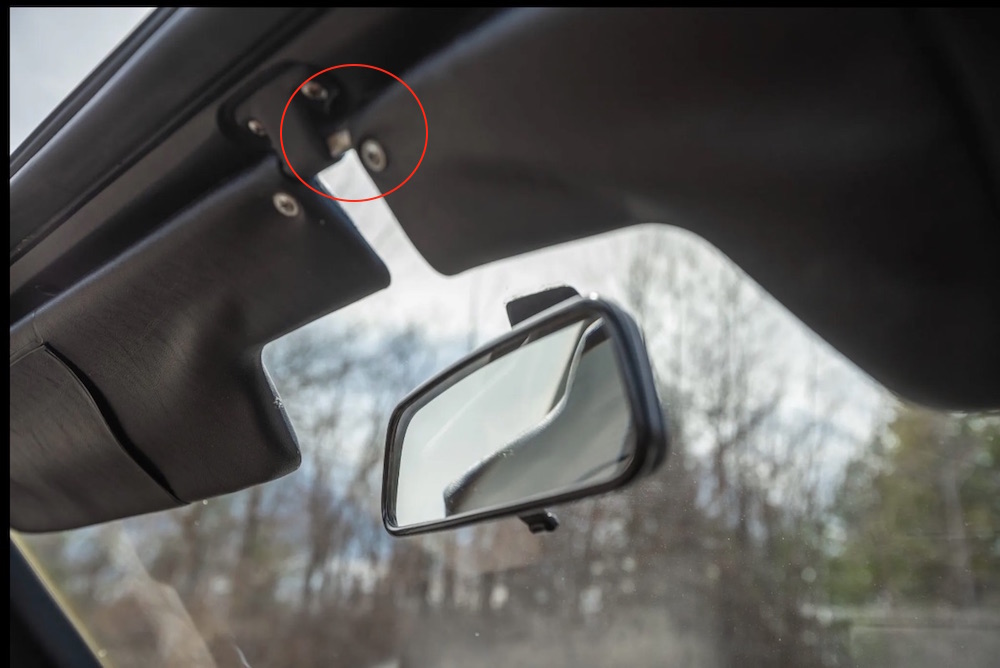

can't tell if its my imagination or i am seeing what i think is there.
metal (chrome?) visor pins.
its a 11/73 car.

my car has black plastic visor pins. is a 01/74 build.
you have a 11/73 car @StarBear . what are the pins on yours.

@JeffBowlsby ?
JeffBowlsby
I have noticed that too. As far as I know they are chrome up to 73, then black 74+
wonkipop
and 74 esoteric stuff.

got hold of some further photos of Dr. Horst Marchart 74 1.8 from porsche museum.
Click to view attachment

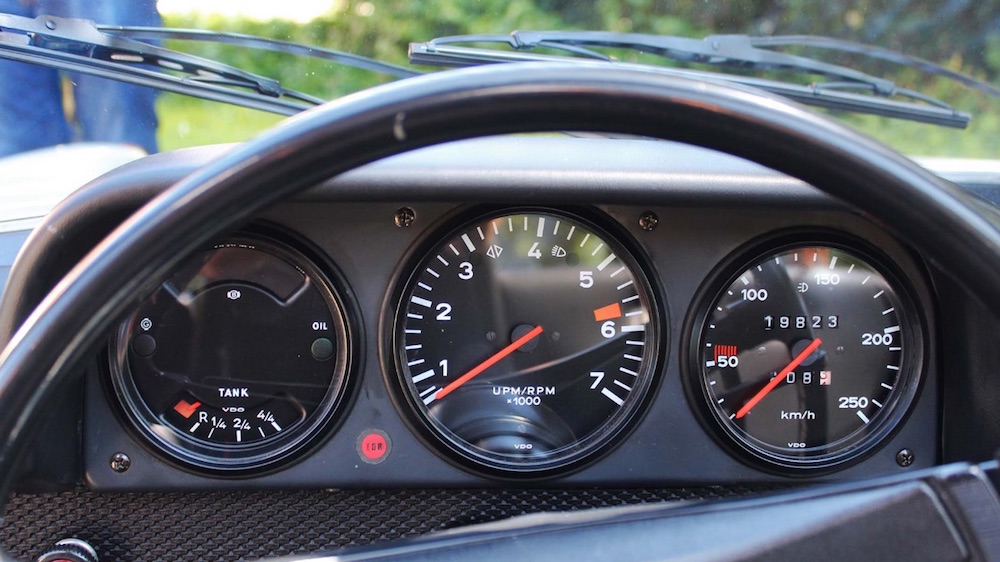

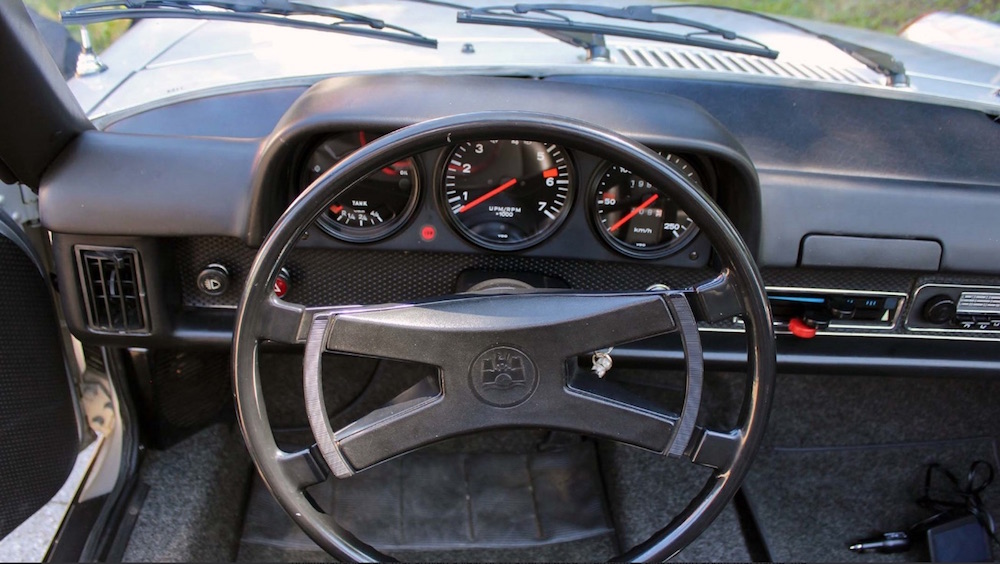

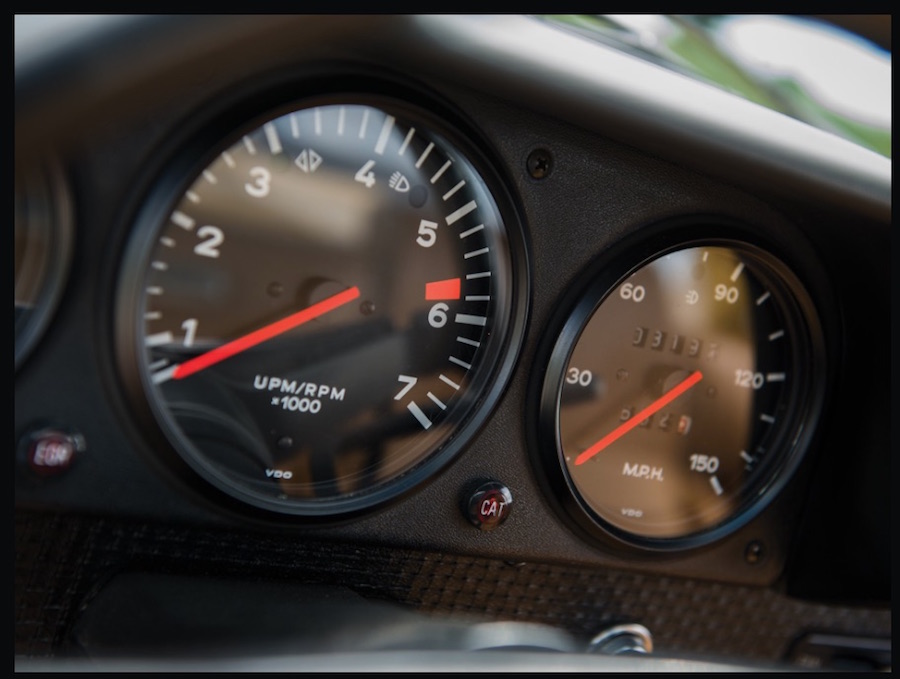

dashboard detail.

Click to view attachment

at first i thought i was looking at an EGR light.
but........whats an EGR light doing on a 74 euro spec 1.8 with twin carbs and zero emissions gear?

Click to view attachment

and why does it look different to the real deal EGR / CAT lights that were in 75 cali 1.8s?

Click to view attachment

then i realised the EGR "light" in Dr. Marchart's car isn't a light its a mockup.
an orange printed label stuck to the dashboard face with a piece of circular transparent tape. biggrin.gif biggrin.gif
the designers/engineers at porsche must have been using Dr. Marchart's car to test out the positioning of the lights during 1974.
pretty amazing the artefact is still there stuck on the dashboard 50 years later.
probably had a CAT light mockup "light" as well but it peeled off somewhere down the years? biggrin.gif biggrin.gif

----------

anyway i can date this car i reckon even without a VIN number.
thanks to all the minutiae we stumbled over with the L jet research.

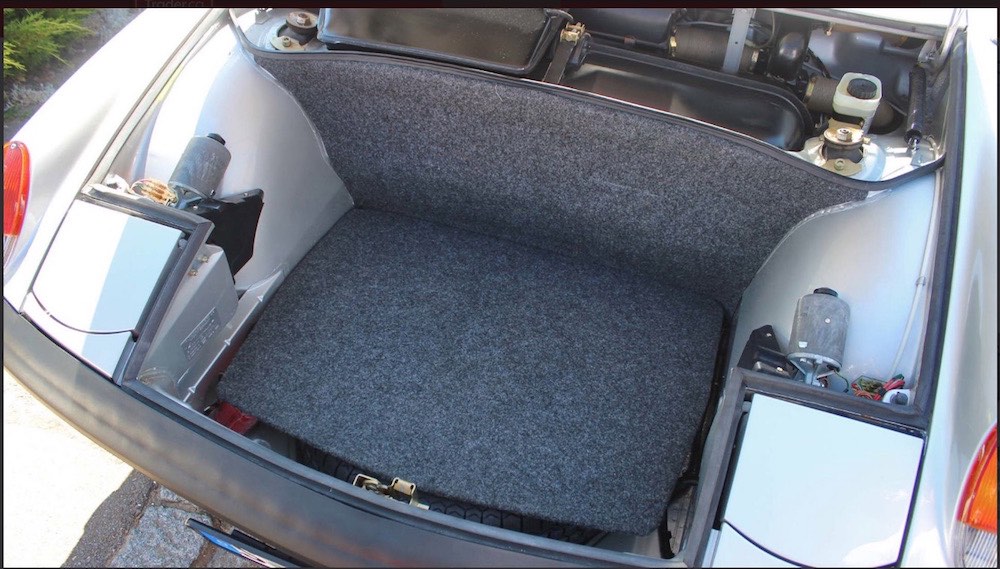

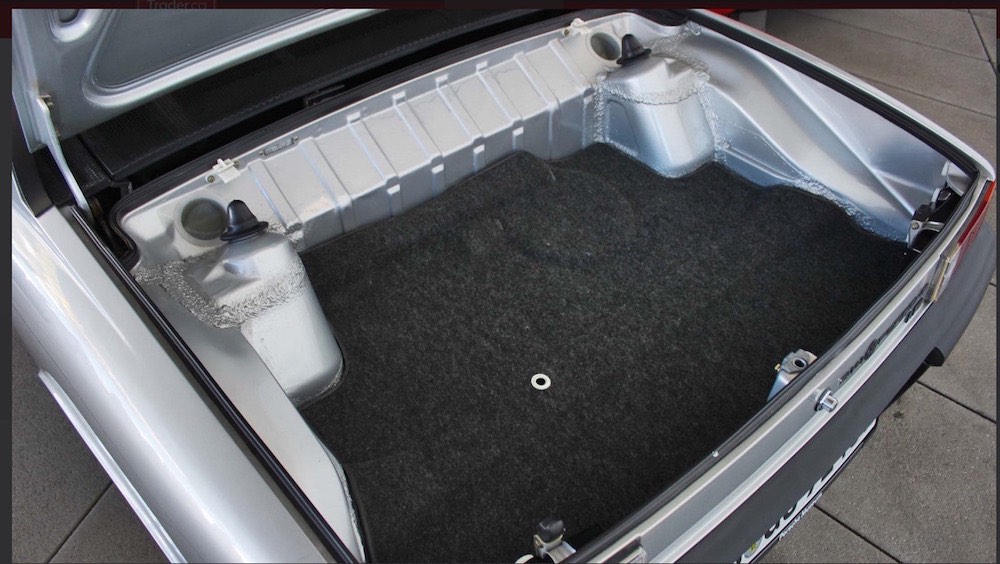

front trunk.

Click to view attachment
black headlight side covers + all cardboard tubes to heater/fresh air box.
= pre jan 01 1974.
after jan 01 74 headlight covers are grey until april 74.
when black again post april the heater box tubes have been changed to black plastic.

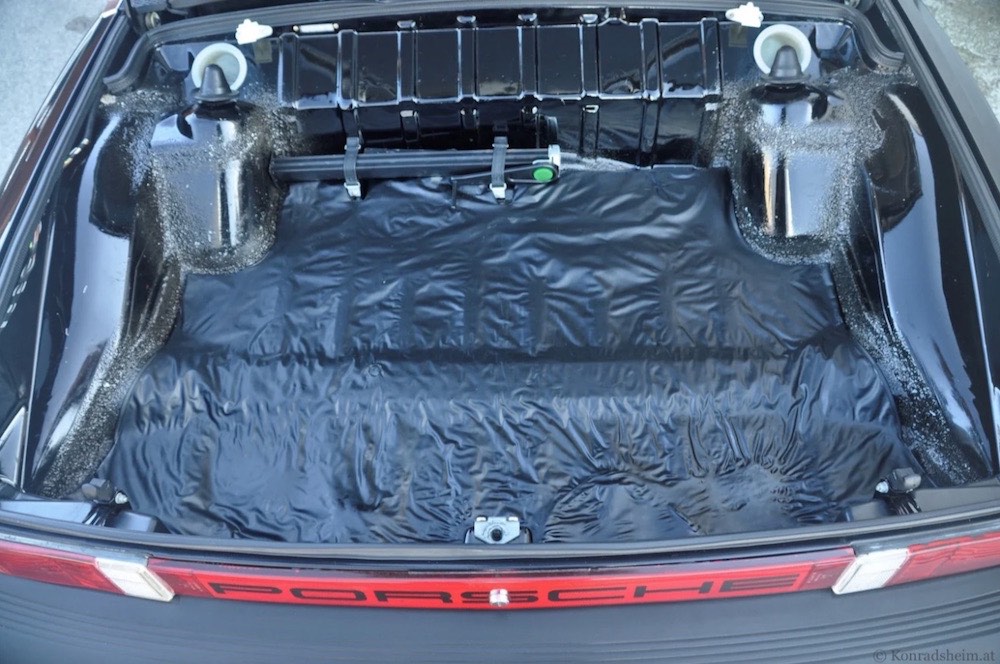

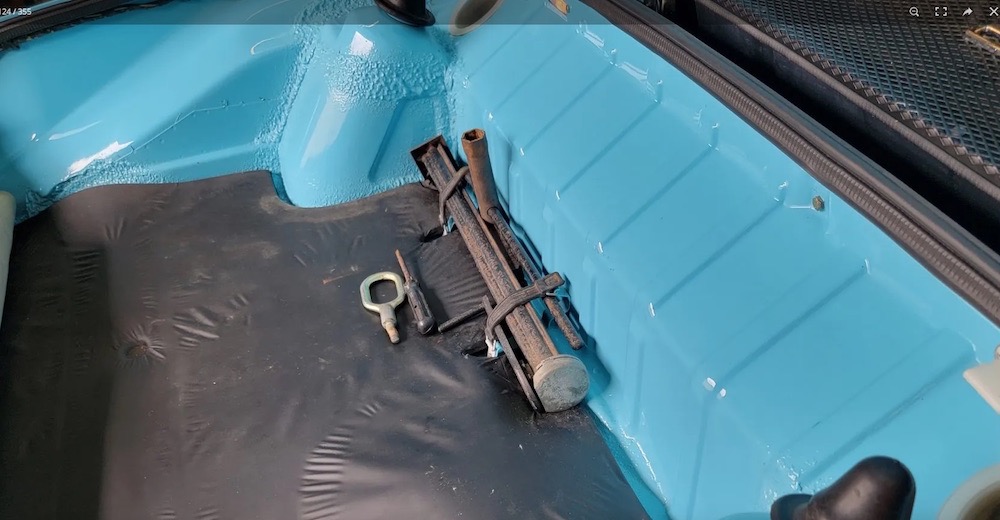

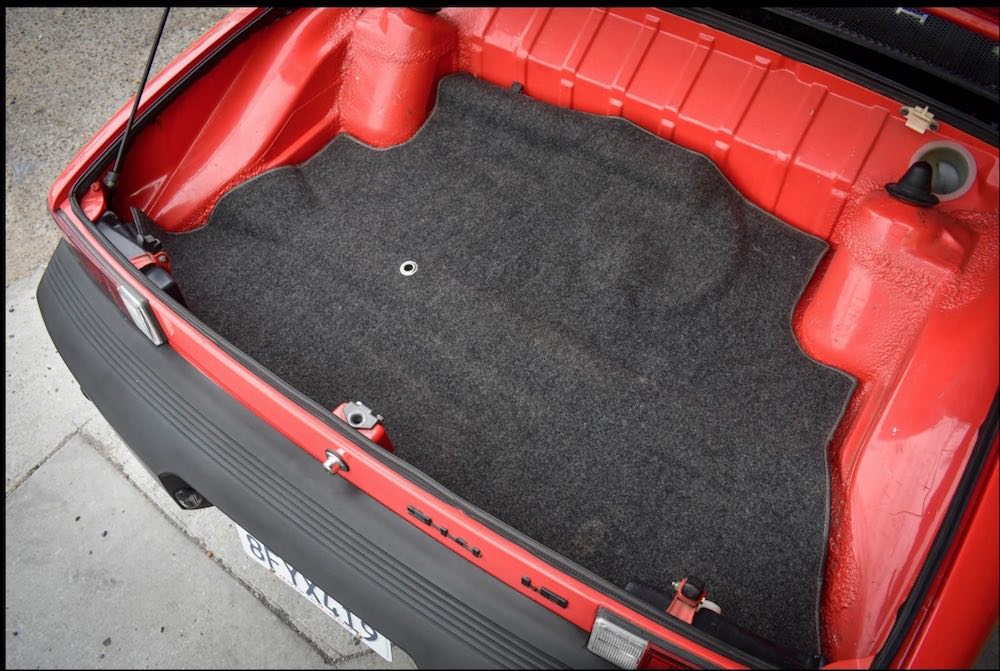

rear trunk.

Click to view attachment

no small formed dent to carry the engine bay charcoal cannister.
even though euro spec cars did not have vapor emissions equipment fitted they used the same body shells as the USA spec cars. the dent was there after 18/19 Nov 1973.

here is a euro spec 75 german delivered.
Click to view attachment

USA spec 74 1.8 with dent.
Click to view attachment

USA spec 75 1.8 with dent.
dent still there even though cannister position changed to beside the battery in 75.
Click to view attachment

this places the marchart 74 euro spec as very likely built before round about 18/19 november 73.
but there is more.
the european models have owners manuals following exactly the same pattern as USA spec cars that we tracked a couple of years ago.
ie there is a first owners manual dating from August 1973 print which has only 2.0 on the cover. there is a second owners manual dating from October 1973 print which includes 1.8 and there is a third print dating November 1973 print also inclusive of 1.8 on the cover.

I conclude (probably reasonably) that 1.8 euro spec production even though it was not an L jet engine did not commence until the same time as the L jets - end of October/Start of November 1973.

that would place the porsche museum car in a Vin Band covering the first three weeks of Nov 1973. approx 07500 - 09500.

have to get someone to go to the museum and open the trunk and get the Vin number one day to see if my prediction is correct. biggrin.gif biggrin.gif

i think is mileage is probably correct. less than 20,000 km car (12,500 miles).
or at the least its once around the clock but given its kilometers = 120,000km = 70,000 miles. either number is plausible. and still low mileage.
i thought it might have been repainted and restored.
but i am inclined to think its a very low mileage original car.
given the EGR mockup artefact? not meddled with much at all since the 70s.
likely why Dr, Marchart donated it to the collection?

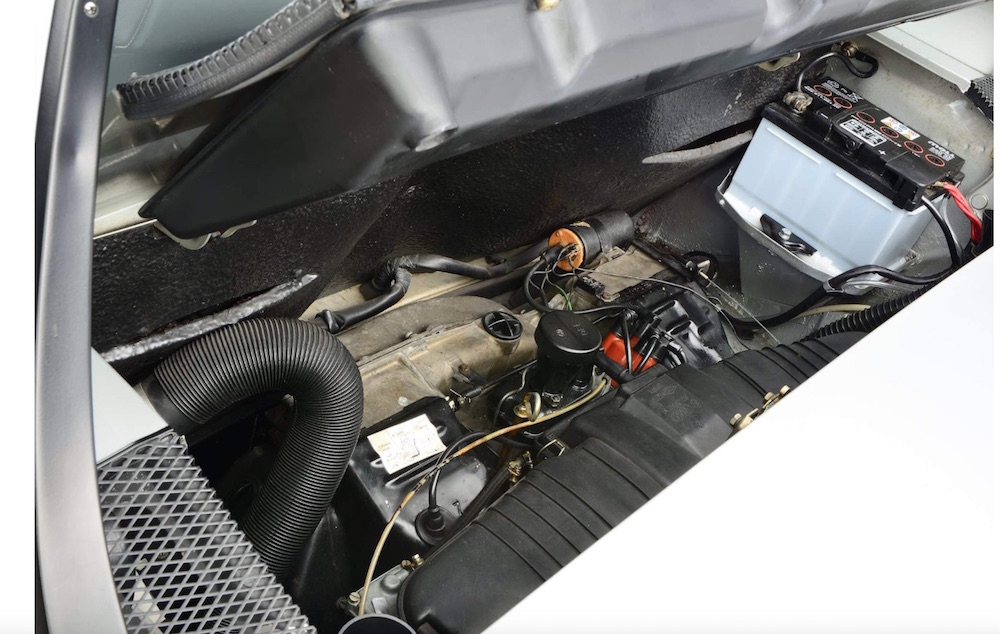

whcih also means its black back pad in the engine bay is probably genuine?
@JeffBowlsby ?
another thing i spotted with the 1.8s.
some seem to have black back pads rather than grey.
i think somewhere in there was an alternative supplier for those pads - a bit like the windscreens. being either sigla or kinonglas depending on date. there were batches of cars supplied with either one brand or the other.

Click to view attachment

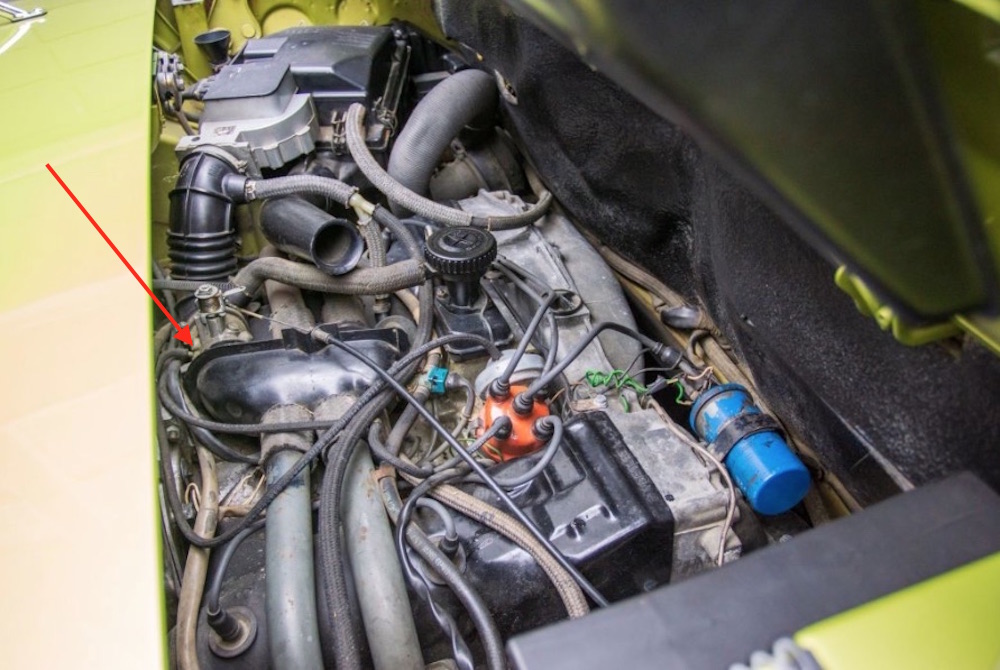

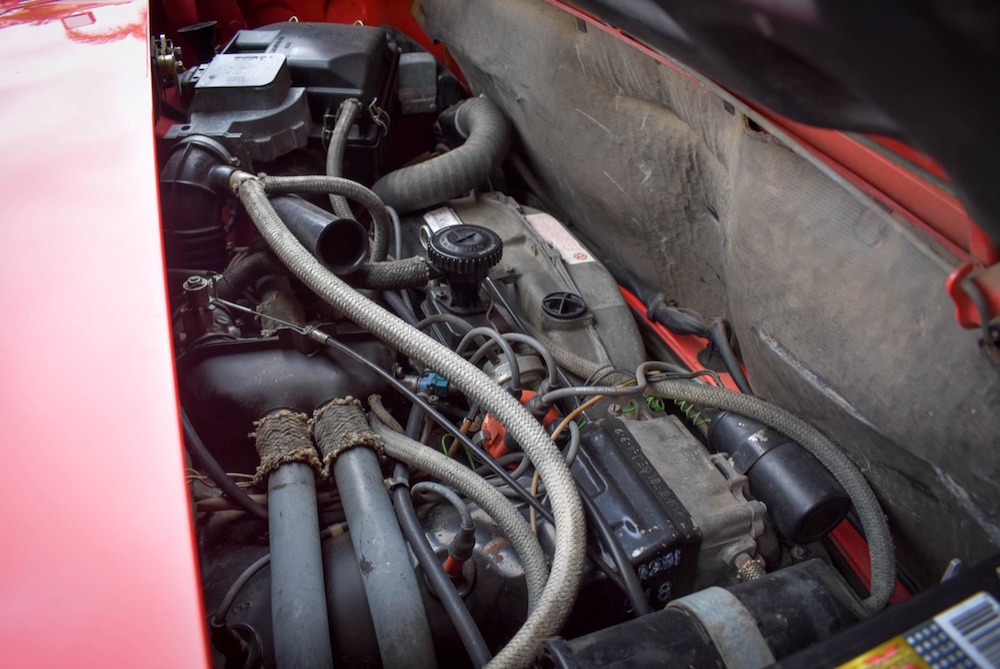

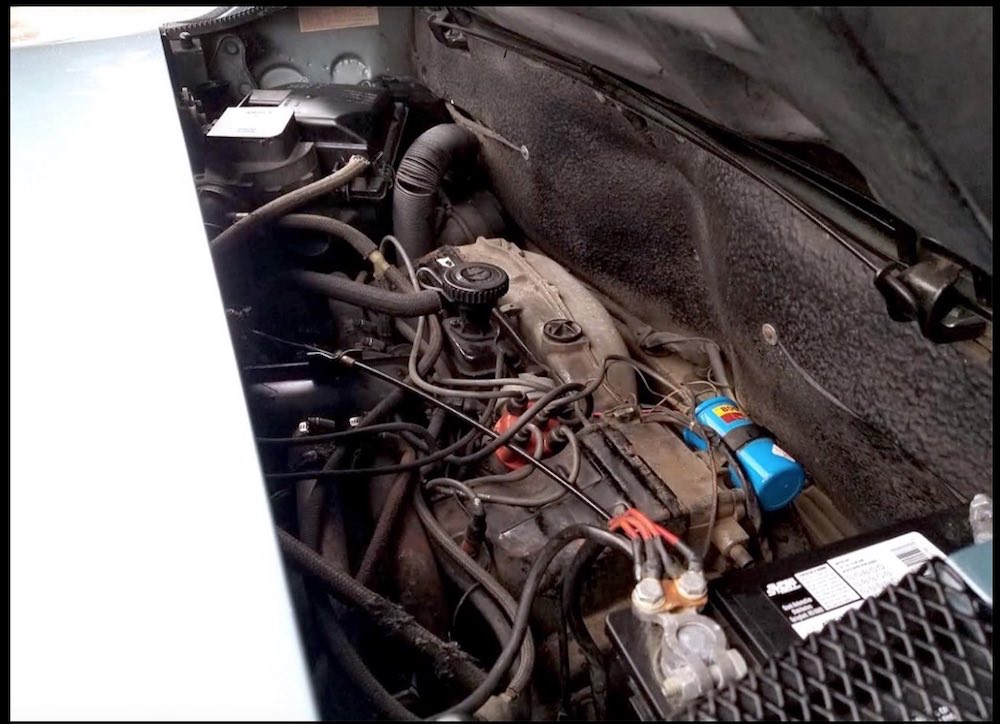

other examples from L jet files of black engine bay back pad similar to porsche museum car. black pads have a kind of ripple surface finish almost like orange peel paint.

11/73 Vin 08482
Click to view attachment

11/73 Vin 08442
Click to view attachment

Vin 09271
Click to view attachment

05/74 Vin 17931
Click to view attachment

they seem to pop up at start of 1.8 production in nov 73 and appear again towards end later 74.

my 01/74 has the more usual smoother grey engine bay pad as do most examples on file.

?????
StarBear
@wonkipop
@jeffbowlsby
Yep, my visor pins are chromed. My 74 1.8 (11/73 chassis, 5/74 completion) has quite a few leftover 73 parts, like seat upholstery; had never though about the pins.
wonkipop
QUOTE(StarBear @ May 4 2024, 06:43 AM) *

@wonkipop
@jeffbowlsby
Yep, my visor pins are chromed. My 74 1.8 (11/73 chassis, 5/74 completion) has quite a few leftover 73 parts, like seat upholstery; had never though about the pins.


thanks buddy. beerchug.gif beerchug.gif
does your vin really say 5/74 or is that the date of sale?

anyways looks like they were maybe using chrome pins and changed somewhere between nov 73 and jan 74.
be hard to pin point when. got plenty of examples on file but hardly any have a fluke detail shot of the sun visors naturally. biggrin.gif biggrin.gif biggrin.gif biggrin.gif
wonkipop
QUOTE(StarBear @ May 4 2024, 06:43 AM) *

@wonkipop
@jeffbowlsby
Yep, my visor pins are chromed. My 74 1.8 (11/73 chassis, 5/74 completion) has quite a few leftover 73 parts, like seat upholstery; had never though about the pins.


all the evidence does point to your 73 MY observation.
most of the 74 2.0s made between august and late oct 73 seem to be essentially carrying on from 73 MY. though @JeffBowlsby would know more about that.

the changes that characterise the 74 MY start happening bit by bit after about the 3rd week of nov 73 of production of the 1.8. but it doesn't all happen at once. its a series of changes over time stretching from nov 73 through to may 74. bit by bit.
wonkipop
@JeffBowlsby
@StarBear

Remember this label Jeff.
You had it on your website.

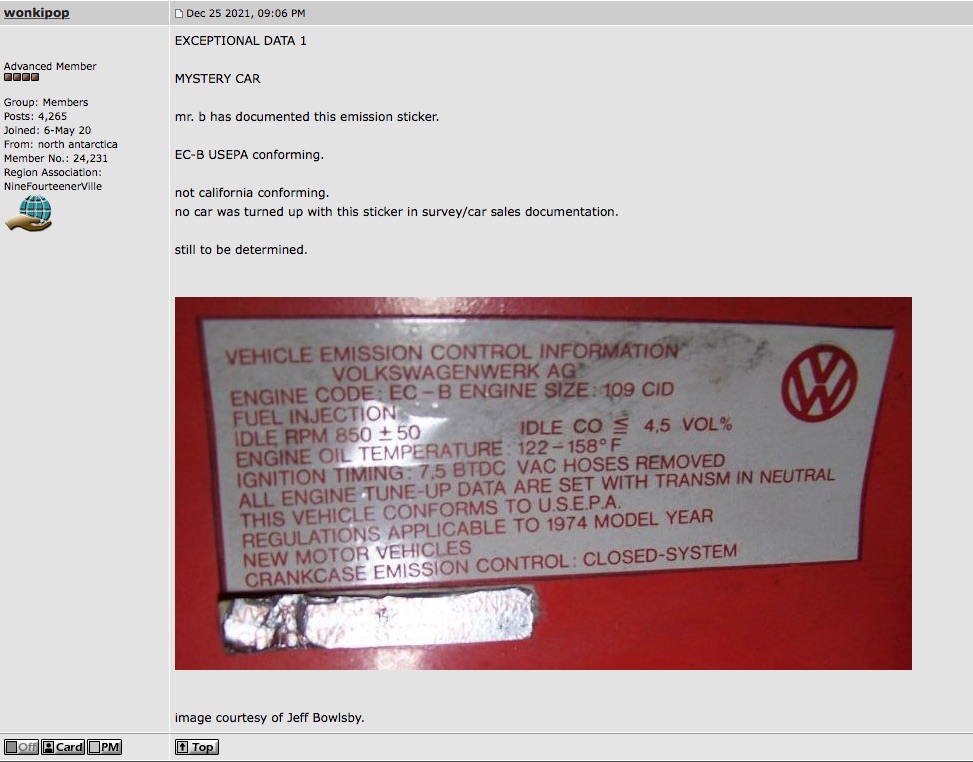

the elusive and enigmatic EC-B emissions label 49 states ONLY.
(From page 1 of this topic).

Click to view attachment

In the 80 odd examples I have collected on file all had Calif and USEPA approved labels whether EC-A (califonia) or EC-B (49 states). despite the EC-B engine being 49 states and the EC-A being california only.

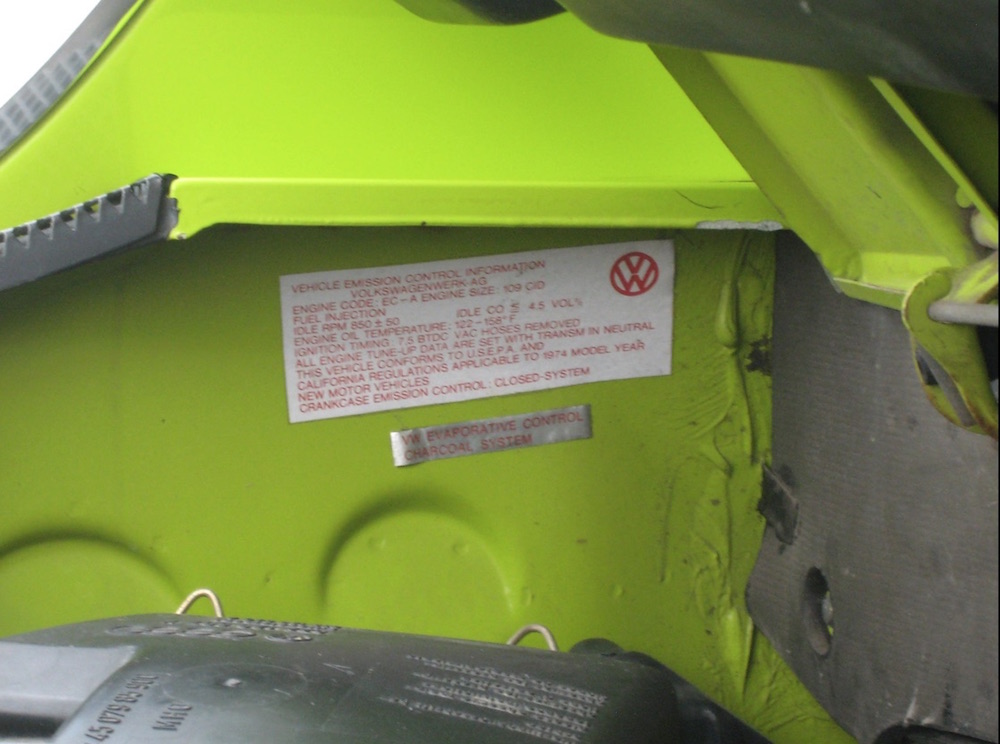

they all looked like this. same as my car and starbears.

Click to view attachment


well.........the exceptional data finally turned up in another example with all the details.
its just come up for sale on BAT.
car is a bit rough under its exterior and the EFI is gone - but all engine labels and original tin are intact complete with emissions label.
its a little blurry but is visible in a blow up of one of the engine bay photos.

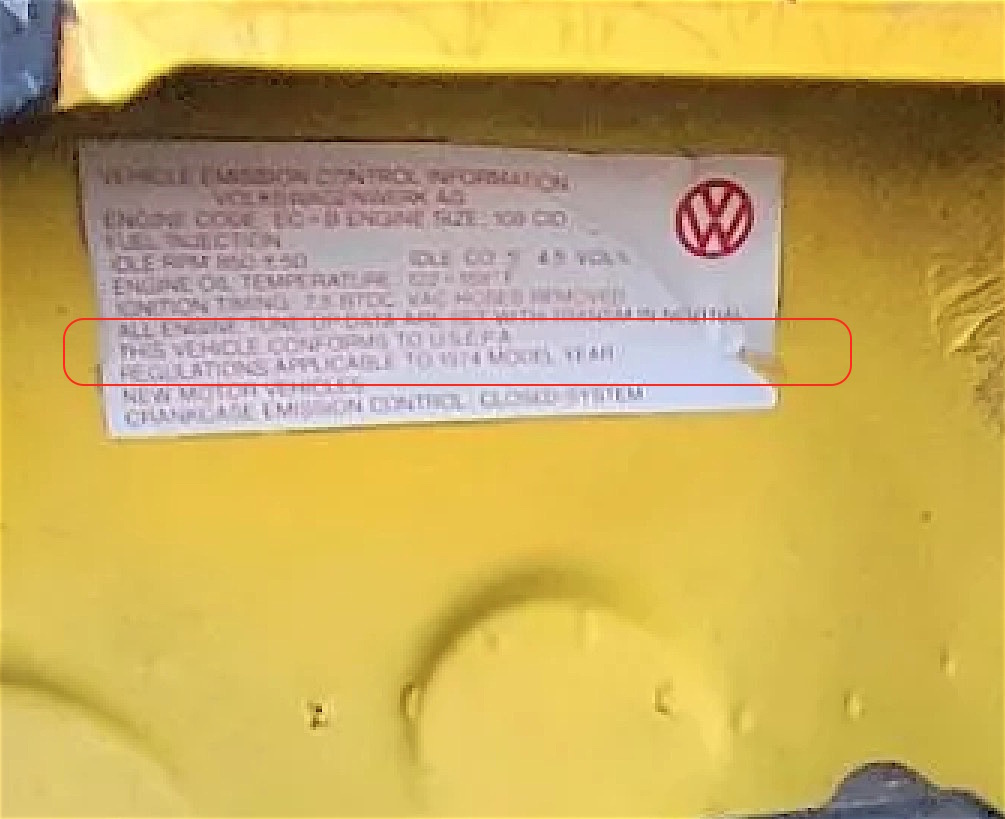

and you can see - USEPA only. same as your example from your website.

Click to view attachment
Click to view attachment
Click to view attachment

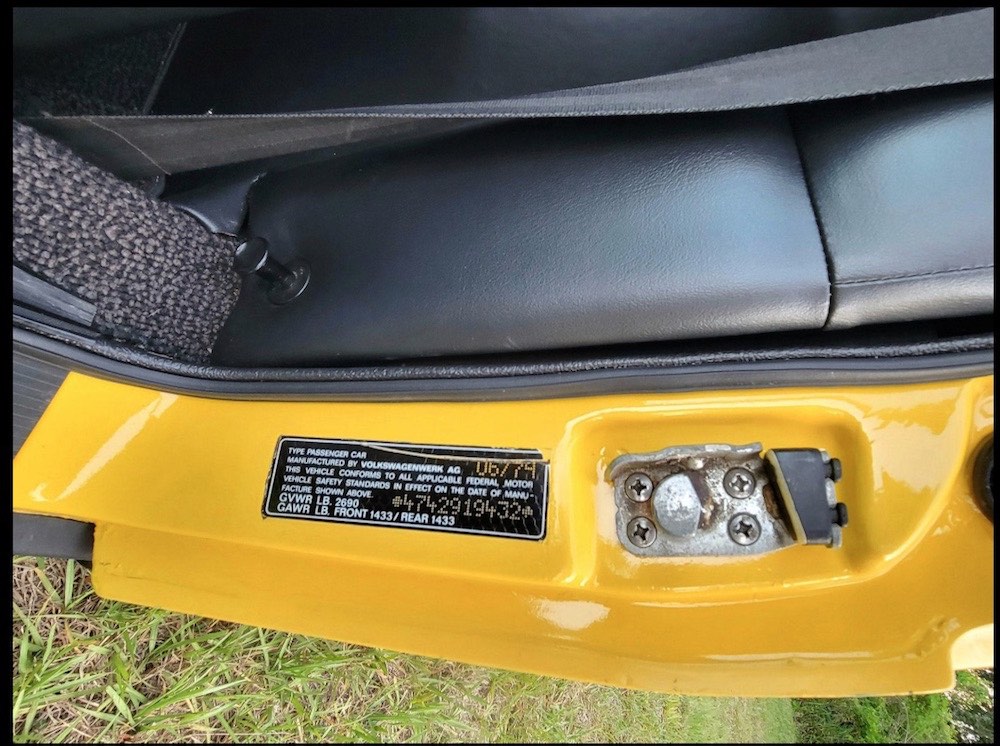

vin 4742919432
K number (VW production #) 2339522. wed 05 June 1974.
vin label says 06/74.

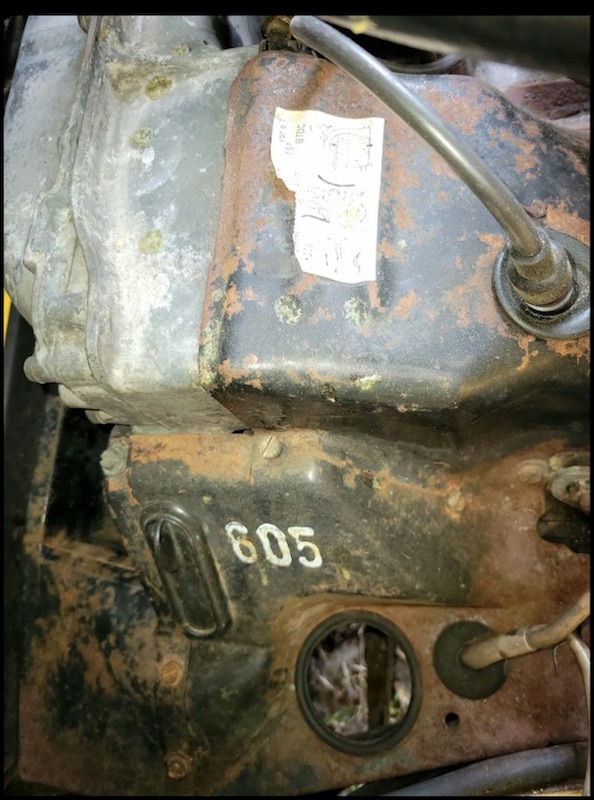

engine stamp number 605 checks out for an EC-B engine with console and gauges.
car has the orignal console and guages.
two hose tune up sticker on engine tin = EC-B emissions set up for distributor vacuum advance / retard.

conclusion - these labels went on right at the end of 74 production.
for approx. the last month in june 74.
i have examples right up to may 74 that have the more normally found sticker which says EC-A and EC-B are both USEPA and california compliant.

i don't have an example of an EC-A emission sticker for 06/74 but i am guessing it did not need a different one from the one it had through most of 74 production as anything California compliant was automatically USEPA compliant as it exceeded standards for the 49 states.........but you never know.

one more mystery of the L jets cracked.

JeffBowlsby
I am thankful you are a sleuth! Look what can be found with persistence.
wonkipop
QUOTE(JeffBowlsby @ May 7 2024, 09:26 PM) *

I am thankful you are a sleuth! Look what can be found with persistence.


only took 3 years. biggrin.gif

Click to view attachment
wonkipop
@JeffBowlsby

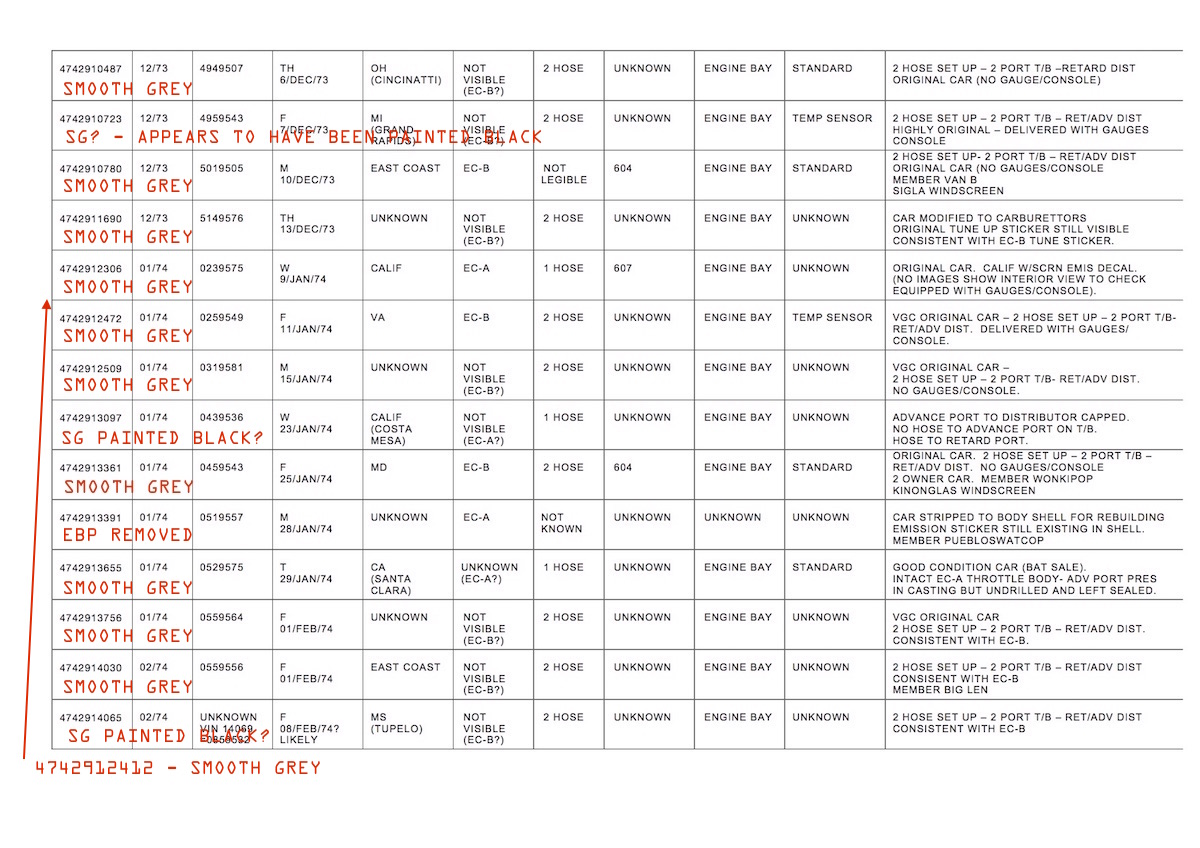

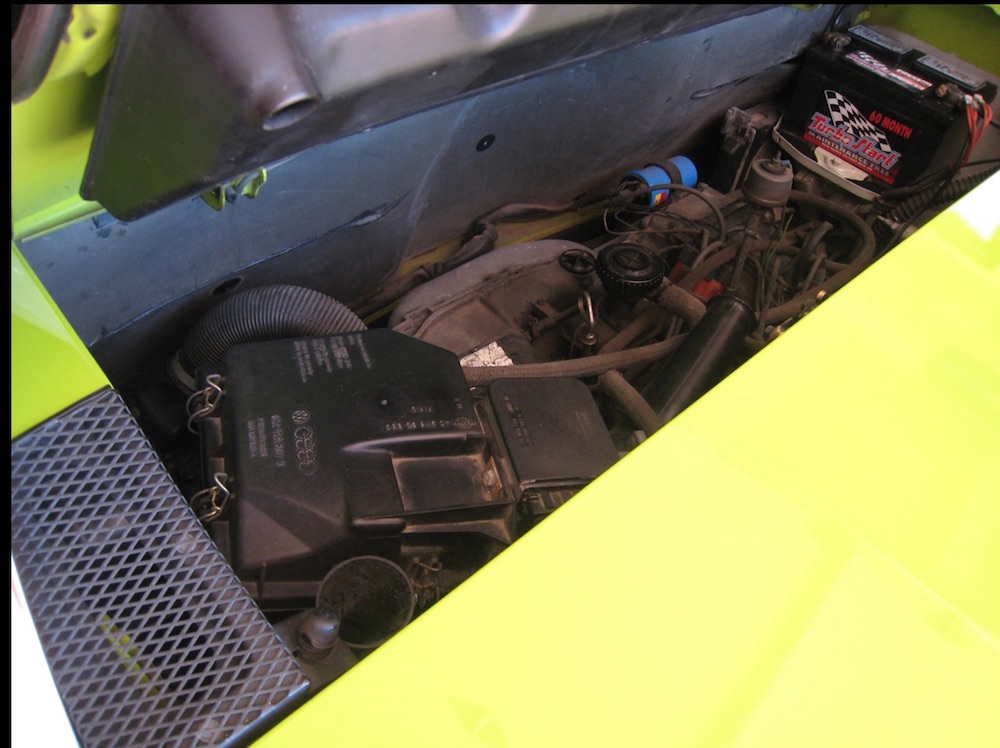

i've gone right through the examples on file of 74 1.8s to track the difference in engine bay back pads.


2 types of EBP (Engine bay pad).


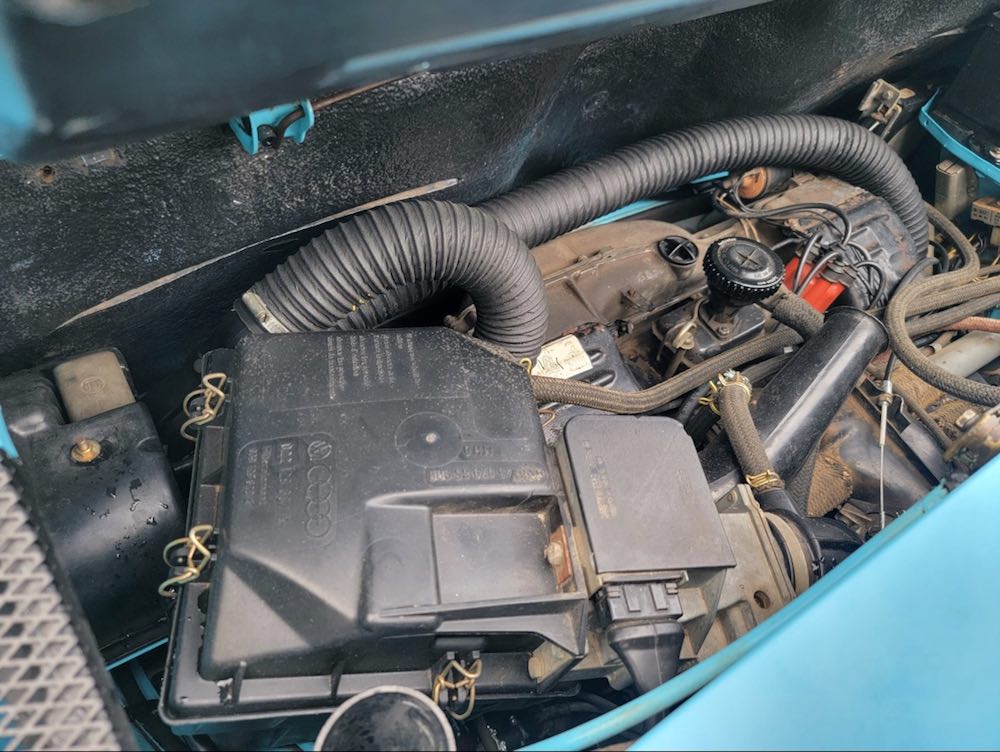

type 1. referred to as Black Ripple (orange peel) surface.

Click to view attachment
Click to view attachment


type 2. referred to as Smooth Grey surface.

Click to view attachment
Click to view attachment

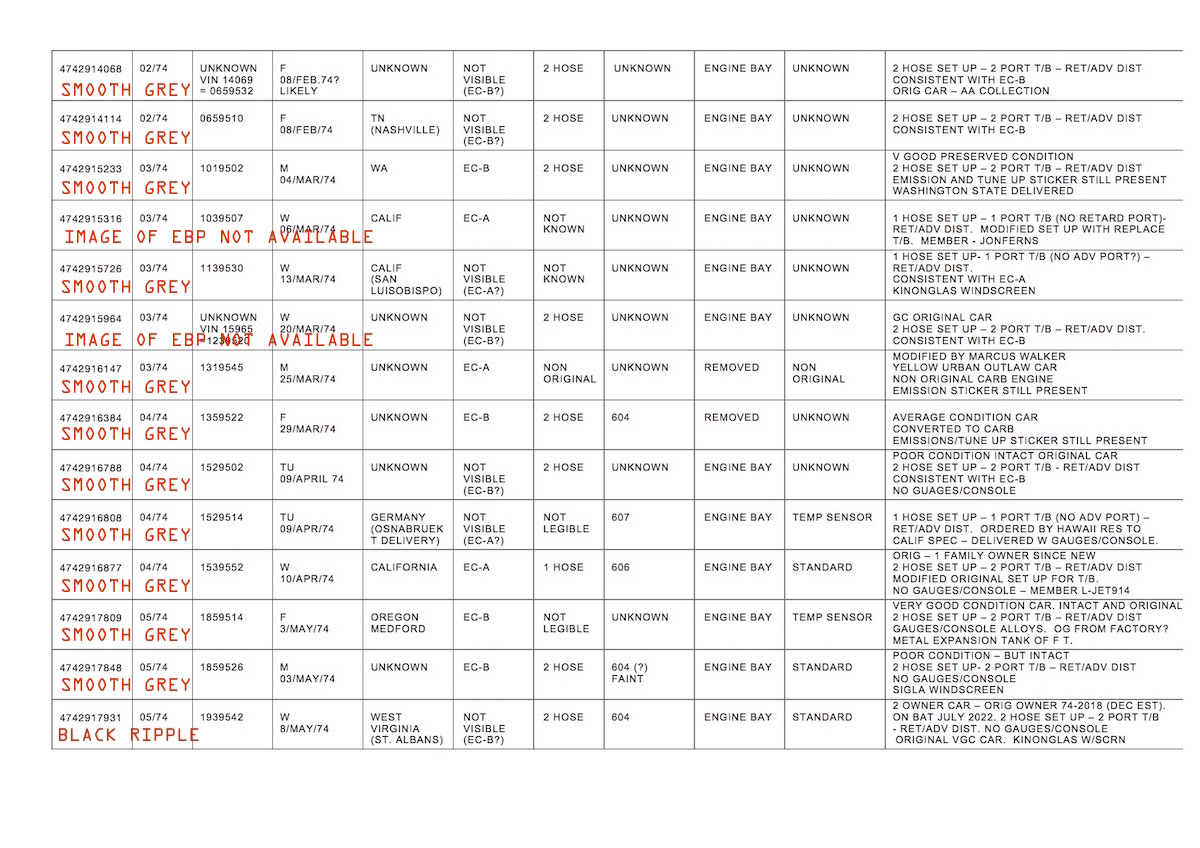

here is how they track through the production run of 74 1.8s from late oct 1973 through to june 1974.


Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment

VIN 4742918254 had its EBP removed. bit of a shame as it came between the two late entries for black ripple EPBs and might have provided confirming data.


-----------

According to this pattern @StarBear car should have a black ripple engine bay pad.
I don't have a photo on file of StarBears car's pad from the L jet research a couple of years ago. can you confirm what type of pad your car has Steve?

Also @Bwingate (new member here with an early 1.8) - suggestion from data is that your car should have a black ripple engine bay back pad. Can you confirm.

@JeffBowlsby . far as i can tell these black back pads only pop up in a batch of 1.8s produced very early in the production run during November 1973. does not appear to be in 2.0s produced between aug 73 and late oct 73.
the second time they appear is late in the production run in may 74. only a couple of examples have come to light on file. might affect some 2.0s very late in the 74MY.
don't think it would affect LE cars as they were all produced before May 74?


wonkipop
@JeffBowlsby

The 49 State EC-B emissions label appears to be the only one revised in june 74 to exclude California emissions compliance.

I went through my files and i have an EC-A emissions label from a later car - the emissions label is as per earlier EC-A labels and states USEPA and California compliance.


revised 49 states label from VIN 4742919432, EC-B engine.

Click to view attachment
Click to view attachment


EC-A engine emissions label from VIN 4742920438. - 1000 cars (approx 2-3 weeks production later).


Click to view attachment
Click to view attachment
friethmiller
I have a 6/74 1.8L car. Unfortunately, I removed/replaced this sticker. This is the only picture I have of it. I probably saved the sticker somewhere but can seem to find it.
wonkipop
QUOTE(friethmiller @ May 8 2024, 07:06 PM) *

I have a 6/74 1.8L car. Unfortunately, I removed/replaced this sticker. This is the only picture I have of it. I probably saved the sticker somewhere but can seem to find it.


hey thats great @friethmiller .

I can tell enough from that sticker to see with the extent of lettering on the crucial lines that it says USEPA and California compliant.

If its an EC-B engine that could give us an indication of when the revised sticker kicked in.

Do you know if it was an EC-B engine. (unfortunately thats not legible on the sticker photo you have) ie 49 states car. if you know which state it was originally sold new its usually a reliable indicator. calif sale = EC-A 100%. 49 states sale = EC-B 99%.

if its non california, whats the Vin and K number?

Click to view attachment
StarBear
@wonkipop
@jeffbowlsby
Mine is the smooth gray type; original still in place.
Body DOT plate is 12/73; Karmann plate is 5/74.
If needed can provide photo and precise Karmann date.
friethmiller
QUOTE(wonkipop @ May 8 2024, 08:16 PM) *

QUOTE(friethmiller @ May 8 2024, 07:06 PM) *

I have a 6/74 1.8L car. Unfortunately, I removed/replaced this sticker. This is the only picture I have of it. I probably saved the sticker somewhere but can seem to find it.


hey thats great @friethmiller .

I can tell enough from that sticker to see with the extent of lettering on the crucial lines that it says USEPA and California compliant.

If its an EC-B engine that could give us an indication of when the revised sticker kicked in.

Do you know if it was an EC-B engine. (unfortunately thats not legible on the sticker photo you have) ie 49 states car. if you know which state it was originally sold new its usually a reliable indicator. calif sale = EC-A 100%. 49 states sale = EC-B 99%.

if its non california, whats the Vin and K number?

Click to view attachment

I haven't read all the post on this thread so I'm not exactly sure if it's a EC-B engine or not. Let me know how I can figure this out and I'll report back. No clue on the original purchase location. I do know that it was located in the Atlanta, GA area for many years. Unfortunately the FI system is long gone on this one but it still has the original 1.8L - now a 2375. Anyways, here's the vitals.

Vin: 4742920229 Engine: EC035789 Chassis: 2549551

Stickers are both new reproductions

Click to view attachment. Click to view attachment Click to view attachment
wonkipop

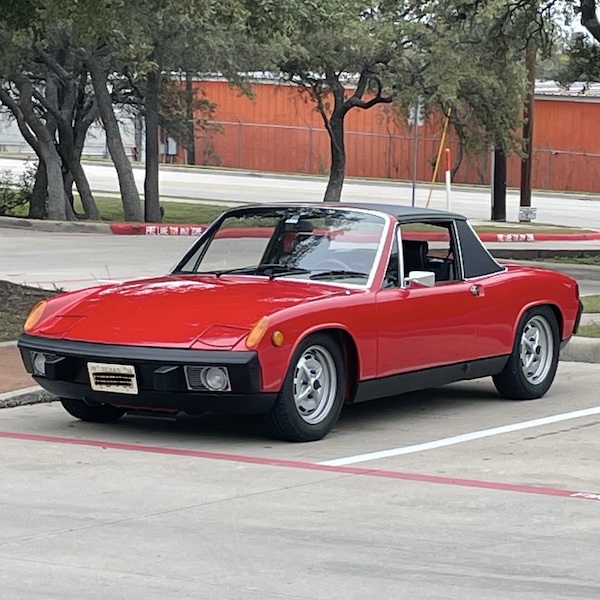

thats a very magnificent looking 914 @friethmiller .
i see you are down in texas.
my memories are from the late 80s and 90s but man.......i loved texas.
my favourite part of the states by far and my favorite stateside peoples.
hoping to get back there one day and see the much further west part of texas this time, biggrin.gif

pretty hard to pick the difference between a EC-A and a EC-B.
all they did was hook up the advance side of the distributor in the Bs and unhook it in the As and plug up the throttle body port. literally.
and put a different emissions sticker on. beer.gif biggrin.gif
so there is no way to really tell if you dont have the original emissions sticker, original EFI or a sales receipt.
and.......it doesn't really matter. cause it doesn't make one bit of difference to enjoying your 914. its just some esoteric info we have been following up for a few years.

@JeffBowlsby had a mysterious emissions sticker in his collection for the 1.8s.
basically i could never turn up another example of it until a few days ago.
the gist of it all would seem to be that it took the EPA and/orCARB 7 months to catch up with VW/Porsche and order them to get their stickers right back in 1974. biggrin.gif biggrin.gif biggrin.gif
probably sent a very nasty letter to germany thats lying around in the factory archives somewhere. biggrin.gif biggrin.gif
wonkipop
ps

@friethmiller

i reckon if your car was originally a 49 states car (EC-B) it would have had the "corrected" emission sticker given the VIN number. its later than the Vin for the recent one we just found.

and given eyeballing your original vin sticker (blurry as it is) seems to say it looks like the the full USEPA and California compliant text from the extent of text on lines - then my guess is your car is an EC-A. originally sold new in california and originally spent its time there. its a guess but based on evidence to date.
wonkipop
pps

love the star steelies. i'm a huge fan of them. have em on mine too. biggrin.gif

EDIT
there is one other way you can tell what engine was in it - the three digit paint stencil number that was originally on engine tin. if you can remember what that was if it was still there before you did work on the engine and maybe/probably repainted tins.

if the engine was original then 604 or 605 would be an EC-B
and 606 or 607 would be EC-A (california). beerchug.gif
wonkipop
QUOTE(StarBear @ May 8 2024, 08:05 PM) *

@wonkipop
@jeffbowlsby
Mine is the smooth gray type; original still in place.
Body DOT plate is 12/73; Karmann plate is 5/74.
If needed can provide photo and precise Karmann date.


details i have on file for your car are as follows steve.

vin------09760
date 11/73.
from vin sticker photo you had.

k plate # = 4839578 = wed 28 nov 1973.

where is the k plate 5/74 date coming from?

still its interesting it has the smooth grey engine insul pad.
i'll double check that one i have listed after your vin as a black ripple back pad. beerchug.gif
friethmiller
QUOTE(wonkipop @ May 8 2024, 09:39 PM) *

pps

love the star steelies. i'm a huge fan of them. have em on mine too. biggrin.gif

EDIT
there is one other way you can tell what engine was in it - the three digit paint stencil number that was originally on engine tin. if you can remember what that was if it was still there before you did work on the engine and maybe/probably repainted tins.

if the engine was original then 604 or 605 would be an EC-B
and 606 or 607 would be EC-A (california). beerchug.gif

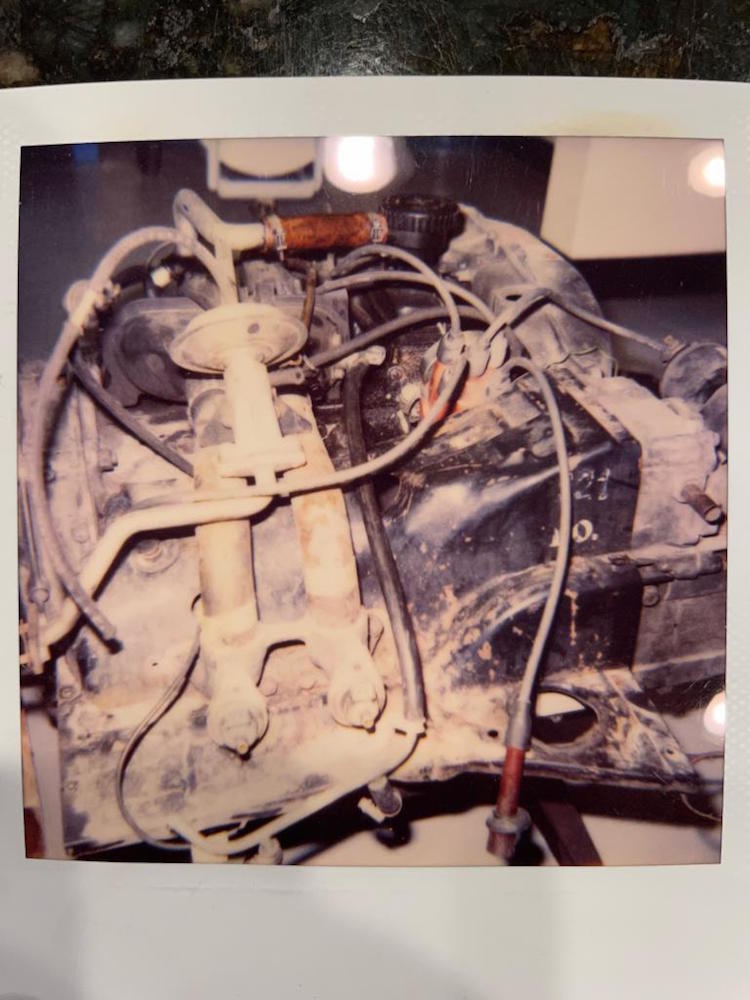

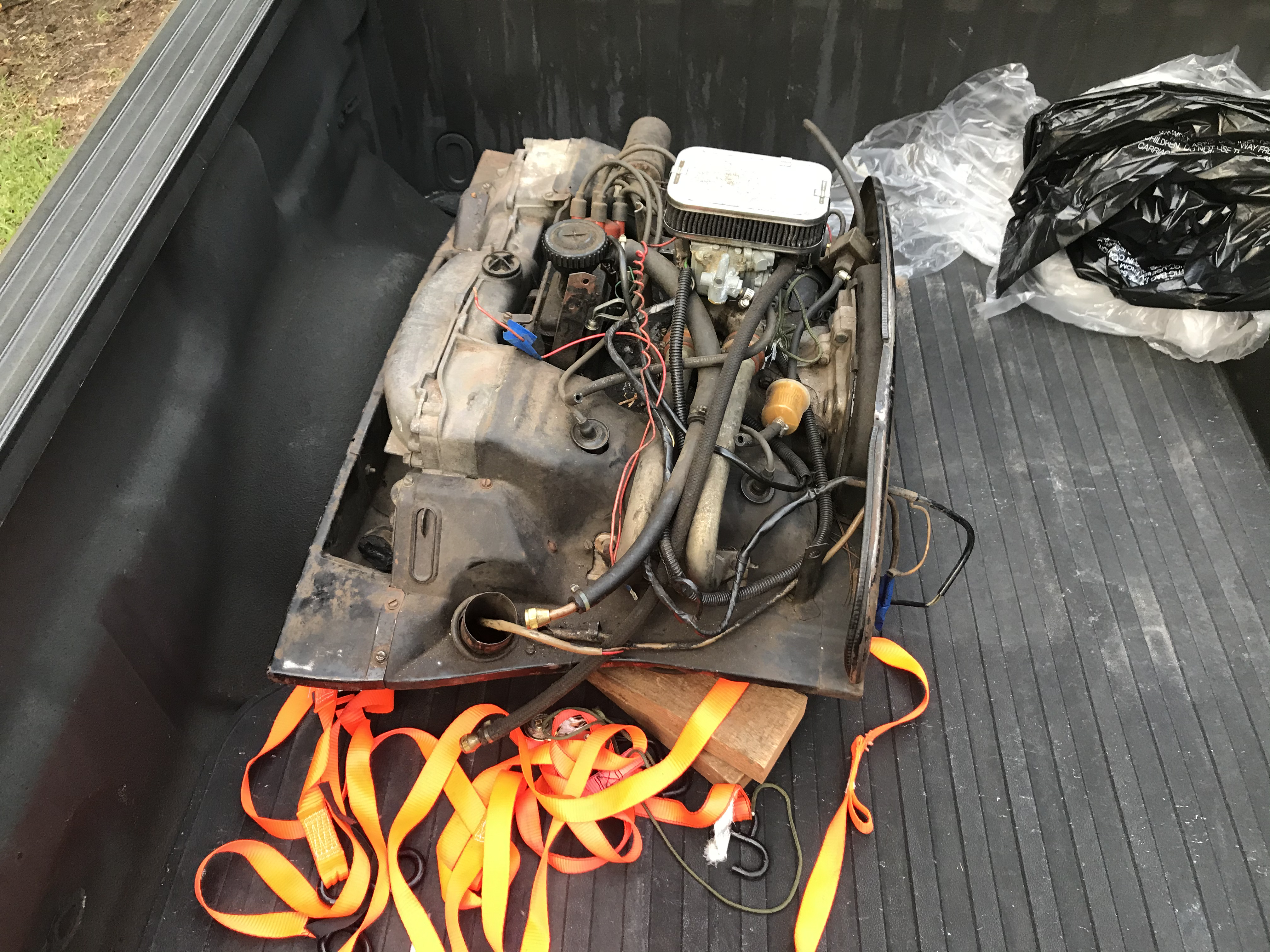

Thanks! I love the steelies too. My tins numbers were not legible. Here’s the best photo I have prior to the rebuild.

Click to view attachment
wonkipop
QUOTE(friethmiller @ May 8 2024, 09:19 PM) *

QUOTE(wonkipop @ May 8 2024, 09:39 PM) *

pps

love the star steelies. i'm a huge fan of them. have em on mine too. biggrin.gif

EDIT
there is one other way you can tell what engine was in it - the three digit paint stencil number that was originally on engine tin. if you can remember what that was if it was still there before you did work on the engine and maybe/probably repainted tins.

if the engine was original then 604 or 605 would be an EC-B
and 606 or 607 would be EC-A (california). beerchug.gif

Thanks! I love the steelies too. My tins numbers were not legible. Here’s the best photo I have prior to the rebuild.

Click to view attachment


sometimes the number was on the rhs side tin.
guess it depended on whether hans or heinrich had a hangover the day they had the potatoe stamp out.
StarBear
QUOTE(wonkipop @ May 8 2024, 11:05 PM) *

QUOTE(StarBear @ May 8 2024, 08:05 PM) *

@wonkipop
@jeffbowlsby
Mine is the smooth gray type; original still in place.
Body DOT plate is 12/73; Karmann plate is 5/74.
If needed can provide photo and precise Karmann date.


details i have on file for your car are as follows steve.

vin------09760
date 11/73.
from vin sticker photo you had.

k plate # = 4839578 = wed 28 nov 1973.

where is the k plate 5/74 date coming from?

still its interesting it has the smooth grey engine insul pad.
i'll double check that one i have listed after your vin as a black ripple back pad. beerchug.gif

You are correct. My bad. Don’t know what I was recalling. Thanks!
Back pad definitely not ripple. Because it has appearance group?
StarBear

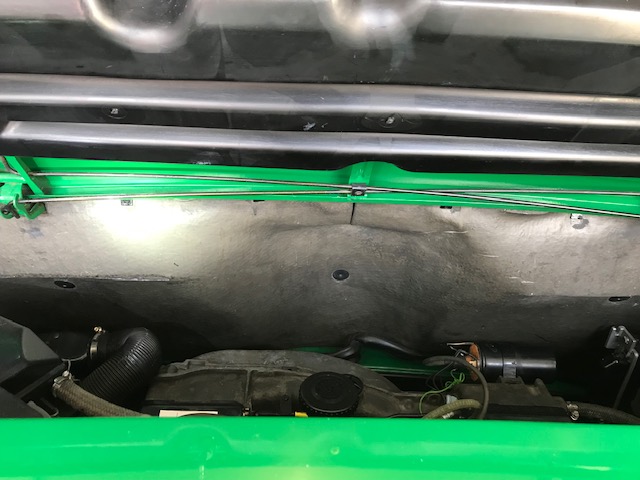

My backpad. Original.
Click to view attachment
wonkipop
QUOTE(StarBear @ May 9 2024, 07:00 AM) *

QUOTE(wonkipop @ May 8 2024, 11:05 PM) *

QUOTE(StarBear @ May 8 2024, 08:05 PM) *

@wonkipop
@jeffbowlsby
Mine is the smooth gray type; original still in place.
Body DOT plate is 12/73; Karmann plate is 5/74.
If needed can provide photo and precise Karmann date.


details i have on file for your car are as follows steve.

vin------09760
date 11/73.
from vin sticker photo you had.

k plate # = 4839578 = wed 28 nov 1973.

where is the k plate 5/74 date coming from?

still its interesting it has the smooth grey engine insul pad.
i'll double check that one i have listed after your vin as a black ripple back pad. beerchug.gif

You are correct. My bad. Don’t know what I was recalling. Thanks!
Back pad definitely not ripple. Because it has appearance group?


no its not an appearance group thing.
the examples suggest its a production line cluster.
two of them are only 40 cars apart (see the first page of the spread sheets, the ones that are slightly earlier than yours.

no doubt about yours though - def smooth grey.

in the end the sample i have whilst it does broadly speaking sample every month is but a drop in the ocean of the thousands produced.
i think my sample is suggestive of something but you would need a lot more examples to get to the bottom of it, it could even be that certain weeks on the production line got supplied with the black ripple type. definitely the grey ones are by far the more common type. several of the examples of the black ripple type seem entirely trustworthy and are original cars. i would certainly trust the one in the porsche museum i feel that is a very original car.

later on (see last page of spreadsheet) i have two examples that are literally the car after the other. and one has the black ripple. but the one that immediately precedes it off the production line had had its pad removed. that would have been very compelling to have but unfortunately........thwarted. smile.gif

its possible that the one after yours on the spreadsheet is not a trustworthy black ripple pad car.
its been restored. the pad may or may not be original to the car.
so yours might be after the point where they were installing black ripple pads and were installing smooth grey again. very hard to be 100% definitive on the car listed after you.
the ones before you seem very definitive though.
wonkipop
QUOTE(wonkipop @ May 3 2024, 03:38 PM) *

@StarBear

more 74 minutiae?
i recently collected some BAT data on 1.8
( a new member @Bwingate now has the car biggrin.gif )
i noticed this. not something you normally pick re details. beer.gif

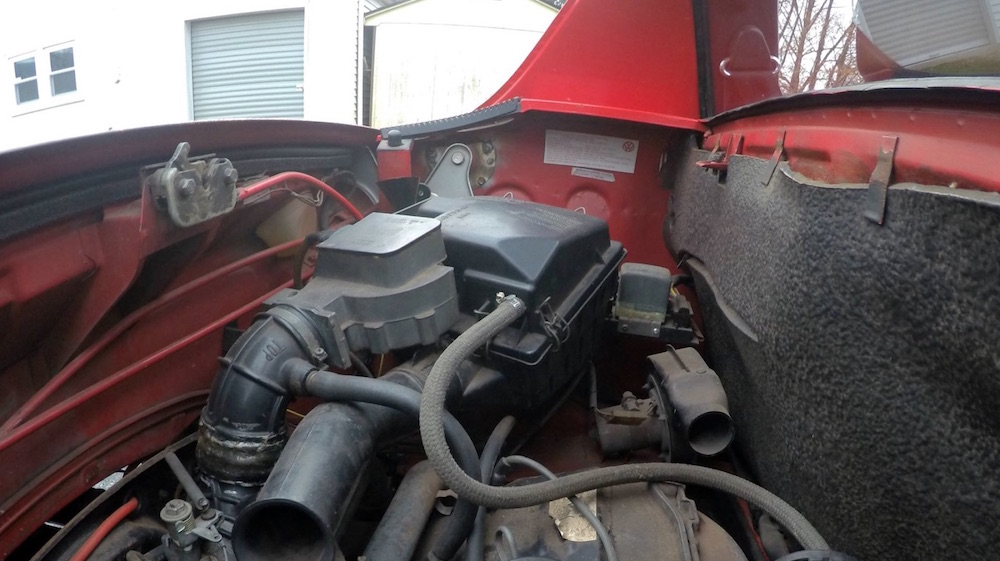

Click to view attachment

can't tell if its my imagination or i am seeing what i think is there.
metal (chrome?) visor pins.
its a 11/73 car.

my car has black plastic visor pins. is a 01/74 build.
you have a 11/73 car @StarBear . what are the pins on yours.

@JeffBowlsby ?


@StarBear @JeffBowlsby

just got some info from member Artfrombama.
he has a very original intact 1.8. 12/73.
its between your car StarBear and VanB's car. build date is 6th Dec 73.

it has the black plastic pins for the sun visors.

additionally it still has its original windscreen. its a SIGLA.
same as your car StarBear and Van's car.
so they were batching SIGLA Screens for sure during late Nov and into Dec 73 before they went back to using kinonglas screens.


StarBear
Minutia rules!!! biggrin.gif
JeffBowlsby
My original BB VIN 4742914536 has its original black sunvisor pins, SIGLA windshield and smooth grey engine bay pad.
Artfrombama
QUOTE(JeffBowlsby @ May 22 2024, 09:08 AM) *

My original BB VIN 4742914536 has its original black sunvisor pins, SIGLA windshield and smooth grey engine bay pad.

As does #4742910621
wonkipop
thanks gents.

a few things have been cracked about the 74s out of data concentrating on the harmless and humble 1.8s. beerchug.gif

those black ripple back pads seem to be very concentrated in 2 weeks in Nov 73.
who knows.

i probably should sit down and put all this data in one concentrated table.
its presently scattered throughout this topic as we found the various changes over last 4 years.
davep
This is great work that you have done! I am very grateful that I am not the only one to tackle the challenges of documenting these cars. I am not sure if you are aware of the transition of the Karmann body # from the rear trunk floor to the front trunk tag. This appears to occur in a progression from holes punched into the panels (left or right) to having the tags installed. This is near 4742917000.
StarBear
Another rabbit hole to explore! Yay!!!
Mine is near that VIN. I’ll check, as my recollection fails me at the moment.
All hail, minutia!
wonkipop
QUOTE(davep @ May 25 2024, 12:28 PM) *

This is great work that you have done! I am very grateful that I am not the only one to tackle the challenges of documenting these cars. I am not sure if you are aware of the transition of the Karmann body # from the rear trunk floor to the front trunk tag. This appears to occur in a progression from holes punched into the panels (left or right) to having the tags installed. This is near 4742917000.



yes. did notice that one along the way with 1.8s.
but not with the accuracy you have dave.
davep
This is my thread for research on this:
http://www.914world.com/bbs2/index.php?showtopic=76497
StarBear
QUOTE(StarBear @ May 25 2024, 02:43 PM) *

Another rabbit hole to explore! Yay!!!
Mine is near that VIN. I’ll check, as my recollection fails me at the moment.
All hail, minutia!

Checked. Yep, mine is on the right front wheel housing in the frunck. 2909760.
wonkipop
QUOTE(davep @ May 25 2024, 04:19 PM) *

This is my thread for research on this:
http://www.914world.com/bbs2/index.php?showtopic=76497


yes dave, know the thread. posted some stuff there for you a little while back.

increasingly my theory around all the numerous minutia (as steve calls them) changes is that VW begins to revolutionise with the increasing use of plastics for components.
this co-incides with the introduction of the water cooled models - passat, golf and importantly scirocco. the scirocco is the first into production and it happens at karmann factory. so you start to see things like plastic pins for sun visors instead of chrome metal, plastic components in the fuel system like the plastic expansion tank on the fuel tank. plastic components in the vapor emissions system. and the more archaic and indiosyncratic karmann practices for body identification stamps are brought into line with VW standardised methodoloy - ie the rivetted production number tags in the front trunk. the 74 914s benefit or a recipients of the big changes that came with the water cooled cars and the overhaul of VW manufacture. probably down to rudolph liedling driving that overhaul bringing VW back from the edge of bankruptcy.

and of course. L Jetronic. (not having a go at the D jet guys, it was revolutionary).
L jet gets its first try out in the last of the aircooled cars with the type 4 engines.
and then its all L jetronic and no more D jetronic for VW (at least for USA VWs).
here in Aus we missed all that. VW stayed with carbs for another decade with models sold here, similar to Europe and South Africa. so our markets never got these original systems versions. these days mechanics still marvel at my L jet - as an archaic curiousity - since anything they see down here is much later on in L jet development.
This is a "lo-fi" version of our main content. To view the full version with more information, formatting and images, please click here.
Invision Power Board © 2001-2024 Invision Power Services, Inc.
