@tygaboy - The honor was all mine. I really am thankful to have friends like you. This is a great community.

@roundtwo Hi Todd, We are installing an oil temperature digital thermostat as well as an on/off switch. So best of both worlds in the event you want to ignore the oil temperature ( never do) or just turn the fans on if sitting in traffic. We will be posting the whole process with pictures, unless I get to excited and forget to photo something.

Great news. Can’t wait to see what you come up with. I noticed your oil thermostat is in front and mine in the rear by the oil tank. It’ll be interesting to see what you do with your thermometer/ temp switch.

Keep up the progress!

@roundtwo - Todd, That oil line thermostat in the front trunk is moving to the engine compartment where it belongs.

Good choice! I was at Chris's Saturday and noticed that. Some oil always flows through a Mocal thermostat but that pretty far. Your car is soooo nice!

@cairo94507
@krieger
Good to know the previous owner on my vehicle did something right.

I know, right?

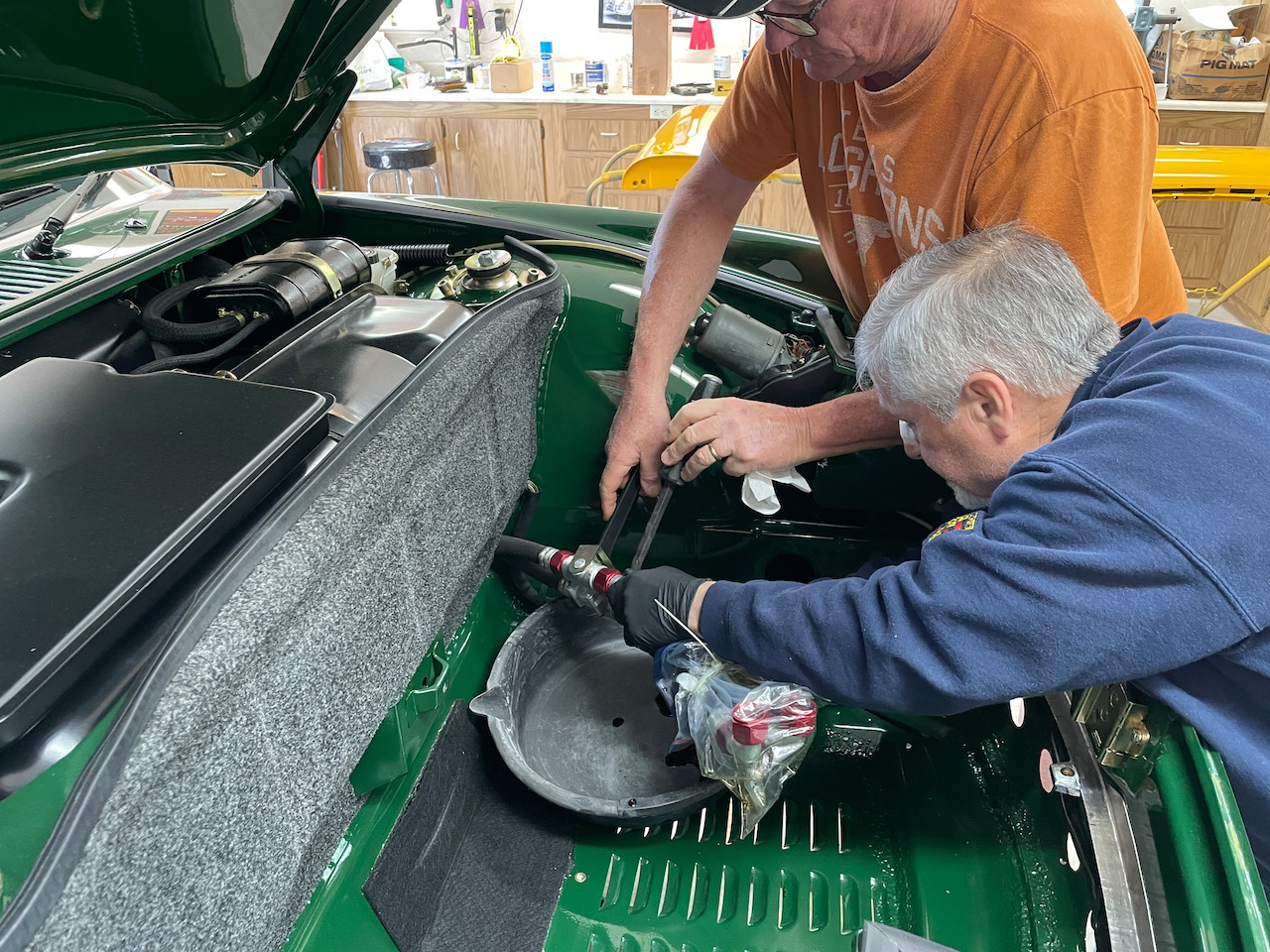

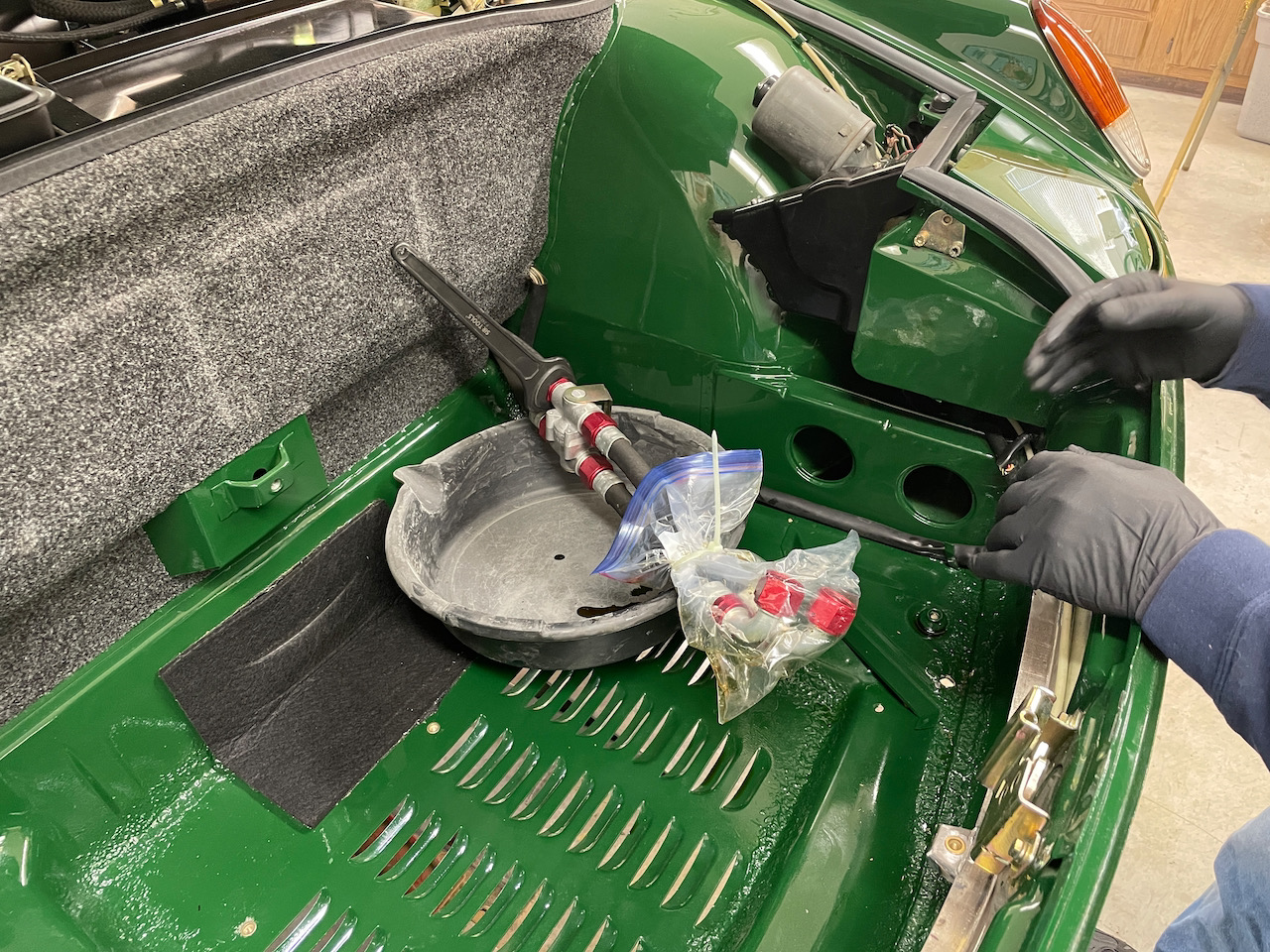

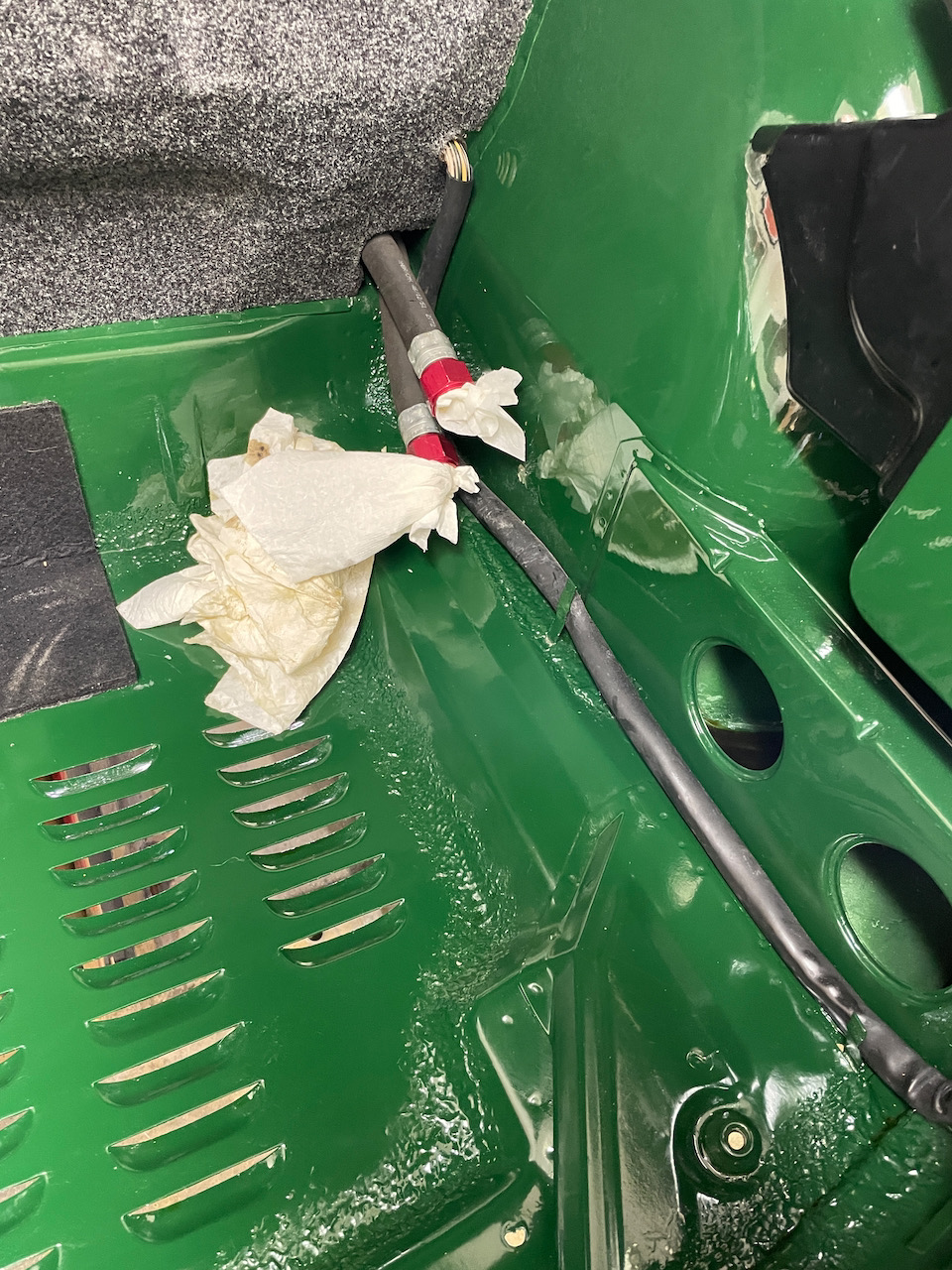

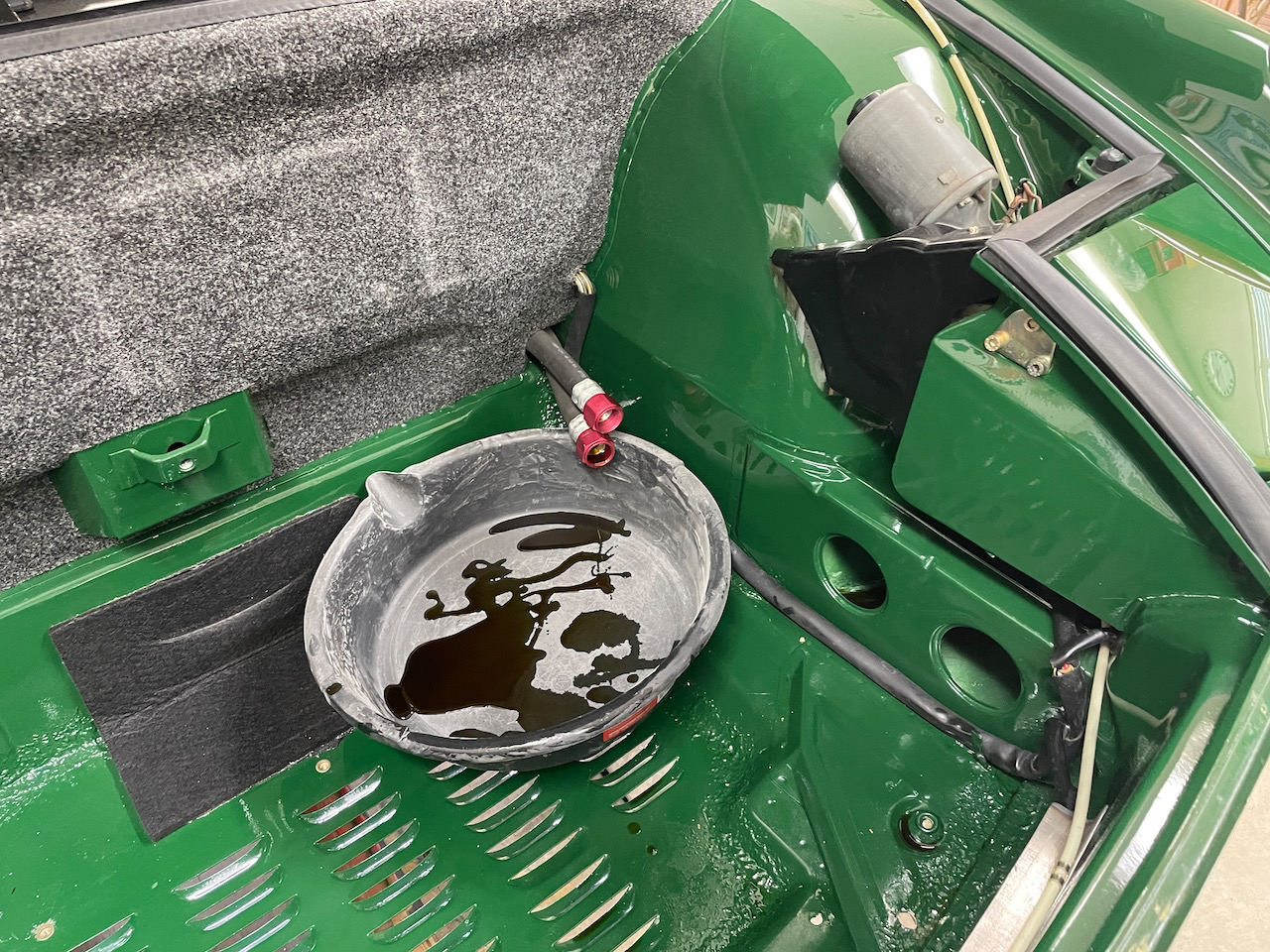

Today we removed the oil cooler thermostat and flushed the GT hard lines and sealed them up. We located the spot on the driver's side of the lower firewall for the thermostat and this Saturday, (hopefully) we will mount that and plumb all of the front lines for the cooler and connect some lines, not all, to the thermostat.

Our next step, I brought the cherry picker home, is to take the motor to Greg's and get all of the engine tin cut and fabricated. Once that is done I will take all of the tins and the front oil cooler parts and shroud to the powder coater and get that all done in satin black.

Here are some very exciting (not) pictures from today:

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

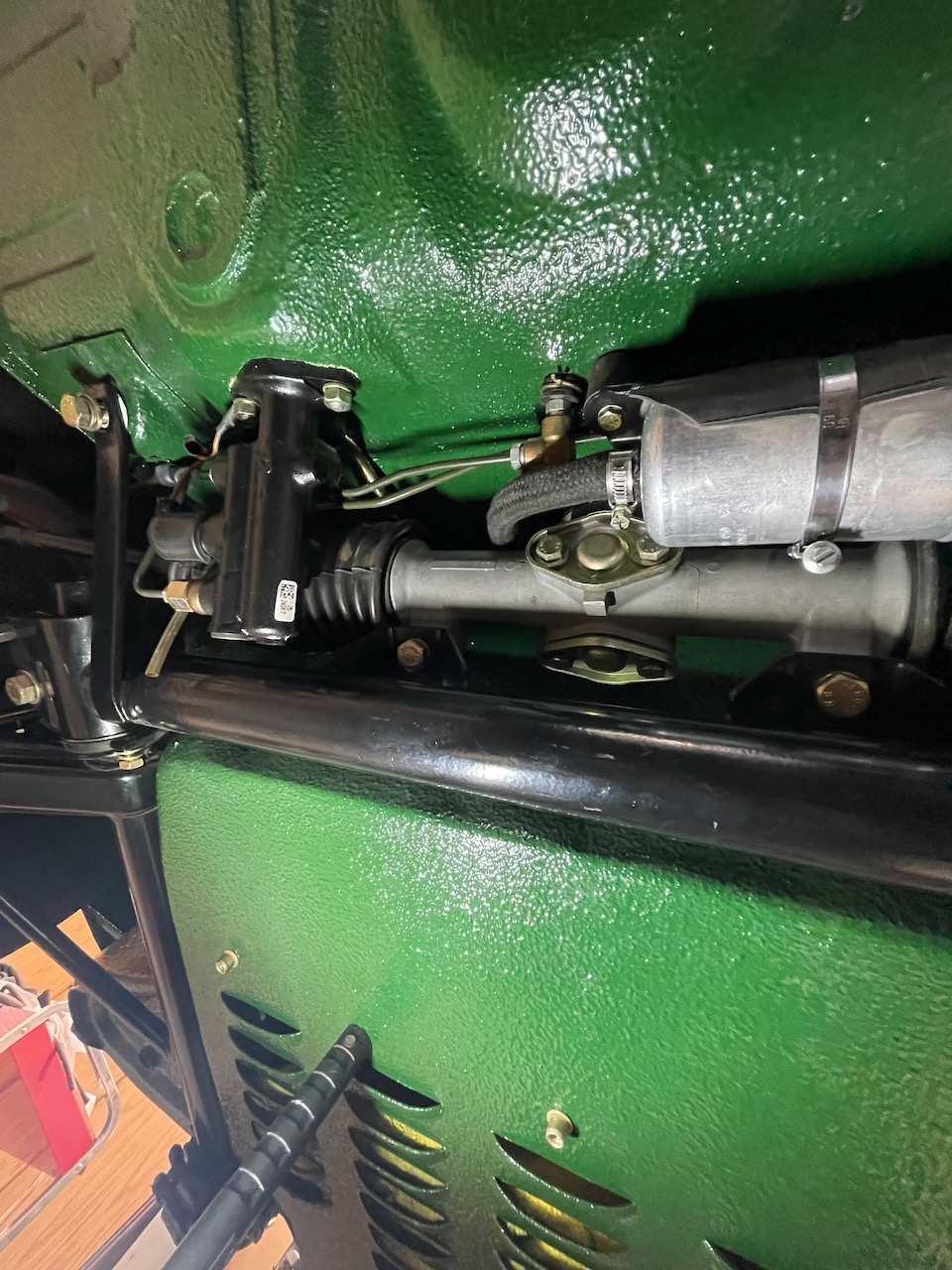

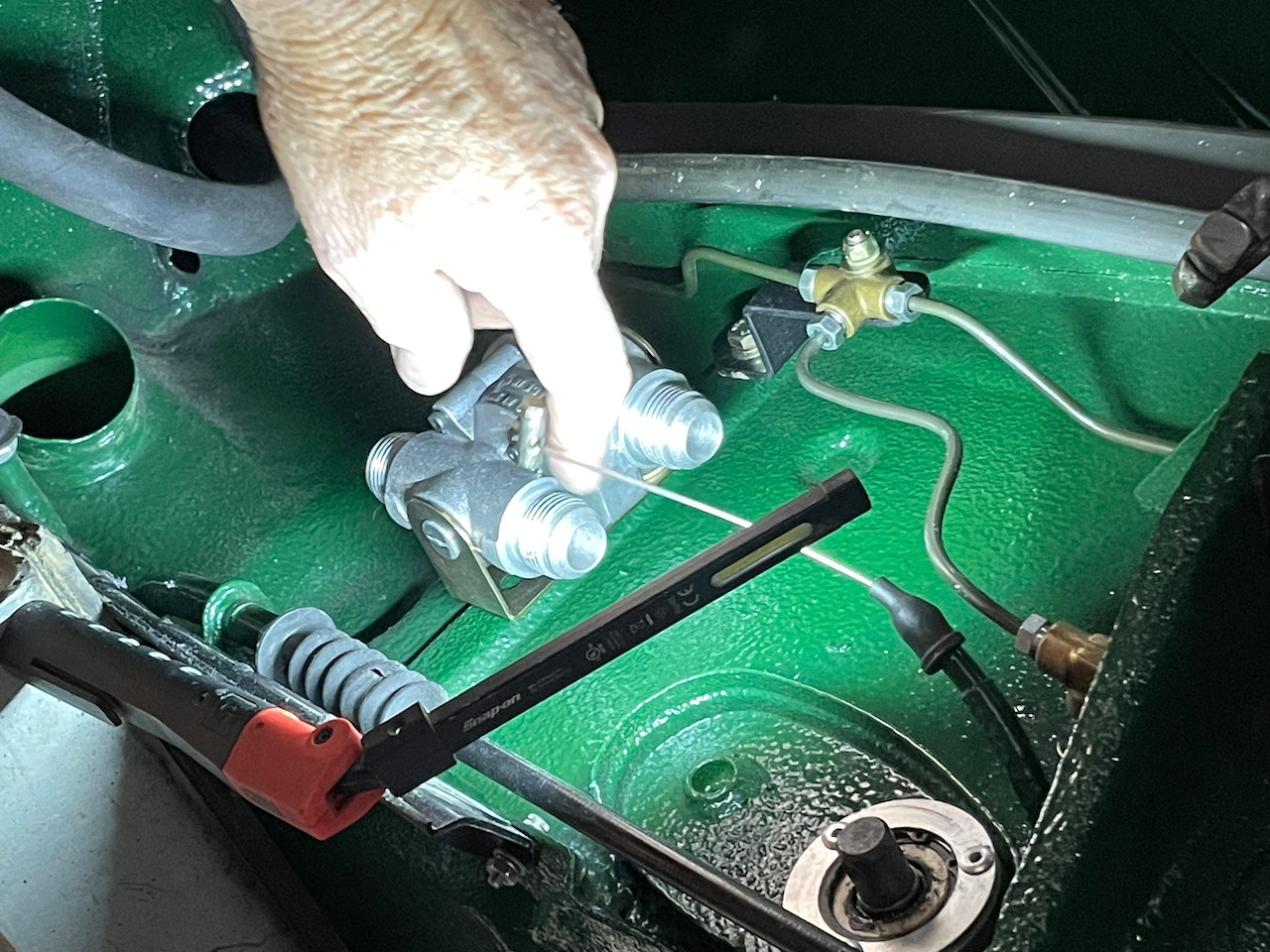

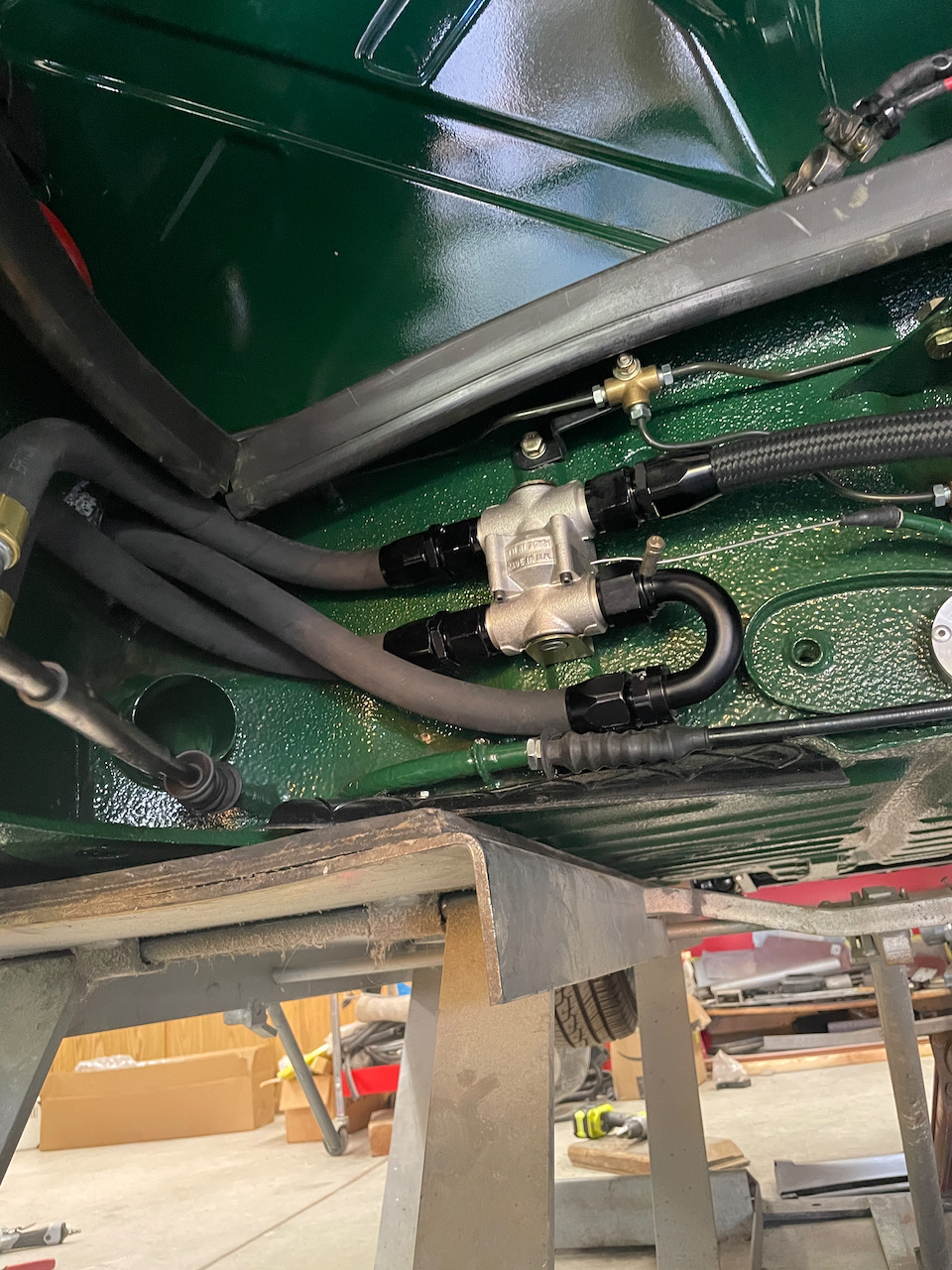

Made a little bit of progress- relocated Mocal thermostat to the engine compartment, on lower firewall, where the brake proportioning valve once lived. Fits nice and should work well. Also ordered the AN-12 fittings we will need to make up the lines.

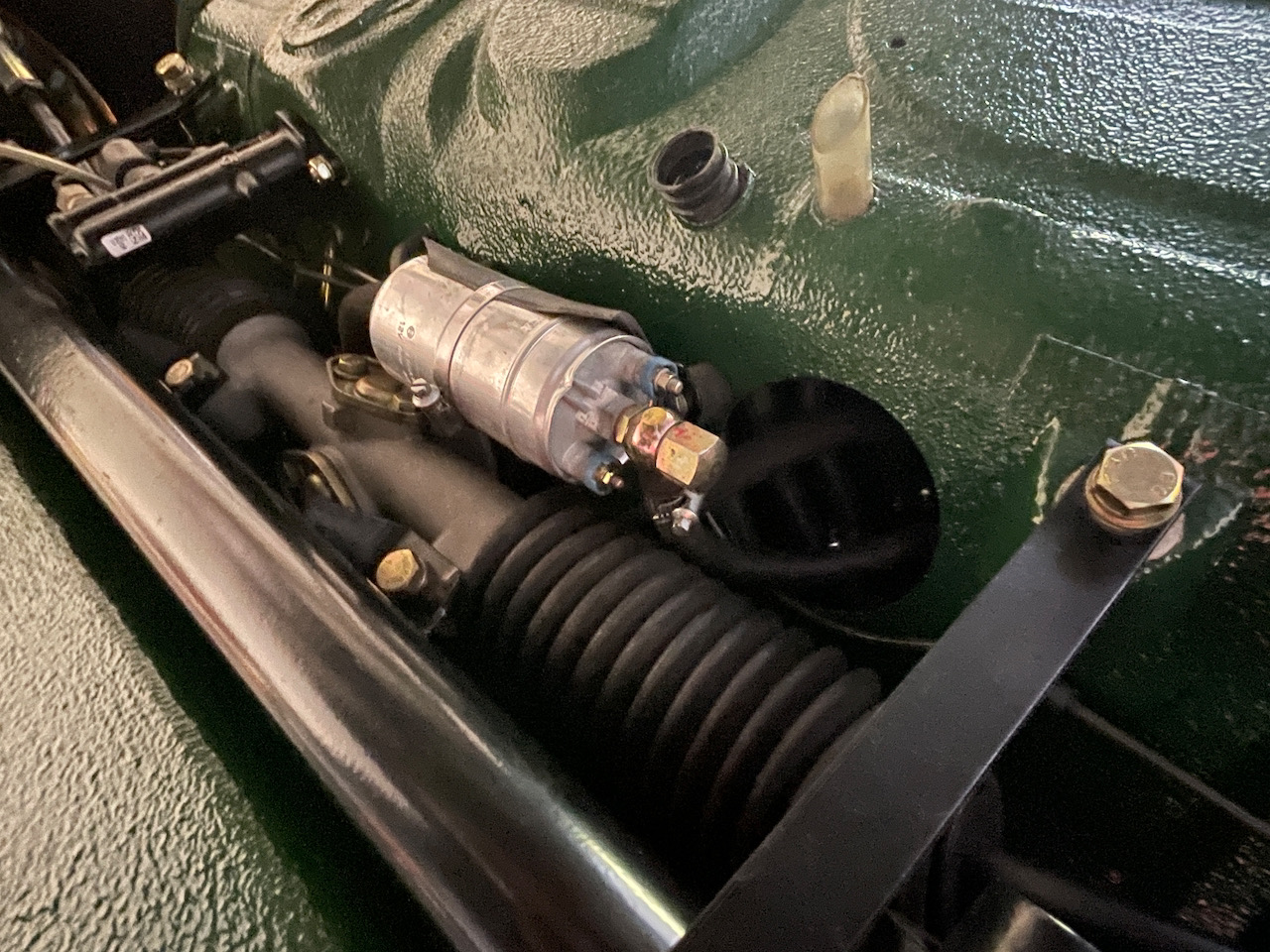

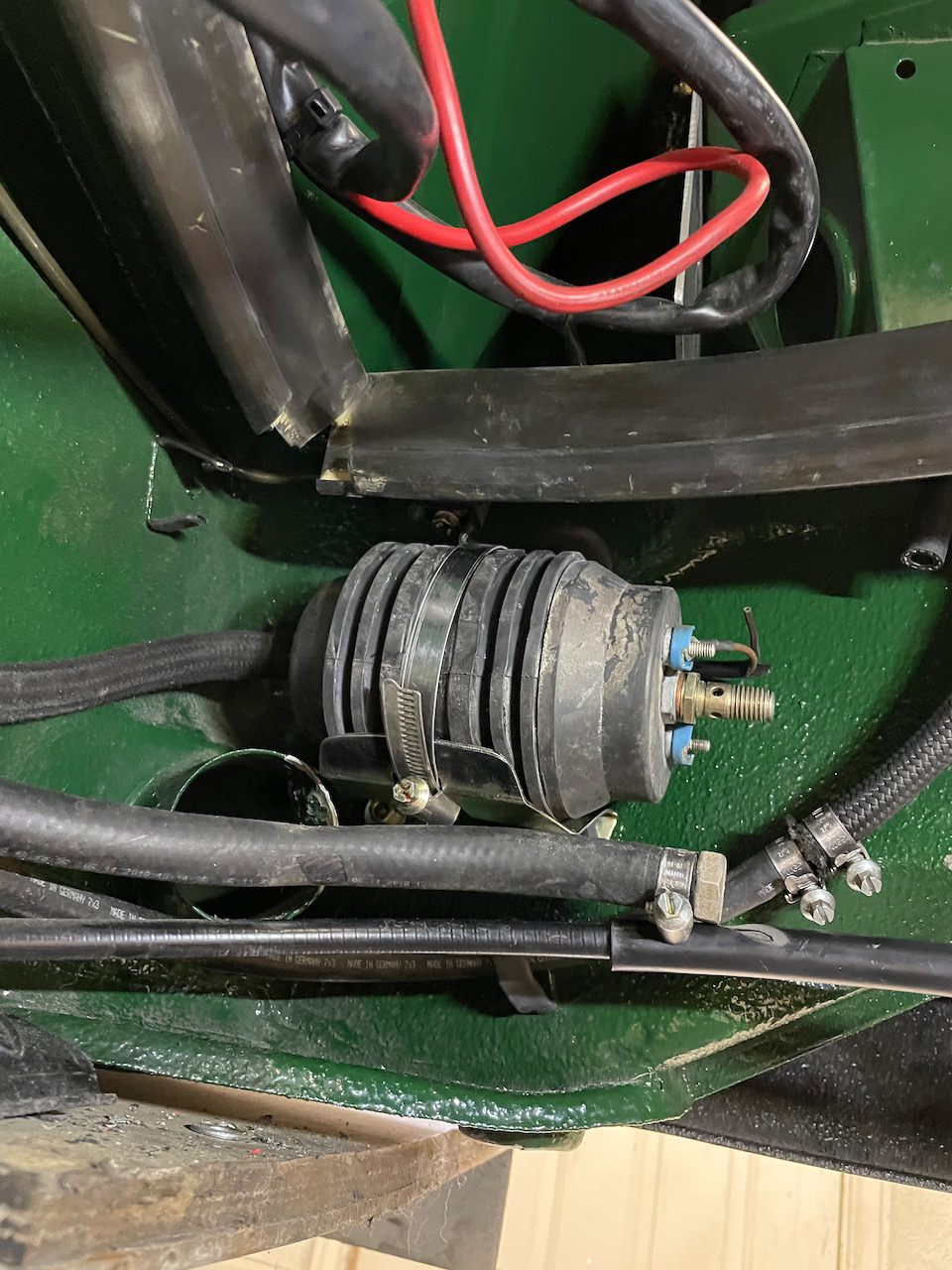

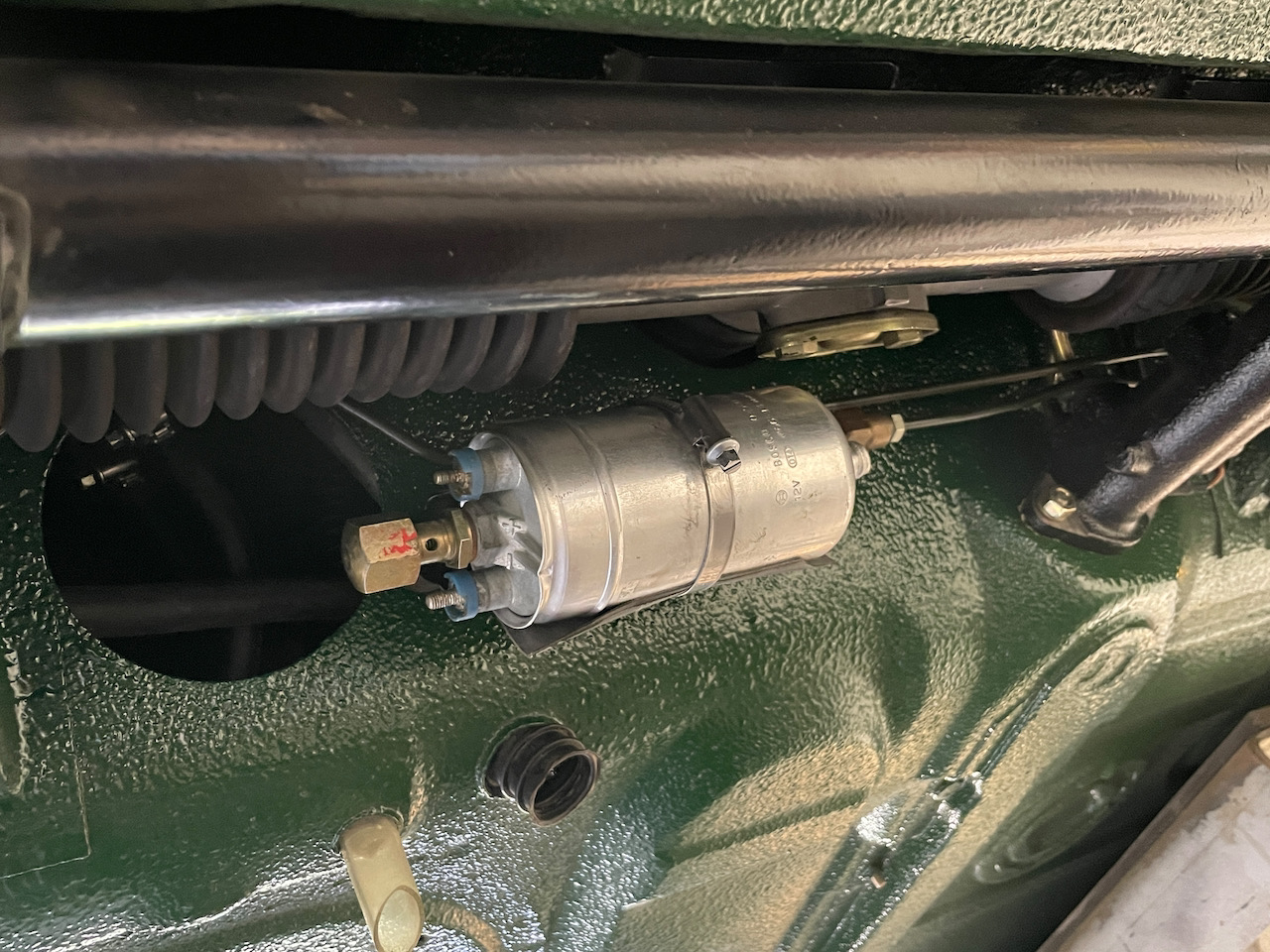

Then installed the 3.6 fuel pump under the passenger side engine shelf. It is an odd looking thing, but hopefully will be very happy in that location. Oh, don't fret over the fuel lines you see that are pieced together- we will replace all that with the good stuff and not a bunch of pieces.

Taking the 3.6 and transaxle to Greg's on Wednesday so we can check clearances and begin cobbling together the engine tins. I am pretty excited to get that done.

Click to view attachment

Click to view attachment

Progress! Gonna be a ripper...

@Cairo94507
Just FYI, i was told that the 3.6L fuel pump doesn't suck the same way our old FI fuel pumps suck and that it needed to be mounted close to the tank.
Supposedly they are much better at pushing than they are at sucking.

Which is why i mounted mine under the tank close to the bottom outlet.
http://www.914world.com/bbs2/index.php?s=&...st&p=906806

Ohhhhh noooooo; we shall have to look into that. Thanks for the heads-up Andy- much appreciated.

On my 3.6 I used the 75-76 mount/cover to mount my fuel pump under the tank just like stock later cars. It worked great and 3.6 pump mounted right up to it. Bonus is that it’s easy to access if needed.

I just happen to know where I can get my hands on one of those late model mounts....

You can get the pump mount kits new from Restoration Designs - part # PP318P.

I confirmed the 993 has the fuel pump under the gas tank as well. So... two steps forward 1 step backward. We shall address that.

I plan on using the same 044/GT3 pump that I used with my 3.2 mounted in the same 75 location as before.

@Steve Lucky; 1 less issue to deal with.

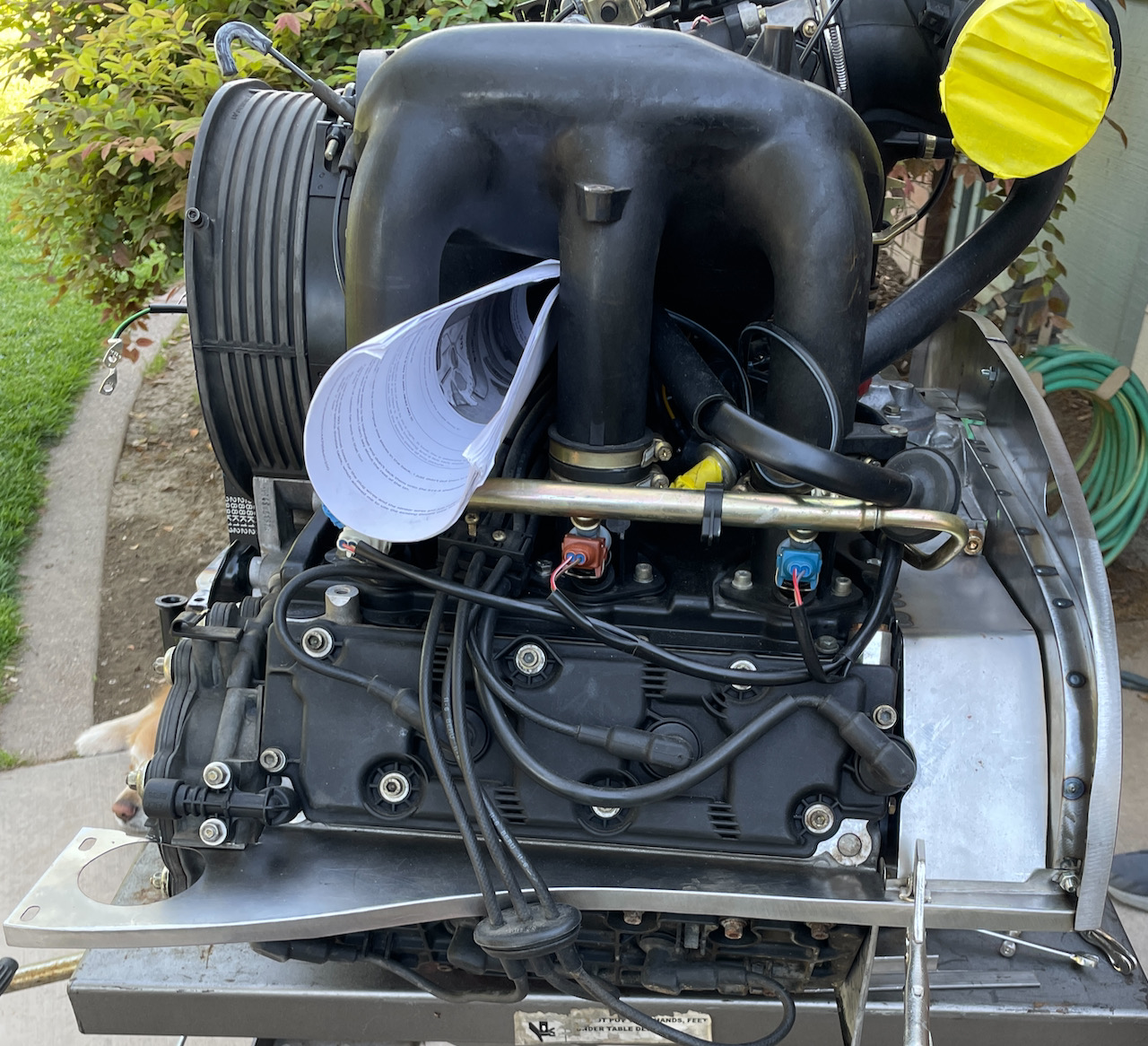

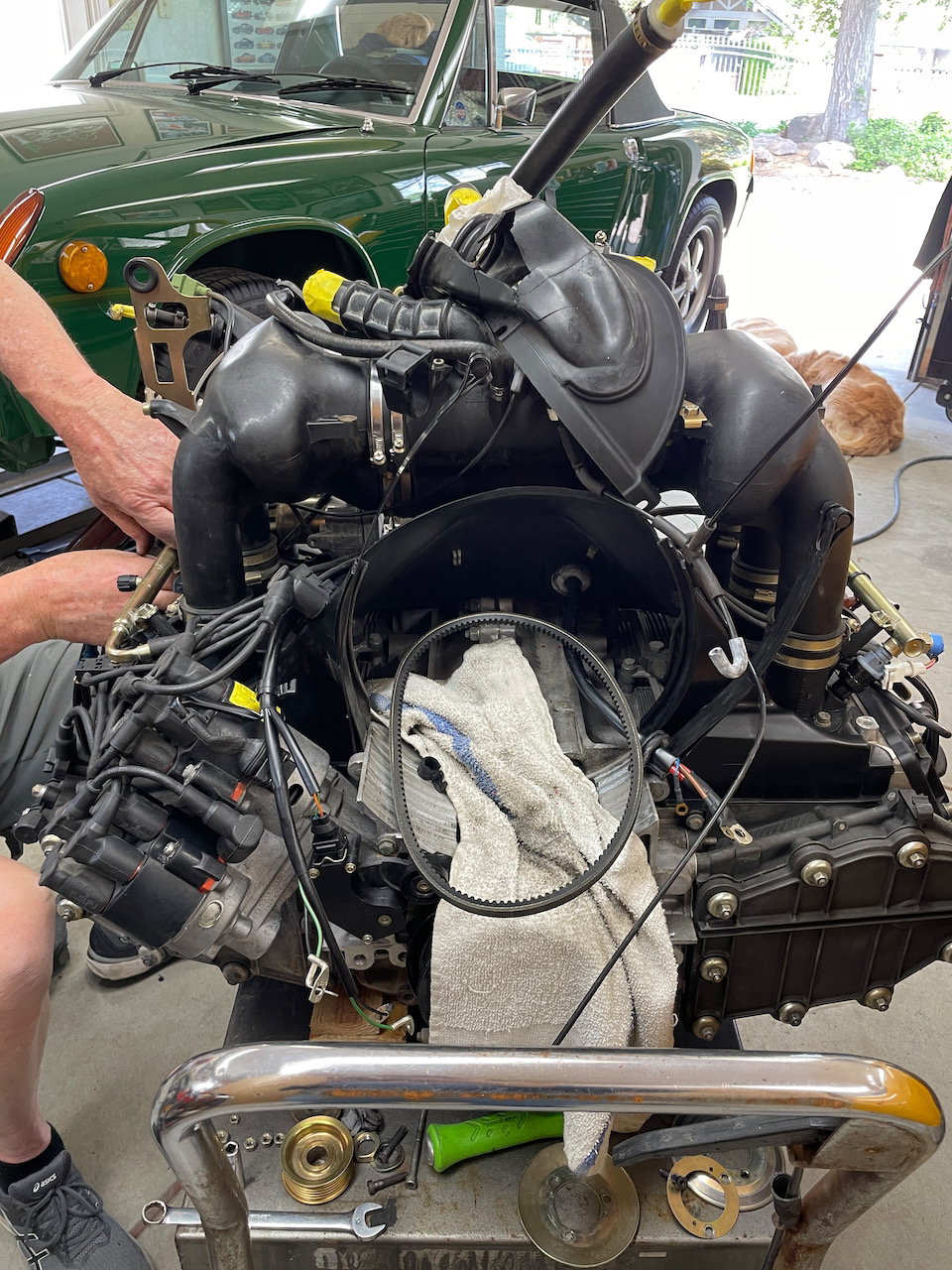

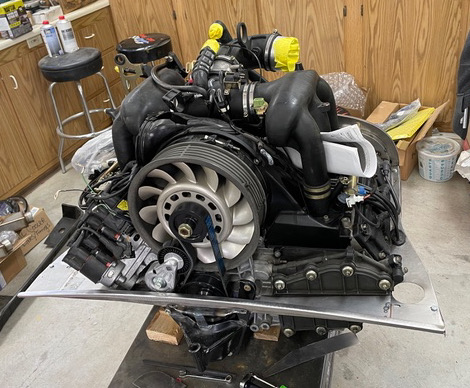

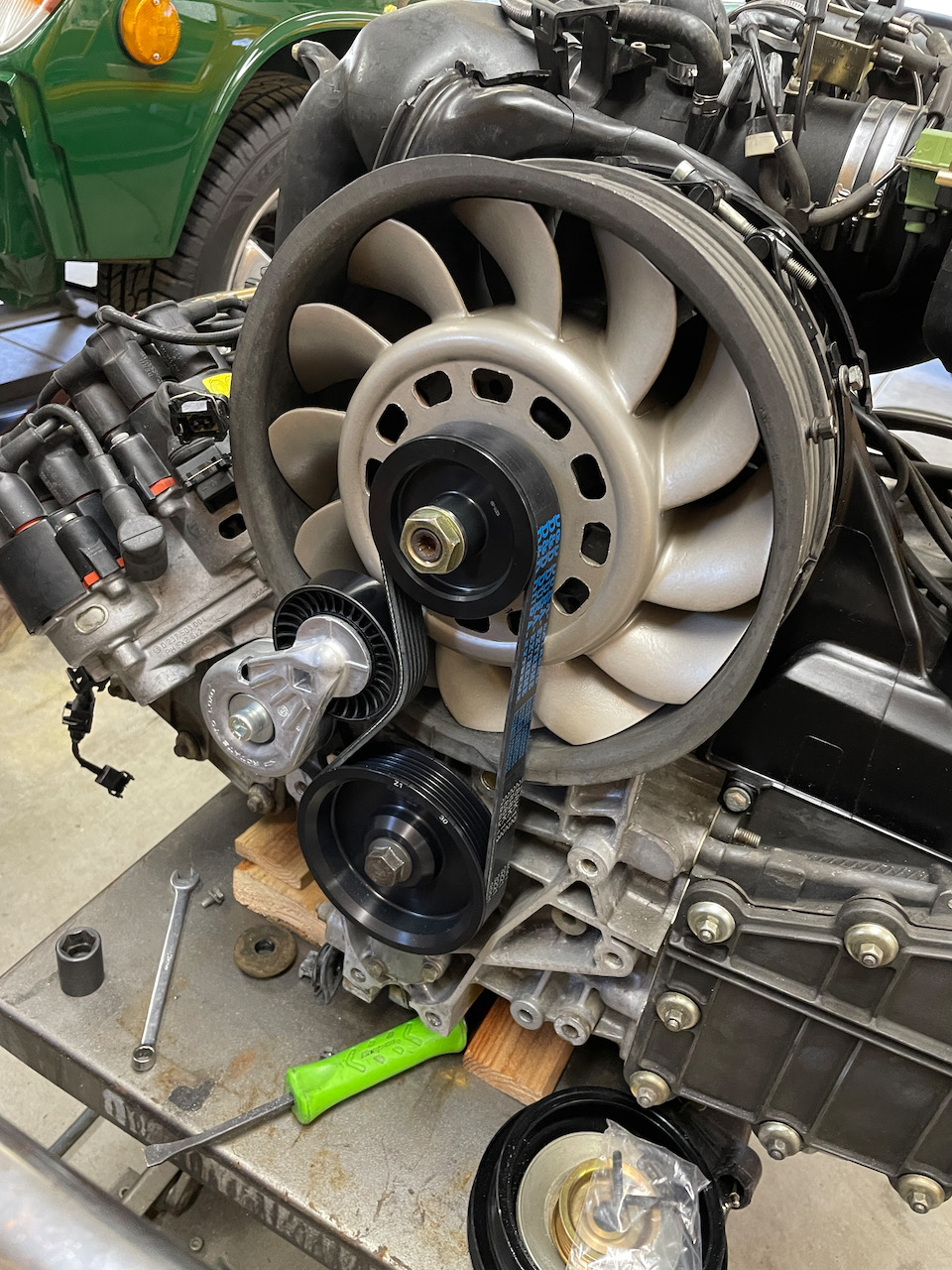

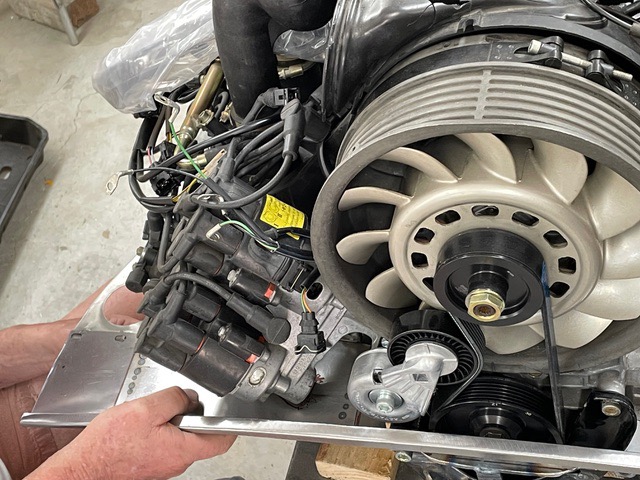

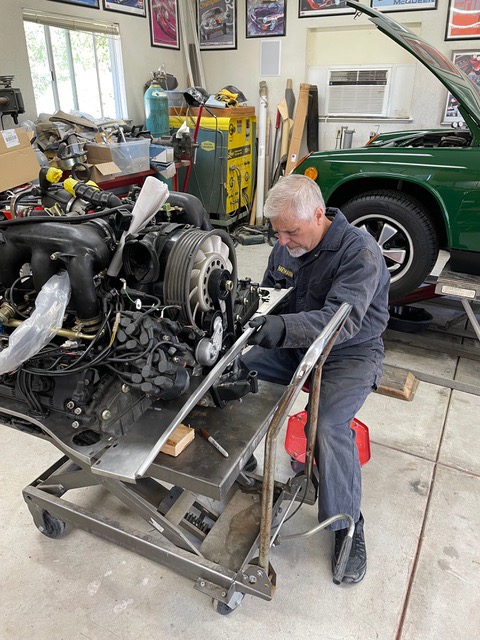

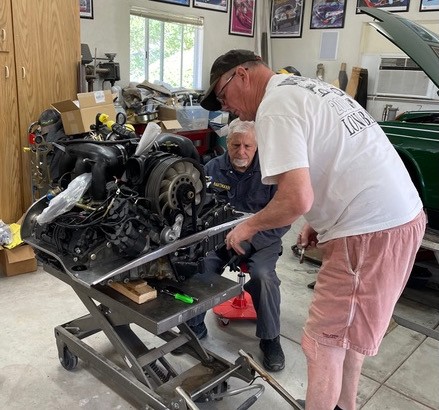

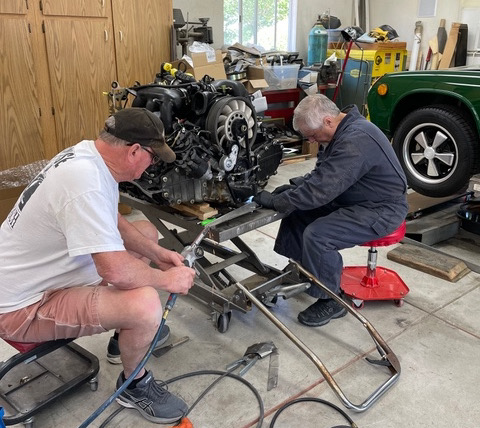

Started on the engine modifications today and had a lot of fun. Greg replaced the badly damaged engine wiring harness with a nice new OEM harness. Then swapped out the stock fan belt setup for the Clewett Serpentine system (damn that's a beautiful piece) it's a shame no one will ever see it once it is in the car. We also moved the fuel pump to the front under the tank- fits quite nicely. Then moved the fuel filter from within the engine compartment to under the engine shelf. One less thing in the engine compartment.

I did a little cleanup on the engine- but it was pretty tidy to begin with. I was very impressed and please to see the top of the engine was spotless when we pulled the alternator/fan assembly out. I blew it put, but only a little dust came out. I was thankful we had no nests or piles of nuts in there!

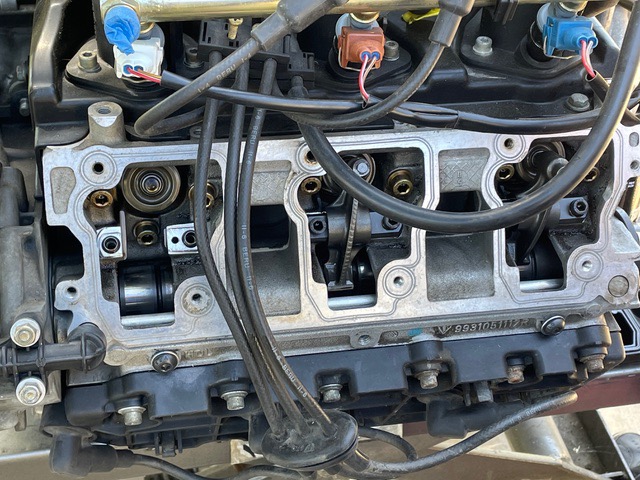

I think the next step is to replace the hydraulic valve lifters, I got a set of OEM ones just because the engine has sat for so long. Then we will get the engine tins done so that can get sent off to powder coat along with the fan shroud and electric fan assemble.

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

That serpentine set up is beautiful. Nice progress!

I'm thinking about doing that conversion on my 930. Are there any details on better grip? I'm installing the electric AC system and have the high output alternator installed. Just wondering if the flat belt is better than the OEM V-belt.

What's your plan on the engine mount? Are you planning on modifying the factory 6 mount or aftermarket source? Did you run into any issues with the serpentine setup with the factory mount ? I've been eye balling that setup for my engine build but I think the mount needs some trimming done to it. As always great job and keep at it.

Thanks Chris and Luke. I checked with James Patrick (PMS) about my stock 6 motor mount and he assured me it would not be a problem. He says they run them with no issues with big motors.

From the way the serpentine kit installs, I do not believe it will creat any issues. But, until we install the motor mount on the engine, during the next work session, I am not sure.

My brother (jokingly) suggested I finish the firewall area in front of the fan with a chrome panel so you could see the reflection of the Serpentine Belt kit. It is a cool set up and that belt with the tensioner should be perfect.

Just my .02, but I think the stock /6 mount is inadequate for a big six. The extra torque makes more twisting on the stock mount. I don't like it. Something like the Rich Johnson mount or the NaroEscape mount spreads the load out farther and on two separate mounts.


The serpentine belt kit is the bomb on a 914-6 conversion. I have one on my 4.0L motor, and it makes changing the belt on the roadside a 10 minute operation rather than 2 hours of trying to fit shims blindly. One word of caution though. Sometimes the alternator won't start charging after startup until you blip the throttle.

Thanks Clay. I will call James and speak with him about the mount again to be sure. The reason I spoke with him about it initially, was I had the same concern about the torque of the motor and the stock 6 mount.

One other thing.

I don't know if the stock six mount will fit with the serpentine pulley. And even if it does, it may not have enough clearance to put a new belt on the pulley without removing the mount.

You should check it before you get it in the car.

Will do.

4 times the torque capability and 1/3 of the rotation friction...

It's why NO ONE uses V belts anymore!

Serps have been around 3 decades. For the last 2 decades it's been nothing but serps...
Even factory superchargers run a wide serpentine. They used to run Gilmer belts (like a timing belt). Serps solved this issue.

Clay's note of having to accelerate the alternator through "thermal cut in" the very first time is usually an indication of rotational speed reduction. The pully system is more "under-drive" than the original stock set up.

This sucks balls for a grocery getter that never exceeds 2500 rpm.

For a sports car that might see 7500 RPM it is "THE WAY" and should be applied.
You have to rev it up a bit on startup...

Thats what the loud pedal is for anyway!

I'm betting Clay's big six on startup is a symphony for a car guy!

Not so much for his neighbors...

Not to hijack the thread, but the conversation around V-belt and the Serpentine belt is interesting.

There was a really good write-up (can't find it of course) on the VW Bug cooling limits. Folks thought the fan and tin were limited when it was actually the V-belt. Testing showed it started to slip around 4500rpm and would only turn the fan so fast. A change to a serpentine belt greatly increased the 4000+ rpm cooling.

Would imagine the 911 would be similar?

Found it:

http://www.offroadvw.net/tech/wes/fan.html

Thanks!

That link was interesting...

We experienced cavitation on an RX3 ITA car in the cooling system.

The rotary engine had hardened pined stationary gears and could run up to 11K.

The water pump could NOT!

Massive underdrive solved the high RPM issues but slow RPM use would overheat the car after the change.

It's always a tradeoff...

Nice to know running a gaseous fan faster doesn't do the same thing.

When leaving the house for an early morning event, I usually push the car to the street before lighting it off. And I idle my way out of the neighborhood. I may like the sound, but supertrapps at 6 am are an "acquired taste".

I have GOT to hear those!

I hate to be the bearer of bad news, but the headers and supertrapps are going the way of the dodo with the flat fan installation. I am going to 993 heat exchangers and a custom exhaust that will exit in the stock location. (yes, I want HEAT in the car!) I never liked the supertrapps. They were just a quick and dirty way to get the car running for Okteenerfest.

Heat is a good thing. Specifically in the early morning heading back from the RRC. Approaching the Johnson Eisenhower tunnels and it's cold enough to start snowing. Cold and scary with worn out 255/50 rear rubber

Spent the day getting oil lines sorted; still a little more to do on that but we should wrap up the lines on Friday.

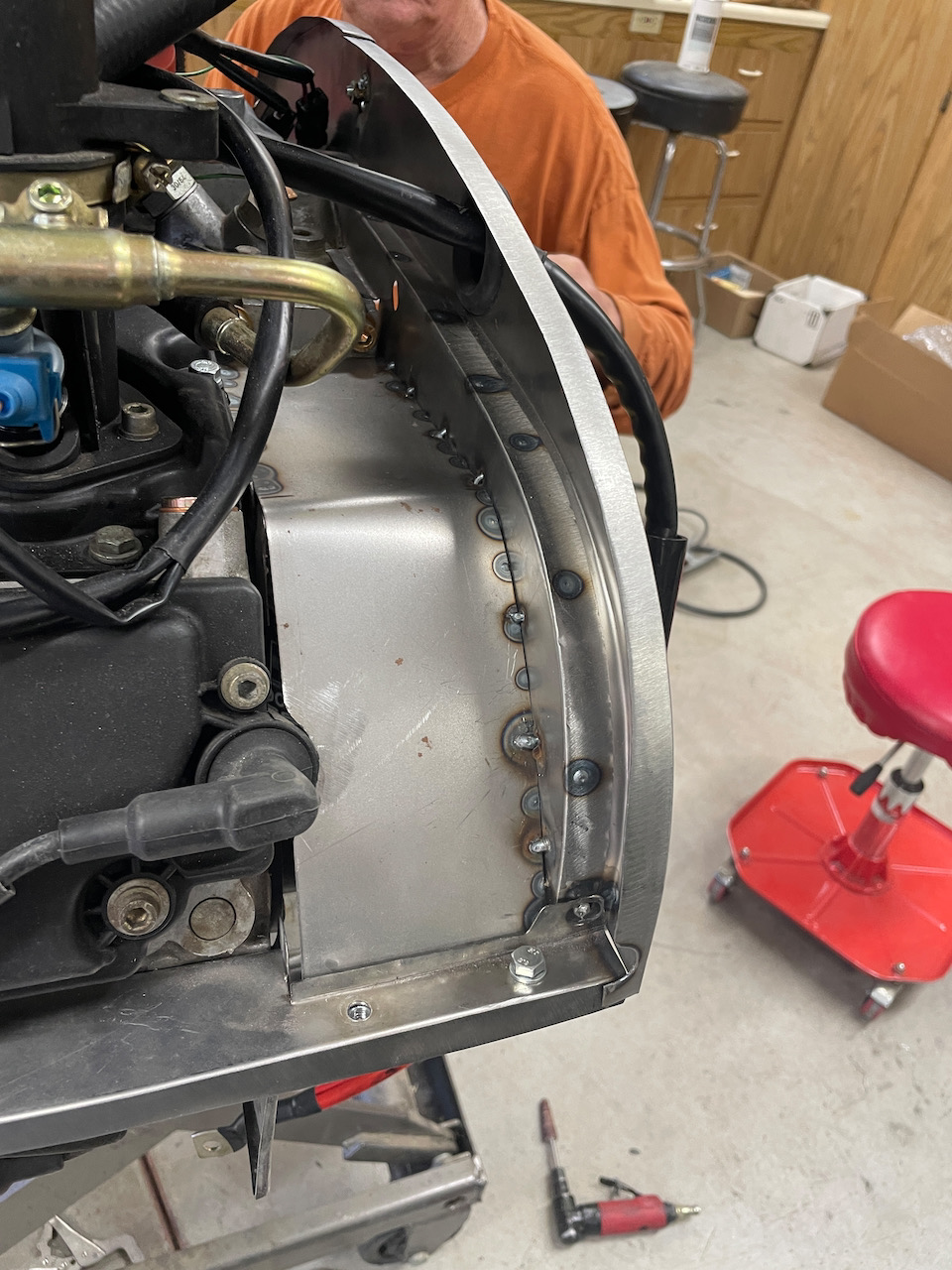

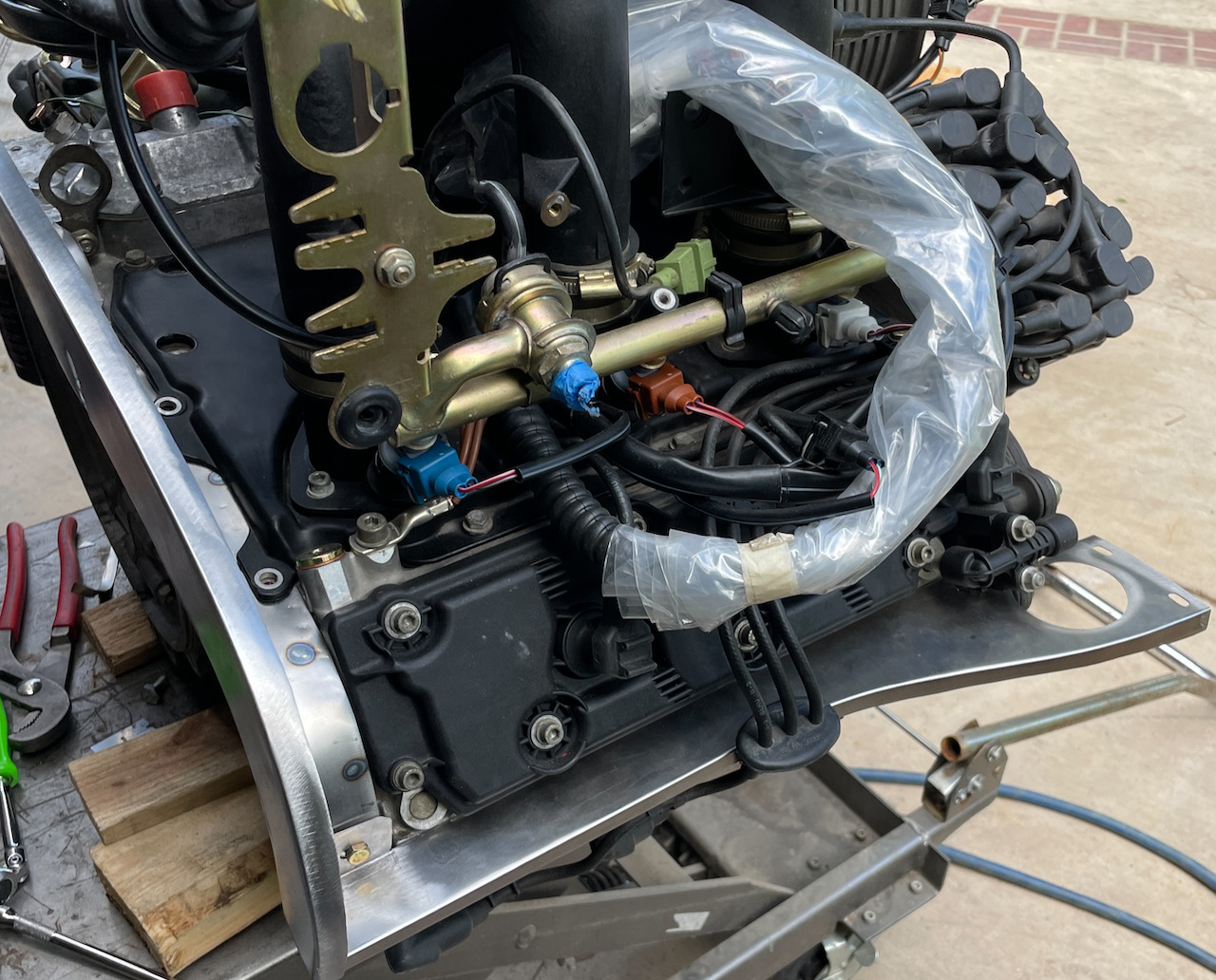

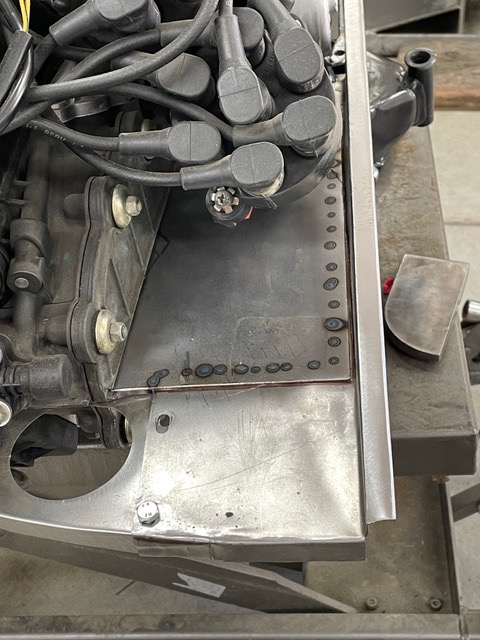

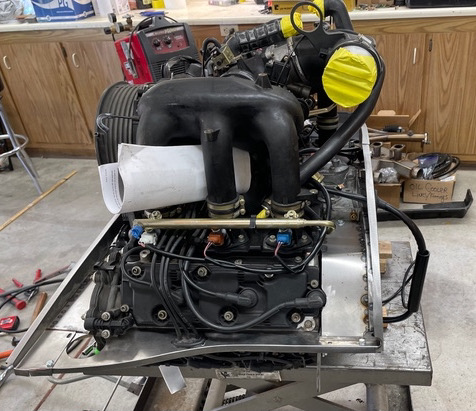

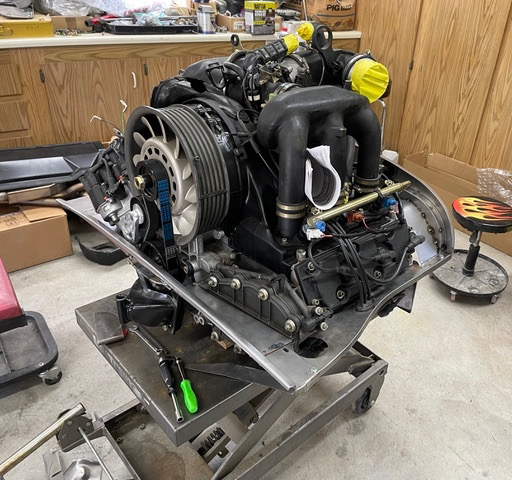

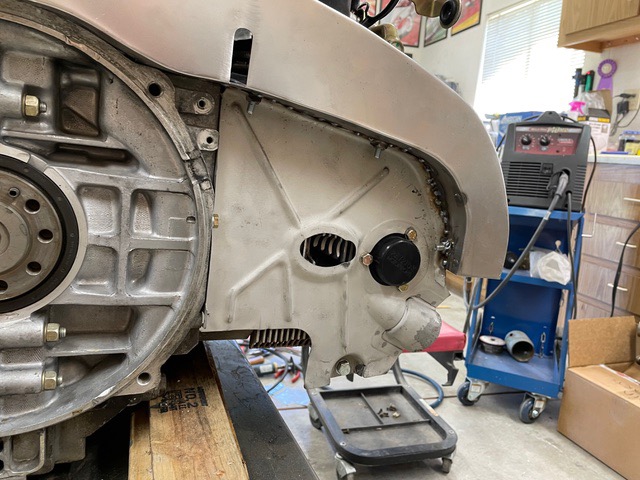

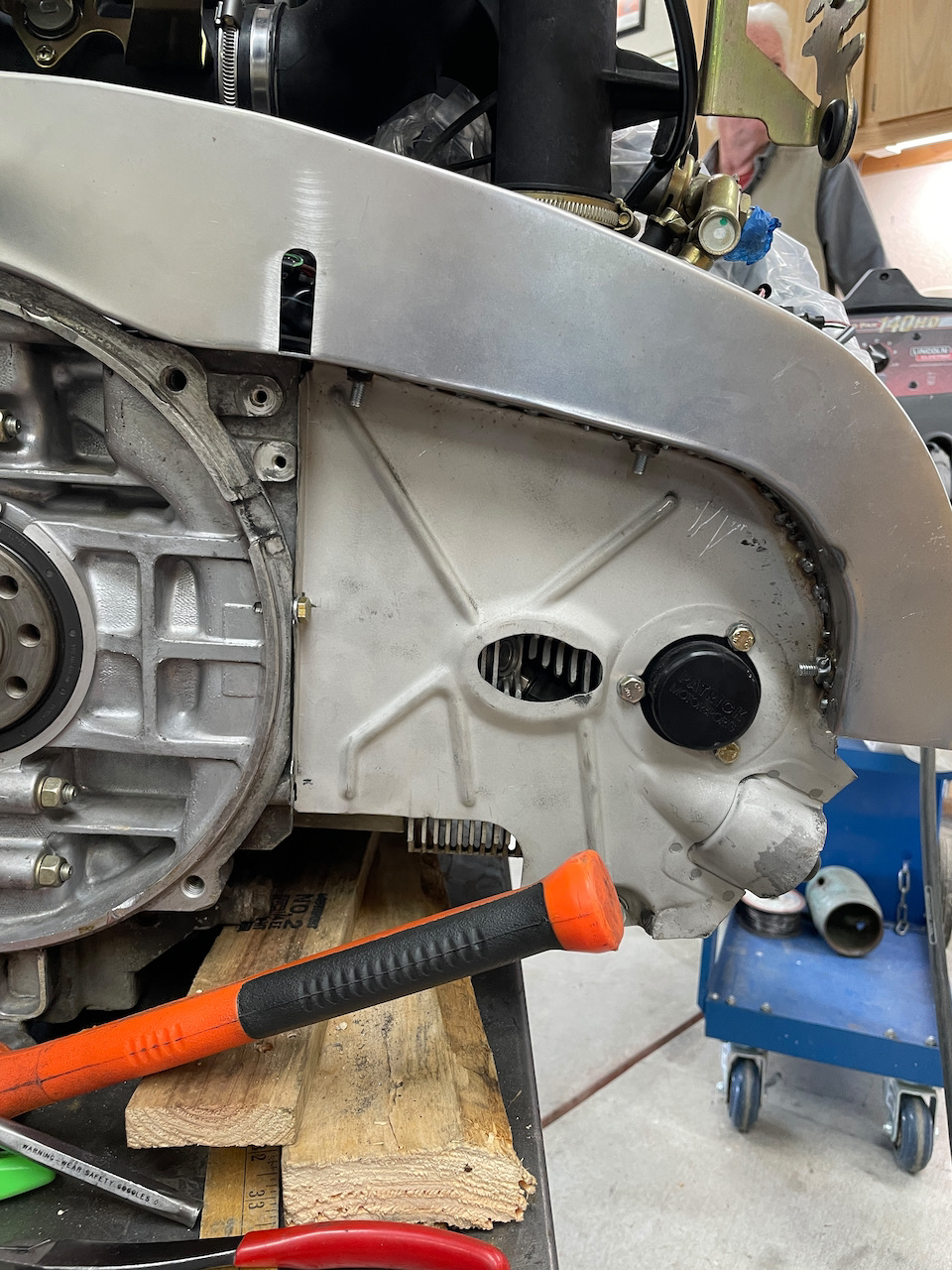

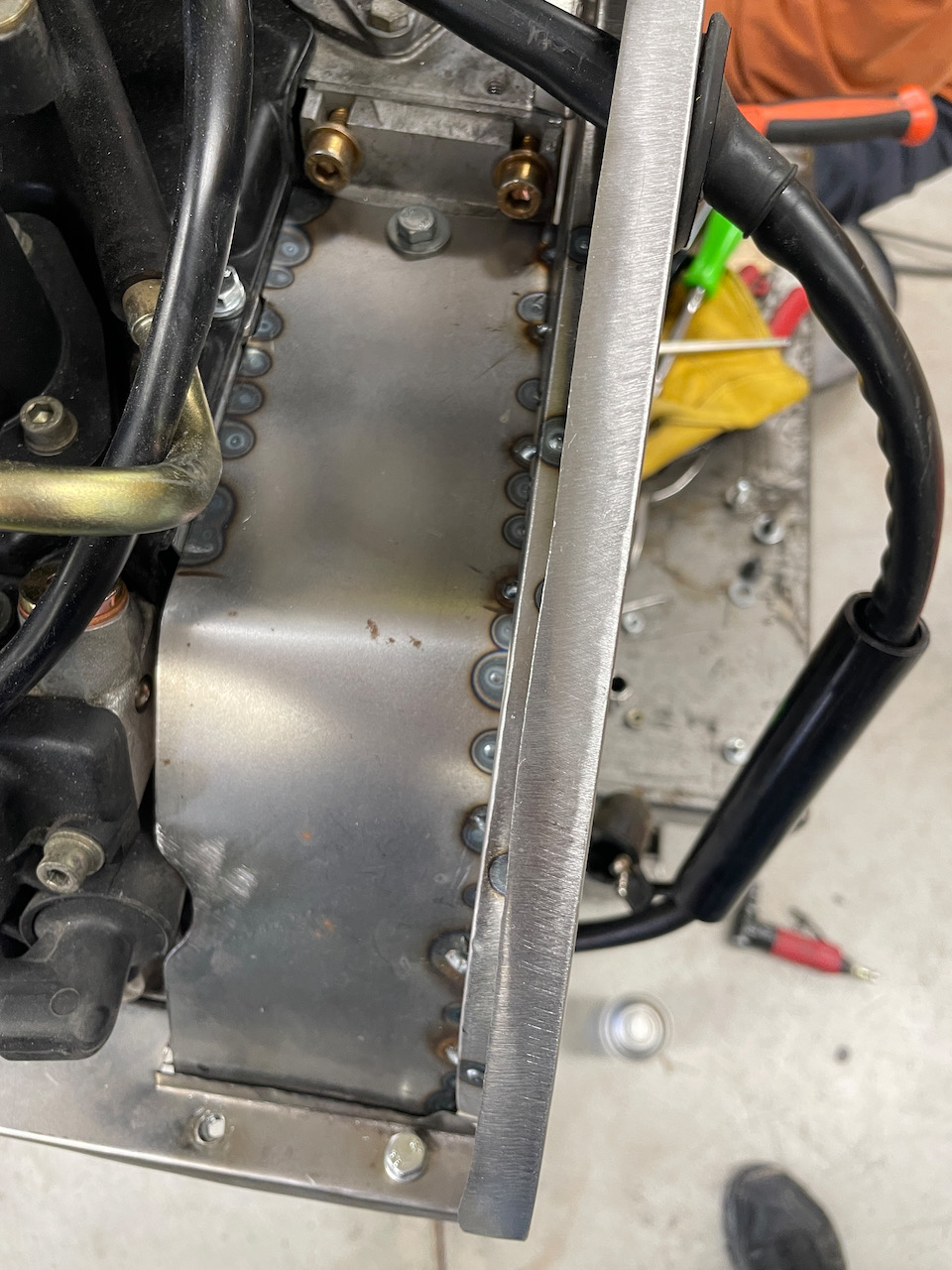

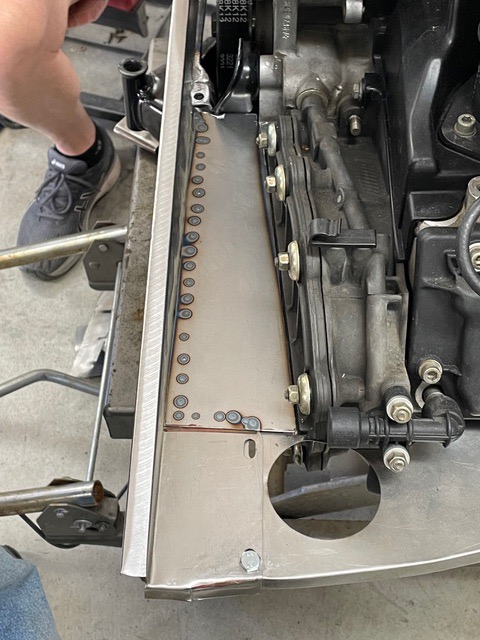

Then Greg ( ) tackled the engine tins using Ben's tins- beautiful pieces BTW ( @MB911 ). Got both sides and the rear fitted. We still need to add the holes from the 993 tin for the plug wires to the new tins and do some final fitting. Friday we should get the last piece (front of the engine) done. Then the stuff I have for powder coat can all get sent off.

Click to view attachment

Click to view attachment

Looks great! This is bringing back memories from when I did mine 18 years ago….time flies!

Awesome job! Looks great!!

I case you haven't seen this yet:
http://www.914world.com/bbs2/index.php?s=&...st&p=904651

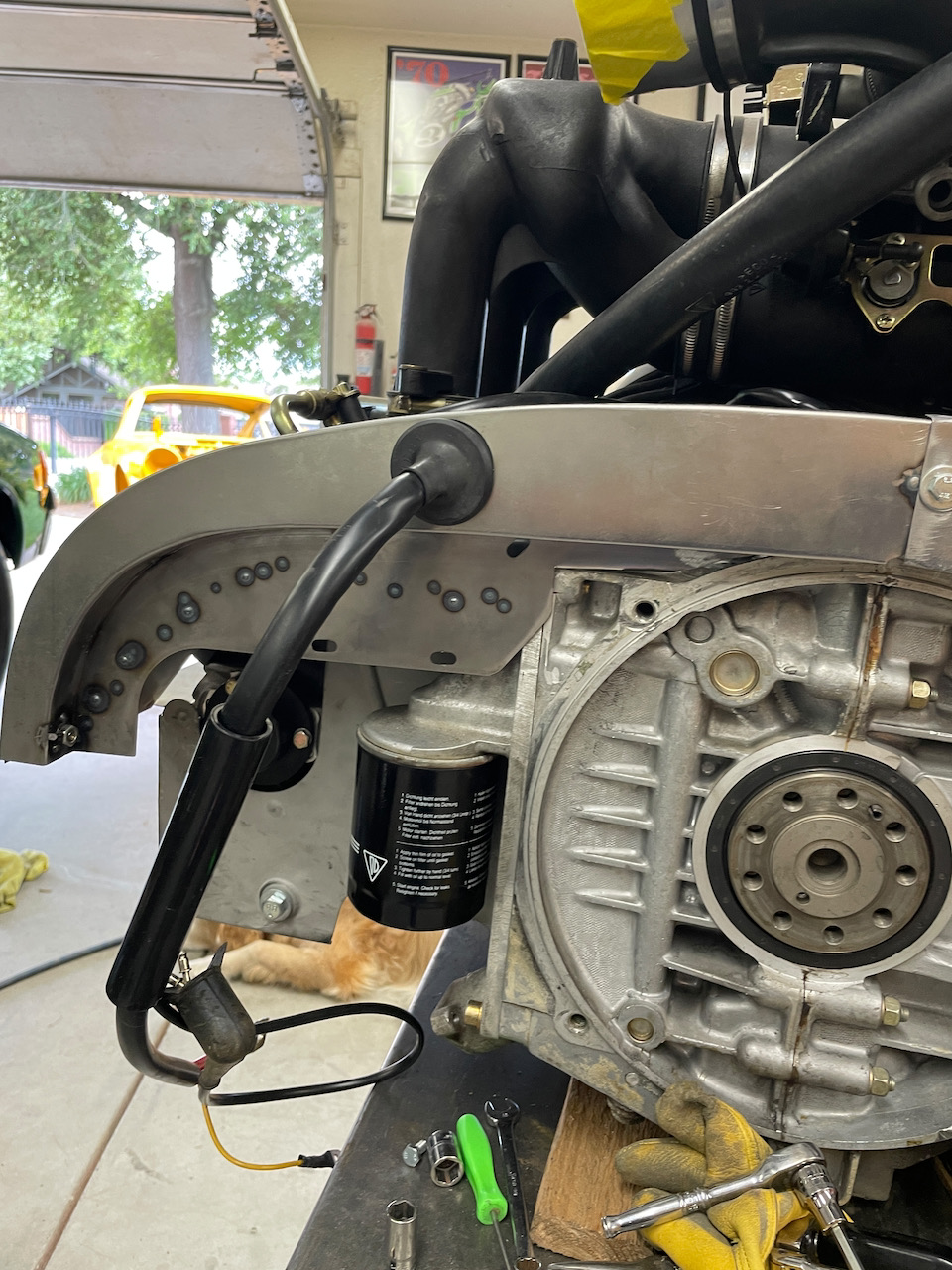

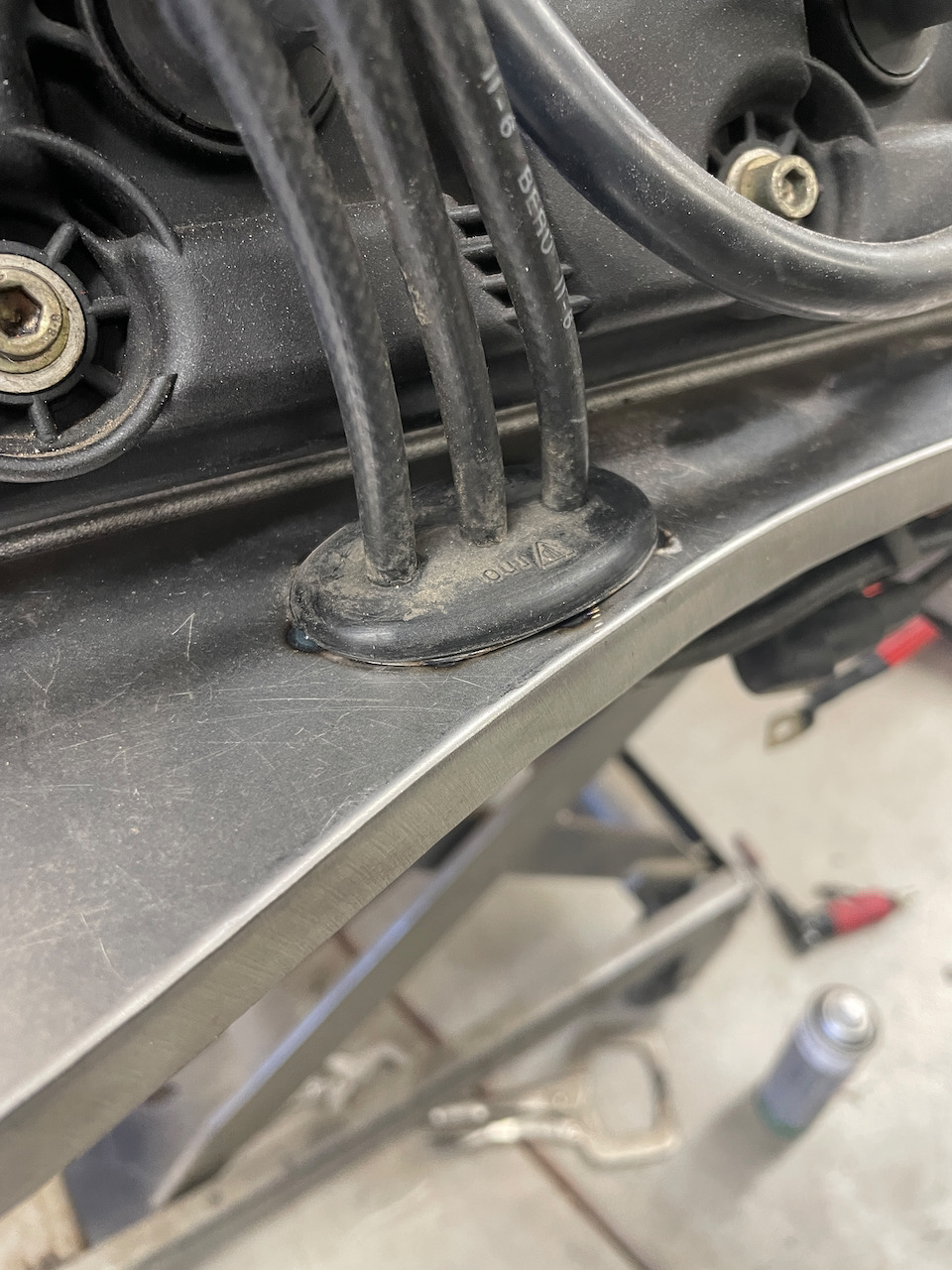

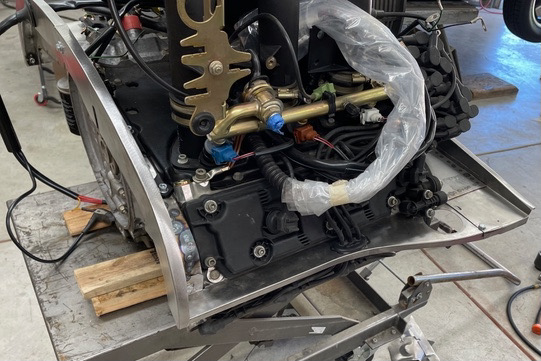

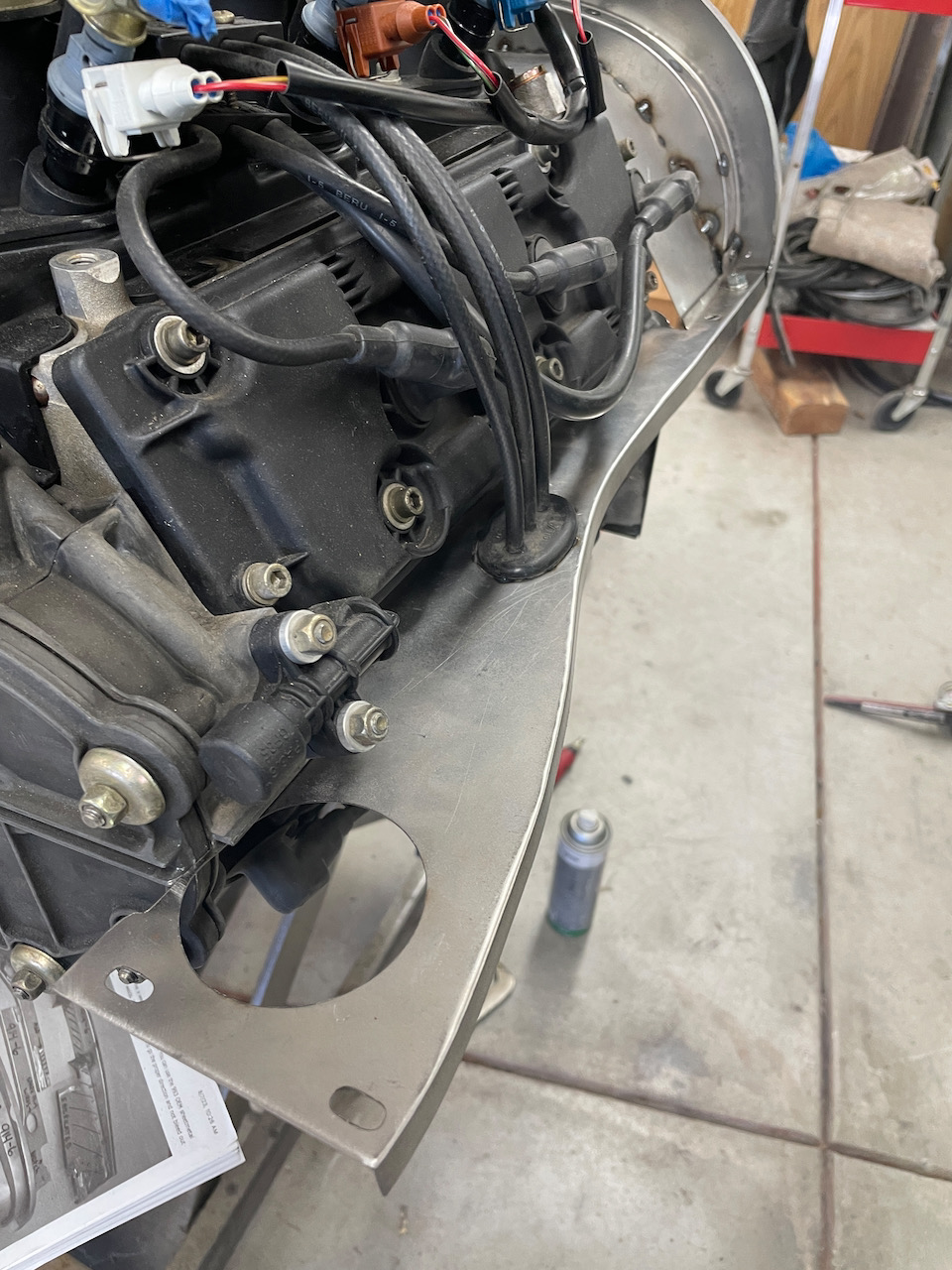

I used the stock 993 grommet holes for the plug wires and the sensor wires and just riveted them into the sheet-metal.

It looks a bit rough in the pictures but turned out nice once it was powder-coated.

Hi Andy - Yes sir; saw how you did your tins and we will do the same for the spark plug wires. Thanks for the link.

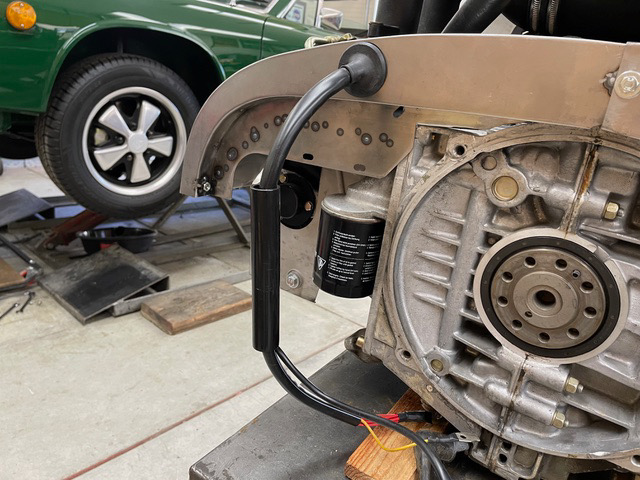

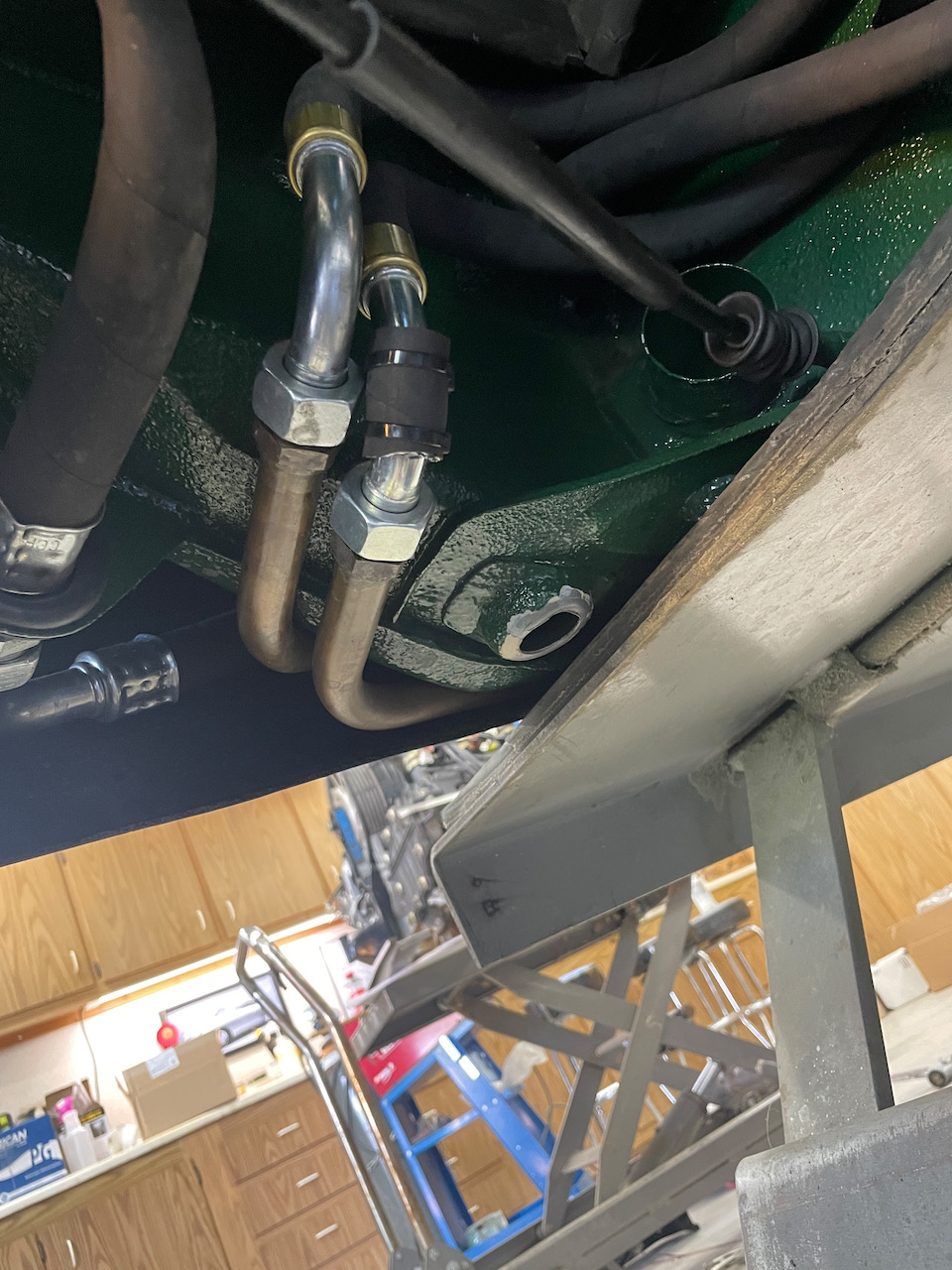

Spent some more time yesterday and finished up as much of the oil lines as possible without the motor in place. Then Greg got the rear and side engine tins wrapped up. Today we will finish the front engine tin so I can get everything to the powder coater.

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Looking REEEEEEEEALY good, Michael!
(That Greg guy does OK work... )

Thanks Chris; yes, Greg is very talented, does beautiful work and tolerates my "assistance". Click to view attachment. He wrapped up the engine tins yesterday and they go to powder coat Monday along with a couple other parts. I have to say, the tins came out beautiful-thank you very much Greg. I can't wait to see them after powder coating. Here is a picture of where we mounted the oil cooler thermostat using an existing mounting point from the brake proportioning valve.

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

How did the factory 6 engine mount workout with the 3.6 and new belt setup?

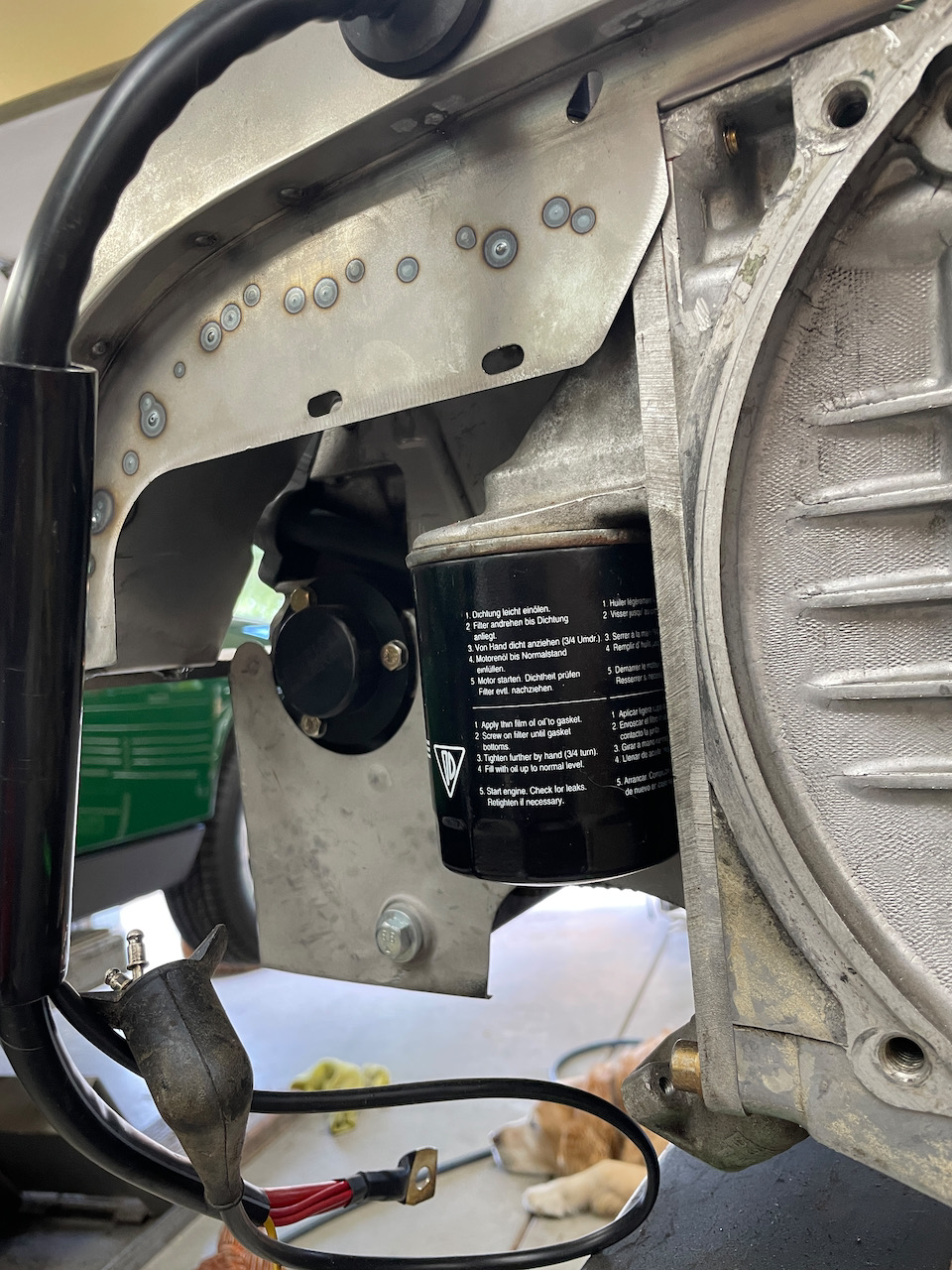

@Luke M - Hi Luke- We had to modify the factory 6 mount, (engine side) a little bit. The relief cut was to remove a bit of material where it bulges out so the pulley/belt would clear. We then added in material to tie it all back together and be strong again. In reality, bolting it in place keeps it together, but we wanted to be sure it was solid. Other then that, if fits perfectly with the Clewett serpentine belt system.

Yesterday, after considering the brake setup I had, we swapped out the 23MM master cylinder for a 19mm ATE. The 23 was good but gave me a very high, hard pedal. Replaced it and bled/flushed the system and the pedal is great now. The 23mm is really ideal for a 4-piston caliper setup- I have 914-6 GT rear calipers and '88 Carrera front calipers with 24mm rotors. I am looking forward to driving and seeing how they work now.

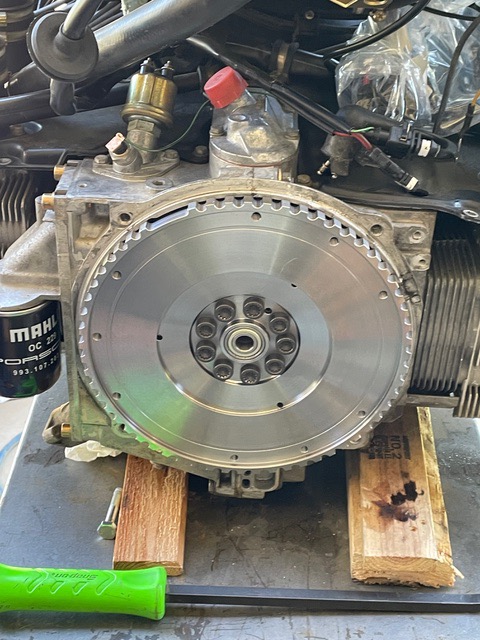

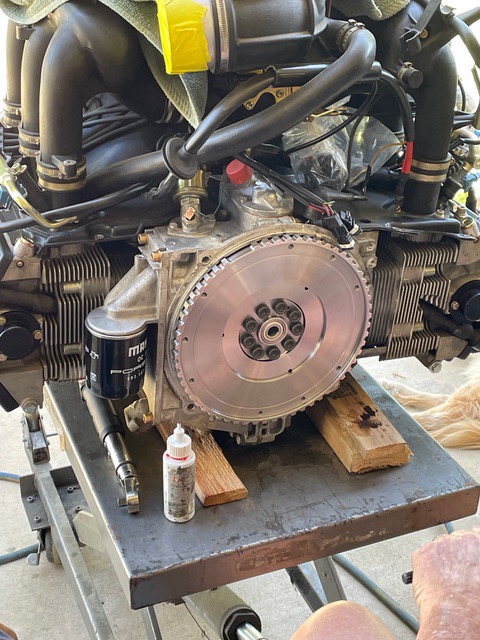

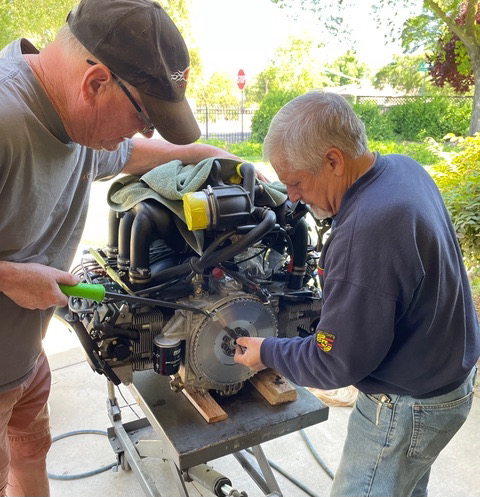

We got the engine tins back from powder coat and they came out beautiful. We installed the flywheel and clutch package. Then we replaced the hydraulic valve lifters. I just wanted to be sure we would not have any issues with lifters. The stock lifters, after sitting in the engine since '97 without running, upon inspection showed the rubber O-ring had hardened. The new ones are an improved design with a sort of teflon ring. They went right in; we installed new valve cover gaskets and hardware and that is done.

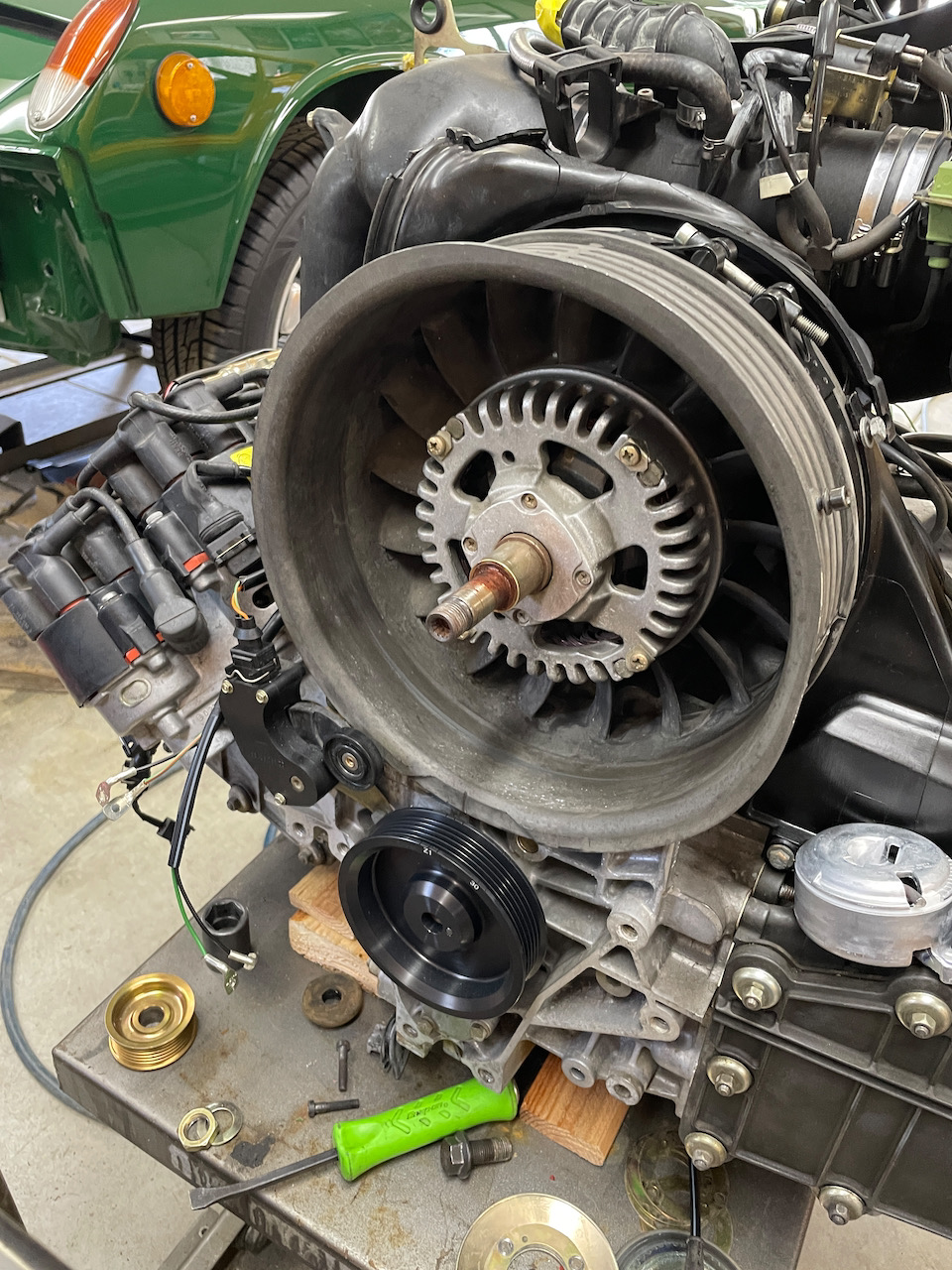

We also stripped the rubber boot off the 3.6 fan shroud part to add the "Mickey Mouse" ears that PMS offers so we will still have heat. I have to say, stripping the rubber off that part was a pain. Now I need to send the "ears" off to powder coat so it matches the tins.

OH, and for those "Porsche tax" followers, I was missing the small rubber "gasket" which fits into a slot on the outside of the cam chain box covers- straight piece of rubber with a channel that accepts the engine tin where it sits against the chain box cover. In Post 192, the last picture, shows the chain box cover with the engine tin slipped into the slot on the cover where the rubber gasket belongs. It actually looks like a wiper blade refill with a grove. I thought surely it would only be $10..... well $132 later I have those 2 small pieces of rubber coming from Porsche. That was with my PCA, AARP, AAA, Old Dude, and good customer discount.... man, Porsche, really?

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

You may have cleared the pulley, but did you leave enough room to get the belt past the front edge of the pulley?

Have you tried to put a new belt on the motor with the front mount bolted to it? Remember, on the side of the road, you will be doing this way down in a hole on the front of the motor. Yes, it is easier than changing the pulley shims, but I would suggest checking now to insure the clearance is there.

Mine is really tight between the pulley and the motor mount.

BTDT.....

Thanks Clay; I will check that out tomorrow.

OK, we got another day in and are moving along nicely with this swap. I really look forward to my days working (watching mostly) with Greg. Nothing seems to unsettle him when we face a challenge.

First, @ClayPerrine Clay is correct; the Serpentine belt likely will not slip in and out with the front motor mount in place. That would be a flatbed ride home should that belt fail. I do not see this thing failing- it is quite stout, but that is the way it goes. We could cut more off the front motor mount to provide extra clearance, but we looked at it and decided not to do that. The motor mount is now installed.

We also swapped out the outer CV/axle bolts as they were a mismatch of 6 and 12 point. One was really badly buggered up and it took some ingenuity to get it out. We tried a bolt extractor kit as the inside of the 6-point allen was stripped pretty badly. As we worked through several possible remedies and came up scratch, our good friend HB, (owns 2 914's and Greg will be assembling a 3.2 SS motor for one of them) said wrap some aluminum foil around the 6 point allen and hammer it into the allen bolt. Greg looked at him, went and got some aluminum foil and that made the difference- that sucker came right out. Kudos to HB . Now they are all the same and properly torqued.

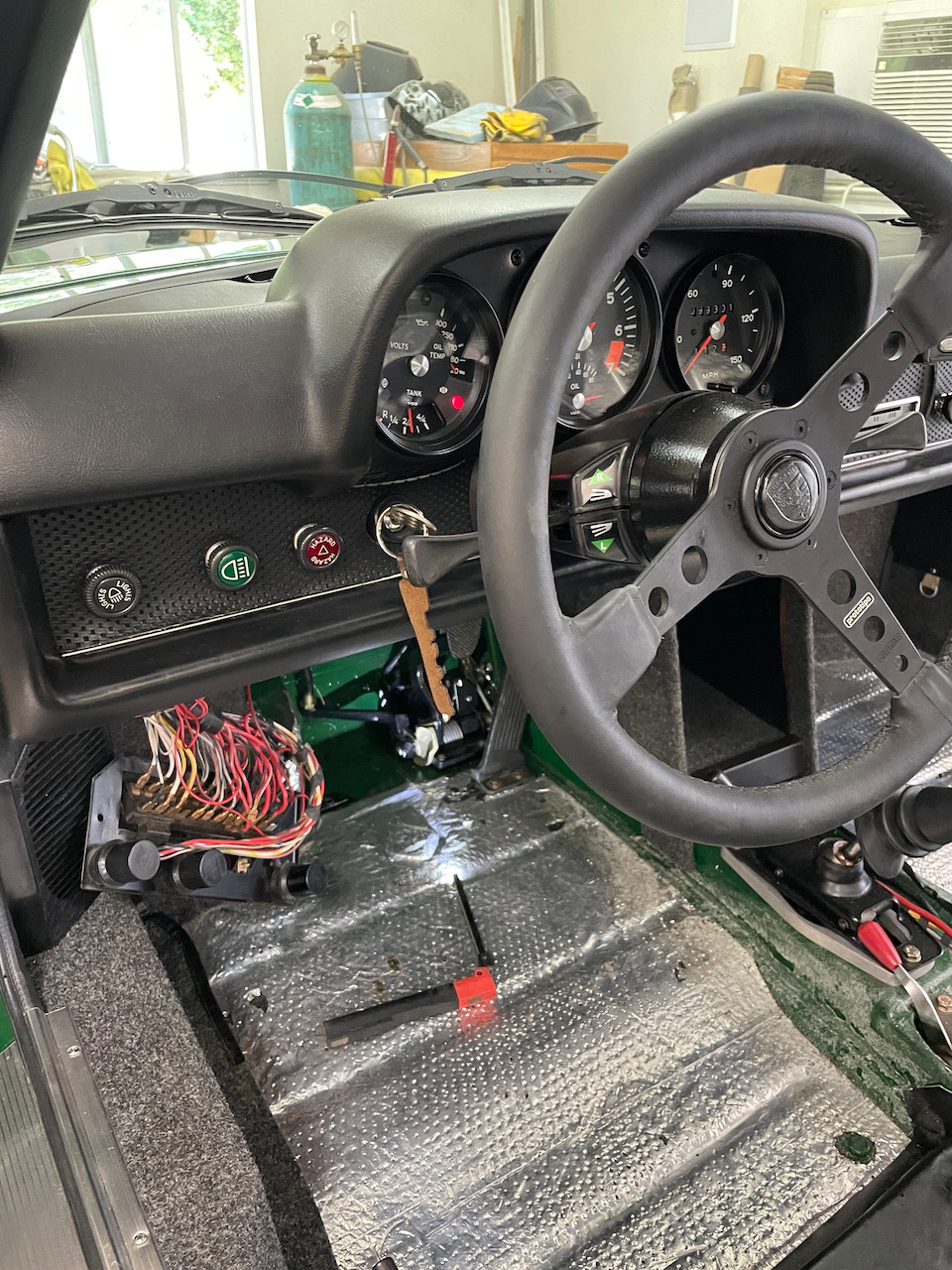

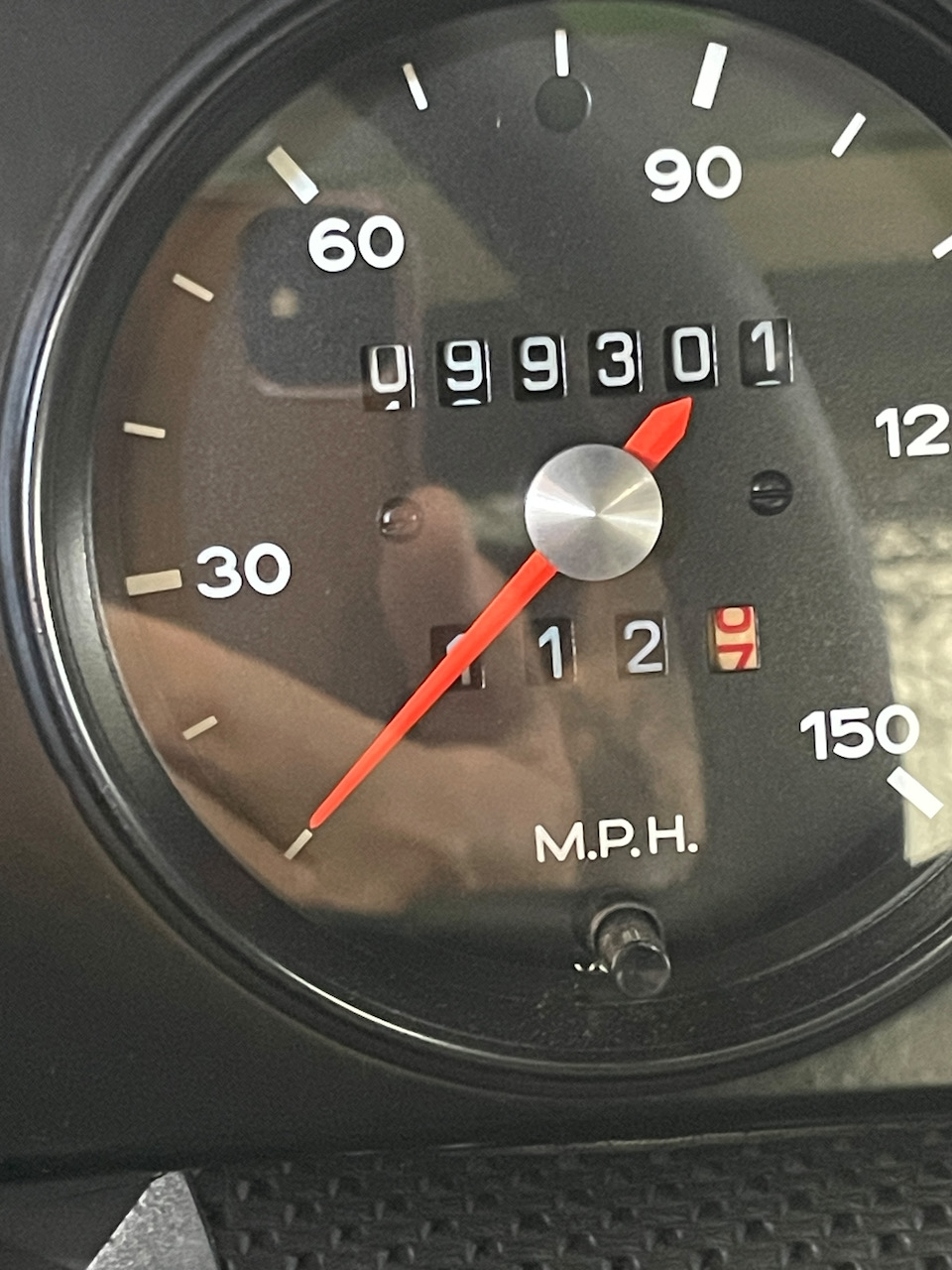

We put juice to the system to trace some wires and I noticed my odometer was at 99301. Those are the original miles on my car and I made sure the new speedometer, (with the extra digit) carried over my existing mileage when we swapped in the 3.2. I thought that was cool as we are putting in a 993 motor.

We installed the new fuel filter under the engine shelf on the passenger side- it tucks up there nicely and gets it out of the engine compartment. We plumbed the fuel lines and wired up the fuel pump. The fuel lines, pump, etc., all work and fit nicely compared to what the fuel lines looked like with the 3.2. Why on earth would anyone piece together several small pieces of fuel line to supply the engine? That mess is out and now we have new lines and proper clamps. The wiring for the fuel pump is next-level greatness. Greg seems to enjoy wiring and making it appear factory correct.

I am hoping to be back at Greg's on Tuesday to keep progress moving along.

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

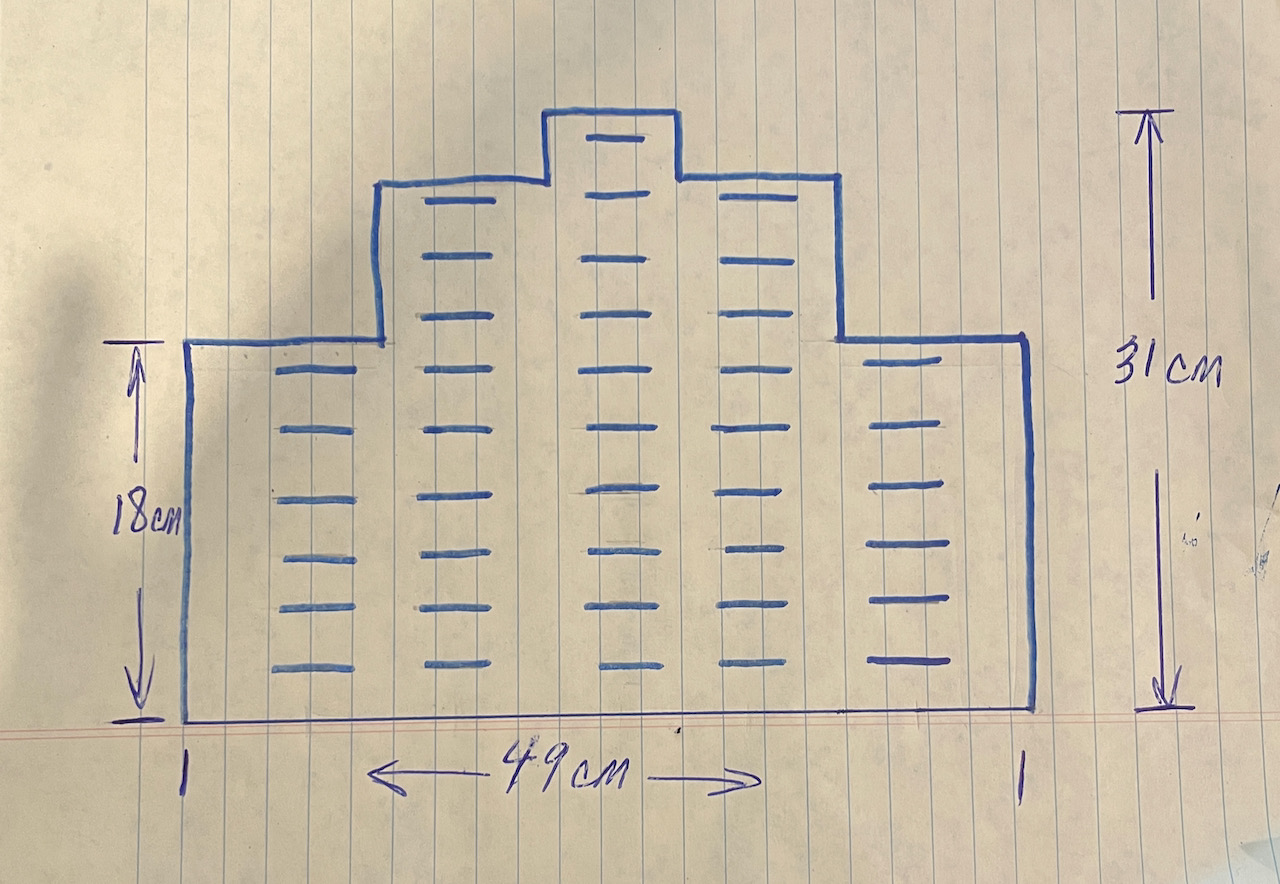

For those wondering, here are the dimensions of my front trunk louvers:

@seanpaulmc :

Click to view attachment

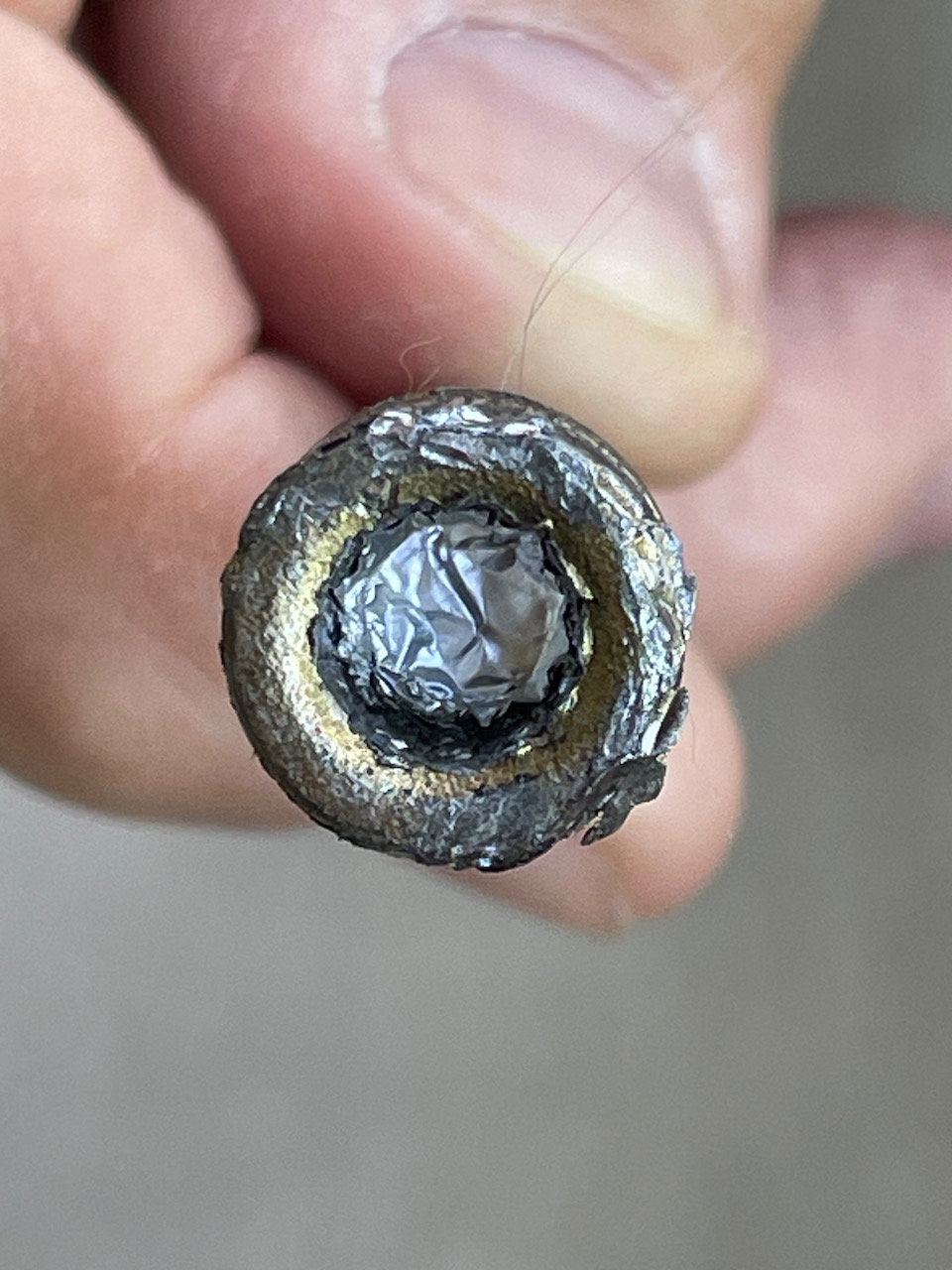

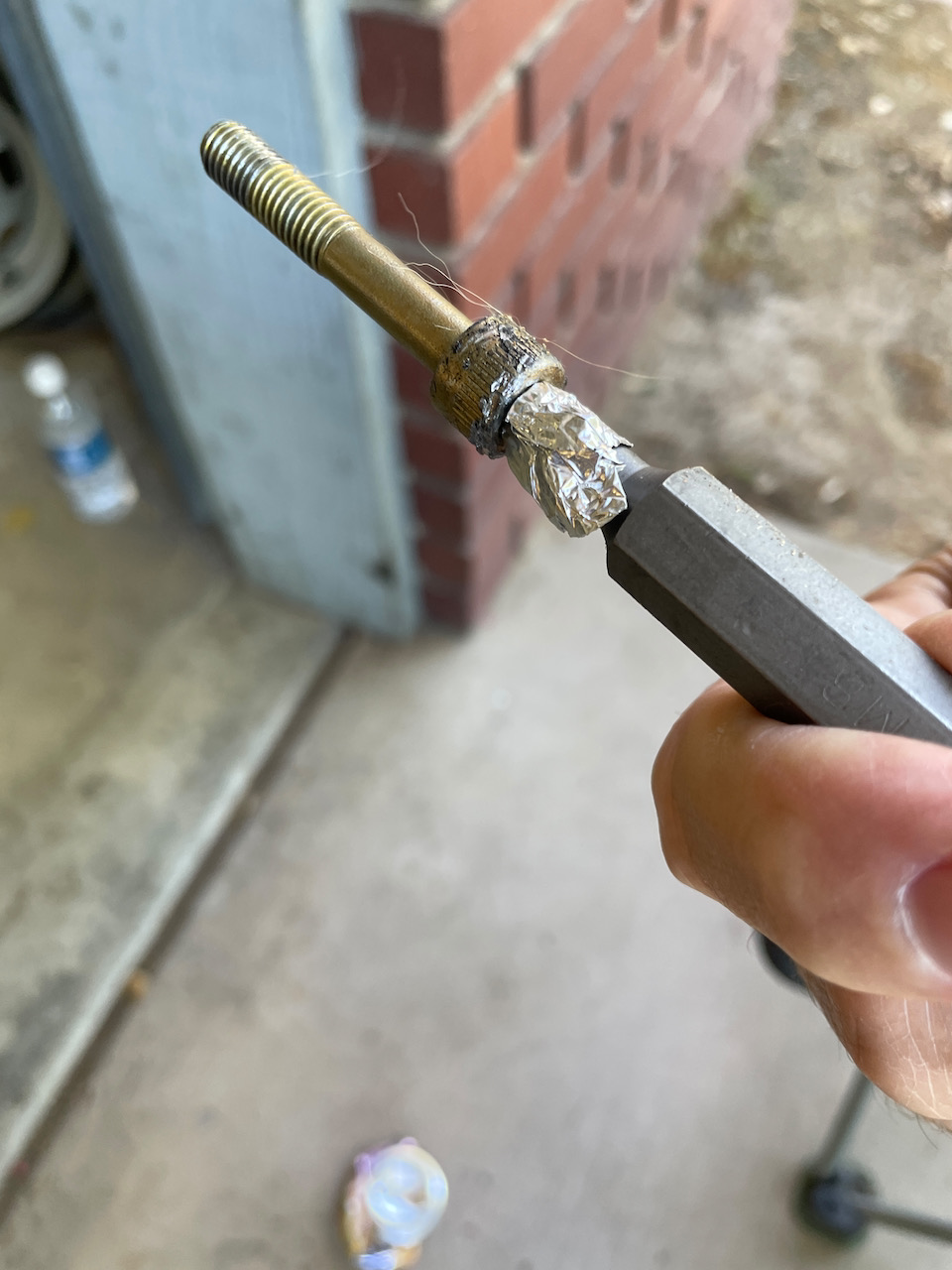

I've used the foil trick on 12pt bolts before. Can't remember where I learned about it, but it really does help.

Project is coming along nicely! Really goes to show the different levels on swap complexity and time. This thread got me thinking about the challenge level for each six configuration:

Early card'd - Not bad, not much modifying beyond a stock six
Early MFI - About the same as carbs, but little extra work for fuel plumbing
CIS - Moderate to get the CIS to fit and look good, rotate 180, move the engine latch, fuel "center" mounted etc
Early DME - Haven't done one of these yet, but know it's a bit more involved, ECU, wiring etc.
964 - This thread!

Going to Greg's tomorrow, Monday, to continue work. I really wish I could be there for a week straight....he would probably throw me out... It's a lot of work putting up with me.
