in the morning i will check the power at the pump, then if there is not, i will go back to relay board.
When i started to get car ready for paint, it was running good but i noticed that the pump was becoming more noisy, so maybe a year of sitting did it in. i am hoping it is that easy. Tomorrow could be a long day!
#1. figure out fuel pump
#2. trouble shoot right rear tail light, left front euro conversion driving light is not working, but lights pop up all other lights seem to work.

its hard to tell what could be the issue when there are so many things i worked on- new alternator and harness, all new fuel lines, fuel filter etc but i didnt change out the pump, or relay board, and the dash and fuse box is exactly how it was before.

i have not yet wired the aux oil cooler fan, and it can wait.
a few more pics from work today

sail panel trim in!

hm spent all day working on the sail panel trim installation and redoing the right sail vinyl, shiuld havw been doing the fuel pump . might not run but it looks good!

ok so i need a hand- i have no power to the fuel pump, but lights work, car cranks wirh new battery- i switched out relays, didnt help,
so i am going to try a different relay board- does the power go to pump from the 14 pin socket? - guys my electrical understanding is very basic i am not going to read a-schematic but if i see a picture of which pin is which i can trouble shoot- i looked and the step by step by jeff Bowlsby but thst is worthless. with out a diagram of which pin is what bla bla like a code with out a cypher

Looks sooooooooooooooooooooooooo Good! Hopefully you can get the fuel pump sorted quickly!

I don't have a '75 schematic, but on a '73, it looks like power comes in at pin 14 to the relay board, then through the 25A fuse, then to pin 30 on the pump relay. Covering simple things, did you check the fuse? That is the circuit to power the pump. It looks like jumping between pin 13 and 14 should send power directly to your pump, bypassing the relay.

To energize the pump relay, it looks like the power supply relay also has to be energized so both relays need to be in place and working. It looks like that relay is getting power on the black wire on pin 8 of the 14-pin connector and grounding through pin 10.

Both of those relays require a ground through the ECU so that could be another demon to chase.

i tried a different relay board and still no power to the pump-

no one other strange thing - there is a black wire up above that is just haning there, and it is hot, has 12v constant with and with out key turned i have no idea what its for , it is out of the harness by where the antenna wire comes thru and the main harness- again its hot weird,

i could use it as a powet source for my fuel pump

all thats great but i dont have a picture of where the. “14” pin is etc so i am not able to do thst with out a picture showing me which one is which
I think if i find thst i can get that figured out maybe

I say get some power to the pump and make sure it runs!

Bottom line is that with all of the work done you could have broken a wire anywhere along the harness.

Worse comes to worse after confirming the pump and car runs, you can just run a temporary wire from a switched power point on the fuse block as a short term fix.

Lookin' good, Phil! Have you bypassed the seat belt interlock relay under the passenger seat? Might be worth a try.

Also, is that your E39 in the background? I have an '03 530i 5-speed with 107K on it. Love that car!

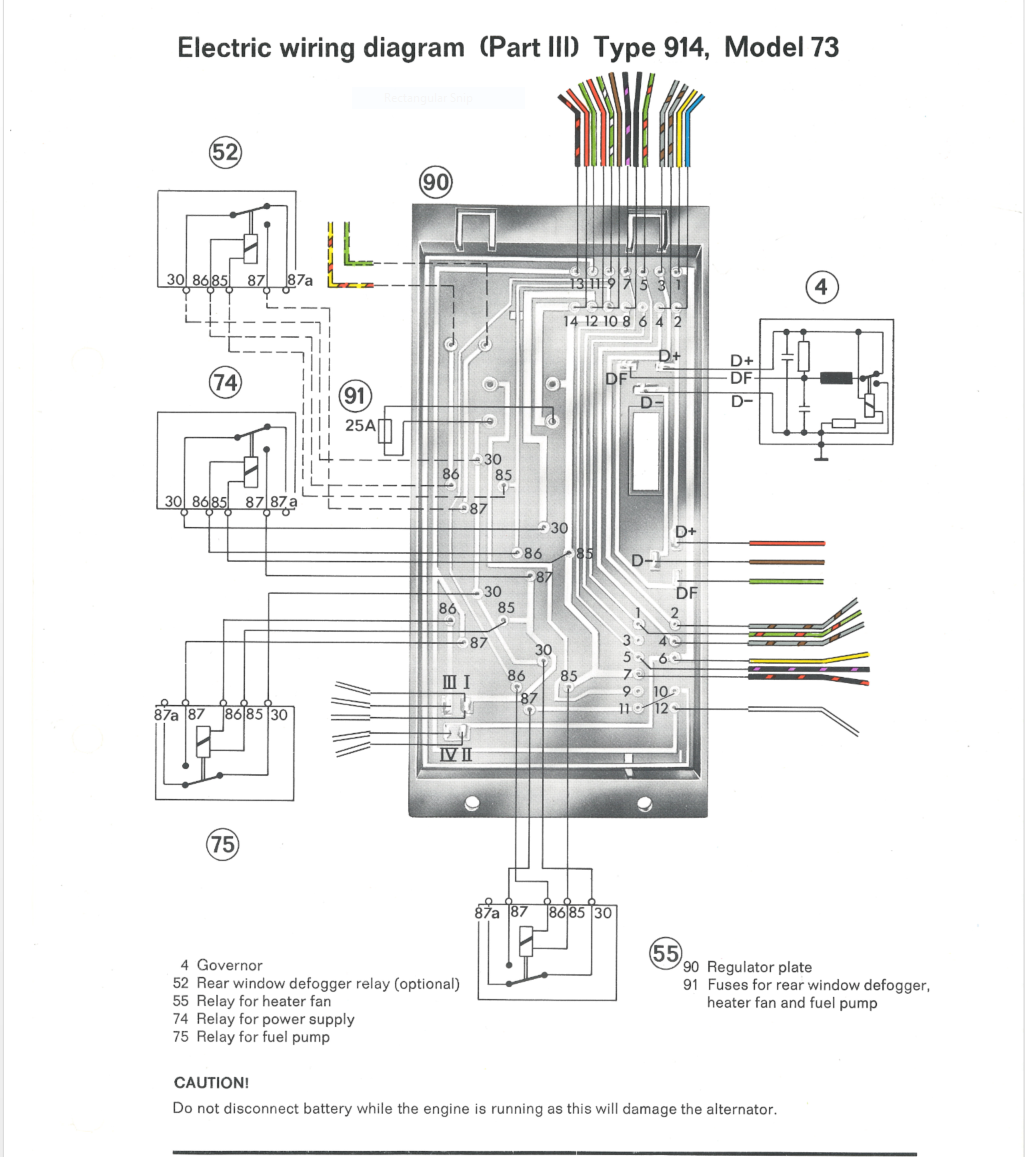

Again, all I have is the '73 schematic. but here's a pic of where the relay board stuff goes. Agree with just getting power to the pump to make sure it runs, either jumping 13 and 14 at the board, or using that mystery wire. Also a good point about safety features on late models that I know nothing about.

Click to view attachment

Yes the BMW is a 528i- 2000, with 280k miles!! awesome car , gave it to my daughter, with new throttle body and accel cable, new fuel pump it runs like a new car, one of the best cars i have ever owned-

so i can recheck under the passenger seat, i didnt mess wirh it , it had been bypassed before the body and paint work- so maybe that is where the issue is.
i will go out and get a picture of the wiring under there-

does this look right, should the brown wire shown here with a white stripe be loose?

Should look like the pic in Post #10 here.

I’d like to give the 5er to my daughter when she’s old enough to drive but she said she doesn’t want a manual. Crazy!

ok , spent a couple hours going thru the whole FI fuel pump trouble shooting guide from
Jeff Bowlsby, which checked out all connections to fi harness battery switched and unswitched etc,
lead us back to the pump- once we verified there wasnt continuity at the ground we connected a wire to a different place on body to give a different ground, i got the V to test for 1.5 sec, and pump primed- but i will not have time to fix that right tomorrow, and with the storm possibly coming this way not sure i will leave here tomorrow- if i do it will most likely be with out the 914.

update: she’s alive!! no time to shake out bugs but she is on the trailer and i am leaving in 10 minutes!!! 6 hour drive- see you tonight!

Way to Go Phil!!! Hopefully all will be good. enjoy your weekend!

!!!!

I was really bummed when I read you might not be taking the 914 after the heroic effort. You deserve an award for this!

thank you for the help it was an interesting learning experience working through all the contacts and all the instructions on troubleshooting from Jeff Bolsbys site in the end most obvious thing most simple thing what it ended up being which was the ground of the pump itself which I should’ve checked first before going through everything else but now I know I have a good really board with good relays and harness harness thanks for posting the schematic I look forward to seeing everyone. I don’t know about that award other than maybe just being the most stubborn which I guess is a trait that can be positive and someways. I still have some work I’d like to get done when I get there like install my radio and my firewall backpack came delivered today right before I left to see if 914 rubber,

Small update- after getting pump to work andgetting car packed on trailer i was off to Helen Ga for the Okteenerfest- I almost gave up! thanks all for the encouragement! and thanks for all the super comments on the car while there at the weekend and show. The ultimate was being voted 1st place in our car show in the “custom” class!! this means more to me than a peoples choice at a local show or c and c , because it came from our community, other 914 owners who know and can truely appreciate the time and effort that goes into a rebuild and reassembly!! as nice as the car looks in the pictures its better in person, well mostly , it does have a few flaws,m. but i cant take credit for all that, i have to acknowledge Mike Branch, the man who stripped the old paint off and cleaned up the rest od the rust and smoothed out the rear fenders, and repainted the car. My car would not be on the road and be rust free and straight with out the work of Tangerine Racing, so thank you Ed and Chris for all the work you did 2 years ago on the fenders floors and longs!.
Also parts for so many things but every part that has a zinc plating or powder coated came from or thru Bruce Stone. All my Brake stuff , PMB of course!
Many many many parts from 914rubber.com, thank you Mark and Matt! even then day i left for the trip i had parts that came in from them. some time i will make a full and complete list. Also many hard to find parts ii was able to source from Auto Atlanta. And Mark Herd(914sixer) supplied me with some nice NOS CV parts and my period correct radio and other bits like nos VR! But i cant leave out Restoration Design! all my new replacement parts, floors jack points in the longs etc etc are from them!
And Bob Bishoff(Bigkat 73) supplied me wirh a rust free driver door and front valance, and set of partly restored outer rocker panels, thanks Bob!
And there are another half dozen or more other guys who sent me parts that were needed. almost all of it came from members ans member vendors. So glad it all came together finally, and i could not have done it with out all of you! Advice of how to or not to do things wow, its all right here! I am not completely done, i havs some stuff to clean up and finish to have it ready in November for the Hilton Jead Concours DelegNce car club showcase, so i am sure to have more issues more pictures, etc -
I hope someone can post some pictures from the car show saturday, i knly took a coupe of my own car! so here is to you World! Ein Prosit !:first:

Congrats!!! Well Deserved!

I guess I still have some stuff to do here and to really finish her up. I was rushed to get it on the road and on trailer to Okteenerfest and was good enough to go on the drive Friday, but really with high idle and not having time to really set proper timing and sort that out along with the aux oil cooler fan not being hooked up , I didn't really get to drive much. I spent more time prepping for the show on Saturday and fixing some wiring issues. Now that I am back I would like to finish up a punch list of things to be able to do a couple local shows and also Nov 3-4 the HHI Concours has a car club showcase, where 10 vehicles from each club are selected for display on the fairway on Saturday, and I have been selected to do this!! excited but I really want to make sure its ready. - I also want to get my 123ignition distributor in place as well.

I have some adjustments to the alignment of the rear trunk, and the drivers door so that it will close with better alignment. Also I need to get my new/Old Blaupunk radio installed correctly, so sourcing a proper trim plate etc is my next goal.

Is there any suggestions from those that saw the car last week? I have a new 914 badging to put on it, as seen at the awards banquet, it came from Pete at RD!
I also have brand new adonized thresholds that are silver and would love to trade them for Black adonized if anyone is interested!, So as I progress and make some changes and clean things up I will continue to upate progress!!

Thanks for all the help, but not done yet! - Man that was a crazy 6 weeks!!!!!
