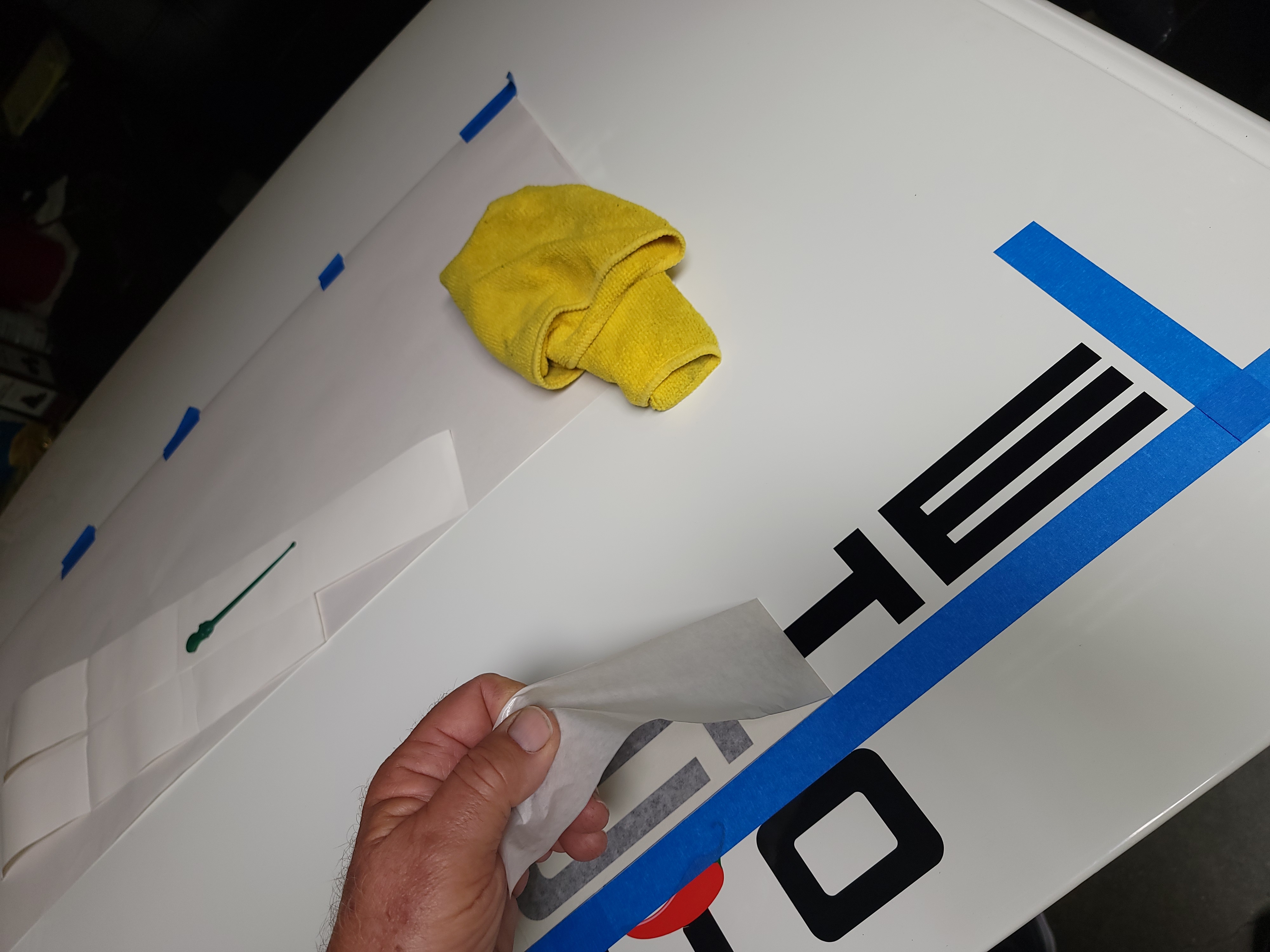

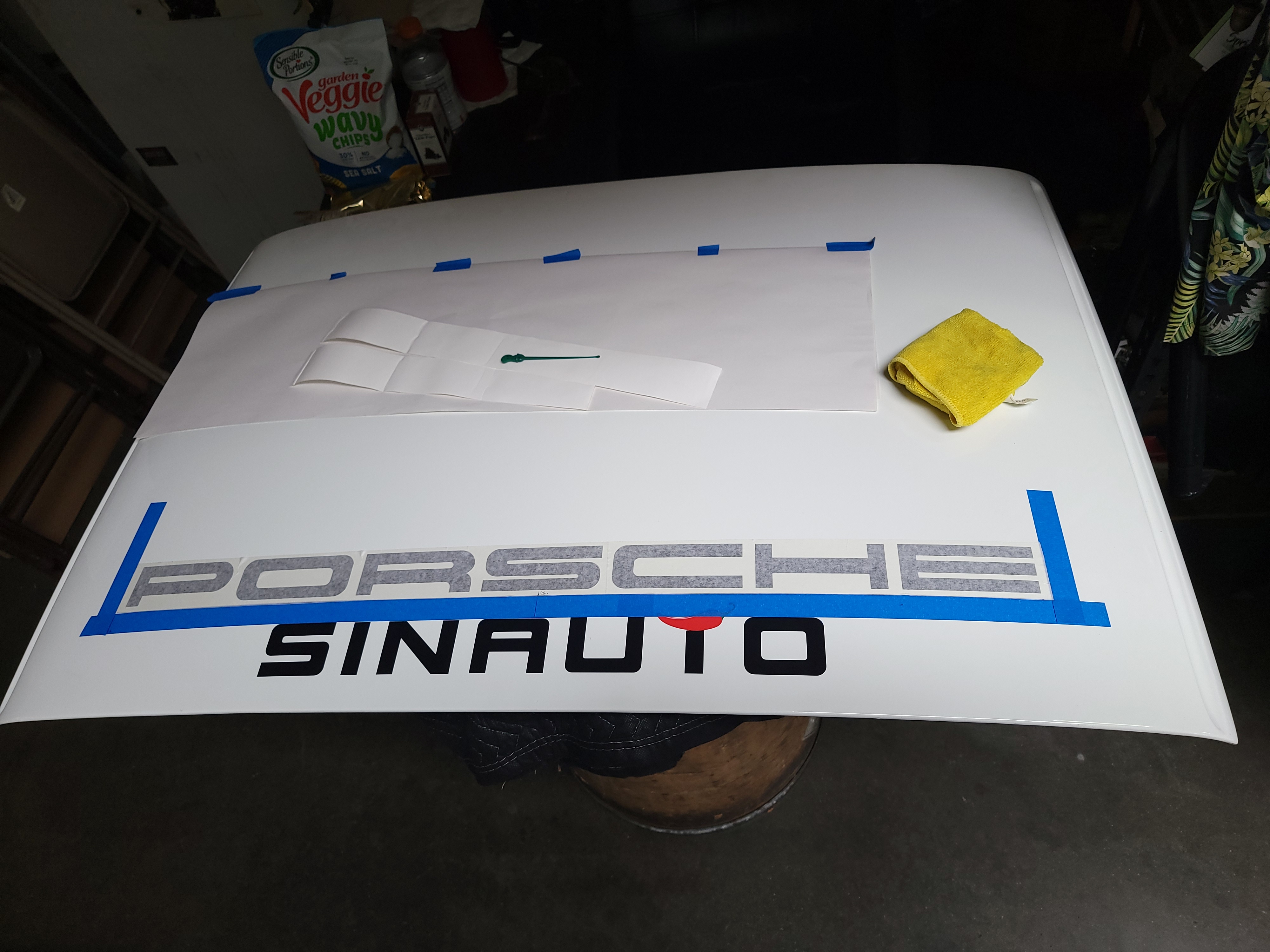

Dusted off the roof and started in on the livery layout
Click to view attachment

The 8gtt is spicing up the workshop ! More livery on the way from a cool shop in UK, referred to us by forum member Keith @KSCarrera; isaydingdong.co.uk
They have some really cool (ready made) period correct decals.
Click to view attachment

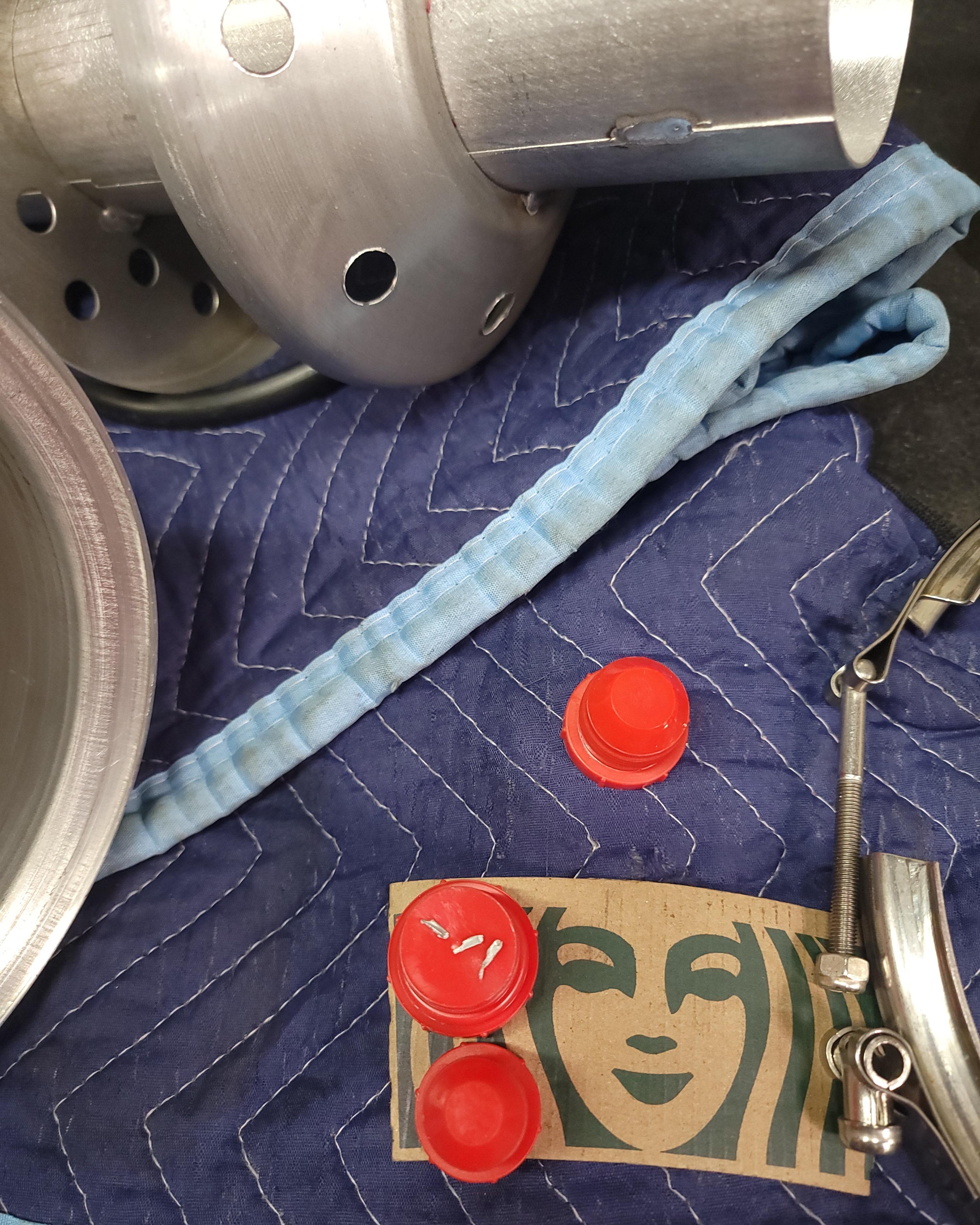

Today while putting the oil tank into a proper alignment for the oil line paths, I needed to remove the v-band clamp which holds the top + bottom together. Found a small bit of unfinished aluminum slag hanging from the fill-tube strainer
Click to view attachment

Wow! Bullet dodged.

wow, you might expect that from some cheap overseas product, but not from an upscale company based in SoCal. That's not cool. You shouldn't have to disassemble everything, but good thing you took this apart. Did you plan to have a filter between the tank and the pump, or did your pump just get very lucky?

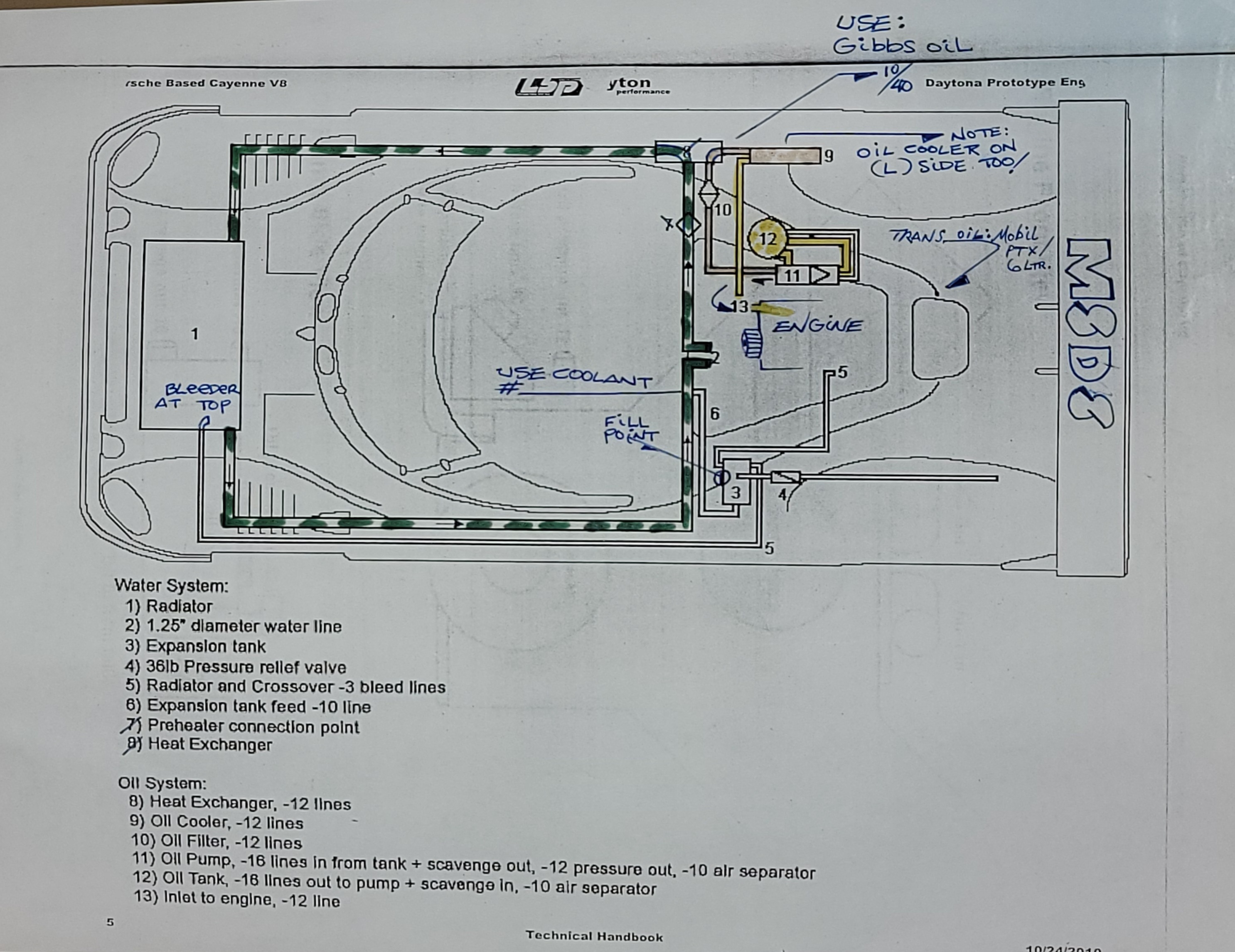

@NorCalScott I'll be revising my oil flow schematic this week; comparing the LBP (engine builders) to the Aviad (tank mfg.) drawings...but I do have a cnc aluminum oil filter stand for this purpose

@NorCalScott For the oil filter placement, I'm going with the LBP engine builder's tech handbook !
Just need to be careful during tank filling + topping up; keep small bits of debris from getting in.
Click to view attachment

I have seen some people place a small billet inline filter between the tank's outlet and the pump to protect the pump's pressure stage. Seems like cheap insurance.

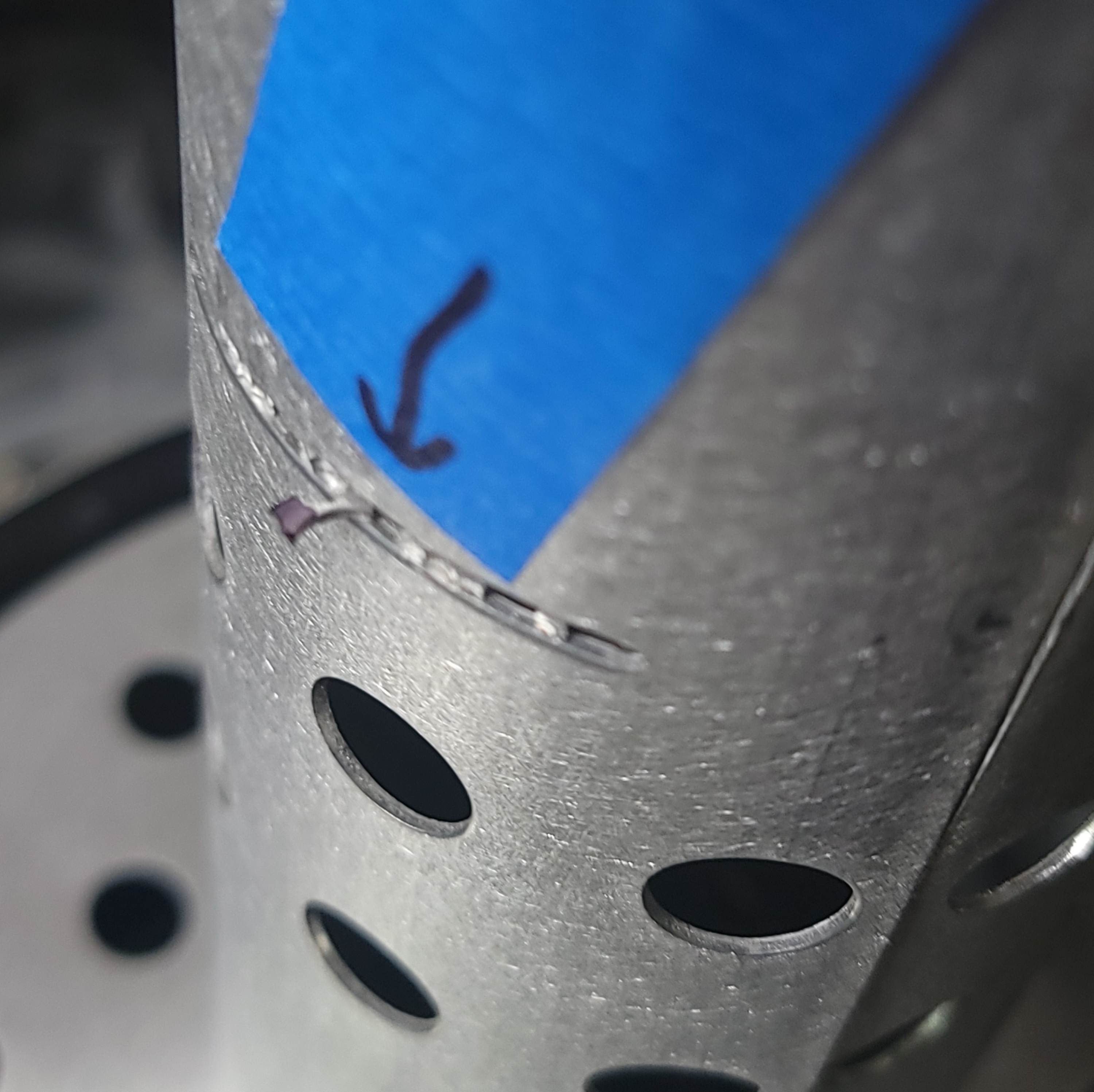

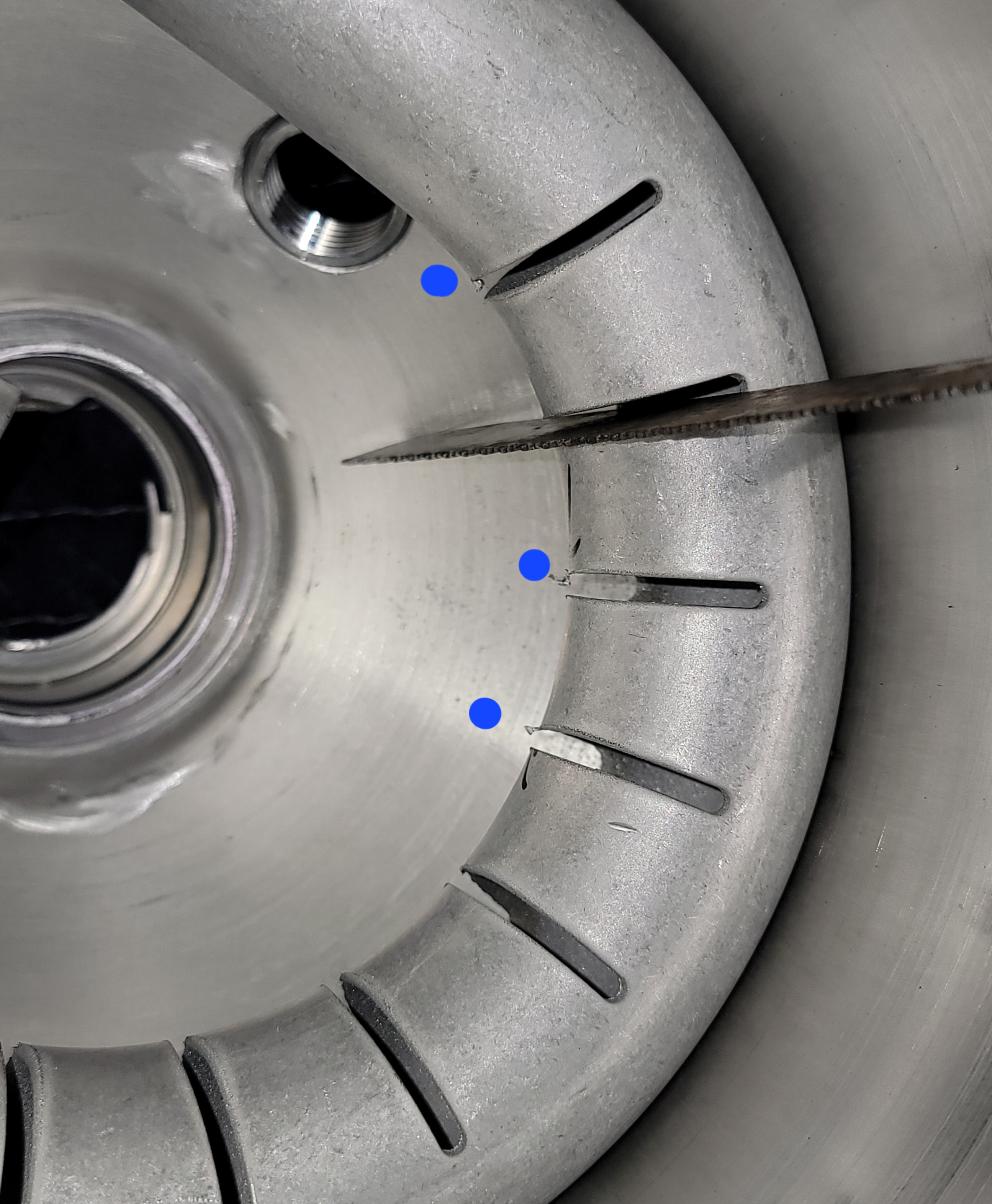

Meanwhile> while inspection of the lower ½ of the oil tank...more alum slag, rough drilling and deburring required at the baffle plate / all 8) ½" dia holes. I used a short section of band-saw blade for lancing off the slag; and then hand sanded with emery cloth.
Click to view attachment

'Catch of the day 3) nice size pieces of alum slag
Click to view attachment

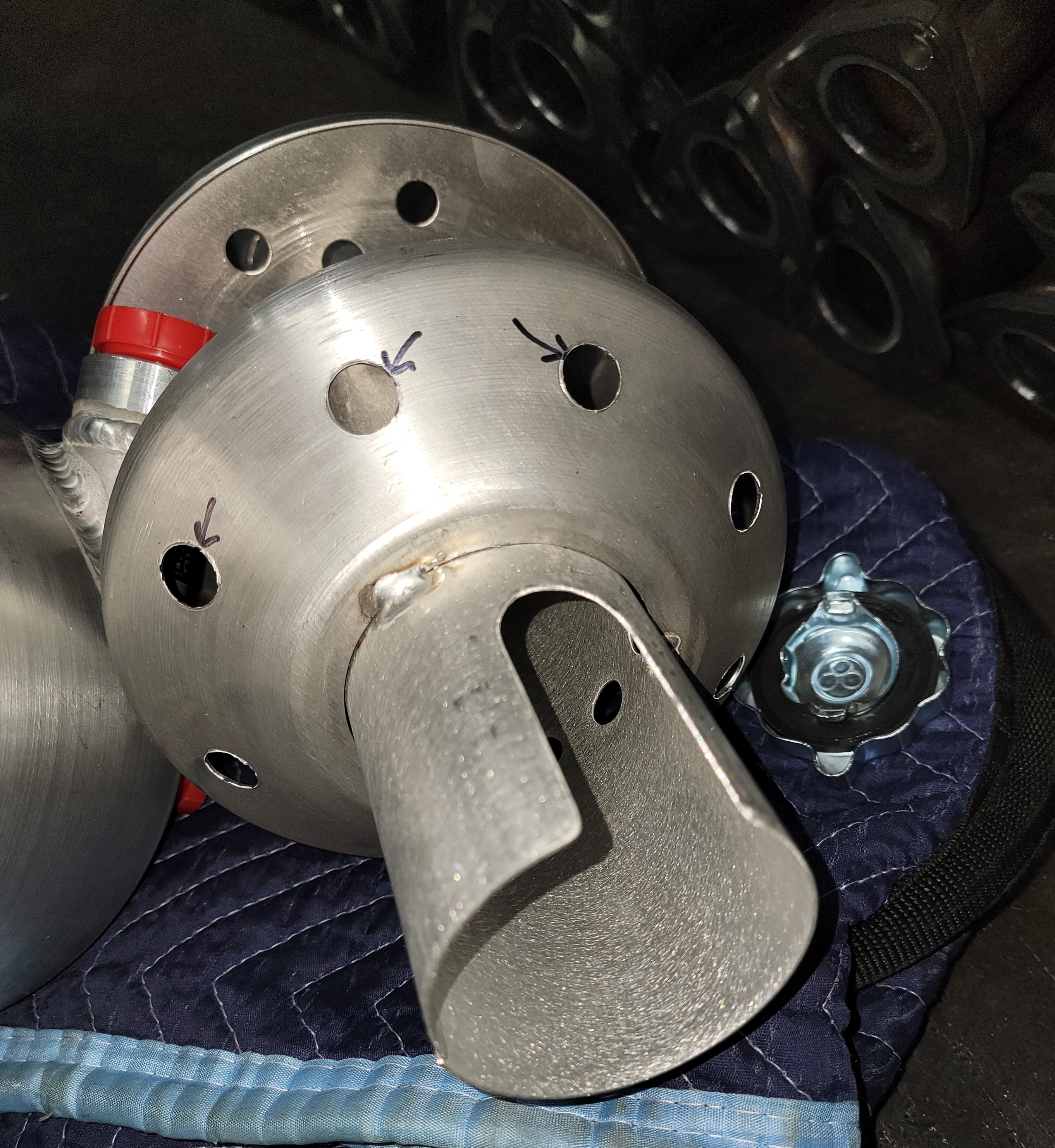

Baffle plate>>all 8) holes needed deburring Click to view attachment

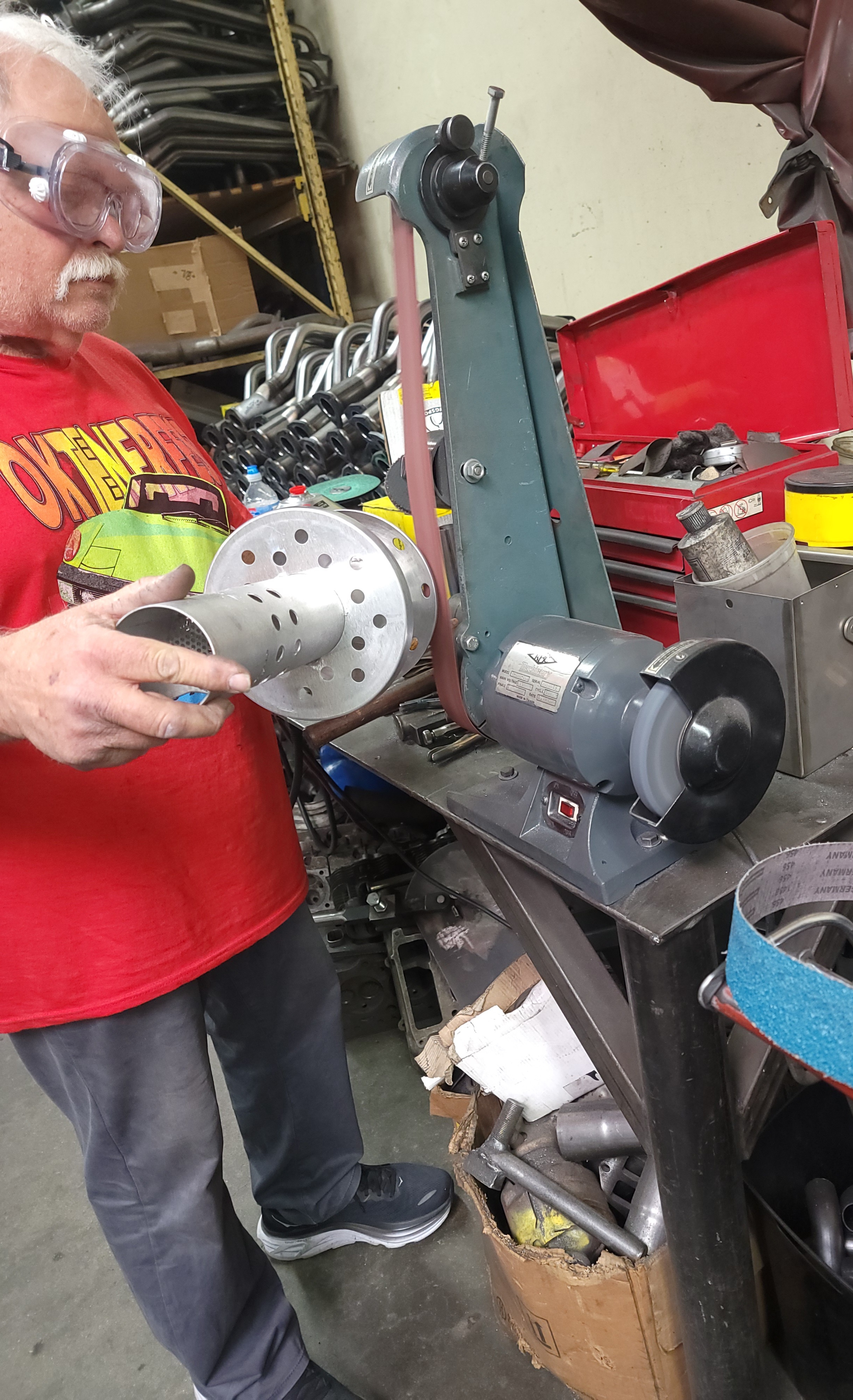

Baffle plate a BIG 3 minutes to clean up with a #220 fine sanding belt; you think Aviaid Oil Tank Co. could come up with QC checklist for their Made in USA product ¿¿
Cool Okteenerfest Tee shirt too
Click to view attachment

Either made on a Monday or a Friday. Deburr is a straightforward operation, somebody dropped the ball. Maybe bead blast?

17) pieces of trim headed off for satin-black coatings. Not powder painting, but using a durable 2-step 3M automotive product.

I've added the transaxle oil temp sender here, using the same 10mm x 1.5 port* which normally has a thermo switch that operates the valving for engine coolant to flow through a small heat exchanger on the trans. Our trans cooling system uses a seperate tank & radiator and not shared with engine coolant...and a manual on-off switch for the pump.

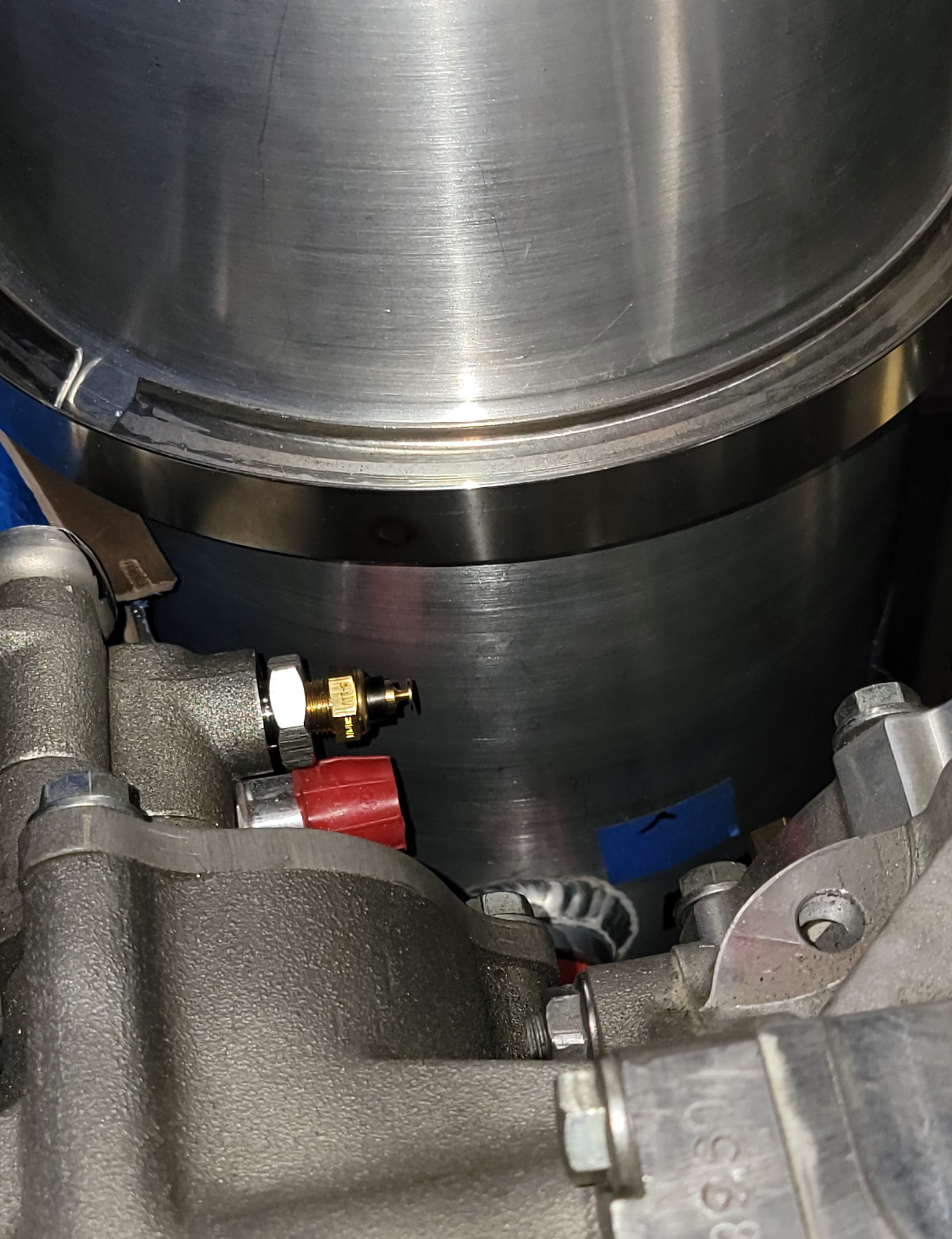

www.fittings.space in Sparks, NV, makes all sorts of 'Metric to SAE, AN, NPT adapters, which we used their *stainless steel part here/ in conjuction with a VDO ⅛" NPT sending unit.Click to view attachment

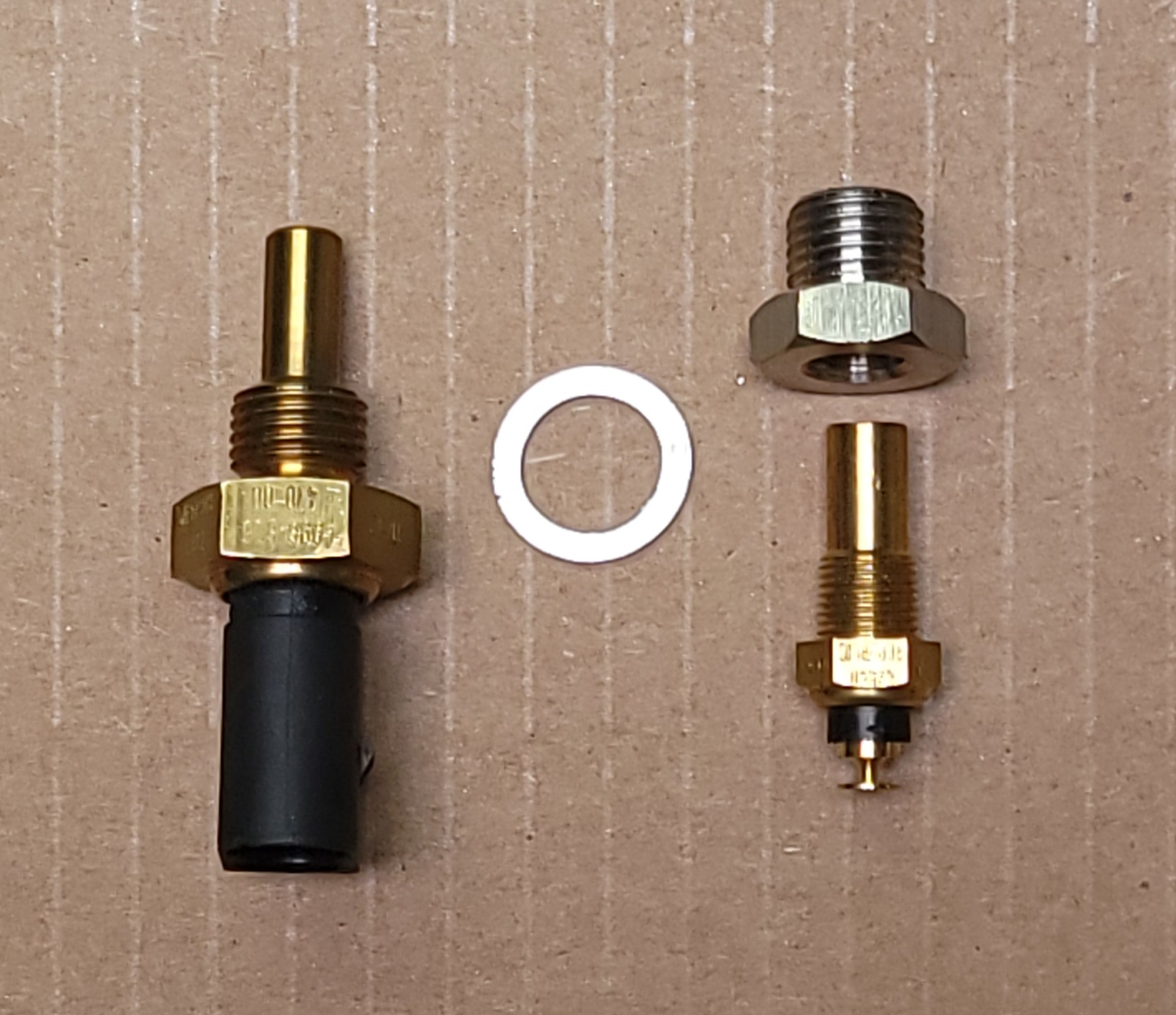

GT2 trans thermo switch sending unit (on left) and 10mm Metric to ⅛" NPT SS adapter/ VDO oil temp sending unit on right.
Click to view attachment

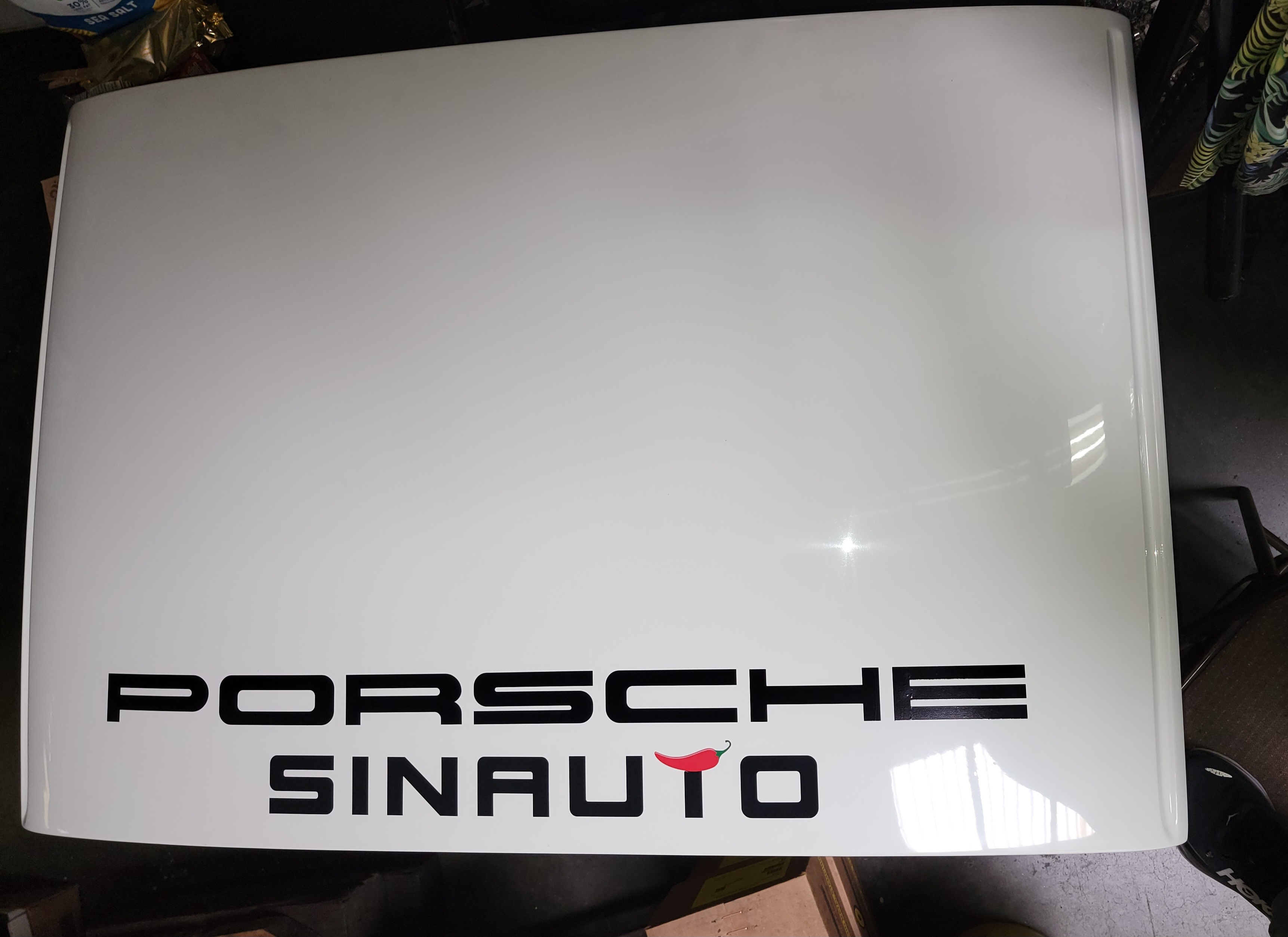

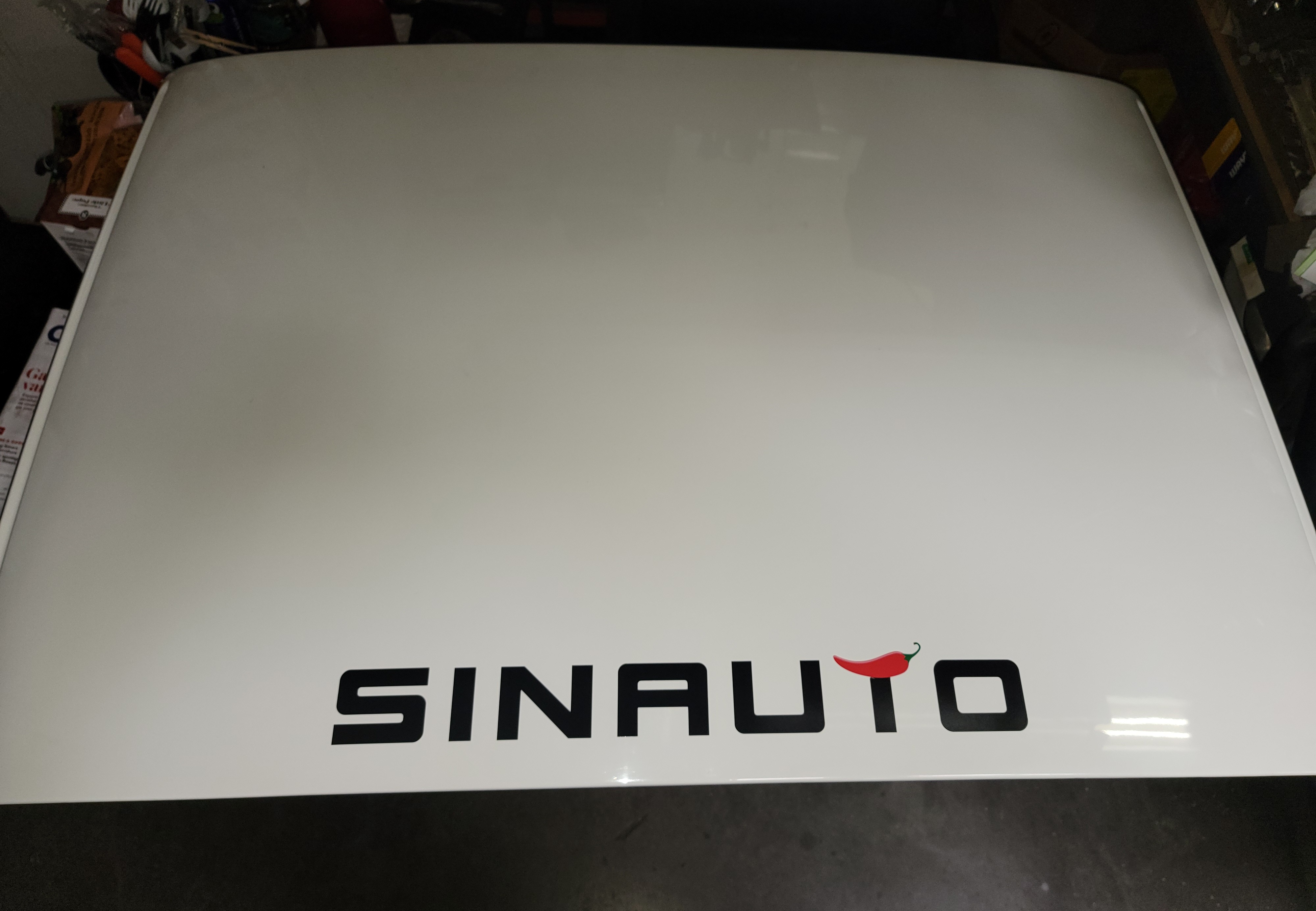

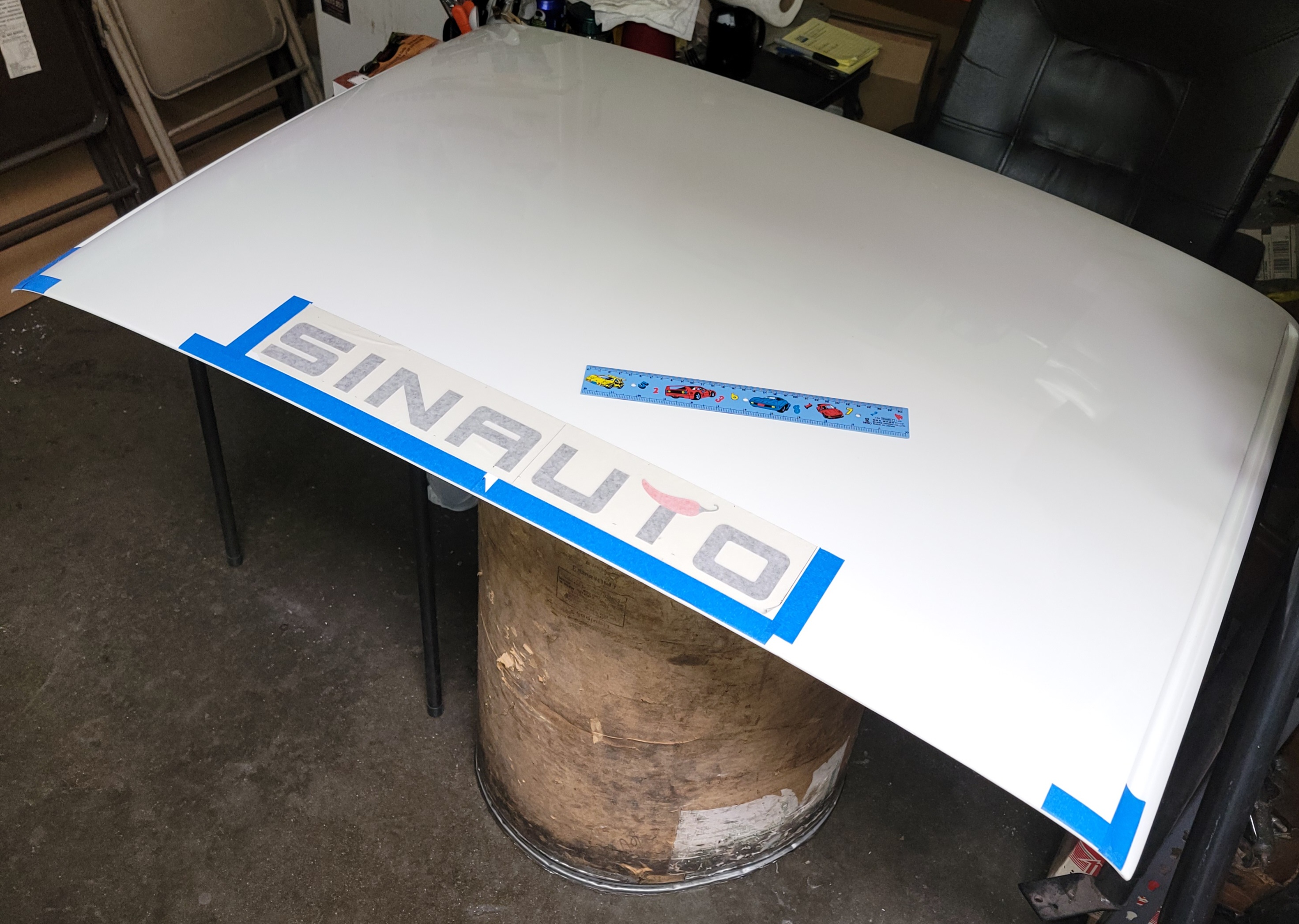

Roof livery is done; thank you George @dr914 @autoatlanta.com for the quick delivery !
Click to view attachment

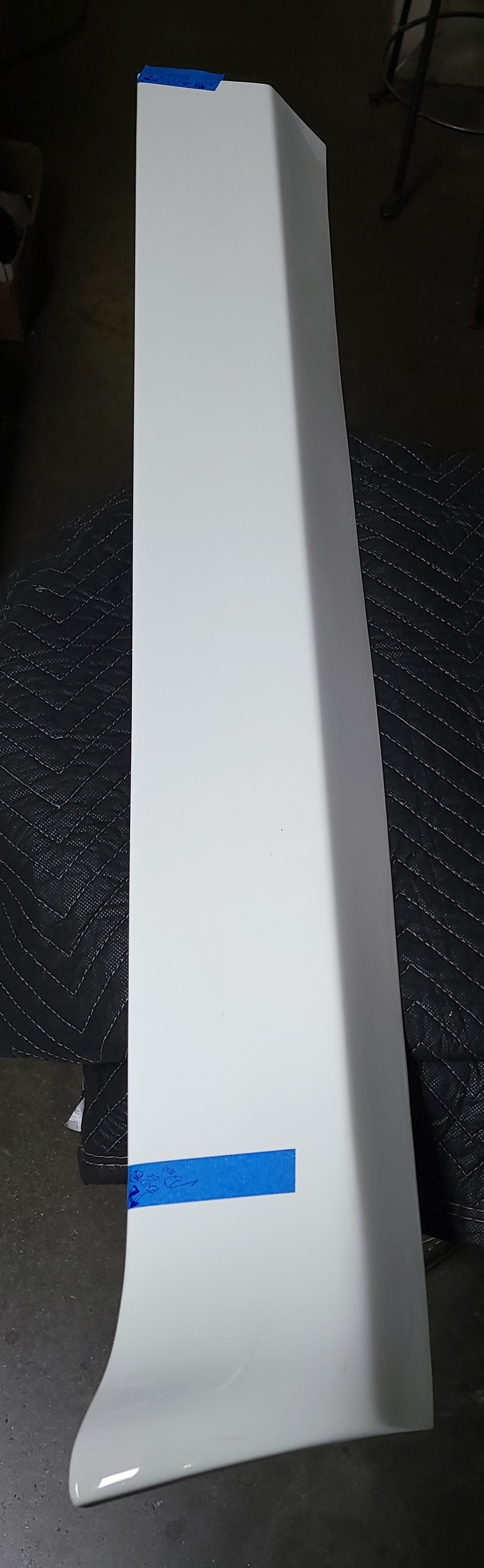

These were originally made for the rocker panels, cut down on length to replicate the Sonauto roof livery...this v8 just a bit spicy
Click to view attachment

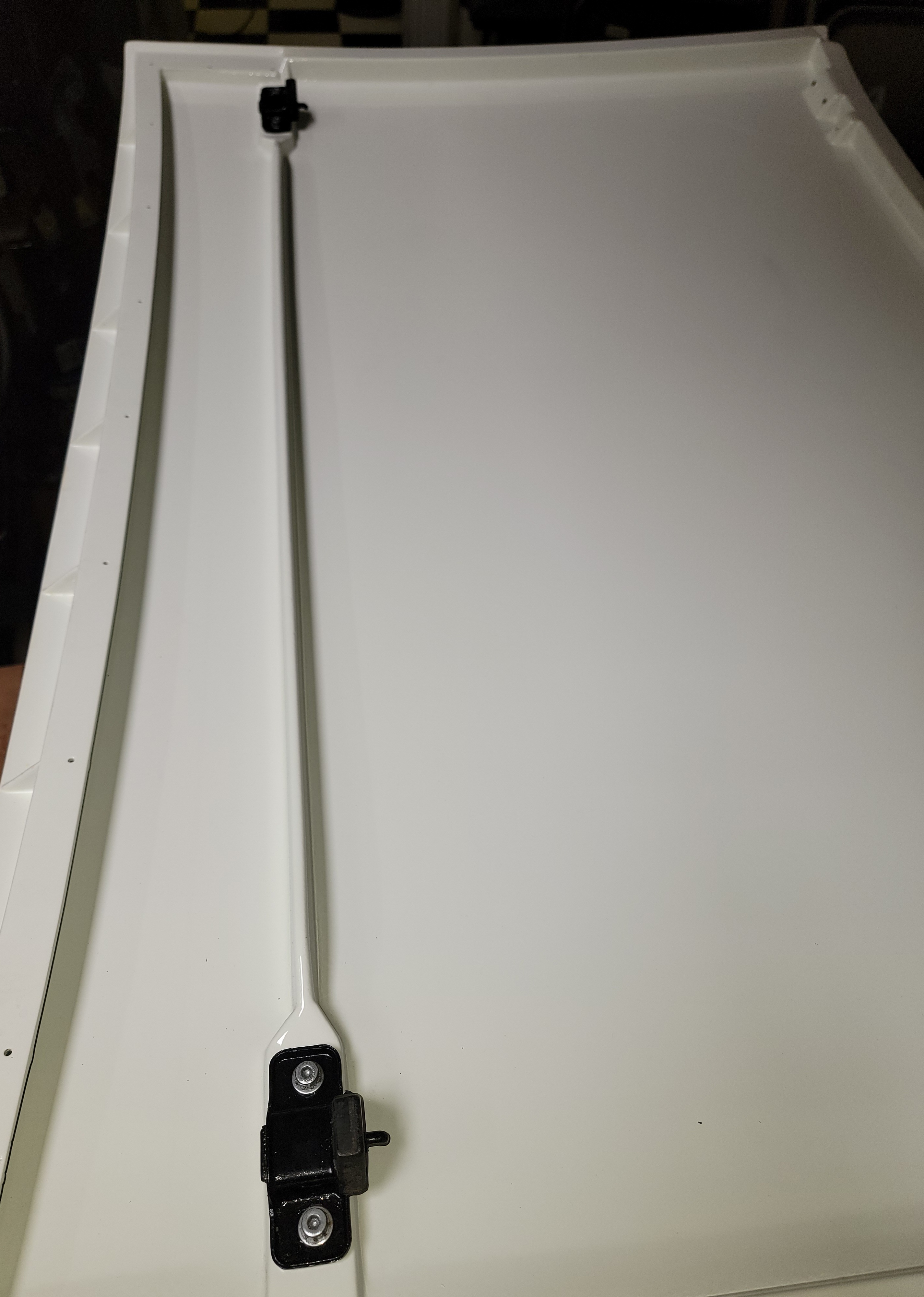

Topside done, now for some hardware on the flip side
Click to view attachment

Last time this targa top had hardware installed on it, it was in a freind's backyard under a persimmon tree !
Click to view attachment

Next up will be setting the Porsche script on the Sheridan rocker panels
Click to view attachment

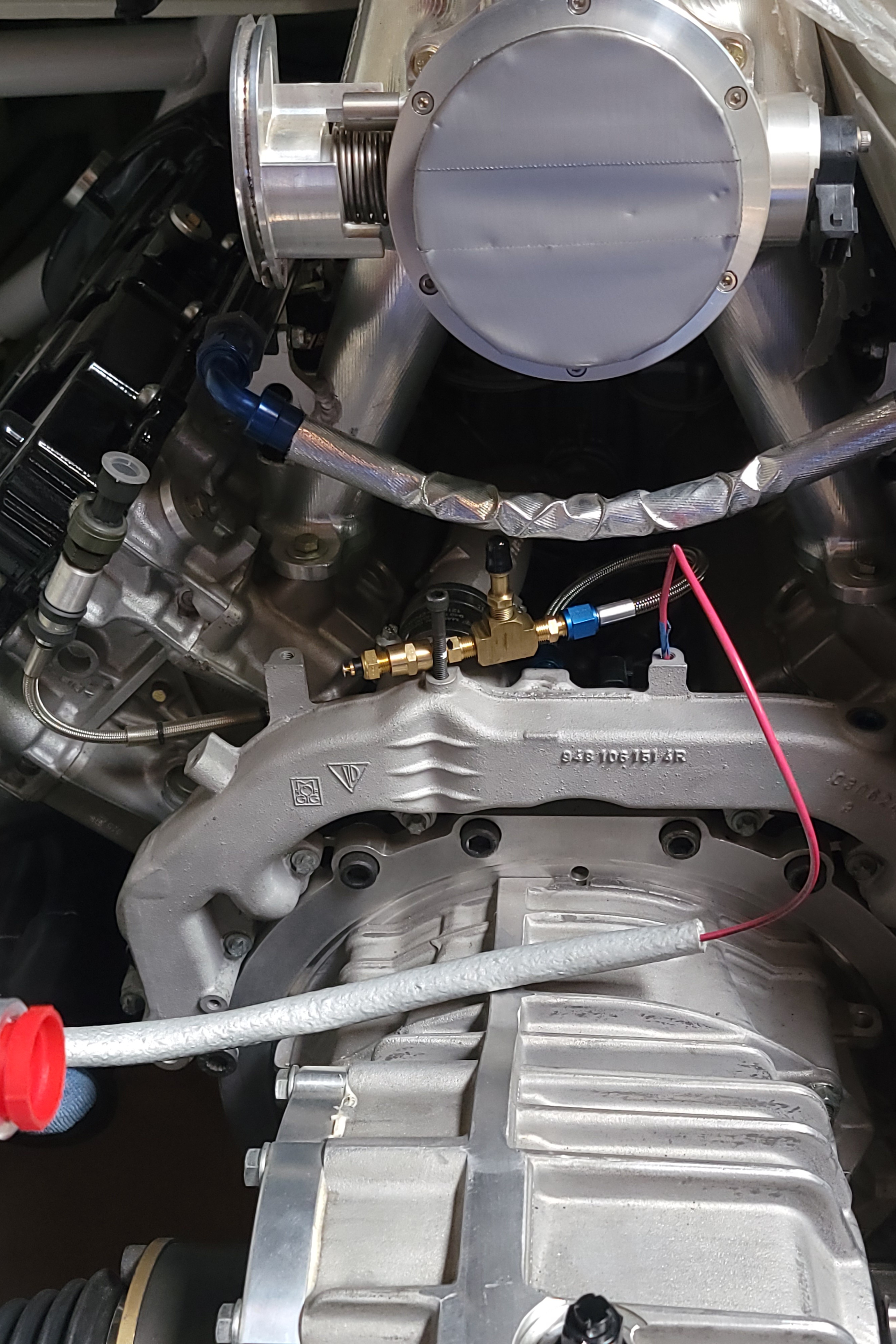

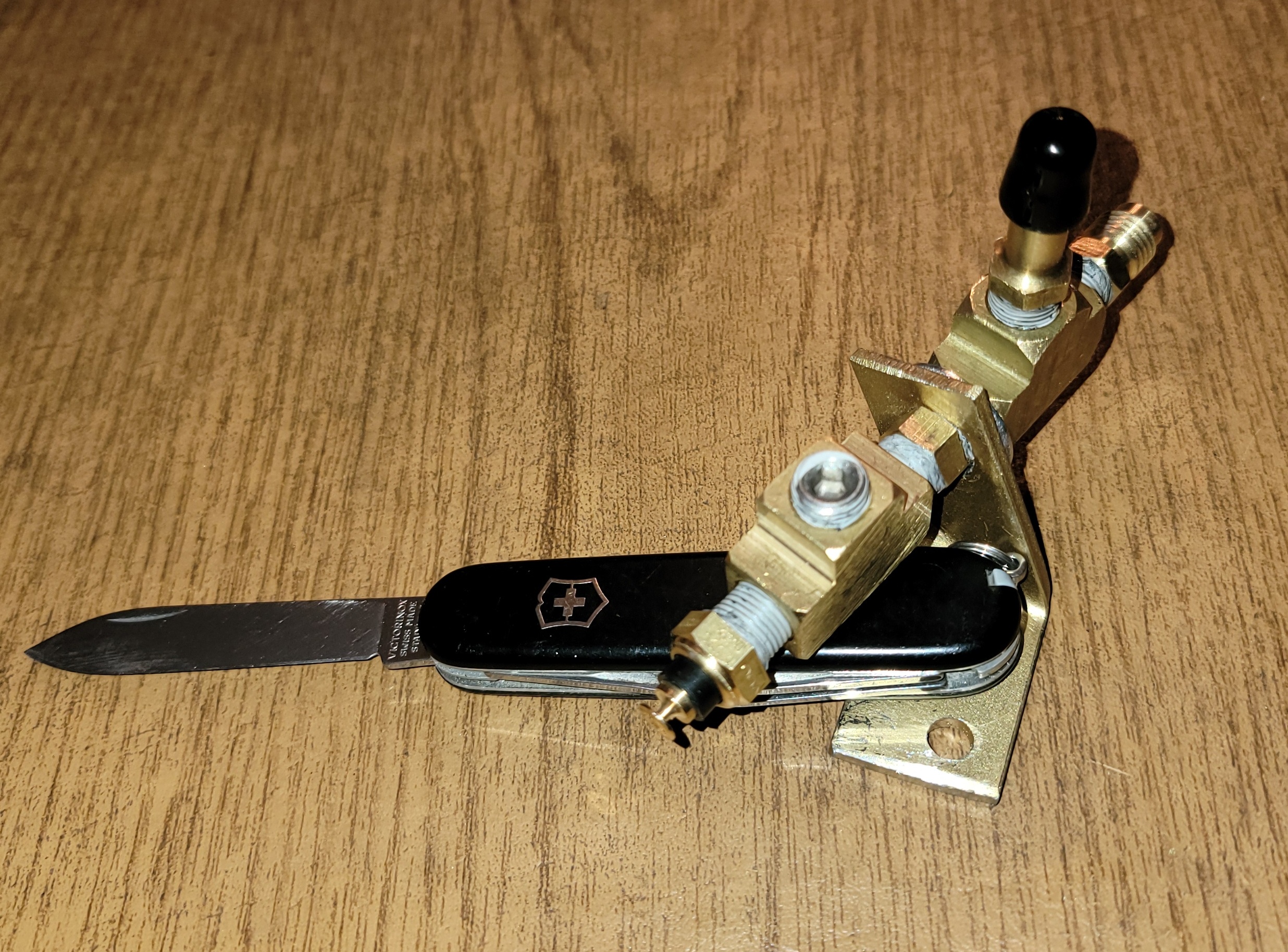

Getting back to engine accessories; setting up the coolant temp sender, coolant bleeder line (to fill tank); set up on a #4AN flexible line/ bracket (fab'ing up now).
Click to view attachment

Saving this resource. Little things like this can be so frustrating when you can't find the right adapter.

Throwback to the iconic Porsche showroom Sonauto in Paris: It's all Stock trust me !
Click to view attachment

Bracketed and ready to install on to the Cayenne engine coolant-crossover manifold
Click to view attachment

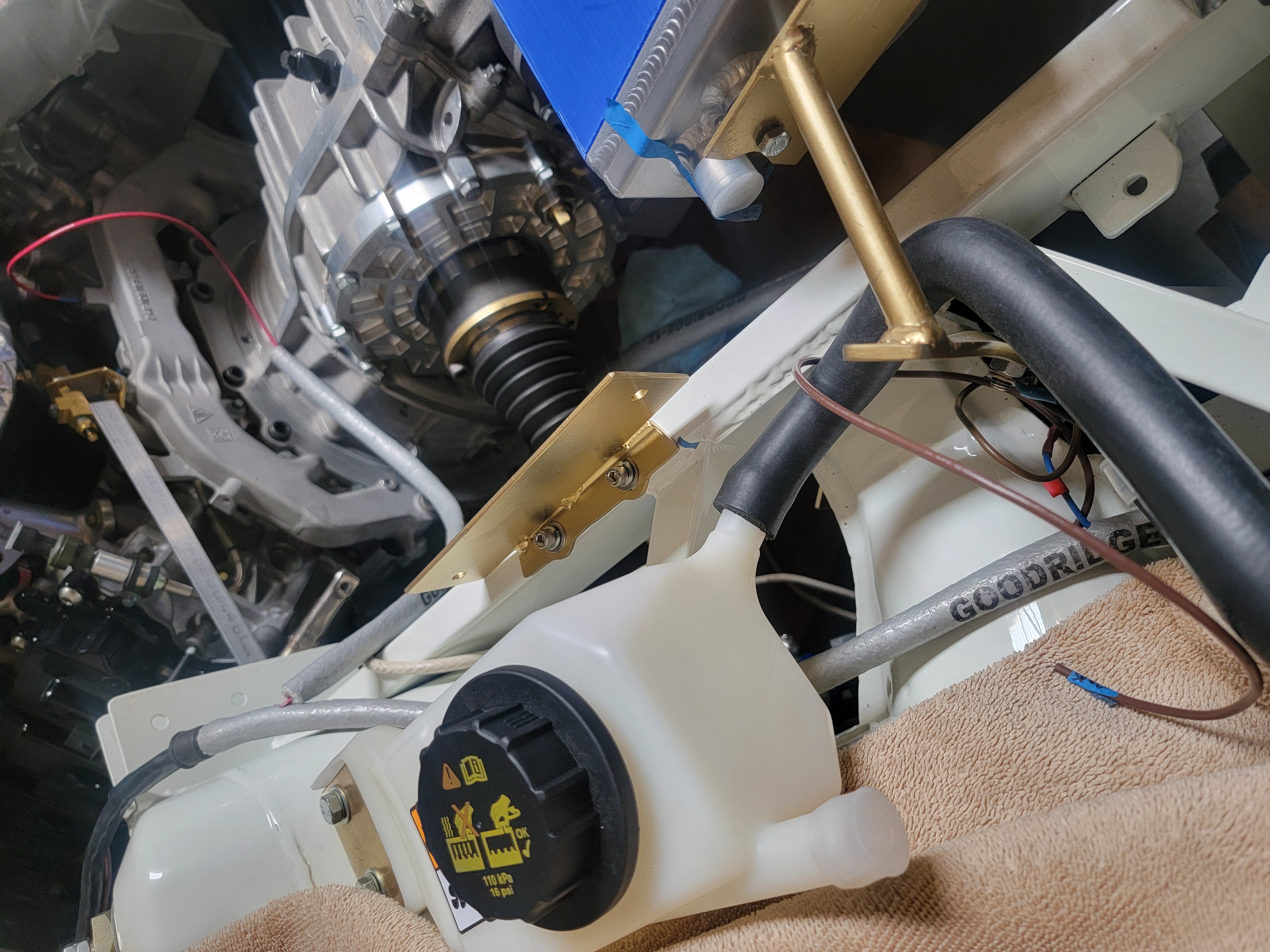

Oil Tank supports / upper & lower brackets. Top bracket mounts to spec frame rail>>drill and tap
Click to view attachment

Using .125" c/r steel for the fabricated brackets (gold color)
Click to view attachment

These black-anodized (Aviaid Co.) tank brackets are supplied from mfg. for use on this 7½" dia. oil tank
Click to view attachment

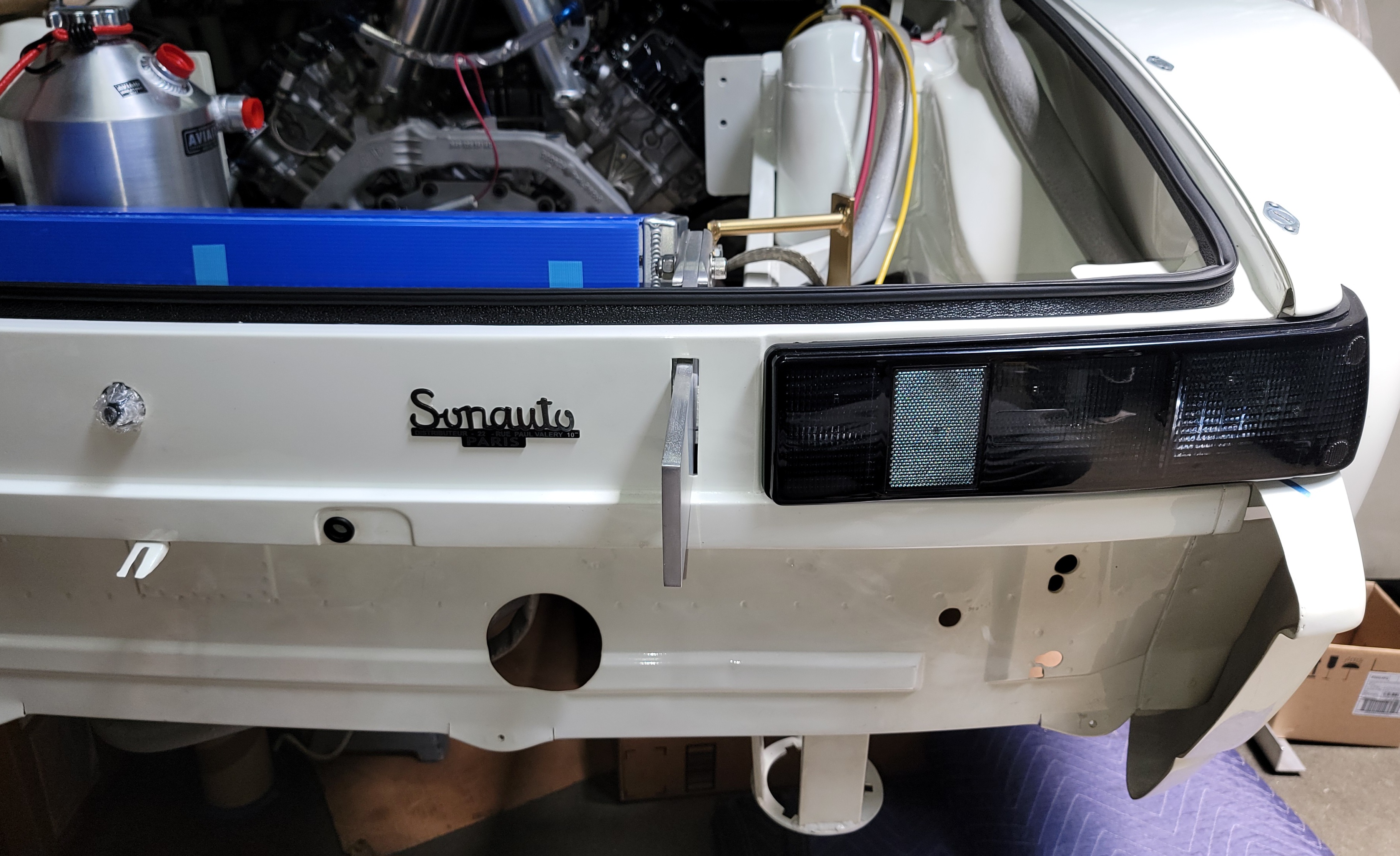

I think that with the adding of 2) Garretts, wastegates, intercooler and b/o/v are all packed into the 'Trunk area, No more luggage room avail. Maybe just strap these to the cold side of intercooler
Click to view attachment

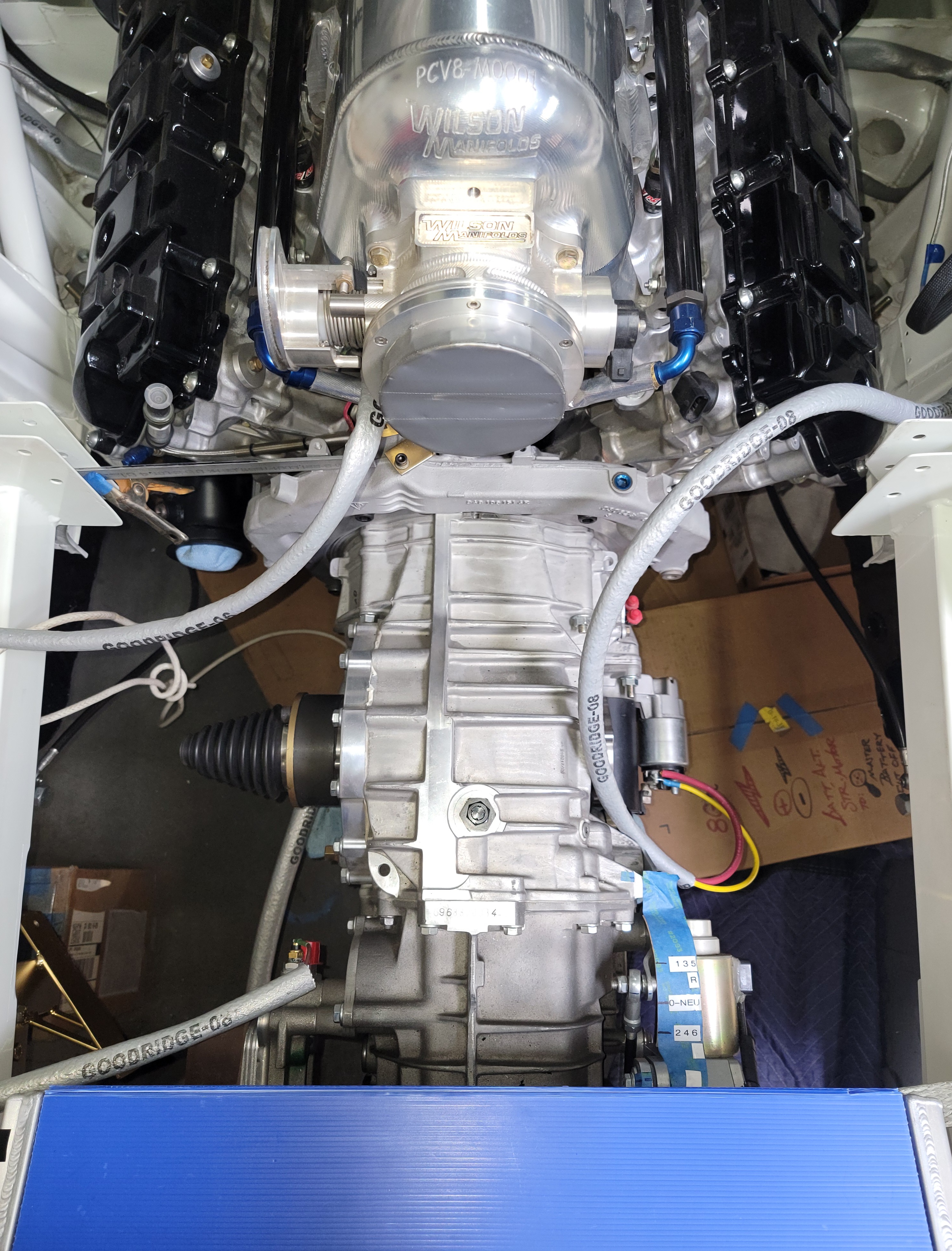

Good day today & tidied up runs of wire that have been pulled through into the trunk area. I use 'Goodridge fire sleeve which I've been sourcing at www.pegasusautoracing.com
Also purchased all sorts of racing hardware, Tilton pedal assembly, brake bias control, etc. from them; excellent product knowledge/ customer service
Click to view attachment

Nice to see Goodridge product on the Porsche 963

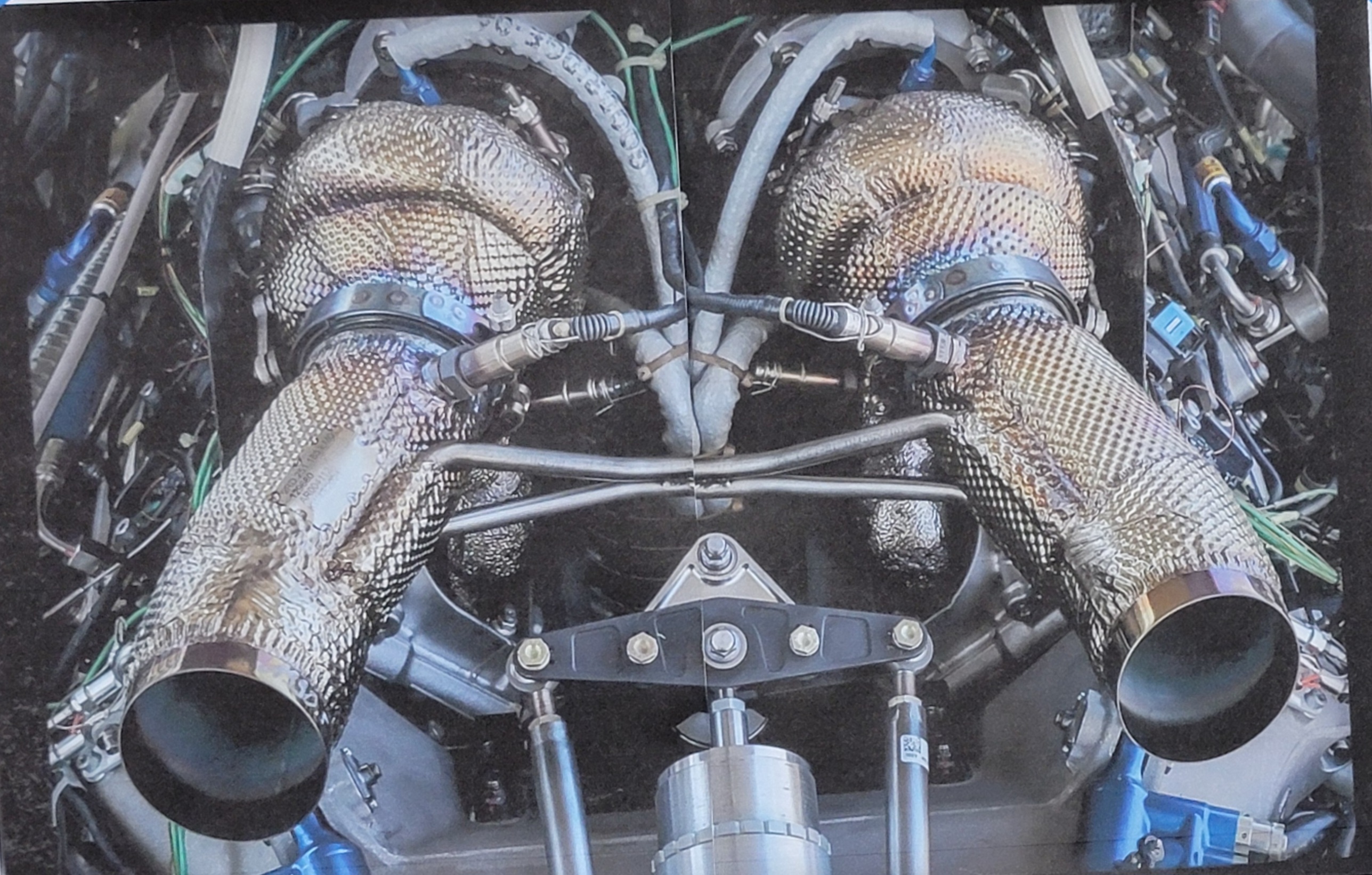

Looks like they are fire-sleeving the turbo oil supply (#4AN) lines, and #12AN (oil drain scavenge) lines which seem to be in a super hot zone !
Click to view attachment

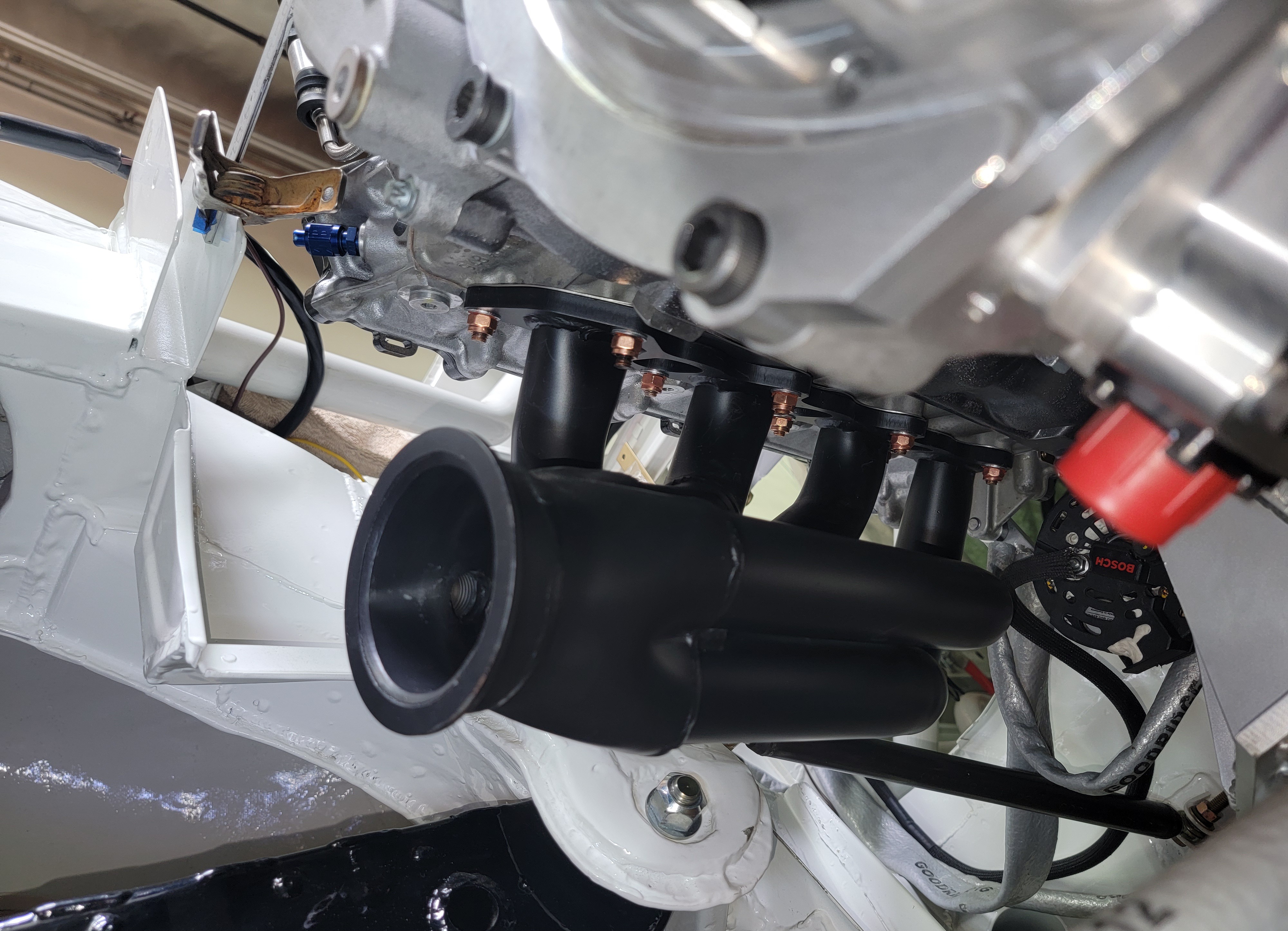

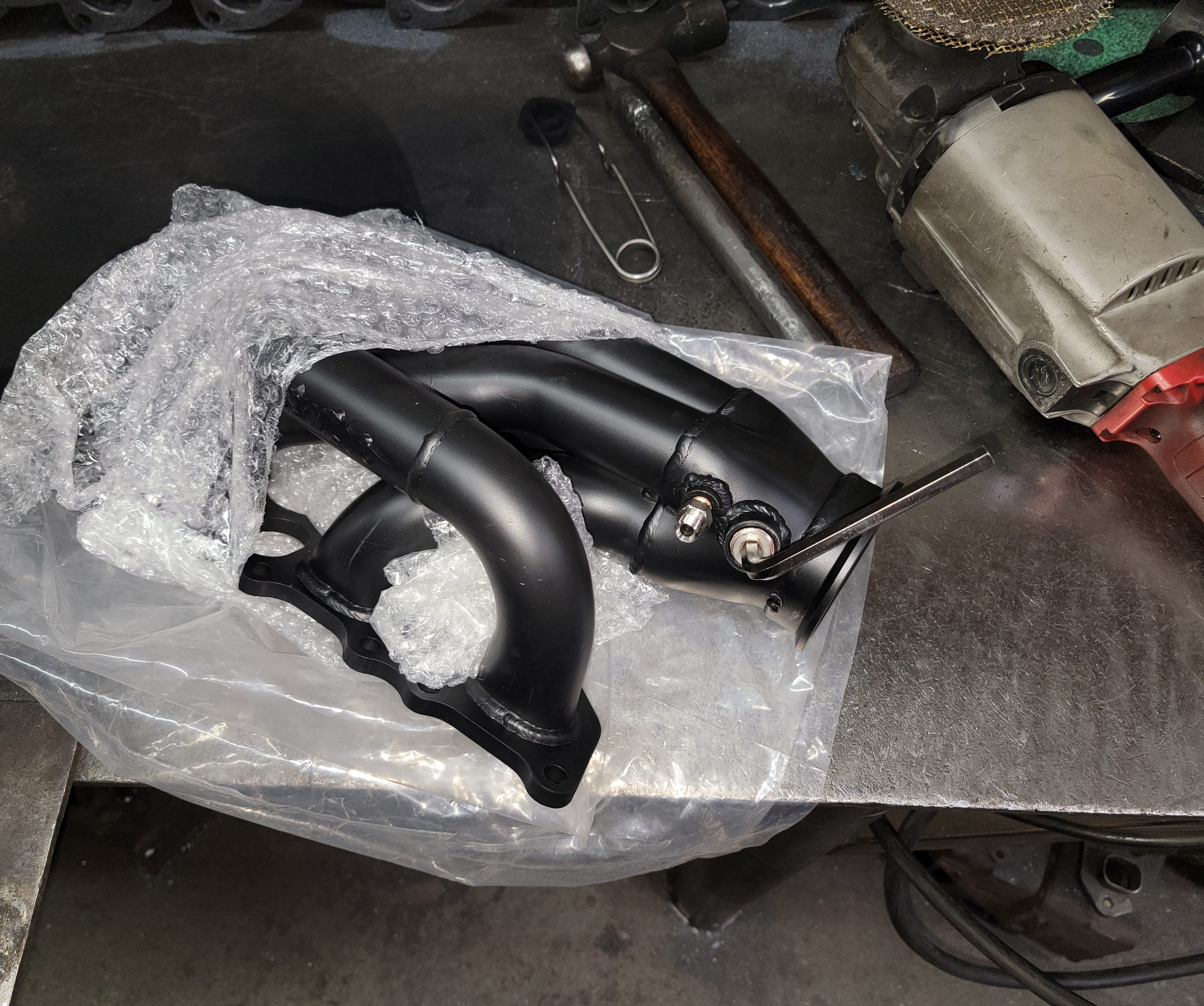

Driver side shorty header securly snuggled down.
Click to view attachment

That’ll make some sweet noise.

@KELTY360 Marc, the 8gtt sounds should be an earful...even for a non-flat plane crank Cayenne v8 ! The basic tech in my shorty shorty header design, is how the placement of the tubes enter into the collector; left and right side headers respectively.

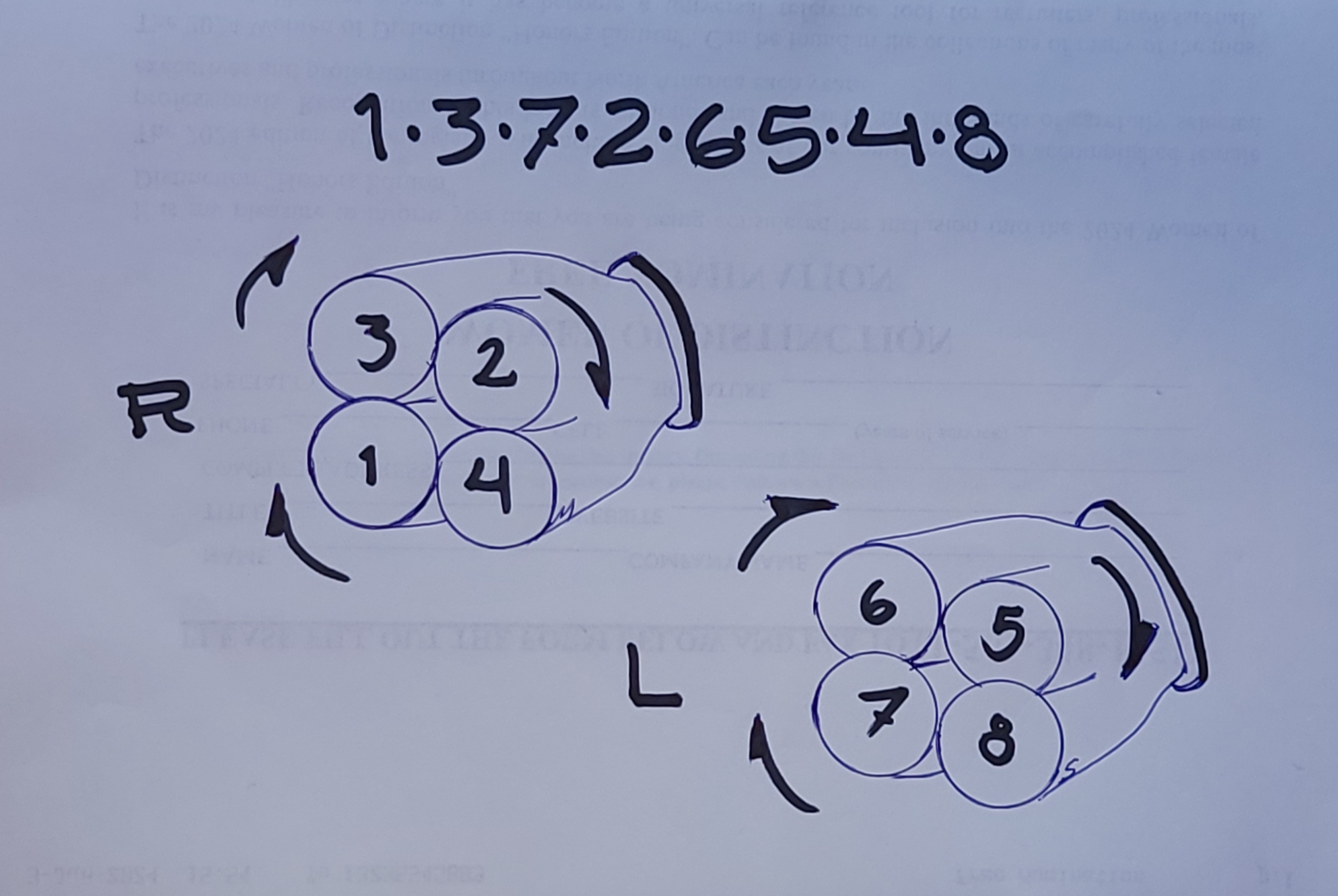

Following the Cayenne v8 firing order: 1-3-7-2-6-5-4-8
I place the tubes in a (rotational) position, so during the normal scavenging taking place = the exhaust pulses fire into the collector in a rotational fashion.
This gives an extra performance benefit during evacuation of the exhaust pulses. Can't hurt getting the pulses to scaveng even quicker, right?
Click to view attachment

Next level greatness for sure.

Passenger side exhaust header with EGT, and o2 port ready for install.

Click to view attachment

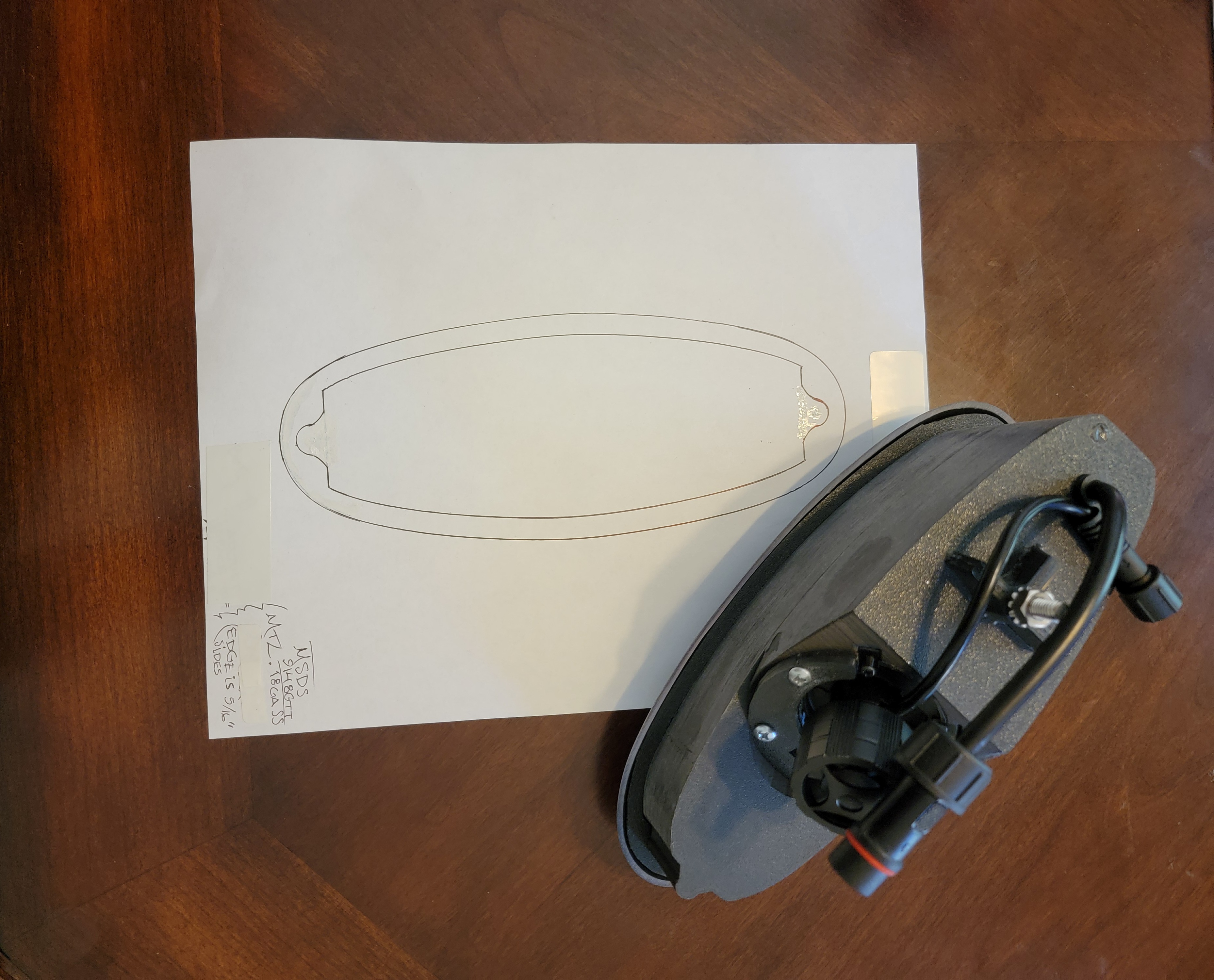

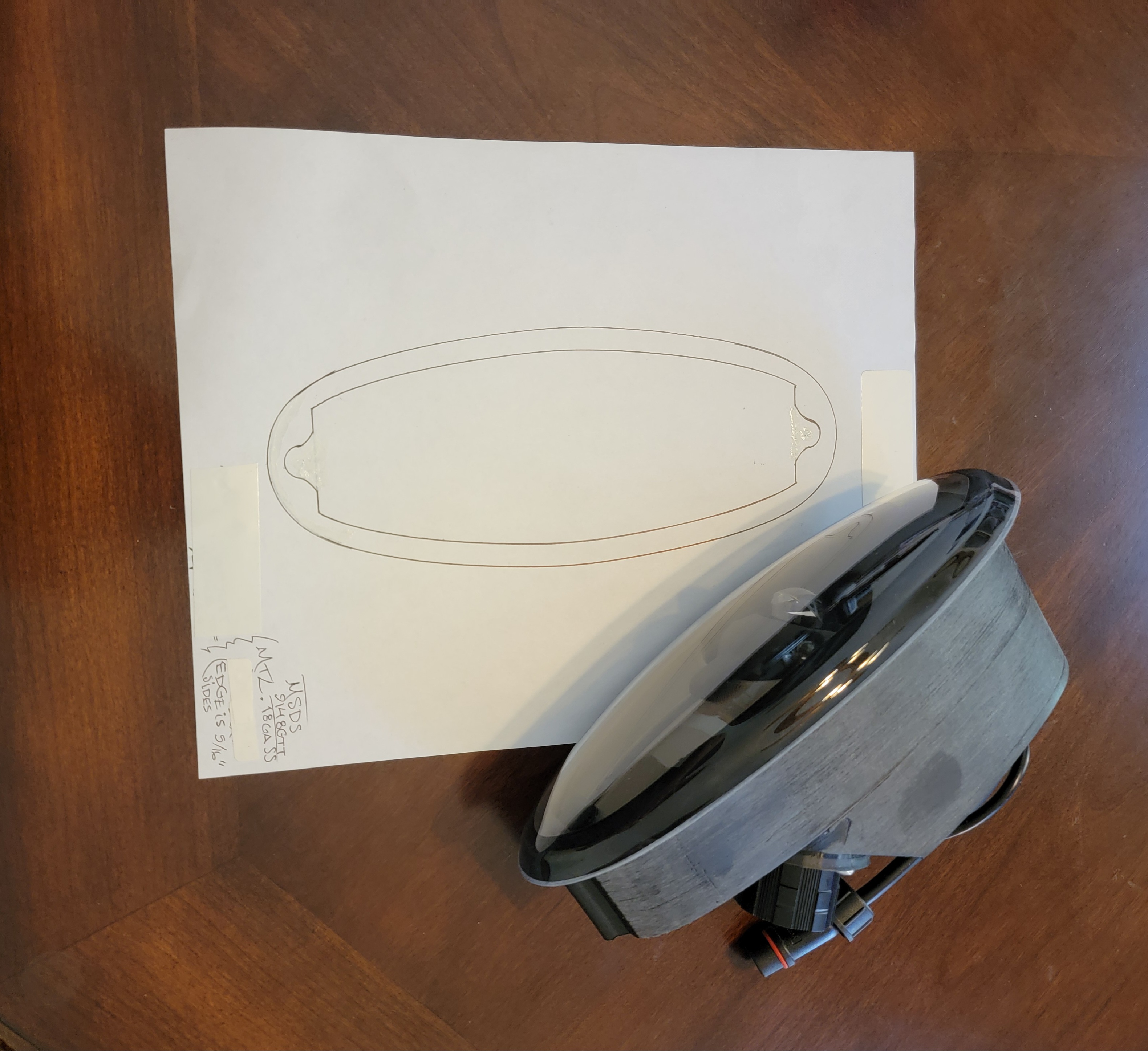

I'm having a few sets of these 18ga. SS plates laser cut for use with these cool 914 headlights, which install into the previous front turn signal locations.
Since we are using Sheridan fiberglass body panels, when you slice the (faux) turn signal 'Pods from the top of the fenders you are left with a ¹/16" perimeter edge...which is not real sturdy to attach these light fixtures on.
The thin plates will be epoxied into place, then these new light assemblies* will have a sturdy foundation to sit on. Then I will add another support bracket inside the fender, in order to catch the stud/nut on the assembly.
Mfg. by* www.3DGAUTO.com
Click to view attachment

Back side of the new headlight assembly, high and low beam are in this set up. Fully adjustable, simple instructions, and looks like the wire cables are plug + play for converting a stock 914 .
Click to view attachment

very cool headlights

A bit of of my range but these combo blinker/ headlight housing would be great as an auxiliary driving light.

https://3dgauto.com/products/custom-classic...for-porsche-914

@Shivers
He already has them...

Yeah thanks I saw that, that's where I got the address. When he mentioned "these cool 914 headlights" I thought that would be neat but what would I do for a blinker? Then I saw the website. I'd love to have these

May or may not use the front blinker, don't need 'em on the track; but very handy for short romps around the block, or short drive to the Petersen Museum for C+C

A 2/1 P/W ratio car on the street...

A "short romp around the block" will make all the animals in a 1/4-mile radius crazy!

What I WANT to know is how you are creating the 7k lbs. of down force that you're gonna need to hook up!

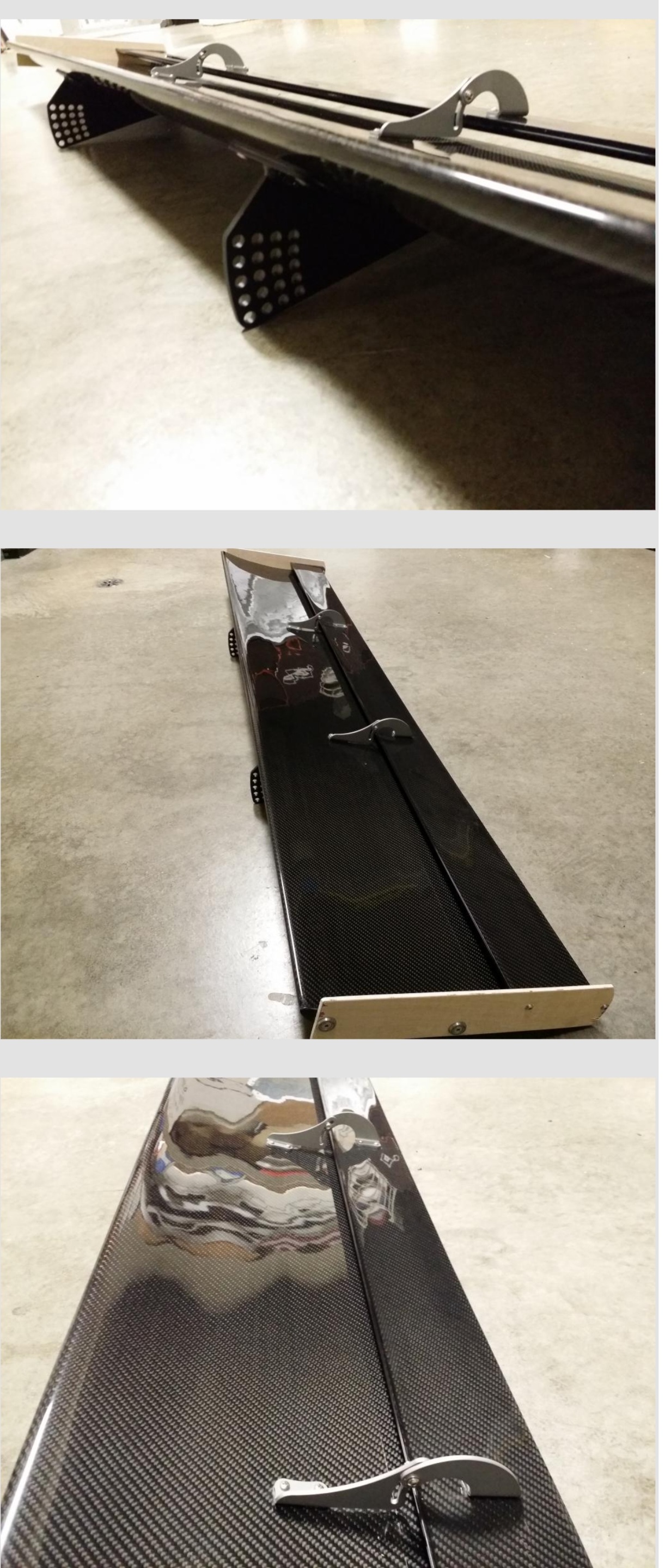

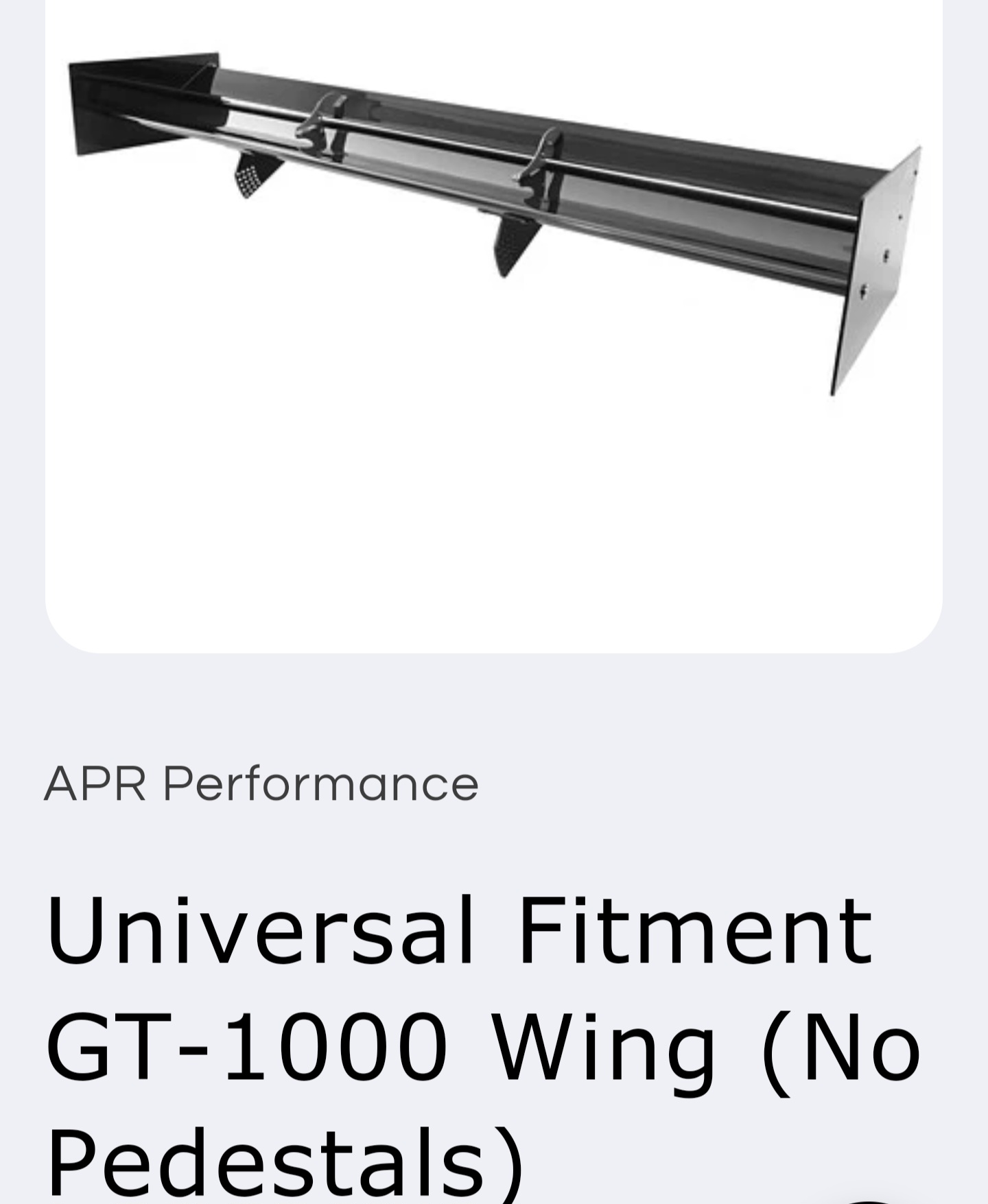

@technicalninja >> this is the APR Performance rear c/f wing that we chose for the job. Our own water-jet formed t6 .375" aluminum supports will capture the 1600 psi downforce (rated at 160mph) and send it downwards directly through the transaxle mounting frame. Front canards, and a totally sealed undercar tray with diffuser out back. The wing alone will never reach 7k psi of downforce, and I may never experience w/o/t in 6th gear on a long track; might let Patrick Long enjoy some seat time
Click to view attachment

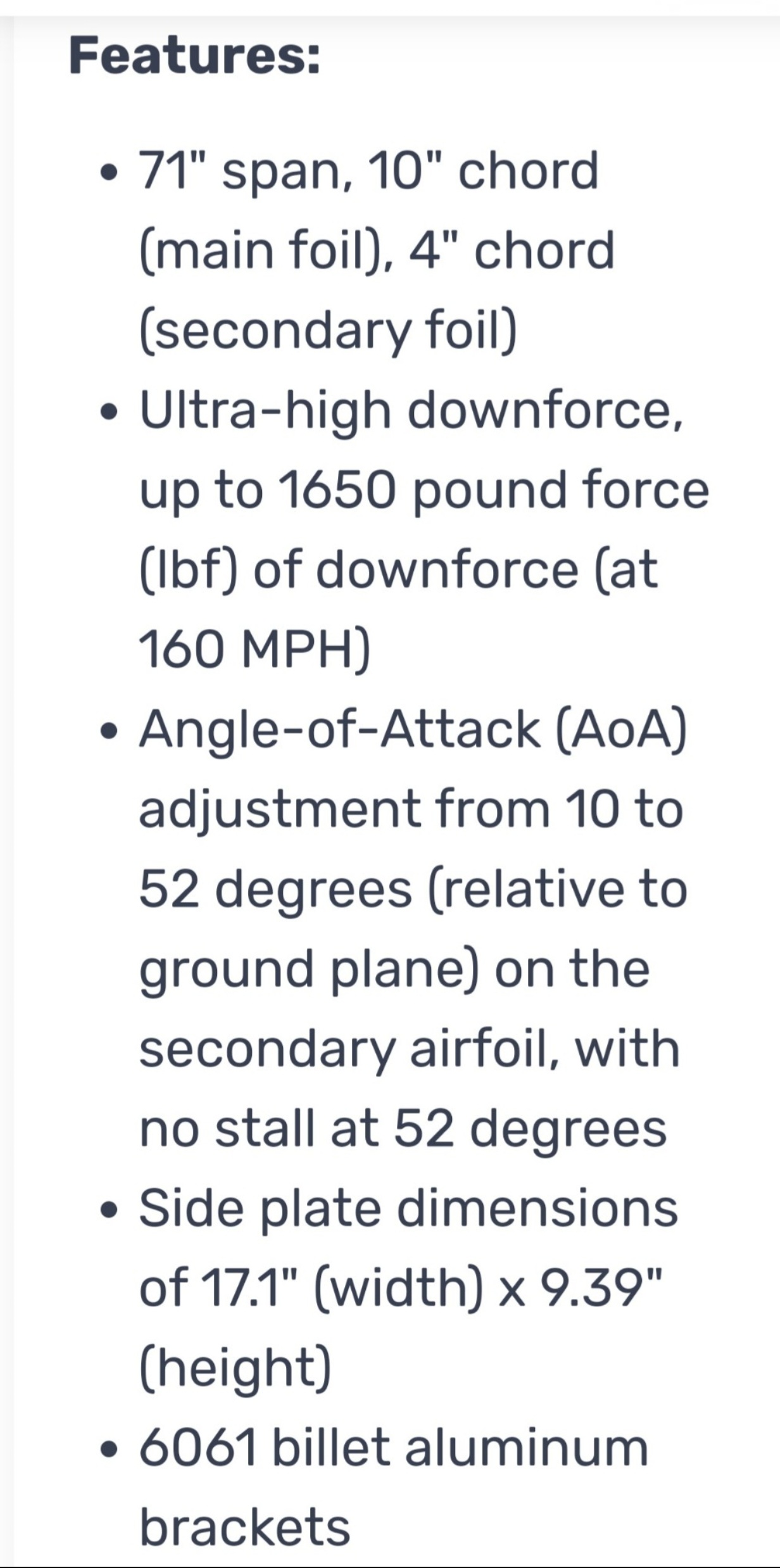

Some APR specs...
Click to view attachment

Few more pics
Click to view attachment

"No stall at 52 degrees" is HARD to believe!

BAD ASSED if it can do that...

I was joking, playing with you!

I DON"T believe you will EVER be able to apply WOT at ANY speed.

Unless,

You've created artificial gravity!

And, if you've accomplished that you're setting your sights too low...

Corky once built a twin turbo Cobra with a 351 as the base. The yellow car (my dad painted it).

He couldn't ever get it up to full boost.

By the time he had enough traction to hold WOT he was 160 MPH and running out of runway down at Kestral...

He was nearing 800 hp.

You're hunting 1100 in a lighter car!

I haven't had time to run through your whole thread, life has been busy/crappy.

What I've seen so far is the Ultimate 914 with master level workmanship. Everything is just exquisite!

COMPLETELY BAD ASSED!

@technicalninja Yessir Corky Bell ran a tight shop, and you were definitely in good Mentorship working for him. In the late '70s I think that we both had our business contacts printed in the back pages of Hugh MacInnes 'Turbochargers book Corky supplied us with various components when we were in the turbo kit era
Click to view attachment
