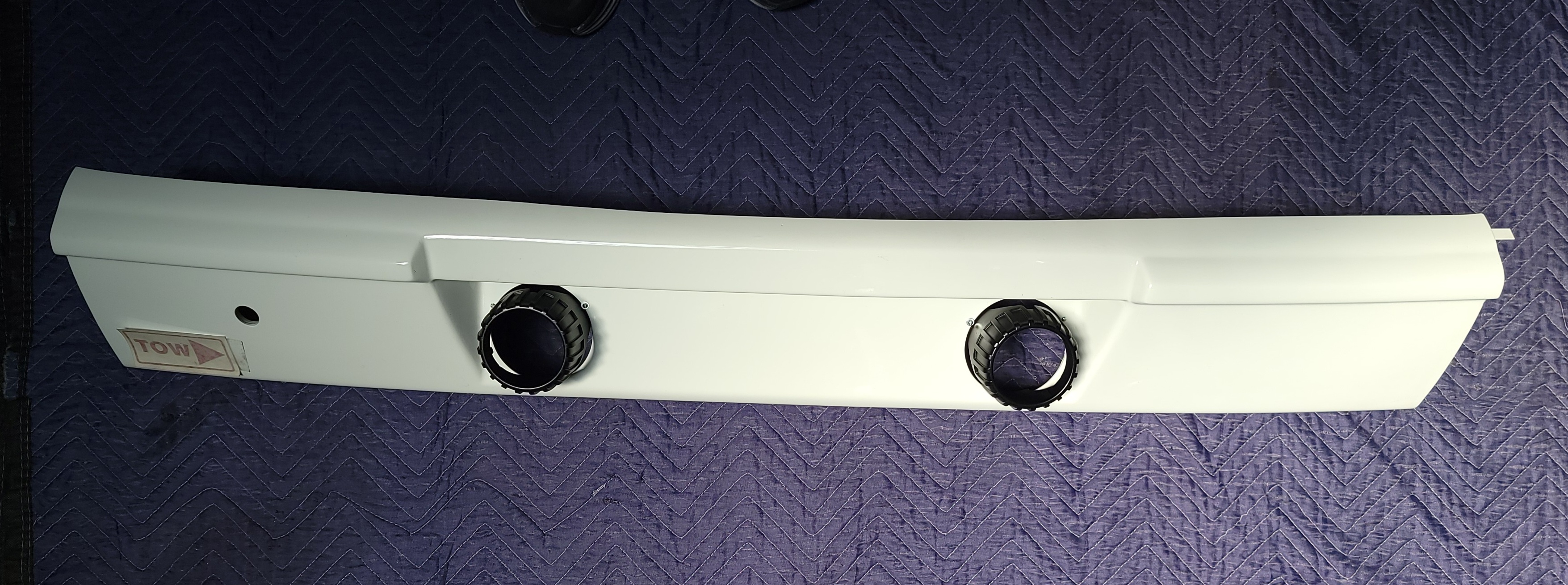

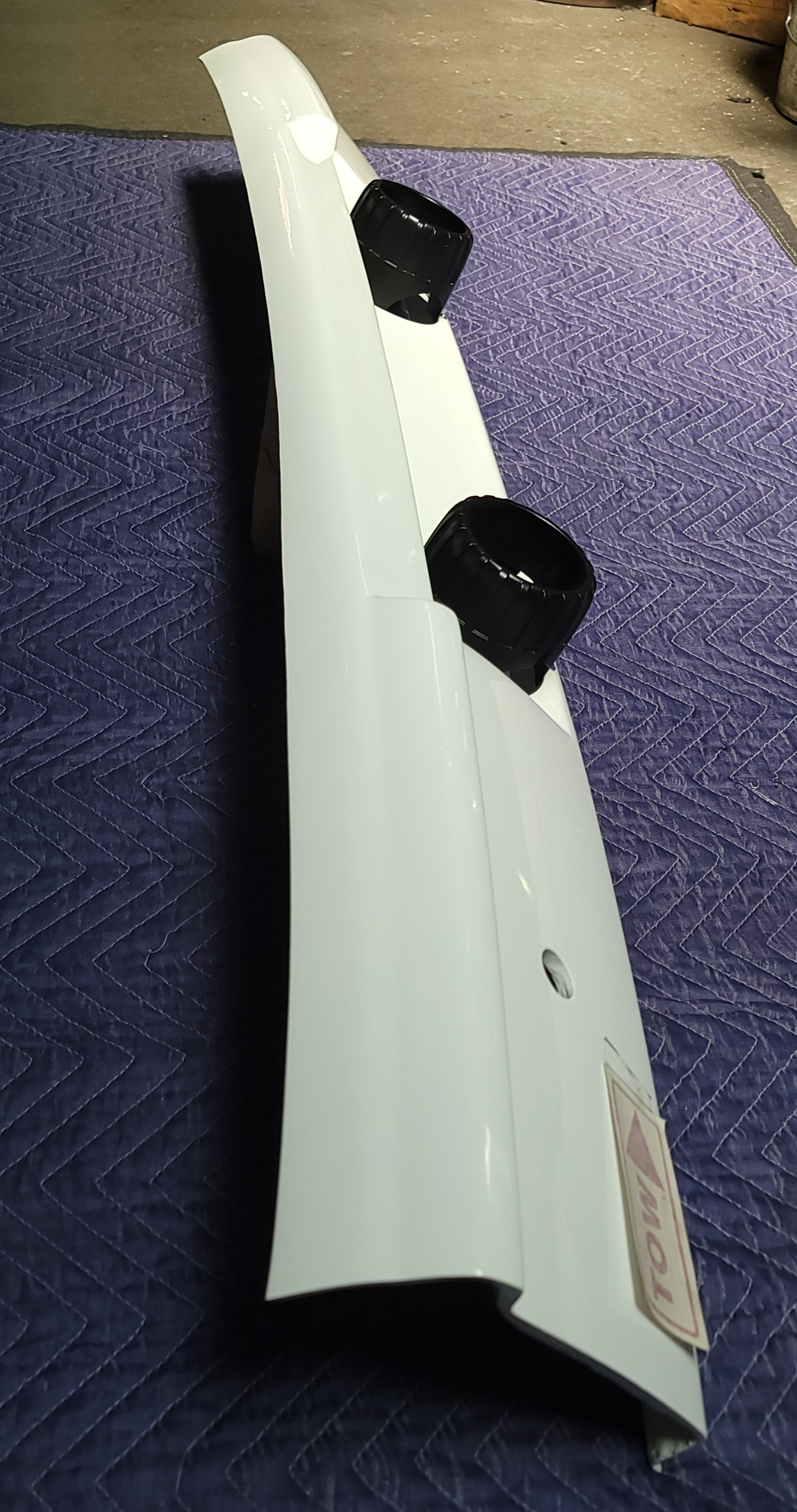

Another body part finished up; rear bumper now set up with the CGT exhaust tip 'Surrounds.
Click to view attachment

The final 3" o/d exhaust system will exit through these housings; and coated in black Ceramic...same color is used throughout the entire exhaust system.
Click to view attachment

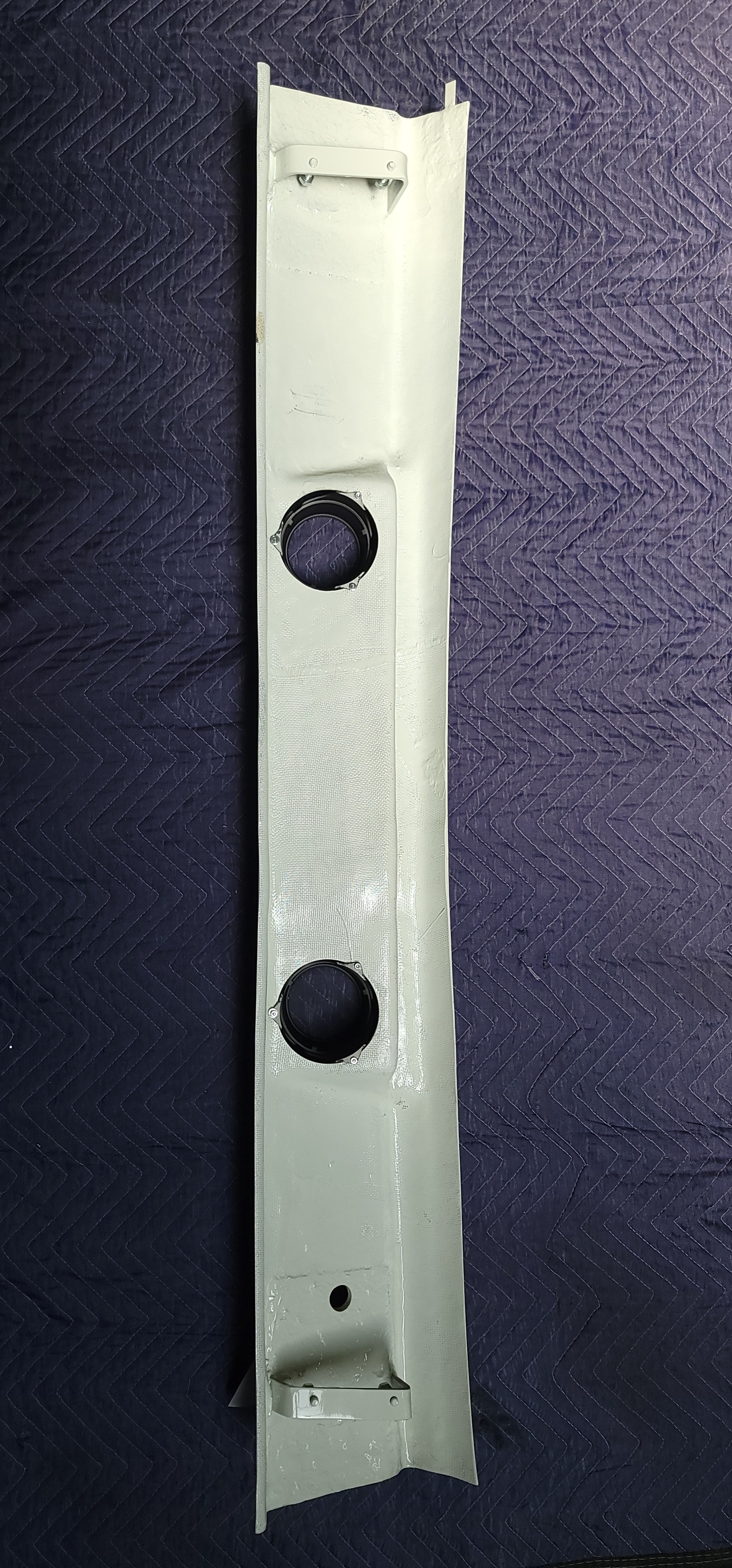

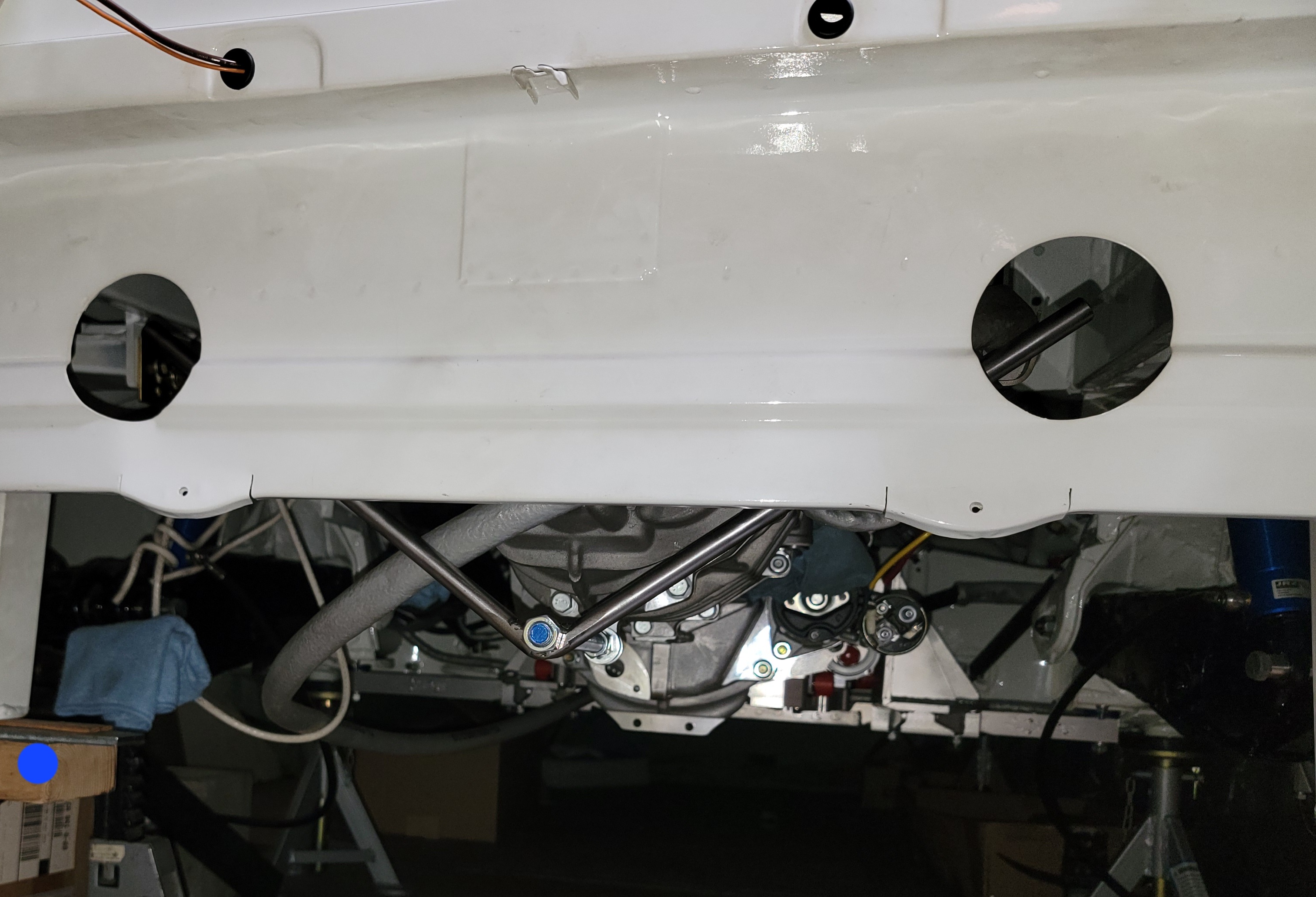

Backside of the rear fiberglass bumper: it's A.I.R. brand very sturdy build>> but Lots of time and labor getting their left and right steel brackets Tweeked to fit the unibody
Click to view attachment

Those look interesting.

What sort of magic will you use to keep the fiberglass from degrading?

Exhaust tubes slip through them without touching?

I'd guess at full tilt that might see 6-800 degrees, maybe more.

How do you make it live?

@technicalninja it's not a big problem with temp, the exhaust exits the turbos at approx 1200°f and cool down somewhat heading towards the back bumper.
Coatings bring down the egt's too. Main design challenge is shoving twin 3" od compound/ mandrel formed tubes through a left and right maze of components AND a bunch of SS heatshields, all in
tight 914 rear confines !

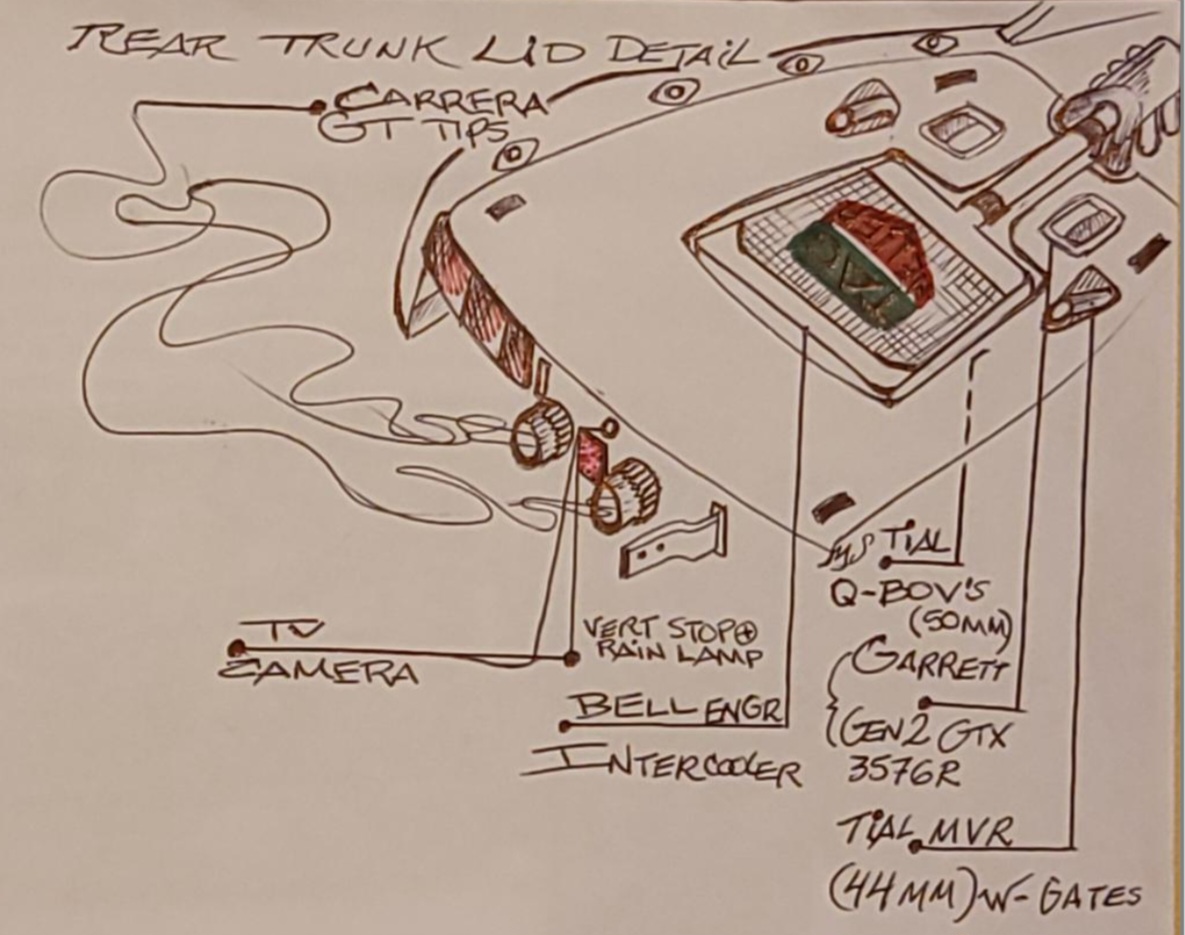

This is a quick thumbnail I sketched up which shows a bit of goods I'm hauling around back there !
I have a crazy idea brewing up regarding better 'Packaging of the exhaust...and has been planted in my brain ever since RennSport7, viewing the 963 in the workshop with its rear bodywork removed.
Keep watching our progress here for my easy way around dealing with this heat.
Click to view attachment

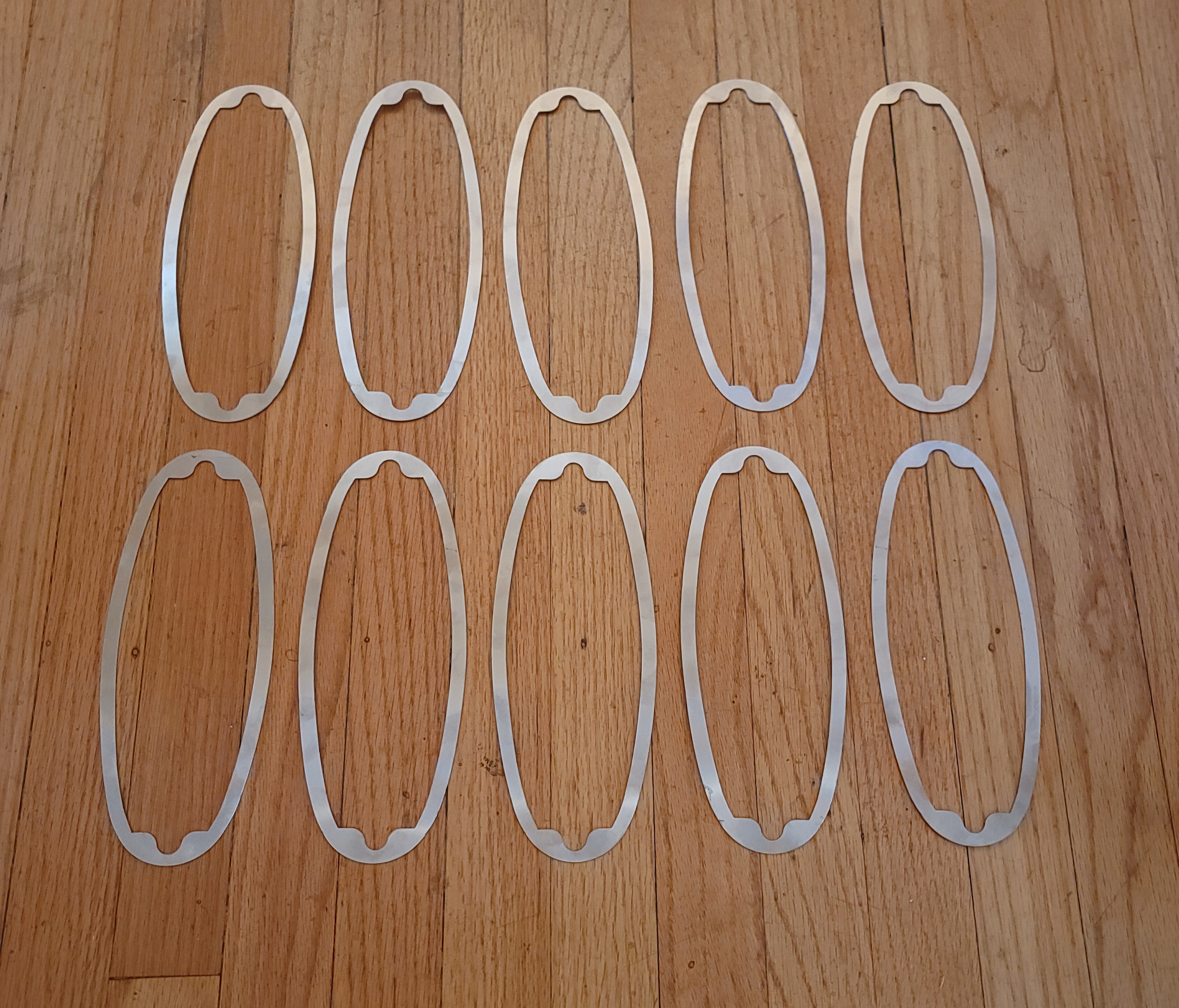

These SS base plates just received for the 3DGAuto.com headlight assemblies.
Now to start laying out the outline for cutting the Sheridan "Turn signal" bucket area.
I have 4) extra pair if anyone is planning on running these headlights on their fiberglass bodywork (Sheridan, 914Rubber, GT Racing) style. Click to view attachment

I would buy a pair from you. Seriously considering these lights for the gt for.the same reason (lightness and ease of use)

Bill, I don't think that you will need these>> if you're using the oe steel fenders which already have a good flat base (perimeter edge) at the top of fender (light bucket area).
These new style headlight housings should drop right into place and sit correctly on the OE edges, even bolt into the oe metal bracket in there.
Marty

I have fiberglass flares and thought maybe the fronts are fiber too. Pick up the car tomorrow or Wednesday from dry ice blasting and coating for the underside so will check then!

LMK Bill...if the remaining fender structure is metal, you should have a 'Proper base already

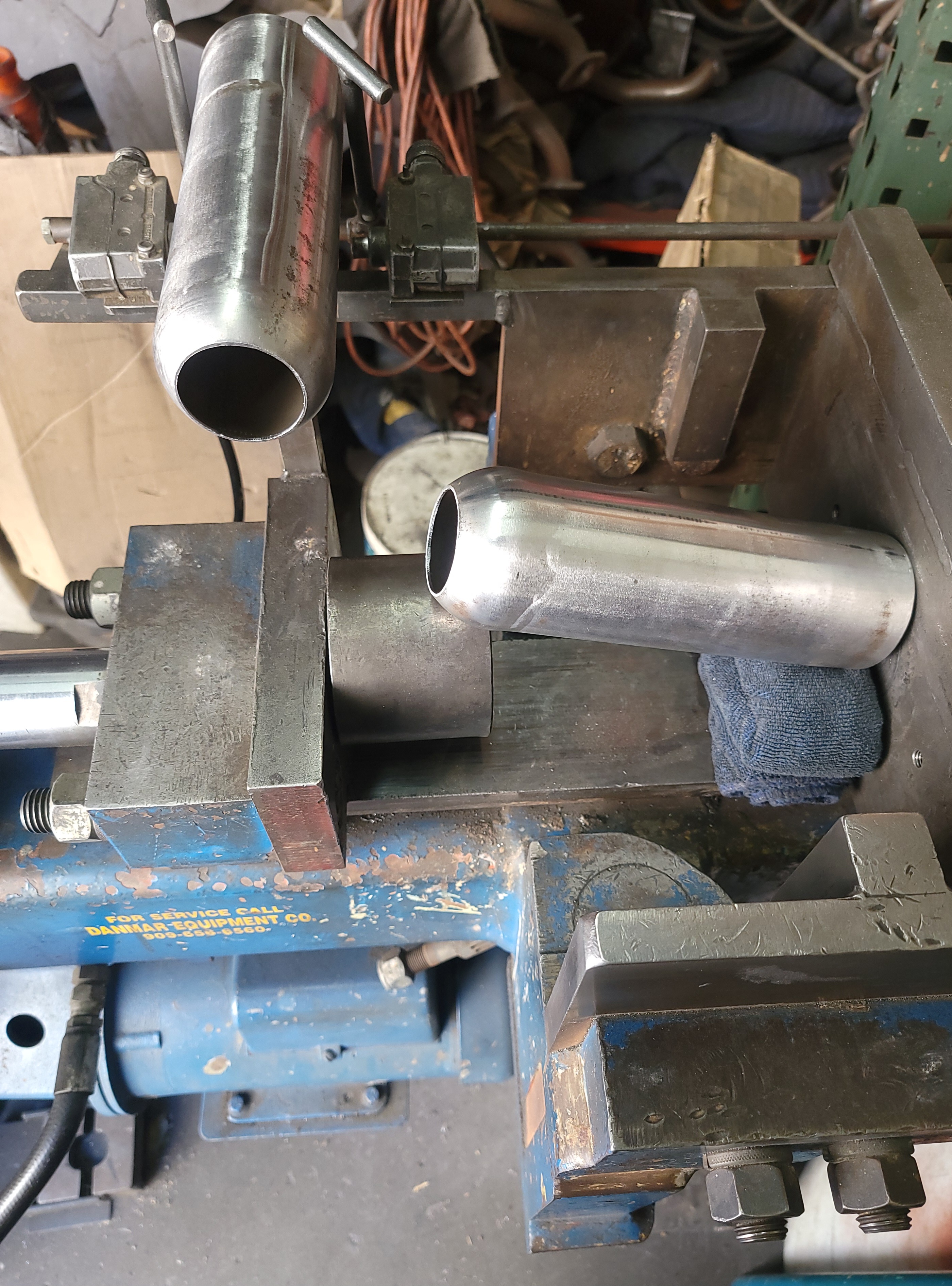

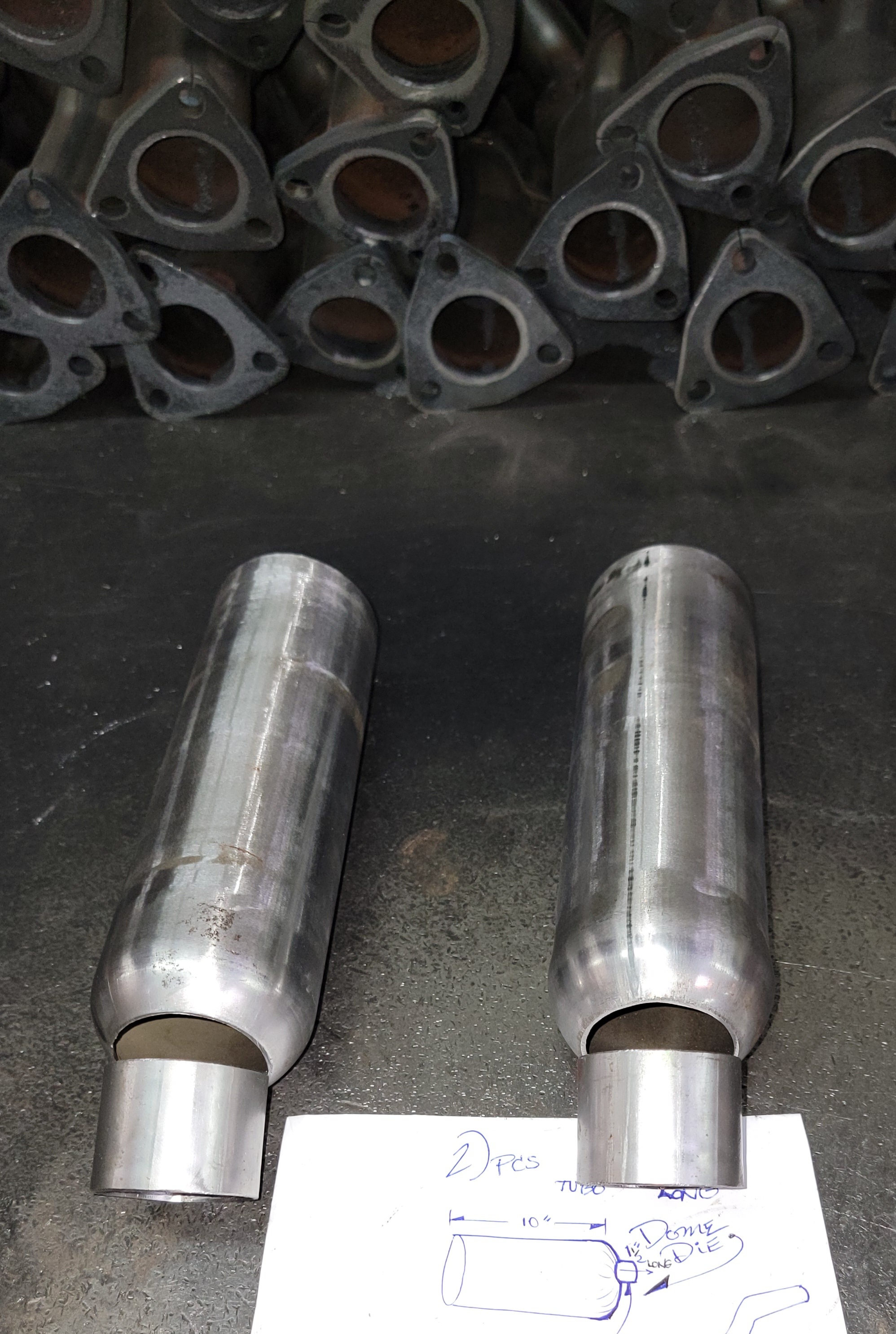

Some 3" exhaust tips to pop through the CGT surrounds; made these with the assistance from our hydraulic press + the Dome-die tooling.
The small 1⅞" od tubes (when finish welded) will be where the 1¾" od tubes with exhaust gasses will enter the tips. Why so small? See following ...
Click to view attachment

Our Hydraulic press makes all MSDS header collectors, cones, reducers, specialty dimples and domed caps on tubing ends. The end caps on these 3" od tube sections are 1⅞" id.
Click to view attachment

The goal was to move exhaust gas from left and right side Garrett turbos, but we have decided to vent the Left + Right wastegate exhaust down to the rear of the 914 instead; and the turbo exhaust out the top of the rear trunk lid...race car (or even 918) style. Routing 1¾" header tube around the drivetrain 'Maze is so much more compact compared to dual 3" dia tubing. Cooler engine bay temps as well, the wastegates oscillate the dispersing of exhaust gas, wherein the turbo exhaust is a constant flow.

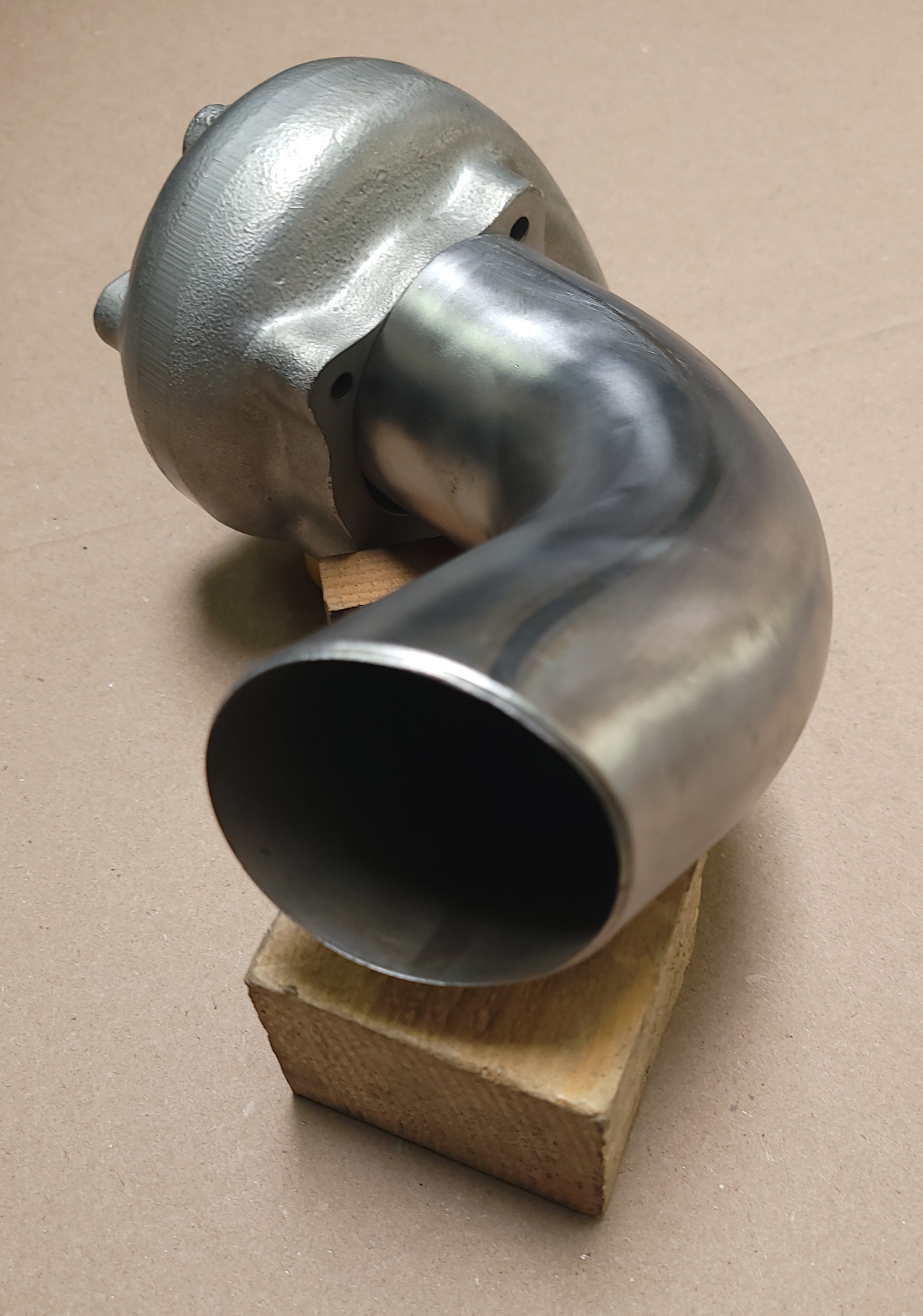

Turbo exhaust will be simple 3" dia 45° angle cut, short and compact. Pic shows basic 1¾" mandrel bends which will be prototyped into place once the wastegates are situated.
Click to view attachment

Closeup...the final length of the tip protruding past the CGT surrounds TBD.
Click to view attachment

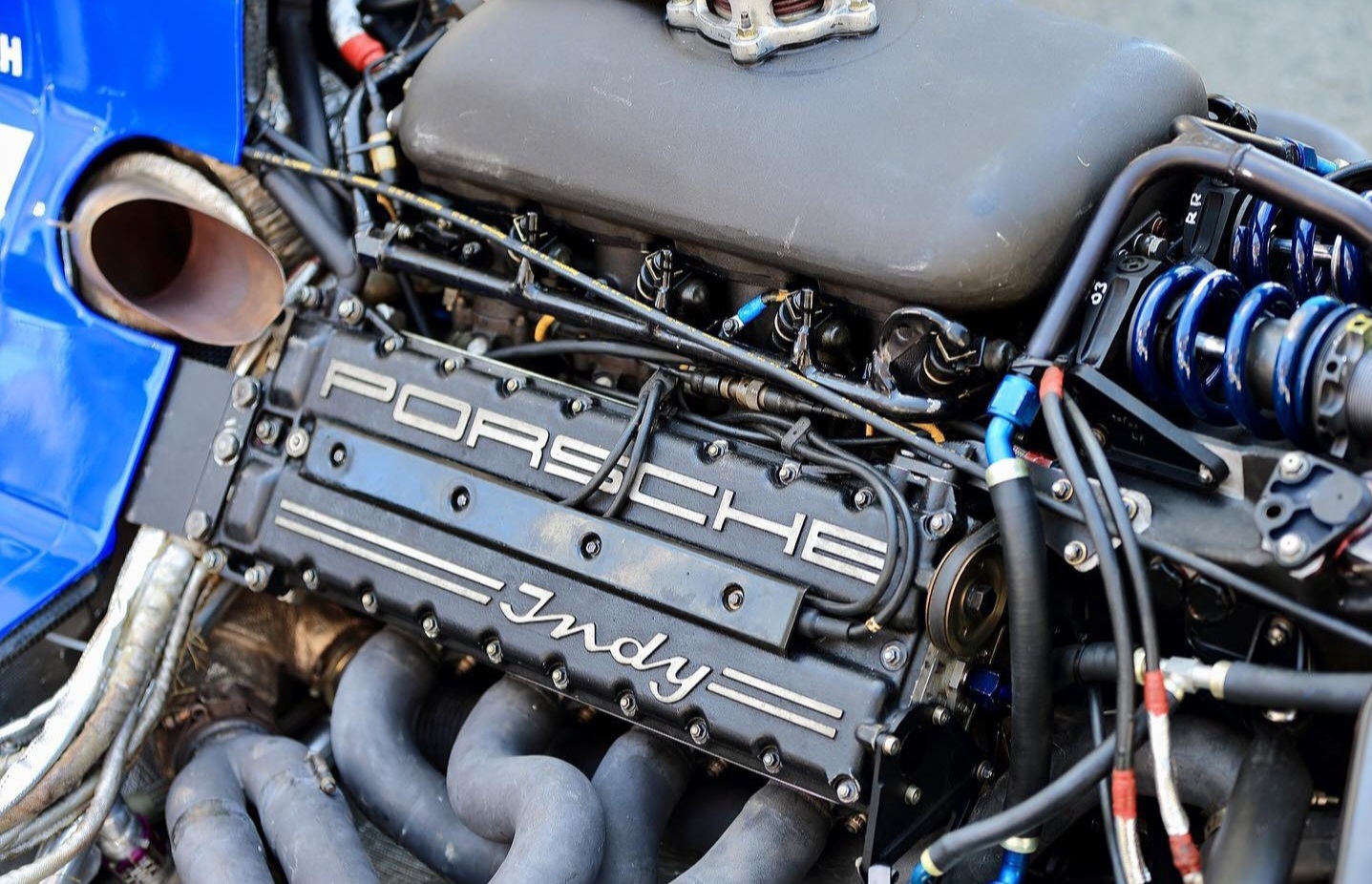

Turbo exhaust on this v8 Indy engine, short and right out of the turbine, and built into the slipstream of the body, very cool design
Click to view attachment

Very interesting stuff. Thanks for sharing.

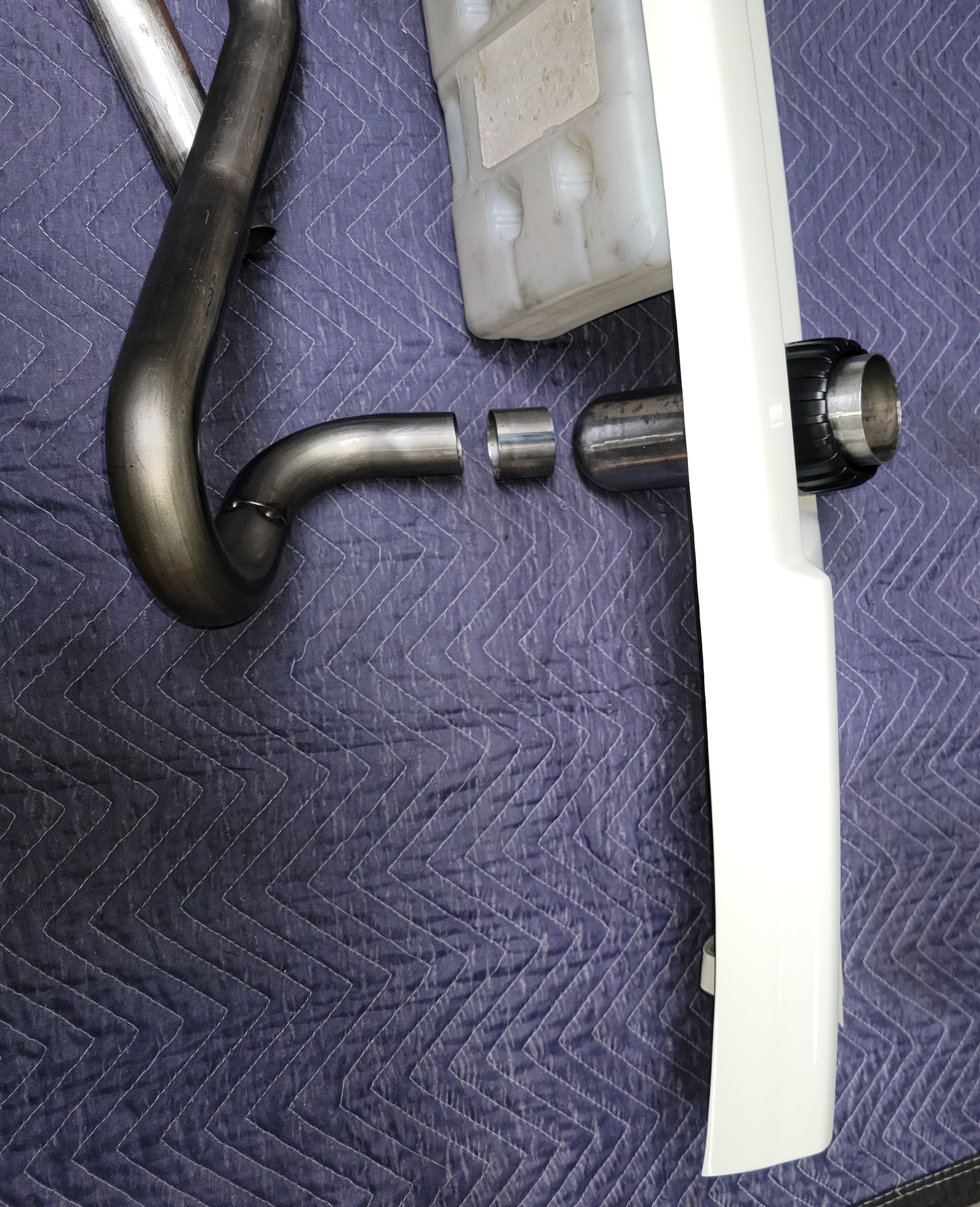

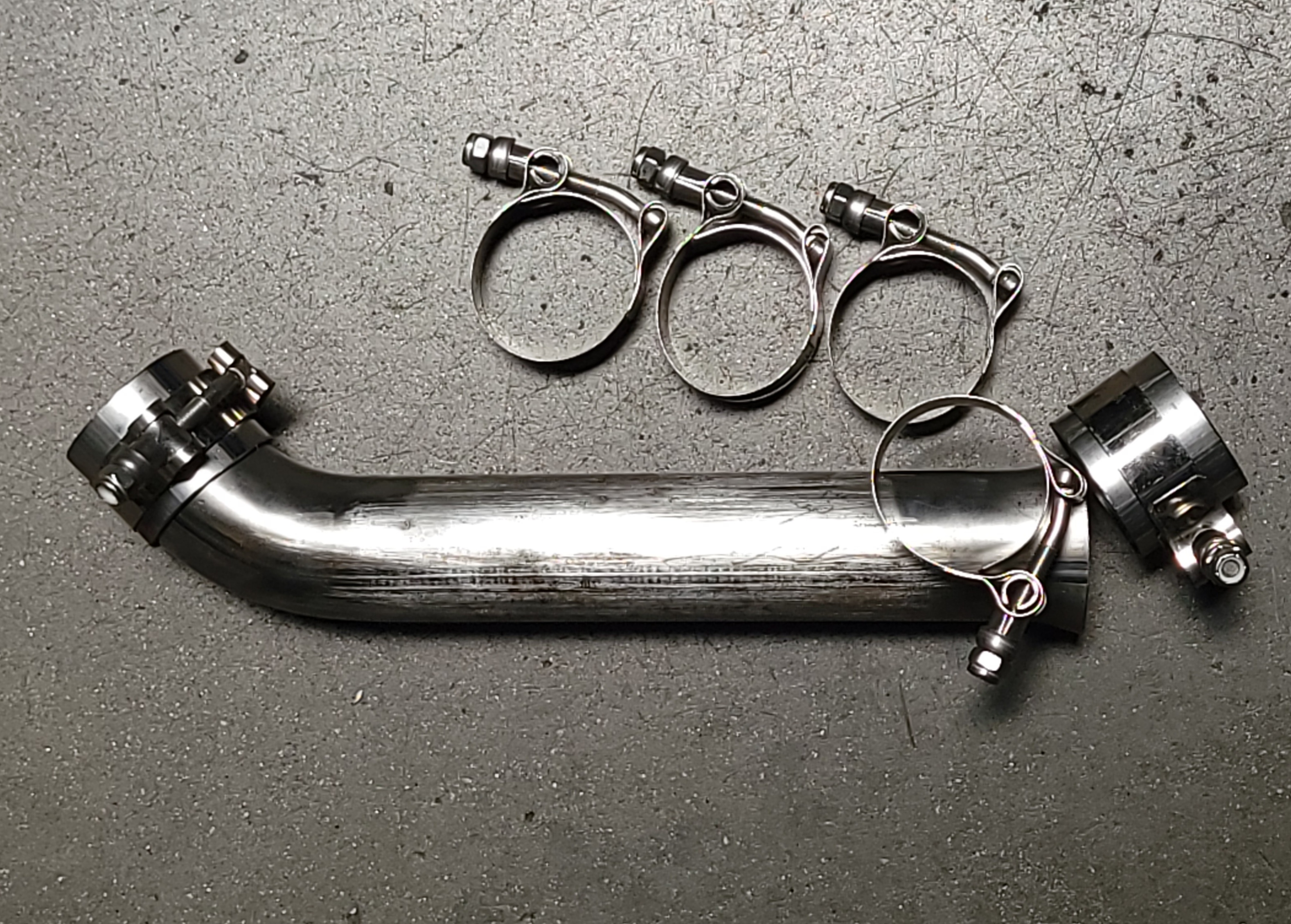

In house mfg. od/id swedge tubing (exhaust joints); one side welded in place, and one side snugged down with these SS clamps...available at most hydraulic supply stores.
Click to view attachment

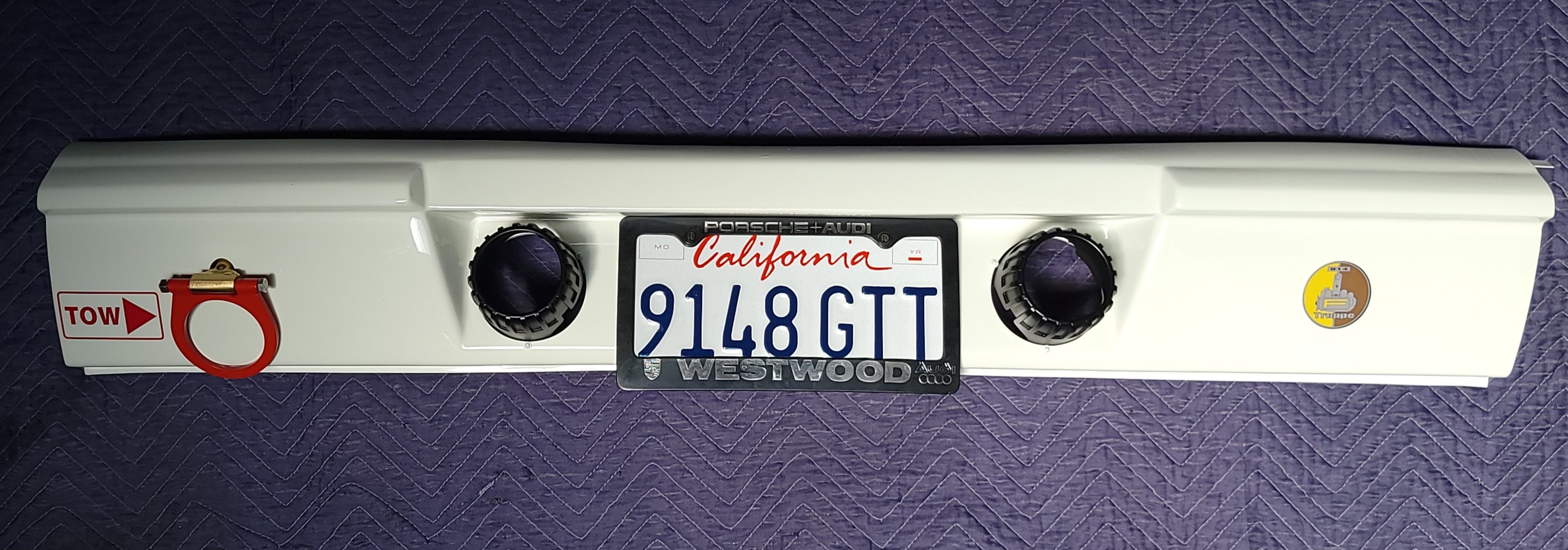

Rear A.I.R. fiberglass bumper and Cali Plate for (occasional) street use.
Click to view attachment

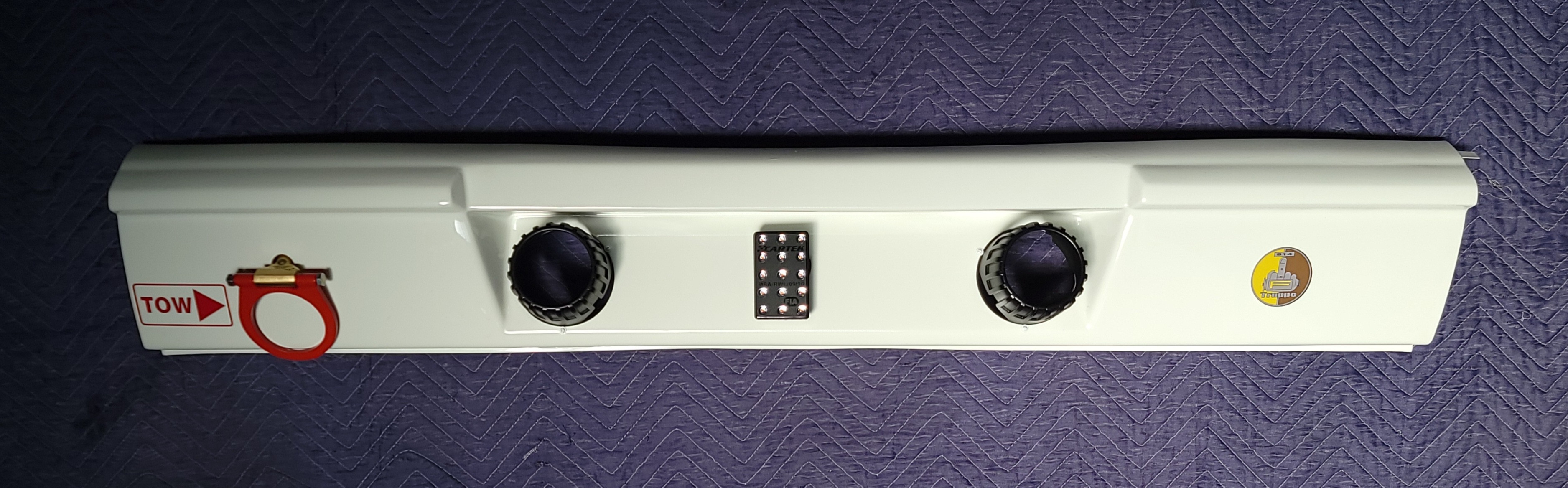

Combination Rain / or Stop l-e-d FIA spec lamp for Club trackwork days. Has quick disconnect 12v cable just behind the bumper.
Click to view attachment

...and some time spent on tapping into the Daley oil pump for AN#4 oil lines (turbo o/p), and figuring out the large AN#18 route to dry sump tank. Large firewall access makes it a lot easier.
Click to view attachment

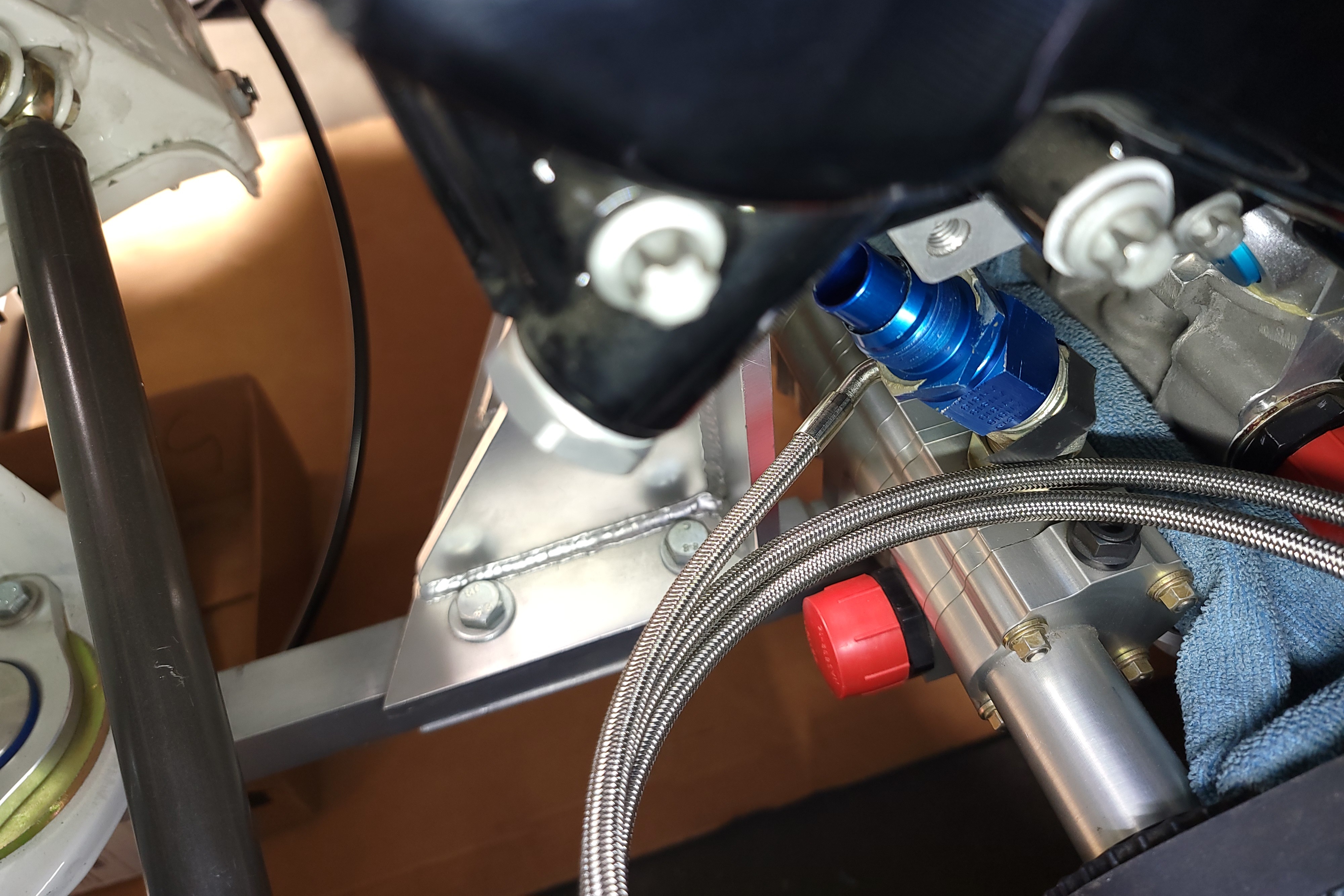

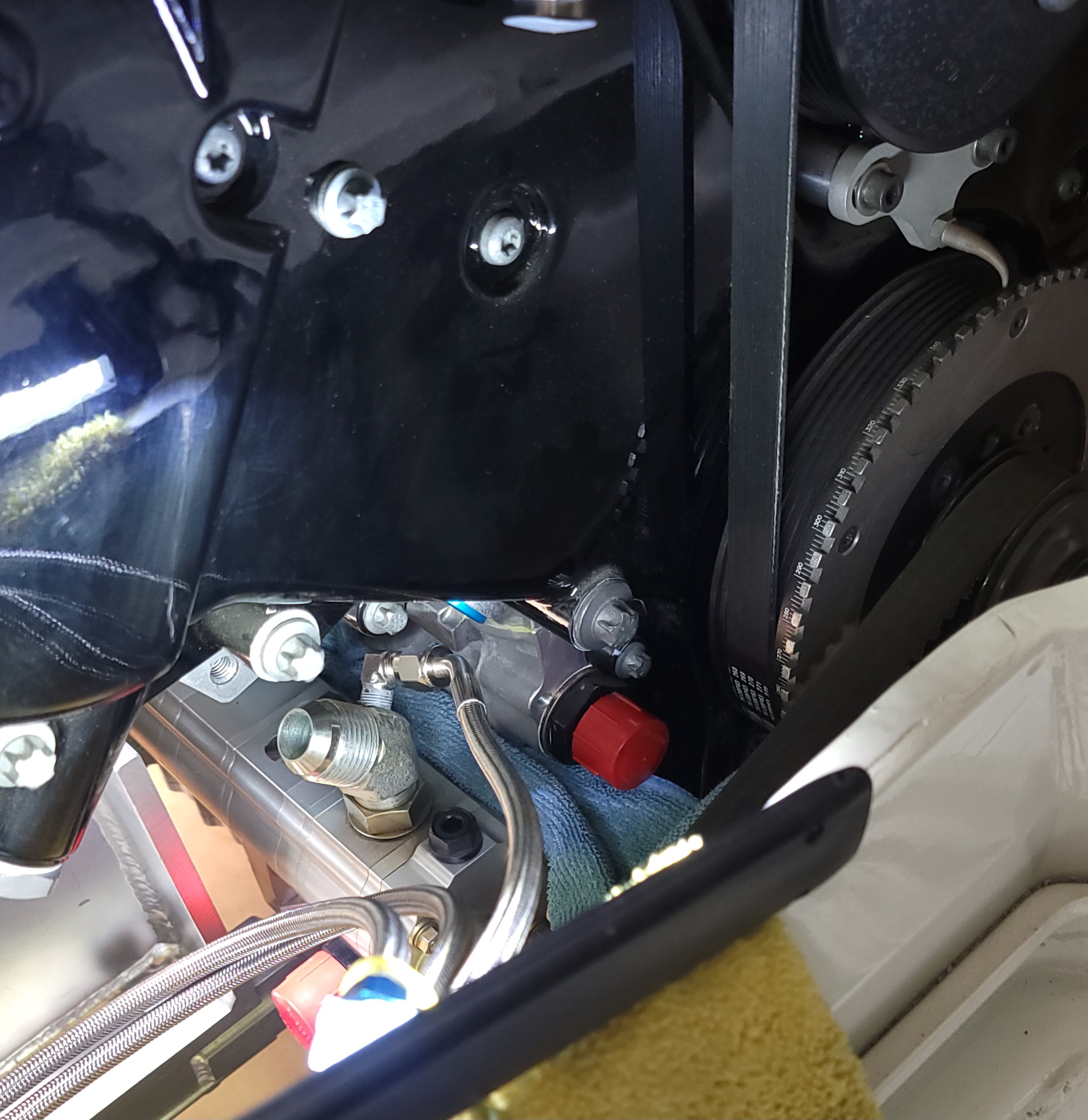

AN#4 oil line (Left side turbo) supply is a snug fit and clears the belts & pulleys.
Click to view attachment

Sanitary work Marty! Thanks for the update.

Thx Jim @Lucky9146 ! are you entering anything for Lüft Universal City this October ¿¿

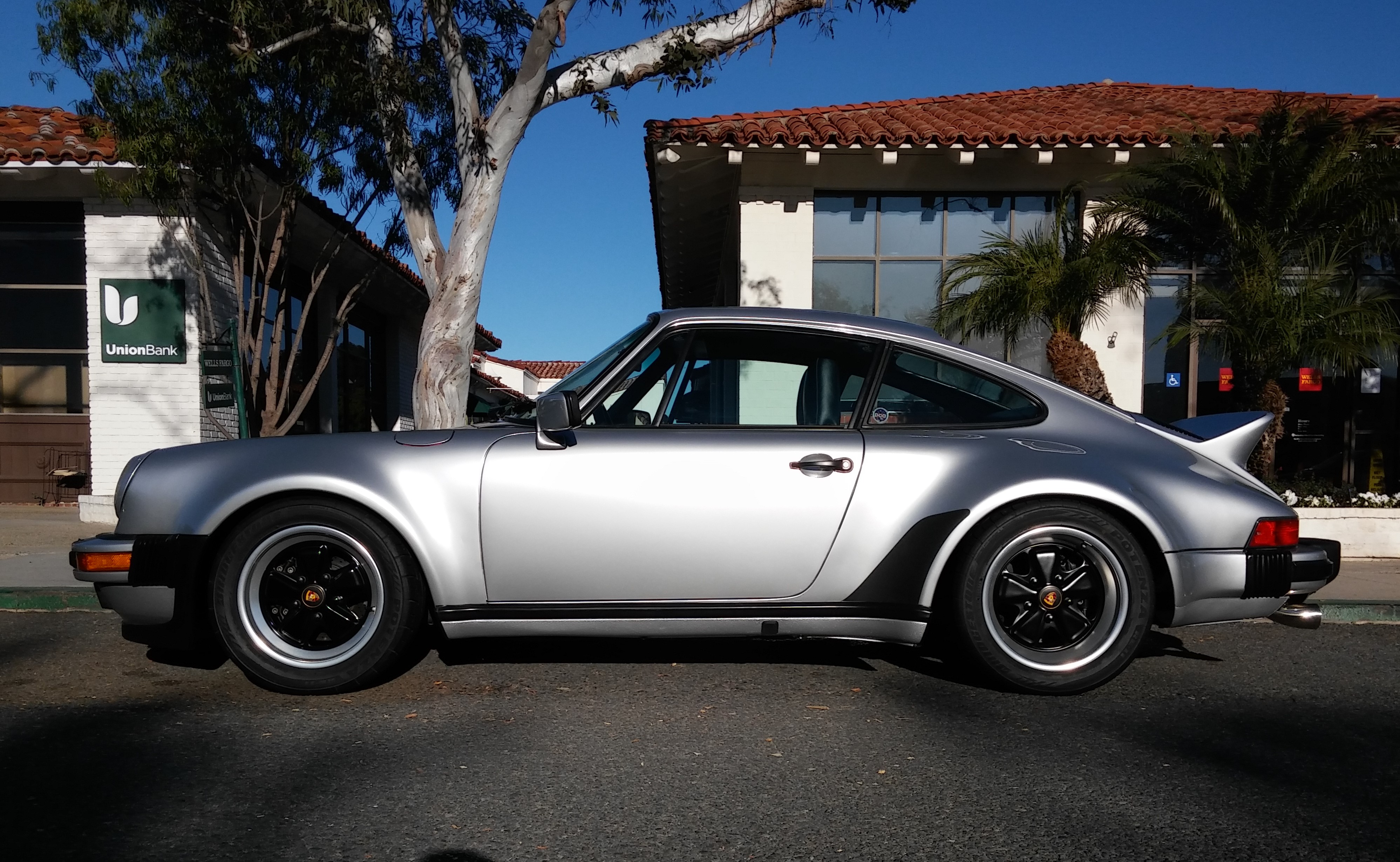

Yes, entered my '85 M491. BTW 40th anniversary of the "Turbo Look" option. Hope it's accepted! See you there?


Click to view attachment

@Lucky9146 she's looking Sweet !! We threw the Sonauto car in the application...don't think they want a repeat car to show again as it was at San Pedro couple years ago

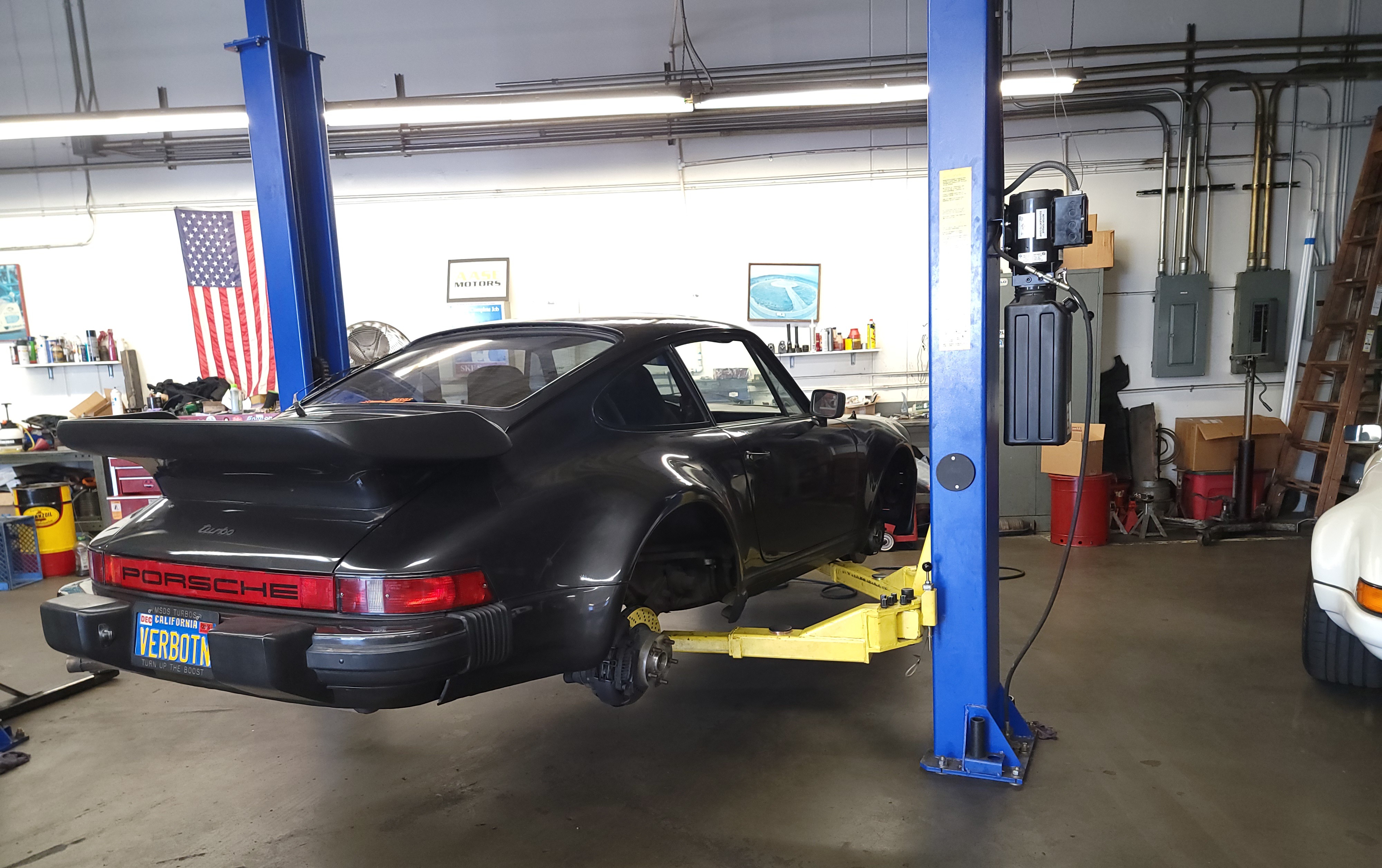

Our '79 VERBOTN was shown at Lüft 2 'Bandito Brothers years ago...but no application put in for #342 at Universal City.
LMK if you need your 'RSVP 'Local' spot this year

Click to view attachment

Here are 2 quick videos we just posted to YouTube showing the onboard air jack system.



https://www.youtube.com/watch?v=lLjY0i8pH3o



https://www.youtube.com/watch?v=Zn9pa-0_Xyk

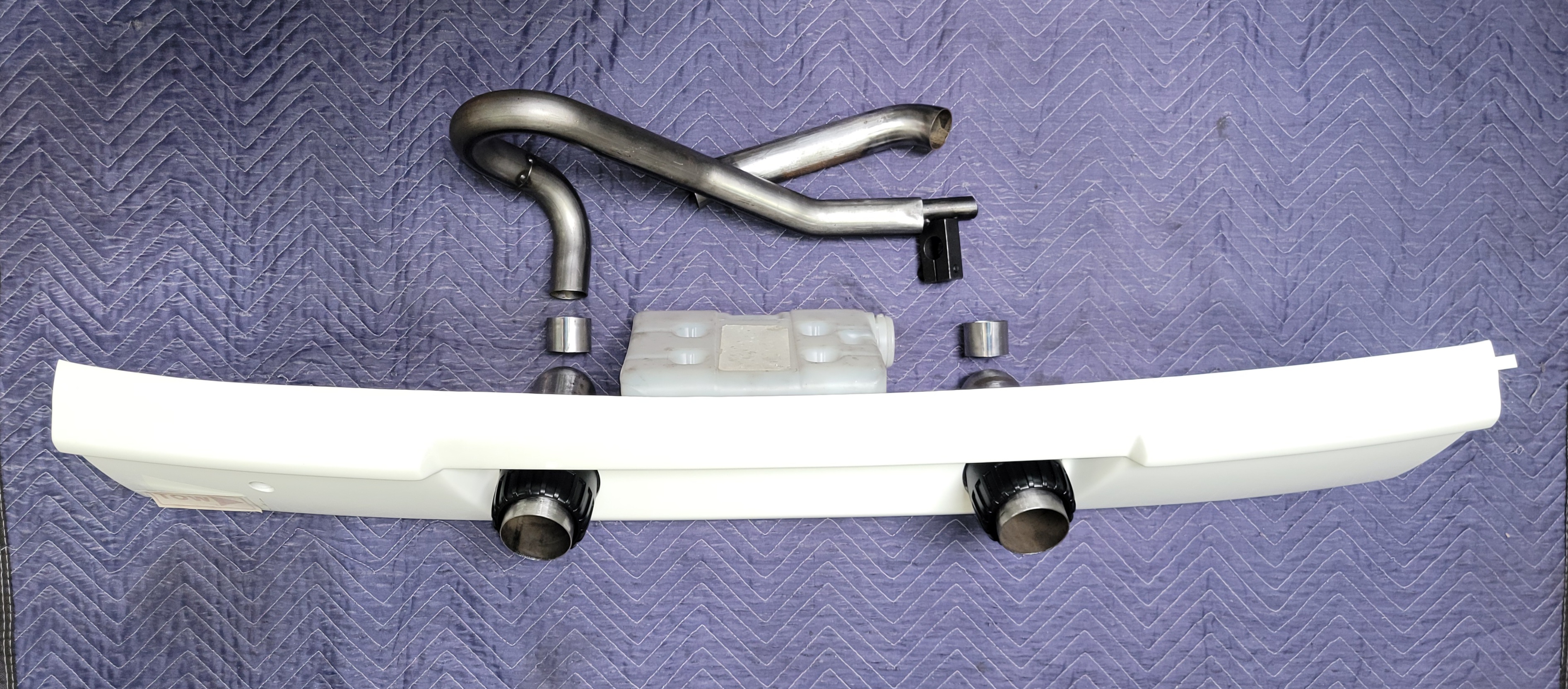

Simple fabrication today; just tack welding the dual exhaust support bracket that will come off of the trans nose-cone & guide the 2 pipes into the rear bumper. I'll finish weld (presentable!) after test fitment .
Click to view attachment

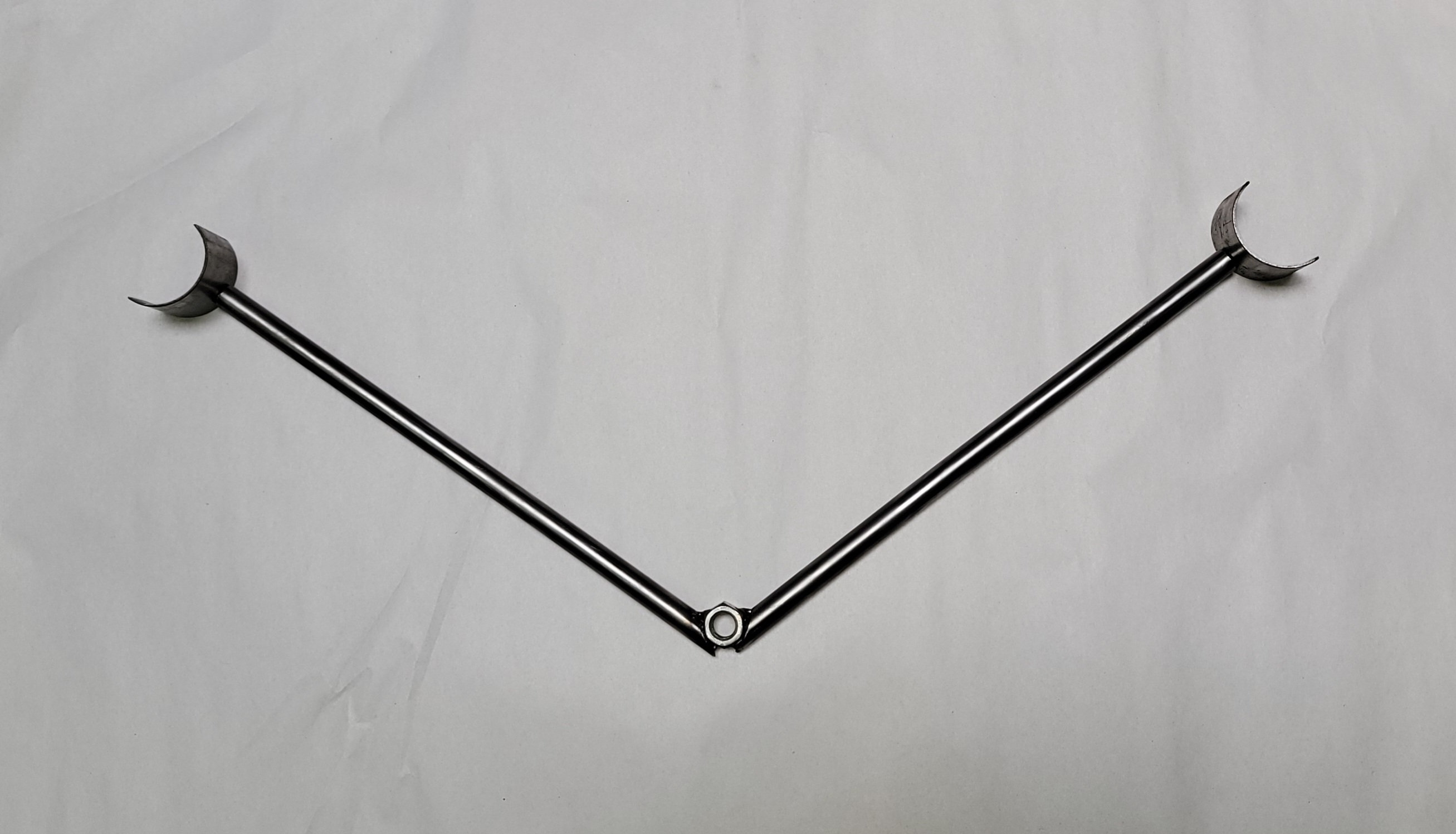

Support bracket >work in progress
Click to view attachment

Rear exhaust tips support bracket now bolted on to the 996 gt2 transaxle. Lucked out and found an unused boss (for attachment) at the bottom rear of the nosecone !
Click to view attachment

Did some innovative 1D mandrel bending in 2.75" od this week and came up with an end that gives a slight kidney bean + slash tip look: close enough for that Porsche Indy exhaust style.
Click to view attachment

...closer look
Click to view attachment

Exhaust art! Love it!

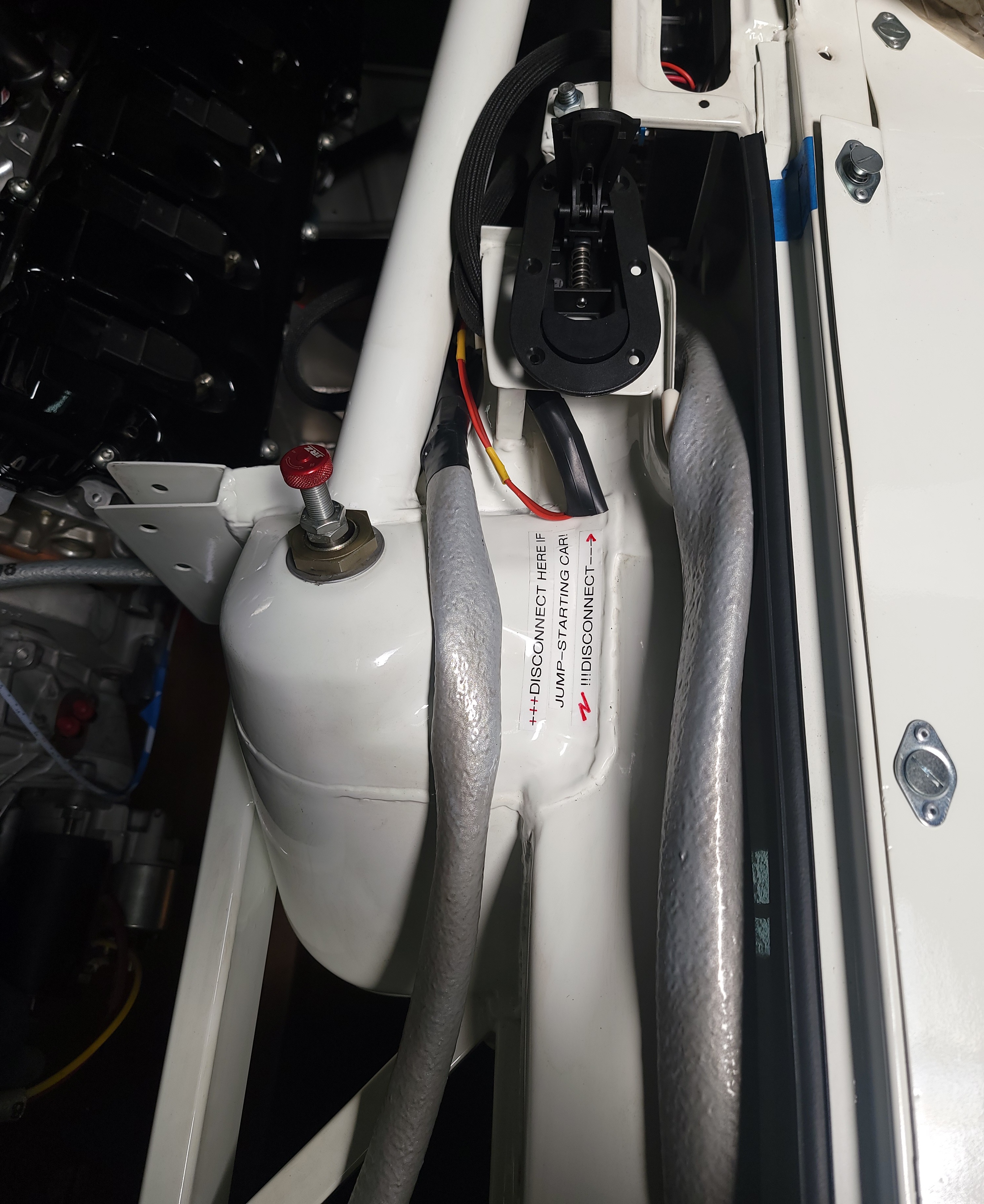

Checking out the placement for the Aero Latches (rear deck) to the corresponding rear trunk mounting plates. Will be using 4) latches on front and rear Sheridan trunk lids.
Click to view attachment

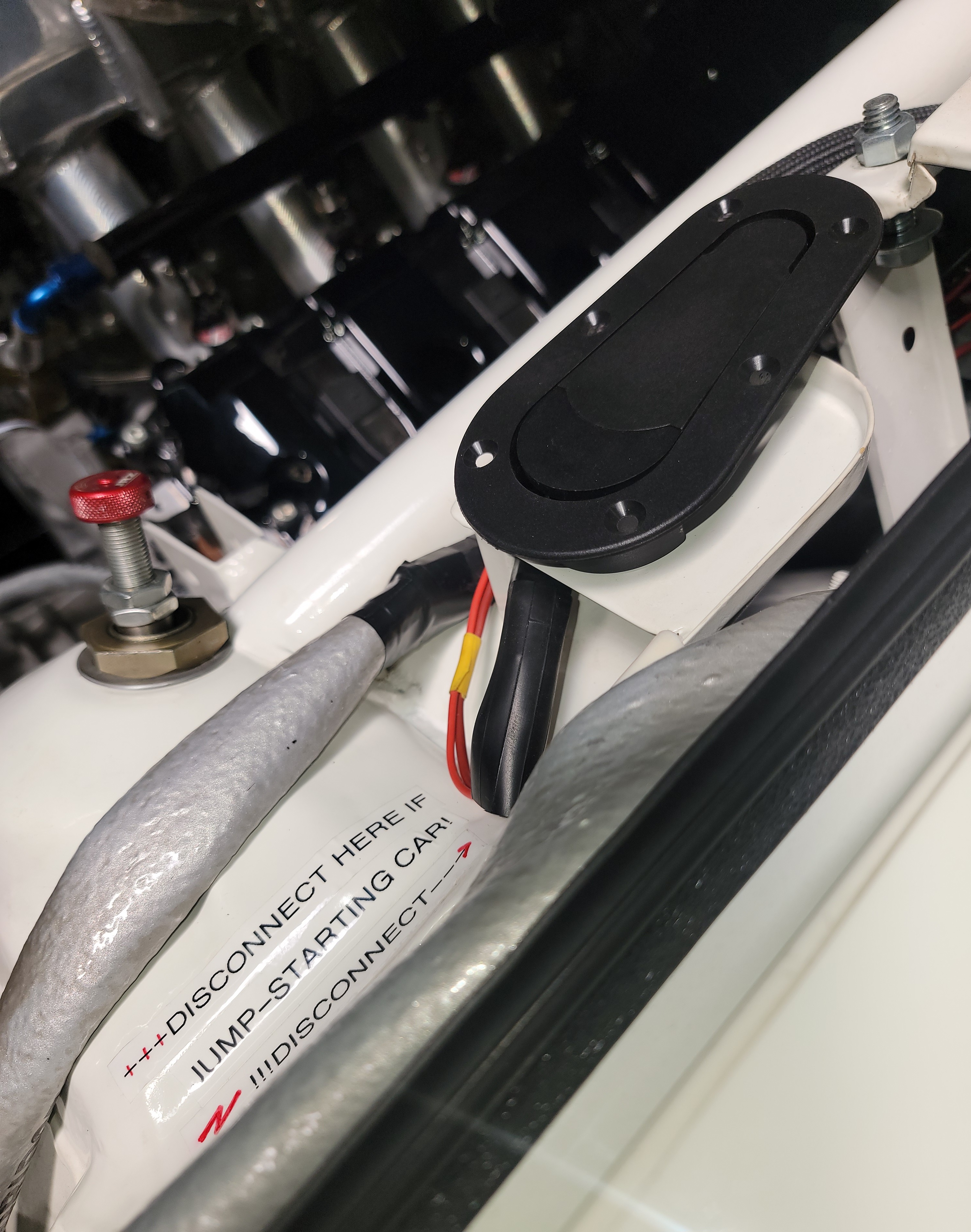

In the open/unlock position. These are sourced through Pegasus Racing Products.
Click to view attachment

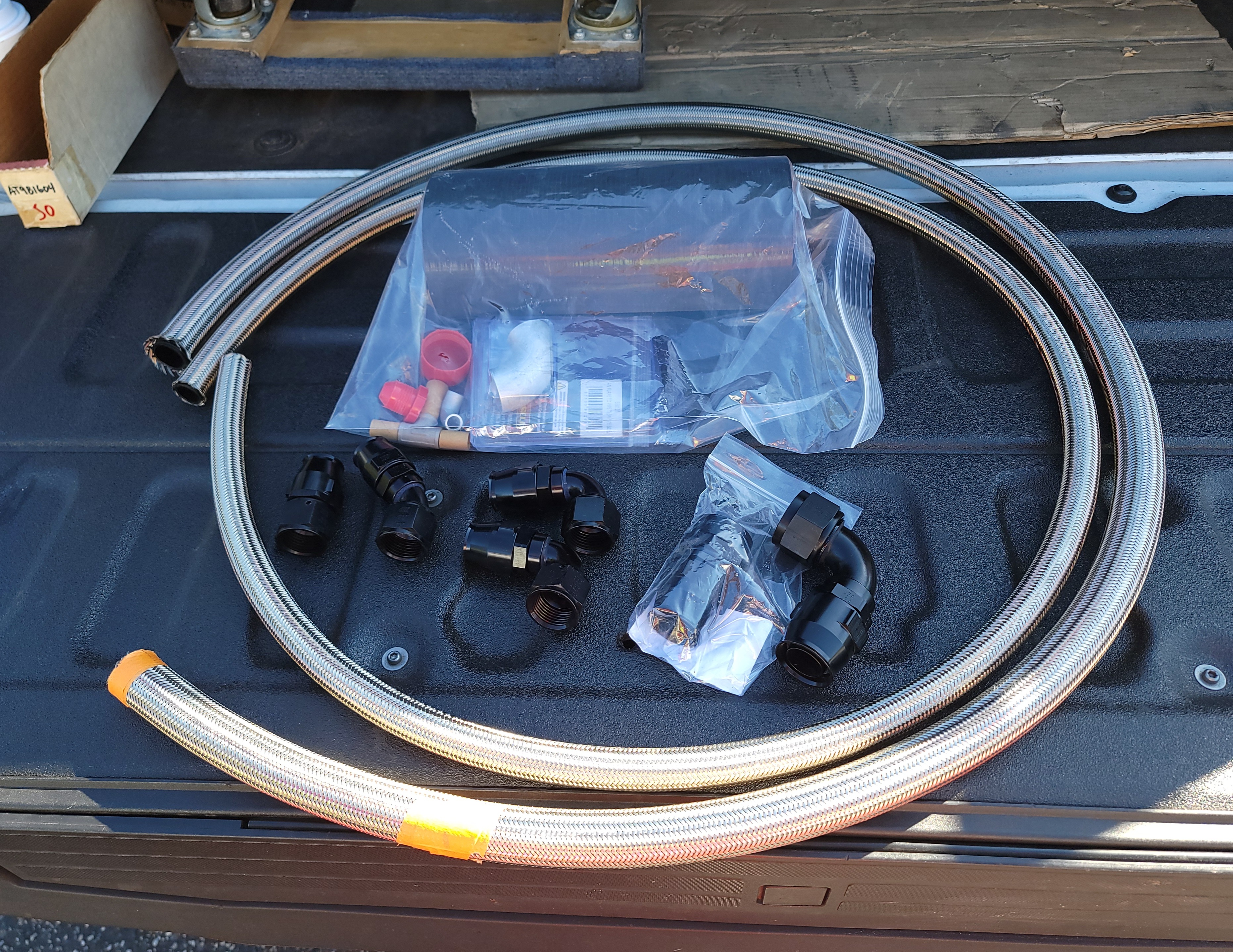

Monthly trip over to Hawthorne, Calif. for some SS braided 'Pro-plus hose; #12 and #16 lines. Orig store there aporox 50 years known as Earl's Supply>> today aka ANPlumbing.com
Every Porsche hot rod I've built since 1976 has their SS braided lines + A/N fittings.. this is like having an automotive/marine plumbing supermarket right down the road from MSDS shop.
Click to view attachment

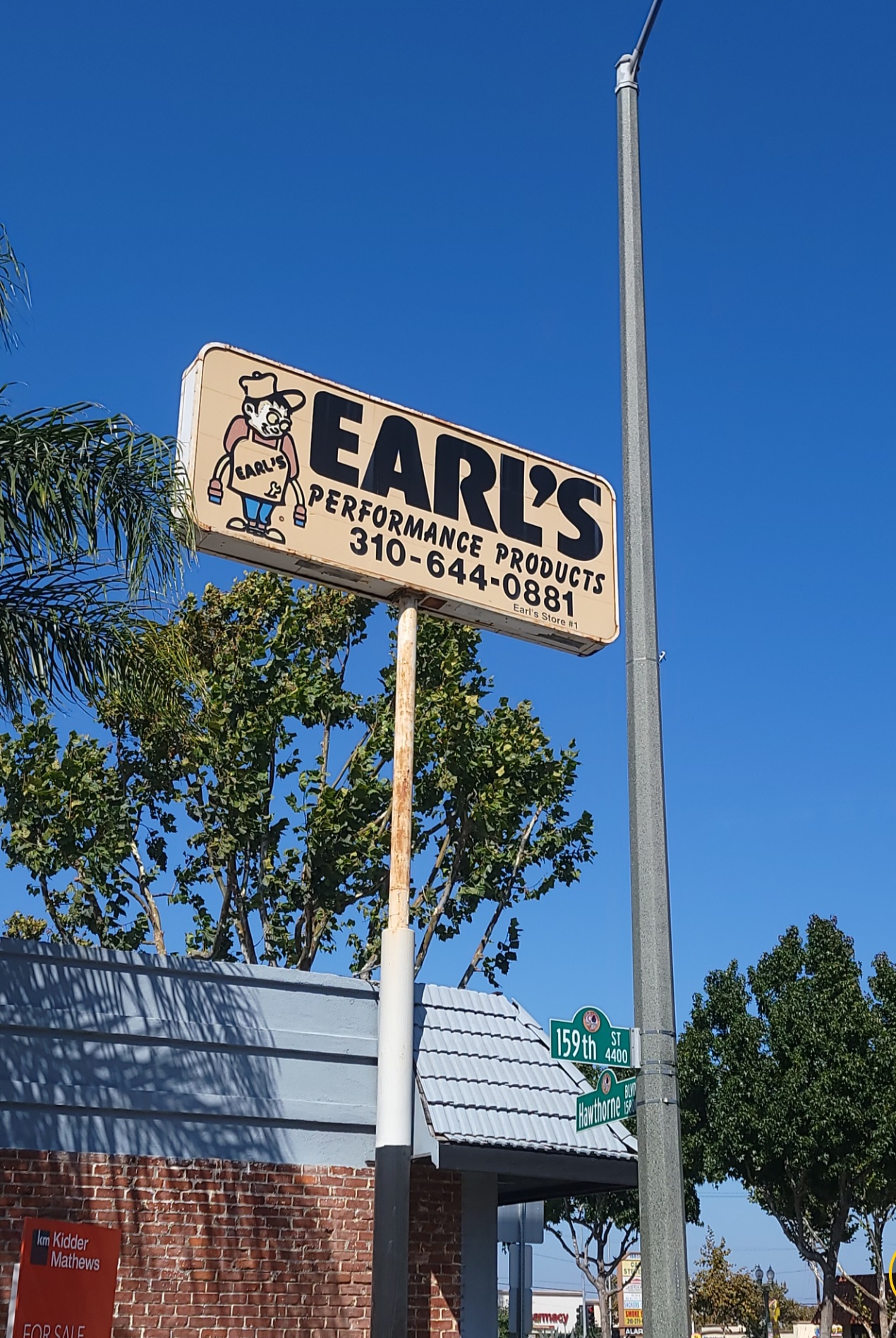

Earl's Supply for the win !¡
ANPlumbing.com will be moving a few miles south to the city of Torrance in Jan. 2025.
Click to view attachment

^ Cool, I never realized Earls was (relatively) local! My car has some of their bits.

Chris,
Original store actually had A/N bits salvaged off of mothballed aircraft + super inexpensive. Where I used to buy the Parker-Hannifin variable boost valves: "Cycle the Parker Valve" !!

I had no idea Earl's was an actual store.

I think I heard them say that when they make their move to Torrance; the store will be mostly mail order and Customer pick-up only.

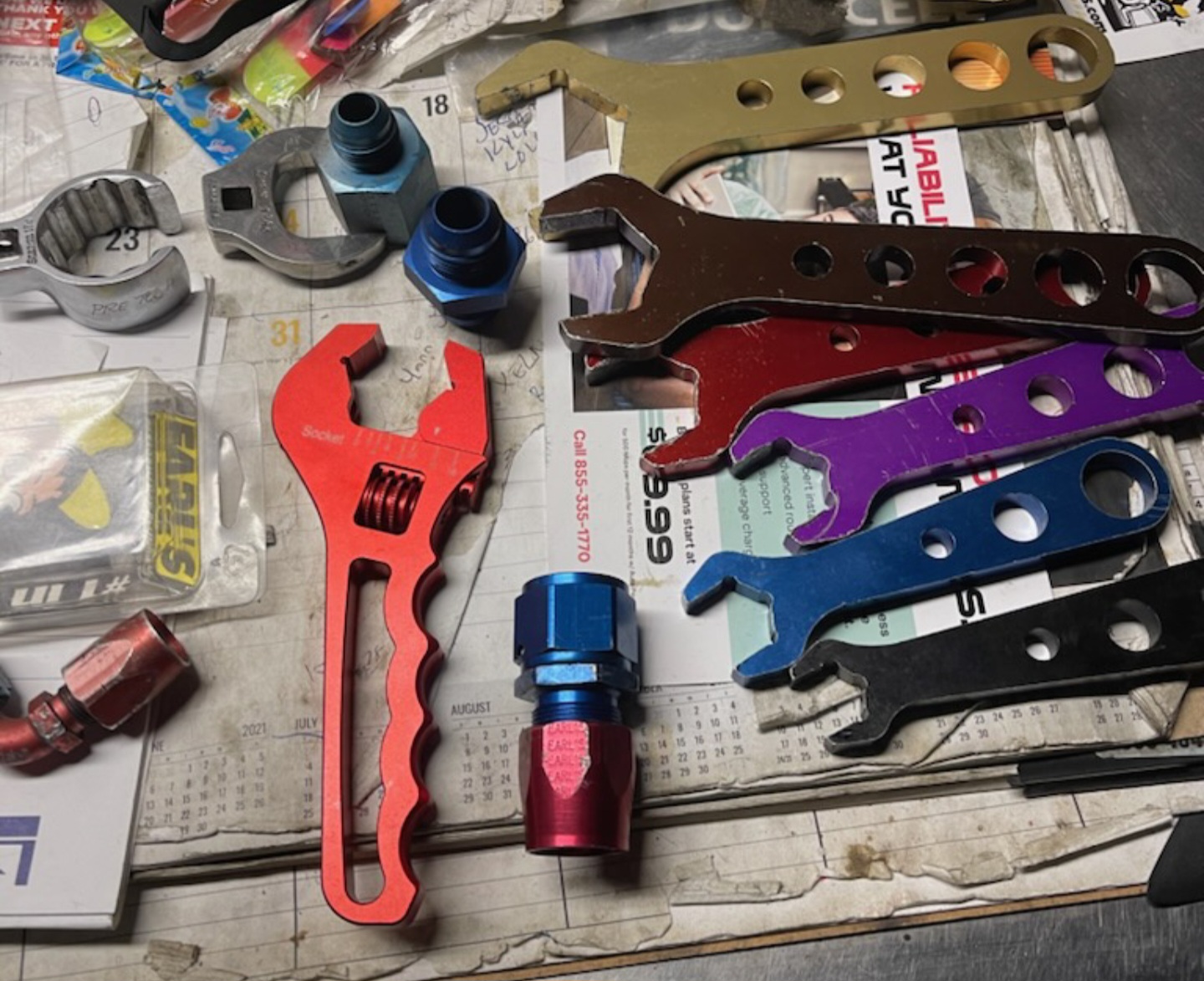

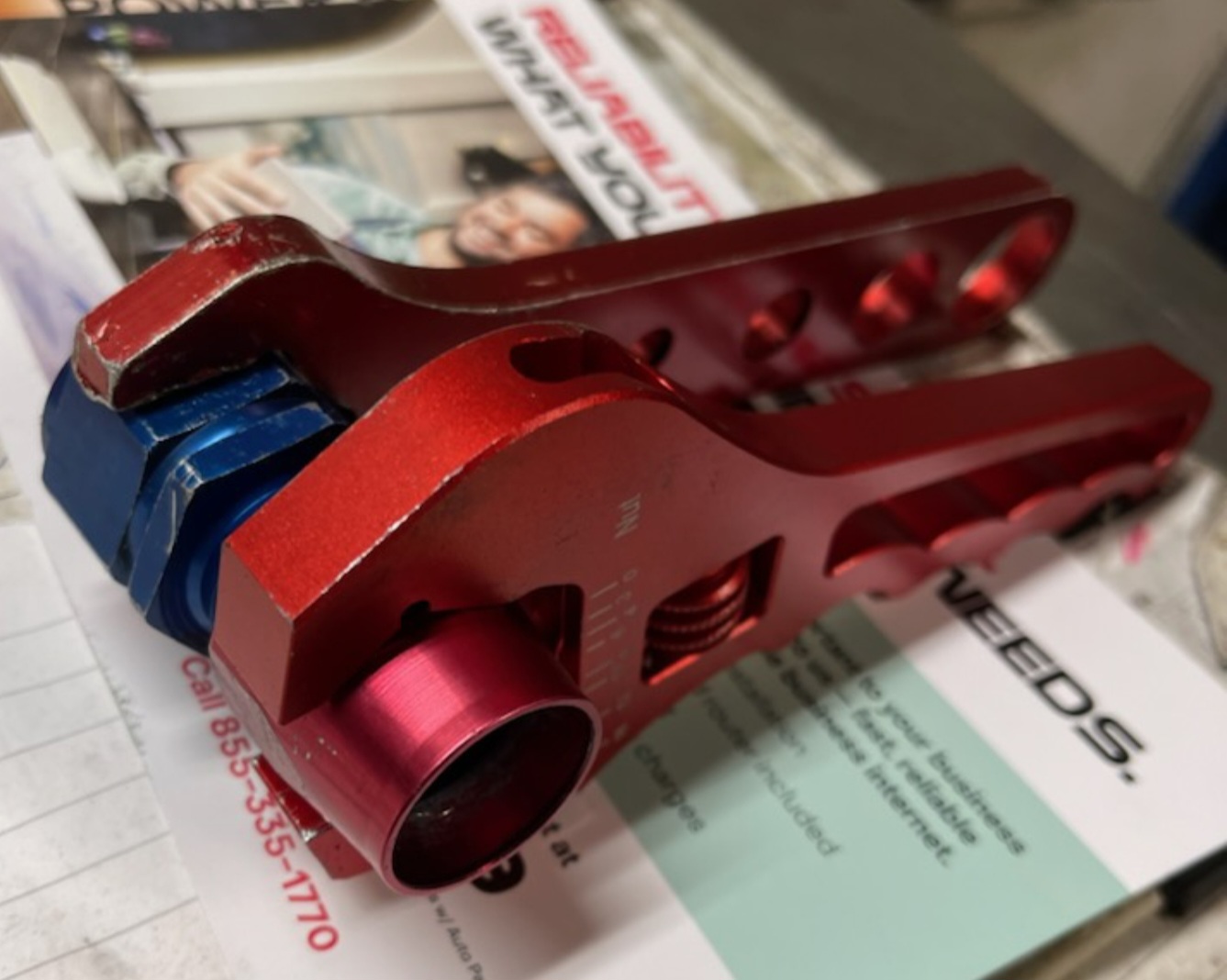

Since the Earl's ANplumbing store no longer builds any customer lines, I brought out my old school A/N line soft-aluminun jaw tools for my custom in-house assembly.
Click to view attachment

Usually get these A/N ends completed with little or no scuffing...
Click to view attachment

...on the way out of the store...the technician says "Make sure to grab some free stuff out of the cardboard box near the door"
Since they are already packing up for move to new Torrance store>they are giving stuff away !

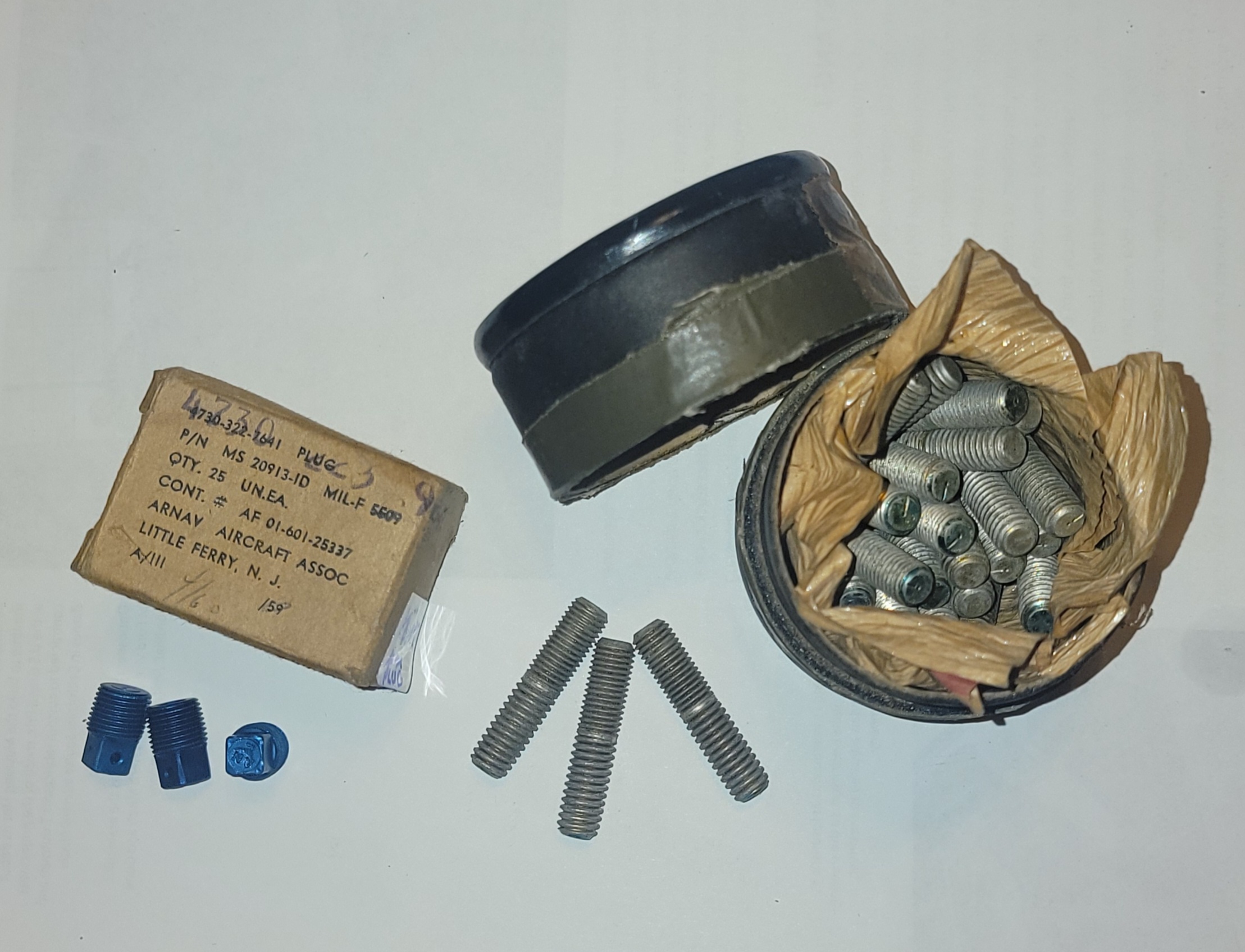

OK...here's some mil-spec surplus:
⅛" npt alum plugs/ with safety wire holes, and
⁵/16" ss fine thread-to-coarse thread studs.
Last week I scored #6 A/N ss fittings...good for the fuel return line on the 8gtt
Click to view attachment

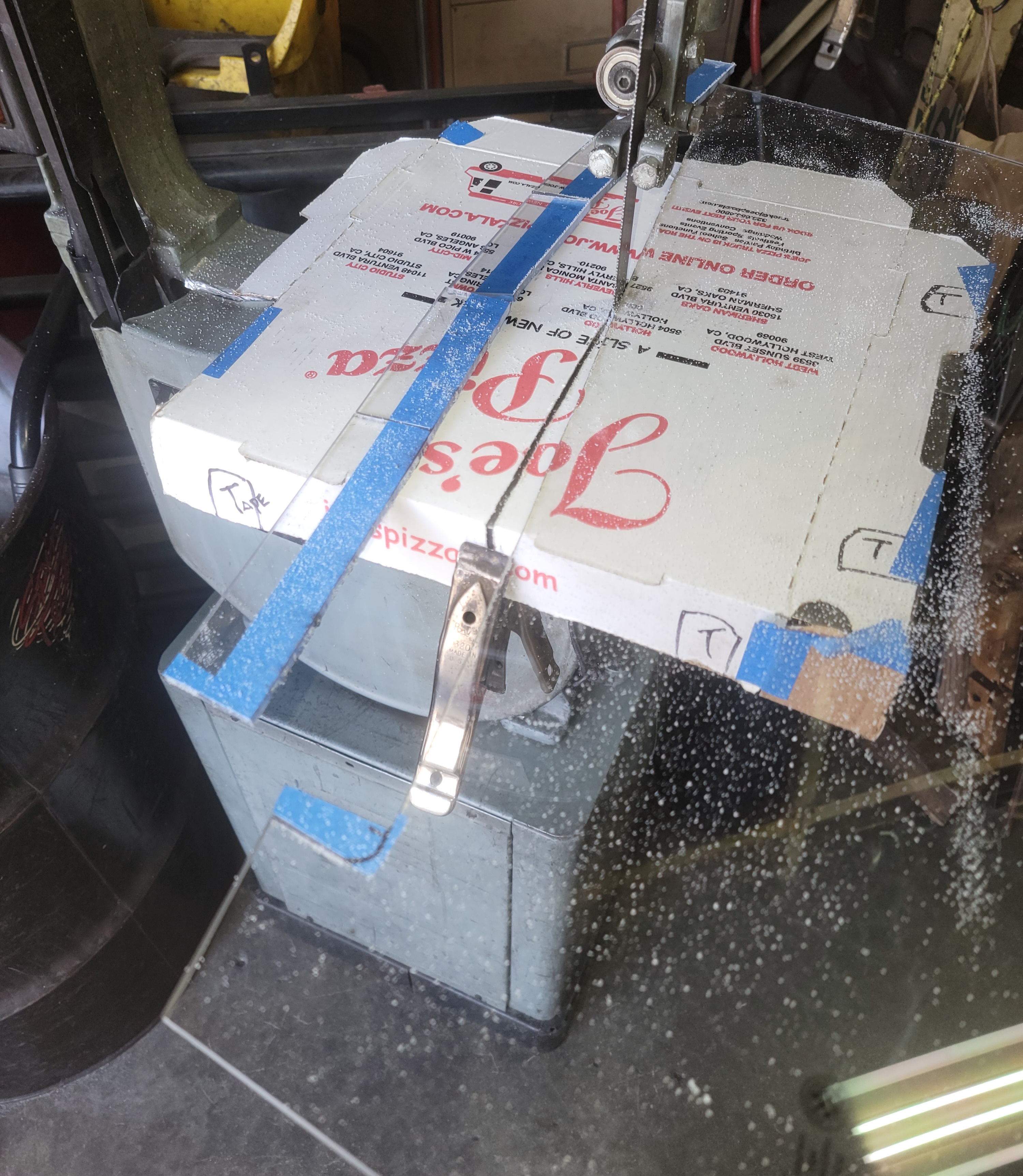

Plexi slider windows trimming day; these are clearance cuts for getting around the Left and Right door roll bars. Pizza box having a good 2nd (shop) life
Click to view attachment

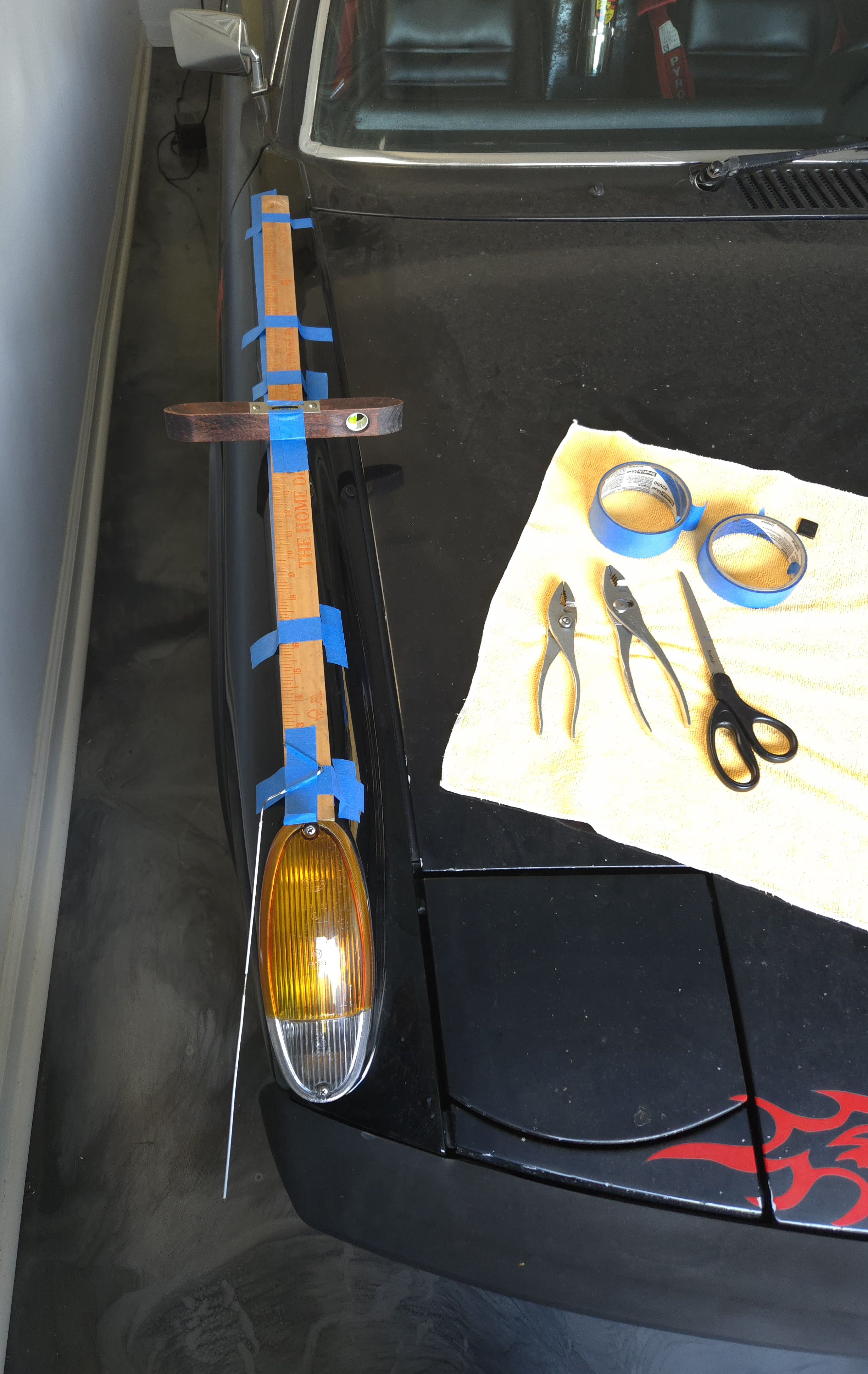

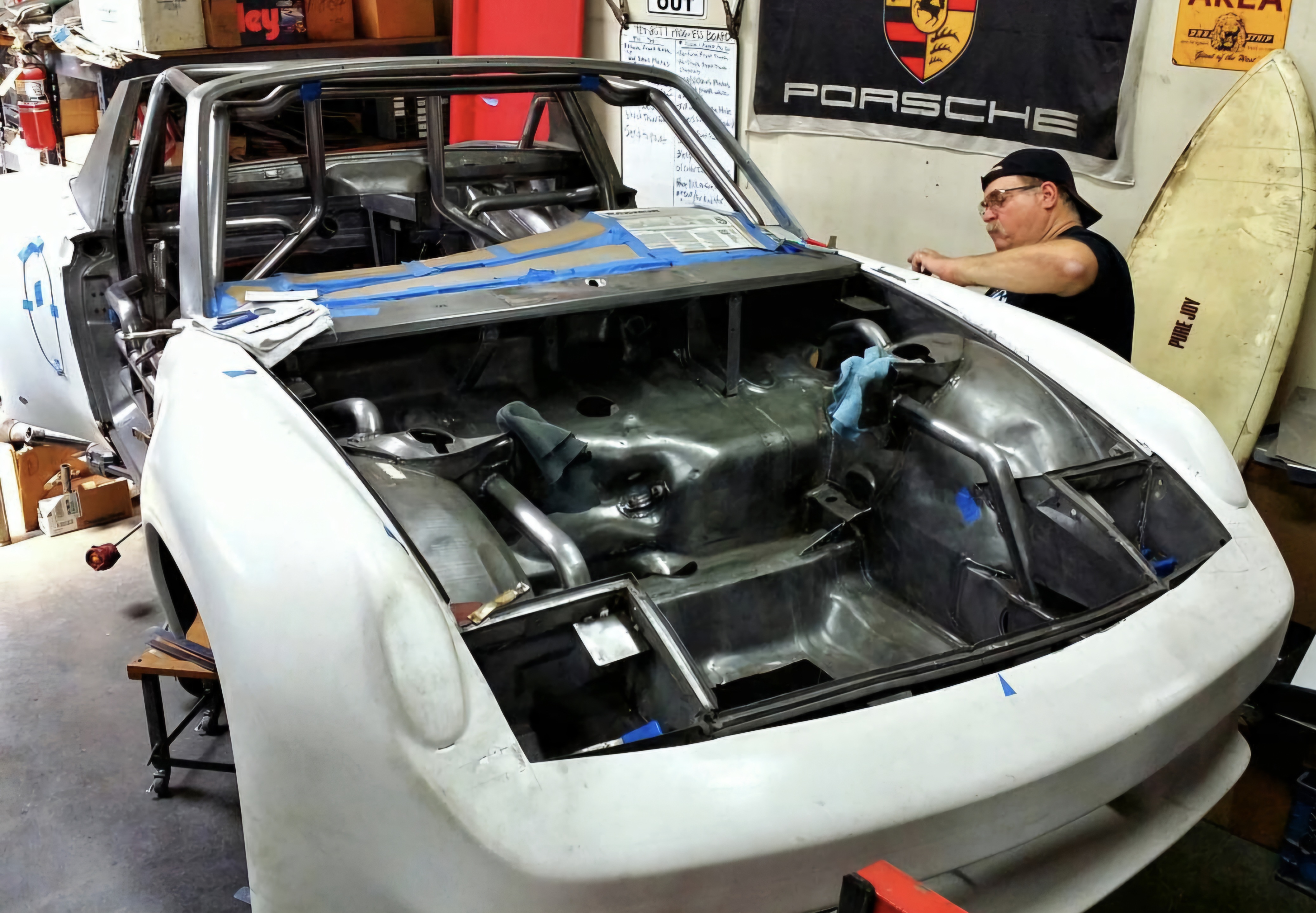

Needed to make a simple pattern for neatly cutting the front turn-signal pods off of the Sheridan front end.
I'm using the '74 2L car for set up>> then I'll transfer the angle-jig to the fiberglass front end.
Def do not want to overcut, will be installing the 3dgAuto products.
I'm looking for a perfect finished installation, like some of you @FL000 Sheridan bodied 914s have here on World !
Click to view attachment

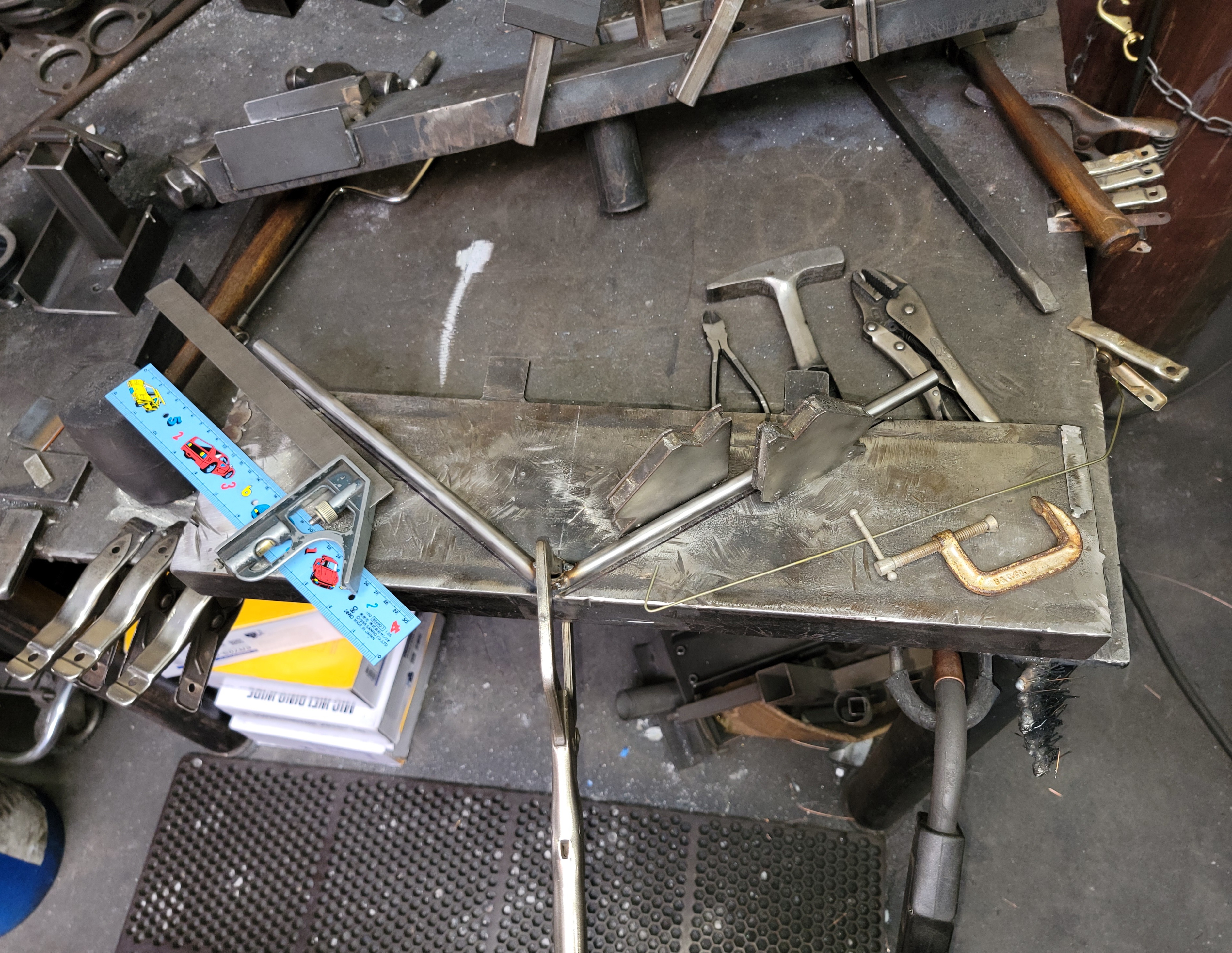

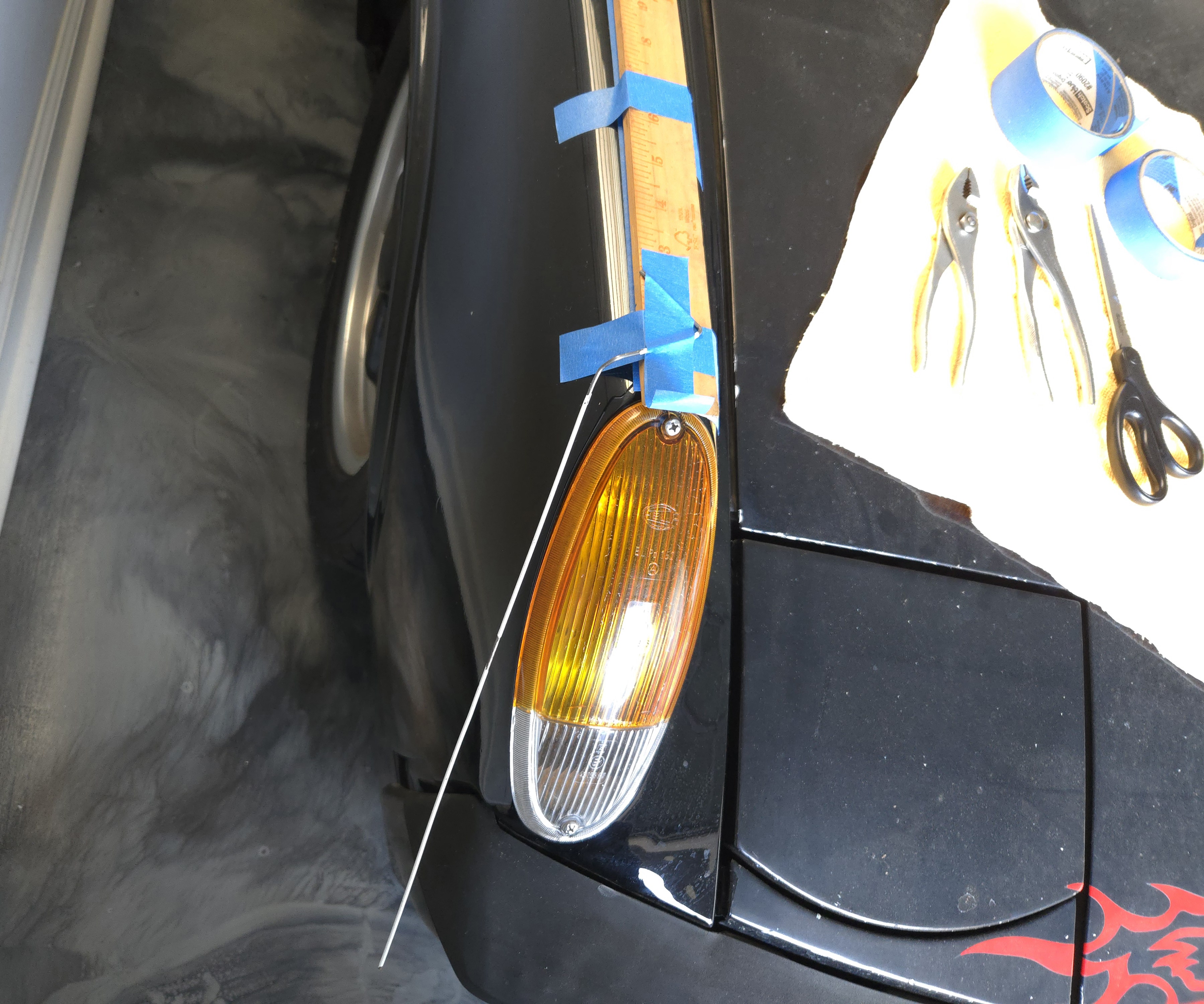

Simple coat hanger wire and a yardstick
Click to view attachment

Sheridan front end is molded with left + right turn signal pods, that have a different contour from the oe dimensions>> so having a better set-up for the cutting will def help me out.
Click to view attachment

I don’t remember exactly how I marked and cut mine, but I do remember stressing over it quite a bit before the first cut IIRC I went low tech and cut the outer shape in a piece of cardboard and used that overlaid on the fiberglass to help mark it.

Thank you @FL000 ...I'm on it Say hi to T.S. if you bump into him !

Using Polycarb or acrylic?
