Cairo94507
Getting close to turning the key.... beerchug.gif
East coaster
Nice progress! I’ve done the stainless rod mistake and it’s a mess when it happens.
Superhawk996

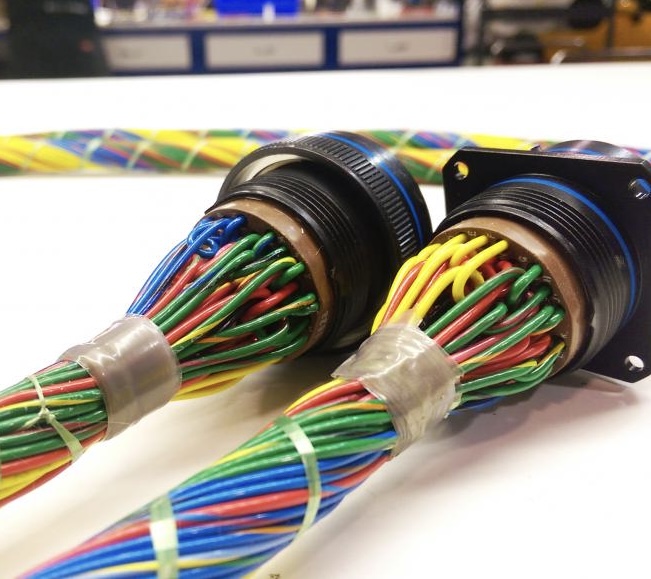

Always impressed with your craftsmanship on the wiring. first.gif Click to view attachment
tygaboy
QUOTE(Superhawk996 @ Mar 29 2025, 09:59 AM) *

Always impressed with your craftsmanship on the wiring. first.gif Click to view attachment

@Superhawk996 - To be clear, that's an example of what I'm attempting but that's NOT my work! I aspire to that level of result but we'll have to wait to see how close I can get!
Superhawk996
QUOTE(tygaboy @ Mar 30 2025, 10:59 AM) *


@Superhawk996 - To be clear, that's an example of what I'm attempting but that's NOT my work! I aspire to that level of result but we'll have to wait to see how close I can get!

laugh.gif Appreciate the honesty! Based on the photo of your twisting work and what I’ve seen of your wiring on the V8, I assumed that was your work. I have no doubt you’ll pull it off!
Dion
Loving the videos on the YouTube! Have to say I’m always learning something.
The Tig worked out in the end. biggrin.gif
Look forward to more Chris.
tygaboy
The coolant plumbing is coming along:

https://www.youtube.com/watch?v=hvvDfRKGELc
Cairo94507
I really enjoy the videos; Chris takes the time to explain everything as he walks us through his plan from beginning to end. beerchug.gif
tygaboy
More stuff getting done means less left to do before I try and start this thing!

https://www.youtube.com/watch?v=yiQ9OoCeNUU
ConeDodger
QUOTE(tygaboy @ Mar 24 2025, 11:51 PM) *

@davep @bkrantz A concentric twist harness is built to the same dimension since it still has to connect to everything, but uses 15-20% more wire length. The twist and service loops takes some length and, depending on the branching approach, some extra length is used there, too.
But the wire that's typically used (Tefzel M22759/32) is smaller diameter and lighter, due to the type of insulation is uses.


If you used Tefzel that harness is likely more expensive than my car was when I bought it!

I see signs that someone took the High Performance Academy Motorsports wiring course?
tygaboy
I'm nothing if not ineffecient! It took me a full day to get the frunk hard lines fitted. Final welding of a few joints and this coolant system will be all set.
I'm happy with how it's turning out, especially now that I'm doing everything on my own, including the aluminum welding. Yes, I miss hanging out with Martin but I need to develop! Still a ways to go on that skill but the results are functional if not quite beautiful (yet!)
roundtwo
Looking good with the aluminum welding training wheels off!
Curious how you’re going to insulate the tubing?
Making good progress, even if it’s painfully slow at times. piratenanner.gif
tygaboy
Radiator hard lines all done. Amazing what a little Scotch-Brite can do to an aluminum tube. I'm happy with how these turned out.
Cairo94507
Very nice looking. Pretty soon you will have nothing left but to turn the key. beerchug.gif
tygaboy
And here's the detail of getting to those hard lines pictured above.

https://www.youtube.com/watch?v=05oBjNGBSyQ
tygaboy
I need an oil catch can.
I love symmetry.
Problem solved! aktion035.gif

Yep, I picked up another Ferrari 360 coolant fill tank, made a mirror image bracket set and: done!
Well, almost done. I still need to add the appropriate fittings and lines but, come on! This looks so cool, it's all factory parts so I'm claiming I've earned solid style points on this one.
East coaster
Nice!
flipb
Something reminded me of this today and I realized it would be perfect for this project.

IPB Image
tygaboy
Big changes At The Red Barn!

https://www.youtube.com/watch?v=PCVj71LYQKQ
Cairo94507
Definitely coming along. I really like the 3D printer thoughts. The Mickey Mouse ears on my 3.6 are 3D printed out of some special material (I don't recall what it was) and they are beautiful and strong. Keep up the great work Chris. beerchug.gif
Montreal914
Thank you for the Saturday morning entertainment!

Always pleasant to see the enginnering and craftmanship! smilie_pokal.gif

Now, I have to ask. What's the deal with the "SMALL" engine valve on top of your tool box in the background at the end of the video? blink.gif
tygaboy
QUOTE(Montreal914 @ May 3 2025, 08:40 AM) *

Thank you for the Saturday morning entertainment!

Always pleasant to see the enginnering and craftmanship! smilie_pokal.gif

Now, I have to ask. What's the deal with the "SMALL" engine valve on top of your tool box in the background at the end of the video? blink.gif

@Montreal914 - I was wondering if anyone would notice that! It came out of a 2-stroke diesel submarine engine. I use it as a shop towel roll holder...
tygaboy
The drive train is out for the belt service, new clutch, etc. so it's time to wrap up the engine bay chassis updates. Here's the newly stamped console reinforcement tacked in. I updated the stamping die so the indent would more closely match the one on the shock tower. Not that you'll even be able to see them at the same time. Why do I insist on making everything a bigger production than it needs to be? Oh, right: Style Points! aktion035.gif

And yep, the sockets fit just fine. I'm going to 3D print a cover for that area to prevent crap from getting in there.
Cairo94507
OK, doing the engine service must mean you are getting close to turning the key.... beerchug.gif
sb914
Very nice as usual. first.gif
tygaboy
Both sides fit and tacked in place. Now for final welding and adding the plating that ties these back to the shock tower.
Shivers
Beautiful. smile.gif
FL000
You always find a way to add style points, while also making sure it fits, functions, and can be maintained. Not easy to hit all those marks so understandably it takes time.

Can’t wait to hear this thing fire up!
East coaster
Very nice!
Dion
I love this build. Look forward to every video.
Engine out eh? Hmmm you must be close like Michael said. beerchug.gif
popcorn[1].gif When is the next showing?

Looking spectabular as usual!
Krieger
That turned out nicely!
Montreal914
Beautiful work as always. smilie_pokal.gif
QUOTE(tygaboy @ Jun 2 2025, 07:18 AM) *
I updated the stamping die so the indent would more closely match the one on the shock tower.

I assume Send-Cut-Send did the cutting. The die work was done at your shop? What sheet metal thickness and what size press? Very nice!!!!! drooley.gif
BTW, I have been using SCS at work, great service! Thank you for sharing!
tygaboy
QUOTE(Montreal914 @ Jun 3 2025, 07:14 AM) *

Beautiful work as always. smilie_pokal.gif
QUOTE(tygaboy @ Jun 2 2025, 07:18 AM) *
I updated the stamping die so the indent would more closely match the one on the shock tower.

I assume Send-Cut-Send did the cutting. The die work was done at your shop? What sheet metal thickness and what size press? Very nice!!!!! drooley.gif
BTW, I have been using SCS at work, great service! Thank you for sharing!

@Montreal914 - I really don't need "instant" parts and SendCutSend is so good/fast/reasonably priced that I sold my plasma table! Watch the next episode and you'll learn that I also moved the bender/press to another shop but I still have access so yes, I did the pressing. It's a standard size H-press with a powered ram. Watch Episode 15 below and you'll see it in action stamping the initial panel with all the parts I cut on my plasma table.

The panel in the car is .048" and the die set is .188" thick with a .200" gap between the male/female components.

https://www.youtube.com/watch?v=0q3mnh0YrEg
BillC
Very clever with the stamping dies.

Did you make another, opposite, set of dies for the other side, or did you drill out the spot welds and re-weld the small male parts on the other side of the large male part?
tygaboy
QUOTE(BillC @ Jun 3 2025, 04:13 PM) *

Very clever with the stamping dies.

Did you make another, opposite, set of dies for the other side, or did you drill out the spot welds and re-weld the small male parts on the other side of the large male part?

@BillC - I drill the spot welds and flip things around to make the mirror image part.
rick 918-S
sawzall-smiley.gif smash.gif welder.gif
tygaboy
The latest status updates included a new crew of kitties! Enjoy...

https://www.youtube.com/watch?v=CdBVty1fgno
Bullethead
Just wow. pray.gif smilie_pokal.gif
tygaboy
And here's a preview of what's coming in next week's episode. The upper section of the reinforcement is final welded, metal finished and ready for primer.
BillC
Fantastic work on the car. cheer.gif

And Management loves the kitties. She keeps asking if we can foster some, but I know she'd never be able to give them up later.
tygaboy
My engine compartment is looking less and less like a 914's every day. And don't miss the kitty content at the end!

https://www.youtube.com/watch?v=7oCYJ--XoNo
tygaboy
delete
Cairo94507
Can't wait for the engine to be back in place. beerchug.gif
Superhawk996

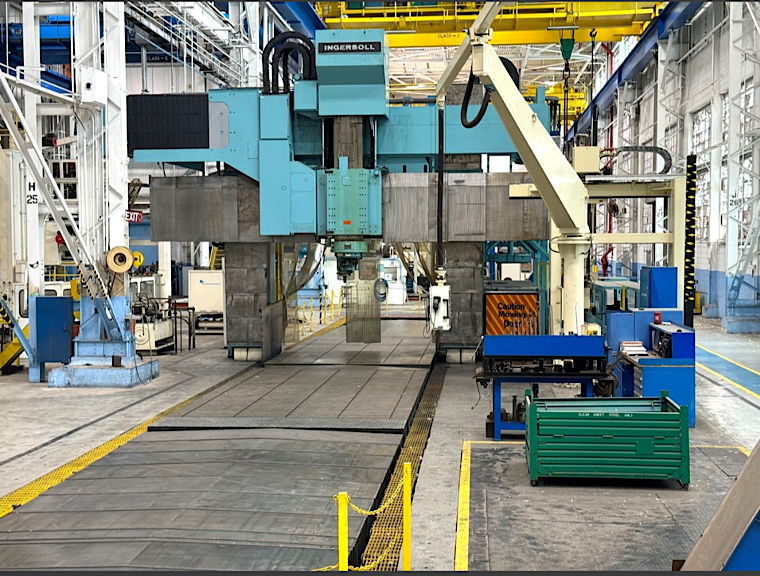

Did my first automotive engineering internship at Chrysler Mt. Elliot Tool and Die. They built the stamping dies and ran tryout presses for all kinds of body panels. The largest mill was an Ingersoll 5 axis CNC gantry mill with a bed that was about 12’ long. It’s for sale. It would look great in the Red Barn. laugh.gif

Click to view attachment
https://www.prestigeequipment.com/auction/m...liott-tool-die/

Impressive stuff you’re doing there in the Red Barn with pretty basic tools. pray.gif

Don’t sell yourself short, those formations aren’t just “style points”. Those formations drastically increase the strength and rigidity vs a flat piece of sheet metal. aktion035.gif
tygaboy
@Superhawk996 Yep, I get the strength improvement of adding section to a panel and stronger is always better. Well, almost always, I suppose. In the LS car, I just did flat panels but used 16 ga. In the end, for my use cases, I'm sure everything is over-built.
And yes, I want that giant press! Just think of all the time and money I could waste with my do-overs on THAT thing! laugh.gif
Superhawk996
QUOTE(tygaboy @ Jun 22 2025, 09:27 AM) *

And yes, I want that giant press! Just think of all the time and money I could waste with my do-overs on THAT thing! laugh.gif

That picture is of the mill that would machine the dies.

The presses are way bigger. beerchug.gif
tygaboy
Tool Whore update:
With the plasma table gone, it was time to implement my plan for upping my fabrication game. I started by adding a Bambu Labs 3D printer to the mix. It arrived yesterday and took maybe 1.5 hours to get set up. As soon as it let me know it was ready, I sent the first job to it.
All I can say is: If you don't have one, you need one!
Virtually every review talks about how Bambu Labs' products just plain work and really are "ready to go" right out of the box. I can report that it's true! I sent my first job to it and it did a flawless job of printing it.

Next to arrive is a Creality Raptor Pro 3d scanner. Between these two new tools, some super cool things will be showing up soon!
Cairo94507
Congratulations Chris; that is very very cool. beerchug.gif
napasteve
Can you 3D print an entire stock 914?
KELTY360
QUOTE(napasteve @ Jul 2 2025, 07:22 AM) *

Can you 3D print an entire stock 914?


Including rust?
