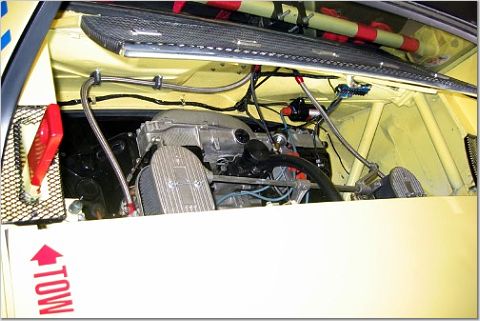

Here are some shots of my 1973 frenchy one...
Engine rebuilt data sheet:Displacement: 1971cc (91x74)
Crankcase: stock GB #003016
Crankshaft: stock and balanced
Rods: stock modified for 24mm wrist pin
Flywheel: stock lightened and balanced
Oil pump: Shadeck, new
Camshaft: Webcam 86a, new
Lifters: Webcam, new
Pushrods: Chromoly, new
Springs: Webcam, new
Rocker arms: stock, with solid spacers
Heads: stock with 42x36 valves completely rebuilt. Exhaust ports polished
Comp. Ratio: 8.5:1 using 59cc chambers and 1mm deck-height
Cylinders: stock
Pistons: 94 mm forged (94b Mahle for VW type 1 engine)
Intake manifolds: BAS short intake manifolds. Polished and ported to heads
Fuel supply: Mitsuba regulated fuel pump, relocated in front trunk with Knecht filter, new lines
Carbs: 2x44 IDF with 36mm venturis and 60/145/195 jets
Ignition: 050 distributor with points, MSD 6A ignition box, 8920 tach adapter, Blaster 2 coil, Taylor wire, NGK spark plugs
Exhaust: Triad Performance
Cooling: stock, with all metal sheets and heating ports closed
And as you can see, I am looking for a rear valance to fit with the Triad exhaust...
