QUOTE(zfisher6164 @ Dec 31 2022, 08:00 PM)
recently bought 70 914-6
Love this -6
Full Version: Member's 914 Pictures
Pages: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112
recently bought 70 914-6
Love this -6
She’s pretty much all done… Still sitting with no motor and trans. Just waiting for my back ordered LS3 Vette motor and Boxer S 6spd.
Click to view attachment
Click to view attachment
Dang we are neighbors! I am in Orangevale, have to come check this out sometime.
Hi! Another VW guy turned to the dark side here. I realize its partly due to the perspective of the photo but I find it hilarious how dwarfed it is next to a Crosscheck, which is not a large vehicle by any means.This is my '75 purchased last fall. Pretty standard no frills 1.8L, non-appearance package. Original numbers matching engine with just over 100k miles. Body is nice and straight, never been hit or even nudged. It's now in the garage in pieces addressing the hell hole and floor pans. Planning to start a build thread soon, when I get around to it.
Click to view attachment
QUOTE(6volt @ Apr 7 2023, 03:32 PM)
Hi! Another VW guy turned to the dark side here. I realize its partly due to the perspective of the photo but I find it hilarious how dwarfed it is next to a Crosscheck, which is not a large vehicle by any means.This is my '75 purchased last fall. Pretty standard no frills 1.8L, non-appearance package. Original numbers matching engine with just over 100k miles. Body is nice and straight, never been hit or even nudged. It's now in the garage in pieces addressing the hell hole and floor pans. Planning to start a build thread soon, when I get around to it.
Click to view attachment
@6volt .
nice stuff. looks like a beaut little 1.8
can i ask you for some info for research we have been doing for a couple of years on 74 and 75 1.8 L Jets if its not too much trouble.
is there still a white painted (stencil) on the engine tin?
it will be on the left hand side in the area where the electric heater fan hose is (or was).
or on the right hand side in a similar spot. it will be a three number code starting with 9. if it is still there what is the number?
good luck with the car.
QUOTE
nice stuff. looks like a beaut little 1.8
can i ask you for some info for research we have been doing for a couple of years on 74 and 75 1.8 L Jets if its not too much trouble.
is there still a white painted (stencil) on the engine tin?
it will be on the left hand side in the area where the electric heater fan hose is (or was).
or on the right hand side in a similar spot. it will be a three number code starting with 9. if it is still there what is the number?
good luck with the car.
can i ask you for some info for research we have been doing for a couple of years on 74 and 75 1.8 L Jets if its not too much trouble.
is there still a white painted (stencil) on the engine tin?
it will be on the left hand side in the area where the electric heater fan hose is (or was).
or on the right hand side in a similar spot. it will be a three number code starting with 9. if it is still there what is the number?
good luck with the car.

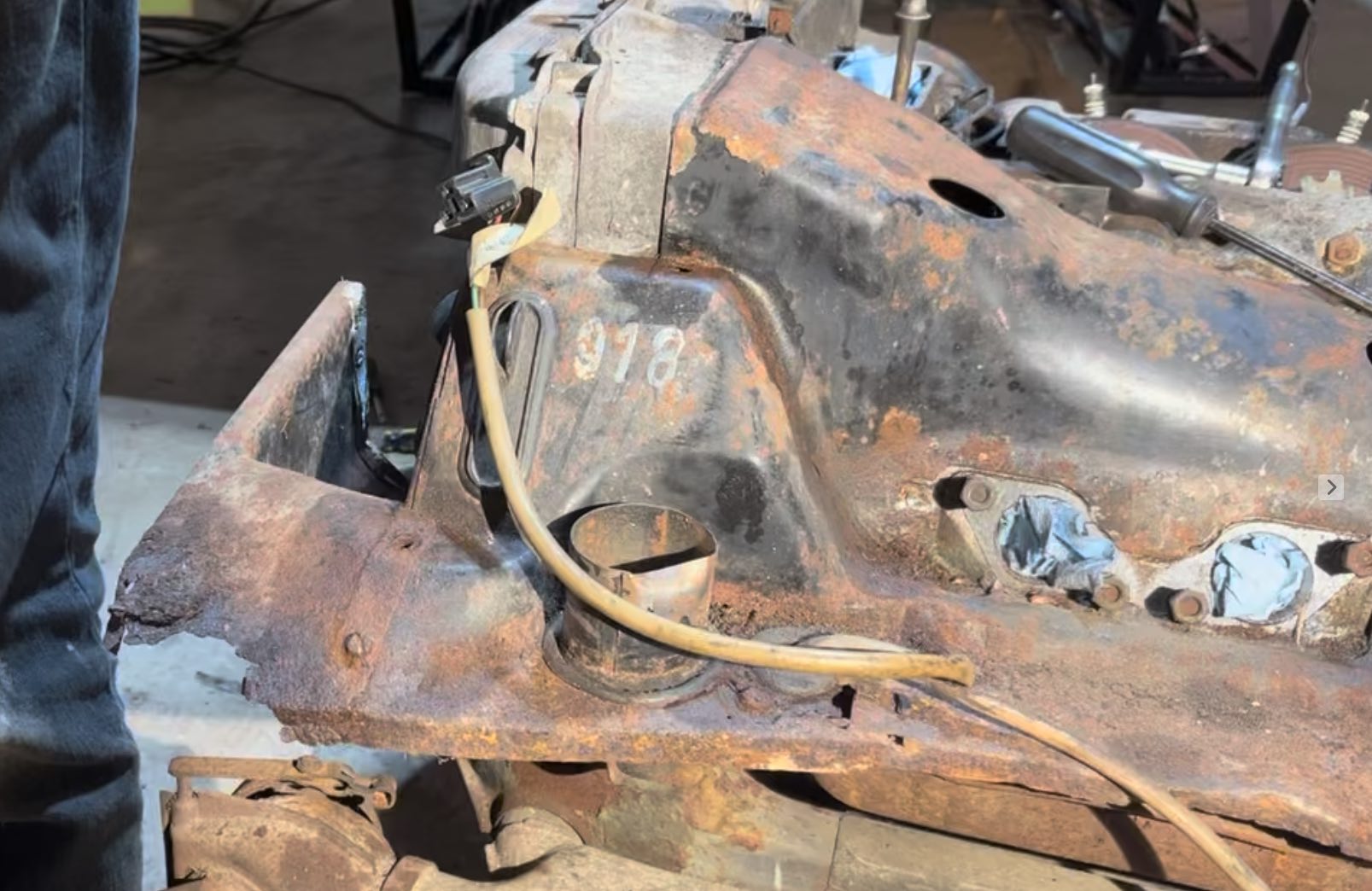

I have the engine torn down now but I captured video of the whole process. Here's the number on the tin: 918.
What does that number mean?
Click to view attachment
QUOTE(6volt @ Apr 12 2023, 01:29 PM)
QUOTE
nice stuff. looks like a beaut little 1.8
can i ask you for some info for research we have been doing for a couple of years on 74 and 75 1.8 L Jets if its not too much trouble.
is there still a white painted (stencil) on the engine tin?
it will be on the left hand side in the area where the electric heater fan hose is (or was).
or on the right hand side in a similar spot. it will be a three number code starting with 9. if it is still there what is the number?
good luck with the car.
can i ask you for some info for research we have been doing for a couple of years on 74 and 75 1.8 L Jets if its not too much trouble.
is there still a white painted (stencil) on the engine tin?
it will be on the left hand side in the area where the electric heater fan hose is (or was).
or on the right hand side in a similar spot. it will be a three number code starting with 9. if it is still there what is the number?
good luck with the car.
I have the engine torn down now but I captured video of the whole process. Here's the number on the tin: 918.
What does that number mean?
Click to view attachment
@6volt thanks for going to the trouble of posting the photo.
the stamps were printed on the engines at the hanover plant where the engines were made. the stamp identifies firstly the model the engine was going in (9 means 914 in 1975MY) and the second two numbers the particular spec. in this case, if the engine is original to the car, 18 means 75 1.8, 49 states, without console and gauges.
link to data collected to date.
http://www.914world.com/bbs2/index.php?sho...6668&st=120
scroll down there is a full list as it stands at present.
we are on the lookout for 921. this should be a 75 1.8, calif, fitted with console.
all VW engines of that period were stamped with the three digit number. this allowed them to be shipped off the the factories where the production lines were for particular models and for the engines to be tracked and identified before being bolted into the cars.
each model got its own first number.
the 73 and 74 914 model years use 6 as the first number.
70-72 model years use an earlier system but have stamps on the engine tin also.
QUOTE
the stamps were printed on the engines at the hanover plant where the engines were made. the stamp identifies firstly the model the engine was going in (9 means 914 in 1975MY) and the second two numbers the particular spec. in this case, if the engine is original to the car, 18 means 75 1.8, 49 states, without console and gauges.
link to data collected to date.
http://www.914world.com/bbs2/index.php?sho...6668&st=120
scroll down there is a full list as it stands at present.
we are on the lookout for 921. this should be a 75 1.8, calif, fitted with console.
all VW engines of that period were stamped with the three digit number. this allowed them to be shipped off the the factories where the production lines were for particular models and for the engines to be tracked and identified before being bolted into the cars.
each model got its own first number.
the 73 and 74 914 model years use 6 as the first number.
70-72 model years use an earlier system but have stamps on the engine tin also.
link to data collected to date.
http://www.914world.com/bbs2/index.php?sho...6668&st=120
scroll down there is a full list as it stands at present.
we are on the lookout for 921. this should be a 75 1.8, calif, fitted with console.
all VW engines of that period were stamped with the three digit number. this allowed them to be shipped off the the factories where the production lines were for particular models and for the engines to be tracked and identified before being bolted into the cars.
each model got its own first number.
the 73 and 74 914 model years use 6 as the first number.
70-72 model years use an earlier system but have stamps on the engine tin also.
Good to know, thanks!
QUOTE(Mark Henry @ Dec 27 2002, 02:58 PM)
Let’s see your babies, 914’s only please!
We really don’t care what kind of POS water-cooled you drive. Unless it’s a 914 V-8 conversion of course!
Sorry our pic is a bit crappy.
Mark & Kim Henry, Port Hope, Ontario, Canada
https://www.youtube.com/watch?v=uQuyFm0pYoI

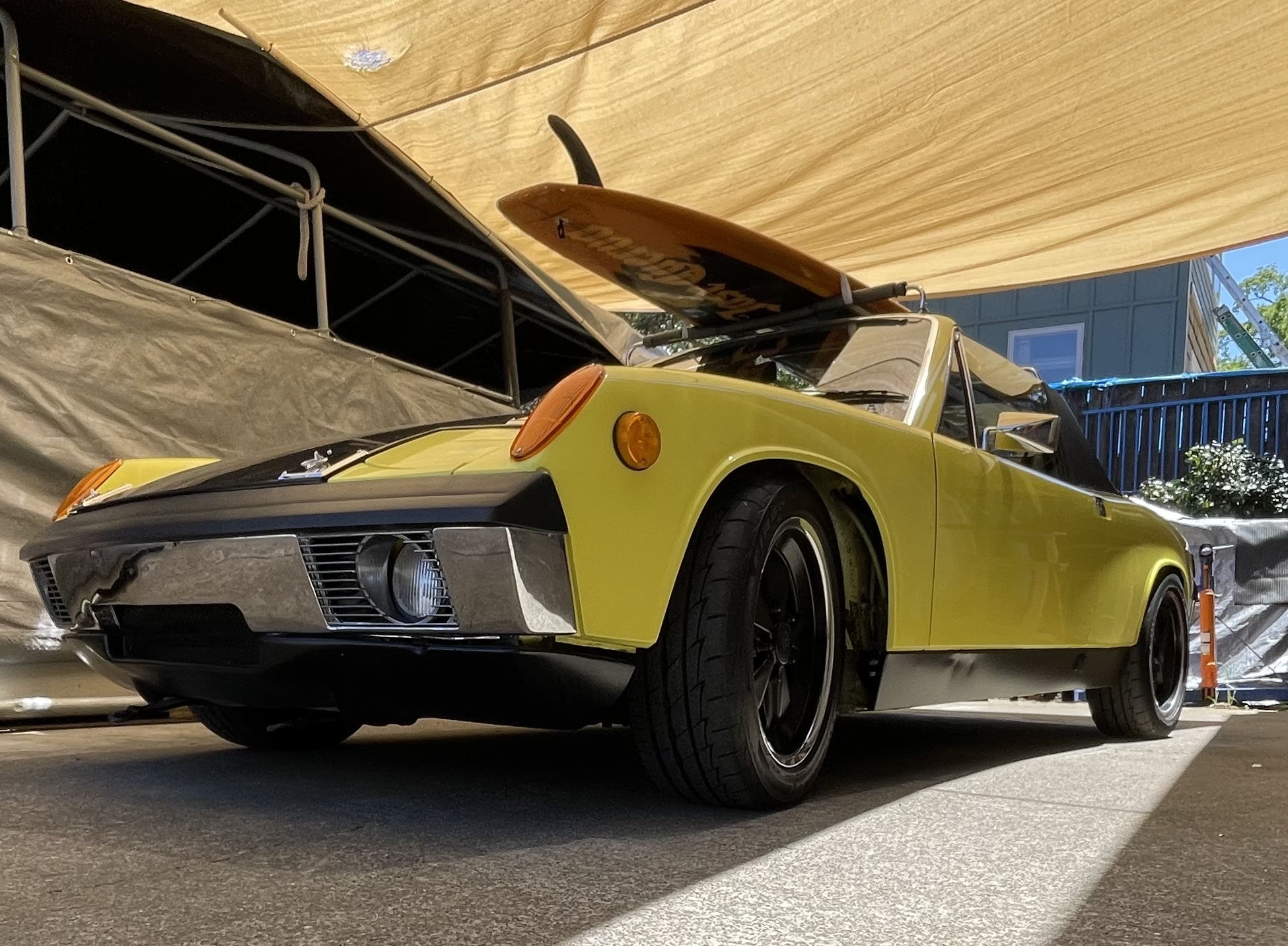

Click to view attachment She’s ready for tomorrow’s Luftgekuhlt!
Like the longboard nice square tail who made it? I have a Aipa square tail 9,6 nose rider. ![popcorn[1].gif](http://www.914world.com/bbs2/style_emoticons/default/popcorn[1].gif)
recent picture at a Cruise in car and plane show at the local rural airport with our PCA chapter and a couple other clubs. - here next to a beautiful GT3!
Click to view attachment
Hello everyone, I am a new member here and exploring a little bit. Here is a pic of my 914 recently purchased and enjoying every minute behind the wheel.
Hello everyone, I am a new member here and exploring a little bit. Here is a pic of my 914 recently purchased and enjoying every minute behind the wheel.
QUOTE(1974Ravenna914 @ May 6 2023, 10:04 PM)
Click to view attachment
Hello everyone, I am a new member here and exploring a little bit. Here is a pic of my 914 recently purchased and enjoying every minute behind the wheel.
@1974Ravenna914
real nice 74.
is it a 1.8?
@admins
What is this down load? There is a download on this reply from a new user. Somehow it did not copy on my reply?
Attached File(s)
Attached File U_Tube_914.htm ( 1.03mb ) Number of downloads: 11
Let’s see your babies, 914’s only please!
We really don’t care what kind of POS water-cooled you drive. Unless it’s a 914 V-8 conversion of course!
Sorry our pic is a bit crappy.
Mark & Kim Henry, Port Hope, Ontario, Canada
What is this down load? There is a download on this reply from a new user. Somehow it did not copy on my reply?
Attached File(s)
Attached File U_Tube_914.htm ( 1.03mb ) Number of downloads: 11
QUOTE(wimbishpaul@gmail.com @ Apr 28 2023, 03:22 PM)
QUOTE(Mark Henry @ Dec 27 2002, 02:58 PM)
Let’s see your babies, 914’s only please!
We really don’t care what kind of POS water-cooled you drive. Unless it’s a 914 V-8 conversion of course!
Sorry our pic is a bit crappy.
Mark & Kim Henry, Port Hope, Ontario, Canada

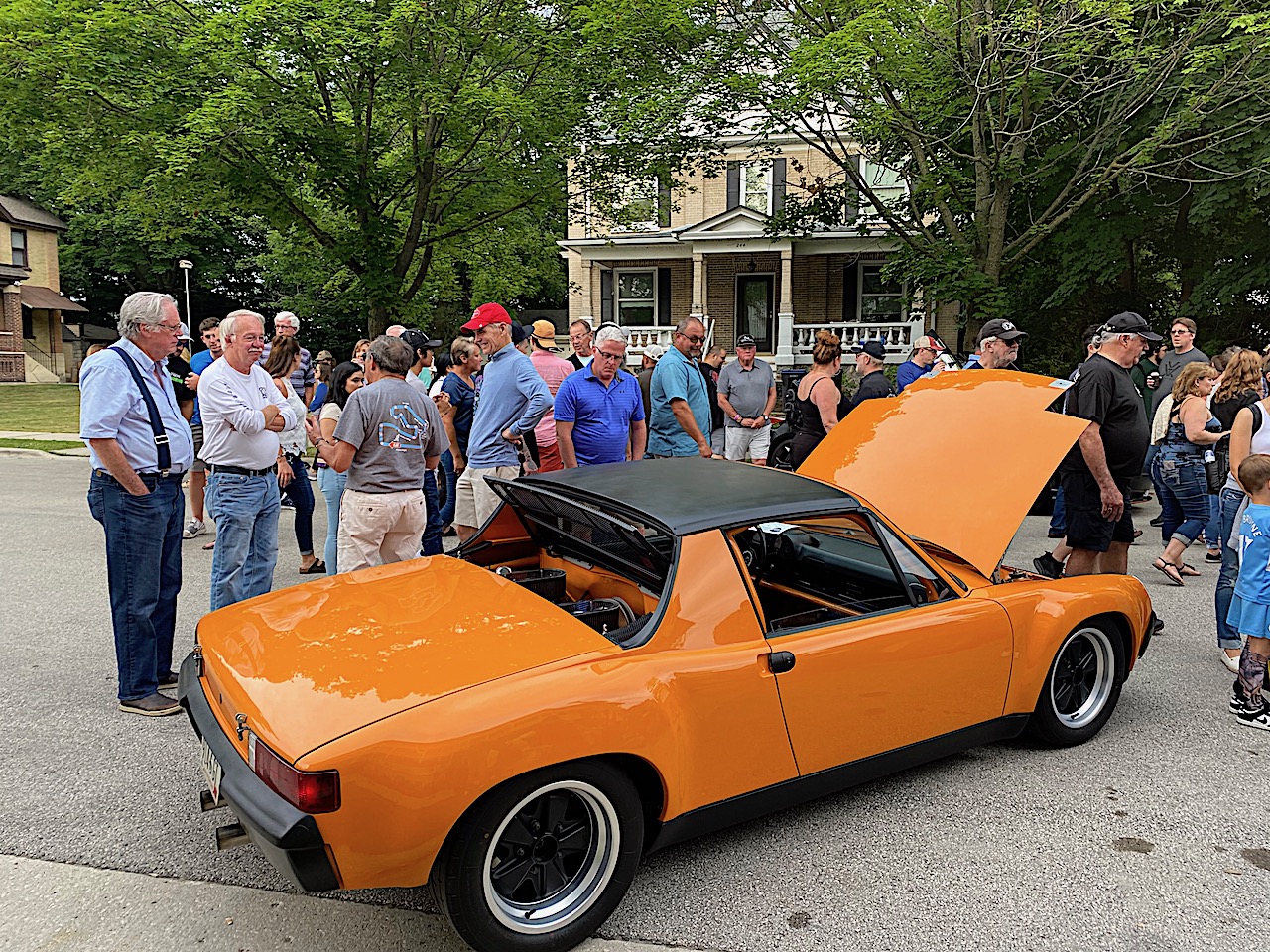

My 914-6 GT Tribute at Road America, concours in the streets. Lot of great cars and people. Best, MarkClick to view attachment
my 74 2.0 that currently - unfortunately - lives in another state. I get back a week at a time and try to make the best of it when the weather is good.
Click to view attachment
Click to view attachment
QUOTE(wonkipop @ May 8 2023, 04:28 AM)
QUOTE(1974Ravenna914 @ May 6 2023, 10:04 PM)
Click to view attachment
Hello everyone, I am a new member here and exploring a little bit. Here is a pic of my 914 recently purchased and enjoying every minute behind the wheel.
@1974Ravenna914
real nice 74.
is it a 1.8?
Correct! 1.8 and currently waiting for new alternator so I can get back on the road.
If it lives in Wisconsin, I would drive it every week for you. Great Car. Thanks
QUOTE(1974Ravenna914 @ May 8 2023, 09:39 PM)
QUOTE(wonkipop @ May 8 2023, 04:28 AM)
QUOTE(1974Ravenna914 @ May 6 2023, 10:04 PM)
Click to view attachment
Hello everyone, I am a new member here and exploring a little bit. Here is a pic of my 914 recently purchased and enjoying every minute behind the wheel.
@1974Ravenna914
real nice 74.
is it a 1.8?
Correct! 1.8 and currently waiting for new alternator so I can get back on the road.
great. L jets forever.
we L jet owners did a fair bit of research a couple of years back.
if you feel like contributing some info for the data that would be helpful?
emission sticker (up above relay cover) in engine bay on left hand side.
is it still there. what does it say? EC-A or EC-B engine.
a posted photo would be good.
(we are on the lookout for a particular emission sticker, USAEPA only approved,
@JeffBowlsby has one documented example, seeing if there is more).
tuning sticker on the engine tin if it is still there.
its the little white sticker on top of engine tin on left hand side of engine.
a posted photo would be great to document it.
there were two types of stickers.
one with a single hose shown to distributor, the other with two.
lastly, the white painted 3 digit engine code stamped on the tin.
will be either on left hand side or right hand side.
often hidden by the blower fan hose when its on the left hand side.
if its still there, what is the number.
but only if you have time to go to the trouble.
QUOTE(wonkipop @ May 9 2023, 06:58 PM)
QUOTE(1974Ravenna914 @ May 8 2023, 09:39 PM)
QUOTE(wonkipop @ May 8 2023, 04:28 AM)
QUOTE(1974Ravenna914 @ May 6 2023, 10:04 PM)
Click to view attachment
Hello everyone, I am a new member here and exploring a little bit. Here is a pic of my 914 recently purchased and enjoying every minute behind the wheel.
@1974Ravenna914
real nice 74.
is it a 1.8?
Correct! 1.8 and currently waiting for new alternator so I can get back on the road.
great. L jets forever.
we L jet owners did a fair bit of research a couple of years back.
if you feel like contributing some info for the data that would be helpful?
emission sticker (up above relay cover) in engine bay on left hand side.
is it still there. what does it say? EC-A or EC-B engine.
a posted photo would be good.
(we are on the lookout for a particular emission sticker, USAEPA only approved,
@JeffBowlsby has one documented example, seeing if there is more).
tuning sticker on the engine tin if it is still there.
its the little white sticker on top of engine tin on left hand side of engine.
a posted photo would be great to document it.
there were two types of stickers.
one with a single hose shown to distributor, the other with two.
lastly, the white painted 3 digit engine code stamped on the tin.
will be either on left hand side or right hand side.
often hidden by the blower fan hose when its on the left hand side.
if its still there, what is the number.
but only if you have time to go to the trouble.
Unfortunately, prior to me getting the car, the fuel injection was removed, and a single carb was installed in its place. Not my choice, but it was well worth it to get the car. I'm planning on a double Weber set up as time and funds are available. Even with the limits of what the single carb gives, just the pleasure of being out on a slow cruise gives a lot of smiles.
Updated photo... currently working to get more of a "GT" interior.
QUOTE(mlindner @ May 8 2023, 06:15 AM)
My 914-6 GT Tribute at Road America, concours in the streets. Lot of great cars and people. Best, MarkClick to view attachment
Nice. You have anymore pictures of the interior? I am looking for inspirations of a combo GT/Street interior.
@mate914
Hey Mate,
just somebody who isn't very computer savvy trying to post a YouTube video of their 914.
PS: I fixed the original post to point to the correct video ...
@admins
What is this down load? There is a download on this reply from a new user. Somehow it did not copy on my reply?
Attached File(s)
Attached File U_Tube_914.htm ( 1.03mb ) Number of downloads: 11
Let’s see your babies, 914’s only please!
We really don’t care what kind of POS water-cooled you drive. Unless it’s a 914 V-8 conversion of course!
Sorry our pic is a bit crappy.
Mark & Kim Henry, Port Hope, Ontario, Canada
Hey Mate,
just somebody who isn't very computer savvy trying to post a YouTube video of their 914.
PS: I fixed the original post to point to the correct video ...
QUOTE(mate914 @ May 8 2023, 04:05 AM)
@admins
What is this down load? There is a download on this reply from a new user. Somehow it did not copy on my reply?
Attached File(s)
Attached File U_Tube_914.htm ( 1.03mb ) Number of downloads: 11
QUOTE(wimbishpaul@gmail.com @ Apr 28 2023, 03:22 PM)
QUOTE(Mark Henry @ Dec 27 2002, 02:58 PM)
Let’s see your babies, 914’s only please!
We really don’t care what kind of POS water-cooled you drive. Unless it’s a 914 V-8 conversion of course!
Sorry our pic is a bit crappy.
Mark & Kim Henry, Port Hope, Ontario, Canada
My '73 1.7. Olympic Blue. 3rd Owner. Pretty much original.
QUOTE(Zodiac @ Aug 13 2023, 05:43 AM)
Speechless
With help from many of you on this forum she is back on the road…fog lights come on without the headlights being on, new fuse panel, high-beam problem resolved, Boxster caliper alignment solved, new 16” Fuchs with black centers…
New ride!

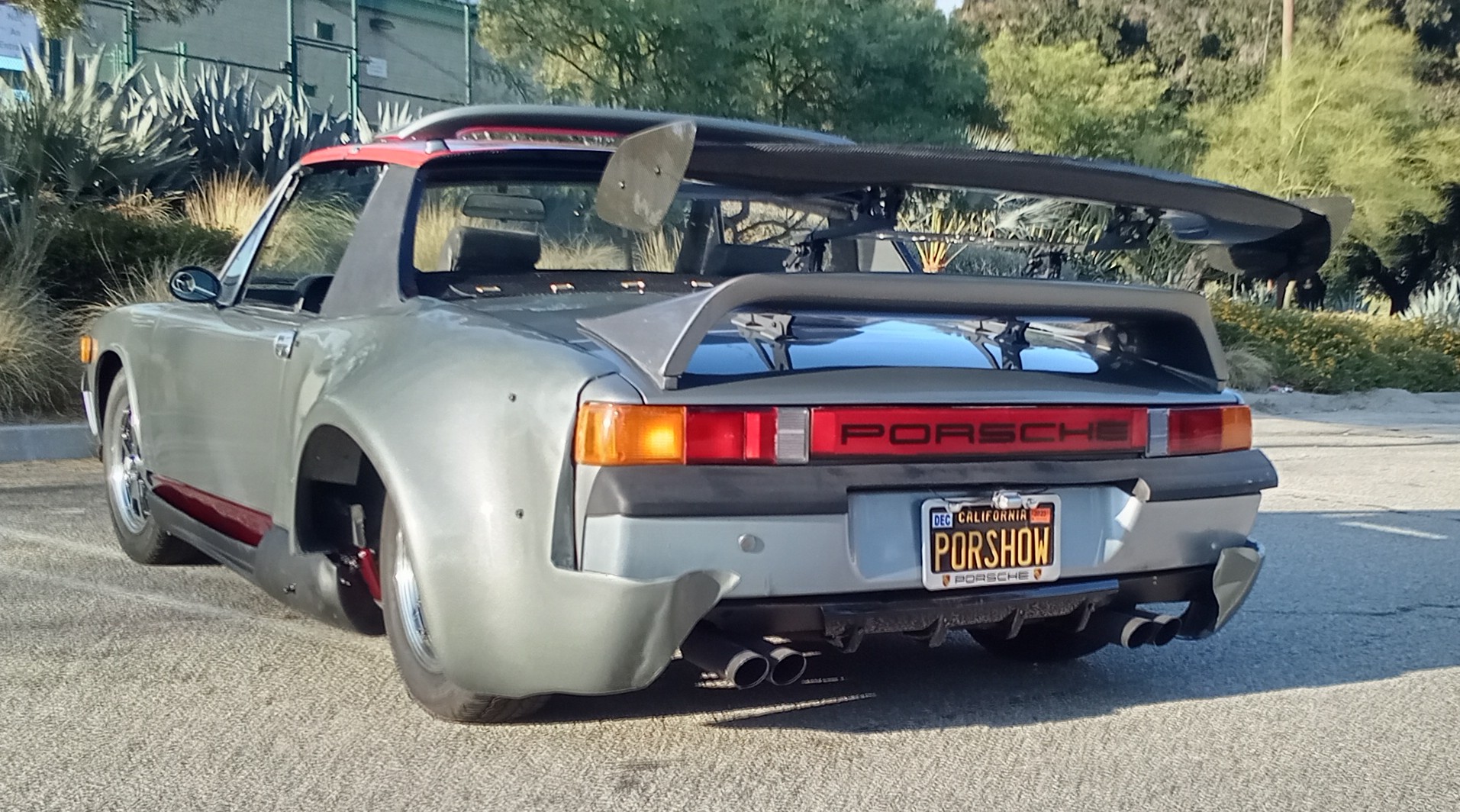

Film shot from last year's PCA ünStock Show in Burbank CA.
QUOTE(davenorcal @ Aug 13 2023, 08:56 AM)
With help from many of you on this forum she is back on the road…fog lights come on without the headlights being on, new fuse panel, high-beam problem resolved, Boxster caliper alignment solved, new 16” Fuchs with black centers…
@davenorcal Nice rice! You in the bay area? Where did you get the hood pins?
Make sure to get some padding on that rollbar!
Chattanooga Tn
-Phil
-Phil
American Fork Canyon, UT
QUOTE(Justinp71 @ Sep 22 2023, 11:54 AM)
QUOTE(davenorcal @ Aug 13 2023, 08:56 AM)
With help from many of you on this forum she is back on the road…fog lights come on without the headlights being on, new fuse panel, high-beam problem resolved, Boxster caliper alignment solved, new 16” Fuchs with black centers…
@davenorcal Nice rice! You in the bay area? Where did you get the hood pins?
Make sure to get some padding on that rollbar!
Sorry for my late response…i did not build the car, so unfortunately I do not know the source of the pins. 10-4 on the bar padding.
'73 2.0. Tampa, FL. Too many mods (improvements?) to list here.Click to view attachment
Click to view attachment Click to view attachment
Newly acquired 914 2.0 , 1973 been fully restored from the shell up Click to view attachment Click to view attachment
Newly acquired 914 2.0 , 1973 been fully restored from the shell up Click to view attachment Click to view attachment
What wheels are those? Looks great.
QUOTE(Mikey1 @ Nov 8 2023, 02:18 PM)
Click to view attachment Click to view attachment
Newly acquired 914 2.0 , 1973 been fully restored from the shell up Click to view attachment Click to view attachment
Very very nice!
QUOTE(jackspratt @ Nov 27 2023, 11:40 PM)
What wheels are those? Looks great.
Minilites, thanks.
QUOTE(Mikey1 @ Nov 8 2023, 02:18 PM)
Click to view attachment Click to view attachment
Newly acquired 914 2.0 , 1973 been fully restored from the shell up Click to view attachment Click to view attachment
Good looking…congrats!
Hello All from France,
My new 914
The car is based on a 1,7L from 1971
Below is the specification.
Engine: -901/6 with cylinder capacity increased to 2,200 c.c. and compression ratio increased by 10: 1 - Weber IDA 40 coolers with improved flow rate Eurocarb.co.uk - Competition exhaust system with independent collectors - Calibrated and lightened engine volute - Petrol pump Facet high output - Petrol pressure regulator Facet Gearbox: -Dog Leg 901 coming from 914 of 1971 -Quaife self-locking differential -Quick shift Porsche Suspension: -Front from 911 3.2 with Bilstein Sport shock absorbers and upper diameter torsion bars (24mm) -Swivel stabilizer bar Weltmeister, adjustable - Rear, original 914 with shock absorbers Koni Racing - Stabilizer bar Porsche 914/6 Braking: -Driven from 911 3.2 with Ferodo DS2500 inserts -Outdoor rear brakes - Chassis brake: - Reinforced according to the recommended scheme for the original 914 GT with plates reinforcements in the rear spars and the entire base of the passenger compartment - Front headlight drive system, weight-Mittelmotore Other: - Electronic ignition system MSD - Simplified electrical installation - Engine oil cooling system with front radiator and air deflector type 914 GT - Anchorage of seat belts type 914 GT – Mittelmotore
The car as been completely stripped and transformed onto a GT.
My new 914
The car is based on a 1,7L from 1971
Below is the specification.
Engine: -901/6 with cylinder capacity increased to 2,200 c.c. and compression ratio increased by 10: 1 - Weber IDA 40 coolers with improved flow rate Eurocarb.co.uk - Competition exhaust system with independent collectors - Calibrated and lightened engine volute - Petrol pump Facet high output - Petrol pressure regulator Facet Gearbox: -Dog Leg 901 coming from 914 of 1971 -Quaife self-locking differential -Quick shift Porsche Suspension: -Front from 911 3.2 with Bilstein Sport shock absorbers and upper diameter torsion bars (24mm) -Swivel stabilizer bar Weltmeister, adjustable - Rear, original 914 with shock absorbers Koni Racing - Stabilizer bar Porsche 914/6 Braking: -Driven from 911 3.2 with Ferodo DS2500 inserts -Outdoor rear brakes - Chassis brake: - Reinforced according to the recommended scheme for the original 914 GT with plates reinforcements in the rear spars and the entire base of the passenger compartment - Front headlight drive system, weight-Mittelmotore Other: - Electronic ignition system MSD - Simplified electrical installation - Engine oil cooling system with front radiator and air deflector type 914 GT - Anchorage of seat belts type 914 GT – Mittelmotore
The car as been completely stripped and transformed onto a GT.
under engine
during restoration
Headlight
This is a "lo-fi" version of our main content. To view the full version with more information, formatting and images, please click here.
